Performance impact of mutation operators of a subpopulationbased genetic algorithm for multirobot task allocation problems
 Chun Liu^{1, 2}Email authorView ORCID ID profile and
 Andreas Kroll^{2}
 Received: 8 June 2016
 Accepted: 9 August 2016
 Published: 18 August 2016
Abstract
Multirobot task allocation determines the task sequence and distribution for a group of robots in multirobot systems, which is one of constrained combinatorial optimization problems and more complex in case of cooperative tasks because they introduce additional spatial and temporal constraints. To solve multirobot task allocation problems with cooperative tasks efficiently, a subpopulationbased genetic algorithm, a crossoverfree genetic algorithm employing mutation operators and elitism selection in each subpopulation, is developed in this paper. Moreover, the impact of mutation operators (swap, insertion, inversion, displacement, and their various combinations) is analyzed when solving several industrial plant inspection problems. The experimental results show that: (1) the proposed genetic algorithm can obtain better solutions than the tested binary tournament genetic algorithm with partially mapped crossover; (2) inversion mutation performs better than other tested mutation operators when solving problems without cooperative tasks, and the swapinversion combination performs better than other tested mutation operators/combinations when solving problems with cooperative tasks. As it is difficult to produce all desired effects with a single mutation operator, using multiple mutation operators (including both inversion and swap) is suggested when solving similar combinatorial optimization problems.
Keywords
 Multirobot task allocation
 Genetic algorithms
 Constrained combinatorial optimization
 Mutation operators
 Subpopulation
Introduction
Multirobot task allocation (MRTA) determines the task distribution and schedule for a group of robots in multirobot systems (Gerkey and Matarić 2004). It is a constrained combinatorial optimization problem, which usually provides solutions to minimize the cost or maximize the profit while satisfying some operational constraints. MRTA problems without cooperative tasks are similar to multiple traveling salesman problems, both of them are NP (nondeterministic polynomialtime) hard optimization problems. MRTA problems with cooperative tasks are more complex and strongly NPhard (Gerkey and Matarić 2004), because each cooperative task requires at least two robots to carry it out simultaneously, which introduces both spatial and temporal constraints.
For solving an MRTA problem, the first important thing is to understand what the tasks are. In general, tasks in an MRTA problem can be classified into singlerobot tasks and multirobot tasks (Gerkey and Matarić 2004). A singlerobot task is carried out by a single robot. A multirobot task requires multiple robots to perform, which is also referred to as cooperative task. Tasks vary in different practical applications. Moreover, the problem complexity increases with the number of robots required for each cooperative task.
In the industrial plant inspection, two types of the inspection tasks exist according to the measurement method and detection sensors (Bonow and Kroll 2013; Ordoñez Müller and Kroll 2013): singlerobot tasks and tworobot tasks (cooperative tasks, each of which requires two robots to carry out simultaneously). This paper aims at developing an efficient algorithm to solve the multirobot tasks allocation problems for the industrial plant inspection.
The contributions of this paper include: (1) the development of the subpopulationbased genetic algorithm, this algorithm employs mutation operators and elitism selection in each subpopulation, and can solve the multirobot tasks allocation problems for industrial plant inspection efficiently; and (2) the recommendation of mutation operators for solving multirobot task allocation problems and similar optimization problems, i.e., using multiple mutation operators (including both inversion and swap) is suggested.
Background
Related works on multirobot task allocation problems
To find good solutions efficiently for multirobot task allocation problems, many approaches have been developed, such as genetic algorithms (Jones et al. 2011; Liu and Kroll 2012a), hybrid genetic algorithms (Liu and Kroll 2015; Ni and Yang 2012), auctionbased algorithms (Das et al. 2015), behaviorbased algorithms (Butler and Hays 2015), negotiationsbased approaches (Rossi et al. 2015). Some of them can solve MRTA problems both without and with cooperative tasks, but some only can solve problems without cooperative tasks.
Goldberg et al. (2003) proposed a distributed layered architecture for multirobot systems. This architecture includes three layers: planning layer, executive layer, and behavior layer. In the planning layer, a marketbased approach was developed to allocate tasks. Based on the market economy, Dias (2004), Zhang and Parker (2013) developed TraderBots and IQASyMTRe. Cicirello and Smith (2001, 2002) presented a decentralized mechanism for coordinating factory operations in behavioral models. Similar behaviorbased algorithms include ALLIANCE (Parker 1998) and BLE (Werger and Matarić 2000). These methods can quickly deal with new tasks and dynamic environmental information during execution. Different from distributed/decentralized methods mentioned above, this paper focuses on centralized approaches and aims at providing the optimal solution for multirobot task allocations with cooperative tasks.
Related works on genetic algorithms
A genetic algorithm (GA) (Mitchell 1998) is a centralized heuristic method inspired by biological evolution. It is widely used for optimization and search problems because of its simplicity, high flexibility in problem modeling, and good global search capability. Many genetic algorithms have been developed to solve optimization problems in computational science, engineering, economics, and other fields. For example, in engineering applications, genetic algorithms have been used to solve the design of roof structures (Kociecki and Adeli 2014), assembly problems (Akpınar and Bayhan 2011), and industrial plant inspection planning problems (Liu and Kroll 2012a).
Selection, crossover, and mutation operators maintain the population diversity (Mc Ginley et al. 2011), and also influence the performance of genetic algorithms. Therefore, many efforts have been devoted to the design of these operators; for example, a new selection strategy based on population recombination and elitist refinement (Kwak and Lee 2011), a twopart chromosome crossover operator (Yuan et al. 2013), and a greedy sub tour mutation operator (Albayrak and Allahverdi 2011) have been developed to improve the efficiency of genetic algorithms. Crossover and mutation are the main search operators of genetic algorithms. They play different roles in genetic algorithms: crossover tends to preserve the features of the parents, while mutation tends to make some small local perturbation of individuals. Compared to crossover, mutation is usually considered as a secondary operator with a low probability in standard genetic algorithms (Holland 1992). This could be due to the fact that a large mutation rate would make genetic algorithms to search randomly. However, many studies have shown that genetic algorithms without crossover can perform better than standard genetic algorithms, if mutation is combined with an effective selection operator (Fogel and Atmar 1990; Liu and Kroll 2012b; Osaba et al. 2014; Walkenhorst and Bertram 2011).
Mutation is carried out with a single parent and plays an important role in increasing the population diversity. Various mutation operators have been developed for different solution representations: bit inversion mutation for binary coding (Holland 1992); swap, insertion, inversion and displacement for permutation coding (Larrañaga et al. 1999); Gaussian mutation (Sarangi et al. 2015), polynomial and power mutation for real coding (Deb and Deb 2012; Deep and Thakur 2007). Some mutation operators are problemdependent, such as greedy sub tour mutation for traveling salesman problems (Albayrak and Allahverdi 2011) and energy mutation for multicast routing problems (Karthikeyan et al. 2013). Some studies suggest a mutationcombination (Deep and Mebrahtu 2011) or selfadaptive mutation operators (Hong et al. 2000; Mc Ginley et al. 2011; Serpell and Smith 2010). The performance of different mutation operators highly depends on the parameter choice of genetic algorithms (Brizuela and Aceves 2003; Osaba et al. 2014; Wang and Zhang 2006) and the type of problems (Hasan and Saleh 2011; Karthikeyan et al. 2013). Most of related work studied problems without cooperative tasks, such as traveling salesman problems (Albayrak and Allahverdi 2011; Deep and Mebrahtu 2011) and flow shop scheduling (Nearchou 2004; Wang and Zhang 2006). In this paper, the performance of mutation operators will be analyzed when solving multirobot task allocation problems without or with cooperative tasks.
Permutation coding is used to represent solutions in this paper, which will be illustrated in section “Methods”. As a natural coding, permutation representation is widely used for many search and optimization problems, such as traveling salesman problems, vehicle routing problems, job scheduling problems, task assignment problems. Permutation problems can be classified into three types according to what influences solution fitness (Cicirello 2015, 2016; Cicirello and Cernera 2013; Hernando et al. 2016; Schiavinotto and Stützle 2007; Sörensen 2007; TayaraniN. and PrügelBennett 2014): Apermutation (absolute element positions most impact fitness), Rpermutation (relative ordering most impacts fitness), and Ppermutation (elements’ precedence impacts fitness). Cicirello (2016) theoretically analyzed the performance of several common mutation operators on different permutation problems. Multirobot task allocation problems studied in this paper are blendedpermutation problems as both task assignments among robots and task scheduling for each robot impact the fitness. The performance of different mutation operators on solving these problems will also be analyzed in this paper.
Multirobot task allocation problems for industrial plant inspection
Characteristics of tasks
Assumptions of the problem
Objective and constraints
 (EC1)
Each cooperative task is carried out by two different robots.
 (EC2)
Two subtasks of each cooperative task are started at the same time.
 (EC3)
When two robots are scheduled to carry out a cooperative task, all tasks that are assigned to both robots before this cooperative task have to be executable and finished.
Methods
Solution representation

A chromosome is a string of genes and represents the sequence of all \(N^T\) tasks. Each gene represents a task and is denoted as an integer in the range of \([1,N_T]\). Each chromosome consists of \(N^T\) distinct integers in the range of \([1,N_T]\).

A geneapportion is a set of \(N^R1\) distinct integers in the range of \([1,N_T1]\), which splits a chromosome into \(N^R\) parts for \(N^R\) robots.
Coordinates and inspection time of each subtask in Fig. 4
Subtask  \(P_1\)  \(P_2\)  \(P_3\)  \(P_4\)  \(P_5\)  \(P_6\)  \(P_7\)  \(P_8\)  \(P_9\)  \(P_{10}\)

x  3  3  3  7  7  7  7  10  10  10
y  13  9  4  3  5  9  13  13  9  4
Inspection time  1  6  1  1  1  1  1  1  1  1
Coordinates of home base of each robot in Fig. 4
Home base  \(S_1\)  \(S_2\)  \(S_3\)

x  4  5  6
y  1  1  1
Traveling time between home bases and subtasks in Fig. 4
Traveling time  \(P_1\)  \(P_2\)  \(P_3\)  \(P_4\)  \(P_5\)  \(P_6\)  \(P_7\)  \(P_8\)  \(P_9\)  \(P_{10}\)

\(S_1\)  12.4  8.4  3.4  3.8  5.2  9.2  13.2  16.2  12.2  8.4
\(S_2\)  12.8  8.8  3.8  2.8  4.8  8.8  12.8  15.8  11.8  7.4
\(S_3\)  13.2  9.2  4.2  2.4  4.4  8.4  12.4  15.4  11.4  6.4
Traveling time between any pair of subtasks in Fig. 4
Traveling time  \(P_1\)  \(P_2\)  \(P_3\)  \(P_4\)  \(P_5\)  \(P_6\)  \(P_7\)  \(P_8\)  \(P_9\)  \(P_{10}\)

\(P_1\)  0.0  4.0  9.0  11.7  9.7  5.7  4.0  18.7  14.7  13.7
\(P_2\)  4.0  0.0  5.0  7.7  5.7  4.0  5.7  15.2  11.2  10.2
\(P_3\)  9.0  5.0  0.0  4.4  4.4  6.7  10.7  14.8  10.8  9.8
\(P_4\)  11.7  7.7  4.4  0.0  2.0  6.0  10.0  13.0  9.0  6.0
\(P_5\)  9.7  5.7  4.4  2.0  0.0  4.0  8.0  11.0  7.0  6.0
\(P_6\)  5.7  4.0  6.7  6.0  4.0  0.0  4.0  13.0  9.0  8.0
\(P_7\)  4.0  5.7  10.7  10.0  8.0  4.0  0.0  17.0  13.0  12.0
\(P_8\)  18.7  15.2  14.8  13.0  11.0  13.0  17.0  0.0  4.0  9.0
\(P_9\)  14.7  11.2  10.8  9.0  7.0  9.0  13.0  4.0  0.0  5.0
\(P_{10}\)  13.7  10.2  9.8  6.0  6.0  8.0  12.0  9.0  5.0  0.0
 (1)
For singlerobot tasks, each gene is directly decoded as its corresponding task; see Fig. 5a.
 (2)For cooperative tasks, two subtasks of each cooperative task should be decoded. The main idea of the following decoding is to minimize the waiting time. According to the genotype, it is obvious that each cooperative task is already assigned to a robot \(R_k\), e.g. \(T_6\) is assigned to \(R_k =R_2\). Hence, the next step is to find the second robot \(R_s\) so that two robots can carry it out cooperatively (satisfying the constraint EC1). For each cooperative task \(T_l=(P_\alpha ',P_\beta ')\) that is carried out by robot \(R_k\) after finishing \(P_\gamma\) according to the genotype of an individual, the decoding process is:
 (S1)
One subtask of \(T_l =(P_\alpha ',P_\beta ')\), which is closest to robot \(R_k\) when it finishing \(P_\gamma\), is denoted as \(P_\alpha\); the other subtask of \(T_l\) is denoted as \(P_\beta\). That is, \(P_\alpha\) must satisfies \(c_{\alpha \gamma k}^t \le c_{\beta \gamma k}^t\), where \(c_{ijk}^t\) is the traveling time of robot \(R_k\) from one subtask \(P_i\) to another subtask \(P_j\). Subtask \(P_\alpha\) is assigned to robot \(R_k\) after finishing \(P_\gamma\).
 (S2)
Subtask \(P_\beta\) is inserted at the “best” position of the task sequences of robots \(R_s\in (R \backslash R_k)\) to satisfy the constraint EC1. Denoting \(\tau _i ^a\) as the arriving time of a robot at \(P_i\), the waiting time must be \(c^w=\left \tau _\alpha ^a  \tau _\beta ^a \right\) to satisfy the constraint EC2. If \(\tau _\alpha ^a < \tau _\beta ^a\), robot \(R_k\) waits for \(c^w\) at the inspection position of \(P_\alpha\) until robot \(R_s\) arrives at the inspection position of \(P_\beta\); otherwise robot \(R_s\) waits for \(c^w\) at the inspection position of \(P_\beta\) until robot \(R_k\) arrives at the inspection position of \(P_\alpha\). The “best” position is the position that provides the least waiting time for performing this cooperative task, which is calculated by enumerating all possible positions of the task sequences of robots \(R_s\). To satisfy the constraint EC3, this decoding is carried out starting from the cooperative task that a robot meets first, so that all decoded phenotypes are feasible for execution. The steps of this decoding are:
(S2.1) Calculate the arriving time \(\tau _\alpha ^a\) for all cooperative tasks denoted as a set \(T^T\);
(S2.2) Sort \(T^T\) in ascending order by \(\tau _\alpha ^a\);
(S2.3) For the first cooperative task of \(T^T\), insert its \(P_\beta\) to all possible positions and calculate \(c^w\); find the best position that provides the minimal \(c^w\); insert \(P_\beta\) to the best position, delete this cooperative task from \(T^T\), recalculate \(\tau _\alpha ^a\).
(S2.4) Repeat (S2.2)–(S2.3) until all cooperative tasks are decoded.
 (S1)
Using this representation, each individual (solution candidate) includes a genotype and a phenotype. In the proposed genetic algorithm, the chromosomes of the genotypes are mutated for generating offspring; phenotypes are used to calculate the completion time.
Process of the developed genetic algorithm
Parameters Parameters of the genetic algorithm are set at the beginning, such as population size (\(pop\_siz\)), subpopulation size (\(pop\_sub\)), elite count (\(eli\_cnt\)), mutation probability (\(p_m\)), and termination criterion (\(gen\_num\)).
Initial population The initial population is randomly produced based on the permutation coding, that is, both the chromosome and geneapportion of each genotype in the initial population are generated at random based on encoding strategy.
Fitness calculation All genotypes should be decoded as phenotypes according to the decoding procedure before fitness calculation. The fitness of each individual means the completion time that is calculated according to the fitness function (1).

The chromosome of a new offspring is produced by swap, insertion, inversion, or displacement mutation. Swap mutation exchanges two randomly selected genes. Insertion mutation moves a randomly chosen gene to another randomly chosen place. Inversion mutation reverses a randomly selected gene string. Displacement mutation inserts a random string of genes in another random place. Insertion can be considered as a special displacement.

The geneapportion of a new offspring is generated with a probability \(p_a\); otherwise, the geneapportion of the parent is kept for the offspring. A geneapportion is defined by \(N^R1\) integers. Each element in a new geneapportion is generated by rounding a number that is randomly selected within the range of \([1,N^T]\) according to a standard normal distribution (\(\mu , \sigma ^2\)). \(\mu\) is the cumulative average of the geneapportion of the best individual obtained in each previous generation; \(\sigma =0.03 \times N^T\) is used in this paper. This geneapportion procedure will choose numbers that are near to the cumulative average, with a higher probability.
Comparison of the subpopulationbased genetic algorithm and standard genetic algorithms
Selection First, elites keeping in the new generation are different: a number of superior individuals in the whole population are selected in standard genetic algorithms, while elites in each subpopulation are chosen in the subpopulationbased genetic algorithm. The subpopulationbased genetic algorithm can keep both the current best solution and the local optima that may avoid the population being dominated by a fewer “super” individuals. Second, tournament selection is performed in the whole population randomly, while parents are selected from each nonoverlapping subpopulation in the subpopulationbased genetic algorithm. Parents from nonoverlapping subpopulations are distributed evenly in the solution space of the current population, which may avoid keeping too many better/worse individuals or missing some local optima.
Crossover and mutation Both crossover and mutation are used to produce offspring in standard genetic algorithms, while only mutation operator is used in the proposed genetic algorithm. The \(best\_num\) superior individuals in each subpopulation are mutated, while the rest is not used to produce offspring. \(pop\_subeli\_cnt\) offspring in each subpopulation are generated by mutation with a probability of \(p_m=1\). Note that, \(p_m=1\) does not mean a random search because: the mutation operator is performed in each subpopulation, and \(eli\_cnt\) superior individuals in each subpopulation are kept in the new generation without mutation.
Time complexity The procedure of generating a new population in standard genetic algorithms is more complex than that in the proposed subpopulationbased genetic algorithm. The time complexity of the selection in standard genetic algorithms is \(O(pop\_sizeli\_cnt)\), because \(pop\_sizeli\_cnt\) parents are selected. As illustrated above, the time complexity of the selection in the subpopulationbased genetic algorithm is \(O(best\_num \cdot pop\_siz/pop\_sub)\). The time complexity of swap is O(1) as it is independent of the chromosome length. The time complexity of insertion, inversion, and displacement is \(O(N^T)\) as in the worst case all genes have to be changed. Many crossover alternatives such as partially mapped crossover (PMX) (Goldberg and Lingle 1985), position based crossover, order crossover, and cycle crossover have been proposed for permutation representation. The work of Larrañaga et al. (1999) shows that order crossover is the best crossover and PMX is the fastest crossover when solving smallscale traveling salesman problems. The work of Mudaliar and Modi (2013) shows that PMX is the best crossover when solving traveling salesman problems. The performance of different crossover highly depends on problems. Taking PMX as an example, the mapping relationship between selected numg genes from each pair of parents should be built to legalize the offspring. The time complexity of PMX is \(O(numg+N^T)\) in the worst case: all numg genes should be mapped from one parent to the other and all genes have to be changed.
Results

Prob.A involves 90 singlerobot tasks that are distributed in rows; its inspection area is similar to that shown in Fig. 2 but all tasks are singlerobot tasks.

Prob.B involves 100 singlerobot tasks that are distributed in islands; its inspection area is similar to that shown in Fig. 3 but all tasks are singlerobot tasks.

Prob.C involves 80 singlerobot tasks and 5 cooperative tasks, and all tasks are distributed in rows; see Fig. 2.

Prob.D involves 90 singlerobot tasks and 5 cooperative tasks, and all tasks are distributed in islands; see Fig. 3.
Prob.A and Prob.B are multirobot task allocation problems without cooperative tasks. Prob.C and Prob.D are multirobot task allocation problems with cooperative tasks. These scenarios have been used as test cases already in Liu (2014), Liu and Kroll (2015) to compare the performance of different encoding and decoding strategies.
In the experiments, each tested genetic algorithm is performed with a population size of \(pop\_siz=200\) and the number of generations chosen as \(gen\_num=10^4\). To statistically evaluate the performance of the proposed genetic algorithm, 20 independent runs of each algorithm are implemented on an Intel Core i3 PC with 3.2 GHz, 8 GB (RAM), Windows 7 Professional, MATLAB R2011b. More runs could provide more accurate results but require more CPU time. Hence, 20 independent runs are carried out to restrict the computational effort, and analysis of variance (ANOVA) is used to check whether the performance differences (solution quality) between the different genetic algorithms are statistically significant. If the value of the significance level is smaller than 0.05, the effects of genetic algorithms are assessed to be statistically significant at a level of confidence of 95 %.
Experiment 1: Subpopulationbased versus binary tournament GA
Parameter choice in the experiments
Parameter  Subpopulationbased GA  Standard GA

\(pop\_sub\)  10  –
\(tor\_siz\)  –  2
\(eli\_cnt\)  2  2
\(best\_num\)  1  –
\(p_c\)  –  0.9
\(p_m\)  1  0.01
\(p_a\)  0.2  0.2
Crossover  –  PMX
Mutation  Inversion  Inversion
Completion time J in sec. and average CPU time in sec. for different genetic algorithms
Problem  Criterion  Subpopulationbased GA  Standard GA

Prob.A  \(J_{\mathrm{min}}\)  170.06  250.03
\(J_{\mathrm{mean}}\)  189.55  290.07
\(J_{\mathrm{max}}\)  225.56  319.12
CPU  988  1432
Prob.B  \(J_{\mathrm{min}}\)  185.95  257.16
\(J_{\mathrm{mean}}\)  207.03  300.45
\(J_{\mathrm{max}}\)  228.75  355.11
CPU  1028  1423
Prob.C  \(J_{\mathrm{min}}\)  252.72  348.52
\(J_{\mathrm{mean}}\)  292.78  414.79
\(J_{\mathrm{max}}\)  376.46  500.94
CPU  2419  2732
Prob.D  \(J_{\mathrm{min}}\)  255.96  374.93
\(J_{\mathrm{mean}}\)  333.07  448.25
\(J_{\mathrm{max}}\)  383.95  480.42
CPU  2580  2885
The experimental results are recorded in Table 6, which indicate that the proposed subpopulationbased genetic algorithm provides better solutions and requires less CPU time than the tested binary tournament genetic algorithm. An ANOVA test shows that the differences in the solution quality between these two genetic algorithms are statistically significant. Randomly choosing 5 from the 20 runs of each genetic algorithm, the solution quality (completion time) of the best solution candidate in each generation is shown in Fig. 6. It is obvious that the subpopulationbased genetic algorithm converges significantly faster than the tested binary tournament genetic algorithm within the first 1000 generations.
This experiment indicates that the proposed genetic algorithm based on subpopulations performs better than the tested binary tournament genetic algorithm with PMX crossover when solving multirobot task allocation problems, especially when requiring less CPU time and a fewer generations.
Experiment 2: Subpopulationbased GA with single mutation operator
Subpopulationbased genetic algorithm with different mutation operators
Genetic algorithm  Mutation operator(s)

GA1  Swap
GA2  Insertion
GA3  Inversion
GA4  Displacement
GA5  Swap and inversion
GA6  Insertion and inversion
GA7  Displacement and inversion
GA8  Swap, insertion, inversion, and displacement
The second experiment tests the performance of the subpopulationbased genetic algorithms with a single mutation operator (GA1–GA4 in Table 7); each mutation operator produces \(pop\_subeli\_cnt=8\) offspring in each subpopulation. The results are shown in Fig. 7. An ANOVA test shows that: (1) inversion (GA3) performs significantly better than the other three mutation operators when solving Prob.A and Prob.B; (2) the differences in the solution quality are not statistically significant when using swap, inversion, and displacement to solve Prob.C and Prob.D.
Experiment 3: Subpopulationbased GA with multiple mutation operators
Completion time J in sec. for the subpopulationbased genetic algorithm with different mutation operators
Problem  Criterion  GA1  GA2  GA3  GA4  GA5  GA6  GA7  GA8

Prob.A  \(J_{\mathrm{min}}\)  240.87  259.00  170.06  207.28  184.07  178.41  170.10  169.73
\(J_{\mathrm{mean}}\)  273.98  310.50  189.55  225.93  200.86  198.31  200.00  197.73
\(J_{\mathrm{max}}\)  314.81  396.67  225.56  278.89  224.40  245.39  229.00  223.99
Prob.B  \(J_{\mathrm{min}}\)  228.42  293.00  185.95  222.65  193.22  193.25  191.36  189.00
\(J_{\mathrm{mean}}\)  260.16  345.23  207.03  243.05  206.74  206.91  213.62  204.46
\(J_{\mathrm{max}}\)  294.05  390.84  228.75  270.26  227.21  246.90  234.23  229.72
Prob.C  \(J_{\mathrm{min}}\)  270.50  328.82  252.72  234.96  220.76  251.82  248.93  222.82
\(J_{\mathrm{mean}}\)  308.14  384.37  292.78  321.59  256.44  298.16  312.96  257.80
\(J_{\mathrm{max}}\)  388.62  440.42  376.46  434.31  302.74  328.96  390.78  324.31
Prob.D  \(J_{\mathrm{min}}\)  252.29  340.35  255.96  285.73  218.58  242.96  245.62  220.00
\(J_{\mathrm{mean}}\)  306.57  365.23  333.07  335.02  261.11  302.09  294.19  252.44
\(J_{\mathrm{max}}\)  343.06  392.85  383.95  410.17  290.83  342.09  336.63  283.71
The results of all tested subpopulationbased genetic algorithms listed in Table 7 are shown in Fig. 9 and Table 8. GA3, GA5, and GA8 can provide better solutions than the other genetic algorithms. An ANOVA test shows that: (1) the differences in the solution quality using GA3, GA5, GA6, GA7, and GA8 are not statistically significant when solving Prob.A and Prob.B; (2) GA5 and GA8 perform significantly better than the other tested genetic algorithms when solving Prob.C and Prob.D.
The implementation of the subpopulationbased genetic algorithm and test results for solving Prob.C is available as Additional file 1.
Discussion

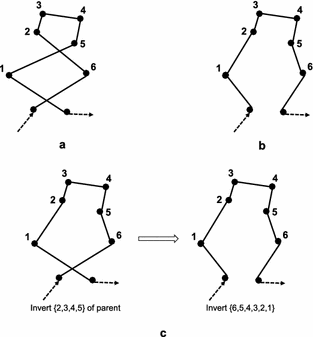

Experimental results show that inversion performs well when solving multirobot task allocation problems without cooperative tasks, which is similar to the study of solving traveling salesman problems (Albayrak and Allahverdi 2011; Deep and Mebrahtu 2011; Liu and Kroll 2012b). The swap and inversion combination performs well when solving multirobot task allocation problems with cooperative tasks, which could be due to the fact that they can improve solution candidates with crossed paths effectively.
In general, it is difficult to find the best mutation operator that could produce all desired effects. The influences of mutation operators vary in different genetic algorithms and in solving different problems. According to what most influences solution fitness, permutation problems were be classified into three major types (Cicirello 2015, 2016; Cicirello and Cernera 2013; Sörensen 2007). Cicirello (2016) theoretically analyzed the performance of several common mutation operators on different permutation problems, and suggested swap for most Apermutation problems and inversion for Rpermutation problems with undirected edges.
Multirobot task allocation problems studied in this paper are blendedpermutation problems, as both task assignments among robots and task scheduling for each robot impact the fitness. Therefore, the performance of mutation operators should be analyzed based on specific permutation problems.
In industrial plant inspection problems, good task allocations usually do not include crossed paths or only include a few crossed paths. Figure 10a shows an example where one cross may occur. Transforming permutation \(\{1,5,4,3,2,6\}\) (Fig. 10a) into \(\{1,2,3,4,5,6\}\) (Fig. 10b) needs at least: one inversion, that is, inverting \(\{5,4,3,2\}\); or two swaps, that is, swaping \(\{5\}\) and \(\{2\}\), then swaping \(\{4\}\) and \(\{3\}\); or three insertions/displacements, that is, inserting \(\{2\}\), \(\{3\}\), \(\{4\}\) before \(\{5\}\) sequentially. Figure 11a shows another example where two crosses may occur. Transforming permutation (a) to (b) in Fig. 11 needs at least: one swap, that is, swapping \(\{1\}\) and \(\{6\}\), see Fig. 11b; two inversions/insertions/displacements, see Fig. 11c, d. These two examples imply that proper swap is more efficient than inversion in case of many crossed paths. On the contrary, inappropriate swap produces worse solutions than inversion, e.g. swap produces two crosses, while inversion produces one cross in Fig. 12. Therefore, inversion can obtain better results than swap if given a large number of generations.
For mutation combinations, it is difficult to analyze which is the only operator that guides the evolutionary search, because: (1) an operator cannot guarantee to produce better offspring than parents; and (2) the best individual in \(n+1\) generation may not be generated by mating the best individual in n generation. Although there are no significant differences between results of GA5 and GA8, it cannot indicate that insertion and displacement mutation operators have no effect on the evolutionary search. Therefore, it cannot be said that one specific mutation operator is the best. Based on the experimental results, multiple mutation operators (including both inversion and swap) is suggested when solving similar combinatorial optimization problems.
Conclusion
The problem complexity significantly increases if cooperative tasks are involved because they introduce additional spatial and temporal constraints. To solve the multirobot task allocation problems without/with cooperative tasks for industrial plant inspection, a subpopulationbased genetic algorithm is developed. The proposed subpopulationbased genetic algorithm using just inversion mutation and selection obtains better solutions than the tested binary tournament genetic algorithm with partially mapped crossover (PMX) and inversion mutation. This provides the possibility of crossoverfree genetic algorithms. Succeeding, the impact of four mutation operators and four mutation operator combinations in the subpopulationbased genetic algorithm is analyzed to find suitable mutation operators for multirobot task allocation problems. The results indicate that inversion mutation performs well when solving problems without cooperative tasks, and the swapinversion combination performs well when solving problems with cooperative tasks. As it is difficult to produce all desired effects with a single mutation operator, using multiple mutation operators (including both inversion and swap) is suggested when solving similar combinatorial optimization problems.
