Interactions of antiparasitic sterols with sterol 14α-demethylase (CYP51) of human pathogens

Compound and protein structure preparation

Ligands used for this study were geometry optimized using the molecular mechanics force field (MMFF) algorithm in Spartan’10 for Windows ( 2011). The docking studies were carried out using the crystal structures of T. cruzi CYP51 (PDB Id: 3khm, 3zg2, 4h6O (Lepesheva et al. 2010; Hargrove et al. 2013; Andriani et al. 2013)), T. brucei CYP51 (PDB Id: 3g1q, 3gw9, 4g3j ( Hargrove et al)), M. tuberculosis CYP51 (PBD Id: 2ci0, 2w0a (Chen et al. 2009; Podust et al. 2007)), L. infantum CYP51 (PBD Id: 3l4d (Hargrove et al. 2011)), and H. sapiens CYP51 (3jus, 3juv, 3ld6 (Strushkevich and Usanov 2014; Strushkevich et al. 2010)) from the RCSB Protein Data Bank. The protein structures were used as rigid model structures, no relaxation was performed and assignments of ionic charges on each protein structure were based on standard protonation states and the default templates of Molegro Virtual Docker ( 2011b; Thomsen and Christensen 2006). The similarity search was carried out using the default sub-structure similarity search engine of the Dictionary of Natural Products ( 2013). Statisitical comparison was carried using GraphPad Prism.

Docking simulation and scoring

Flexible ligand models were used for docking and post-docking geometry optimizations. The post-docking geometry optimizations were carried out using the Nelder-Mead Simplex method in Molegro Virtual Docker. Simulations were carried out using the substrate binding site of CYP51. A docking sphere (15 Å radius) was placed on the binding sites of each protein structure in order to allow different orientations of each ligand to be searched in the binding cavities and for multiple protein-ligand poses to be returned. The RMSD threshold for multiple cluster poses was set at <1.00 Å. The docking algorithm was set at maximum iterations of 1500 with a simplex evolution population size of 50 and a minimum of 30 runs for each ligand. Each binding site of oligomeric structures was searched, and the lowest energy pose (based on the re-rank scores) for each ligand across all protein structures are presented in Additional file 1: Table S1–S5. The docking scores of known CYP51 inhibitors N-1-(2,4-dichlorophenyl)-2-(1H-imidazol-1-yl)ethyl)-4-(5-phenyl-1,3,4-oxadi-azol-2-yl)benzamide and ketoconazole are presented in Additional file 1: Table S6, and PDB files of CYP51-ligand complexes discussed in this article are provided as Additional file 2 in the supporting information.

Antitrypanosomal sterols have high affinity for H. sapiens CYP51 in silico

From our previous work on T. brucei and L. infantum drug targets (Ogungbe and Setzer 2013; Setzer and Ogungbe 2012), we proposed that structural compatibility dictates the molecular recognition between antitrypanosomal sterol–type compounds and CYP51. The first aim of this work was to identify compounds that are selective for trypanosomal CYP51s in silico. This was accomplished via a comparative docking analysis involving 137 sterol-like antiparasitic natural products and the sterol 14α-demethylase from T. brucei, T. cruzi, M. tuberculosis, L. infantum and H. sapiens. The result of the simulations is presented in Additional file 1: Figure 1 and Table S1. The results show that about 50 percent of the antitrypanosomal compounds preferentially dock to the human CYP51. The top-five compounds for H. sapiens CYP51 are 3-acetylkhayalactone, carapolide A, gedunin, grandifolide A and swietenine (Docking energies are -142.12, -130.87, -128.70, -128.36 and -128.02 kJ/mol, respectively). 3-Acetylkhayalactone was predicted to bind favourably in a 157.70 Å³ cavity distal from the substrate binding site. The other four compounds were predicted to bind at the substrate binding site. Visual inspection reveals that they overlap with the co-crystallized ligand ketoconazole. The strongest docking poses of carapolide A and ketoconazole are shown in Figure 2. Some of the target residues for the limonoid carapolide A are Ala 311, Gly 307, Ile 377 and 488, Tyr 131 and 145, Thr 135, 315 and 318, and Phe 234. Most of those residues have been reported to participate in the interactions between human CYP51 and antifungal azoles (Strushkevich et al. 2010).

Substructure similarity search for selective sterols

A number of compounds studied were selective for T. cruzi CYP51. These include 20-epi-isoiguesterinol, isoiguesterin, khivorin, procerin, taraxerol, ursolic acid as well as α- and β-amyrin. Physalin K and procerin were selective for T. brucei CYP51. 7-Deacetylkhivorin was selective for M. tuberculosis CYP51 while 1-O-acetylkhayanolide B, physalin V, saringosterol and epi-oleanolic acid were selective for L. infantum CYP51 (Figure 3 and Table 1). A substructure similarity search was carried out for compounds that displayed selectivity towards CYP51 from T. brucei, T. cruzi, and L. infantum. This was carried out in order to identify sterol-like natural products that have strong docking affinities for CYP51s, and that can be evaluated as potential CYP51 inhibitors. We used the Dictionary of Natural Products DNP ( 2013) as a reference for those structures. From the similarity search, nine compounds were found to be structurally-related to 20-epi-isoiguesterinol and isoiguesterin. Out of the nine, eight are isomers of celastrol. The other compound was excelsine. The docking re-rank scores of those compounds, however, were less or about the same as those of 20-epi-isoiguesterinol and isoiguesterin for T. cruzi CYP51 (Additional file 1: Table S2).

In the case of khivorin, 7-deacetylkhivorin, physalin K and V, and 1-O-acetylkhayanolide B, all the structurally- related compounds found in the DNP were part of our original compound dataset while the structurally complex limonoid procerin lacks any structural congener. Seventy-nine and 304 compounds were found to share substructural similarity with taraxerol and ursolic acid, respectively. Several of the 79 taraxerol structural congeners have high docking affinity for T. cruzi CYP51. These include the hexadecanoyl derivative of 11,12-oxidotaraxerol, the 2,3-bis-(4-hydroxybenzoyl) derivative of sebiferenic acid, the 3-O-(E)-p-coumarate derivative of aleuritolic acid in addition to crassifoate and 3-caffeoylisomyricadiol (Figure 4 and Additional file 1: Table S3). The structural congeners of ursolic acid that have high docking affinity for T. cruzi CYP51 are the 3-(E)-feruloyl derivative of 2,3-dihydroxy-12-ursen-28-oic acid, 3-(Z)-feruloyl corosolic acid, 3-(E)-caffeoyl corosolic acid, 3-(Z)-caffeoyl corosolic acid and 2-(E)-feruloyl corosolic (Figure 4 and Additional file 1: Table S4). In the case of epi-oleanolic acid, α-amyrin, and β-amyrin, 1213 structural congeners were obtained and those compounds were used for docking simulations with T. cruzi CYP51 and L. infantum CYP51. Our result shows that β-amyrin eicosanoate, β-amyrin stearate and β-amyrin behenate as well as, β-amyrin linoleate and β-amyrin-palmitoleate have the top docking affinities for T. cruzi CYP51 (Figure 4 and Additional file 1: Table S5). For L. infantum CYP51; maniladiol stearate, erythrodiol 3-stearate, asprellic acid B, the 2-O-caffeate derivative of maslinic acid, and the 3-O-caffeate derivative of 20-epikatonic acid have the top docking affinities (Figure 4 and Additional file 1: Table S5).

Taraxerol structural congeners and T. cruzi CYP51

The triterpene taraxerol has been reported to have moderate antitrypanosomal and antiplasmodial activity (IC₅₀ = 10.5 μM for T. brucei rhodesiense and 8.5 μM for Plasmodium falciparum) (Gachet et al. 2011). We were unable to find any record of its biological activity against T. cruzi in the literature. The top structural congeners of taraxerol from the calculations are 3-hexadecanoyl 11,12-oxidotaraxerol and crassifoate. These compounds were isolated from the leaves of Erythroxylum passerinum and Nepeta crassifolia, respectively (Barreiros et al. 2002; Ibrahim and Ali 2007). The high docking energies of these compounds for T. cruzi CYP51 can be attributed to their relative bulkiness and shape. The orientation of the compounds in the substrate binding site of T. cruzi CYP51 is also atypical of sterols. Their long hydrophobic lipid moieties are in close proximity with the heme cofactor, while their triterpene-structural moieties occupies the hydrophobic access channel of the binding site. This is similar to what has been reported for the extended arm of posaconazole (Lepesheva et al. 2010) although structural model of CYP51 co-crystallized with fatty acid ester of any sterol is yet to be reported. It would be of particular importance to determine the orientation(s) of fatty acid esters of sterols in the CYP51 binding cavity experimentally. Nevertheless, the shape that the two compounds adopt in the theoretical models can be used to design similar-shaped compounds that possess heme inactivating functional groups in addition to elongated hydrophobic moieties like in the case of posaconazole.

The triterpene-structural moiety of 3-hexadecanoyl 11,12-oxidotaraxerol is predicted to interact with Met 460, Gly 49, Pro 210, Val 213 and Val 102 residues in the hydrophobic channel of the substrate binding site (Figure 5). The 3-O-caffeate derivative of isomyricadiol was predicted to have hydrogen bonding interactions with residues Tyr 103 and Met 358. It has favourable steric interactions with Ala 291, Met 284, Ala 115, Met 106, Ile 105 and Met 358 and 360. In the case of the 2,3-bis-(4-hydroxybenzoyl) derivative of sebiferenic acid, it has favorable steric interactions with Met 460, Tyr 116, Ala 115 and 291, Leu 356 and Val 213 in addition to hydrogen bonding interactions with Tyr 116 and the two propionic acid moiety of the heme co-factor as shown in Figure 6 while the lowest energy pose of the 3-O-p-coumarate derivative of aleuritolic acid have 460, Tyr 103 and 457, as well as an hydrogen bonding interaction with Ile 209.

epi-Oleanolic acid structural congeners and L. infantum CYP51

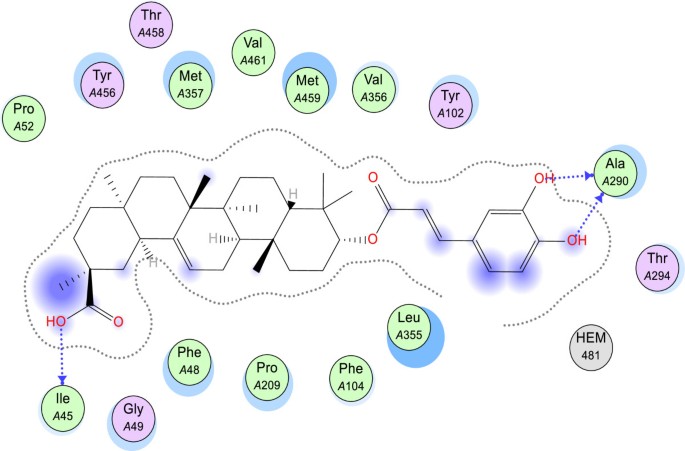

Several derivatives of oleanolic acid including epi-oleanolic acid have been reported to have weak to moderate antiprotozoal activities (Schmidt et al. 2012), however, the molecular targets or the mechanism(s) of action of these compounds are yet to be described. The results from this work showed that epi-oleanolic acid and a number of its congener have high docking affinities for L. infantum CYP51 relative to other antiparasitic sterols. In a similar fashion to taraxerol derivatives described above, the structural congeners of epi-oleanolic acids that have high docking affinity for L. infantum CYP51 possess either long hydrophobic tails or hydroxycinnamoyl groups (Figure 4 and Additional file 1: Table S5). These hydroxycinnamoyl groups were predicted to hydrogen bond with Ala 290, and they also have extensive steric interactions with the heme-cofactor (Figures 7 and 8). The 2-O-caffeate derivative of maslinic acid was predicted to have significant interactions (in terms of energy values) with Leu 355, Met 357 and Met 359, Phe 48, Tyr 102, and Val 356. Similarly, the 3-O-caffeate derivative of 20-epikatonic acid has significant interactions with Leu 355, Met 357 and 459, Phe 48, and Val 356. In the case of the asprellic acid B, the free acid group at position 28 was predicted to hydrogen bond with the heme co-factor while the caffeoyl moieties hydrogen bond with Ala 286 and His 457 (Figure 9). Cinnamate esters or hydroxycinnamates have not been reported to have inhibitory activity against CYP51. However, similar motifs have been reported to inhibit Cochliobolus lunatus benzoate hydroxylate (CYP53) (Korošec et al. 2014).

α/β-amyrin structural congeners and T. cruzi CYP51

The ubiquitous pentacyclic triterpenes α- and β-amyrin, as well as, their derivatives have been reported to exhibit antiprotozoal activities, amongst many other biological activities (Hoet et al. 2007; Mwangi et al. 2010; Schinor et al. 2007). However, they have not been reported to inhibit sterol 14α demethylase. In fact, the multifunctional cytochrome P450 AsCYP51H10 in Oats (Avena spp) has been shown to catalyze the epoxidation and hydroxylation of β-amyrin. The structural congeners of β-amyrin that have high affinity for T. cruzi CYP51 include β-amyrin eicosanoate, β-amyrin stearate, β-amyrin behenate, β-amyrin lineolate and β-amyrin palmitoleate. The sterol motif of those compounds was predicted to interact with similar residues in the TcCYP51 active site. These residues include Met 358 and 460, Leu 356, Ala 287, Tyr 103 and Lys 368. There is an exact spatial overlap of the sterol motif in the docking poses of the five lowest-energy fatty esters of β-amyrin (as shown in Figure 10) and steric interactions is the most predominate interactions predicted between T. cruzi CYP51 and these fatty esters. The hydrophobic tail of β-amyrin eicosanoate was predicted to adopt a kink conformation and was predicted to have steric interactions with His 468.
