NaCl-, protease-tolerant and cold-active endoglucanase from Paenibacillus sp. YD236 isolated from the feces of Bos frontalis


Bos frontalis, which consumes bamboo and weeds, may have evolved unique gastrointestinal microorganisms that digest cellulase. A Paenibacillus sp. YD236 strain was isolated from B. frontalis feces, from which a GH8 endoglucanase gene, pglue8 (1107 bp, 54.5 % GC content), encoding a 368-residue polypeptide (PgluE8, 40.4 kDa) was cloned. PgluE8 efficiently hydrolyzed barley-β-d-glucan followed by CMC-Na, soluble starch, laminarin, and glucan from black yeast optimally at pH 5.5 and 50 °C, and retained 78.6, 41.6, and 34.5 % maximum activity when assayed at 20, 10, and 0 °C, respectively. Enzyme activity remained above 176.6 % after treatment with 10.0 mM β-mercaptoethanol, and was 83.0, 78, and 56 % after pre-incubation in 30 % (w/v) NaCl, 16.67 mg/mL trypsin, and 160.0 mg/mL protease K, respectively. Cys23 and Cys364 residues were critical for PgluE8 activity. pglue8, identified from B. frontalis feces for the first time in this study, is a potential alternative for applications including food processing, washing, and animal feed preparation.


Cellulose is considered to be the most abundant renewable resource (Xiang et al. 2014). β-Glucans, which are homopolymers of d-glucose linked by β-glycosidic bonds, commonly exist as cellulose in plants, the bran of cereal grains, and the cell walls of yeast, fungi, and bacteria (Na et al. 2015). Cellulose is solubilized by cellulases, which can be classified into the following three categories per catalytic mechanism: endoglucanase (E.C., exoglucanase (E.C. and β-glucosidase (E.C. (Javed et al. 2009). Endoglucanases are usually involved in the initial stages of cellulose breakdown and act synergistically with exoglucanase and β-glucosidase during the solubilization of cellulose, which is an essential step in the bioprocessing of plant lignocellulosic materials into sugars (Yennamalli et al. 2011). It has been reported that lignocellulosic biomass can be converted to energy, feed, chemical raw materials via microbe-based technology (Zhou et al. 2012; Kumar et al. 2008). Endoglucanases, which have limited ranges of temperature and pH (Li et al. 2009), widely exist in nature and are extracted from bacteria, animals, and fungi, particularly from Trichoderma, Aspergillus, and Penicillium (Xiang et al. 2014). However, several bacterial endoglucanase genes have been isolated from many Bacillus species from various environments, such as B. subtilis (Qiao et al. 2009; Jung et al. 2010; Furtado et al. 2011), B. licheniformis (Teng et al. 2006), B. halodurans (Akita et al. 2005), B. circulans (Bueno et al. 1990), B. altitudinis (Mao et al. 2013), a Bacillus sp. (Kim et al. 2013), and Paenibacillus sp. (Na et al. 2015; Cheng et al. 2014). Many of them were found to be potential new tools for industrial applications.

Previous reports have indicated that endoglucanase may have potential applications in the food processing, textile, paper, animal feed, and renewable energy industries (MacDiarmid and Venancio 2006). However, these technologies have hardly been practically realized because of the high running cost and low enzyme yields (Li et al. 2009; Limauro et al. 2001; Ando et al. 2002; Huang and Monk 2004; Ng et al. 2009). Therefore, screening of enzyme activity of high endoglucanase has great value.

Bos frontalis is one of the most precious and endangered species of wild animals in China. They are widely distributed in Tibet and along the Nujiang river of Yunnan province in China, and they live in primitive forests at altitudes of 2000 m. Bamboo and weeds are the main constituents of their diet and thus it is likely that they harbor unique gastrointestinal microorganisms that possibly produces a novel cellulases. Thus far, the genes encoding this cellulases in Bos frontalis have not been reported.

Therefore, in this study, a strain of cellulase-producing bacterium was isolated from Bos frontalis feces and the endoglucanase gene was cloned. The gene was expressed in Escherichia coli, and the purified recombinant enzyme was characterized and showed tolerance to NaCl, protease and cold.


Vectors and reagents

Paenibacillus sp. YD236 was isolated from Bos frontalis feces from the Nujiang river of the Yunnan province, China. The taxon for YD236 was identified by 16S rDNA sequencing using the following primers: 27F and 1492R (Table 1).

Table 1 Primers used in this study

E. coli Trans1-T1 (TransGen, Beijing, China) was used for gene cloning, while the pEASY-E2 Expression Kit and E. coli BL21 (DE3) (TransGen) were used for gene expression. The Fast Mutagenesis System (TransGen, Beijing, China) was used for site-directed mutagenesis. The plasmid isolation kit was purchased from OMEGA (USA). Nickel-NTA agarose (Qiagen, Valencia, CA) was used for the His-tagged protein purification. DNA polymerases (rTaq and LA Taq) and dNTPs were purchased from TaKaRa (Otsu, Japan). Barley-β-d-glucan was purchased from Sigma (St. Louis, MO), laminarin, glucan from black yeast, cellobiose, cellotriose, cellotetraose and cellopentaose were obtained from J&K (Beijing, China), and TLC Silica gel 60 plates were from Merck KGaA (Germany). All other reagents were of analytical grade and were commercially available.

Microorganism isolation and identification

Bos frontalis fecal samples were collected from the Nujiang river in the Yunnan province, China. Fecal samples (10 g) were suspended in 0.7 % (w/v) NaCl and spread onto screening agar plates containing 0.2 % (w/v) carboxymethyl cellulose sodium salt (CMC-Na), 2 % (w/v) soluble starch, 0.02 % (w/v) Congo red, 0.1 % (w/v) KNO3, 0.05 % (w/v) NaCl, 0.05 % (w/v) K2HPO4, 0.05 % (w/v) MgSO4, 0.001 % (w/v) FeSO4·7H2O, 2 % (w/v) Agar, at pH ranging between 7.2 and 7.4.

Pure culture of the YD236 strain was obtained through repeated streaking on the screening agar plates at 37 °C.

Genome sequencing

Here, the YD236 genome was sequenced as follows:

Library preparation

YD236 genomic DNA was extracted using the OMEGA genomic DNA Isolation Kit, and assessed for quality using the NanoDrop-2000 (Thermo Scientific, Waltham, MA), quantified using the Qubit DNA Quantification Kit (Invitrogen, Carlsbad, CA), randomly fragmented using the Bioruptor sonicator (Diagenode, Liège, Belgium), and purified using Zymo Genomic DNA Clean and Concentration Kit (Orange, CA). The DNA library was then prepared using the NEBNext Ultra DNA Library Prep Kit from Illumina (San Diego, CA, USA), per the manufacturer’s instruction. Post adapter ligation, a library fragment size of appropriately 500 bp was chosen and PCR-enriched (for 10 PCR cycles). The library quality and quantity were confirmed using Bioanalyzer 2100 (Agilent, Santa Clara, CA, USA).


The MiSeq Reagent Kit V3 (Illumina) provided reagents for cluster amplification and sequencing on the Miseq system.

Data analysis

Real-time image analysis and base calling were performed using the compatible sequencing software RTA (Illumina). FASTAQ files were generated using CASAVA (Illumina) and loaded onto Velvet 1.2.07 for sequence assembly performed on a NF supercomputing server (Inspur, Shandong, China) (Zerbino and Birney 2008).

Sequence and structure analyses of endoglucanase

Genes and ORFs were predicted, and the glycoside hydrolase family of proteins was classified using dbCAN ( Signal peptides and domains in PgluE8 were predicted using SignalP ( and the Pfam online tool (, respectively. Identity values of DNA and protein sequences were calculated using BLASTN and BLASTP, respectively ( Multiple sequence alignment was performed using ESPritpt 3.0 ( Model building was performed using the SWISS-MODEL and Swiss-Pdb Viewer programs ( Phylogenetic tree construction were performed using MEGA6.0 (Tamura et al. 2013). Other sequential analyses were performed using the Vector NTI 10.3 software (InforMax, Gaithersburg, MD).

Expression of pglue8 in E. coli

The coding sequence (CDS) of pglue8 was amplified by PCR using the LA Taq DNA polymerase and the primers Pglu8F and Pglu8R (Table 1). The resulting PCR product was directly cloned into the pEASY-E2 vector by T-A ligation. The recombinant plasmid (pEASY-E2-pglue8) was transformed into E. coli BL21 (DE3) competent cells, and the positive transformants were subsequently identified by PCR analysis and confirmed by DNA sequencing. The transformant harboring pEASY-E2-pglue8 was picked up from a single colony and grown overnight at 37 °C in Luria–Bertani medium containing 0.1 mg/mL ampicillin. The culture was then inoculated at a 1:100 dilution into a culture-complex auto-inducing media (CAI) containing ampicillin and was cultured further at 25 °C for 24 h (Studier 2005).

Purification and identification of recombinant PgluE8

Cells were harvested by centrifugation at 5000×g at room temperature for 5 min and resuspended in McIlvaine buffer (pH 7.0). Cells were disrupted by sonication (7 s, 150 W) on ice several times and centrifuged at 13,000×g for 10 min at 4 °C. The supernatant was applied to a Ni2+-NTA agarose gel column for purification using a linear imidazole gradient of 20–500 mM in buffer A [20 mM Tris–HCl, 0.5 M NaCl, 10 % (v/v) glycerol, pH 7.2]. The purified protein was detected by 12 % sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE), and the in-gel band was excised and verified using matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) performed by Tianjin Biochip (Tianjin, China).

Enzyme assay

Endoglucanase activity was determined by measuring the release of reducing sugars from the substrate. A standard reaction comprised 900 μL of 0.7 % (w/v) substrate in Mcllvaine buffer (pH 5.5) and 100 μL of an appropriately diluted enzyme. After incubation at 37 °C for 10 min, the reaction was stopped using 1.5 mL of 3,5-dinitrosalicylic acid (DNS) reagent and the mixture was boiled at 100 °C for 5 min to produce a reddish-brown product quantifiable at 540 nm. One unit (U) of endoglucanase activity was defined as the amount of enzyme that catalyzed formation of 1.0 μmol of reducing sugars equivalent to glucose per minute. Enzyme activity was assayed by following this standard procedure unless otherwise noted.

Biochemical characterization

To characterize purified Pglu8 activity, various substrates including 0.7 % (w/v) CMC-Na, soluble starch, barley-β-d-glucan, laminarin, and glucan from black yeast (determined at pH 5.5 and 50 °C) were added to each reaction solution. Any further biochemical characterization were performed using barley-β-d-glucan as the substrate.

Optimal pH for endoglucanase activity of purified PgluE8 was determined at 37 °C in different buffers with pH values ranging from 2.0 to 12.0. pH stability of the enzyme was determined by incubating the enzyme solution in various buffers at 37 °C for 1 h. The buffers used were McIlvaine buffer (pH 2.0–8.0), 0.1 M Tris–HCl (pH 8.0–9.0) and 0.1 M glycine-NaOH (pH 9.0–12.0). The residual enzyme activity was measured under the standard assay conditions.

The optimal temperature for the activity of purified PgluE8 was determined over a range of 0–80 °C in McIlvaine buffer (pH 5.5). Thermostability of the enzyme was determined under standard assay conditions following pre-incubation of the enzyme for 1 h at 37, 50, or 60 °C, with the untreated enzyme defined as having 100 % activity.

Effects of different metal ions and organic reagents on the endoglucanase activity were determined in McIlvaine buffer (pH 5.5) at 50 °C. We added 1.0 or 10.0 mM (final concentration) CaCl2, NiSO4, CoCl2, MgSO4, KCl, ZnSO4, FeCl3, Pb(CH3COO)2, MnSO4, FeSO4, HgCl2, EDTA, β-mercaptoethanol, SDS, and 3.0–30.0 % (w/v) NaCl to the reaction solution. A reaction without metal ions or organic reagents was used as a control.

To examine its resistance to different proteases, 0.234 mg purified PgluE8 was incubated at 37 °C for 1 h with 9.09–66.67 mg/mL trypsin (pH 7.3) or 16.67–160 mg/mL proteinase K (pH 7.3). Effects of 3.0–30.0 % (w/v) NaCl (pH 7.5) on the endoglucanase activity were determined in McIlvaine buffer (pH 5.5) at 37 °C. To determine its resistance to salt stress, PgluE8 was incubated with 3.0–30.0 % (w/v) NaCl (pH 7.5) at 37 °C for 1 h. The residual enzyme activity was measured in the buffer and at temperatures corresponding to treated condition.

K m , V max , and k cat values for purified PgluE8 were determined using 0.05–1.5 % (w/v) barley-β-d-glucan as the substrate in McIlvaine buffer (pH 5.5) at 50 °C. Data were plotted according to the Lineweaver–Burke method (Zhou et al. 2012).

Hydrolysis products

Hydrolysis of barley-β-d-glucan (0.7 % w/v; pH 5.5) was performed with a reaction system of 1 U/mL purified PgluE8 at 50 °C for 1 and 3 h. Hydrolysis products were analyzed by thin layer chromatography (TLC) as previously described (Zhou et al. 2014). Glucose, cellobiose, cellotriose, cellotetraose and cellopentaose mixture were used as standards. Barley-β-d-glucan with the inactivated PgluE8 (100 °C for 5 min) was used as a control.

Site-directed mutagenesis

Site-directed mutagenesis was performed using the Fast Mutagenesis System (TransGen) using the following primers (modified codons underlined): E55AF and E55AR for the E55A mutant; D116AF and D116AR for the D116A mutant; C23GF and C23GR for the C23G mutant; C364GF and C364GR for the C364G mutant (Table 1). DNA manipulations were performed according to the manufacturer’s instructions. All mutation sites were confirmed by DNA sequencing. For expression, plasmids were transformed into E. coli BL21 (DE3) cells. Activity of the enzyme variants was determined at pH 5.5 and 50 °C. The purified PgluE8 was used as a control.

Nucleotide sequence accession numbers

Nucleotide sequences for the Paenibacillus sp. YD236 16S rDNA and endoglucanase gene (pglue8) were deposited in GenBank under accession numbers KR071621 and KR150023, respectively.


Strain identification

The comparison of the 16S rDNA sequence from YD236 (1458 bp,KR071621) with those in GenBank yielded nucleotide identities of 99 % with Paenibacillus amylolyticus strain KT5501 (AB115960), 98 % with Paenibacillus amylolyticus strain MLL-8 (JQ956529), and 98 % with Paenibacillus sp. 7B-841 (KF441702). Thus, the strain YD236 was classified into the genus Paenibacillus.

Genome sequencing and sequence analyses

Genome sequencing generated 470 Mbp of sequence data, which was 7.6 Mbp after sequence assembly. Local BLAST analysis revealed that the gene pglue8 was homologous to the glycosyl hydrolase family 8 (GH8) enzyme. Phylogenetic and BLASTp analyses PgluE8 (Fig. 1) with another twelve endoglucanase from different strains. BLASTp analysis showed that PgluE8 shared the highest identities with the cellulase from Shigella dysenteriae 1012 (EDX36877; 100 %) and with the cellulase from E. coli (ACQ91268; 99 %) (Li et al. 2009). Following that, PgluE8 showed 14.89, 3.68 and 5–25 % amino acid sequence identity with GH8 β-1,3-1,4-glucanase from Paenibacillus sp. X4 (Na et al. 2015), GH16 β-1,3-1,4-glucanase from Paenibacillus sp. S09 (Cheng et al. 2014), and with other endoglucanase, respectively.

Fig. 1

Phylogenetic tree constructed using the neighbor-joining method based on the amino acid sequences of endoglucanase from different strains

The full-length pglue8 (1107 bp) starts with the putative codon ATG and ends with TAA, encoding a 368 residues polypeptide with a calculated mass of 40.4 kDa. The signal peptide was predicted from M1 to A21.

By comparison with the GH8 endoglucanase BGlc8H (KF514662) (Na et al. 2015), Cel8A (JQ837268) (Ng et al. 2013), Pgl8A (AB644221) (Shinoda et al. 2012) and Cel124 (AY859541) (Xiang et al. 2014), the multiple sequence alignment of PgluE8 revealed a sequence from A114 to W132 amino acid residues (Fig. 2). The highly conserved residues necessary for the catalytic activities of GH8 enzymes have been reported to be one glutamate and one aspartate (Shinoda et al. 2012), and the active sites of the β-1,3-1,4-glucanase of Paenibacillus sp. X4 are Glu95 and Asp156 (KF514662) (Na et al. 2015). In this study, the site-directed mutants (Table 3), E55A and D116A, of PgluE8 showed nearly complete loss of enzyme activity, indicating that Glu55 and Asp116 are the catalytically active residues of PgluE8.

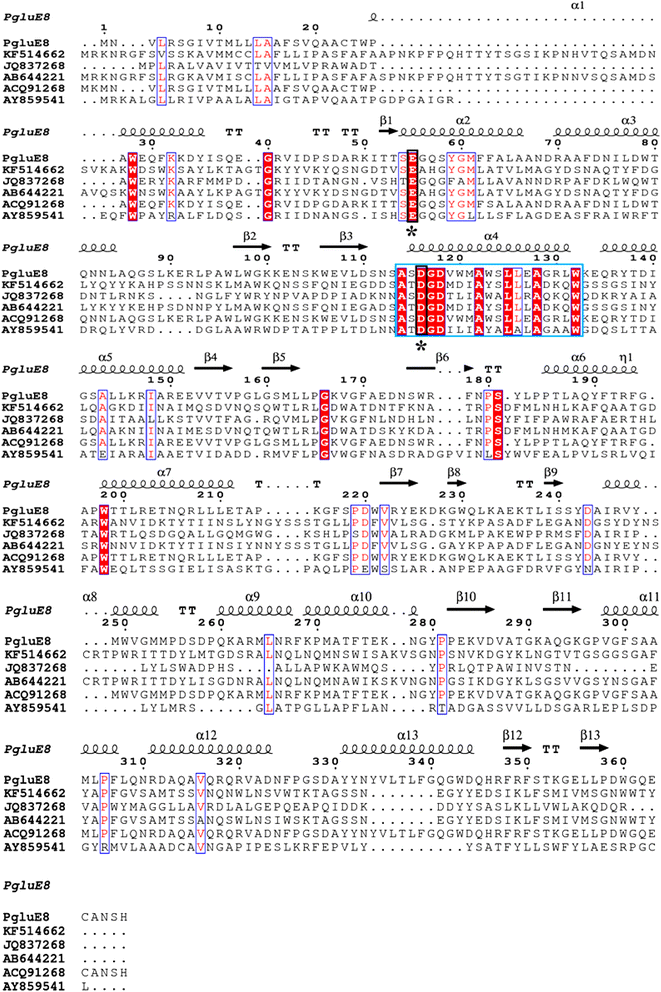

Fig. 2

Partial amino acid sequence alignment of PgluE8 with glycosyl hydrolase family 8 endoglucanases. Sequence names, except PgluE8, are shown with accession numbers as follows: BGlc8H from Paenibacillus sp. X4 (KF514662), Cel8A from Klebsiella pneumoniae (JQ837268), Pgl8A from Paenibacillus cookie (AB644221), and Cel124 from a metagenomic library (AY859541). Conserved residues indicated by black line frames. Asterisks indicate putative catalytic residues. Symbols above the sequences indicate the secondary structure

Expression, purification, and identification of PgluE8

PgluE8 were expressed in E. coli BL21 (DE3) (Fig. 3). PgluE8 and enzyme of site-directed mutagenesis (Fig. 4) were purified to electrophoretic homogeneity by Ni2+-NTA metal chelating affinity chromatography. The purified PgluE8s migrated as single bands during SDS-PAGE with molecular masses of approximately 35 and 45 kDa, respectively, which are close to the calculated values (PgluE8: 40.4 kDa). After tryptic digest, PgluE8s were individually analyzed using MALDI-TOF MS. Results revealed that the MALDI-TOF MS spectra matched the molecular masses of the known internal peptides of PgluE8 (full data analysis was not shown), confirming that the purified enzymes were PgluE8.

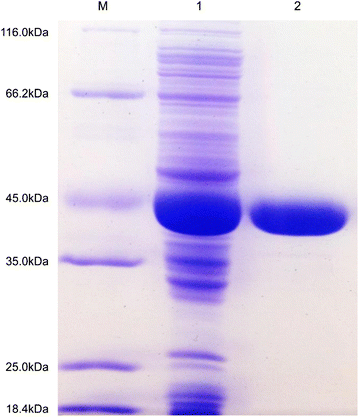

Fig. 3

SDS-PAGE analyses of PgluE8. Lanes: M low-molecular weight markers; 1 crude PgluE8; and 2 PgluE8 purified by Ni2+-NTA affinity chromatography

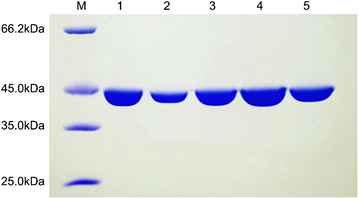

Fig. 4

SDS-PAGE analyses of enzyme of site-directed mutagenesis. Lanes: M low-molecular weight markers, 1 purified Glu34, 2 purified Asp 95, 3 purified Cys2, 4 purified Cys343, 5 purified Cys2 and Cys343 double mutants

Substrate specificity

At pH 5.5 and 50 °C, the activities of the purified PgluE8s for 0.7 % (w/v) CMC-Na, soluble starch, barley-β-d-glucan, laminarin, and glucan from black yeast were 2.3 ± 0.3, 0.9 ± 0.3, 11.0 ± 0.3, 0.8 ± 0.1 and 0.7 ± 0.1 U/mg, respectively.

Enzyme characterization

When assayed at 37 °C the purified PgluE8 showed an apparently optimal endoglucanase activity at pH 5.5 retaining greater than 80 % of its maximum activity between pH 5.0 and 7.0 (Fig. 5a). The pH stability assay showed that at pH ranging from 3.0 to 11.0, the purified PgluE8 exhibited more than 63 % of its initial activity (Fig. 5b).

Fig. 5

Characterization of purified PgluE8. a Effect of pH on PgluE8, b pH stability of PgluE8, c effect of temperature on PgluE8, d thermostability of PgluE8, e effect of NaCl on purified PgluE8 at pH 5.5 and 37 °C, f stability of PgluE8 in NaCl

When assayed at pH 5.5, the purified PgluE8 was optimal at 50 °C, retaining 78.6, 41.6, and 34.5 % of its maximum activity when assayed at 20, 10, and 0 °C, respectively (Fig. 5c). The enzyme was stable at 37 and 50 °C for up to 1 h, exhibiting 91.5 and 94.7 % of its maximum activity, respectively. Half-lives of the enzyme ranged from 15 to 20 min at 60 °C (Fig. 5d).

The activity of the purified PgluE8 was strongly or partially inhibited by 1.0 and 10.0 mM Ag+ (retaining 9.4 % activity), Hg2+ (retaining 10.8 % activity) and SDS (retaining 29.7 % activity), and partially inhibited by Fe2+, Mn2+, Fe3+ and Pb2+. In contrast, β-mercaptoethanol (retaining 176.6 % activity), K+ (retaining 128.7 % activity), Na+ (retaining 125.4 % activity) and Mg2+ (retaining 125.0 % activity) enhanced the activity. The addition of other reagents showed little or no effect on the enzymatic activity (Table 2).

Table 2 Effect of metal ions and organic reagents on the activity of purified PgluE8

The activities of the enzyme variants Cys23 and Cys364 were 148.1 ± 0.3 and 140.5 ± 0.2 %, respectively, and for the Cys23 and Cys364 double mutants the activity was 155.2 ± 0.4 % (Table 3).

Table 3 Enzyme activity of wild and mutant type recombinant PgluE8 E55A, PgluE8 D116A, PgluE8 C23G, PgluE8 C364G and PgluE8 C23G-C364G

The purified PgluE8 exhibited good NaCl activity, retaining 94.8–75.2 % activity at concentrations between 3.0 and 30.0 % (w/v) NaCl (Fig. 5e). It also retained 97.3–83.1 % of its initial activity following incubation with 3.0–30.0 % (w/v) NaCl at 37 °C for 1 h (Fig. 5f).

The purified PgluE8 could be tolerant to up to 16.67 mg/mL trypsin, 80.0 mg/mL proteinase K and 160.0 mg/mL proteinase K retaining more than 78, 79 and 56 % of its initial activity, respectively. However, almost all PgluE8 activity was lost after incubation with 66.67 mg/mL trypsin at 37 °C for 1 h (Fig. 6).

Fig. 6

Stability of PgluE8 in various concentrations of trypsin and proteinase K at 37 °C for 1 h at pH 7.3. The residual enzyme activity was determined in McIlvaine buffer (pH 5.5) at 37 °C

Based on a Lineweaver–Burk plot, the K m , V max , and k cat values were 10.5 mg/mL, 45.7 U/mg, and 31.7 s−1, respectively, with barley-β-d-glucan as the substrate.

Hydrolysis products

The hydrolysis products of 0.7 % (w/v) barley-β-d-glucan were analyzed by TLC (Fig. 7). Cellotriose, cellotetraose, and cellopentaose were released from barley-β-d-glucan by the purified PgluE8, while glucose and cellobiose, were not clearly detected. The hydrolysis analysis indicated the endo-acting nature of PgluE8.

Fig. 7

Thin layer chromatography (TLC) of hydrolysis products of 0.7 % (w/v) barley-β-d-glucan. Lanes: 1 glucose, cellobiose, cellotriose, cellotetraose, and cellopentaose markers; 2 barley-β-d-glucan with inactivated (at 100 °C for 5 min) purified PgluE8; 3 barley-β-d-glucan hydrolyzed by purified PgluE8 for 1 h in a 1.0 U/mL reaction system at 50 °C and pH 5.5; 4 barley-β-d-glucan hydrolyzed by purified PgluE8 for 3 h in a 1.0 U/mL reaction system at 50 °C and pH 5.5


Cellulase is one of the most important enzymes used for the production of bioenergy from lignocellulosic biomass. Although the activity of fungal cellulase was greater than that of bacterial cellulase, the use of bacterial cellulase overcomes challenges of thermostability and allows for activity over a wide pH range and for broader substrate utilization (Maki et al. 2009). To the best of our knowledge, this study is the first to report a endoglucanase gene from Bos frontalis feces, PgluE8, which showed good enzyme characteristics.

Genome sequencing has now become both rapid as well as cost-efficient. Some enzymes showing important values for basic research and industrial application were obtained based on genome sequencing (Chen et al. 2013; Song et al. 2014; Sakka et al. 2012). Sequence analysis showed that PgluE8 was the most similar to GH8 endoglucanase. The optimal temperature of PgluE8 was found to be similar to that reported for cellulolytic enzymes and it was stable in a from 30 to 55 °C (Xiang et al. 2014). Cold-active enzymes are highly active at low temperatures (Siddiqui and Cavicchioli 2006). Bhat reported that CEL8M showed 28 % enzyme activity at 10 °C (Bhat et al. 2013). Compared with CEL8M, PgluE8 exhibited much higher endocellulase activity at both 10 °C (41.6 %). The PgluE8 even showed 34.5 % of its maximum activity at 0 °C. The mechanism that correlate with enzymatic adaptations to low temperatures have attracted considerable research attention (Siddiqui and Cavicchioli 2006; Collins et al. 2002). For instance, cold-active enzymes generally possess less numbers of P amino acids (Siddiqui and Cavicchioli 2006), which generally can increase the stability of the protein. Besides, increasing frequency of the charged (H, D, E) and hydrophobic amino acids likely lead to enhance the thermo adaptation of protein. Therefore, compared with the hyperthermophilic and thermophilic endoglucanase (Table 4), PgluE8 has less numbers of P, H and hydrophobic amino acids. These changes might result in a reduced stability and an enhanced flexibility of the molecular structure, thereby enabling the cold-active endoglucanase activity of PgluE8. Meanwhile, it is worth mentioning that PgluE8 preformed maximal activity under acidic conditions. Its optimal pH value is 5.5, compared to the endo-1, 4-β-glucanase from Ruminococcus albus at pH 6.8 (Deguchi et al. 1991), the endoglucanase Ss from C. thermocellum at pH 6.6 (Fauth et al. 1991), the endoglucanase from Volvariella volvacea at pH 7.5 (Ding et al. 2002), and the endoglucanase C from Clostridium cellulolyticum at pH 6.0 (Fierobe et al. 1993). The pH stability assay showed that at pH ranging from 3.0 to 11.0, the purified PgluE8 exhibited more than 63 % of its initial activity. The stable pH rang for PgluE8 was wider than those for most endoglucanase from other strains, such as Bacillus sp. KSM-635 (pH 6–11) (Yoshimatsu et al. 1990) and Bacillus sp. KSM-S237 (pH 5–11) (Hakamada et al. 1997). To the best of our knowledge, the mechanism of stable pH rang for endoglucanase analysis have not been reported. This property suggests that PgluE8 could have great potential applications in the field of feed additives. The results show that PgluE8 has the lowest temperature and pH optima compared to previously identified enzymes. Hence, it can be used for low temperature washing, biopolishing of cotton-based fabric to remove fuzz at low temperatures, and finishing denims by stone washing using cellulase at low pH and low temperature in textile industry (Bhat et al. 2013).

Table 4 Partial sequence analysis and enzyme characterization of thermophilic, cold-active and NaCl-tolerant endoglucanase from different strains

PgluE8 was strongly or partially inhibited by 1.0 and 10.0 mM Ag+, Hg2+ and SDS, and partially inhibited by Fe2+, Mn2+, Fe3+ and Pb2+. However, β-mercaptoethanol (176.6 %), K+ (128.7 %), Na+ (125.4 %) and Mg2+ (125.0 %) enhanced the activity. Thus, the enzyme possibly belongs to the class of SH enzymes and β-mercaptoethanol probably keeps the enzyme in a reduced state thereby increasing the activity. Similar observations have been reported for the endoglucanases of Fusarium oxysporum (Christakopoulos et al. 1995) and Penicillium purpurogenum (Lee et al. 2010). Notably, the activities of enzyme variants were strongly enhanced. Site-directed mutagenesis further confirmed that Cys23 and Cys364 play important roles in the activity. This result advances the understanding of the role of the disulfide bond in this class of enzyme, and the mechanism by which β-mercaptoethanol increases catalytic activity.

We have previously investigated salt-tolerant enzymes in great detail (Zhou et al. 2012, 2014, 2015), which showed 127.9–88.4 % activity at concentrations between 3.5 and 15.0 % (w/v) NaCl. As revealed in this study, PgluE8 is considerably NaCl-tolerant, retained more than 83 % activity when 30 % (w/v) (ca. 5 M) NaCl was added to reaction system. Compared with a halotolerant endoglucanase Cel5H from Dictyoglomus thermophilum (Table 4) (Shi et al. 2013), PgluE8 showed superior tolerance to NaCl. Nonpolar relative ASA PgluE8 is lower than that of Cel5H, Rucel5B and celVA (Table 4). Therefore, high-NaCl solution likely increase interaction between molecular surface and neutral salt ions, further, protect hydration membrane of the protein from hydration by NaCl, ultimately, protein show salt resistance. Salt-tolerant enzyme has potential uses in processing sea foods and other foods with saline contents of 3.5–15.9 % (w/w) NaCl, such as marine algae, pickles, and sauces (Zhou et al. 2012). In such high-salt processed foods, use of PgluE8 may prevent microbial pollution and save energy.

Few protease-tolerant endoglucanase had been reported. Shunichi Akiba et al. (Akiba et al. 1995) reported that endo-,β-1,4-glucanase activity was not affected when incubated with 250 μg/mL proteinase K. However, in this study, PgluE8 was resistant to digestion by up to 16.67 mg/mL trypsin and 80.0 mg/mL proteinase K, showed superior tolerance to proteinase. Proteases are often supplemented in food and feed (Kuddus and Ramteke 2012). Therefore, the protease resistance and low-to moderate-temperature (body temperature of domestic animals and fish) activity suggested PgluE8 may be a new candidate for feed supplements.

In conclusion, this study is the first to report a cold-active and salt tolerant protease endoglucanase from Paenibacillus sp. YD236 isolated from the feces of Bos frontalis. PgluE8 showed excellent enzyme characteristics and might be an alternative for potential applications in food processing, washing, animal feed preparation. However, PgluE8 shows low stability at high temperatures; therefore, it is important to improve its catalysis at high temperatures.


  1. Akiba S, Kimura Y, Yamamoto K, Kumagai H (1995) Purification and characterization of a protease-resistant cellulase from Aspergillus niger. J Ferment Bioeng 79:125–130

    Article  Google Scholar

  2. Akita M, Kayatama K, Hatada Y, Ito S, Horikoshi K (2005) A novel β-glucanase gene from Bacillus halodurans C-125. FEMS Microbiol Lett 248:9–15

    Article  Google Scholar

  3. Ando S, Ishida H, Kosugi Y, Ishikawa K (2002) Hyperthermostable endoglucanase from Pyrococcus horikoshii. Appl Environ Microbiol 68:430–433

    Article  Google Scholar

  4. Bao L, Huang Q, Chang L, Zhou J, Lu H (2011) Screening and characterization of a cellulase with endocellulase and exocellulase activity from yak rumen metagenome. J Mol Catal B Enzym 73:104–110

    Article  Google Scholar

  5. Bhat A, Riyaz-Ul-Hassan S, Ahmad N, Srivastava N, Johri S (2013) Isolation of cold-active, acidic endocellulase from Ladakh soil by functional metagenomics. Extremophiles 17:229–239

    Article  Google Scholar

  6. Boyce A, Walsh G (2015) Characterisation of a novel thermostable endoglucanase from Alicyclobacillus vulcanalis of potential application in bioethanol production. Appl Microbiol Biotechnol 99:7515–7525

    Article  Google Scholar

  7. Bueno A, de Aldana CV, Correa J, del Rey F (1990) Nucleotide sequence of a 1, 3-1, 4-beta-glucanase-encoding gene in Bacillus circulans WL-12. Nucleic Acids Res 18:4248

    Article  Google Scholar

  8. Chen S, Kaufman MG, Miazgowicz KL, Bagdasarian M, Walker ED (2013) Molecular characterization of a cold-active recombinant xylanase from Flavobacterium johnsoniae and its applicability in xylan hydrolysis. Bioresour Technol 128:145–155

    Article  Google Scholar

  9. Cheng R, Xu L, Wang S, Wang Y, Zhang J (2014) Recombinant expression and characterization of an acid-, alkali-and salt-tolerant β-1, 3-1, 4-glucanase from Paenibacillus sp. S09. Biotechnol Lett 36:797–803

    Article  Google Scholar

  10. Christakopoulos P, Kekos D, Macris BJ, Claeyssens M, Bhat MK (1995) Purification and mode of action of a low molecular mass endo-1, 4-β-d-glucanase from Fusarium oxysporum. J Biotechnol 39:85–93

    Article  Google Scholar

  11. Collins T, Meuwis MA, Stals I, Claeyssens M, Feller G, Gerday C (2002) A novel family 8 xylanase, functional and physicochemical characterization. J Biol Chem 277:35133–35139

    Article  Google Scholar

  12. Deguchi H, Watanabe Y, Sasaki T, Matsuda T, Shimizu S, Ohmiya K (1991) Purification and properties of the endo-1, 4-β-glucanase from Ruminococcus albus and its gene product in Escherichia coli. J Ferment Bioeng 71:221–225

    Article  Google Scholar

  13. Ding SJ, Ge W, Buswell JA (2002) Secretion, purification and characterisation of a recombinant Volvariella volvacea endoglucanase expressed in the yeast Pichia pastoris. Enzyme Microb Technol 31:621–626

    Article  Google Scholar

  14. Fauth U, Romaniec MP, Kobayashi T, Demain AL (1991) Purification and characterization of endoglucanase Ss from Clostridium thermocellum. Biochem J 279:67–73

    Article  Google Scholar

  15. Fierobe HP, Bagnara-Tardif C, Gaudin C, Guerlesquin F, Sauve P, Belaich A, Belaich JP (1993) Purification and characterization of endoglucanase C from Clostridium cellulolyticum. Eur J Biochem 217:557–565

    Article  Google Scholar

  16. Furtado GP, Ribeiro LF, Santos CR, Tonoli CC, De Souza AR, Oliveira RR, Ward RJ (2011) Biochemical and structural characterization of a β-1, 3-1, 4-glucanase from Bacillus subtilis 168. Process Biochem 46:1202–1206

    Article  Google Scholar

  17. Hakamada Y, Koike K, Yoshimatsu T, Mori H, Kobayashi T, Ito S (1997) Thermostable alkaline cellulase from an alkaliphilic isolate, Bacillus sp. KSM-S237. Extremophiles 1:151–156

    Article  Google Scholar

  18. Huang XP, Monk C (2004) Purification and characterization of a cellulase (CMCase) from a newly isolated thermophilic aerobic bacterium Caldibacillus cellulovorans gen. nov., sp. nov. World J Microbiol Biotechnol 20:85–92

    Article  Google Scholar

  19. Javed MR, Rashid MH, Nadeem H, Riaz M, Perveen R (2009) Catalytic and thermodynamic characterization of endoglucanase (CMCase) from Aspergillus oryzae cmc-1. Appl Biochem Biotechnol 157:483–497

    Article  Google Scholar

  20. Jung YJ, Lee YS, Park IH, Chandra MS, Kim KK, Choi YL (2010) Molecular cloning, purification and characterization of thermostable-1, 3-1, 4 glucanase from Bacillus subtilis A8-8. Indian J Biochem Biophys 47:203–210

    Google Scholar

  21. Kim YR, Kim EY, Lee JM, Kim JK, Kong IS (2013) Characterisation of a novel Bacillus sp. SJ-10 β-1, 3–1, 4-glucanase isolated from jeotgal, a traditional Korean fermented fish. Bioprocess Biosyst Eng 36:721–727

    Article  Google Scholar

  22. Kuddus M, Ramteke PW (2012) Recent developments in production and biotechnological applications of cold-active microbial proteases. Crit Rev Microbiol 38:330–338

    Article  Google Scholar

  23. Kumar R, Singh S, Singh OV (2008) Bioconversion of lignocellulosic biomass: biochemical and molecular perspectives. J Ind Microbiol Biotechnol 35:377–391

    Article  Google Scholar

  24. Lee KM, Jeya M, Joo AR, Singh R, Kim IW, Lee JK (2010) Purification and characterization of a thermostable endo-β-1, 4-glucanase from a novel strain of Penicillium purpurogenum. Enzyme Microb Technol 46:206–211

    Article  Google Scholar

  25. Li XH, Bhaskar R, Yang HJ, Wang D, Miao YG (2009) Screening and identification of new isolate: thermostable Escherichia coli with novel thermoalkalotolerant cellulases. Curr Microbiol 59:393–399

    Article  Google Scholar

  26. Limauro D, Cannio R, Fiorentino G, Rossi M, Bartolucci S (2001) Identification and molecular characterization of an endoglucanase gene, celS, from the extremely thermophilic archaeon Sulfolobus solfataricus. Extremophiles 5:213–219

    Article  Google Scholar

  27. MacDiarmid AG, Venancio EC (2006) Agrienergy (agriculture/energy): what does the future hold? Exp Biol Med 231:1212–1224

    Google Scholar

  28. Maki M, Leung KT, Qin W (2009) The prospects of cellulase-producing bacteria for the bioconversion of lignocellulosic biomass. Int J Biol Sci 5:500–516

    Article  Google Scholar

  29. Mao S, Lu Z, Zhang C, Lu F, Bie X (2013) Purification, characterization, and heterologous expression of a thermostable β-1, 3-1, 4-glucanase from Bacillus altitudinis YC-9. Appl Biochem Biotechnol 169:960–975

    Article  Google Scholar

  30. Na HB, Jung WK, Jeong YS, Kim HJ, Kim SK, Kim J, Kim H (2015) Characterization of a GH family 8 β-1, 3-1, 4-glucanase with distinctive broad substrate specificity from Paenibacillus sp. X4. Biotechnol Lett 37:643–655

    Article  Google Scholar

  31. Ng IS, Li CW, Yeh YF, Chen PT, Chir JL, Ma CH, Tong CG (2009) A novel endo-glucanase from the thermophilic bacterium Geobacillus sp. 70PC53 with high activity and stability over a broad range of temperatures. Extremophiles 13:425–435

    Article  Google Scholar

  32. Ng IS, Chi X, Wu X, Bao Z, Lu Y, Chang JS, Ling X (2013) Cloning and expression of Cel8A from Klebsiella pneumoniae in Escherichia coli and comparison to cel gene of Cellulomonas uda. Biochem Eng J 78:53–58

    Article  Google Scholar

  33. Qiao J, Dong B, Li Y, Zhang B, Cao Y (2009) Cloning of a β-1, 3-1, 4-glucanase gene from Bacillus subtilis MA139 and its functional expression in Escherichia coli. Appl Biochem Biotechnol 152:334–342

    Article  Google Scholar

  34. Sakka M, Tachino S, Katsuzaki H, van Dyk JS, Pletschke BI, Kimura T, Sakka K (2012) Characterization of Xyn30A and Axh43A of Bacillus licheniformis SVD1 identified by its genomic analysis. Enzyme Microb Technol 51:193–199

    Article  Google Scholar

  35. Shi R, Li Z, Ye Q, Xu J, Liu Y (2013) Heterologous expression and characterization of a novel thermo-halotolerant endoglucanase Cel5H from Dictyoglomus thermophilum. Bioresour Technol 142:338–344

    Article  Google Scholar

  36. Shinoda S, Kanamasa S, Arai M (2012) Cloning of an endoglycanase gene from Paenibacillus cookii and characterization of the recombinant enzyme. Biotechnol Lett 34:281–286

    Article  Google Scholar

  37. Siddiqui KS, Cavicchioli R (2006) Cold-adapted enzymes. Annu Rev Biochem 75:403–433

    Article  Google Scholar

  38. Song HY, Lim HK, Lee KI, Hwang IT (2014) A new bi-modular endo-β-1, 4-xylanase KRICT PX-3 from whole genome sequence of Paenibacillus terrae HPL-003. Enzyme Microb Technol 54:1–7

    Article  Google Scholar

  39. Studier FW (2005) Protein production by auto-induction in high-density shaking cultures. Protein Expr Purif 41:207–234

    Article  Google Scholar

  40. Tamura K, Stecher G, Peterson D, Filipski A, Kumar S (2013) MEGA6: molecular evolutionary genetics analysis version 6.0. Mol Biol Evol 30(4):2725–2729

    Article  Google Scholar

  41. Teng D, Wang JH, Fan Y, Yang YL, Tian ZG, Luo J, Zhang F (2006) Cloning of β-1, 3-1, 4-glucanase gene from Bacillus licheniformis EGW039 (CGMCC 0635) and its expression in Escherichia coli BL21 (DE3). Appl Microbiol Biotechnol 72:705–712

    Article  Google Scholar

  42. Xiang L, Li A, Tian C, Zhou Y, Zhang G, Ma Y (2014) Identification and characterization of a new acid-stable endoglucanase from a metagenomic library. Protein Expr Purif 102:20–26

    Article  Google Scholar

  43. Yennamalli RM, Rader AJ, Wolt JD, Sen TZ (2011) Thermostability in endoglucanases is fold-specific. BMC Struct Biol 11:10–25

    Article  Google Scholar

  44. Yoshimatsu T, Ozaki K, Shikata S, Ohta YI, Koike K, Kawai S, Ito S (1990) Purification and characterization of alkaline endo-1, 4-β-glucanases from alkalophilic Bacillus sp. KSM-635. Microbiology 136:1973–1979

    Google Scholar

  45. Zerbino DR, Birney E (2008) Velvet: algorithms for de novo short read assembly using de Bruijn graphs. Genome Res 18:821–829

    Article  Google Scholar

  46. Zhou J, Gao Y, Dong Y, Tang X, Li J, Xu B, Huang Z (2012) A novel xylanase with tolerance to ethanol, salt, protease, SDS, heat, and alkali from actinomycete Lechevalieria sp. HJ3. J Ind Microbiol Biotechnol 39:965–975

    Article  Google Scholar

  47. Zhou J, Gao Y, Zhang R, Mo M, Tang X, Li J, Huang Z (2014a) A novel low-temperature-active exo-inulinase identified based on Molecular-Activity strategy from Sphingobacterium sp. GN25 isolated from feces of Grus nigricollis. Process Biochem 49:1656–1663

    Article  Google Scholar

  48. Zhou J, Wu Q, Zhang R, Mo M, Tang X, Li J, Huang Z (2014b) A thermo-halo-tolerant and proteinase-resistant endoxylanase from Bacillus sp. HJ14. Folia Microbiol 59:423–431

    Article  Google Scholar

  49. Zhou J, Lu Q, Peng M, Zhang R, Mo M, Tang X, Huang Z (2015) Cold-active and NaCl-tolerant exo-inulinase from a cold-adapted Arthrobacter sp. MN8 and its potential for use in the production of fructose at low temperatures. J Biosci Bioeng 119:267–274

    Article  Google Scholar
