Molecular cloning, structural and expression profiling of DlRan genes during somatic embryogenesis in Dimocarpus longan Lour.

Abstract

To clone and examine expression profiles of DlRan genes during somatic embryogenesis in Dimocarpus longan Lour. Thirty cDNA sequences and two genomic sequences encoding DlRan proteins were isolated from longan embryogenic cultures. Structural analysis of DlRan genes revealed that the longan Ran gene family is more expanded than that of Arabidopsis. Expression analysis of DlRan genes during somatic embryogenesis uncovered a high abundance of DlRan genes in early embryogenic cultures and heart- and torpedo-shaped embryos. The expression of DlRan genes in embryogenic calli was affected by exogenous 2,4-dichlorophenoxyacetic acid treatment. DlRan is involved in 2,4-D induced somatic embryogenesis and development of somatic embryos in longan.

Background

Ras-related nuclear protein (Ran) is a highly conserved, small GTPase family that is essential to multiple cellular processes in eukaryotes (Clarke and Zhang 2008). The roles of Ran have been extensively researched and well documented in animals. In contrast, little is known about Ran in plants.

Plant Ran proteins share high homology and perform similar functions in the regulation of mitotic progress with their counterparts in yeast and animals (Lü et al. 2011; Lee et al. 2008; Wang et al. 2006; Zang et al. 2010). Furthermore, Ran is involved in mediating responses to external stimuli, such as heat, salt and drought stresses (Ferreira et al. 2006; Jiang et al. 2007; Xu and Huang 2008, 2010; Yoshimura et al. 2008; Zang et al. 2010). Inhibition expression of OsRan2 in rice leads to pleiotropic developmental abnormalities (Chen et al. 2011; Zang et al. 2010). These results suggest that Ran is crucial to plant growth and development.

Longan (Dimocarpus longan Lour.), an evergreen fruit tree of great commercial value, is distributed in subtropical and tropical countries (Matsumoto 2006; Zheng et al. 2009). Longan embryo development is of great scientific interest because of its role in fruit quality and yield. The developmental regulation of Ran during the middle stage of longan somatic embryogenesis (SE) implies a role for Ran in this process (Fang et al. 2011). Furthermore, Ran has been proposed as a target for breeding and production improvement in longan (Fang et al. 2014) because of its role in delaying flowering and enhancing cold tolerance in other plants (Chen et al. 2011; Wang et al. 2006). Nevertheless, cloning and characterization of longan Ran has not yet been reported.

In this study, 30 cDNA sequences and two genomic sequences encoding DlRan proteins were isolated. We analyzed the structures of DlRan genes, and investigated their expression profiles during SE and under exogenous 2,4-dichlorophenoxyacetic acid (2,4-D) treatment. On the basis of our results, we propose that DlRan is involved in cell division during longan SE and participates in 2,4-D-induced SE through signal transduction.

Methods

Plant materials

The establishment and maintenance of our longan embryogenic callus line “Honghezi” was described in Lai et al. (2000). The synchronization of embryogenic cultures at different developmental stages was carried out as described previously (Fang et al. 2014). All cultures were kept in dark conditions at 25 ± 1 °C.

RNA extraction

Total RNA was extracted from embryogenic cultures using TriPure Isolation Reagent (Roche Molecular Biochemicals, Basel, Switzerland) and then treated with DNase I (Takara, China) to remove genomic DNA.

5′ and 3′ rapid amplification of cDNA ends (RACE)

A 469-bp cDNA fragment of DlRan (Ran fragment 1) was obtained by reverse-transcription PCR with degenerate primers (RanF1 and RanR1) generated according to mass spectrographic analysis results in our previous study (Fang et al. 2011). 5′ and 3′ RACE were performed to generate full-length gene transcripts. The 3′ RACE was performed using a First-Strand cDNA synthesis kit (Fermentas). 12 3′-ends of DlRan cDNAs were obtained using specific primers designed from Ran fragment 1 (Table 1). Multiple alignment of these 3′ ends indicated the existence of DlRan homologs. A specific primer, RanR2, was designed according to the isolated 3′ ends, and a new DlRan fragment (DlRan fragment 2) was obtained using RanF1 and RanR2. Primers RanF8 and RanF9 were generated according to DlRan fragments 1 and 2 and used for 3′ RACE, yielding three additional DlRan cDNA 3′ ends (Table 1). A 5′ RACE was performed using a GeneRacer kit (Invitrogen). Specific primers were designed according to the isolated DlRan fragments and 3′-RACE products of DlRan and used for 5′ RACE. Primers and corresponding 5′-RACE products are indicated in Table 1. For amplification of full-length DlRan cDNAs, gene-specific primers were generated according to the DlRan 5′ and 3′ ends, with cDNAs synthesized from the GeneRacer kit used as templates. Specific primers used are listed in Table 2 and Additional file 1: Figure S1.

Table 1 Specific primers used for 3′ and 5′ RACE and corresponding products

Table 2 Primers used in this study

DNA extraction and isolation of genomic DNA encoding DlRan

Total genomic DNA was isolated from longan embryogenic calli with a Plant Genomic DNA kit (Tiangen, China). A 2389-bp DlRan DNA sequence was obtained using specific primers (RanF18 and RanR29; Table 2) and Takara LA Taq (Takara) and was designated as DlRan3A (GenBank accession no. JQ775539). The genomic sequence of DlRan3B (JQ279697) has been characterized previously (Fang et al. 2013).

Quantitative real-time PCR analysis

cDNAs were synthesized with random primers and Oligo dT Primer using a SYBR ExScript kit (Takara). Real-time PCR amplifications were performed on a Lightcycler 480 system (Roche Applied Science, Switzerland) in 20-µl total volumes containing 10 µl of 2× SYBR Premix Ex Taq II (Takara), 1 µl cDNA (1:10 dilution), and 0.4 µl of each 0.20-µM primer. PCR conditions were as follows: denaturation at 95 °C for 30 s, followed by 40 cycles of 95 °C for 5 s, 60 °C for 30 s and 72 °C for 30 s. Reactions were run in triplicate. EF-1a and Fe-SOD, the most stable genes selected by Lin and Lai (2010), were used as endogenous controls. Expression data were analyzed with geNORM (version 3.5) (Vandesompele et al. 2002). The high sequence similarity among isolated DlRan transcripts made it very difficult to design specific primers to detect their expression. We found that the identified DlRan transcripts could be divided into two types, N (asparagine) and D (aspartic acid), based on the tenth residue in their predicted amino acid sequences. Specific primers based on the 5′-end proximal region of these N and D DlRan transcript sequences (Additional file 2: Figure S2) were designed and used for qRT-PCR analyses. Primer pairs used for qRT-PCR analyses are listed in Table 3.

Table 3 Primers used for qRT-PCR analysis

Treatment of embryogenic calli with 2,4-D

Embryogenic calli cultured on M0 medium (Murashige-Skoog basal salts, 2% sucrose and 6 g/L agar, pH 5.8) supplemented with 1 mg 2,4-D/l were transferred and maintained for 24 h on M0 medium or M0 medium supplemented with either 0.5, 1.5 or 2.0 mg/l of 2,4-D. All samples were frozen in liquid nitrogen after harvesting and stored at −80 °C.

Bioinformatics analysis

Predicted protein sequences were analyzed and theoretical isoelectric points (pIs) and mass values of mature peptides were calculated using the PeptideMass program (http://us.expasy.org/tools/peptidemass.html). Amino acid sequence alignment was performed using DNAMAN software. A phylogenetic tree of Ran proteins was constructed using MEGA5 software.

Results

Cloning of DlRan cDNAs from torpedo-shaped somatic embryos of longan

Fifteen 3′ ends of DlRan genes were obtained through 3′ RACE. Alignment of these 3′ ends indicated the existence of sequence polymorphism in DlRan gene open reading frames (ORFs) and 3′ untranslated regions (UTRs) (Additional file 3: Figure S3). 18 5′ ends of DlRan genes were obtained using RNA ligase-mediated RACE (Additional file 4: Figure S4). Using primers designed from the isolated 5′ and 3′ ends, we isolated 30 DlRan transcripts from torpedo-shaped somatic embryos in longan and deposited their sequences in GenBank (Table 4).

Table 4 GenBank accession numbers of Ran cDNAs and primer pairs used for their amplifications

Sequence analyses and molecular characterization of DlRan genes

Sequence analysis indicated that all of the isolated DlRan transcripts contained a 663-bp ORF. The 3′ UTRs of the isolated DlRan transcripts lack the typical AATAAA polyadenylation signal. The isolated DlRan cDNAs were divided into nine groups according to their ORF sequences (Fig. 1). DlRan3As, DlRan3Bs, DlRan3C-1, DlRan3C-2, DlRan3C-3, DlRan3Ds, DlRan3E-1, DlRan3F-1 and DlRan3G-1 had unique ORFs (Fig. 1). Sequence alignment showed that the first half of sequences of DlRan3D-1, DlRan3C-1, DlRan3C-2 and DlRan3C-3 were identical to that of DlRan3B-1, while the second half of sequences of these cDNAs were identical to that of DlRan3A-1. In contrast, the first half of DlRan3E-1 and DlRan3G-1 sequences were identical to DlRan3A-1, and the second half of sequences of these cDNAs were identical to that of DlRan3B-1. One fragment of DlRan3F-1 was identical to neither DlRan3A-1 nor DlRan3B-1 (Fig. 1). These results prompted us to explore whether the transcripts identified in the present study were alternative spliced isoforms produced by the same gene or were instead transcribed from different genes.

Fig. 1

Multiple alignments of the open reading frame sequence of DlRan genes. Sequence fragments consistent with DlRan3B-1 were indicated with grey shadow, sequence fragment of DlRan3F-1 that is not consistent with DlRan3B-1 nor DlRan3A-1 were highlighted with underline, different bases among the aligned sequences are indicated by colors

To determine exon and intron organization of DlRan cDNAs, we try to isolate genomic sequences of DlRan genes and only 2 DlRan sequences (DlRan3A and DlRan3B) were obtained. The comparative analysis of DlRan genomic and cDNA sequences indicated that DlRan3A-1–DlRan3A-14 was derived from DlRan3A and that DlRan3B-1–DlRan3B-3 and DlRan3B-5–DlRan3B-9 were derived from DlRan3B. As indicated in Fig. 2, both DlRan3A and DlRan3B contained 8 exons. Interestingly, the first half of the sequences of DlRan3D-1, DlRan3C-1, DlRan3C-2 and DlRan3C-3 were identical to the genomic sequence of DlRan3B, while the second half of these cDNA sequences were identical to the genomic sequence of DlRan3A (Fig. 2). In contrast, the first half of sequences of DlRan3E-1 and DlRan3G-1 were identical to the genomic sequence of DlRan3A, whereas the second half of these cDNA sequences was identical to the genomic sequence of DlRan3B (Fig. 2). Finally, the sequence of DlRan3F-1 was inconsistent with either DlRan3A or DlRan3B. Our results suggest that these transcripts were encoded by different DlRan genes rather than representing alternative spliced products from the same gene, thereby implying the existence of multiple Ran genes in the longan genome.

Fig. 2

Alignments of DlRan cDNAs and genomic DNA sequences. a Exon–intron organization of DlRan3A and DlRan3B. Bold lines represent introns, grey and texture boxes indicate exons, GTs and AGs represent bases close to the identical sequences, start and termination codons were indicated in green and red character respectively. b Schematics of alignments between DlRan cDNAs and genomic DNA sequences

All of the isolated DlRan transcripts encoded seven predicted polypeptides of 221 amino acid residues with similar calculated molecular masses and predicted pIs (Table 5). It is noteworthy that DlRan3C-1, DlRan3C-2 and DlRan3C-3, which contain different ORFs, encoded the same protein. The modulation of protein expression via alteration of mRNA secondary structure has been demonstrated to involve the usage of synonymous codons (Nackley et al. 2006). We therefore used Mfold (Zuker 2003) to predict the secondary structures of the ORFs of these transcripts, which demonstrated that the Gibbs free energy for DlRan3C-2 and DlRan3C-3 was lower than that for DlRan3C-1.

Table 5 Calculated molecular mass and predicted pI of DlRan proteins

As shown in Additional file 5: Figure S5, alignment analysis revealed that the predicted DlRan proteins are highly identical to the identified peptides in our previous study (Fang et al. 2011). This result indicates that the predicted proteins were orthologs of the identified protein. DlRan members are highly similar to one another, differing by a total of only nine amino acids. Multiple sequence alignment indicated that the DlRan proteins share a significant degree of sequence identity with Ran proteins from Arabidopsis thaliana, Medicago truncatula, Zea mays, Vitis vinifera, Allium cepa and Oryza sativa (Fig. 3). The characteristic domains of the Ran proteins that are known to be involved in GTP-binding and hydrolysis, as well as the acidic C-terminal domain and the effector-binding domain, were detected in the deduced DlRan proteins (Fig. 3). As shown in Fig. 3, the conserved sequences of these motifs were nearly identical between DlRan proteins and Ran proteins from other plant species, except for AtRan4, which has distinct functions in Arabidopsis (Vernoud et al. 2003). In the neighbor-joining phylogenetic tree based on the DlRan proteins and Ran proteins from multiple plant species, the DlRan proteins, AtRan3 and Ran3-like proteins from Glycine max and V. vinifera were clustered into one group (Fig. 4). These results suggest that the DlRan proteins are Ran3 homologs.

Fig. 3

Multiple alignments of the deduced DlRan sequences with other Ran sequences. Sequences are from A. thaliana (AtRan1, NP_197501; AtRan2, NP_197502; AtRan3, NP_200330; AtRan4, NP_200319), M. truncatula (MtRan, ACJ83982), Z. mays (ZmRan, NP_001149221), V. vinifera (VvRan, XP_002284967), A. cepa (AsRan2, ABD17864) and O. sativa (OsRan, NP_001043550). Identical and similar amino acid residues among the aligned sequences are indicated by green, yellow and grey shading, respectively. Conserved GTP binding and hydrolysis domains (G1–G5) were indicated by bold lines. The effector-binding domain (RanGAP-binding) and the acidic C-terminal region (acidic tail) are indicated with asterisks and triangles, respectively

Fig. 4

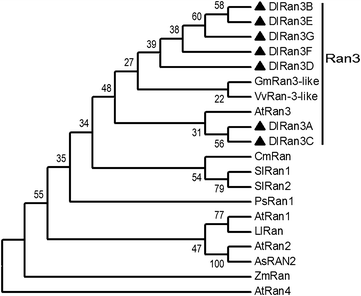

Phylogenetic relationships of Ran proteins from D. longan and selected plant species. Phylogenetic and evolutionary analyses were performed using the neighbor-joining method by MEGA5 software with 1000 bootstrap replicates. A. thaliana (AtRan1, NP_197501, AtRan2, NP_197502, AtRan3, NP_200330), V. vinifera (VvRan3-like, XP_002285018), G. max (GmRan3-like, XP_003526422), Cucurbita maxima (CmRan, AEK84227), Solanum lycopersicum (SlRan1, NP_001234016, SlRan2, NP_001234023), Pisum sativum (PsRan1, ABM73376), Lepidium latifolium (LlRan, AEK78856), Allium sativum (AsRan2, ABD17865), Z. mays (ZmRan, NP_001149221)

Expression analysis of DlRan genes during SE in longan

We used qRT-PCR to detect abundances of DlRan transcripts at different developmental stages of longan SE. As indicated in Fig. 5, the expression profiles of two types of DlRan genes during longan SE were very similar. High levels of DlRan transcripts were detected in early embryogenic cultures and heart- and torpedo-shaped embryos. The highest levels were found in heart-shaped embryos, while the lowest were detected in globular, cotyledonary and mature embryos.

Fig. 5

Relative expression levels of DlRan genes during longan somatic embryogenesis determined by qRT-PCR. Expression level was normalized to Fe-SOD and EF-1a. Data are mean ± SE (n = 3). a Expression level of N type DlRan transcripts (DlRan3B-1–DlRan3B-9, DlRanC-1–DlRan3C-3, DlRanD-1and DlRanD-2). b Expression level of D type DlRan transcripts (DlRan3A-1–DlRan3A-14, DlRanE-1, DlRanF-1 and DlRanG-1). EC friable-embryogenic callus, EC II embryogenic callus II, ICpEC incomplete compact pro-embryogenic cultures, CpECGE compact proembryogenic cultures, GE globular embryos, HE heart-shaped embryos, TE torpedo-shaped embryos, CE cotyledonary embryos, ME mature embryos. Morphology of these embryogenic cultures has been described in previous studies (Lai et al. 2012; Lai and Lin 2013)

The effect of 2,4-D on expression of DlRan genes in longan embryogenic calli

2,4-D is a growth regulator commonly used in the induction of somatic embryos. However, high concentrations inhibit development of somatic embryos in longan and other plants (Aiqing et al. 2011; Lai et al. 2000). Furthermore, application of 2,4-D in various concentrations is able to synchronize SE in longan (Chen and Lai 2002). Wang et al. (2006) have demonstrated that Ran is involved in auxin signaling. 1 mg 2,4-D/l is necessary to maintain longan calli at embryogenic state (Lai et al. 2000). To investigate the effect of 2,4-D on the expression of DlRan genes, embryogenic calli cultured on M0 medium supplemented with 1 mg 2,4-D/l were transferred to M0 medium supplemented with different concentrations of 2,4-D. As indicated in Fig. 6, reducing the concentration of 2,4-D gradually increased the abundance of DlRan gene transcripts. Increasing the concentration of 2,4-D to 1.5 mg/l also enhanced the accumulation of DlRan genes transcripts. In contrast, application of 2.0 mg 2,4-D/l reduced the abundance of DlRan transcripts to levels lower than initial values.

Fig. 6

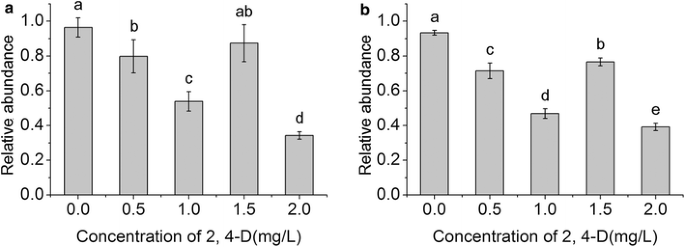

Expression of DlRan genes under 2, 4-D treatment. Embryogenic calli were treated with M0 supplemented with 0.5, 1.5 and 2.0 mg/l of 2,4-D and 2,4-D free medium, respectively. RNA was extracted from embryogenic calli and analyzed by realtime PCR to determine the relative abundance of DlRan genes. a Abundance of N type DlRan transcripts, b abundance of D type DlRan transcripts. Abundance was normalized to Fe-SOD and EF-1a. Significance was tested by one-way ANOVA using SPSS 13.0. Different letters above the bars indicate significant differences according to the least significant difference test at 5 % level. Data are mean ± SE (n = 3)

Discussion

Characterization of an expanded Ran gene family in longan

The Ran gene family comprises a small number of genes found in different organisms, namely one member in humans and Schizosaccharomyces pombe and four in Arabidopsis (Ma 2007; Takai et al. 2001). In this study, 30 DlRan cDNAs were cloned from torpedo-shaped embryos in longan. Alignments between DlRan cDNA sequences and genomic DNA sequences suggested the existence of more Ran genes in the longan genome. Phylogenetic analysis revealed that seven deduced DlRan proteins are closely related to Ran3 from other species. Our results suggest that the longan Ran gene family is expanded compared with Arabidopsis (Ma 2007). The estimated size of the longan genome is 444 Mb (VanBuren et al. 2011), about threefold larger than that of Arabidopsis. Nevertheless, the exact number of Ran genes in longan cannot be determined until whole genome sequencing is completed. Sequence features of the longan Ran gene family that may be unique to this species and cannot be determined until all Ran genes have been isolated from the longan genome.

Regulation of DlRan gene expression

In the present study, DlRan genes were significantly upregulated at the heart-shaped embryo stage. At the torpedo-shaped embryo stage, DlRan genes were downregulated whereas the Ran protein was rapidly upregulated. Our results indicate that the expression patterns of DlRan genes were different from that of the Ran protein identified in our previous study (Fang et al. 2011; Lai et al. 2012). Discordance between protein and mRNA expression is a common phenomenon in eukaryotic cells (Skrzycki et al. 2010; Wang et al. 2010). We speculate that unidentified post-transcriptional mechanisms participate in regulation of DlRan gene expression.

We found that changes in synonymous codon usage gave rise to mRNA secondary structure alterations among DlRan3C-1, DlRan3C-2 and DlRan3C-3. Although synonymous mutations have no effect on the resulting protein sequence, the selection of synonymous codons affects the modulation of gene expression and cellular functions (Plotkin and Kudla 2011). The differential usage of synonymous codons among these transcripts may be functional, but further tests are required to confirm this hypothesis.

Potential functions of DlRan genes during SE in longan

The involvement of Ran in longan SE has been demonstrated previously (Fang et al. 2011). Our results indicated that reduction of 2,4-D concentration in the medium, which promotes initiation of somatic embryo development, enhanced DlRan gene expression. This result further supports the involvement of DlRan in longan SE. Plant Ran is involved in cell proliferation (Lü et al. 2011; Wang et al. 2006). The sequence alignment in the present study indicates that DlRan proteins are highly conserved with respect to Ran proteins from other plants, suggesting similar functionality. Our expression analysis showed that DlRan gene transcripts are more abundant during SE stages associated with active cell division. The high expression of DlRan genes observed at heart- and torpedo-shaped stages may be related to the cell proliferation that gives rise to the cotyledons and radicle. We believe that DlRan proteins may regulate mitotic progress in a manner similar to their homologs in other plants.

2,4-D was shown to alter Ran expression when applied at different concentrations. Auxin plays pivotal roles in SE. 2,4-D, the most commonly used synthetic auxin for induction of SE (Karami and Saidi 2010), affects the indole acetic acid (IAA) synthetic pathway and promotes IAA accumulation (Michalczuk et al. 1992a, b). Ectopic postembryonic expression of LEC2 has been shown to induce somatic embryo formation (Stone et al. 2001). LEC2 has been proposed to induce SE by promoting auxin activity, and 2,4-D exerts effects similar to those of ectopic LEC2 expression (Stone et al. 2008). Su et al. (2009) have suggested that exogenous auxin levels play an important role in determining expression patterns of WUS, a correct expression of which is essential for somatic embryo induction. 2,4-D can induce SE, but also inhibits somatic embryo development (Aiqing et al. 2011). Pan et al. (2010) found that treatment with high concentrations of 2,4-D changed the proteome of Valencia embryogenic callus. Although the mechanisms involved in induction of SE by 2,4-D and the inhibitory effect of this auxin on somatic embryo development remain to be uncovered, 2,4-D functions by altering gene expression in plant cells through signal transduction. Ran is a vital regulator of nucleocytoplasmic trafficking in plants (Meier and Somers 2011; Merkle 2011). Numerous studies have detailed the involvement of Ran in plant responses to hormonal and environmental signaling (Ferreira et al. 2006; Jiang et al. 2007; Kriegs et al. 2006; Lee et al. 2008; Mahong et al. 2012; Wang et al. 2006; Xu and Huang 2010; Yoshimura et al. 2008). Ran is involved in auxin signaling (Wang et al. 2006) and it is unsurprising to find that Ran expression is influenced by 2,4-D. 1 mg 2,4-D/l is necessary to maintain longan calli at embryogenic state, remove or reduce the concentration of 2,4-D initiates the development of somatic embryos. Nucleocytoplasmic transport and cell division are essential during the formation of somatic embryos. It is reasonable that the expression of Ran was enhanced by reducing the concentration of 2,4-D. Properly increasing the concentration of 2,4-D promote the proliferation of longan calli and improve the expression of Ran. However, 2 mg 2,4-D/l inhibit the growth of longan calli and cause browning, which can explain the repression effect of 2 mg 2,4-D/l on Ran level. Our results further support the involvement of Ran in auxin signal transduction. Zang et al. (2010) have suggested that Ran participates in abiotic response signaling by modulating the nuclear transportation of proteins and RNA. Taking the results of these studies and ours into consideration, we speculate that DlRan may participate in 2,4-D-induced SE by transmitting 2,4-D signals and may regulate the expression of embryogenesis-related genes by controlling nuclear trafficking.

In this study, 30 cDNA and two genomic DNA sequences of DlRan genes were isolated. We also revealed the expression profiles of DlRan genes during SE and under exogenous 2,4-D treatment. Our results suggest the importance of DlRan genes in longan embryo development. Future research should focus on the elucidation of mechanisms involved in regulation of DlRan gene expression and the functions of different DlRan genes during SE in longan.
