Brief report of the construction of infectious DNA clones of South African genetic variants of grapevine virus A and grapevine virus B
© Goszczynski. 2015
Received: 22 June 2015
Accepted: 6 November 2015
Published: 26 November 2015
Recent research results strongly suggest that certain genetic variants of grapevine virus A (GVA) and grapevine virus B (GVB), two members of the Vitivirus genus of the family Betaflexiviridae, are the cause of Shiraz disease and corky bark disease of grapevines in South Africa, respectively. To investigate this hypothesis, work was undertaken to construct DNA clones of these viruses.
Findings and conclusions

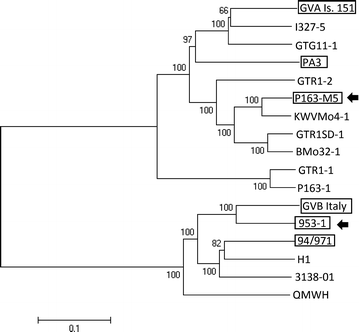

Biologically viable and stable DNA clones of genetic variants of GVA and GVB B from South Africa were constructed. The clones share 76.3, 73.2 and 85.2, 77.6 % nt sequence similarity with corresponding clones constructed in Italy and Israel. The results suggest that a derivative of a mini binary vector pCB302 is superior to pCAMBIA1305.1 for the construction of infectious and stable DNA clones of vitiviruses. Successful construction of such DNA clones of GVA and GVB reported in this study is a clear step towards fulfilling Koch’s 3rd postulate in investigating the aetiology of Shiraz disease and corky bark disease.
KeywordsGrapevine virus A Grapevine virus B Genetic variants Infectious DNA clones
Although GVA and GVB have already been reported in 1980 (Conti et al. 1980) and 1993 (Boscia et al. 1993) respectively, and are common in vineyards world-wide, their pathogenicity to grapevines remains unknown. Research results suggest that GVA and GVB may cause two of the four rugose wood [RW] diseases of grapevines, Kober stem grooving (KSG) (Boscia et al. 1997; Garau et al. 1994; Minafra 2000) and corky bark (CB) (Boscia et al. 1993, 1997; Bonavia et al. 1996; Minafra 2000), respectively. Abnormal development of cambium cells causing modification of wood cylinder and bark in canes of infected plants is a common feature of RW diseases (Minafra 2000). KSG and CB diseases only induce strong symptoms on few grapevines like Kober 5BB and LN33 hybrids. Despite this limited range of grapevines susceptible to KSG and CB diseases there is common belief that these diseases negatively influence graft take of all grapevine cultivars to rootstocks that leads to reduced vigor of plants, and ultimately result in lower productivity and longevity of vineyards (Boscia et al. 1997; Minafra 2000). Recent results also revealed that certain genetic variants of GVA are associated with Shiraz disease (SD), which is highly destructive for grapevines cv. Shiraz and Merlot in South Africa (Goszczynski and Jooste 2003b; Goszczynski 2007; Goszczynski et al. 2008). Canes of SD-affected grapevines never mature and the plants usually die in 3–5 years. Despite the association of GVA and GVB with KSG, SD and CB, the aetiologies of these diseases are still not clear since grapevines are usually infected with a mixture of different virus species. Genetically uniform populations of GVA and GVB needed to fulfill Koch’s 3rd postulate—isolation of a pathogen and re-infection of a host followed by the development of disease symptoms, can be obtained relatively quickly by the construction of the DNA clones of these viruses. Although the biologically active DNA clones of various genetic variants of GVA and GVB have already been constructed in laboratories in Italy (GenBank accession numbers NC003604, NC003602) and Israel (AF007515, EF583906) (Sardarelli et al. 2000; Galiakparov et al. 1999; Moskowitz et al. 2008), they represent only a small part of the extensive genetic heterogeneity of these viruses (Fig. 1). Recent results suggest that the variants of these viruses vary in pathogenicity to grapevines (Goszczynski and Jooste 2003b; Goszczynski 2007, 2010). In addition, the clones constructed in Italy were highly unstable, which eliminated them from further applications (Sardarelli et al. 2000). The cause of the instability of the clones was unknown. For the construction of DNA clones reported in this paper, genetic variants GVA P163-M5 and GVB 953-1, sharing only 76.3 %, 73.2 % and 85.2 %, 77.6 % nt genome similarity with the corresponding viruses from Italy and Israel, were used (Fig. 1). The full genome sequences of these variants are deposited in GenBank under accession numbers DQ855082 and KJ524452, respectively. The GVA variant P163-M5 was isolated in Nicotiana benthamiana from grapevine cv. Cinsaut Blanc clone P163/12 (Goszczynski and Jooste 2003a, b; Goszczynski et al. 2008). The grapevine was used by the South African grapevine industry as a very reliable source of SD in woody indexing. In our laboratory, the disease was also easily graft transmitted from C. Blanc clone P163/12 to SD-susceptible Shiraz and Merlot, on several occasions. In some cases the transmission was successful even when the graft had not taken (Goszczynski, not published). This indicates the presence of an exceptionally highly virulent pathogen in this grapevine that causes SD. In addition to GVA, this grapevine is infected with Grapevine rupestris stem pitting-associated virus (GRSPaV) and Grapevine leafroll-associated virus 3 (GLRaV-3) (Goszczynski, not published). The GVA population consists of two genetic variants, P163-M5 and P163-1, which are highly divergent, sharing only 70.8 % nt genome similarity. The variant P163-M5 is a member of phylogenetic group II associated with SD in South Africa (Goszczynski and Jooste 2003a; Goszczynski et al. 2008). Variants of this group are also commonly present in grapevines affected by Australian Shiraz disease (AuSD) (Goszczynski and Habili 2012). The variant P163-M5 is unique among variants of group II as it has 119 nt insert in ORF2. The insert sequence share 75.6 % nt similarity with the corresponding native sequence of this variant, and 68.1–78.2 % nt similarity with other members of the group II identified in South Africa (Goszczynski et al. 2008). The GVB variant 953-1 was isolated in N. benthamiana from grapevine LN33 hybrid, our grapevine collection accession number 93/953, exhibiting clear cane symptoms of CB disease (Goszczynski 2010). The grapevine, in addition to GVB, is also infected with GRSPaV and GLRaV-3 (Goszczynski, not published). The population of GVB consists of two divergent variants of the virus, 953-1 and H1, sharing 78 % nt genome similarity (Goszczynski 2010). The variant GVB H1 was also detected as a single infection in the LN33 hybrid, which consistently and over years, does not exhibit CB symptoms (Goszczynski 2010). It suggests that the GVB variant 953-1 may be responsible for CB symptoms in LN33 93/953, and this makes it the perfect candidate for the construction of a DNA clone.
Oligonucleotide primers used in the construction of DNA clones of GVA and GVB genetic variants P163-M5 and 953-1, respectively, shown in Fig. 2
The full DNA copies of virus variants under Ca35S promoter that were obtained in pGEM-T vector were released from this plasmid by digestion with selected restriction enzymes (Fig. 2), blinded with T4 DNA polymerase (Thermo Scientific) and cloned to binary vector pCAMBIA1305.1 (11,846 bp) and later to modified binary vector pCB302-NoX-ER-CFP (Peremyslov and Dolja 2007). The pCB302-NoX-ER-CFP vector (6956 bp) kindly donated by Dr. V. Peremyslov (Oregon State University, USA) is a derivative of the mini binary vector pCB302 reported by Xiang et al. (1999). The vector was made by adding an expression bar cassette composed of a Ca35S promoter and Ca35S terminator and the ER-CFP reporter to pCB302 sequence. The modification of pCB302-Nox-ER-CFP was done by removing 1704 bp part of the expression bar cassette between XbaI and EcoRI sites, leaving Ca35S terminator and Nos terminator on both ends of the linearised vector. This vector is named here as pCB.LB.35ST-NosT.RB. EcoRI digested pCAMBIA 1305.1 (11,846 bp) and XbaI/EcoRI digested pCB.LB.35ST-NosT.RB (5252 bp) binary vectors were blinded and de-phosphorylated, using respectively T4 DNA polymerase and ATP phosphatase (Thermo Scientific) before ligation with blinded full cDNA copies of the viruses, using T4 DNA ligase. In each cloning, the presence of the plasmids with correct, partial or full DNA copies of the variants sequences was monitored using predicted EcoRI and XbaI digestion patterns as a guide, respectively.
Plasmids purified from selected 10 E. coli containing full DNA copies of viruses under Ca35S promoter were mixed, and the mixture was used to transform Agrobacterium tumefaciens C58 C1. Competent cells of A. tumefaciens C58 C1 were prepared according to the procedure (mini-scale) published on line by Tsai and Harding (2008). E. coli (see above) and A. tumefaciens colonies containing binary vectors with DNA copies of GVA P163-M5 and GVB 953-1 were identified by PCR using virus-specific primer pairs M5.2743.Spe.F/M5.3512.Spe.R and 953.2461.Avr.F/953.2704.Avr.R (Table 1). The randomly selected individual clones of A. tumefaciens C58.C1 that were PCR-positive for virus sequences were cultured in LB medium with antibiotics (Rifampicin, 25 µg/ml; Tetracycline, 5 µg/ml; Kanamycin, 50 µg/ml) overnight at about 30 °C with vigorous shaking, then 1.8 ml of bacterial culture was pelleted by centrifugation 5000 rpm for 10 min at 20 °C, and re-suspended in 0.4 ml of inoculation medium (10 mM MES, 10 mM MgCl2 and 150 µM acetosyringone). After an incubation of 2 h at room temperature in the dark, the bacteria were injected to the slightly wounded underside of leaves of N. benthamiana plants (at 6–8 leaf stage) using a 1 ml syringe without needle. Agroinoculated plants were kept in a growth room at 25–27 °C, under a 12 h light cycle.
Purification of total dsRNA from virus-infected symptomatic N. benthamiana was carried out essentially as described by Valverde et al. (1990), using two rounds of dsRNA purification through CF11 cellulose. For pattern analysis of virus-specific dsRNA the samples of total dsRNA corresponding to about 300 mg of virus-infected tissue of N. benthamiana were electrophoresed in 6 % polyacrylamide gels at 100 V for 3 h at +5 °C, using Mini-protean II dual slab cell (Bio-Rad).
Western Blot analysis of virus capsid proteins was done as reported by Goszczynski et al. (1997). The proteins were extracted from symptomatic leaves in 0.1 M Tris–HCl buffer pH 7.6 containing 2.5 % SDS, 5 % glycerol and 5 % 2-mercaptoethanol, 2.0 ml per 0.5 g of tissue, then incubated in boiling water for 2.5 min and centrifuged at 14,000 rpm for 2 min. The supernatant was stored frozen at −80 °C and used, without further processing, for separation of virus capsid proteins in mini SDS-PAGE gels. To detect the virus capsid proteins, the virus-specific rabbit antisera produced earlier to capsid proteins of GVA isolate 92/778 (Goszczynski and Jooste 2003a) (Goszczynski, not published) and GVB isolate 94/971 purified from SDS-PAGE gels (Goszczynski et al. 1997) were used. The GVA and GVB-specific rabbit antisera and goat anti rabbit alkaline phosphatase conjugate (GAR-AP) were used diluted 1000 and 2000 times respectively.
Results and discussion
Full genome DNA copies of both GVA P163-M5 and GVB 953-1 under 35S promoter cloned into pGEM-T vector could be easily found among transformants of E. coli. However, after re-cloning to the binary vector pCAMBIA 1305.1 this applied only to the DNA clone of GVA P163-M5. For the DNA clone of this variant, among 65 colonies of E. coli tested by PCR, 17 were positive for the virus, and 5 had correct predicted EcoRI pattern for full DNA copy of the variant genome. On the contrary, for DNA clone GVB 953-1, testing of total 229 E. coli colonies, 28 were found virus-positive in PCR, and only 4 had the correct, predicted XbaI pattern of the full DNA copy of the variant. Purified plasmids containing full DNA copies of GVA P163-M5 and GVB 953-1, respectively, under Ca35S promoter were combined and transformed to A. tumefaciens C58.C1. Fourteen PCR virus-positive colonies of each virus were selected for agroinoculation of N. benthamiana. Of these, 8 DNA clones of GVA P163-M5 and none of GVB 953-1 were infectious to N. benthamiana. To uncover the reason for the lack of infectivity of DNA clones of GVB 953-1, the mixture of the full DNA copies of this virus under Ca35S promoter released from pGEM-T vector, used earlier in cloning to pCAMBIA 1305.1, stored in −30 °C, was used to clone the virus to pCB.LB.35ST-NosT.RB. The same was done with a similar mixture of the full DNA copies of GVA P163-M5. For each virus, among 10 randomly selected E. coli colonies which were PCR positive for virus sequences, 6 and 8 colonies contained full DNA copies of GVA P163-M5 and GVB 953-1, respectively. Plasmids with full DNA copies of viruses under Ca35S promoter were mixed and transformed to A. tumefaciens C58.C1. Brief PCR testing of respectively 4 and 25 A. tumefaciens colonies, 2 and 5 were virus-positive. The positive clones were used to agroinoculate N. benthamiana. Of these, 2 DNA clones of GVA P163-M5 and 4 DNA clones of GVB 953-1 were infectious. These results suggest that the lack of infectivity of DNA clones of GVB 953-1 variant in pCAMBIA1305.1 observed earlier, was caused not by lethal mutations, which could be introduced to virus genome in RT-PCR or toxicity of the variant to E. coli, but was apparently caused by instability of the DNA copy of this variant under Ca35S promoter in this binary vector. The relatively easy cloning of infectious DNA copies of both GVA and GVB to pCB.LB.35ST-NosT.RB, suggest that this binary vector is superior to pCAMBIA1305.1 in cloning of the full cDNA copies of members of the Vitivirus genus.
The DNA clones of GVA P163-M5 and GVB 953-1 reported here will be used to investigate the aetiology of SD and CB diseases. As the clones were constructed using virus dsRNA isolated from N. benthamiana, to avoid the possibility that they will not be infectious to grapevines due to adaptation to this herbaceous host (Kurth et al. 2012), construction of clones of the same variants using dsRNA of viruses isolated directly from grapevines is underway. The clones will also have other applications. They will be used to investigate of the still mysterious function of a protein encoded by ORF2 of the members of the Vitivirus genus. Although it was determined that this protein is dispensable for the biology of GVA in N. benthamiana (Galiakparov et al. 2003), nothing is known about the function of this protein in the grapevine host. As was mentioned, the DNA clone of GVA variant P163-M5 has unique ORF2 among variants of this virus. In addition, as GVA and GVB infections are latent in most grapevine cultivars, the DNA clones of these viruses can be used as vectors of grapevine sequences in analysis of the grapevine genome using virus-induced gene silencing (VIGS) (Muruganantham et al. 2009).
Reported here stable DNA clones of GVA and GVB enrich the pool of DNA clones of these extensively genetically heterogenic and relatively unknown viruses. The clones may substantially contribute in the further study of these viruses.
This work was partially funded by the National Research Foundation (grant number 76699) and Winetech, South Africa. The author thanks H. Maree (Infruitec/Stellenbosch University, South Africa), M.E.C. Rey (Wits University, South Africa), and V. Peremyslov (Oregon State University, USA) for kindly donating various strains of A. tumefaciens and binary vectors pCAMBIA and pCB302-NoX-ER-CFP.
The author declares that he has no competing interests.
