Oxidation of tricyclic antidepressant drugs with chloramine-T in acidic solutions: kinetic, mechanistic and thermodynamic studies
© Sukhdev and Puttaswamy; licensee Springer. 2013
Received: 30 August 2012
Accepted: 13 December 2012
Published: 30 January 2013
The kinetics of the oxidation of two tricyclic antidepressants (TCA) namely, imipramine (IMP) and clomipramine (CLM) with sodium N-chloro-p-toluenesulfonamide or chloramine-T (CAT) in HClO4 medium was studied at 300 K. The two reactions followed identical kinetics with a first-order dependence of rate on [CAT]o and fractional order dependence on [TCA]o. The reaction is catalyzed by H+ ions with a fractional order dependence. The reaction was studied at different temperatures and activation parameters were evaluated. The reaction constants involved in the mechanism were computed. The solvent isotope effect was studied using D2O. Addition of p-toluenesulfonamide retards the reaction rate. The rate increased with decreasing dielectric constant of the medium. Variation of ionic strength of the medium and addition of halide ions (Cl- or Br-) showed no effect on the rate. The stoichiometry of the reaction was found to be 1:1 and the oxidation products were identified as imipramine-5-N-oxide and clomipramine-5-N-oxide. The rate of oxidation of IMP is faster than CLM. The observed results have been explained in terms of a mechanism and a relevant rate law has been deduced.
KeywordsTricyclic antidepressants Chloramine-T Oxidation-kinetics Acid solutions
Tricyclic antidepressants (TCA) are pharmaceutically important compounds and are widely used for the treatment of psychiatric patients suffering from clinical depression Goodman and Gilman (2001). The main function of these drugs is to block the reuptake of the neurotransmitters in the central nervous system (Morton 1991; British Pharmacopoeia 1988). Imipramine hydrochloride (IMP) and Clomipramine hydrochloride (CLM) are important compounds of this group of drugs. Inspite of the importance of these drugs, a review of literature reveals the absence of comprehensive studies on the solution behaviour of these drugs especially on their oxidation-kinetics and mechanisms. In biochemical reactions, kinetic knowledge is used to optimize the reaction conditions in order to unfold the mechanistic picture of the particular redox system which remains an area of interest and importance. Hence, such a study could throw some light on the mechanism of metabolic conversions of these drugs in the biological systems. It was, therefore, found to be of interest and important to investigate the mechanism of oxidation of IMP and CLM with halogen +1 oxidant kinetically.
Many reports are available in literature on the oxidative degradation of biological substrates by hypochlorous acid. Hence it was intended to study the oxidation kinetics of IMP and CLM drugs with HOCl as an oxidant, since it is a biologically more relevant oxidant. It is also reported that organic N-haloamines resemble hypohalites in its oxidative mechanistic behavior and although less familiar, they are more stable than hypohalites. Organic N-haloamines are finding applications as oxidants, disinfectants and antiseptics Bishop and Jennings (1958; Morris et al. 1948). In addition, both haloamines and hypohalites contain halogen in the +1 state.
The chemistry of organic N-haloamines is of interest due to their diverse behavior (Campbell and Johnson 1978). As a result, these reagents interact with a wide range of functional groups affecting an array of molecular transformations (Banerji et al. 1987; Armesto et al. 1998; Agnihotri 2005; Kolvari et al. 2007; Puttaswamy and Shubha 2009). The prominent member of this class of compounds is sodium N-chloro-p-toluenesulfonamide or chloramine-T (CAT). It is a mild, efficient, stable, non toxic and inexpensive oxidant. On the other hand, hypochlorous acid is not commercially available since it is highly unstable and has to be prepared and standardized every hour afresh. Because of these reasons, we have opted CAT as an oxidant. Hence, the present study gives an impetus as the substrates are potent drugs since the oxidative behavior of CAT is quite similar to hypochlorous acid. Therefore, we report herein the results of investigations on the kinetics and mechanism of oxidation of IMP and CLM in acid medium. The studies are also extended to deduce the appropriate rate law based on the kinetic results. The remarkable advantage in the course of this research is that the optimum conditions for the facile oxidation of TCA to 5-N-oxides were established.
Results and discussion
Our preliminary experiments revealed that there is no reaction between substrate and perchloric acid under the experimental conditions employed. This ruled out the possibility of HClO4 as an oxidizing agent in the present case. Hence, it can be said that CAT is only involved in the oxidation of the drug. The kinetics of oxidation of imipramine and clomipramine with CAT was investigated at several initial concentrations of the reactants in HClO4 medium at 300 K. Under comparable experimental conditions, the similar oxidation kinetic behaviour was observed for both the drugs.
Effect of varying CAT, TCA and HClO 4 concentrations on the rate of reaction at 300 K
104 k / (s-1)
Effect of varying p-toluenesulfonamide (TsNH 2 or PTS) on the rate of reaction at 300 K a
104 k / (s-1)
Effect of varying temperature and values of thermodynamic parameters for the oxidation of IMP and CLM by CAT in acid medium
104k/(s-1) (103 k 3 (s-1))a
4.86 ( ---)
3.36 ( ---)
E a (kJ mol -1)
∆H ≠ (kJ mol-1)
∆G ≠ (kJ mol-1)
∆S ≠ (JK-1 mol-1)
Reactive species of chloramine-T
Chloramine-T (TsNClNa) acts as a mild oxidant in both acidic and alkaline media Campbell and Johnson (1978). In general, CAT undergoes a two electron change in its reactions forming the reduction products, PTS and sodium chloride Bishop and Jennings (1958). The oxidation potential of CAT-PTS redox couple is pH dependant Campbell and Johnson (1978; Murthy and Rao 1952) and it decreases with increase in pH of the medium (the redox potential Eredoxof CAT-PTS couple is 1.138, 0.778, 0.614 and 0.50 V at pH 0.65, 7.0, 9.7 and 12, respectively). Chloramine-T behaves as a strong electrolyte in aqueous solutions [Hardy and Johnston 1973 and depending on the pH of the medium, it furnishes Bishop and Jennings (1958; Morris et al. 1948 1973; Pryde and Soper 1931) different reactive species in solutions:
Therefore, the possible oxidizing species in acidified CAT solutions are TsNHCl, TsNCl2, HOCl and possibly H2O+Cl. Also, Narayan and Rao (1983) and Subhashini et al. (1985) have reported that chloramine-T can be protonated further at pH 2 . If dichloramine-T (TsNCl2) were to be the reactive species, then the rate law predicts a second-order dependence of rate on [CAT]o which is contrary to the experimental observations. In the present study, the rate of the reaction increases with increase in [H+] but it is retarded by the added p-toluenesulfonamide (TsNH2). Further, chloramine-T contains a polar N-Cl bond as the source of positive chlorine Cl+ species, which forms the conjugate acid TsNHCl, in acidic solutions. This conjugate acid with N-Cl bond intact interacts with H3O+ to form the reactive oxidant species, H2O+Cl, and the p-toluenesulfonamide (TsNH2).
Reactive species of TCA
In the present case, form B of the substrate is considered as the substrate reactive species.
Kinetic rate law
Rate law (6) is in good agreement with the experimental results, wherein a first-order dependence of rate on [CAT]o, fractional-order dependence each on [TCA]o and [H+], and an inverse-fractional order on [TsNH2] was observed.

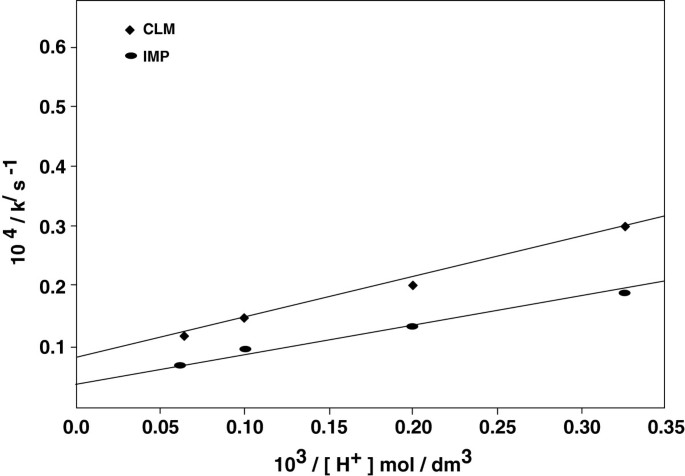

According to eq 8 and eq 9, in order to deduce equilibrium and decomposition constants, the reaction has been studied in presence of 2.0 x 10-3 mol dm-3 p-toluenesulfonamide (TsNH2) by varying the concentrations of TCA and HClO4 in the range given in Table 1.
From the slopes and the intercepts of the above plots, the values of equilibrium constants K 1 and K 2 , and the decomposition constant k3 were found to be 0.6 and 0.5, 84 and 151 mol dm-3 and 5.0 x 10-3 and 1.66 x 10-3 s-1 for IMP and CLM, respectively. The proposed scheme and the derived rate law are also supported by the experimental observations discussed below.
Since the rate was fractional-order in [TCA]o, Michaelis-Menten kinetics House (2007) were adopted to study the effect of substrate on the rate at different temperatures. The decomposition constant k 3 values were determined by varying the concentration of both the drugs in the range given in Table 1 at different temperatures (290 – 310 K) at constant [TsNH2] = 2.0 x 10-3 moldm-3. The activation parameters for the rate-determining step were evaluated using Arrhenius plots of log k 3 vs 1 / T (R 2 > 0.9959). All these results are compiled in Table 3. The proposed mechanism and the derived rate law are supported by the following experimental findings:
Solvent isotope effect
As expected for a H+ catalyzed reaction, the rate of the reaction increased in D2O medium and hence the proposed mechanism is supported by this observation. For a reaction involving a fast equilibrium H+ or OH- transfer, the rate increases in D2O since D3O+ and OD- which are stronger acid and stronger base (~ 2–3 times greater), respectively, than H3O+ and OH- ions Collins and Bowman (1970; Kohen and Limbach 2006). The increase of reaction rate with D2O observed in the present studies and the solvent isotope effect which is k / (H2O) / k / (D2O) < 1 conform to the above theory. However, the magnitude of acceleration in D2O is small compared to the expected value, which can be attributed to the fractional order dependence on [H+].
Dielectric constant effect
A change in the solvent composition by varying the methanol content in methanol–water affects the reaction rate. The effect of solvent on the reaction kinetics has been described in detail in the well-known publications of Moelwyn- Hughes (1947), Benson (1960), Frost and Pearson (1961), Laidler and Eyrings (1940), Amis (1966), and Entelis and Tiger (1976). For the limiting case of zero angle of approach between two dipoles or an ion dipole system, Amis (1966) has shown that a plot of log k / versus 1 / D gives a straight line, with a negative slope for a reaction between a negative ion and a dipole or between the dipoles, while a positive slope results for a positive ion-dipole interaction. In the present observations, plots of log k / vs 1 /D were linear with positive slopes and hence the later concept agrees where a positive ion and a dipole are involved in the rate-determining step of the proposed scheme (Scheme 3).
Ionic strength effect
where A and B are the reacting ions, ZA and ZB are the charges on the respective species, k / and k o are the rate constants in the presence and in the absence of the added electrolyte, respectively. Equation 10 shows that a plot of log k / versus μ1/2 would be linear yielding a slope 1.02 ZAZB and an intercept log k o . As the slope of the line depends on ZAZB, ie, charges of the reacting ions, three special cases may arise: (i) if A and B have the same charges, ZA ZB will be positive and the rate constant k / increases with √μ; (ii) if A and B have opposite signs, ZA ZB will be negative and the rate constant k / decreases with √μ; and (iii) if either A or B is uncharged, ZA ZB is equal to zero and k / is independent of the ionic strength of the solution. In the present case, a positive charge and a neutral molecule is involved in the rate-determining step (step (iii) of Scheme 3). Hence, variation of the ionic strength of the medium does not alter the rate in both the cases clearly conform to the above theory (case (iii)).
Relative reactivity of drugs
The relative reaction rates and activation energies indicate that the IMP oxidation is faster when compared to CLM. Since chlorine is present at the meta position, the electron-withdrawing inductive effect dominates and thus it deactivates the ring which makes the nitrogen atom of the ring less reactive towards the reactive oxidant species. Hence, the rate of oxidation of CLM is comparatively slower than IMP.
The proposed mechanism and the related rate law are supported by the moderate values of energy of activation and other activation parameters. The fairly high positive values of ∆G≠ and ∆H≠ indicate that the transition state is highly solvated, while the high negative ∆S≠ suggests the formation of a rigid associative transition state with a reduction in the degrees of freedom of molecules in both the drugs. The values of ∆G ≠ are almost the same in both the cases suggesting that the oxidation of IMP and CLM with CAT proceeds by a similar mechanism.
The oxidation reaction follows similar kinetic patterns for both the drugs.
The reaction obeys the experimental rate law: rate ?=? k/ [CAT]o [HClO4]y [PTS]-?z, where x,y,z <1.
The rate of oxidation of IMP is faster than CLM.
The thermodynamic parameters and reaction constants were evaluated.
Reaction mechanism (Scheme) and the rigorous kinetic modeling proposed, accord results fitting well with the experimental data.
In the course of this research, optimum conditions for the facile oxidative conversion of IMP and CLM to the corresponding 5-N oxides were established.
Chloramine-T (Merck) was purified by the method of Morris et al. (1948). An aqueous solution of CAT was prepared, standardized iodometrically and stored in amber colored stoppered bottles to prevent any of its photochemical deterioration. The concentration of stock solutions was periodically determined. The drugs imipramine hydrochloride and clomipramine hydrochloride of analytical grade gifted by R.L. Fine chemicals pvt. Ltd, Bangalore, India, was used as received. Aqueous solutions of desired strength of these drugs were prepared before use. Heavy water (D2O 99.4%) was supplied by Babha atomic research centre, Mumbai, India. All chemicals and reagents used were of Anala R grade and doubly distilled water was used throughout the work.
The kinetic runs were performed under pseudo-first order conditions with a large excess of substrate over oxidant in acid medium. Unless specificied otherwise, all the kinetic runs were carried out at 300 K. Detailed kinetic procedure followed is similar to that reported earlier (Mendham et al. 2000). The progress of the reaction was monitored by iodometric determination of unreacted CAT in measured aliquots (5 ml each) of the reaction mixture at different intervals of time. The course of the reaction was studied for more than two half-lives. The pseudo-first order rate constants (k/ s-1), were computed using the graphical methods by plotting log [CAT] vs time. Duplicate kinetic runs showed that the rate constants were reproducible with an accuracy of ± 6% error. All regression co-efficients (R2) calculations were performed with fx-100W scientific calculator.
Authors greatly acknowledge VGST, Government of Karnataka, India, for the CESEM award. The authors are thankful to Prof. M.A. Pasha for his valuable suggestions on the proposed reaction scheme. One of the authors (AS) thanks the Principal and the Management of MES College of Arts, Commerce and Science, Bangalore for encouragement.
