Complete plastid genome of Eriobotrya japonica (Thunb.) Lindl and comparative analysis in Rosaceae

Abstract

Eriobotrya japonica (Thunb.) Lindl (loquat) is an evergreen Rosaceae fruit tree widely distributed in subtropical regions. Its leaves are considered as traditional Chinese medicine and are of high medical value especially for cough and emesis. Thus, we sequenced the complete plastid genome of E. japonica to better utilize this important species. The complete plastid genome of E. japonica is 159,137 bp in length, which contains a typical quadripartite structure with a pair of inverted repeats (IR, 26,326 bp) separated by large (LSC, 89,202 bp) and small (SSC, 19,283 bp) single-copy regions. The E. japonica plastid genome encodes 112 unique genes which consist of 78 protein-coding genes, 30 tRNA genes and 4 rRNA genes. Gene structure and content of E. japonica plastid genome are quite conserved and show similarity among Rosaceous species. Five large indels are unique to E. japonica in comparison with Pyrus pyrifolia and Prunus persica, which could be utilized as molecular markers. A total of 72 simple sequence repeats (SSRs) were detected and most of them are mononucleotide repeats composed of A or T, indicating a strong A or T bias for base composition. The Ka and Ks ratios of most genes are lower than 1, which suggests that most genes are under purifying selection. The phylogenetic analysis described the evolutionary relationship within Rosaceae and fully supported a close relationship between E. japonica and P. pyrifolia.

Background

Chloroplast (cp), which is derived from free-living cyanobacteria through endosymbiosis (Keeling 2004), plays an essential role in photosynthesis and many biosynthetic activities such as biosynthesis of certain amino acids and fatty acids. Chloroplast contains its own genome which displays a typical quadripartite structure with two copies of inverted repeats separated by large single copy and small single copy (Nguyen et al. 2015). In general, plastomes of angiosperms range from 120 to 170 kb and mostly contain 100–120 different genes. The chloroplast genome is usually recognized as highly conserved in gene structure and content, especially in closely related groups. However, IR loss or expansion/contraction which contributes to the variation in genome size can be easily found in some clades. Gymnosperms such as Taxus chinensis var. mairei (Zhang et al. 2014b) and Cephalotaxus oliveri (Yi et al. 2013) were identified to lose one copy of IR, leading to a decrease in genome size. Ma et al. (2013) found a significant IR expansion in Mahonia bealei in which 15 genes had an additional duplication in IR regions. Slight shift of IR/SC boundaries appears more commonly and may cause small changes in the extent of IR (Goulding et al. 1996). Consequently, structure differences of IR have been considered as important features to provide insights into gene evolution among species.

The plastid genome is good resource to provide sufficient information for phylogenetic analysis and DNA barcoding. Thanks to rapid development of next-generation sequencing, the number of whole plastid genome available is increasing constantly, which makes large-scale phylogenetic research based on plastid genomes possible (Jansen et al. 2007). In addition, comparative analysis among species can provide large amount of genetic information such as insertion or deletion (indel) and nucleotide substitutions, which can be utilized for diversity analysis and molecular markers (Cho et al. 2015).

There are over 100 genera containing approximately 3000 species in Rosaceae which is medium-sized, but of high economic importance (Potter et al. 2007). As the third most important economical family in temperate regions, many edible fruits like apple (Malus), loquat (Eriobotrya), pear (Pyrus) and peach (Prunus) as well as ornamental plants such as rose (Rosa) are included. However, till now, phylogenetic relationships within Rosaceae family have been uncertain. Traditional morphological studies divided Rosaceae into 4 subfamilies including Spiraeoideae, Maloideae, Rosoideae and Prunoideae according to the type of fruit (Kalkman 1988). Molecular studies however, put forward different opinions that Rosaceae was divided into three subfamilies: Dryadoideae, Rosoideae and Spiraeoideae (Potter et al. 2007). As the plastid genome can offer useful phylogenetic information, several plastomes of Rosaceae plants have been sequenced and reported, such as Malus domestic (http://www.rosaceae.org/projects/apple_genome), Pyrus pyriofolia (AP012207.1), Prunus persica (HQ336405) and Fragaria virginiana (NC_019602). Most of these studies focused on the comparative analysis and evolutionary studies within genera. Wang et al. (2013) reported the chloroplast genome of Prinsepia utilis and reconstructed phylogenetic relationships within Rosaceae but with low bootstrap values. So more closely related plastid genomes are needed to deal with intrafamilial classifications within Rosaceae.

Eriobotrya japonica (Thunb.) Lindl (loquat), which belongs to Rosaceae, is widely distributed in temperate and subtropical zones of Asian, European and American countries (Gisbert et al. 2009). Eriobotrya japonica originated in China and later was introduced to Mediterranean basin, Japan and Florida (Blasco et al. 2014). Eriobotrya japonica is an important economic fruit crop with high edible, medical as well as ornamental values. The fruit of E. japonica is greatly appreciated by consumers due to its good taste and high nutrition values. Its leaves, where pharmaceutically active compounds proved to be found (Sharpe 2010), have long been considered as one kind of traditional Chinese medicine. Due to natural multiplication and artificial cultivation for long time, genetic variation can be easily found within loquat which makes the identification and classification of loquat more difficult. Molecular markers such as RAPD, AFLP or SSRs have been rapidly developed these years and applied into loquat studies. Vilanova et al. (2001) applied RAPD technology into 33 loquat cultivars for identification from different regions. Soriano et al. (2005) first demonstrated the usefulness of SSRs markers in genetic analysis and identification in E. japonica. Many researches utilized AFLP and SSRs markers to investigate genetic variation, diversity and identification among loquat accessions (He et al. 2011; Fukuda et al. 2013; Blasco et al. 2014), which provided information for diversity analysis and plant breeding program. However, few molecular markers based on plastomes have been developed since completed plastid genome of E. japonica is not available, lagging behind other species of Rosaceae.

In this study, we report the first complete plastid genome of E. japonica using next-generation sequencing method (Illumina Hiseq 2000) and conduct comparative analysis with other Rosaceous species, P. pyrifolia and P. persica in particular, which will not only help with species identification or germplasm selection but also provide insights into phylogenetic evolution of Rosaceae family.

Methods

Taxon sampling, DNA sequencing and genome assembly

Fresh leaves of Eriobotrya japonica were collected from the nursery garden in Zhejiang University to prepare for isolation of chloroplast DNA. The two-step Percoll gradient method (Aronsson and Jarvis 2002) was used to isolate purified E. japonica chloroplasts. The chloroplast DNA was then extracted and purified using the CTAB method (He 2011) with slight modifications. The whole chloroplast library was constructed by 5 Î¼g purified cp DNA. The cp genome of E. japonica was then sequenced using Illumina Hiseq 2000 system, which generated in total 4,484,369 raw pair-end reads for this project. As many low-quality reads were included in the generated raw reads, SolexaQA v1.0 (Cox et al. 2010) was used to filter low-quality reads with the settings-h 27 and-l 60. Then 6050 contigs with an average length of 206 bp were generated by Soapdenovo v1.3 (Luo et al. 2012) with Kmer size equal to 59 bp. The similar strategy with Zhang et al. (2014b) was then used for the assembly. The complete plastid genome of Pyrus pyrifolia (AP012207) extracted from NCBI (http://www.ncbi.nlm.nih.gov/) was selected as a reference and Blastz (Schwartz et al. 2003) perl script was used to map all contigs to the reference in order to determine the order and direction of these contigs. The following steps was taken repeatedly to fill up the gaps: first, BLAT v.34 (Kent 2002) was used to map raw sequence reads to both ends of the assembled contigs; second, assembled contigs were extended by connecting up with overlapping reads which were best overlapped with the contigs (Zhang et al. 2014b). For the gaps remaining between contigs, we designed six pairs of primers for PCR amplification to close these gaps (Additional file 1: Table S1). Also, to avoid mistakes during our assembly, another four primers were designed to confirm IR/SC boundaries (Additional file 1: Table S1). All PCR products were sequenced by conventional Sanger sequencing and the results were consistent with our assembly. Thus, the whole plastid genome of E. japonica was obtained.

Genome annotation, codon usage and comparative analysis

The Eriobotrya japonica plastid genome was annotated using the program Dual Organellar GenoMe Annotator (Wyman et al. 2004). Start and stop codons of protein-coding genes were then manually checked and adjusted if necessary, by comparing E. japonica with other Rosaceae plastomes. Any genes not found by DOGMA were verified missing by the use of blastn and blastx online searches (https://blast.ncbi.nlm.nih.gov/Blast.cgi). Transfer RNA genes were identified and further confirmed with tRNAscan-SE 1.21 (Lowe and Eddy 1997) using the mito/chloroplast source setting. Then the whole record was deposited into Genbank with accession number KT633951. The physical map of the complete plastid genome was drawn by OGdraw v1.2 online tool (Lohse et al. 2007). Codon usage and relative synonymous codon usage (RSCU) analysis of all protein-coding genes were conducted using MEGA5 (Tamura et al. 2011). In order to perform identity analysis, seven Rosaceae cp genomes, Fragaria virginiana (NC_019602), Pentactina rupicola (JQ041763), Prinsepia utilis (NC_021455), Prunus persica (HQ336405), Pyrus pyrifolia (AP012207), and Rosa odorata (KF753637) were extracted from NCBI and were aligned with E. japonica respectively to compute pairwise identity using mVISTA program (Frazer et al. 2004). Large indels with no less than 40 bp in size were detected through pairwise alignment among E. japonica, P. pyrifolia and P. persica. For these unique large indels of E. japonica, five pairs of primers were also designed to avoid assembly errors (Additional file 2: Table S2).

Repeat structure identification

Reputer online program (Kurtz et al. 2001) was used to detect forward, palindrome, reverse and complementary repeat structures with structure size greater than 20 bp and hamming distance equal to 0 (100% identity).

Simple sequence repeats (SSRs) were detected within completed genomes of Eriobotrya. japonica using MISA v1.0 (Thiel et al. 2003) with parameter settings of mononucleotide, dinucleotide, tri- or tetranucleotide and hexanucleotide repeats no less than 10, 12, 15 and 24 bases respectively.

Nucleotide substitution in coding regions

All 78 functional protein-coding genes were extracted from Eriobotrya japonica, Pyrus pyrifolia and Prunus persica chloroplast genome. Each gene of P. pyrifolia and P. persica was aligned with that of E. japonica using clustalX v2.1 (Thompson et al. 1997). The alignment file was then put into Dnasp v5 (Librado and Rozas 2009) to calculate the synonymous (Ks) and nonsynonymous (Ka) substitution rates. Transition (Ts), transversion (Tv) and P-distance of each gene were calculated using MEGA5 (Tamura et al. 2011).

Phylogenetic analysis

All 78 protein-coding genes extracted from the plastomes of 7 Rosaceous plants (Fragaria virginiana, NC_019602; Pentactina rupicola, JQ041763; Prinsepia utilis, NC_021455; Prunus persica, HQ336405; Pyrus pyrifolia, AP012207; Rosa odorata, KF753637 and Eriobotrya japonica) and Morus indica (NC_008359, as an outgroup) were used to construct Maximum likelihood (ML) tree and Maximum parsimony (MP) tree. All 78 protein coding genes were concatenated and then aligned using MAFFT v7 (Katoh and Standley 2013). Gblock v0.91 (Talavera and Castresana 2007) was used to select the conserved regions, which resulted in a total length of 67,104 bases for MP and ML analysis. The aligned sequences of conserved regions were then tested in DAMBE v5.3.19 (Xia and Lemey 2009) for saturation of substitution. The results revealed that Iss (index of substitution saturation) < Iss.c (the critical Iss value), indicating no substantial saturation in these sequences (Xia et al. 2003). The General Time Reversible model of substitution, incorporating invariant sites and a gamma distribution (GTR + I+G), was selected as the best model by jmodeltest2.1.7 (Posada 2008). To construct the ML tree, RaxML7.0.4 (Stamatakis 2006) was used with 1000 non-parametric replications for bootstrap settings. The base frequences estimated by RaxML was 0.305 (A), 0.174 (C), 0.203 (G), 0.317 (T) while rate matrix was 1.54, 3.07, 0.24, 0.77, 3.37, 1.00 for ac, ag, at, cg, ct, gt, respectively. PAUP∗4.0b10 (Swofford 2003) was used to construct MP tree with the following options implemented: Accctran was used, gaps were treated as missing, heuristic search mode used 1000 replications for bootstrap support, tree bisection-reconnection (TBR) branch-swapping, MulTrees in effect, and steepest descent off.

Results

Genome features of E. japonica

The complete plastid genome of Eriobotrya japonica is 159,137 bp in length with a double-strand circle structure with a pair of IRs of 26,326 bp separated by a small single copy of 19,283 bp and a large single copy of 87,202 bp (Fig. 1). The plastid genome includes 112 functional genes in all, of which 78 are protein-coding genes, 30 are tRNA genes and 4 are rRNA genes (Table 1). Eighteen genes duplicates in IR region including 6 protein-coding genes, 7 tRNA genes and 4 rRNA genes. Eighteen genes comprising six tRNA genes contain one or two introns. Both ycf3 and clpP gene contain two introns while rps12 gene is trans-spliced with a share 5′ exon in LSC region and two 3′ exons located in IR region. Three genes, ycf1, rps19 and infA was found as non-functional genes in the E. japonica plastid genome. ycf1 and rps19, located in IR/SC boundary regions, became truncated as incomplete duplications of the normal copy. infA gene was found in R. odorata while it was non-functional in E. japonica and some other Rosaceae plastomes as several stop codons were identified in infA coding regions (Fig. 2).

Fig. 1
figure 1

Gene map of E. japonica complete chloroplast genome. Exons are annotated by coloured boxes and introns are annotated with white boxes. Genes inside or outside of the large circle are respectively transcribed in the clockwise or counterclockwise direction. Boundaries of LSC, SSC, IR are annotated at inner circle. GC content is represented by dark grey graph within inner circle

Table 1 List of genes located in E. japonica
Fig. 2
figure 2

Alignment of infA coding regions of seven Rosaceae plastid genomes. Asterisks mean stop codons while dots mean gaps

Overall, 22,772 codons encoding 78 functional protein-coding genes were identified from E. japonica plastid genome and classified depending on codon usage (Table 2). There were 2388 codons encoding for leucine and 252 codons for cysteine, which denoted respectively the most and the least amino acids. The RSCU analysis showed a great A/T bias in the protein-coding genes, especially in the third position of the codon with G/C content at 25.9%. This pattern has been identified in former studies (Redwan et al. 2015; Tangphatsornruang et al. 2011). However, whether this pattern relates to selection for translational efficiency or nucleotide compositional biases remains unclear.

Table 2 Codon usage and RSCU analysis of E. japonica cp genome

Comparison with other plastid genomes in Rosaceae

Structure and content of Eriobotrya japonica plastid genome are conserved and share similar features with other Rosaceae plastid genomes (Table 3). The average length of six cp genomes is 157,619 bp. Among these seven Rosaceae plants, Pyrus pyrifolia is the largest in size at 159,922 bp while Fragaria virginiana is shortest at 155,621 bp. Eriobotrya japonica ranks following P. pyrifolia with 159,137 bp. P. pyrifolia contains the longest LSC and IR, which are 87,901 and 26,392 respectively. The SSC size of E. japonica is the largest, which is 46 bp longer than P. pyrifolia.

Table 3 Summary of seven Rosaceae plastid genome features

The multialignment of Rosaceae plastid genomes (Fig. 3) illustrated that the IR regions revealed higher identity in comparison with single copy (SC) regions. Eriobotrya japonica plastid genome is most similar to P. pyrifolia and most divergent from Rosa odorata and Fragaria virginiana. Another aspect is that coding regions show higher conservation than non-coding regions.

Fig. 3
figure 3

Six Rosaceae plastid genomes were aligned with E. japonica pairwise. Y-scale stands for identity from 50 to 100%. Blue represents exons of protein-coding genes, lime represents tRNA or rRNA genes and red represents non-coding regions

The GC content is similar among these species ranging from 36.7 to 37.2% as the GC content of seed plants usually ranges from 34 to 40% (Guisinger et al. 2011; Yap et al. 2015; Cai et al. 2006; Raubeson et al. 2007). Rosa odorata and F. virginiana contain the highest GC content (37.2%) while P. pyrifolia contains the lowest (36.6%). In addition, IR regions contain the highest GC content followed by LSC and SSC regions.

Repeat structure

A total of 42 repeat structures containing no less than 20 bp with 100% identity were found (Additional file 3: Table S3). The number of direct, palindrome, complement and reverse structures are 29, 8, 3, 2, respectively. Of all these structures, the longest one is 59 bp located between rpl32 and trnL-UAG. Most repeat structures located in intergenic or intron regions while two repeat structures located in ycf1 gene.

Seventy-two simple sequence repeats including 70 mononucleotides and 2 dinucleotides were identified in E. japonica plastid genome (Table 4). Among 70 mononucleotides, 26 A stretches, 42 T stretches and 2 C stretches were detected while no G stretch was found. Two dinucleotide repeats, are both composed of A and T, 1 AT stretch (6 repeat motifs) and 1 TA (8 repeat motifs) stretch. The size of all SSRs are between 10 and 20 bp in length. Only five genes, atpB, rpoB, rpoC2, matK and ycf1 appear to harbor one or two SSRs while others are all located in intergenic or intron regions. The numbers of SSRs located in LSC, IR and SSC are 58, 4, and 10, respectively.

Table 4 Distribution of SSRs (mononucleotide) loci in the E. japonica chloroplast genome

Nucleotide substitution and indels in Eriobotrya japonica, Pyrus pyrifolia and Prunus persica

In this research, 78 functional protein-coding genes were classified into eleven groups according to their function, the Ka/Ks among Pyrus pyrifolia, Prunus persica and Eriobotrya japonica were computed. Although protein-coding regions were always conserved among closely related groups, Ka and Ks varied in different regions (Table 5) and different functions (Additional file 4: Table S4). Both Ks and Ka of all regions between P. persica and E. japonica were higher than those between P. pyrifolia and E. japonica. In two comparisons, Ka and Ks were highest in SSC regions and lowest in IR regions. When compared with P. persica, psaC revealed the highest Ks while rps18 revealed the highest Ka and genes related with ATP synthase had the highest Ks value. When compared with P. pyrifolia, rpl32 and rpl36 revealed the highest Ks and Ka value respectively and genes of Photosystem I described the highest Ks value. The Ka/Ks values of all gene groups were less than one in both two comparisons (Fig. 4a) and only one gene accD contained the Ka/Ks value slightly greater than one when compared with P. pyrifolia.

Table 5 Synonymous rate, nonsynonymous rate, transition (Ts) and transversion (Tv) in LSC, IR and SSC regions among E. japonica, P. pyrifolia and P. persica
Fig. 4
figure 4

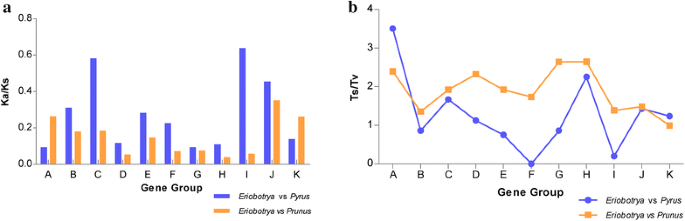

Nucleotide substitution analysis of different functional groups among E. japonica, P. pyrus and P. persica. Group A to K separately refers to small subunit of ribosome, large subunit of ribosome, RNA polymerase subunits, ATP synthase gene, NADH dehydrogenase, Cytochrome b/f complex, Photosystem I, Photosystem II, Large chain of Rubisco, Other genes and Unknown functions. a Synonymous (Ks) and nonsynonymous (Ka) ratios among three species. b Transtion (Ts) and transversion (Tv) ratios among three species

A total of 675 and 5040 nucleotide substitutions were found in E. japonica plastid genome when compared with P. pyrifolia and P. persica respectively. The LSC region contained the most nucleotide substitutions as it’s the largest area of the genome (Table 5). Transitions and transversions in coding regions are shown in Additional file 5: Table S5. Overall, transitions occurred more than transversions when compared with P. persica than with P. pyrifolia. Also, the Ts and Tv ratio varied among different gene groups (Fig.4b). Genes related with Small subunit of ribosome and Photosystem II had a relatively higher ratio in both two comparisons. Specially, the line charts of two comparisons both illustrated similar Ts/Tv tendency, which indicated a Ts/Tv bias for different functional groups.

Large indels (>40 bp) were also identified among these three species (Table 6). Compared to P. pyrifolia, 11 indels were detected in E. japonica plastid genome comprising 7 deletions and 4 insertions. The largest indel was a 417 bp deletion located in intergenic region between trnR-UCU and atpA. When compared to P. persica, 20 indels including 8 deletions and 12 insertions were identified. All large indels were distributed in non-coding regions of LSC and SSC, while none were located in IR regions.

Table 6 Large indels identified among E. japonica, P. pyrifolia and P. persica

IR expansion and contraction

The SC and IR boundaries of six Rosaceae plastid genomes were aligned in Fig. 5. Eriobotrya japonica contained almost the same IR/SC structure with Pyrus pyrifolia, Prunus persica and Pentactina rupicola in which IRb/SC boundaries lay respectively in coding regions of rps19 and ndhF. Rosa odorata and Fragaria virginiana contained another structure with rps19 gene and ndhF gene apart from LSC/IRb boundary, which led to the loss of rps19 pseudogene at LSC/IRa boundary. Prinsepia utilis contained a LSC/IRb boundary with rps19 involved and a IRb/SSC boundary apart from ndhF. The IRa/SSC boundary of all six species extended to ycf1 coding regions with the range from 978 bp (P. utilis) to 1105 bp (R. odorata), which led to a nonfunctional ycf1 gene in IRb. The IRa/LSC boundary revealed a large variation from 4 (R. odorata) to 104 bp (P. pyrifolia) as trnH-GUG gene located upstream of IRa/LSC boundary.

Fig. 5
figure 5

The comparison of IR boundary among 7 Rosaceae plants. Annotated genes are represented by black boxes. Psi letter means pseudogene

Phylogenetic analysis

All 78 protein-coding genes possessed by seven Rosaceae plastomes were extracted to perform ML and MP analysis using Morus indica as an outgroup.

Maximum likelihood analysis resulted in a single tree with—lnL of 150822.7449 using GTR + G + I substitution model. Maximum parsimony analysis generated one most parsimonious tree with a length of 10,628, a consistency index of 0.8852, and a retention index of 0.7117. Our MP (Additional file 6: Fig. S1) and ML (Fig. 6) trees shared similar topology. Both of them strongly supported a clade of Fragaria viginiana and Rosa odorata as sister to the remaining sampled Rosaceae species. Prunus persica and Prinsepia utilis form a clade sister to Pentactina rupicola, Pyrus pyrifolia, and Eriobotrya japonica. Pyrus pyrifolia and Eriobotrya japonica are sister to each other with a 100% bootstrap value.

Fig. 6
figure 6

Maximum likelihood (ML) analysis using 78 protein-coding genes within Rosaceae family. Bootstrap values are displayed at the nodes. Length scale behind the tree indicates substitutions per site

Discussion

We compared Eriobotrya japonica with available sequences of Rosaceae plastid genomes, indicating the conservation of E. japonica plastid genome with similar structure and gene content. However, one significant difference among these species is that Rosa odorata encodes infA gene which is non-functional in other plastid genomes due to several stop codons in coding regions (Fig. 2). It’s well recognized that plastid DNA transfers to nuclear DNA at a considerably high rate (Huang et al. 2003). However, until now, successful gene transfers to nuclear genome have been documented for only four genes in Rosids, infA, rpl22, rpl32 and rpoA (Jansen et al. 2011). infA gene, which encodes for translation initiation factor1 was reported to transfer from plastid genome to nuclear genome for functional use several times especially in Rosids (Millen et al. 2001). So further studies could be focused on gene evolution of infA in Rosaceae.

Simple sequence repeats (SSRs) have been widely used as molecular markers, which is useful for plant breeding and linkage map construction. However, due to the lack of plastid genomes in Rosaceae, few chloroplast SSRs have been utilized. In this study, a total of 72 SSRs have been found. SSRs are much more abundant in non-coding regions as they always contain more mutations than conserved coding regions (Bodin et al. 2013). Of all 72 SSRs, A and T stretches accounted for 97%, which was similar with the observation in Pyrus pyrifolia plastid genome where 31 A stretches, 34 T stretches, 2 C stretches and no G stretch were detected (Terakami et al. 2012). These results reveal that SSR has a strong AT bias which is consistent with many studies (Ma et al. 2013; Kuang et al. 2011; Do et al. 2013).

Large indels (>40 bp) were found through the comparison among E. japonica, P. pyrifolia and P. persica. The distribution of large indels revealed that IR regions as well as coding regions were more conserved than other regions as none of large indels located in IR and coding regions. Many of indels were found to be flanked by short repeated motifs or polyA or T structures (Table 6), suggesting that many large indels could be attributed to slipped-strand mispairing (Levinson and Gutman 1987; Terakami et al. 2012). Five large indels were unique in E. japonica plastid genome including 4 deletions and 1 insertion and were located in rps16-trnQ-UUG, trnR-UCU-atpA, ndhC-trnV-UAC, rpl2-trnH-GUG and trnT-UGU-trnL-UAA, respectively. Pentactina rupicola plastid genome was then checked for these indels and the results showed that the deletion at ndhC-trnV-UAC was found in P. rupicola, which suggested that the other four indels might be unique to Eriobotrya genus.

The Ka and Ks ratio has been used to denote the rate of divergence and methods of selection pressure. The value of less than, equal to or great than 1 have been considered as purifying, neutral or positive selection, respectively (Redwan et al. 2015). Pyrus pyrifolia revealed a lower divergence than P. persica from E. japonica as Ka and Ks between E. japonica and P. pyrifolia were much lower (Additional file 4: Table S4). Both Ka and Ks in IR regions were much lower than those in LSC and SSC (Table 5), which suggested that IR region evolved at a slower rate than LSC and SSC (Yi and Kim 2012). The Ka and Ks ratios of all gene groups were lower than 1, suggesting that a purifying selection might act on most E. japonica chloroplast genes.

It has been documented that the higher Ts and Tv ratio denotes lower level of divergence and lower ratio denotes higher level of divergence (Yang and Yoder 1999; Dane et al. 2015). This might be a little incompatible with our results that Ts/Tv value is lower when compared with P. pyrifolia since the closest relationship between P. pyrifolia and E. japonica (Table 5). From another perspective, P-distance (nucleotide substitution per site) value was found to be much smaller in P. pyrifolia than in P. persica compared to E. japonica (Additional file 5: Table S5). Thus, we can infer that the lower Ts and Tv ratio between P. pyrifolia and E. japonica may be caused by extremely low Ts rate, which would then be consistent with a lower divergence between E. japonica and P. pyrifolia. If both P-distance and Ts/Tv value are considered, ycf1 with 0.068 P-distance and 0.906 Ts/Tv value are regarded as the most divergent gene of all, which could be utilized as DNA barcode for identification.

Phylogenic analysis based on plastid genome has been rapidly developed as more and more researchers use single genes, multiple genes or different regions of plastid genome to perform phylogenetic reconstruction (Wang et al. 2013; Walker et al. 2014; Zhang et al. 2014a). Rosaceae contains nearly a hundred genera with high economic values. Yet, taxa relationship among Rosaceae has not been investigated enough and is still vague. Su et al. (2014) performed maximum likelihood analysis within Rosids using 62 conserved chloroplast genes, which suggested but with low bootstrap that P. persica and P. rupicola formed a clade while P. pyrifolia and P. utilis formed another clade. However, another ML analysis was performed using 78 protein-coding genes (Wang et al. 2013) described that P. persica and P. utilis formed a clade while P. pyrifolia and P. rupicola formed another clade. As these two studies were incongruent, we included those four genera, along with R. odorata, F. virginiana and E. japonica in our phylogenetic analysis to clarify the internal relationships within Rosaceae. Our phylogeny was similar to that of Wang et al. (2013), but with higher bootstrap values. This is also consistent with traditional studies that put Eriobotrya (loquat) and Pyrus (pear) into the subfamily Maloideae. Due to the lack of Rosaceae plastid genomes available online, in future study, more plastomes such as Spiraeae need to be involved to construct a larger-scale phylogeny within Rosaceae.

Conclusions

The complete plastid genome of E. japonica is 159,137 bp in length with a typical quadripartite structure. Comparison with other Rosaceae species revealed that E. japonica plastid genome is quite conserved in gene content and structure and showed the highest identity with P. pyrifolia. A total of 72 SSRs were found including two dinucleotide repeats and most of them were composed of A/T, which showed a strong A/T bias in base composition of SSRs. Four large indels appeared to be unique to E. japonica and could be utilized as markers for intergeneric identification. The Ka and Ks value among three species revealed differences among different genes and Ka/Ks was always less than 1, suggesting a purifying selection on these genes. Both MP and ML phylogenetic analysis shared similar topology and strongly supported the closest relationship between E. japonica and P. pyrifolia.
