Probabilistic multiitem inventory model with varying mixture shortage cost under restrictions
SpringerPlus volumeÂ 5, ArticleÂ number:Â 1351 (2016)
Abstract
This paper proposed a new general probabilistic multiitem, singlesource inventory model with varying mixture shortage cost under two restrictions. One of them is on the expected varying backorder cost and the other is on the expected varying lost sales cost. This model is formulated to analyze how the firm can deduce the optimal order quantity and the optimal reorder point for each item to reach the main goal of minimizing the expected total cost. The demand is a random variable and the lead time is a constant. The demand during the lead time is a random variable that follows any continuous distribution, for example; the normal distribution, the exponential distribution and the Chi square distribution. An application with real data is analyzed and the goal of minimization the expected total cost is achieved. Two special cases are deduced.
Backround
The multiitem, single source inventory system is the most general procurement system which may be described as follows; an inventory of nitems is maintained to meet the average demand rates designated \(\bar{D}_{1} ,\bar{D}_{2} ,\bar{D}_{3} , \ldots \ldots \bar{D}_{n}\). The objective is to decide when to procure each item, how much of each item to procure, in the light of system and cost parameters.
Hadley and Whiten (1963) treated the unconstrained probabilistic inventory models with constant unit of costs. Fabrycky and Banks (1965) studied the multiitem multi source concept and the probabilistic singleitem, single source (SISS) inventory system with zero leadtime, using the classical optimization. AbouElAta and Kotb (1996), AbouElAta et al. 2003) studied multiitem EOQ inventory modelswith varying costs under two restrictions. Moreover, Fergany and ElSaadani (2005, 2006; Fergany et al. 2014) treated constrained probabilistic inventory models with continuous distributions and varying costs.

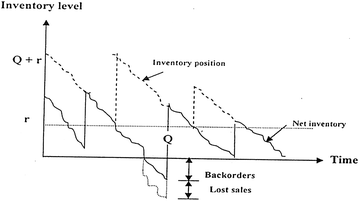

The two basic questions that any continuous review \(\left\langle {{\text{Q}},\;{\text{r}}} \right\rangle\) inventory control system has to answer are; when and how much to order. Over the years, hundreds of papers and books have been published presenting models for doing this under a wide variety of conditions and assumptions. Most authors have shown that the demand that cannot be filled from stock then backordered or the lost sales model are used. Several \(\left\langle {{\text{Q}},\;{\text{r}}} \right\rangle\) inventory models with mixture of backorders and lost were proposed by Ouyang et al. (1996), Montgomery et al. (1973) and Park (1982). Also, Zipkin (2000) shows that demands occurring during a stockout period are lost sales rather than backorders.
In this paper, we investigate a new probabilistic multiitem singlesource (MISS) inventory model with varying mixture shortage cost (backorder and lost sales) as shown in Fig.Â 1 under two restrictions. One of them is on the expected varying backorder cost and the other one the expected varying lost sales cost. The optimal order quantity \(Q_{i}^{*}\), the optimal reorder point \(r_{i}^{*}\) and the minimum expected total cost [min E (TC)] are obtained. Moreover, two special cases are deduced and an application with real data is analyzed.
The following notations are adopted for developing the model

\(\left\langle {Q,\,r} \right\rangle\)Â =Â the continuous review inventory system

MISSÂ =Â The Multiitem singlesource,

\(D_{i}\)Â =Â The demand rate of the ith item per period,

\(\bar{D}_{i}\)Â =Â The expected demand rate of the ith item per period,

\(Q_{i}\)Â =Â The order quantity of the ith item per period,

\(Q_{i}^{*}\)Â =Â The optimal order quantity of the ith item per period,

\(r_{i}\)Â =Â The reorder point of the ith item per period,

\(r_{i}^{*}\)Â =Â The optimal reorder point of the ith item per period,

\(\bar{n}_{i}\)Â =Â The expected number order of the ith item per period,

\(L_{i}\)Â =Â The leadtime between the placement of an order and its receipt of the ith item,

\(\bar{L}_{i}\)Â =Â The average value of the lead time \(L_{i}\),

\(x_{i}\)Â =Â The random variables represent the lead time demand of the ith item per period,

\(f\left( {x_{i} } \right)\)Â =Â The probability density function of the lead time demands,

\(E\left( {x_{i} } \right)\)Â =Â The expected value of \(x_{i}\),

\(r_{i}  x_{i}\)Â =Â The random variable represents the net inventory when the procurement quantity arrives if the leadtime demand xÂ â‰¤Â r,

\(\bar{H}_{i}\)Â =Â The average on hand inventory of the ith item per period

\(R\left( r \right) = p\left( {x_{i} > r} \right)\)Â =Â The probability of shortageÂ =Â the reliability function,

\(\bar{S}\left( {r_{i} } \right)\)Â =Â The expected shortage quantity per period

\(c_{oi}\)Â =Â The order cost per unit of the ith item per period,

\(c_{hi}\)Â =Â The holding cost per unit of the ith item per period,

\(c_{si}\)Â =Â The shortage cost per unit of the ith item per period,

\(c_{bi}\)Â =Â The backorder cost per unit of the ith item per period,

\(c_{li}\)Â =Â The lost sales cost per unit of the ith item per period,

\(c_{si} (n)\)Â =Â The varying shortage cost of the ith item per period,

\(\Phi_{D} \left( t \right)\)Â =Â The characteristic function of demand,

\(\Phi_{x} \left( t \right)\)Â =Â The characteristic function of lead time demand x,

\(\beta\)Â =Â A constant real number selected to provide the best fit of estimated expected

cost function,

\(\gamma_{i}\)Â =Â The backorder fraction of the ith item, \(0 < \gamma_{i} < 1\),

E (OC)Â =Â The expected order (procurement) cost per period,

E (HC)Â =Â The expected holding (carrying) cost per period,

E (SC)Â =Â The expected shortage cost per period,

E (BC)Â =Â The expected backorder cost per period,

E (LC)Â =Â The expected lost sales cost per period,

E (TC)Â =Â The expected total cost function,

Min E (TC)Â =Â The minimum expected total cost function.

\(K_{bi}\)Â =Â The limitation on the expected annual varying backorder cost for

backorder model of the ith item,

\(K_{li}\)Â =Â The limitation on the expected annual varying lost sales cost for

lost sales model of the ith item.
Mathematical model
We will study the proposed model with varying mixture shortage cost constraint when the demand D is a continuous random variable, the leadtime L is constant and the distribution of the lead time demand (demand during the lead time) is known.
It is possible to develop the expected annual total cost as follows:
i.e.
where; \(\int_{r}^{\infty } {\left( {x_{i}  r_{i} } \right)f\left( {x_{i} } \right)dx_{i} = \bar{S}(r_{i} )}\)
The objective is to minimize the expected annual total cost E [TC (Q, r)] under two constraints:
To solve this primal function which is a convex programming problem, let us write the previews equations in the following form:
Subject to:
To find the optimal values \(Q^{*} \,{\text{and}}\,r^{*}\) which minimize Eq.Â (1) under the constraints (2), the Lagrange multiplier technique is used as follows:
where \(\lambda_{1i} ,\,\lambda_{2i}\) are the Lagrange multipliers.
The optimal values \(Q_{i} \;{\text{and}}\;r_{i}\) can be calculated by setting each of the corresponding first partial derivatives of Eq.Â (3) equal to zero.
i.e.
then we obtain:
where \(A = \bar{D}_{i}^{\beta + 1} \left[ {\gamma_{i} \,C_{hi} \left( {1 + \lambda_{1i} } \right) + \left( {1  \gamma_{i} } \right)C_{li} \left( {1 + \lambda_{2i} } \right)} \right]\)
Clearly, there is no closed form solution of Eqs.Â (4), (5).
Mathematical derivation of the lead time demand
The lead time demand \(X\) is the total demand D which accrue during the lead time L. Consider that the lead time is a constant number of periods and demand is random variable.
Then,
To determine the distribution of the lead time demand X: consider the characteristic function of \(X\) and D are related as:
We can deduce the corresponding distribution of the lead time demand X when the demand follows many continuous distributions. Consider X follows the normal distribution, the exponential distribution and the Chi square distribution.
The demand follows the normal distribution
If the demand D have the normal distribution with parameters \(\mu ,\sigma\),
Then the lead time demand follows the normal distribution with parameters \(\mu L,\;L\sigma^{2}\)
Also: \(R(r){\mkern 1mu} = \int_{r}^{\infty } {f(x)d(x)}\) i.e.
and
where
Hence, the expected annual total cost can be minimized mathematically by substituting from Eq.Â (6) into (4), (5) we get (7), (8)
and
The demand follows the exponential distribution
If the demand D have the exponential distribution with parameter \(\alpha\),
Then, lead time demand follows the Gamma distribution with parameters \(L,\alpha\)
also \(R\left( r \right) = \frac{{\alpha^{L} }}{\Gamma \left( L \right)}\int\nolimits_{r}^{\infty } {x^{L  1} } e^{  \alpha x} dx\) then, \(R\left( r \right) = \sum\limits_{i = 0}^{L  1} {\left[ {\frac{{\left( {\alpha r} \right)^{i} e^{  \alpha r} }}{i\,!\,}} \right]}\),
Hence, the expected annual total cost can be minimized mathematically by substituting from Eq.Â (9) into (4), (5) we get (10), (11)
and
The demand follows the Chi square distribution
If the demand D follows Chisquire distribution with parameter \(\frac{\eta }{2}\)
Then lead time demand X follows the Chisquire distribution with parameters \(\frac{L\eta }{2}\)
also
and
Hence, the expected annual total cost can be minimized mathematically by substituting from Eq.Â (12) into (4), (5) we get (13), (14):
and
Special cases
Two special cases of the proposed model are deduced as follows;
Case 1
\(Let\;\gamma_{i} = 0,\;\beta = 0\;and\;K_{bi} \to \infty \; \Rightarrow c_{s} \left( {\bar{n}} \right)^{\beta } = c_{s} \;and\;\lambda_{i} = 0.\) Thus Eqs.Â (4) and (5) become:
This is the unconstrained lost sales continuous review inventory model with constant units of cost, which are the same results as in Hadley and Whiten (1963).
Case 2
Thus Eqs.Â (4) and (5) become:
This is the unconstrained backorders continuous review inventory model with constant unit costs, which coincide with the result of Hadley and Whiten (1963).
Applications
A company for ready clothes produces three Items [Trousers: I, Shirt: II, and Jacket: III] of seasonal products (production takes two cycles and each cycle lasts for 6Â months). TableÂ 5 in Appendix shows the order quantity and the demand rate during the interval 2004â€“2008. But for some un expected reasons in some cycles, the company faces shortage and it has to pay penalty at least 1Â % for month for backorder and 3Â % for lost sale. TableÂ 1 shows the maximum cost allowed for backorder \(K_{b}\), lost sales \(K_{L}\) and their fractions. Hence, the company wishes to put an optimal policy for production to minimize the expected total cost.
Solution
By using SPSS program, OneSample Kolmogorovâ€“Smirnov Test, the demand for the three Items is fitted to normal distribution, where TableÂ 2 shows the KS statistic with their P values. TableÂ 3 shows the average units cost for each item 2004â€“2008
The optimal values \(Q^{*}\) and \(r^{*}\) for three items can be found by using (7) and (8) respectively. The iterative procedure will be used to solve the equations.
Use the following numerical procedure:

* Step 1: Assume that \(\bar{S}\, = \,0\) and \(r = E(x)\), then from Eq.Â (7) we have: \(Q_{0} = \sqrt {\frac{{2c_{oi} \bar{D}_{i} }}{{c_{hi} }}}\)

* Step 2: Substituting \(Q_{o}\) into Eq.Â (8) we obtain \(r_{0}\)

* Step 3: Substituting by \(r_{0}\) from step 2 into Eq.Â (7) we can deduce \(Q_{1}\)

* Step 4: the procedure is to change the values of \(\lambda_{i}\) in step 2 and step 3 until the smallest value of \(\lambda_{i} > 0\) is found such that the constraint varying shortage for the different values of Î².

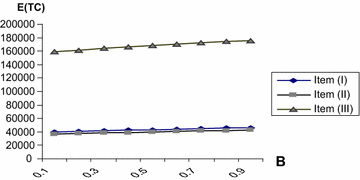

The numerical computation are done by using mathematica program for three items at different values of Î², TableÂ 4 shows the optimal values \(Q^{*},r^{*}\) E(TC) and min E(TC) at different values of \(\beta\). Hence we can draw the optimal routes of \(Q^{*},\,r^{*}\) and E (TC) against Î² for all three items as shown in Figs.Â 2, 3 and 4. It is evident that the min E(TC) is achieved at minimum value for Î².
Conclusion
Upon studying the probabilistic multi item invetory model with varying mixture shortage cost under two restrictions using the Lagrange mulipliers technique, the optimal order quntity \(Q^{*}\) and the optimal reorder point \(r^{*}\) are introduced. Then, the minimum expected total cost min E(TC) for multi items are deduced. Three curves \(Q^{*}\), \(r^{*}\) and min E(TC) are displayed to illustate them for multi items against the different values of Î². Finally, the min E(TC) is achieved at minimum value for Î².
References
AbouElAta MO, Kotb KAM (1996) Multiitem EOQ inventory model with varying holding cost under two restrictions: a geometric programming approach. Prod Plan Control 8(6):608â€“611
AbouElAta MO, Fergany HA, Elwakeel MF (2003) Probabilistic multiitem inventory model with varying order cost under two restrictions: a geometric programming approach. Int J Prod Econ 83:223â€“231
Fabrycky WJ, Banks J (1965) Procurement and inventory theory. Volume IIIâ€”the multiitem, multi source concept. Oklahoma State University Engineering Research Bulletin, no. 146
Fergany HA, ElSaadani ME (2005) Constrained probabilistic inventory model with continuous distributions and varying holding cost. Int J Appl Math 17(1):53â€“67
Fergany HA, ElSaadani ME (2006) Constrained probabilistic lost sales inventory system normal distributions and varying order cost. J Math Stat 2(1):363â€“366
Fergany HA, ElHefnawy NA, Hollah OM (2014) Probabilistic periodicÂ <Qm,N>Â inventory model using lagrange technique and fuzzy adaptive particle swarm optimization. J Math Stat 10(3):368â€“383. ISSN:15493644Â©Science Publications
Hadley G, Whiten TM (1963) Analysis of inventory systems. Prentice Hall Inc, Englewood Cliffs
Montgomery DC, Bazaraa MS, Keswani AK (1973) Inventory models with a mixture of backorders and lost sales. Naval Res Logist Q 20:255â€“263
Ouyang LY, Yeh NC, Wu KS (1996) Mixture inventory model with backorders and lost sales for variable lead time. J Oper Res Soc 47:829â€“832
Park KS (1982) Inventory model with partial backorders. Int J Syst Sci 13:1313â€“1317
Zipkin PH (2000) Foundations of inventory management. McGrawHill Book Co., Inc., New York
Acknowledgements
I would like to greatly appreciate the anonymous referees for their very valuable and helpful suggestions. I take this favorable chance to express my indebtedness to the Honorable EditorinChief and his Editorial Board for their helpful support. I am also grateful to Department of Math & Stat, Faculty of Science, Tanta University for infrastructural assistance to carry out the research.
Competing interests
The author declare that he have no competing interests.
Author information
Authors and Affiliations
Corresponding author
Appendix
Appendix
See TableÂ 5.
