Identification of differentially expressed genes implicated in peel color (red and green) of Dimocarpus confinis
SpringerPlus volume 5, Article number: 1088 (2016)
Nowadays, there are few reports about regulatory genes implicated in peel color of longan. The basic genetic research of longan has been in stagnation for a long time as a lack of transcriptomic and genetic information. To predict candidate genes associated with peel color, Gene Functional Annotation and Coding Sequence prediction were used to perform functional annotation for our assembled unigenes and investigate differentially expressed genes (DEGs) of fruitlet peels from Longli (Dimocarpus confinis). Finally, a total of 24,044 (44.19 %) unigenes were annotated at least in one database after BLAST search to NCBI non-redundant protein sequence, NCBI non-redundant nucleotide sequences, Kyoto Encyclopedia of Genes and Genomes (KEGG) Ortholog, manually annotated and reviewed protein sequence database (Swiss-Prot), Protein family, Gene Ontology, euKaryotic Ortholog Groups databases. After searching against the KEGG-GENE protein database, a result of 6228 (11.45 %) unigenes were assigned to 245 KEGG pathways. Via comparing the distributions of expression value of all corresponding unigenes from red peel and green peel fruit, it could be intuitively concluded that high similarity was existed in the two distributions; however, on the whole, between two distributions of log RPKM expression value, some differences indicated that expression level in green-peel fruit group is slightly higher than values in red-peel fruit group. Finally, a total of 1349 unigenes were identified as DEGs after blasting the DEGs to public sequence databases, and 32 peel-color-related genes were identified in longan. Our results suggest that a number of unigenes involved in longan metabolic process, including anthocyanin biosynthesis. In addition, DRF, F3H, ANS, CYP75A1 and C1 may be the key ones. The study on key genes related to peel color will be contributed to revealing the molecular mechanisms of regulating peel color in woody plants.
The tropical/subtropical fruit tree longan (Dimocarpus longan Lour.) is in the family Sapindaceae that is cultivated all over the world, especially in China, Thailand, Vietnam (Jiang et al. 2002). Nowadays, with the rapid development of the agricultural economy, planting area and field in China has been the largest and highest in the world so far (Wu 2010).
Peel, the pulp section, differentiated and developed from ovary wall. Mature pericarp is generally divided into exocarp, mesocarp, endocarp. As reported, most peels are likely to have a certain characteristics, such as medical use, value-added ingredients for various food applications, anti-mosquito and deodorant (Abdul Aziz et al. 2012; Denis et al. 2013; Rawson et al. 2014). Additionally, another trait of peel is about color, which is one of the main factors that determines consumer preference and market price. Peel color of many other fruits except longan may be varied with the environmental or internal factors changed (González-Talice et al. 2013; Liu et al. 2015; Zhao et al. 2011). In the aspect of external factors, peach peel color changed when processed by bagging with a widely applied Yellow-Paper (Liu et al. 2015), and the intensity of light also plays an fundamental role in color development of apple peel (Zhao et al. 2011). As for the internal factors, pigments, total phenolic and total flavonoid concentration are important factors determining color and internal apple quality (González-Talice et al. 2013), and more and more researches showed anthocyanins (ACs) played an important role in peel color (Liu et al. 2015; Rahim et al. 2014; Wang et al. 2015; Zhao et al. 2013). ACs, a naturally water-soluble pigment of flavonoid family generated from secondary metabolites, are widely distributed in fruits and vegetables, as well, its potential health benefits to humankind provoking an increasing interest in these compounds (Boyer and Hai Liu 2004; Hyson 2011; Stover and Mercure 2007). Anthocyanin plays a photoprotective role in plants under high light or photoinhibition conditions (Close and Beadle 2005; Hoch et al. 2003; Hughes et al. 2005, 2007, 2012; Li et al. 2008; Manetas et al. 2002; Williams et al. 2003). In pear, the higher photoprotective capacity in the sun-exposed peel of red “Anjou” pear than green “Anjou” is mainly attributed to its higher anthocyanin concentration (Li et al. 2008). But, do anthocyanin act on red peel (RP) and green peel (GP) of longan, except for photoprotective of some other fruits? And which of genes involved in anthocyanin biosynthetic pathways play a major role in peel coloration? The structural genes, encoding corresponding enzymes in the anthocyanin biosynthetic pathway, have been cloned from varieties of plants, and several regulatory genes implicated in the activation of coloration have recently been cloned in previous studies as well (Espley et al. 2007; Goff et al. 1992; Goodrich et al. 1992; Niu et al. 2010; Schwinn et al. 2006). In apple, there were two cultivars with red and green peel, anthocyanins and flavonols elevated when turning shaded peel (shaded peel of the two cultivars were green) to sun exposure for a week, along with green peel to red peel. As well, exposure of the shaded peel to full sun caused marked up-regulation of expression levels of MYB10 (a transcriptional factor in the regulation of anthocyanin biosynthesis) and seven structural genes in anthocyanin synthesis (PAL, CHS, CHI, F3H, DFR1, LDOX, and UFGT) (Feng et al. 2013). Besides, myeloblastosis (MYB) was also proved to play an important role in regulating peel color in some fruits, such as peach, pear, apple (Feng et al. 2013; Rahim et al. 2014; Sun et al. 2013; Yang et al. 2015), meanwhile, MYB10.1 and MYB10.3 have positive correlation with the expression of key structural genes of the anthocyanin pathway in peach, such as chalcone synthase flavanone 3-hydroxylase (F3H), and UDP-glycose: flavonoid glycosyltransferase (UFGT) (Rahim et al. 2014). PyMADS18 was reputed to be involved in anthocyanin accumulation and regulation of anthocyanin synthesis in early fruit development of pear (Wu et al. 2013), and anthocyanidin synthase (ANS) and UDP-glucose flavonoid 3-O-glucosyltransferase (UFGT), whose different expressions led to the coloration differences between occidental and oriental pears, were speculated to be key genes for anthocyanin biosynthesis for red-skinned pear (Yang et al. 2015).
In our previous study, anthocyanin content and composition in the peel of Dimocarpus confinis (Jiang et al. 2014), a relative species of Dimocarpus Lour., were examined using a HPLC method. The results showed that anthocyanin content was 18.60 ± 5.12 mg kg−1 (FW) in red peel, and was significantly higher than in light red peel and in blue green peel by 6.8 times and 33.2 times, respectively. In the present study, a special longan germplasm resource of Longli from Fujian Province, whose fruitlet peels showed red and green in the fruit development process individually (Fig. 1a, b), were applied to initially revealing the molecular mechanism of regulating peel color. So in this study, we firstly sequenced the transcriptomes of Red Peel and Green Peel longan using Illumina technology. We focused on the discovery of encoding enzymes involved in the anthocyanin biosynthetic pathway and obtained sets of up-regulated and down-regulated genes from red and green peel of longan, and finally identified some candidate genes related to anthocyanin synthesis in longan peel. The assembled annotated transcriptome sequences provide a valuable genomic resource to further understand the molecular mechanism of regulating peel color.
As a special longan germplasm resource, Longli (Genebank number GPLY0124) was cultured in the National Field Genebank for Longan and Loquat (Fuzhou, Fujian, China). After flowering 30 days, healthy peel tissue from fruitlet period manifested as red and green was collected from the fruit of Longli and immediately frozen in liquid nitrogen, and stored at −80 °C until further processing.
The TRIzol® reagent (Invitrogen) was used to extract total RNA from the peels of red and green longli (D. confinis) according to the manufacturer’s instructions (Invitrogen, USA). The purity of all RNA samples was assessed by and the RNA quality was tested using a 1 % ethidium bromide-stained agarose gels. RNA integrity was assessed using the RNA Nano 6000 Assay Kit of the Agilent Bioanalyzer 2100 system (Agilent Technologies, CA, USA).
cDNA synthesis and Illumina sequencing
A total amount of 3 μg RNA, extracted from peels of RP and GP longan, was used as input material for the RNA sample preparations. The samples were treated with RNase-free DNase I (Takara Biotechnology, China). Sequencing libraries were generated using NEBNext®Ultra™RNA Library Prep Kit for Illumina® (NEB, USA) following manufacturer’s recommendations and index codes were added to attribute sequences to each sample. Briefly, mRNA was purified from total RNA using poly-T oligo-attached magnetic beads. Fragmentation was carried out using divalent cations under elevated temperature in NEBNext First Strand Synthesis Reaction Buffer (5×). First strand cDNA was synthesized using random hexamer primer and M-MuLV Reverse Transcriptase (RNase H-). Second strand cDNA synthesis was subsequently performed using DNA Polymerase I and RNase H. Remaining overhangs were converted into blunt ends via exonuclease/polymerase activities. After adenylation of 3′ ends of DNA fragments, NEBNext Adaptor with hairpin loop structure were ligated to prepare for hybridization. In order to select cDNA fragments of preferentially 150–200 bp in length, the library fragments were purified with AMPure XP system (Beckman Coulter, Beverly, USA). Then 3 μl USER Enzyme (NEB, USA) was used with size-selected, adaptor-ligated cDNA at 37 °C for 15 min followed by 5 min at 95 °C before PCR. Then PCR was performed with Phusion High-Fidelity DNA polymerase, Universal PCR primers and Index (X) Primer. At last, PCR products were purified (AMPure XP system) and library quality was assessed on the Agilent Bioanalyzer 2100 system.
Clustering and sequencing
The clustering of the index-coded samples was performed on a cBot Cluster Generation System using TruSeq PE Cluster Kit v3-cBot-HS (Illumia) according to the manufacturer’s instructions. After cluster generation, the library preparations were sequenced on an Illumina Hiseq 2000 platform and paired-end reads were generated.
Raw data (raw reads) of fastq format were firstly processed through in-house perl scripts. In this step, clean data (clean reads) were obtained by removing reads containing adapter, reads containing ploy-N and low quality reads from raw data. At the same time, Q20, Q30, GC-content and sequence duplication level of the clean data were calculated. All the downstream analyses were based on clean data with high quality.
Transcriptome assembly and annotation
The left files (read1 files) from all libraries/samples were pooled into one big left.fq file, and right files (read2 files) into one big right.fq file. Transcriptome assembly was accomplished based on the left.fq and right.fq using Trinity (Grabherr et al. 2011) with min_kmer_cov set to 2 by default and all other parameters set default. And gene function was annotated based on the following databases: NR (Altschul et al. 1997), NT (Pruitt et al. 2005), PFAM (http://pfam.sanger.ac.uk/) (Finn et al. 2008), KOG/COG (http://www.ncbi.nlm.nih.gov/COG/) (Tatusov et al. 2003), Swiss-Prot (http://www.ebi.ac.uk/uniprot/) (Karp et al. 2001), KO (http://www.genome.jp/kegg/) (Moriya et al. 2007) and GO (http://www.geneontology.org/) (Gotz et al. 2008).
ESTScan (http://www.ch.embnet.org/software/ESTScan.html) (Iseli et al. 1999) was performed to detect and extract coding regions from low-quality sequences with high selectivity and sensitivity, which is also able to accurately correct frameshift errors. In the framework of genome sequencing projects, ESTScan could become a very useful tool for gene discovery, for quality control, and for the assembly of consigns representing the coding regions of genes.
Picard-tools v1.41 and samtools v0.1.18 were used to sort, remove duplicated reads and merge the bam alignment results of each sample. GATK2 software was used to perform SNP calling. Raw vcf files were filtered with GATK standard filter method and other parameters (clusterWindowSize: 10; MQ0 ≥ 4 and [MQ0/(1.0 * DP)] > 0.1; QUAL < 10; QUAL < 30.0 or QD < 5.0 or HRun > 5), and only SNPs with distance >5 were retained.
Quantification of gene expression levels
Gene expression levels were estimated by RNA-Seq by Expectation Maximization (RSEM) (Li and Dewey 2011) for each sample. RSEM has been regarded as an accurate and user-friendly software tool for quantifying transcript abundances from RNASeq data. By RSEM, clean data were mapped back onto the assembled transcriptome and read-count for each gene was obtained from the mapping results. As RSEM does not rely on the existence of a reference genome, it is particularly useful for quantification with de novo transcriptome assemblies.
Differential expression analysis
For the samples with biological replicates
Differential expression analysis of two conditions/groups was performed using the DESeq R package (1.10.1). DESeq provide statistical routines for determining differential expression in digital gene expression data using a model based on the negative binomial distribution. The resulting p values were adjusted using the Benjamini and Hochberg’s approach for controlling the false discovery rate. Genes with an adjusted p value <0.05 found by DESeq were assigned as differentially expressed.
For the samples without biological replicates
Prior to differential gene expression analysis, for each sequenced library, the read counts were adjusted by edgeR program package through one scaling normalized factor.
Differential expression analysis of two samples was performed using the DEGseq (2010) R package. p value was adjusted using q value (Storey and Tibshirani 2003). The q value <0.005 and |log2 (FoldChange)| > 1 was set as the threshold for significantly differential expression.
Enrichment analysis methods
GO enrichment analysis of the differentially expressed genes (DEGs) was implemented by the GOseq R packages based Wallenius non-central hyper-geometric distribution (Young et al. 2010), which can adjust for gene length bias in DEGs. The q value <0.05 was set as the threshold for GO enrichment.
KEGG (Kanehisa et al. 2008) pathway assignments were mapped according to the KEGG database (http://www.genome.jp/kegg/). We used KOBAS (Mao et al. 2005) software to test the statistical enrichment of differential expression genes in KEGG pathways with a q value <0.05 after searching the KEGG protein databases.
Gene functional annotation and CDS prediction
In this study, seven different public databases (NR, NT, KO, Swiss-Prot, PFAM, GO and KOG) were used to perform functional annotation for our assembled unigenes (combined red peel fruit and green peel fruit groups), and finally 44.19 % (24,044) of total unigenes were annotated at least in one database, with 30,365 unigenes remaining unannotated in any database. These unannotated unigenes may represent specific transcripts or erroneous assemblies and untranslated regions. For each database, the detailed numbers and percentages of successfully annotated unigenes were shown in the Table 1.
Furthermore, in order to predict CDS of unigenes, after successively aligning the longan (Red and Green) unigenes to NR, Swiss-Prot and KO databases by using BLASTx, totally 22,550 (41.44 %) unigenes had significant similarity to known protein-coding genes and then the prediction of open reading frames (ORFs) was processed according to the best hit. The remaining 31,859 unigenes with no hits in the above protein databases were scanned again by implementing ESTScan, and the ORFs of 15,785 unigenes were de novo predicted through this method. In total, 38,335 (70 %) unigenes were translated to polypeptide sequence based on homology analysis using BLASTx and ESTScan predictions.
As shown in Fig. 2, via comparing two length distributions of proteins predicted by BLASTx(A) and ESTScan(B) respectively, majority of these proteins identified from BLASTx are longer than those proteins obtained from ESTScan.
Of above public annotation databases, GO and KOG were used to functionally categorize Dimocarpus longan (RP and GP) unigenes.
As shown in Fig. 3, 18,167 GO-annotated unigenes (34.21 %) were distributed to the three main GO categories (level 1) and 47 sub-categories (level 2). It needs to be additional explained that one unigene could be assigned to more than one GO term.
In biological process (BP) category included 22 sub-categories, we observed a high percentage of unigenes assigned to “cellular process”, “metabolic process”, “single-organism process”, and “biological regulation”. Whereas, the cellular component (CC) category was classified as 14 sub-categories, among which, “cell” was the most enriched category, followed by “cell part”, “organelle” and “macromolecular complex”. With regard to molecular function (MF) category, there were 11 sub-categories involved in “binding”, “catalytic activity” and “transporter activity” (Fig. 3).

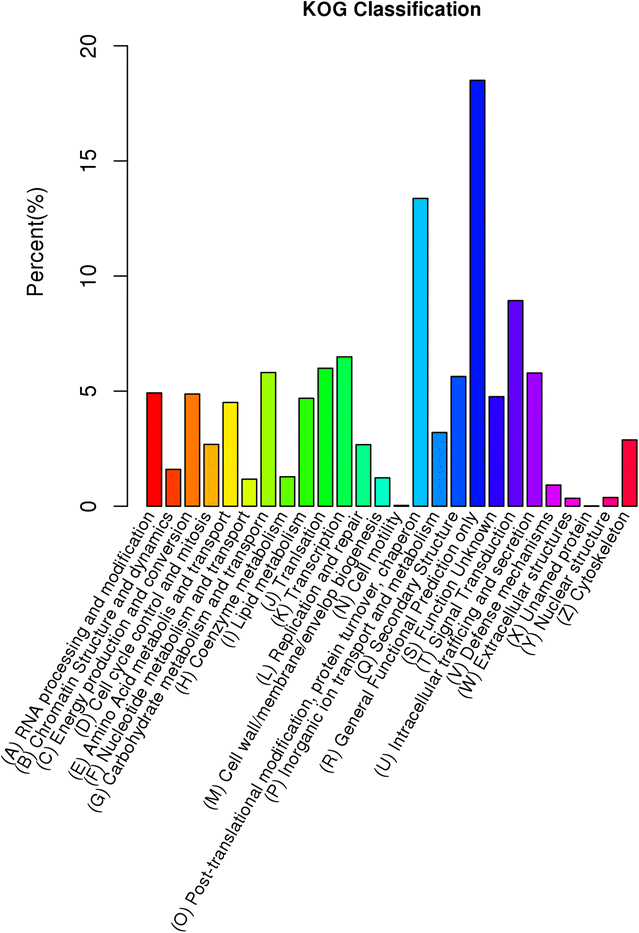

On the other hand, overall 8675 (15.94 %) unigenes, less than GO results, were annotated based on KOG analysis and assigned to 26 function classes (Fig. 4). Except (R) General Functional Prediction only (1605 unigenes; 18.50 %), the three largest classes were (O) Post-translational modification, protein turnover, chaperon (1160; 13.37 %), (T) Signal Transduction (775; 8.93 %) and (K) Transcription (563; 6.49 %). In addition, 413 (4.76 %) unigenes were assigned to (S) Function Unknown.
The KEGG database, which is commonly used resource for the systematic understanding of the networks of the biological system, can be used to perform pathway-based analysis.
After searching against the KEGG-GENE protein database, as a result, 6228 (11.15 %) unigenes were assigned to 245 KEGG pathways. As shown in Fig. 5, among these pathways, “Carbohydrate metabolism” accounted for the largest proportion (737 unigenes, 11.83 %) followed by “Translation” (610, 9.79 %), “Folding, sorting and degradation” (531, 8.53 %), “Overview” (492, 7.90 %) and “Amino acid metabolism” (451, 7.24 %).
Analysis of DEGs
To investigate the changes in gene expression and understand the critical genes involved in the trait of peel coloration, clean reads of red- and green-peel fruit groups respectively were mapped (using Bowtie with default parameters) to the transcriptome reference sequences de novo assembled by Trinity and were processed by RSEM. The transcript expression level of each unigene was estimated by Reads Per Kilo bases per Million mapped Reads (RPKM), which provides a useful measure of expression level that accounts for variation in gene length.
Between the RP and GP fruit groups, via comparing the two distributions of expression value of all corresponding unigenes, it could be intuitively concluded that highly similarity was existed in the two distributions (Fig. 6a). Moreover, as shown by the box-plot distribution of the log RPKM values in Fig. 6b, the median and the quartile values between the two groups were almost identical. The RPKM values of most unigenes (40.99 and 46.05 % in RP and GP fruit groups respectively) were in the range from 0.3 (its log value is −0.52) to 3.6 (0.56). The RPKM values of some unigenes (3.69 and 3.36 % in RP and GP fruit groups, respectively) were higher than 60 (its log value is 1.78). However, on the whole, between two distributions of log10(RPKM) expression value, some differences indicated that expression level in GP fruit group is slightly higher than values in RP fruit group (Fig. 6a).
To identify the genes that were differentially expressed between two groups, the significantly threshold of adjusted p value (<0.005) under Storey’s false discovery rate (FDR) control (also named q value) and the absolute value of log2 value of fold change (>1) were used to strive for reducing false DEGs.
As shown in Fig. 6c, the comparison of RP and GP revealed that 794 genes were significantly up regulated and 555 genes were down regulated. The number of up regulated genes was more than down regulated genes. In these 1349 DEGs, 1285 genes were annotated at least in one database.
To identify candidate genes associated with coloration of longan peel and obtain more insight into its molecular regulation, genome-wide gene expression profiling was used to compare “RP” and “GP” longan. In this study, we generated a total of 24,044 unigenes from the two samples, and using this dataset, 1349 significantly differentially expressed genes were identified, among them 32 genes related with peel color of longan were identified. Of these, 17 genes were significantly up-regulated and 15 genes were down-regulated (Table 2).
As well, RNA sequencing was used to examine differentially expressed genes between “RP” and “GP” longan, with the aim of identifying genes involved in regulating peel color. Our results suggest that differentially expressed genes, Dihydroflavonol-4-reductase (DFR), Flavonoid 3′,5′-hydroxylase1 (CYP75A1), Anthocyanin regulatory C1 protein (C1), whose expression abundances reached to 16-fold or greater changes in red peel compared with green peel (Fig. 7), may be important genes for regulating peel color in “RP” and “GP” longan, and they are all related with biosynthesis of anthocyanidins.
Detection of variants in transcriptome
After aligning clean reads to transcriptome reference sequences, we used samtools and picard-tools to sort mapping results and remove multiple mapped reads. And then the GATK was implemented to detect the single nucleotide polymorphisms (SNPs) and short insertions/deletions (InDels). These raw variants were removed by the following conditions: (1) the quality of variant calling <30; (2) the distance of most neighbored variants <5.
As a result, 102,799 SNPs and 10,698 InDels were identified through the above method. Among these SNPs, 70,539 SNPs, were found in GP fruit group and 75,781 were found in RP fruit group. We also took advantage of information of predicted CDS to annotate these SNPs. Firstly, these SNPs could be divided into two categories: coding SNPs and non-coding SNPs. In the GP fruit group, there were 16,148 (22.89 %) coding SNPs and 54,391 (77.11 %) non-coding SNPs. And in the RP fruit group, there were 17,313 (22.85 %) coding SNPs and 58,468 (77.15 %) non-coding SNPs. Secondly, the coding SNPs could be subsequently annotated as synonymous or non-synonymous variant. Non-synonymous variants in our result were rare and meaningful. We only found 73 (0.10 %) non-synonymous SNPs in the GP fruit group and 67 (0.09 %) non-synonymous SNPs in the RP fruit group (Fig. 8).

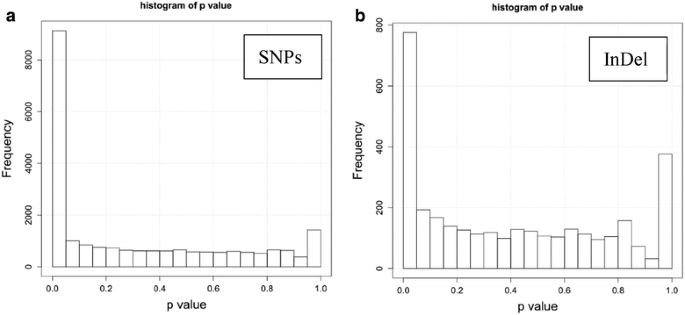

To calculate the p value of independence in the 2 × 2 table (the two rows is the two groups and the two columns is the two alleles), Fisher’s exact test was applied for each variant. Before performing Fisher’s exact test, to guarantee that the sample size for statistical analysis is sufficient, an empirical value of lowest coverage depth at each variant site was set to 25 for both two groups. And finally, 22,116 SNPs and 3282 short InDels meet the above requirement. As shown in the Fig. 8, we found 9131 (41.29 %) SNPs and 776 (23.64 %) InDels had significant p value (p < 0.05).
Coloration of exocarp is mainly associated with accumulation type, quantity and distribution of anthocyanin, whose synthesis mechanism is not only about basic research of the fruit industry, it is also about consumer orientation. So far, there is no completely parallel key factor acting on anthocyanin biosynthesis pathway among different species, even the same. All the different/same species have their own specific expressive properties, especially the fruit types of aril, such as longan, litchi, representing significant differences of anthocyanins biosynthesis pathway from other fruits. Therefore, making them clear whether structural genes express in peel of special longan germplasm resource, which genes are the key ones for coloration of longan peel, and how the synthetic genes co-expressed is of great significance for elucidating the molecular basis of coloration of longan peel.
Over the past decade, the development of transcriptomic and genomic technologies has contributed to a better understanding of coloration of fruit peel at the molecular level. However, most of our knowledge about peel coloration has arisen from studying coloration regulatory genes in many other fruits except longan. A lack of genetic information hinders our research, but at the same time, it also makes our study more essential.
GO annotation, whose functional interpretations for plants are primarily based on the Arabidopsis thaliana genome, is able to provide a description of gene products in terms of their associated molecular functions, cellular components, and biological processes (Berardini et al. 2004). The GO annotations of the unique genes were most frequently related to biological processes (29,618 unigenes), followed by molecular function (12,489 unigenes) and cellular components (8036 unigenes). For each unigene, the specifically annotated GO terms provide a broad overview of the groups of genes cataloged in the transcriptome, and the GO annotations provided valuable clues to investigate the biological processes, molecular functions, and cellular structures of the Dimocarpus Lour. transcriptome.
The KEGG classification system, integrating current knowledge on molecular interaction networks, provides an alternative functional annotation of genes according to their associated biochemical pathways (Kanehisa et al. 2004). Metabolic pathways were well represented among longan peel unique sequences, most of which were associated with carbohydrate metabolism, translation, folding, sorting and degradation. Overview, amino acid metabolism, environmental adaptation, lipid metabolism, energy metabolism and biosynthesis of secondary metabolites were included in the top 19 pathways. Flavonoid biosynthesis is an integral part of secondary metabolism, and the transcripts encoding some enzymes involved in the flavonoid biosynthesis pathway, such as DFR, F3H, and ANS were present in our Illumina sequences dataset (Table 2); therefore, flavonoid biosynthesis pathway should be considered within the context of peel coloration of longan.
With the aim of identifying genes involved in regulating peel color, RNA sequencing was used to examine differentially expressed genes between “RP” and “GP” longan in this study, and we speculated the peel color of longan may be involved in the flavonoid metabolism pathway, especially the anthocyanin biosynthesis.
DFR, F3H and ANS are parts of important steps in the flavonoid biosynthetic pathway of anthocyanins, respectively, they convert dihydroflavonol into leucoanthocyanidin, naringenin into dihydrokaempferol, leucoanthocyanidin into anthocyanin in the anthocyanin biosynthetic pathway (Ahmed et al. 2014; Holton and Cornish 1995; Lin et al. 2013). Especially, DFR, whose expression abundances reached to 16-fold change in red peel compared with green peel, presented the most significantly different expression among DFR, F3H and ANS. DFRA is the key enzyme for the biosynthesis of anthocyanins in the skins of peach and nectarine fruit (Zhou 2009). In addition, regulating the expression of DFR can change the flower color in Japanese parsley, tobacco and petunia (Yamaguchi et al. 2004). The substrate specificity of the DFR often determines which anthocyanidins a plant accumulates (Magnus 1999). In purple kale (Brassica oleracea var. acephala f. tricolor), the expression of anthocyanin biosynthetic gene DFR is enhanced in response to low temperature treatment (Zhang et al. 2012). In conclusion, the DFR gene has different expression pathways in different plant species; therefore, the function of DFR in the anthocyanin biosynthesis process remains to be further investigated.
The CYP75A1 gene, belongs to the CYP75A subfamily, which is able to catalyze the 3′5′-hydroxylation of naringenin and eriodictyol to form 5,7,3′,4′,5′-pentahydroxy flavanone and 3′,5′-hydroxylation of dihydrokaempferol and dihydroquercetin to form dihydromyricetin. Flavonoid 3′,5′-hydroxylase( F3′5′H) is necessary for biosynthesis of the anthocyanins that confer a violet or blue color to most plants (Tanaka et al. 2008). In berry, F3′5′H gene expression has a functional impact on anthocyanin biosynthesis that persists during fruit ripening, and among red grape varieties, expansion and sub-functionalization of F3′5′Hs have increased the complexity and diversification of the fruit color phenotype (Falginella et al. 2010). As well, in the grapevine lineage, higher levels of F3′5′Hs transcription in dark blue cultivars than light red cultivars, even in green-peel cultivars, F3′5′H transcripts are completely absent (Mattivi et al. 2006; Pomar et al. 2005). In this study, expression abundance of CYP75A1 was very low in RP longan, further study should focus on its biologically significance combined with related background knowledge.
C1 is a regulatory gene of the anthocyanin pathway, which regulates the expression of at least three structural genes: chalcone synthase, dihydroflavonol reductase and flavonol O3 glucosyltransferase. In the past decades, research on C1 gene mainly focus on maize (Zea mays) (Avila et al. 1993; Franken et al. 1994; Köhler et al. 1995; Petroni et al. 2000; Piazza et al. 2002; Scheffler et al. 1994). In maize, C1 is required for anthocyanin synthesis only in seed tissues, and different light treatments affected the expression level, white, red, and blue light were effective in stimulating anthocyanin accumulation and expression of the MYB-related gene (Piazza et al. 2002). The accumulation of C1 transcript is under both developmental and light control (Franken et al. 1994), and in recent years, many studies indicated that MYB played an important role in regulating peel color (Espley et al. 2007; Feng et al. 2013; Niu et al. 2010; Rahim et al. 2014; Schwinn et al. 2006; Sun et al. 2013; Yang et al. 2015). In our study, C1 gene was detected as a significantly DEG, we presumed the light regulation of transcription factors may control anthocyanin biosynthesis in longan peel.
We have been aware that genetic evidences are needed to support these hypothesis on function gene DFR, F3H, ANS, CYP75A1 and C1, which were speculated to play an important role in formation of peel color in longan. The expression abundance of DFR, F3H, ANS, CYP75A, and C1 and the accumulation of anthocyanin in RP and GP are worthy of further investigation, as well as their SNPs. With the aim of revealing the molecular mechanism of regulating peel color deeply in woody plants, the quantitative real-time PCR (qPCR) and high-performance liquid chromatography (HPLC) analysis should be respectively applied to verifying the expression levels of these genes and total anthocyanin concentration (Additional file 1).
To summarize, this work is the first report of gene-expression profiling in longan skin conducted by Illumina next-generation sequencing technology. We identified the genes encoding key enzymes involved in flavonoid biosynthesis pathways, which are most likely to play an important role in peel color of longan. Besides, the accumulation of flavonoids and the expression levels of genes associated with their biosynthesis and metabolism in longan peel are worthy of further investigation, which could help provide insights into the molecular mechanisms of regulating peel color in woody plants (Additional file 2).
NCBI non-redundant protein sequence
NCBI non-redundant nucleotide sequences
euKaryotic Ortholog Groups database
manually annotated and reviewed protein sequence database
Kyoto Encyclopedia of Genes and Genomes
differentially expressed genes
single nucleotide polymorphisms
- DFR :
- F3H :
chalcone synthase flavanone 3-hydroxylase
- CYP75A1 :
flavonoid 3′,5′-hydroxylase 1
- C1 :
anthocyanin regulatory C1 protein
Abdul Aziz NA, Wong LM, Bhat R, Cheng LH (2012) Evaluation of processed green and ripe mango peel and pulp flours (Mangifera indica var. Chokanan) in terms of chemical composition, antioxidant compounds and functional properties. J Sci Food Agric 92:557–563. doi:10.1002/jsfa.4606
Ahmed NU, Park JI, Jung HJ, Yang TJ, Hur Y, Nou IS (2014) Characterization of dihydroflavonol 4-reductase (DFR) genes and their association with cold and freezing stress in Brassica rapa. Gene 550:46–55. doi:10.1016/j.gene.2014.08.013
Altschul SF, Madden TL, Schäffer AA, Zhang JH, Zhang Z, Miller W, Lipman DJ (1997) Gapped BLAST and PSI-BLAST: a new generation of protein database search programs. Nucl Acids Res 25:3389–3402
Avila J, Nieto C, Cañas L, Benito MJ, Paz-Ares J (1993) Petunia hybrida genes related to the maize regulatory C1 gene and to animal MYB proto-oncogenes. Plant J 3:553–562. doi:10.1046/j.1365-313X.1993.03040553.x
Berardini TZ, Mundodi S, Reiser L, Huala E, Garcia-Hernandez M, Zhang P, Mueller LA, Yoon J, Doyle A, Lander G, Moseyko N, Yoo D, Xu I, Zoeckler B, Montoya M, Miller N, Weems D, Rhee SY (2004) Functional annotation of the Arabidopsis genome using controlled vocabularies. Plant Physiol 135:745–755
Boyer J, Hai Liu R (2004) Apple phytochemicals and their health benefits. Nutr J 3:1–15. doi:10.1186/1475-2891-3-5
Close DC, Beadle CL (2005) Xanthophyll-cycle dynamics and rapid induction of anthocyanin synthesis in Eucalyptus nitens seedlings transferred to photoinhibitory conditions. J Plant Physiol 162:37–46. doi:10.1016/j.jplph.2003.10.001
Denis MC, Furtos A, Dudonne S, Montoudis A, Garofalo C, Desjardins Y, Delvin E, Levy E (2013) Apple peel polyphenols and their beneficial actions on oxidative stress and inflammation. PLoS ONE 8:1–17. doi:10.1371/journal.pone.0053725.g001
Espley RV, Hellens RP, Putterill J, Stevenson DE, Kutty-Amma S, Allan AC (2007) Red coloration in apple fruit is due to the activity of the MYB transcription factor, MdMYB10. Plant J 49:414–427. doi:10.1111/j.1365-313X.2006.02964.x
Falginella L, Castellarin SD, Testolin R, Gambetta GA, Morgante M, Di Gaspero G (2010) Expansion and subfunctionalisation of flavonoid 3′,5′-hydroxylases in the grapevine lineage. BMC Genom 11:1–18. doi:10.1186/1471-2164-11-562
Feng FJ, Li MJ, Ma FW, Cheng LL (2013) Phenylpropanoid metabolites and expression of key genes involved in anthocyanin biosynthesis in the shaded peel of apple fruit in response to sun exposure. Plant Physiol Biochem 69:54–61. doi:10.1016/j.plaphy.2013.04.020
Finn RD, Tate J, Mistry J, Coggill PC, Sammut SJ, Hotz HR, Ceric G, Forslund K, Eddy SR, Sonnhammer EL, Bateman A (2008) The Pfam protein families database. Nucl Acids Res 36:D281–D288. doi:10.1093/nar/gkm960
Franken P, Schrell S, Peterson PA, Saedler H, Wienand U (1994) Molecular analysis of protein domain function encoded by the myb-homologous maize genes C1, Zm 1 and Zm 38. Plant J 6:21–30
Goff SA, Cone KC, Chandler VL (1992) Functional analysis of the transcriptional activator encoded by the maize B gene: evidence for a direct functional interaction between two classes of regulatory proteins. Genes Dev 6:864–875. doi:10.1016/0168-9525(92)90247-2
González-Talice J, Yuri JA, del Pozo A (2013) Relations among pigments, color and phenolic concentrations in the peel of two Gala apple strains according to canopy position and light environment. Sci Hortic 151:83–89. doi:10.1016/j.scienta.2012.12.007
Goodrich J, Carpenter R, Coen ES (1992) A common gene regulates pigmentation pattern in diverse plant species. Cell 68:955–964. doi:10.1016/0092-8674(92)90038-E
Gotz S, Garcia-Gomez JM, Terol J, Williams TD, Nagaraj SH, Nueda MJ, Robles M, Talon M, Dopazo J, Conesa A (2008) High-throughput functional annotation and data mining with the Blast2GO suite. Nucl Acids Res 36:3420–3435. doi:10.1093/nar/gkn176
Grabherr MG, Haas BJ, Yassour M, Levin JZ, Thompson DA, Amit I, Adiconis X, Fan L, Raychowdhury R, Zeng Q, Chen Z, Mauceli E, Hacohen N, Gnirke A, Rhind N, Palma FD, Birren BW, Nusbaum C, Lindblad-Toh K, Friedman N, Regev A (2011) Full-length transcriptome assembly from RNA-Seq data without a reference genome. Nat Biotechnol 29:644–652
Hoch WA, Singsaas EL, McCown BH (2003) Resorption protection. Anthocyanins facilitate nutrient recovery in autumn by shielding leaves from potentially damaging light levels. Plant Physiol 133:1296–1305. doi:10.1104/pp.103.027631
Holton TA, Cornish EC (1995) Genetics and biochemistry of ant hocyanin biosynthesis. Plant Cell 7:1071–1083
Hughes NM, Neufeld HS, Burkey KO (2005) Functional role of anthocyanins in high-light winter leaves of the evergreen herb Galax urceolata. New Phytol 168:575–587. doi:10.1111/j.1469-8137.2005.01546.x
Hughes NM, Morley CB, Smith WK (2007) Coordination of anthocyanin decline and photosynthetic maturation in juvenile leaves of three deciduous tree species. New Phytol 175:675–685. doi:10.1111/j.1469-8137.2007.02133.x
Hughes NM, Burkey KO, Cavender-Bares J, Smith WK (2012) Xanthophyll cycle pigment and antioxidant profiles of winter-red (anthocyanic) and winter-green (acyanic) angiosperm evergreen species. J Exp Bot 63:1895–1905. doi:10.1093/jxb/err362
Hyson DA (2011) A comprehensive review of apples and apple components and their relationship to human health. Adv Nutr 2:408–420. doi:10.3945/an.111.000513
Iseli C, Jongeneel CV, Bucher P (1999) ESTScan: a program for detecting, evaluating, and reconstructing potential coding regions in EST sequences. Pacing Clin Electrophysiol 99:138–148
Jiang Y, Zhang Z, Joyce DC, Ketsa S (2002) Postharvest biology and handling of longan fruit (Dimocarpus longan Lour.). Postharvest Biol Technol 26:241–252. doi:10.1016/S0925-5214(02)00047-9
Jiang F, Chen XP, Zheng SQ (2014) A preliminary study on anthocyanins in the peel of Dimocarpus confinis. Southeast Hortic 6:1–3
Kanehisa M, Goto S, Kawashima S, Okuno Y, Hattori M (2004) The KEGG resource for deciphering the genome. Nucl Acids Res 32:D277–D280
Kanehisa M, Araki M, Goto S, Hattori M, Hirakawa M, Itoh M, Katayama T, Kawashima S, Okuda S, Tokimatsu T, Yamanishi Y (2008) KEGG for linking genomes to life and the environment. Nucl Acids Res 36:D480–D484
Karp PD, Paley S, Zhu J (2001) Database verification studies of SWISS-PROT and GenBank. Bioinformatics 17:526–532
Köhler U, Liaud MF, Mendel RR, Cerff R, Hehl R (1995) The maize GapC4 promoter confers anaerobic reporter gene expression and shows homology to the maize anthocyanin regulatory locus C1. Plant Mol Biol 29:1293–1298. doi:10.1007/BF00020469
Li B, Dewey CN (2011) RSEM: accurate transcript quantification from RNA-Seq data with or without a reference genome. BMC Bioinform 12:1–16. doi:10.1186/1471-2105-12-323
Li P, Castagnoli S, Cheng L (2008) Red ‘Anjou’ pear has a higher photoprotective capacity than green ‘Anjou’. Physiol Plant 134:486–498. doi:10.1111/j.1399-3054.2008.01155.x
Lin X, Xiao M, Luo Y, Wang JY, Wang HQ (2013) The effect of RNAi-induced silencing of FaDFR on anthocyanin metabolism in strawberry (Fragaria × ananassa) fruit. Sci Hortic 160:123–128. doi:10.1016/j.scienta.2013.05.024
Liu T, Song S, Yuan YB, Wu D, Chen M, Sun QN, Zhang B, Xu CJ, Chen KS (2015) Improved peach peel color development by fruit bagging. Enhanced expression of anthocyanin biosynthetic and regulatory genes using white non-woven polypropylene as replacement for yellow paper. Sci Hortic 184:142–148. doi:10.1016/j.scienta.2015.01.003
Magnus PD (1999) Polyketides and other secondary metabolites including fatty acids and their derivatives. J Am Chem Soc 121:6971–6972
Manetas Y, Drinia A, Petropoulou Y (2002) High contents of anthocyanins in young leaves are correlated with low pools of xanthophyll cycle components and low risk of photoinhibition. Photosynthetica 40:349–354. doi:10.1023/A:1022614722629
Mao X, Cai T, Olyarchuk JG, Wei L (2005) Automated genome annotation and pathway identification using the KEGG Orthology (KO) as a controlled vocabulary. Bioinformatics 21:3787–3793. doi:10.1093/bioinformatics/bti430
Mattivi F, Guzzon R, Vrhovsek U, Stefanini M, Velasco R (2006) Metabolite profiling of grape: flavonols and anthocyanins. J Agric Food Chem 54:7692–7702. doi:10.1021/jf061538c
Moriya Y, Itoh M, Okuda S, Yoshizawa AC, Kanehisa M (2007) KAAS: an automatic genome annotation and pathway reconstruction server. Nucl Acids Res 35:W182–W185. doi:10.1093/nar/gkm321
Niu SS, Xu CJ, Zhang WS, Zhang B, Li X, Lin-Wang K, Ferguson IB, Allan AC, Chen KS (2010) Coordinated regulation of anthocyanin biosynthesis in Chinese bayberry (Myrica rubra) fruit by a R2R3 MYB transcription factor. Planta 231:887–899. doi:10.1007/s00425-009-1095-z
Petroni K, Cominelli E, Consonni G, Gusmaroli G, Gavazzi G, Tonelli C (2000) The developmental expression of the maize regulatory gene Hopi determines germination-dependent anthocyanin accumulation. Genetics 155:323–336
Piazza P, Procissi A, Jenkins GI, Tonelli C (2002) Members of the c1/pl1 regulatory gene family mediate the response of maize aleurone and mesocotyl to different light qualities and cytokinins. Plant Ecophysiol 128:1077–1086
Pomar F, Novo M, Masa A (2005) Varietal differences among the anthocyanin profiles of 50 red table grape cultivars studied by high performance liquid chromatography. J Chromatogr A 1094:34–41. doi:10.1016/j.chroma.2005.07.096
Pruitt KD, Tatusova T, Maglott DR (2005) NCBI reference sequence (RefSeq): a curated non-redundant sequence database of genomes, transcripts and proteins. Nucl Acids Res 33:D501–D504. doi:10.1093/nar/gki025
Rahim MA, Busatto N, Trainotti L (2014) Regulation of anthocyanin biosynthesis in peach fruits. Planta 240:913–929. doi:10.1007/s00425-014-2078-2
Rawson NE, Ho C-T, Li S (2014) Efficacious anti-cancer property of flavonoids from citrus peels. Food Sci Hum Wellness 3:104–109. doi:10.1016/j.fshw.2014.11.001
Scheffler B, Franken P, Schütt E, Schrell A, Saedler H, Wienand U (1994) Molecular analysis of C1 alleles in Zea mays defines regions involved in the expression of this regulatory gene. Mol Gen Genet 242:40–48. doi:10.1007/BF00277346
Schwinn K, Venail J, Shang Y, Mackay S, Alm V, Butelli E, Oyama R, Bailey P, Davies K, Martin C (2006) A small family of MYB-regulatory genes controls floral pigmentation intensity and patterning in the genus Antirrhinum. Plant Cell 18:831–851. doi:10.1105/tpc.105.039255
Storey JD, Tibshirani R (2003) Statistical significance for genomewide studies. Proc Natl Acad Sci USA 100:9440–9445
Stover E, Mercure EW (2007) The pomegranate: a new look at the fruit of paradise. HortScience 42:1088–1092
Sun Y, Huang H, Meng L, Hu K, Dai SL (2013) Isolation and functional analysis of a homolog of flavonoid 3′,5′-hydroxylase gene from Pericallis × hybrida. Physiol Plant 149:151–159. doi:10.1111/ppl.12034
Tanaka Y, Sasaki N, Ohmiya A (2008) Biosynthesis of plant pigments: anthocyanins, betalains and carotenoids. Plant J 54:733–749. doi:10.1111/j.1365-313X.2008.03447.x
Tatusov RL, Fedorova ND, Jackson JD, Jacobs AR, Kiryutin B, Koonin EV, Krylov DM, Mazumder R, Mekhedov SL, Nikolskaya AN, Rao BS, Smirnov S, Sverdlov AV, Vasudevan S, Wolf YI, Yin JJ, Natale DA (2003) The COG database: an updated version includes eukaryotes. BMC Bioinform 4:1–14
Wang YR, Lu YF, Hao SX, Zhang ML, Zhang J, Tian J, Yao YC (2015) Different coloration patterns between the red- and white-fleshed fruits of malus crabapples. Sci Hortic 194:26–33. doi:10.1016/j.scienta.2015.07.041
Williams EL, Hovenden MJ, Close DC (2003) Strategies of light energy utilisation, dissipation andattenuation in six co-occurring alpine heath species in Tasmania. Funct Plant Biol 30:1205–1218
Wu S (2010) Production status of longan in China. Acta Hortic 2010:37–44
Wu J, Zhao G, Yang YN, Le WQ, Khan MA, Zhang SL, Gu C, Huang WJ (2013) Identification of differentially expressed genes related to coloration in red/green mutant pear (Pyrus communis L.). Tree Genet Genomes 9:75–83. doi:10.1007/s11295-012-0534-3
Yamaguchi M, Honda C, Moriguchi T (2004) Expression of anthocyanin biosynthesis genes in the skin of peach and nectarine fruit. J Am Soc Hortic Sci 129:857–862
Yang YN, Yao GF, Zheng DM, Zhang SL, Wang C, Zhang MY, Wu J (2015) Expression differences of anthocyanin biosynthesis genes reveal regulation patterns for red pear coloration. Plant Cell Rep 34:189–198. doi:10.1007/s00299-014-1698-0
Young MD, Wakefield MJ, Smyth GK, Oshlack A (2010) Gene ontology analysis for RNA-seq: accounting for selection bias. Genome Biol 11:1–12. doi:10.1186/gb-2010-11-2-r14
Zhang B, Hu ZL, Zhang YJ, Li YL, Zhou S, Chen GP (2012) A putative functional MYB transcription factor induced by low temperature regulates anthocyanin biosynthesis in purple kale (Brassica Oleracea var. acephala f. tricolor). Plant Cell Rep 31:281–289. doi:10.1007/s00299-011-1162-3
Zhao H, Wang Y, Xu XF, Li TZ, Kong J, Zhang XZ, Han ZH, Liu H (2011) Relationship of pigments and sugars in fruit peels of Red Fuji apples at various debagging times. Acta Hortic 903:923–928
Zhao XQ, Yuan ZH, Fang YM, Yin YL, Feng LJ (2013) Characterization and evaluation of major anthocyanins in pomegranate (Punica granatum L.) peel of different cultivars and their development phases. Eur Food Res Technol 236:109–117. doi:10.1007/s00217-012-1869-6
Zhou J (2009) Studies on biosynthesis of hydroxycinamic acids, flavonoids and anthocyanins in peach skin. Dissertation, China Agricultural University
Conceived and designed the experiments: FJ and SZ. Analyzed the data: FJ. Contributed reagents/materials/analysis tools: FJ, XC, and WHU. Wrote the paper: FJ. All authors read and approved the final manuscript.
This work was financially supported by the Natural Science Foundation of Fujian province, China (2014J01100). The authors are grateful to Fuzhou Longan and lquat Resource. Nurseeies of National Fruit Gene-pool, National Crop Germplasm Resources Infrastructure (NCGRI)-National Longan & Loquat Germplasm Resources Infrastructure for kindly providing the plant materials used in this research.
The authors declare that they have no competing interests.
