RNA interference-based gene silencing of phytoene synthase impairs growth, carotenoids, and plastid phenotype in Oncidium hybrid orchid
SpringerPlus volume 3, Article number: 478 (2014)
Phytoene synthase (PSY) is the first rate-limiting regulatory enzyme in the carotenoid biosynthesis pathway. In order to modify the floral color pattern by reducing carotenoid contents, a phytoene synthase-RNAi construct was delivered into protocorm-like body (PLB) of Oncidium hybrid orchid. The transgenic orchids show down-regulated level of PSY and geranyl synthase gene. They displayed semi-dwarf phenotype and brilliant green leaves. The microscopic anatomy revealed development-arrested plastids with rare grana. The total carotenoid content was decreased and the efficiency of the photosynthetic electron transport was declined. The chlorophyll level and the expression of chlorophyll biosynthetic genes, such as OgGLUTR and OgCS were dramatically reduced. HPLC analysis showed that the endogenous level of gibberellic acid and abscisic acid in the dwarf transformants are 4-fold lower than in wild type plants. In addition, chilling tolerance of the transgenic Oncidium plants was reduced. The data showed that down-regulation of PSY resulted in alterations of gene expression in enzymes involved in many metabolic pathways, such as carotenoid, gibberellic acid, abscisic acid and chlorophyll biosynthetic pathway as well as causes predominant defects in plant growth and development.
Carotenoids are the most widely distributed pigments and are essential components for all photosynthetic organisms (Fraser and Bramley 2004; Andrade-Souza et al. 2011). Carotenoid biosynthesis of higher plant occurs in plastids, and most carotenoids accumulate in chlorophyll–carotenoid–protein complexes in the thylakoid membranes. Therefore, carotenoid act as light-harvesting antenna pigments and optimize the efficacy of photosynthesis (Andrade-Souza et al. 2011). They supplement the light-capturing ability of chlorophyll by absorbing light in the range from 400 to 500 nm, a spectral region that is weakly absorbed by chlorophyll a (Telfer et al. 2008). Carotenoids also execute an important role in photoprotection in photosynthesis center. Furthermore, the protective effect of carotenoids in the blue region could be attributed to extra thylakoid carotenoids in ripening apples (Merzlyak et al. 2008). Photoprotection of carotenoids such as xanthophylls (zeaxanthin) is also shown by their role as antioxidants to scavenge singlet oxygen or superoxide anion radicals caused by light stress (Choudhury and Behera 2001). Finally, carotenoids are essential components in stabilization of the chloroplast apparatus (Havaux 1998).
In addition to the essential function in photoprotection and antioxidation, they act as precursors for the production of apocarotenoid hormones such as abscisic acid and strigolactones. The biosynthesis of carotenoid in plants has been well investigated (Bramley 2002; Fraser and Bramley 2004; Römer and Fraser 2005; Tanaka et al. 2008). The relevance of Arabidopsis as a model system for the study of carotenogenesis and how metabolic engineering approaches in this plant have taught important lessons for carotenoid biotechnology (Ruiz-Sola and Rodríguez-Concepción 2012). The first step of carotenogenesis is the dimerization of two molecules of geranylgeranyl pyrophosphate to phytoene by the phytoene synthase (PSY) (Lindgren et al. 2003). This step is the rate limiting step within the biosynthetic route and has long been considered a “bottleneck” in the pathway. Genes encoding phytoene synthase have been identified from numerous higher plants including tomato (Fraser et al. 2007), Arabidopsis (Maass et al. 2009), maize (Wong et al. 2004), citrus (Kato et al. 2004; Rodrigo et al. 2004), pepper (Tao et al. 2007), sunflower (Salvini et al. 2005), wheat (He et al. 2008) and maize (Li et al. 2008). Most plant species contain multiple functionally redundant copies of PSY, but different PSY genes appear to be differentially expressed and regulated.
Many efforts have been devoted to metabolic engineering of carotenoid biosynthesis in plants. Qin et al. (2007)) found that disruption of phytoene desaturase 3 (PDS3) in Arabidopsis resulted in an albino and dwarf phenotype by impairment of the chlorophyll, carotenoid and gibberellin (GA) biosynthesis. PSY overexpression has been studied in some plants. In tomato, overexpression of a fruit PSY caused dwarfism phenotype by competing GGPP from gibberellin pathway (Fray et al. 1995). In Arabidopsis, seed-specific overexpression of endogenous PSY resulted in delayed germination and increased levels of carotenoids, chlorophyll, and abscisic acid (Lindgren et al. 2003). Recently, overexpression of the maize PSY gene resulted in higher carotenoid levels in the rice endosperm, the so-called golden rice in which the pro-vitamin A content was increased (Paine et al. 2005). Although there are numerous cases of PSY overexpression in plants, silencing of this gene has not yet been reported.
Carotenoids also accumulate in flowers and fruits and are pivotal components for color patterns or nutrients, such as in the fruits of kiwi, banana, tomato, sunflower and several orchid species. The flowers of Oncidium“Gower Ramsey”, one of the most popular cultivars in Asian orchid industry, has a bright yellow ornamentation in the lip which is caused by violaxanthin, neoxanthin and lutein. This carotenoid mixture is concentrated in the chromoplasts of conical papillate cells of the adaxial epidermal layer (Hieber et al. 2006; Chiou et al. 2010). Moreover, the carotenoid composition determines the flower color in three cultivars of Oncidium orchids, Gower Ramsey (yellow), Sunkist (orange), and White Jade (white) (Chiou et al. 2010). Besides, the expression pattern of genes participating in carotenoid biosynthesis and metabolism showed also significant differences among the three cultivars, such as a high expression of PSY and ZEP in Gower Ramsey, while the carotenoid cleavage dioxygenase and 9-cis-epoxycarotenoid dioxygenase are highly expressed in White Jade (Chiou et al. 2010).
In a molecular breeding program for creating novel Oncidium cultivars with different floral color patterns, the RNA interference (RNAi) construct aiming at PSY was introduced into protocom-like bodies. Several transgenic orchids were obtained, displaying abnormal phenotypes in vegetative growth, such as yellowish-green leaves, smaller plant sizes and retarded growth. Our investigation demonstrated that the decrease of the carotenoid content was caused by down-regulation of the phytoene synthase gene in OgPSY-RNAi transgenic Oncidium plants. Phenotyping of the plants demonstrate that this impairment is caused by the growth-arrested chloroplast structure, the reduced chlorophyll level, and lower expression level of chlorophyll-biosynthetic genes. The potential physiological functions of carotenoids in plant growth and development are validated.
Generation of transgenic Oncidium plants by RNA interference-based gene silencing of phytoene synthase

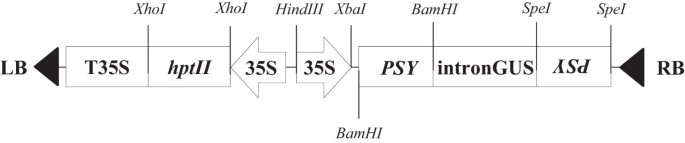

The OgPSY RNAi construct driven by the 35S promoter was introduced into protocorm-like body (PLB) of Oncidium orchid by Agrobacterium tumefaciens-mediated transformation (Figure 1). After routine screening under three rounds of antibiotic (hygromycin) selection (Figure 2) for one year, six candidate transgenic lines were selected from hygromycin-containing MS-based medium and planted in pots. After an acclimated growth in the greenhouse for one year, all plants were assayed for the transgene expression. The transformation efficiency for the six transformants was confirmed for the expression of hygromycin phosphotransferase II (hpt II) by RT-PCR (data not shown). Moreover, all plants displayed down-regulated expression of PSY and a dwarf phenotype, when compared to wild type Oncidium plants (Figure 3). It confirms that the PSY gene is silenced by RNA-interference in the transgenic Oncidium orchids (Figure 4). Thus, three transgenic lines (line 1 ~ 3) were selected for further molecular and physiological analyses.
PSY-RNAi in transgenic Oncidium alters the expression pattern of biosynthetic pathway and leads to decreased accumulation of carotenoid contents

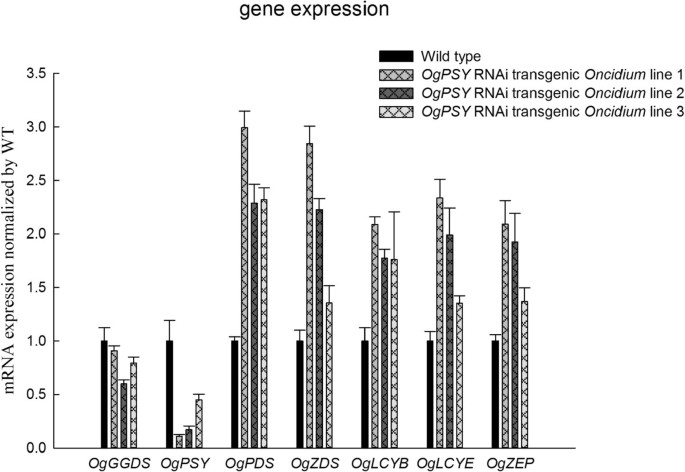

The expression levels of phytoene synthase and the other step genes involved in the carotenoid biosynthetic pathway were monitored in overall. As shown in Figure 5, OgPSY was predominantly reduced in all three transgenic orchid plants, compared to wild type. The expression of GGDS gene, which is responsible for the synthesis of geranyl geranyl pyrophosphate (GGPP) was also reduced slightly. However, all the downstream genes, such as phytoene desaturase (OgPDS), lycopene cyclaseB, E (OgLCYB and OgLCYE), zeaxanthin desaturase (OgZDS) and zeaxanthin epoxidase (OgZEP) were dramatically upregulated, compared to wild type. The carotenoid contents in three transgenic lines were subject to assay. Analysis by LC-ESI-MS system showed that the total carotenoid content, neoxanthin, violaxanthin, antheraxanthin, lutein-5-6-epoxide, lutein, zeaxanthin and phytoene were significantly reduced (Figure 6). Some components, such as neoxanthin, lutein-5-6-epoxide and zeaxanthin were reduced to 50% level.
The chloroplast apparatus and chlorophyll level are impaired in PSY RNAi-transgenic Oncidium orchids
The PSY RNAi-transgenic orchids exhibit an abnormal phenotype such as yellow-greenish leaves and dwarfism, when compared to wild type plants (Figure 3). Therefore, the anatomical structures of the plastids were analyzed by microscopy. As shown in Figure 7A and B, the number of plastids in leaves of the transgenic orchids were decreased, compared to wild type plants. The chloroplasts in wild type orchid leaves contained the well-known dense grana structure, oil bodies and starch grains, whereas plastids in the transgenic orchids were arrested at a proplastid-like stage. They contain barely any grana, no starch grains and oil droplets (Figure 7C, D). For some plastids of the transgenic plants multi-plastoglobuli, blurry membrane edges, and vacuolization phenomena inside the organelle was observed. Most obviously, the plastids of the transgenic lines had very little thylakoid lamellar structures and very sparse grana stacks, compared to the wild type (Figure 7E, F). The thickness of grana lamellas of wild-type plastids was approximately 18.02 nm, whereas that of the transgenic lines was 20.24 nm. It indicates that grana lamellae cannot be compactly organized in the transgenic orchids.
Furthermore, the total chlorophyll a and b content was significantly reduced to approximately1/3 of wild type in the three transgenic lines (Figure 8A-C). The decrease of the chlorophyll a/b ratio further demonstrates that decrease of chlorophyll a biosynthesis is more impaired than chlorophyll b biosynthesis. The chlorophyll a/b ratio is an indicator for the efficiency of light adaptation/acclimation of the photosynthetic apparatus. Chlorophyll b is an antenna component, whereas chlorophyll a is present in the reaction center of photosystem I and II and the antenna (Telfer et al. 2008). The decrease of chlorophyll a suggests that the reaction centers of PSI and PSII are impaired. Since the chlorophyll a content is higher in the light-harvesting LHC-I complex of PSI, the PSI antenna may be more impaired than the PSII antenna.
The decreased carotenoid level resulted in reduced expression levels of chlorophyll biosynthetic genes
Besides reduced carotenoid content, the PSY RNAi-transgenic Oncidium orchids contain also less chlorophyll levels. The expression of the two chlorophyll biosynthesis-related genes OgGLUTR and OgCS, which are the first and the last rate-limiting genes in chlorophyll biosynthesis (Figure 9A), were assayed by qPCR. The expression levels of OgGLUTR and OgCS are severely reduced in the three transgenic lines (Figure 9B, C), and the effect was stronger for OgCS. The data demonstrate that the expression of chlorophyll biosynthesis genes is repressed in the nucleus, suggesting a cross-talk between the two pigment synthesis pathways.
PSY RNAi-transgenic Oncidium orchids are impaired in photosynthetic efficiency in PSII and PSI activity
PSII and PSI activity were measured by Dual-PAM-100 fluorometer. As shown in Table 1, both Fv/Fm and Y (II) values of the three transgenic lines were less than those of wild type plants, whereas the Y (NO) and Y (NPQ) values were higher than the wild type plants. A high Y (NO) value indicates that the photochemical energy conversion and the protective regulatory mechanisms are inefficient in the transgenic lines. A high Y (NPQ) value indicates that the photon flux density is excessive and that the plants have retained the physiological means to protect themselves by regulation, i.e. the dissipation of excessive excitation energy into heat. Therefore, the data indicate that the photon flux density was excessive for the three transgenic lines, and that they would be photo damaged upon further irradiation.
Furthermore, the Pm and Y (I) values for the three transgenic lines were lower than those for the two wild type controls, and the effect is more dramatic for the Pm value. Pm represents the maximal change of the P700 signal upon quantitative transformation of P700 from the fully reduced to the fully oxidized state (Klughammer and Schreiber 1994). Y (I) is the photochemical quantum yield of PSI. The values of Y (ND) and Y (NA) of the three transgenic lines were higher than those of the two wild type plants. Y (ND) is a measure of the donor side limitation which is enhanced by a trans-thylakoid proton gradient and damage at the level of PSII. Y (NA) is a measure of acceptor side limitation, which is enhanced by damage at the level of CO2 fixation. Thus, not only PSII and PSI but also CO2 fixation is impaired in the three transgenic lines. Compared to the WT, the Pm and Y (I) values of PSI in three transgenic lines declined by 64.8% and 12.7% respectively, whereas the Fv/Fm and Y (II) values of PSII declined only by 3.5% and 5.7%, respectively (data not shown). This indicates that PSI is more severely damaged than PSII in the PSY- RNAi transgenic Oncidium orchids. This is consistent with the reduced content of chlorophyll in PSI (Figure 8).
The transgenic plants do not accumulate more H2O2
H2O2 accumulation , one of the reactive oxygen species (ROS) generated in the plastids (del Rio et al. 2006; Navrot et al. 2007), is dramatically enhanced in response to environmental stress conditions, which results in an excessive demand of H2O2-accumulationg cells for an cellular efficient antioxidant machinery (Fahnenstich et al. 2008). Ascorbate (AsA) is a reductant of H2O2 in chloroplasts. Ascorbate peroxidase (APX) utilizes AsA as its specific electron donor to reduce H2O2 to water with the concomitant generation of monodehydroascorbate (MDAsA) (Shigeoka et al. 2002). The tylAPX (thylakoid form) is a plastic H2O2-scavenging enzyme to protect chloroplast from ROS damage. The H2O2 levels and the expression of the tylAPX gene in leaves were measured. The three transgenic lines had a low H2O2 content (Figure 10A). Also, the expression level of tylAPX was lower than in the wild type (Figure 10B). Therefore, the results demonstrate that the decreased photosynthetic efficiency and plastid impairment in the transgenic orchids are not caused by the H2O2 accumulation, but due to the impaired carotenoid biosynthesis.
Silenced expression of PSY in transgenic Oncidium leads to the decrease of endogenous ABA and GA levels
We noticed that the transgenic Oncidium orchids are very susceptible to a 12°C chilling treatment (data not shown). ABA, a stress-inducible isoprenoid plant hormone, is one of the final products in the carotenoid biosynthesis pathway. Similarly, GA is synthesized in plastids and participates in stress responses. Therefore, the endogenous ABA and GA levels were monitored. Both phytohormone levels were reduced in the transgenic Oncidium orchids (Figure 11). GA1, GA3 and GA4 were reduced in transgenic orchids, whereas GA1 was almost deficient in the three transgenic orchids (Figure 11B-D). The data show that carotenoid shortage also affects the biosynthesis of GA and ABA.
In this study, the 35S::PSY-RNAi construct was delivered to Oncidium GR hybrid orchid by Agrobacterium tumefaciens-mediated infection. The transformed Oncidium orchid shows a constitutive down-regulated expression level of PSY (Figure 4). The transgenic orchids show a very strong phenotype, such as dwarfism, bleached leaves (Figure 2), retarded growth and unbolting (Figure 3). The carotenoid and chlorophyll contents are dramatically decreased in the transgenic lines (Figures 6 and 8). They also have severely reduced GA and ABA levels (Figure 11). Additional physiological defects, such as low photosynthesis efficiency (Table 1) and low chilling tolerance were also observed (data not shown). Although the transgenic Oncidium orchids did not show the expected floral color modification, the results demonstrate an important function of the phytoene synthase, which is not restricted to carotenoid biosynthesis alone.
The qPCR data demonstrated that the expression level of phytoene synthase is dramatically reduced, but expression levels of the downstream genes, such as OgPDS, OgZDS, OgLCYE, OgLCYB and OgZEP are relatively increased in PSY-RNAi Oncidium where contents of carotenoid were decreased (Figure 5). This feedback regulation between carotenoid level and its biosynthetic genes have been described in plants. Diretto et al. (2010) demonstrated that the high levels of carotenoids and β-carotene in “Golden” potato tubers which were engineered by three bacterial genes forβ-carotene synthesis seem to trigger a repression of endogenous PSY1 and an induction of β-xanthophyll synthases and lycopeneϵ-cyclase. In Peach, the expression level of PSY, ZDS and CHY-B genes at final ripening stages in yellow-fleshed cultivar ‘Redhaven’ (rich carotenoid content) were lower than white-fleshed bud sport mutant cultivar ‘Redhaven Bianca’ (low carotenoid content ) (Brandi et al. 2011).

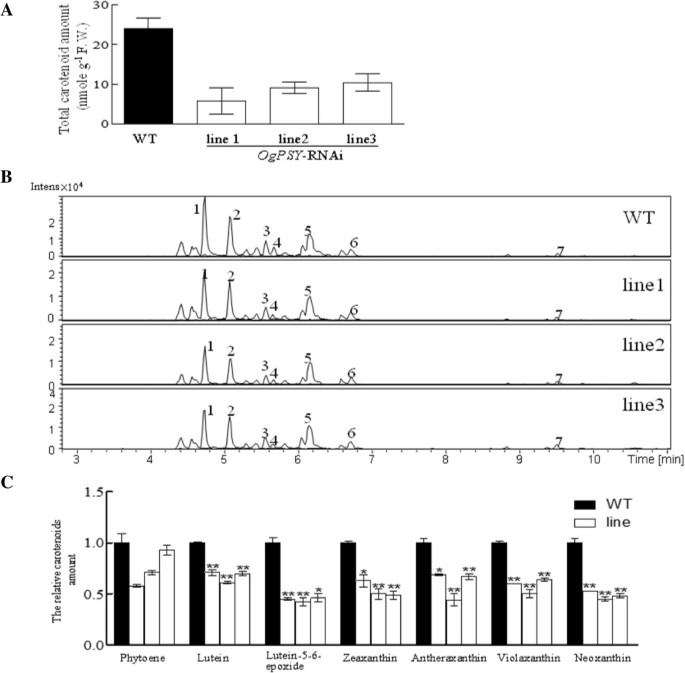

The LC-MS analysis showed that phytoene, lycopene, β-carotene and other carotenoid compounds were reduced. This is caused by the down-regulation of the phytoene synthase gene in transformed orchids. ABA synthesis is also reduced as a downstream effect of the inhibition of the carotenoid metabolic pathway. Chlorophyll contents and GA levels were reduced in the mutants. Chlorophyll biosynthesis and GA biosynthesis are branches of the carotenoid biosynthetic pathway. Both are synthesized from the common substrate geranylgeranyl pyrophosphate (GGPP). Theoretically, reduction of the amount of phytoene and of phytoene synthase activity may cause a large accumulation of GGPP, which should result in a massive biosynthesis of chlorophyll and GA. The reverse results indicated that there might be a feedback mechanism when the carotenoid biosynthetic pathway is blocked at the step of phytoene synthase. Interestingly, the result is similar to phytoene desaturase studies in Arabidopsis, where pds insertional knock-out mutants showed dwarfism and a low chlorophyll/carotenoid content (Qin et al. 2007).
Carotenoid biosynthesis is an important metabolic pathway in plants. The biosynthesis of phytohormones (GA and ABA), chlorophyll, vitamins and other essential pigments for plastids are closely related to this pathway (Meier et al. 2011). Carotenoids and chlorophyll play an important structural role in the assembly of light-harvesting complexes. The major pigment-binding proteins in plant chloroplast membranes are light-harvesting complex II (LHC-II). The proteins are estimated to represent about half of the total proteins in the thylakoid membrane (Telfer et al. 2008). The complex binds chlorophyll a, chlorophyll b and carotenoids (Pilkington et al. 2012; Kusaba et al. 2007). Because carotenoids together with chlorophylls are components of these membrane associated pigment-protein complexes, assembly of the light-harvesting complexes is dependent on the presence of chlorophylls and carotenoids (Sagar and Briggs 1990). Recently, DELLA proteins were known to coordinate the biosynthesis of chlorophyll and carotenoids through the regulation of PIF activity in Arabidopsis (Cheminant et al. 2011). Inhibition of PSY-biosynthesis blocks therefore thylakoid membrane assembly.
The transgenic orchids have photo-bleached leaves (Figures 2 and 3) and contained proplastid-type plastids (Figure 7). There are two possible interpretations. One is that carotenoids are membrane stabilizers in chloroplasts (Havaux 1998). Carotenoids of the xanthophyll family and some other terpenoids, such as isoprene or α-tocopherol, stabilize and photoprotect the lipid phase of the thylakoid membranes. When plants are exposed to potentially harmful environmental conditions such as strong light intensity,the xanthophyll violaxanthin and the products of its enzymatic de-epoxidation, antheraxanthin and zeaxanthin, partitions in light-harvesting complex functions and lipid organization of the thylakoid membranes. The resulting interaction of the xanthophyll molecules with the membrane lipids is responsible for a decrease in membrane fluidity, an increase in membrane thermo stability and a lowered susceptibility to lipid peroxidation (Havaux 1998). The decrease of the carotenoid content in our studies causes an unusual thylakoid membrane assembly, or causes lipid phase changes of the membrane structure, which lead to the described phenotypes (Figure 7D, F). Alternatively, repression of chlorophyll biosynthesis (Figure 9) and the reduced chlorophyll level in the mutant (Figure 8) cause the development arrest of the plastids (Figure 7D, F), because of the carotenoids are limiting a proper assembly of the thylakoid membrane structures.
The transgenic orchids displayed a severe dwarf phenotype, such as retarded growth, short leaves and absence of bolting (Figure 3). This outcome is possible caused by GA shortage and low photosynthesis efficiency. Assays of GA1, GA3 and GA4 showed that these hormone levels are extremely low in transgenic orchids, the GA1 amount in all transgenic lines compared to WT was almost not detected; whereas the amounts of GA3 and GA4 in all transgenic lines exhibited 30 ~ 50% compared to WT (Figure 11B-D). It suggests that the growth potential is distinctly impeded. In addition, the photosynthetic efficiency of the photosynthetic apparatus is severely declined in the transgenic orchids (Table 1). The decrease of photosynthesis products also might cause energy deficiency in plants and be responsible for the observed phenotype. The carotenoid deficiency in transgenic Oncidium orchids also leads to reduced ABA levels, which in turn causes the low chilling stress tolerance (data not shown).
It is known that the expression of nuclear-encoded photosynthetic genes is inhibited through signals from plastids (Taylor 1989). Recently, several studies described the effects of carotenoid deficiency on the expression of photosynthetic genes. Norflurazon-treated Arabidopsis seedlings showed that expression of 182 genes, including photosynthetic genes were repressed more than 3-fold (Sagar and Briggs 1990). In addition, a pds 3 mutant with severe carotenoid deficiency showed predominant repression of photosynthetic genes (Qin et al. 2007). Moreno et al. (2013) also demonstrated that a pronounced reduction in storage root thickness and color of carrots was obtained in DcLcyb1 transgenic silenced lines.
It was reported that PSY overexpression caused plants a reduced GA level, due to the increasing utilization of GGPP for carotenoid biosynthesis, and leading to a dwarf phenotype (Fang et al. 2008; Fray et al. 1995). However, the PSY-RNAi transgenic orchids in our work also displayed the similar outcome (Figure 11B-D). It suggests that plant carotenoidgenesis pathway is well fine-tuned to regulate. Taken together, we showed that down-regulation of phytoene synthase caused carotenoid deficiency and severely reduced GA and ABA levels, as well as a severe negative effects on plant’s performance. In accordance with previous reports, the mechanisms of feedback gene regulation and the responsible signaling pathways are still attracting much attention.
To the best of our knowledge, our work is the first report that using RNAi approach to break down carotenoidgenesis in Oncidium hybrid orchid. The data indicate that the down-regulation of PSY resulted in gene expression changes involved in many metabolic pathways, such as carotenoid, gibberellic acid, abscisic acid and chlorophyll biosynthetic pathway, in addition to phenotypic defect.
Materials and methods
Oncidium Gower Ramsey hybrid was provided by Chinese Development Association for Oncidium Production and Marketing (CDAOPM) at Chiayi, Taiwan, and the transgenic plant lines were obtained by transforming with the OgPSY-RNAi vector. Orchid seedlings were grown in the greenhouse at a temperature range of 20-28°C with 14 h photoperiod.
Generation of transgenic plant and selection of transgenic plants
The protocom-like bodies (PLBs) of Oncidium Gower Ramsey were generated and maintained onto G10 medium containing MS salts, 1 g/L tryptone, 20 g/L sucrose, 1 g/L charcoal, 65 g/L potato tubers, and 3 g/L phytagel at pH 5.4. The transformation protocol was carried out according to Liau et al. (2003). The binary vector pCAMBIA 1390 (Figure 1) containing the OgPSY-RNAi construct driven by the cauliflower mosaic virus 35S promoter (P35S) introduced into PLB by A. tumefaciens EHA105-mediated infection. The transformed seedlings were screened after several rounds of selection on hygomycin-containing medium.
Real-time quantitative PCR measurement for gene expression level
The primers for real-time quantitative PCR were designed by using the Primer Express Software v3.0 (Applied Biosystems, St. Louis, MO); gene-specific primers for OgGGDS, OgPSY, OgPDS, OgZDS, OgLCYB, OgLCYE, OgZEP, OgCS, OgGLUTR, OgtylAPX and UBQ are given in Table 2. Total RNA was extracted and cDNA was synthesized following the RevertAidTM first strand cDNA systhesis kit protocol (Fermentas). Real-time RT-PCR reaction was performed following the instruction of the KAPA SYBR FAST qPCR Kit (Kapa Biosystems) by using the ABI 7500 Fast Real-Time PCR system (Applied Biosystems). All reactions were repeated three times.
Measurement of the chlorophyll and carotenoid content
The extraction and analysis of pigments were carried out following the method by Schubert et al. (2006). In brief, the pigments were extracted with appropriate volume of dimethylformamide (DMF) for 24 h at 4°C in dark after the leaf tissues were ground in liquid nitrogen. The ground tissues were immediately centrifuged twice to separate debris. After the supernatant was removed, the carotenoid pigments were quantitatively measured by a spectrophotometer (TECAN Infinite® M200 PRO) at A450 following the method by Moran and Porath (1980). Chlorophyll a, b and total chlorophyll were quantitatively measured at A663 and A645, before calculation of the concentration according to Arnon (1949).
Measurement of carotenoids
The extraction was carried out by adding 40 μL of 100% DMF to 1 mg of the dry plant powder with vortexing for 30 min. After centrifugation at 16,000 × g for 10 min, the supernatant was collected for LC-ESI-MS analysis. The LC-ESI-MS system consisted of an ultra-performance liquid chromatography (UPLC) system (Ultimate 3000 RSLC, Dionex) and an electrospray ionization (ESI) source of quadrupole time-of-flight (TOF) mass spectrometer (maxis HUR-QToF system, Bruker Daltonics). The autosampler was set at 4°C. Separation was performed with reversed-phase liquid chromatography (RPLC) on a BEH C8 column (2.1 × 100 mm, Walters). The elution started from 50% mobile phase A (0.1% formic acid in deionized water) and 50% mobile phase B (0.1% formic acid in ACN), raised to 60% B in 2 min, further increased to 75% after an additional 1 min, and then raised to 100% B in 4.5 min, held at 100% B for 2.5 min, and then lowered to 50% B during the final 1 min. The column was equilibrated by pumping 50% B for 4 min. The flow rate was set 0.4 mL/min with an injection volume of 2 μL. LC-ESI-MS chromatogram was acquired in positive ion mode under following conditions: capillary voltage of 4500 V, dry temperature at 190°C, dry gas flow maintained at 8 L/min, nebulizer gas at 1.4 bar, and acquisition range of m/z 100–1000.
Chloroplast structure under transmission electron microscopy (TEM)
Leaves were fixed in 2.5% glutaraldehyde in 0.1 M sodium phosphate buffer (pH 7.2) at 4°C overnight. After 3 washes 20 min each, tissues were post fixed in 1% OsO4 in the same buffer for 4 h at room temperature, and then rinsed again three times in fresh buffer (20 min each). The leaves were dehydrated in an acetone series, embedded in Spurr’s resin, and sectioned with a Leica ultracut E ultramicrotome. Semi-thin sections (1 μm) for light microscopy were placed on slides and stained with 0.1% toluidine blue for 1 min at 60°C on a hot plate. Thin sections on grids were stained with uranyl acetate and lead citrate and examined with a Philips CM 100 transmission electron microscope (TEM) at 80 KV.
Measurement of chlorophyll Photosystem II (PSII, P680) and Photosystem I (PSI, P700)
The chlorophyll fluorescence of PSII and the redox state of P700, an indicator of PSI activity, were measured in vivo concomitantly at room temperature using a Dual-PAM-100 fluorometer (Walz) connected to a PC with WinControl software. After dark adaptation of the leaves for 20 min, experiments were carried out by using the automated induction and recovery curve routine in the Dual-PAM software, with repetitive application of saturation pulses for the assessment of fluorescence and P700 parameters from which the quantum yields of PSI and PSII were calculated by the software. The fluorescence parameters were calculated as follows: Fv/Fm = (Fm-Fo)/Fm, Y (II) = (Fm'-F)/Fm' (Genty et al. 1989), Y (NO) = 1/ (NPQ + 1 + qL (Fm/Fo-1) (Kramer et al. 2004), Y (NPQ) = 1-Y (II) -1/(NPQ + 1 + qL (Fm/Fo-1) (Kornyeyev and Hendrickson 2007; Kramer et al. 2004), Y (I) = 1- Y (ND) -Y (NA), Y (ND) = 1-P700 red, Y (NA) = (Pm-Pm') /Pm.
Measurement of H2O2 content
The concentration of H2O2 in leaves was measured following the method described by Jana and Choudhuri (1982). All experimental steps were performed at 4°C. 0.125 g leaf tissue was ground to a fine powder in liquid nitrogen and further homogenized with 450 μL Solution I (10 mM Na-P buffer, pH 6.5, 10 mM 3-amino-1.2.4-triazole). The supernatant from a 25 min centrifugation at 13,000 g under 4°C was transferred to a new eppendorf tube and the extraction was repeated. To 600 μL of the supernatant 200 μL Solution II (0.1% titanium oxysulfate and 0.1% titanium sulfate in 20% H2SO4) was added and the solution was mixed well. . Finally, 200 μL supernatant was dispensed to 96 well plates and the absorption was measured at OD410 (TECAN Infinite® M200 PRO). The H2O2 content was calculated with a standard curve.
Determination of abscisic acid and gibberellic acid levels in Oncidium orchid leaves
Endogenous ABA and GA were analyzed by gas chromatography–mass spectrometry-selected ion monitoring (GC-MS-SIM). The fresh leaves were lyophilized, weighted and stored at -20°C. The measurement and analyses were performed according to Chen et al. (2010), and each sample was repeated twice.
All data are presented as a mean and standard deviation. Data were subjected to a one way analysis of variance (ANOVA) using SAS v.9.2 (SAS Institute, Cary, NC, USA). P < 0.05 was considered statistically significant.
Andrade-Souza V, Costa MG, Chen CX, Gmitter FG Jr, Costa MA: Physical location of the carotenoid biosynthesis genes Psy and beta-Lcy in Capsicum annuum (Solanaceae) using heterologous probes from Citrus sinensis (Rutaceae). Genet Mol Res 2011, 10(1):404-409. doi:10.4238/vol10-1gmr1025
Arnon DI: Copper enzymes in isolated chloroplasts. Polyphenoloxidase in beta vulgaris. Plant Physiol 1949, 24(1):1-15.
Bramley PM: Regulation of carotenoid formation during tomato fruit ripening and development. J Exp Bot 2002, 53(377):2107-2113.
Brandi F, Bar E, Mourgues F, Horvath G, Turcsi E, Giuliano G, Liverani A, Tartarini S, Lewinsohn E, Rosati C: Study of 'Redhaven' peach and its white-fleshed mutant suggests a key role of CCD4 carotenoid dioxygenase in carotenoid and norisoprenoid volatile metabolism. BMC Plant Biol 2011, 11: 24. doi:10.1186/1471-2229-11-24
Cheminant S, Wild M, Bouvier F, Pelletier S, Renou JP, Erhardt M, Hayes S, Terry MJ, Genschik P, Achard P: DELLAs regulate chlorophyll and carotenoid biosynthesis to prevent photooxidative damage during seedling deetiolation in Arabidopsis . Plant Cell 2011, 23(5):1849-1860. doi:10.1105/tpc.111.085233
Chen SY, Chien CT, Baskin JM, Baskin CC: Storage behavior and changes in concentrations of abscisic acid and gibberellins during dormancy break and germination in seeds of Phellodendron amurense var. wilsonii (Rutaceae). Tree Physiol 2010, 30(2):275-284. doi:10.1093/treephys/tpp111
Chiou CY, Pan HA, Chuang YN, Yeh KW: Differential expression of carotenoid-related genes determines diversified carotenoid coloration in floral tissues of Oncidium cultivars. Planta 2010, 232(4):937-948. doi:10.1007/s00425-010-1222-x
Choudhury NK, Behera RK: Photoinhibition of photosynthesis: role of carotenoids in photoprotection of chloroplast constituents. Photosynthetica 2001, 39(4):481-488. doi:10.1023/A:1015647708360
del Rio LA, Sandalio LM, Corpas FJ, Palma JM, Barroso JB: Reactive oxygen species and reactive nitrogen species in peroxisomes. Production, scavenging, and role in cell signaling. Plant Physiol 2006, 141(2):330-335. doi:10.1104/pp.106.078204
Diretto G, Al-Babili S, Tavazza R, Scossa F, Papacchioli V, Migliore M, Beyer P, Giuliano G: Transcriptional-metabolic networks in beta-carotene-enriched potato tubers: the long and winding road to the Golden phenotype. Plant Physiol 2010, 154(2):899-912. doi:10.1104/pp.110.159368
Fahnenstich H, Scarpeci TE, Valle EM, Flugge UI, Maurino VG: Generation of hydrogen peroxide in chloroplasts of Arabidopsis overexpressing glycolate oxidase as an inducible system to study oxidative stress. Plant Physiol 2008, 148(2):719-729. doi:10.1104/pp.108.126789
Fang J, Chai C, Qian Q, Li C, Tang J, Sun L, Huang Z, Guo X, Sun C, Liu M, Zhang Y, Lu Q, Wang Y, Lu C, Han B, Chen F, Cheng Z, Chu C: Mutations of genes in synthesis of the carotenoid precursors of ABA lead to pre-harvest sprouting and photo-oxidation in rice. Plant J 2008, 54(2):177-189. doi:10.1111/j.1365-313X.2008.03411.x
Fraser PD, Bramley PM: The biosynthesis and nutritional uses of carotenoids. Prog Lipid Res 2004, 43(3):228-265. doi:10.1016/j.plipres.2003.10.002
Fraser PD, Enfissi EM, Halket JM, Truesdale MR, Yu D, Gerrish C, Bramley PM: Manipulation of phytoene levels in tomato fruit: effects on isoprenoids, plastids, and intermediary metabolism. Plant Cell 2007, 19(10):3194-3211. doi:10.1105/tpc.106.049817
Fray RG, Wallace A, Fraser PD, Valero D, Hedden P, Bramley PM, Grierson D: Constitutive expression of a fruit phytoene synthase gene in transgenic tomatoes causes dwarfism by redirecting metabolites from the gibberellin pathway. Plant J 1995, 8(5):693-701. doi:10.1046/j.1365-313X.1995.08050693.x
Genty B, Briantais J-M, Baker NR: The relationship between the quantum yield of photosynthetic electron transport and quenching of chlorophyll fluorescence. Biochim Biophys Acta Gen Subj 1989, 990(1):87-92. doi: -9http://dx.doi.org/10.1016/S0304-4165(89)80016 doi:-9
Havaux M: Carotenoids as membrane stabilizers in chloroplasts. Trends Plant Sci 1998, 3(4):147-151. doi: -Xhttp://dx.doi.org/10.1016/S1360-1385(98)01200 doi:-X
He XY, Zhang YL, He ZH, Wu YP, Xiao YG, Ma CX, Xia XC: Characterization of phytoene synthase 1 gene ( Psy1 ) located on common wheat chromosome 7A and development of a functional marker. Theor Appl Genet 2008, 116(2):213-221. doi:10.1007/s00122-007-0660-8
Hieber AD, Mudalige-Jayawickrama RG, Kuehnle AR: Color genes in the orchid Oncidium Gower Ramsey : identification, expression, and potential genetic instability in an interspecific cross. Planta 2006, 223(3):521-531. doi:10.1007/s00425-005-0113-z
Jana S, Choudhuri MA: Glycolate metabolism of three submersed aquatic angiosperms during ageing. Aquat Bot 1982, 12(0):345-354. doi: -2http://dx.doi.org/10.1016/0304-3770(82)90026 doi:-2
Kato M, Ikoma Y, Matsumoto H, Sugiura M, Hyodo H, Yano M: Accumulation of carotenoids and expression of carotenoid biosynthetic genes during maturation in citrus fruit. Plant Physiol 2004, 134(2):824-837. doi:10.1104/pp.103.031104
Klughammer C, Schreiber U: An improved method, using saturating light pulses, for the determination of photosystem I quantum yield via P700+-absorbance changes at 830 nm. Planta 1994, 192(2):261-268. doi:10.1007/BF01089043
Kornyeyev D, Hendrickson L: Research note: Energy partitioning in photosystem II complexes subjected to photoinhibitory treatment. Funct Plant Biol 2007, 34(3):214-220. doi:http://dx.doi.org/10.1071/FP06327
Kramer DM, Johnson G, Kiirats O, Edwards GE: New fluorescence parameters for the determination of q(a) redox state and excitation energy fluxes. Photosynth Res 2004, 79(2):209-218. doi:10.1023/B:PRES.0000015391.99477.0d
Kusaba M, Ito H, Morita R, Iida S, Sato Y, Fujimoto M, Kawasaki S, Tanaka R, Hirochika H, Nishimura M, Tanaka A: Rice NON-YELLOW COLORING1 is involved in light-harvesting complex II and grana degradation during leaf senescence. Plant Cell 2007, 19(4):1362-1375. doi:10.1105/tpc.106.042911
Li F, Vallabhaneni R, Yu J, Rocheford T, Wurtzel ET: The maize phytoene synthase gene family: overlapping roles for carotenogenesis in endosperm, photomorphogenesis, and thermal stress tolerance. Plant Physiol 2008, 147(3):1334-1346. doi:10.1104/pp.108.122119
Liau CH, You SJ, Prasad V, Hsiao HH, Lu JC, Yang NS, Chan MT: Agrobacterium tumefaciens-mediated transformation of an Oncidium orchid. Plant Cell Rep 2003, 21(10):993-998. doi:10.1007/s00299-003-0614-9
Lindgren LO, Stalberg KG, Hoglund AS: Seed-specific overexpression of an endogenous Arabidopsis phytoene synthase gene results in delayed germination and increased levels of carotenoids, chlorophyll, and abscisic acid. Plant Physiol 2003, 132(2):779-785. doi:10.1104/pp.102.017053
Maass D, Arango J, Wust F, Beyer P, Welsch R: Carotenoid crystal formation in Arabidopsis and carrot roots caused by increased phytoene synthase protein levels. PLoS One 2009, 4(7):e6373. doi:10.1371/journal.pone.0006373
Meier S, Tzfadia O, Vallabhaneni R, Gehring C, Wurtzel ET: A transcriptional analysis of carotenoid, chlorophyll and plastidial isoprenoid biosynthesis genes during development and osmotic stress responses in Arabidopsis thaliana . BMC Syst Biol 2011, 5: 77. doi:10.1186/1752-0509-5-77
Merzlyak MN, Melo TB, Naqvi KR: Effect of anthocyanins, carotenoids, and flavonols on chlorophyll fluorescence excitation spectra in apple fruit: signature analysis, assessment, modelling, and relevance to photoprotection. J Exp Bot 2008, 59(2):349-359. doi:10.1093/jxb/erm316
Moran R, Porath D: Chlorophyll determination in intact tissues using N, N-dimethylformamide. Plant Physiol 1980, 65(3):478-479.
Moreno JC, Pizarro L, Fuentes P, Handford M, Cifuentes V, Stange C: Levels of lycopene β-cyclase 1 modulate carotenoid gene expression and accumulation in Daucus carota . PLoS One 2013, 8(3):e58144. doi:10.1371/journal.pone.0058144
Navrot N, Rouhier N, Gelhaye E, Jacquot J-P: Reactive oxygen species generation and antioxidant systems in plant mitochondria. Physiol Plant 2007, 129(1):185-195. doi:10.1111/j.1399-3054.2006.00777.x
Paine JA, Shipton CA, Chaggar S, Howells RM, Kennedy MJ, Vernon G, Wright SY, Hinchliffe E, Adams JL, Silverstone AL, Drake R: Improving the nutritional value of Golden Rice through increased pro-vitamin A content. Nat Biotechnol 2005, 23(4):482-487. doi:10.1038/nbt1082
Pilkington SM, Montefiori M, Jameson PE, Allan AC: The control of chlorophyll levels in maturing kiwifruit. Planta 2012, 236(5):1615-1628. doi:10.1007/s00425-012-1723-x
Qin G, Gu H, Ma L, Peng Y, Deng XW, Chen Z, Qu LJ: Disruption of phytoene desaturase gene results in albino and dwarf phenotypes in Arabidopsis by impairing chlorophyll, carotenoid, and gibberellin biosynthesis. Cell Res 2007, 17(5):471-482. doi:10.1038/cr.2007.40
Rodrigo M-J, Marcos JF, Zacarías L: Biochemical and Molecular Analysis of Carotenoid Biosynthesis in Flavedo of Orange ( Citrus sinensis L.) during Fruit Development and Maturation. J Agric Food Chem 2004, 52(22):6724-6731. doi:10.1021/jf049607f
Römer S, Fraser PD: Recent advances in carotenoid biosynthesis, regulation and manipulation. Planta 2005, 221(3):305-308. doi:10.1007/s00425-005-1533-5
Ruiz-Sola MA, Rodríguez-Concepción M: Carotenoid biosynthesis in Arabidopsis: a colorful pathway. Arabidopsis Book/Am Soc Plant Biologists 2012, 10: e0158. doi:10.1199/tab.0158
Sagar AD, Briggs WR: Effects of High Light Stress on Carotenoid-Deficient Chloroplasts in Pisum sativum . Plant Physiol 1990, 94(4):1663-1670.
Salvini M, Bernini A, Fambrini M, Pugliesi C: cDNA cloning and expression of the phytoene synthase gene in sunflower. J Plant Physiol 2005, 162(4):479-484. doi:10.1016/j.jplph.2004.04.011
Schubert N, García-Mendoza E, Pacheco-Ruiz I: Carotenoid composition of marine red algae. J Phycol 2006, 42(6):1208-1216. doi:10.1111/j.1529-8817.2006.00274.x
Shigeoka S, Ishikawa T, Tamoi M, Miyagawa Y, Takeda T, Yabuta Y, Yoshimura K: Regulation and function of ascorbate peroxidase isoenzymes. J Exp Bot 2002, 53(372):1305-1319.
Tanaka Y, Sasaki N, Ohmiya A: Biosynthesis of plant pigments: anthocyanins, betalains and carotenoids. Plant J 2008, 54(4):733-749. doi:10.1111/j.1365-313X.2008.03447.x
Tao N, Hu Z, Liu Q, Xu J, Cheng Y, Guo L, Guo W, Deng X: Expression of phytoene synthase gene ( Psy ) is enhanced during fruit ripening of Cara Cara navel orange ( Citrus sinensis Osbeck). Plant Cell Rep 2007, 26(6):837-843. doi:10.1007/s00299-006-0289-0
Taylor WC: Regulatory interactions between nuclear and plastid genomes. Annu Rev Plant Physiol Plant Mol Biol 1989, 40(1):211-233. doi:10.1146/annurev.pp.40.060189.001235
Telfer A, Pascal A, Gall A: Carotenoids in Photosynthesis. In Carotenoids, Volume 4. Edited by: Britton G, Liaaen-Jensen S, Pfander H. Carotenoids. Birkhäuser Basel; 2008:265-308. doi:10.1007/978-3-7643-7499-0_14
Wong JC, Lambert RJ, Wurtzel ET, Rocheford TR: QTL and candidate genes phytoene synthase and zeta-carotene desaturase associated with the accumulation of carotenoids in maize. Theor Appl Genet 2004, 108(2):349-359. doi:10.1007/s00122-003-1436-4
We thank the excellent technical assistance of Technology Commons, College of Life Science, NTU (Taiwan) with LC-ESI-MS analysis. This work was supported by the National Science Council, Taiwan, to Dr Kai-Wun Yeh under the project NSC-101-2324-B-002-023-CC2 and NSC-102-3011-P-002-008.
The authors declare that they have no competing interests.
JXL and CHS carried out molecular analysis of transgenic lines and gene expression. CYC and PJC constructed vector and generated transgenic lines. YCL and CDJ assisted in analysis of endogenous hormones. All biochemical analysis was performed by XLS. Statistical analysis was performed by FQS. JXL, CHS helped to draft the manuscript. KWY conceived, participated in designing the experiment and organized the final draft of the manuscript. All authors read and approved the final draft of the manuscript.
