A C-band broadband ortho-mode transducer for radioastronomy polarimetry

SpringerPlus20165:2069

https://doi.org/10.1186/s40064-016-3761-5

Received: 11 November 2015

Accepted: 29 November 2016

Published: 2 December 2016

Abstract

Background

We describe the design, the construction and performance of a narrow band ortho-mode transducer, currently used in the 5 GHz polarimetric receiver of the Galactic Emission Mapping project.

Results

The ortho-mode transducer was designed to achieve a high degree of transmission within the 400 MHz of the GEM band around the 5 GHz (4.8–5.2 GHz). It is composed of a circular-to-square waveguide transition, a septum polarizer, a thin waveguide coupler and a smooth square-to-rectangular waveguide transition with custom waveguide bends to the output ports.

Conclusion

Our simulations and measurements show a very low level of cross-polarization of about −60 dB and a good impedance match for all three ports (S11; S22; S33 < −30 dB) with only 0:25 dB of insertion loss offset across the 400 MHz (4.8–5.2 GHz) of the reception bandwidth.

Keywords

Radioastronomy Polarimeters Ortho-mode transducers

Background

The key component of most polarimeters is the ortho-mode transducer (OMT), which splits the orthogonal polarization modes of the incoming sky radiation into two or more balanced RF chains. There are many ways to build an OMT [see Bøifot (1991) for a review], but all of them require a careful analysis of the symmetries of the propagation modes inside the square, rectangular and circular waveguide sections of any particular type of OMT design. The main requirement for an OMT used in radioastronomy experiment dedicated to reveal polarized patterns of the Galactic radio continuum, like the Galactic Emission Mapping (GEM) project (Torres et al. 1996), is a high isolation between the output ports across the intended bandwidth. A cross-talk between the output ports of the OMT can generate several undesired features in the radio sky map, invalidating the survey. Other properties of the OMT, like return loss and insertion loss offsets, will also affect the sky map, in particular by reducing its pixel sensitivity.

The main goal of the GEM project is to characterize the Galactic emission in total intensity and polarization between 408 MHz and 10 GHz, by producing astrophysical foreground templates to decontaminate Cosmic Microwave Background Radiation maps (see Tello et al. (2013) for recent results at 2300 MHz). Galactic emission in the GEM frequency bands at 5 and 10 GHz is dominated by synchrotron radiation. In these bands, the radio emission has a high degree of linear polarization and interstellar Faraday effects are still negligible. Thus, these characteristics make those bands a choice of prime importance to improve the foregrounds impact on surveys of cosmological significance like those produced by Planck satellite mission (Bouchet and Gispert 1999; Ade et al. 2014; Adam et al. 2016) and those planned for the next generation CMB space missions like the ESA CoRE proposal (de Zotti et al. 2016). The GEM data at 5 and 10 GHz can also provide useful constraints together with the absolutely calibrated Galactic data from the ARCADE balloon experiment (Fixsen et al. 2011). In this article we describe an OMT that can be classified as Septum-Branching OMT class 1, following the classification presented in (Bøifot 1991; Uher et al. 1993). It was developed for a pseudo-correlation polarimeter, suitable for a bandwidth of 400 MHz centered at 5 GHz and having a measured sensitivity of about 1:6 mk/√s (Bergano et al. 2007).

The OMT should have its best performance in the GEM band (4.8–5.2 GHz). It is coupled to a corrugated feed horn. This system has been used in the focal plane of a Cassegrain 5.5 m dish antenna, which continuously rotate to map the polarized Southern sky from an observational site in Brazil. The observations started in 2006. GEM is followed by a sister counterpart (GEM-P) aiming the coverage of the Northern sky (Barbosa et al. 2006; Tello et al. 2013). Other important surveys include the C-Band All Sky Survey (CBASS) (Irfan et al. 2015; King et al. 2010) that is currently acquiring data, having achieved a first Northern Sky intensity survey at 5 GHz (Irfan et al. 2015). The OMT for the CBASS instrument is described in Grimes et al. (2007) and achieves a performance similar to the GEM’s OMT described here.

Design and methods

Initially, a classical RF design approach, developed at UC Berkely and similar to CBASS (Grimes et al. 2007) was followed. However, due to its poor polarization purity performance, most likely due to a manufacturing problem, and the lack of space in the 5-m antenna hub (already filled with ancillary systems of the receiver) it was necessary to design a new OMT, more compact and easier to mount between the horn and the receiver. This in turn required additional performance fine tuning and several finite-element simulations (see Fig. 1).
Fig. 1

Example of Finite-element simulations of mode propagation for two polarizations

Hence, a new design consisting of four sections was considered: a circular to-square waveguide transition; an aperture coupler with a septum; a smooth transition between square and rectangular waveguides; and a series of waveguide bends in both ports. The complete OMT assembly is shown in the wire frame model of the waveguide structure in Fig. 2, where the number labels indicate the components of each section.
Fig. 2

The 5 GHz GEM OMT: 1 the Multiple Injector Noise Source Assembly (MINSA) with circular WG13 waveguide; 2 three-step circular-to square transition; 3 flange between square waveguides; 4 square waveguide with aperture directional coupler; 5 septum support pins; 6 smooth square to-rectangular transition; 7 first 180 ± H-plane bend; 8 90 ± E-plane bend; 9 second 180 ± H-plane bend; 10 waveguide-to-coax adapter flanges; 11 parallel coupled port; 12 tuning back-short and 13 45 ± E-plane bend

Each of the four sections is described below: the transition between the circular and the square waveguides was made using three λg = 4 steps (where λg stands for the guided wavelength), whose actual length was optimized using numerical simulations based on finite-element analysis (CST Microwave Studio—Computer Simulation Technology GmbH). The same code, henceforth the CST code, was used in the optimization of all parts of the OMT. Figure 1 shows two of the finite-element propagation simulations to check polarization mode propagation and isolation.

The polarization splitter, the main component of the OMT, is shown in Fig. 3. It achieves its basic functionality via a directional coupler and a septum. The directional coupler is shaped into a finite length coupling slot. A similar device, also called a T-Junction, is typically used to couple waveguides of similar cross-sections (Ludovico 1999), whereas in our OMT we couple a square waveguide from one side to a rectangular WR187 waveguide on the other side. The CST code was used to find the optimal length, width and height of the slot. In fact, the optimal choice for the geometry of this slot was ideal to make a groove in the inside wall of the square waveguide (effectively reduced its thickness to 0.5 mm), where a rectangular aperture (90.0 mm × 5.68 mm) was cleared. As shown in the literature (Uher et al. 1993), the phase difference introduced by this kind of coupling is 90°.

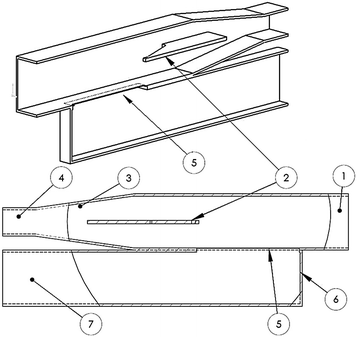

Fig. 3

A cut-section view of the main part of the OMT body. Showing: 1 the square waveguide; 2 the septum; 3 smooth square-to-rectangular transition; 4 rectangular waveguide; 5 the aperture directional coupler and 6 tuning back-short

A sliding back-short closes the WR187 waveguide to enable the transmission tuning of the OMT during bench tests. The septum has its length proportional to the desired rejection level of higher order modes (Uher et al. 1993), but it is limited by the maximum allowed physical size of the OMT inside the dish hub. The small available space of the dish hub, in the back of the antenna was a strong limiting factor, conditioning the adoption of design options similar to the CBASS’ OMT shape (long, cylinder like).

On the other hand, the septum width should be as small as possible to minimize the return loss of the mode that will propagate through it. Similarly, the shape of the septum was carefully chosen, starting with a rectangular septum, passing through a rift wedge-like design, and arriving finally at the arrow-like shape, shown in Fig. 3, to achieve the minimum return loss. In addition to the shape and dimensions of the septum, computer simulations were needed to determine the position of the septum with respect to the slot.

Our optimal solution was that the tip of the septum had to be coincident with the end of the slot. The final width of the septum was 3 mm, and its length was 102.5 mm. After the septum, there is a smooth transition to transform the square waveguide into a rectangular WR187 waveguide. The length of this transition had to be small enough not to exceed the physical size of the OMT, but large enough to reach a maximum acceptable return loss of −40 dB. We achieved this condition by optimizing its length at 86 mm with the septum halfway through into the transition. Due to the physical space where the OMT was installed and the necessity to avoid higher modes of propagation and cross-talk between the ports, we had to extend the WR187 waveguides along several bends. For the waveguide of the coupled parallel port (number 11 in Fig. 2), we introduced a 45° E-plane bend; while for the waveguide extending from the smooth square-to-rectangular transition (number 6 in Fig. 2), we introduced two 180° H-plane bends at both ends of a 90° E-plane bend. All these bends were designed with the aid of the CST code subject to a maximum tolerable return loss of −40 dB. The inner radius of the typical bend was found to be 23.15 mm for an E-plane bend and 18 mm for an H-plane bend. All sections of the OMT were machined from 6061 aluminium alloy; Fig. 4 shows its final construction.
Fig. 4

The newly manufactured GEM 5 GHz OMT. A coin is shown for reference

The installation of the GEM polarimeter requires the OMT to match the throat section of a corrugated feed horn, which is supported at the vertex of the primary reflector by a latching mechanism. During routine observations, the OMT operates at room temperatures (~300 K), while feeding the cryogenic frontend of the polarimeter housed inside the antenna hub. Finally, Fig. 5 summarizes the results of the computational analysis of the OMT in terms of the S-parameters (S11, S22, S33) along with some experimental points, obtained during bench tests, which we will describe in the following section. Figure 6 depicts the workbench experimental measurement setup.
Fig. 5

Results for S-parameters from numerical simulations, for both polarization modes (shown as S11 and S22), and from bench measurements (shown as Exp), using in both cases the square waveguide as input port

Fig. 6

The measurement setup at the laboratory, showing the network analyzer and the port microwave absorbers

Results

The bench tests were conducted at the INPEs’ Aerospace Engineering Division (DEA) laboratory with an Agilent E8362B network analyzer, adjusted with a calibration offset to remove the effect of the cables and their connectors. The measurements of S parameters (basically insertion loss and return loss of the ports) were conducted in two steps. First, we measured the impedance match of the 3-step circular-to-square waveguide transition using a circular waveguide-to coax adapter with a SMA probe in the place of the Multiple Injector Noise Source Assembly (MINSA) assembly shown in Fig. 2. A return loss of about −40 dB was found within 200 MHz of the proposed center frequency of 5 GHz. This return loss was accounted for as an additional calibration offset during the measurement of the overall return loss of the OMT. Second, using the above measurement as a calibration offset, we obtained a return loss below −30 dB for the entire OMT. The measurements for port 1 at 4.9, 5.0, and 5.1 GHz are plotted in Fig. 5 together with simulated profiles for the two possible polarization modes (labelled as S11 and S22). Similar return losses were obtained at the SMA probes of the rectangular waveguide-to-coax adapters labelled 10 in Fig. 2. During the tests, all open ports were filled with microwave absorbers. The experimental points became indistinguishable from the simulation curves for these two polarization modes once the tuning back-short was properly adjusted through several iterative steps.

In order to estimate the cross-talk between the outputs of the OMT, we coupled the network analyzer to the SMA probes of the waveguide-to-coax adapters at the output ports of the rectangular waveguides (10 in Fig. 2). The tests showed the level of cross-talk to be below −60 dB. The same upper limit to the level of cross-polarization is reached if the polarized signal is transmitted from port 1 to the output port. The measurements also infer a total phase difference of 120° and an insertion loss offset in 0.25 dB between the output ports. These numbers reflect the use of long and curved rectangular waveguides in order to adjust the dimensions of the OMT to those of the receiver in the enclosing hub. In Fig. 6, we can check the measurement setup and Fig. 7 we can compare the measurements points against the simulated curves, after the iterative adjustments of the tuning back short.
Fig. 7

Measurements and simulated curves after the iterative adjustments of the tuning back short

Conclusion

A high isolation 5 GHz OMT was presented. Its design was the result of a process of optimization that involved no less than 96 different CAD models. The measured insertion loss offset for this OMT was about 0.25 dB between 4.8 and 5.2 GHz, with a cross-polarization level of about −60 dB. There is a total phase difference of 120° between the output signals, to be accounted for by phase shifters included in the RF chain of the polarimeter. These numbers, together with a return loss of −30 dB for all ports, satisfy all the requirements for polarization measurements with the GEM experiment, as well as for other experiments dedicated to survey the microwave polarized sky in the C-band.

Abbreviations

OMT:

orthomode transducer

GEM:

Galactic Emission Mapping

MINSA:

Multiple Injector Noise Source Assembly

Declarations

Authors’ contributions

Study design: ISF, CT, TV, MB and DB; Acquisition of data: ISF, CT, MB; Analysis: ISF, CT, TV, MB, GS; Manuscript drafting: ISF, CT, TV, MB, DB; All authors read and approved the final manuscript.

Authors’ information

IF BSc. in Physics from the University of Brasilia (2001), Master in Physics of Plasma and Fluids from the same institution (2003) and Ph.D. in Astrophysics at National Institute for Space Research (2008). Is associate professor at the Institute of Physics of the University of Brasilia, where he works with: plasma from the interstellar medium; astrophysicists contaminants background of Cosmic Microwave (CMB); statistical analysis of the CMB and other cosmological observables; transient events at high energies (GRBs and TGFs); and plasma technologies for space applications. Currently, he is a visitor at the Laboratoire AstroParticule et Cosmologie (APC), Université Paris VII – Diderot. CT obtained a B.Sc. degree in Astronomy from the Federal University of Rio de Janeiro (1988), a Masters in Astrophysics at the National Institute of Space Research (1992) in Brazil and a PhD in Astrophysics from the same institute (1997). He participated in all major phases of the development of the GEM project, including instrumentation, observations, analysis and survey preparations, at Lawrence Berkeley National Laboratory (1993-1995; 2001-2004) and at the National Institute for Space Research in Brazil (1998-2000; 2004-2005; 2009) where he held a research assistant position until 2009. In addition to his main interest in studying the constitution and spatial distribution of Galactic Emission, he is currently an RF consultant for cellular networks in Berkeley. MB is an electronic engineer from University of Aveiro, Portugal and got his MSc. from University of Aveiro. His interests cover Microwave and Radio Astronomy instrumentation. He was collaborator to several projects like PANORAMA (QREN funded), GEM (FCT) and ENGAGE SKA. He has developed high performance devices and instruments for microwave receivers. Currently he is a Ph.D. Student Researcher at the University of Aveiro, associated to the Radio Astronomy Group (http://grit.av.it.pt/ – GRIT) in the Telecommunications Institute at Aveiro, where he currently co-supervises cryogenic low noise amplification research activities at the group, proposing, elaborating and participating in different scientific research projects. DB received a degree in Physics and Applied Mathematics by the University of Porto and a PhD in Astrophysics and Space Techniques by the University of Paris VII in 1997. Currently, he leads the GRIT: Grupo de Rádio-Astronomia do IT (Instituto de Telecomunicações) Aveiro – Portugal in the Telecommunications Institute of Aveiro, Portugal, and coordinates the national infrastructure proposal ENGAGE SKA, promoting academia and industry participation in the Square Kilometer Array project. He was Marie Curie Fellow at the Department of Physics of Imperial College and a Research Visitor at the Astrophysics Group at the Lawrence Berkeley National Laboratory. His research interests include studies on the cosmic microwave Background, galactic radio foregrounds, radio and millimeter waves instrumentation and Green ICT solutions for radio interferometers. TV is Senior Researcher at the Division of Astrophysics of the National Institute for Space Research (INPE), Brazil. He holds a Doctor of Sciences (1987) and a Master in Astronomy (1982) degrees from University of São Paulo, and a B.Sc. in Physics from the University of Brasilia. He was a visiting scholar at the University of California, Berkeley (1983–1986), where he worked at the Space Sciences Laboratory and Lawrence Berkeley National Laboratory. He was President of the Brazilian Astronomical Society (2000–2002) and Director for Satellite Applications and Development (2008–2012) of the Brazilian Space Agency. His main interests are in the field of astrophysics (cosmic microwave background radiation, cosmology, extragalactic astrophysics, radioastronomy) and scientific instrumentation (mainly microwave and radio techniques). He has developed experiments to operate telescopes on the ground and on board of satellite and stratospheric balloons. GS is a Physics Nobel laureate (2006) for his discoveries with COBE satellite. He received a Ph.D. in Physics by MIT. He is a Professor of Physics at the University of California, Berkeley, Senior Scientist at the Lawrence Berkeley National Laboratory, and since 2010, a Professor of Physics at the Paris Diderot University, France. He is also Director of the Institute for The Early Universe at Ewha Womans University of Korea under the Korean Ministry of Education, Science and Technology. Among the many honors, he was awarded the Einstein Medal in 2003, the Oersted Medal in 2009 and the Physics Nobel prize in 2006. His prime interests are Experiments on cosmology and particle physics utilizing the cosmic background radiation as a probe of the early universe. These include work on COBE satellite, and several airborne and ground-based experiments. For his achievements, he got NASA Medal for Exceptional Scientific Achievement, the Kilby Award and the Productivity Group Award, Goddard Space Flight Center, NASA.

Acknowledgements

We are grateful to Philip Lubin for many useful discussions. We are in debt to the engineering staff at INPE, in particular, L. A. Reitano, M. C. Almeida, I. Geier and M. Desidera. I.S.F. thanks a CAPES and a CNPq Fellowship. T.V. acknowledges CNPq Grants 305219/2004-9, 303637/2007-2, 484378/2007-4, 308113/2010-1, 506269/2010-8, 502831/2008-1, 559197/2008-0 and 308876/2014-8, and FAPESP Grant 00/06770-2. The corresponding author and DB acknowledge support from the Fundação para a Ciência e a Tecnologia (FCT) the Portuguese national funding agency (SFRH/BD/76615/2011) and by FCT/MEC through national funds and when applicable co-funded by FEDER – PT2020 partnership agreement under the Project UID/EEA/50008/2013. DB acknowledges support from the ENGAGE SKA national Research Infrastructure.

Funding

I.S.F. thanks a CAPES and a CNPq Fellowship. T.V. acknowledges CNPq Grants 305219/2004-9, 303637/2007-2, 484378/2007-4, 308113/2010-1, 506269/2010-8, 502831/2008-1, 559197/2008-0 and 308876/2014-8, and FAPESP Grant 00/06770-2. The corresponding author and DB acknowledge support from the Fundação para a Ciência e a Tecnologia (FCT) the Portuguese National Funding Agency (SFRH/BD/76615/2011) and by FCT/MEC through national funds and when applicable co-funded by FEDER – PT2020 partnership agreement under the Project UID/EEA/50008/2013. DB acknowledges support from the ENGAGE SKA national Research Infrastructure.

Competing interests

The authors declare that they have no competing interests.
