‘Jones hybrid’ hickory: a case study in Carya curation
SpringerPlus volume 5, Article number: 1860 (2016)
‘Jones Hybrid’ hickory is an accession in the National Collection of Genetic Resources for Pecans and Hickories for which information about origin, identity and characteristics is very incomplete. Phenotypic and genetic profiles, when examined in the context of historic literature, provide evidence that the accession in question is ‘Siers’ a cultivar of Carya × laneyi (an interspecific hybrid between C. ovata and C. cordiformis). The accession has traits that make it interesting in the pecan breeding program, with potential for both rootstock and scion development. The tall, slender tree form of ‘Jones Hybrid’ is a trait that could be valuable in commercial pecan cultivars, allowing increased tree densities and reducing the need for expensive hedging operations. Tree size reduction is a goal to be pursued in scion selection and rootstock development, with each goal requiring assessment of reproductive potential of the accession.
The National Collection of Genetic Resources for Pecans and Hickories (NCGR Carya) is the name given to what was formerly the National Clonal Germplasm Repository for Pecans and Hickories, designated as part of the National Plant Germplasm System in 1984 (Postman et al. 2006). The foundation of the NCGR Carya was grafted trees of pecan [Carya illinoinensis (Wangenh.) K. Koch] amassed from 1933 until his retirement in 1968 by Louis D Romberg, the first pecan breeder in the United States Department of Agriculture, for use in breeding pecans. Other staff members at what was then the USDA Pecan Field Station in Brownwood, Texas, added to the collection by grafting pecans and other hickories. The name change from “Clonal Germplasm Repository” to “Collection of Genetic Resources” more accurately reflects the strategy adopted by the Carya Crop Germplasm Committee at their first meeting in 1984: to represent not only grafted accessions representing the pecan industry and named cultivars of hickory, but to represent native populations of all Carya species by growing seedlings on their own roots, grown from seed collected from broadly distributed indigenous populations. As a result, the current collection includes an ex situ assemblage of cultivars and wild relatives that represent this important native North American nut crop.
Information related to a living accession in a germplasm collection falls into several interconnected categories: passport descriptors; management descriptors; environment and site descriptors; characterization descriptors; and evaluation descriptors (Alercia et al. 2012; Thormann et al. 2013). The database of the US National Plant Germplasm System, known as the Germplasm Resources Information Network (GRIN-Global), organizes data as recommended by FAO/Biodiversity Multi-Crop Passport Descriptors (MCPD V.2) (Alercia et al. 2012). Whether the accession originated by collection from the wild, or was obtained from another source, critical information is necessary to associate an accession with its history.
Historical records of the Brownwood orchards dating from the early 1930s are maintained as paper files and are consulted for questions of identity or origin. Trees are maintained even when little information is available concerning them. When necessary, accessions have been transferred by grafting to new inventories when original trees are damaged or removed. By associating records of graftwood origin with previous inventories, the line of descent can be traced from the present collection, through the valid evaluation records obtained from previous inventories, back to the ortet, or founding source of the cultivar. By knowing where that original tree grew, the ex situ collection is connected back to the forest, and to a long history of climatic and edaphic adaptation.
Some of the accessions in the initial collections of the NCGR Carya had no information other than the name. The purpose of this paper is to describe such an accession phenotypically and genetically, to associate it with the historic cultivar name it is believed to represent, and to describe preliminary efforts to utilize this cultivar in crosses with pecan to produce segregating progeny of utility in the USDA ARS Pecan Breeding Program.
The USDA ARS Pecan Breeding and Genetics program maintains two locations where collections of the NCGR Carya are held: the original home of the Pecan Breeding Program in Brownwood, Texas; and land in Burleson County, Texas made available through cooperation with Texas A&M University in College Station, Texas.
Molecular profiles have been developed for many accessions in the collection using 14 nuclear microsatellite markers and 3 plastid markers (Grauke et al. 2003, 2010, 2015). Immature leaflets are harvested from specific inventories and frozen at −80 °C until DNA extraction. Molecular profiles were also obtained from samples taken from in situ populations, but not maintained in ex situ collections. Particularly valuable samples were provided by Dr. Donald Stone, Duke University, from collections he made in Mexico in 2001. Those samples were stored at room temperature in silica gel desiccant and sample numbers correspond to the voucher specimens maintained at Duke Herbarium.
Total genomic DNA was extracted as reported in Grauke et al. (2010). Frozen tissue was ground in extraction buffer [0.35 M glucose, 0.1 M Tris–HCl pH = 8, 0.005 M Na2EDTA pH = 8, 2% (w/v) polyvinylpyrolidone (PVP-40)] at pH = 7.5 and a lysis buffer [0.1 M Tris–HCl pH = 8, 1.4 M NaCl, 0.02 M Na2EDTA pH = 8, 2% (w/v) CTAB, and 2% PVP-40]. During DNA extraction, 1% (w/v) of ascorbic acid and 0.2% (v/v) of β-mercaptoethanol was added to both buffers. DNA was cleaned with chloroform:isoamyl alcohol (24:1) and precipitated with salt and isopropanol or ethanol. PCR reactions were performed as reported in Grauke et al. (2015). PCR fragments were labeled with a fluorescent forward primer at the 5′-end using either 6-FAM (blue color) or HEX (green color). To load the samples on the ABI Prism Genetic Analyzer 3130 (Applied Biosystems, Foster City, Calif. USA), 0.5 μl of the PCR was mixed with 5 μl of 400-ROX internal size standard in deionized formamide at 2.5%. The relative size of the allele was determined using GeneScan and Genotyper software v 3.7 (Applied Biosystems). Alleles were called as a whole number in bp after a binning process with the FlexibinV2 software (Amos et al. 2007). Interpretation of molecular profiles is by visual analysis of allelic patterns within species and hybrids, by geographic regions.
Pollen of ‘Jones Hybrid’ BRW 9-7 was collected on 15, 16 April 2015 for use in making controlled crosses using standard procedures of the breeding program (Grauke and Thompson 1996). Pollen was applied to 80 bagged clusters of 88-FLA-FL-1.1 (Carya floridana) on 21 April 2015, and to 170 bagged clusters of ‘Mandan’ pecan on 23 April, 2015. Pollen was stained with 1.5% acetocarmine and photographed under 10X magnification on 28 April 2015.
Pistillate flowers on both Brownwood inventories of ‘Jones Hybrid’ were bagged on 16 April 2015 and pollen of ‘Mandan’ pecan was applied on 23 April 2015. Number of nuts set on all controlled crosses was monitored through the season, and nuts that were set were harvested on 17 September 2015.
Results and discussion
Historical records include individual tree cards showing the date a seedling was planted, and providing information concerning seedling source, grafting dates, scion identities and sources. Information concerning origin of the scion was not provided for ‘Jones Hybrid’ and no other reference has been found to a hickory tree of this name. The tree labeled as ‘Jones Hybrid’ was established in USDA ARS collections by grafting in 1975. The scion was grafted onto an interstock of B53-16-15 (a ‘McCallister’ seedling) which had been grafted in 1966 onto a pecan seedling rootstock growing in the USDA Brownwood Orchard (BRW) at Row 148, tree 17. ‘McCallister’ is an interspecific hybrid between Carya laciniosa and pecan, a hybrid family known as Carya × nussbaumeri. Records do not indicate a specific cultivar source of pollen for the B53-16 cross series. Open pollinated seedlings would most likely be back-crosses to pecan. The seedling rootstock onto which B53-16-15 was grafted was a controlled cross seedling of the 56-23 series (the 23rd combination of selected pecan parents made in 1956), which had been planted at that location in 1960. The progeny 56-23 was made using pollen of ‘Cherokee’ (‘Schley’ × ‘Evers’) to pollinate flowers of 1944-15-0030 (‘Odom’ × ‘Evers’). The compound tree at BRW 148-17 was removed in 1991, and graftwood of ‘Jones Hybrid’ was collected and grafted to open-pollinated ‘Apache’ seedling rootstocks growing in the newly established Brownwood Variety Orchard (BWV) 5-31 and BWV 9-7. Scions of BWV 5-31 were used to establish a tree at the College Station site, with grafts made to an ‘Apache’ seedling rootstock at CSV 15-20 in 2006.
Trees of ‘Jones Hybrid’ are noteworthy for their columnar growth habit (Fig. 1a). Dormant winter buds are plump, with imbricate scales (Fig. 1b). Outer bud scales shed in a pattern similar to C. tomentosa, but terminal buds are smaller, to 1 cm only. Bark is tight and gray, as is typical of both C. cordiformis and C. tomentosa and young trees of C. ovata prior to bark exfoliation (Grauke 2003).
First fruit was obtained from BWV 9-7 in 2001, the eleventh leaf after grafting, and from BWV 5-31 in 2008 (18th leaf). The involucre or ‘shuck’ of the fruit separates at sutures, or ‘splits’, in late October or early November. Nut samples have been collected, measured and photographed over many seasons (Table 1; Figs. 1c, 2). Nuts are orbicular with a length to height ratio of 1.1; have a prominent apical stipe, and are laterally compressed with a height to width ratio of 1.4 (Grauke and Thompson 2001a, b). Kernels are ruminated with a prominent basal cleft formed by the high secondary septum of the nut, similar to nuts of C. cordiformis (Fig. 2). Nuts are borne in shucks with wings on the sutures from the apex to the middle of the nut, typical of C. cordiformis (Fig. 3). Leaves are dark green and leathery, with 5-7 oblanceolate leaflets like those of C. ovata, but lacking the tufted hairs at the tips of leaf serrations typical of that species. Leaflets are densely pubescent on the lower surface with simple hairs. This trait might suggest a relationship with C. tomentosa, although the hairs are mostly single and not the tufted hairs more typical of that species. Leaves are also characterized by short petioles (Fig. 3).
Molecular profiles from the CSV 15-20 inventory of ‘Jones Hybrid’ are shown (Table 2) with those of representatives of other species. The profile of ‘Jones Hybrid’ is typical of those from diploid species: diploid species of Carya typically have only two alleles at each nuclear locus, while tetraploids often have as many as four. All profiles observed for the tetraploid species C. tomentosa, C. texana, C. floridana and C. glabra have multiple loci with greater than two alleles (all data not shown, but see Table 2, profiles of Scarit C. tomentosa and Scarit C. texana). The type specimen of C. × collina (Laughlin 1968)(an interspecific hybrid of those two tetraploid species collected from the Scarit Point, MO population and obtained from Don Stone) has only two alleles at each locus, showing no evidence of polyploidy. Some accessions of C. ovata (e.g. ‘Grainger’ and Stone 4160) have more than two alleles at locus cin4.
All accessions of C. cordiformis examined have the 117 bp allele at the cin22 locus and the 141 bp allele at the cin20 locus, while previously examined interspecific hybrids have those two alleles plus a second allele from the other parent (Table 2). Note that the profile from the type tree of C. × laneyi (C. cordiformis × C. ovata)(LJ06-180) from Riverside Cemetery in Rochester NY has the 117 bp allele from C. cordiformis (Table 2). None of the typical C. cordiformis alleles are found in ‘Jones Hybrid’. However, there is clear morphological evidence of hybridity with C. cordiformis in the nut, kernel and shuck characteristics. The 108 bp allele of cin22 has been found in all C. ovata examined and is present in ‘Jones Hybrid’, which is consistent with parentage by that species. However, that allele is also found commonly in the tetraploids C. texana and C. floridana and in some accessions of C. tomentosa (Table 2).
Chloroplasts are maternally inherited, and allele sizes at ccmp2, ntcp40 and ntcp9 are presented in Grauke et al. (2010). ‘Jones Hybrid’ has alleles sizes 209, 196 and 351 bp at these three loci, which is a haplotype that has not been observed in C. cordiformis. That pattern is among the most common plastid haplotypes found in Carya, and has been observed in C. aquatica, C. illinoinensis, C. palmeri, C. glabra, C. myristiciformis, C. laciniosa, C. ovata, C. texana, and C. tomentosa (Grauke et al. 2010). That haplotype has not been observed in C. cordiformis. If ‘Jones Hybrid’ is an interspecific hybrid between C. ovata and C. cordiformis, this suggests that the maternal parent was C. ovata. By contrast, the plastid haplotype of the C. × laneyi type tree (LJ06-180) in Rochester (208/197/350 bp) is shared by a local C. cordiformis (06-COR-NY-1, Sample LJ06-181) (data not shown).
‘Jones Hybrid’ pollen dehisced prior to pistillate receptivity, inferring that the accession is protandrous. No nuts were set on trees of ‘Jones Hybrid’ pollinated using ‘Mandan’ pollen. No nuts were set on the tetraploid Carya floridana tree pollinated using ‘Jones Hybrid’ pollen. Of 33 nuts initially set on ‘Mandan’ trees pollinated using ‘Jones Hybrid’ pollen, only three remained at harvest.
Pollen grains from ‘Jones Hybrid’ BWV 9-7 were variable in stain absorption and size (Fig. 4). Grains lacking stain are inferably non-viable and nonfunctional, whereas stainable ones would potentially be viable and functional. Strong variation in size suggests variation or inconsistency in numerical patterns of meiotic chromosome disjunction. Presence of “micro” pollen suggests formation of meiotic products with just one or a few chromosomes, also an indication of perturbed meiosis. Among stained grains, the range in diameters was wide enough (ca. 1.29-fold) to possibly indicate presence of haploid (n), diploid (2n) pollen and/or related aneuploid grains, where 2n grains would be unreduced (diploid) and potentially fertile, along with haploid grains (Fig. 4).

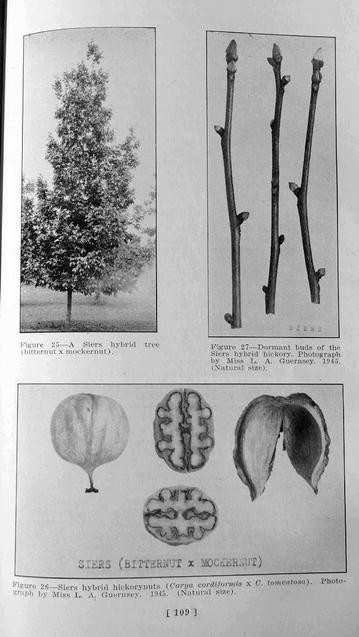

The association of morphological traits linking C. cordiformis, C. tomentosa and C. ovata suggested comparison of the ‘Jones Hybrid’ with the ‘Siers’ hybrid, reported to be a cross between C. cordiformis and C. tomentosa in some references and C. ovata × C. cordiformis in others (Grauke 1988). The oldest reference to ‘Siers’ described it as “a hybrid pecan” entered in a nut contest conducted by the Northern Nut Growers Association in 1915 (Deming 1929). ‘Siers’ was thoroughly described by Reed (1944) who provided pictures of the tree, buds, nuts and shucks (Fig. 5). Comparison of Reed’s (1944) figures (Fig. 5) to Fig. 1 in this report shows striking similarity. Cross sections of nuts in Reed’s (1944) figure have nut height to width ratios averaging 1.36, close to the value (1.39) for ‘Jones Hybrid’ (Table 1). Reed (1944) noted that the tree had “dark and rather rough” leaves, and “the petiole below the lowermost leaflets is not more than 3 inches in length.” Kernels were described as deeply divided, pink to reddish, and often astringent. All descriptions are consistent with current and previous observations on ‘Jones Hybrid.’
The original ‘Siers’ tree was found around 1905 by Dr. I. T. Siers of Lawrenceburg, KY, who estimated its age in 1916 to be 25 years (germinating around 1891). Trees were first propagated in 1916 by the J. F. Jones Nursery, Lancaster, PA. Reed (1944) noted that “propagation by nurserymen appears to have ceased by 1930”, due to kernel astringency. Wyman (1942) reported that trees of ‘Siers’ (C. cordiformis × C. tomentosa) were offered for sale by E. A. Riehl Nursery of Godfrey, IL, but not by J. F. Jones Nursery who had other pecan, hickory and hybrid cultivars listed. Among the listed hazelnut and filbert cultivars being sold by J. F. Jones Nursery was one named “Jones Hybrid.”
‘Siers’ was listed as a “shagbark-bitternut” (=C. ovata × C. cordiformis) hybrid by L. H. MacDaniels (1969, 1979), describing it in both places as a “tall slender ornamental; low quality nut. Formerly, and probably erroneously, called a mockernut-bitternut hybrid” [sic] (=C. tomentosa × C. cordiformis).
Evidence indicates that ‘Jones Hybrid’ in our collection is ‘Siers.’ Adding ‘Siers’ as a synonym to the record will associate the history of that cultivar with our accession, and provide a geographic point of origin for evaluation in further testing. It is more interesting that several other prominent interspecific hickory hybrids originate in that geographic region: ‘McCallister,’ among the most prominent cultivars of C. × nussbaumeri, originated just north of the Ohio River near Mount Vernon, IN; ‘Major,’ a pecan that has contributed to several cultivars released by the USDA ARS Pecan Breeding Program, originated in the Henderson, KY area on the Green River and carries alleles from C. cordiformis and possibly C. ovata (Grauke et al. 2015). Hybridity occurs in areas of sympatry, and that region has the highest concentration of sympatric Carya species (Grauke and Mendoza-Herrera 2012).
Until more convincing evidence is found linking the accession to C. tomentosa, the ‘Jones Hybrid’=’Siers’ will be considered a hybrid between C. ovata and C. cordiformis, the C. × laneyi family of hybrids. The facile hybridizations of C. ovata with other diploid Carya species, the genetic anomalies seen in pollen of this hybrid accession, and allelic associations between C. ovata and the tetraploid species suggest not only that C. ovata may be a progenitor of the tetraploid species of Carya, but that its hybrids may provide a bridge for valuable traits of tree shape and size control.
Preliminary efforts in constructing controlled cross progenies were unsuccessful. Whereas ‘Jones Hybrid’ pollen applied to diploid pecan led to a very limited amount of fruit, indicating fertility of haploid grains, pollen applied to tetraploid C. floridana did not. The pollination results would seem to suggest that the larger pollen grains were not diploid, or if so, that they were non-functional. Other possible explanations exist, however, e.g., the pistillate flowers may have been past receptivity (control pollinations were not made at the same time), or other issues precluded function. Additional efforts will be needed to fully determine if 2n pollen are produced and are functional.
The wild relatives of pecan provide abundant diversity for the future development of this valuable tree crop. Their exploitation will require improved genomic tools to facilitate strategic phenotypic selection. The tall, slender tree form of ‘Jones Hybrid’ could be valuable in commercial pecan cultivars, allowing increased tree densities and reducing the need for expensive hedging operations. Tree size reduction is a goal to be pursued not only in scion selection, but through rootstock development. Negative traits such as long juvenility, low productivity, poor kernel percentage and astringent kernel flavor all need to be avoided as positive aspects of columnar tree form and reduced tree size are pursued. Development of molecular genetic markers associated with traits will assist selection. Strategic use of the accessible diversity in collections of the NCGR Carya will provide the foundation for development of those tools for pecan, the most important native North American nut crop.
Alercia A, Diulgheroff S, Mackay M (2012) FAO/Bioversity Multi-Crop Passport Descriptors (MCPD V.2). FAO (Food and Agriculture Organization of the United Nations), Rome, Italy and Bioversity International, Rome Italy. Available from: http://www.bioversityinternational.org/nc/publications/publication/issue/faobioversity_multi_crop_passport_descriptors_v2_mcpd_v2.html. Accessed 1 Sept 2015
Amos W, Hoffman JI, Frodsham A, Zhang L, Best S, Hill AVS (2007) Automated binning of 433 microsatellite alleles: problems and solutions. Mol Ecol Notes 7:10–14
Deming WC (1929) Something about nut contests. Annu Rep North Nut Grow Assoc 20:23–35
Grauke LJ (1988) A cultivar list for hickory. Annu Rep North Nut Grow Assoc 79:131–143
Grauke LJ (2003) Hickories. In: Fulbright D (ed) Nut tree culture in North America, vol 1. Northern Nut Growers Association, Hamden, pp 117–166
Grauke LJ, Mendoza-Herrera MA (2012) Population structure in the genus Carya. Acta Hortic 948:143–158
Grauke LJ, Thompson TE (1996) Pecans and hickories. In: Janick JA, Moore JN (eds) Fruit breeding vol III: nuts. Wiley, New York, pp 185–239
Grauke LJ, Thompson TE (2001a) Measurement of nut dimensions. In: USDA ARS Pecan breeding and genetics (Release 2001.3). http://cgru.usda.gov/carya/Manual/nutmeas.html. Accessed 3 Sept 2015
Grauke LJ, Thompson TE (2001b) Pecan cultivars. In: USDA ARS Pecan breeding and genetics (Release 2001.3). http://cgru.usda.gov/carya/pecans/cvintro.html. Accessed 3 Sept 2015
Grauke LJ, Iqbal MJ, Reddy AS, Thompson TE (2003) Development of microsatellite DNA markers in pecan. J Am Soc Hortic Sci 128:374–380
Grauke LJ, Mendoza-Herrera MA, Binzel ML (2010) Plastid microsatellite markers in Carya. Acta Hortic 859:237–246
Grauke LJ, Klein RR, Grusak MA, Klein PE (2015) The forest and the trees: applications for molecular markers in the repository and Pecan Breeding Programs. Acta Hortic 1070:109–126
Laughlin K (1968) Carya × collina Laughlin, Scarit Hickory. Phytologia 16(4):343–353
MacDaniels LH (1969) Hickories. In: Jaynes RA (ed) Handbook of North American nut trees, chap 13. Northern Nut Growers Association Inc, W. F. Humphrey Press, Geneva, pp 190–202
MacDaniels LH (1979) Hickories. In: Jaynes RA (ed) Nut tree culture in North America. Northern Nut Growers Association Inc, W. F. Humphrey Press, Geneva, pp 35–50
Postman J, Hummer K, Stover E, Forsline P, Grauke LJ, Zee F, Ayala-Silva T, Krueger R, Irish B, Bretting P (2006) Fruit and nut genebanks in the US National Plant Germplasm System. HortScience 41:1188–1194
Reed CA (1944) Hickory species and stock studies at the plant industry station, Beltsville, Maryland. Ann Rep Northern Nut Growers Assoc 35:88–121
Thormann I, Alercia A, Dulloo ME (2013) Core descriptors for in situ conservation of crop wild relatives, vol 1. Bioversity International, Rome
Wyman D (1942) Nursery sources for nut trees. Arnoldia 2:9–12
All authors contributed to the development and interpretation of data and preparation of this manuscript. LJG maintains living inventories and associated records and made tissue collections and crosses. MAM-H performed microsatellite analyses under supervision of PEK. DMS imaged and interpreted pollen morphology. All authors read and approved the final manuscript.
This research was supported by the United States Department of Agriculture, Agricultural Research Service CRIS project 3091-21000-036-00D “Management and Characterization of Pecan (Carya) Genetic Resources and Wild Populations; by USDA ARS CRIS project 3091-21000-035-00D “Pecan Improvement through Breeding and Genetics”; by Cooperative Agreement 3091-21000-036-01S “Developing Molecular Markers for Carya” with Texas A&M University; by Cooperative Agreement 3091-21000-036-02S “Genomic Analyses in Carya” with Texas A&M University. Research reported on plastid haplotypes was supported by a grant from the Salopek Foundation. The cooperation of Dr. Donald E. Stone (1930-2011), Duke University, and generous sharing of his Carya samples is gratefully acknowledged.
The authors declare that they have no competing interests.
