The differentiation of common species in a coral-reef fish assemblage for recreational scuba diving



Recreational scuba diving is a popular activity of the coral reef tourism industry. In practice, local diving centers recommend interesting sites to help visiting divers make their plans. Fish are among the major attractions, but they need to be listed with care because the temporal occurrence of a fish species is difficult to predict. To address this issue, we propose methods to categorize each fish species based on its long-term occurrence and likelihood of being seen.


We assume that there are K categories of occurrence of a fish assemblage and propose two methods [an arithmetic-mean method (AM) and a geometric-mean method (GM)] to define the range of species in each category.


Experiments based on long term datasets collected at three underwater stations (each having 51–53 surveys and totals of 262–284 fish species) on coral reefs in southern Taiwan showed that when K = 4 (rare, occasional, frequent and common categories), 11–14 species were concurrently assigned to the common category by AM for data sets based on surveys 10, 15, 20, 25, 30, 35, 40, 45, or 51–53 in contrast to the 18–26 species assigned as common by GM. If a similarity index of 0.7 (compared to the total pool of fish species) was the minimum threshold for diver satisfaction, then 20–25 surveys provide sufficient data for listing the common species at a given dive spot.


Common fish species, are the most temporally stable, and thus are more appropriate for attracting divers. These can be effectively differentiated by either AM or GM with at least 25 surveys. We suggest regular updating of each fish’s category through periodic surveys to assure the accuracy of information at a particular dive spot.


Coral reefs are diverse and complex ecosystems that perform important ecological services and they have made significant contributions toward various human needs (Moberg and Folke 1999). Marine tourism flourishes around coral reefs where clear waters and hundreds of species of animals present a feast for eyes. Recreational scuba diving is considered an easy way to access wildlife. Diving and related services have developed into a fast growing sector of the tourism industry (Buzzacott 2008; Davis and Tisdell 1995; Hawkins et al. 2005; Stoeckl et al. 2010; Tongson and Dygico 2004). Fish are one of the tourist diver’s primary targets among sea creatures (Cater 2008; Stoeckl et al. 2010; Uyarra et al. 2009). So, providing information about fish-watching becomes essential when planning a dive.

Fish assemblages at coral reefs vary greatly in space and time, and are difficult to predict (Ault and Johnson 1998; Belmaker et al. 2005; Nanami and Nishihira 2003; Ormond and Roberts 1997; Sale et al. 1994; Syms and Jones 2000). Most species assemblages contain more rare species than common ones in terms of abundance (Jones et al. 2002; MacArthur and Wilson 1967; Fig. 2). When creating a recommended list of interesting fishes for divers, it is arguable whether a rare species should be included as its occurrence is possibly underlined by geographic range, sporadic abundance, and/or chance elements rather than by regional environmental factors (Jones et al. 2002). In contrast, a common fish species that lives steadily in the habitat is more likely to engender demand.

We are then left with the question of how to identify the common species in a fish assemblage. The decision cannot be made based on species abundance because the commonness of a species for diving purposes should be defined by the temporal stability of its occurrence rather than the number of individuals. To resolve this issue, we need a long-term dataset on species occurrence to use as a guideline to divide the species into different categories of occurrence. Moreover, guidelines must be clear enough to allow future cross-comparisons.

In this study, two methods based on long-term datasets were tested for categorizing fish species into multiple groups ranging from rare to common according to their temporal occurrence in the regional assemblage. Those species occurring commonly are recommended candidates for a list for fish-watching. This work is practical for evaluating wildlife watching resources and tourism.


Data collection

Field works were carried out in Nanwan Bay, Kenting National Park, at the southern tip of Taiwan (Fig. 1; Jan et al. 2001). Three sub-tidal stations (namely, Sts. A, B and D) on the coral reef area were assigned for long-term biomonitoring of thermal discharge from power plants. St. A, situated about 25 m from shore, is an angular block of 4 m (width) × 8 m (length) × 3 m (height) at a depth of 5–7 m. St. B, located 60 m from shore, is a limestone terrace of 20 m × 20 m × 6 m at a depth of 6–13 m. St. D, 500 m away from the shore, is composed of six adjacent rocks, the largest is 4 m × 3 m × 2 m at a depth of 10–12 m (Fig. 1). The underwater survey of fish assemblages was done using visual counts by scuba-diving ichthyologists who swam slowly and deliberately for 30 to 40 min to record fish species at each station. Taxonomic nomenclature for the fish has been carefully updated throughout the monitoring scheme to achieve taxonomic precision. The long-term monitoring of fish communities began in July of 1979 and continued along with associated monitoring programs until 1994, when the study was halted for financial reasons. Data collection was resumed in 1998–1999. The works were planned to be undertaken bimonthly. However, owing to weather conditions and some unanticipated situations, data from four to seven collections are available for each year.

Fig. 1
figure 1

Map showing Nanwan Bay, Kenting National Park, and the study sites A, B and D, sub-tidal stations where monitoring was undertaken; Inlet, inlet of the water intake constructed by the nuclear power plant; Outlet, outlet of the water discharge canal

Defining categories

Assuming that N surveys have been conducted on a fish assemblage at constant time intervals, the minimum and maximum occurrence of a fish species in the assemblage would be 1 and N, respectively. Ideally, every species in the assemblage is assigned to one of K categories ranging from rare to very common according to the frequency of its occurrence.

Two methods, the arithmetic-mean method (abbreviated AM) and the geometric-mean method (abbreviated GM), were used herein to define the range of each K category. Under AM, a common range of occurrence frequency X was shared by all categories, thus X = N/K. Species occurring in [(a − 1)X + 1] − aX (a = 1, 2,…,K) surveys were grouped into the ath category. In contrast, GM, which was inspired by the nonlinear relationship shown in Fig. 2, used the geometric mean (X = N1/K) to delineate the range of each category. Thus, species occurring in (Xa−1) − Xa (a = 1) or (Xa−1 +1) − Xa (a = 2, 3,…,K) surveys were classified into the ath category.

Fig. 2
figure 2

Number of fish species and their occurrences determined from 52 consecutive surveys undertaken by scuba divers at an underwater station in southern Taiwan (based on data collected from St. A). Among the 284 fish species observed, 78 occurred once, 37 twice, and 19 three times. The first three represented 47 % of the fauna. Dashed line: y = 180.1 × e−1.1x + 17.7 × e−0.1x, R2 = 0.965; solid line y = − 0.39 + 63.5x−1 + 15.1x−2, R2 = 0.968

Compositional similarity of common species

By definition, the frequency range of a category was dependent on the values of N and K. A total of 52 surveys were conducted at St. A (N = 52), 53 at St. B (N = 53), and 51 at St. D (N = 51). For each station, subsamples for surveys 10, 15, 20, 25, 30, 35, 40, and 45 were randomly selected from the data pool (Cao et al. 2003; Pos et al. 2014; Vellend et al. 2007), using statistical software package SPSS Version 17.0. Assuming K = 4 (rare, occasional, frequent, and common categories), then depending on the number of occurrences fish species were grouped into four different categories using the above methods.

Fish species attributed to the common category undertaken by different N were used for similarity comparison with that by the maximum N. The Jaccard’s similarity, an index for binary variables arrived at through calculating the quotient between the intersection and the union of pairwise compared variables among two objects, was employed (Kwak and Peterson 2007). For each station, random data sampling and similarity calculations were replicated three times.


The long-term data set showed that a total of 284 fish species were recorded at St. A, 268 at St. B, and 262 at St. D. All three assemblages were dominated by rare (in the common sense) species (Fig. 2). Under both categorizing methods, rare species increased in number as N increased. Despite the changes in N, their role as the fauna’s major component did not change (Figs. 3, 4; only the data from one replicate from each station were shown because similar patterns occurred in all three replicates at each station).

Fig. 3
figure 3

Numbers of rare, occasional, frequent, and common species categorized by the arithmetic mean method with K = 4 from different numbers of surveys in three coral reef fish assemblages (Sts. A, B and D). Filled columns denote data obtained from the species pool based on three replicates; empty columns represent the data obtained from one of them

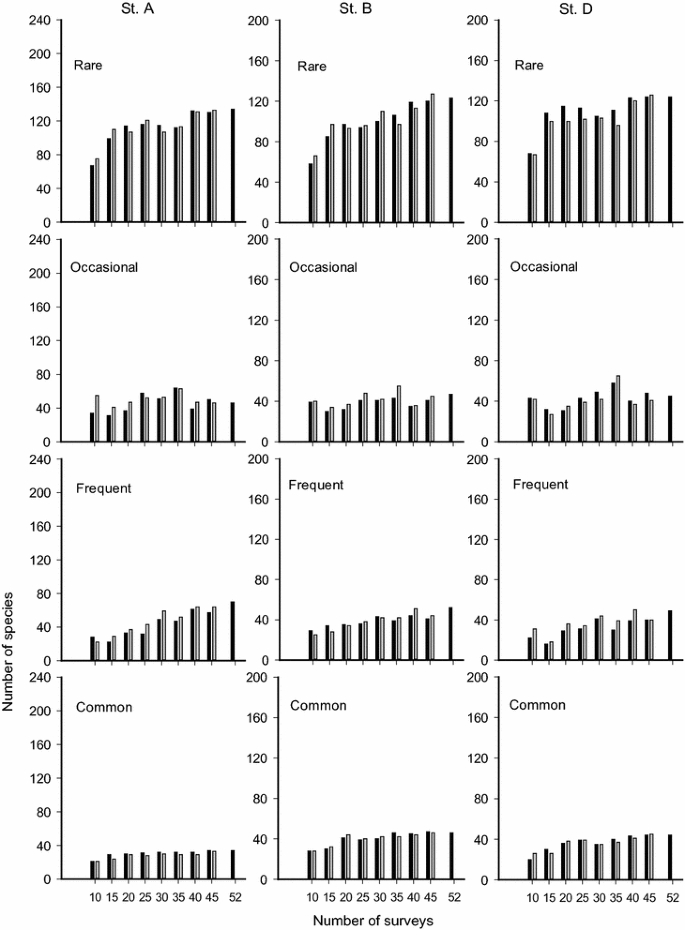

Fig. 4
figure 4

Numbers of rare, occasional, frequent, and common species categorized by geometric mean method with K = 4 from different numbers of surveys in three coral reef fish assemblages (Sts. A, B and D). Filled columns denote data obtained from the species pool based on three replicates; empty columns represent the data obtained from one of them

Arithmetic-mean method (AM)

The AM method calculated threshold numbers for occasional, frequent, and common categories were much lower than for rare species across Ns and stations (Fig. 3). At St. A, 17–19 common species were classified from data sets of varying Ns (Fig. 3). When N = 52, 18 common species were assigned. The coherent Jaccard’s similarity index value ranged from 0.58 to 0.95 between common species classified at N < 52 and N = 52. Changes of the index value followed a positive trend with the increase of surveys (Fig. 5a). There were 10 common species found concurrently at all Ns: five labrids, three pomacentrids, Parupeneus multifasciatus, and Zanclus cornutus (Table 1).

Fig. 5
figure 5

Jaccard’s similarity index (±1 SD) between common species obtained from 10 to 45 surveys (each with three replications) and from 52 surveys at three underwater stations (Sts. A, B and D). a Categorized by the arithmetic mean method; b categorized by the geometric mean method

Table 1 Common species concurrently categorized based on surveys 10, 15, 20, 25, 30, 35, 40, 45, or 51–53 using an arithmetic mean method in three experiments at Sts. A, B and D

At St. B, 16–20 species were assigned to the common category (Fig. 2). When N = 53, 18 common species were assigned. The similarity index values ranged from 0.43 to 0.8 (Fig. 5a), with the lowest value (0.53) occurring when N = 15. Overall, there were 9 common fishes assigned concurrently at all Ns: three labrids, three pomacentrids, Meiacanthus grammistes, Chaetodon kleinii, P. multifasciatus, Canthigaster valentini and Z. cornutus (Table 1).

At St. D, 12–18 species were classified as common (Fig. 3). When N = 51, 16 common species were assigned. The similarity index values ranged from 0.62 to 1 (Fig. 5a). There were 10 common species assigned concurrently at all Ns: three labrids, three pomacentrids, two chaetodontids, C. valentini, and Z. cornutus (Table 1).

Geometric-mean method (GM)

More species were grouped into the non-rare categories with the GM method than the AM method. That is, species numbers were more evenly distributed among categories with the GM method (Fig. 4). While the species numbers for the occasional and common categories varied only slightly, those in the frequent category followed a trend of increasing with increases in N (Fig. 4). GM modeling assigned more species to the common category because the range in the number of species in the common category using GM was wider than with AM. At St. A, 21–34 species were assigned to the common category (Fig. 4). When N = 52, 34 common species were assigned. The similarity index values ranged from 0.64 to 0.89 (Fig. 5b). There were 15 common species assigned concurrently across the varying Ns, including 9 common species assigned under AM plus M. grammistes, Chromis margaritifer, and four more labrids (Table 2).

Table 2 Common species concurrently categorized based on surveys 10, 15, 20, 25, 30, 35, 40, 45, or 51–53 separate surveys by using a geometric mean method in three experiments at Sts. A, B and D

At St. B, 28–47 species were assigned to the common category (Fig. 4). When N = 53, 46 common species were assigned. The similarity index values ranged from 0.5 to 0.98 (Fig. 5b). There were 15 common species assigned concurrently across various Ns, including 9 common species assigned under AM plus C. binotatus and five more labrids (Table 2).

At St. D, 20–44 species were assigned to the common category. When N = 51, 44 common species were assigned. The similarity index values ranged from 0.64 to 0.94 (Fig. 5b). There were 17 common species assigned concurrently across various Ns, including 9 common species assigned under AM plus Ctenochaetus binotatus, Centropyge vroliki, P. multifasciatus, Scolopsis bilineatus, Chromis weberi and three more labrids (Table 2).

A total of 144 Jaccard’s index values (8 survey conditions × 3 replicates × 3 stations × 2 methods) were obtained. More than others, there were 42 data values falling between 0.7 and 0.79. With 20 or more surveys, index values 0.7 occurred across replicates, stations, and methods. The median value was 0.75, with 25 or more surveys. Herein, we suggested that 0.7 was the minimum threshold for discriminating common species using the concepts of statistical mode and median.


Exploring coral reefs through diving has increasingly become a popular marine recreational pursuit (Ong and Musa 2011). Underwater creatures that highlight scenic interests and the charms of a dive spot are the major tourism attraction (Cater 2008; Gray 1997; Nash and Chuk 2012; Sinha and Bushell 2002). In this study, we raise the concept and propose two methods of delineating common species to highlight the uniqueness of fish fauna at dive locations.

Commonness is often used in ecology to explain the population status of a species (Gaston 1994, 2010). A species prevailing over a wide geographical range and having broad habitat specificity, large local abundance, and frequent habitat occupation can be considered a common species (Rey Benayas et al. 1999). Commonness is normally closely related to abundance, referring to the frequency with which a species is found in controlled areas (Hu et al. 2012; Sizling et al. 2009; Zacharias and Brandes 1990). In this study, the definition of commonness was adjusted from spatial abundance to temporal presence in order to meet the demands arising from visits by different divers. The “star” species used to lure tourists to many destinations are good examples. Longfin batfish on the steel-frame reefs of Green Island, Taiwan (Yang et al. 2011), hammerhead sharks at Layang Layang Island, Malaysia (Musa et al. 2006), Nassau groupers at the Turks and Caicos Islands and Bahamas (Rudd and Tupper 2002), and pygmy-seahorses in Kimbe Bay, Papua New Guinea (Cater 2008) are some of the star species often showcased in diving magazines, guide books, promotional videos, and websites. Their appearance and behavior can trigger tourist diver interest. However, there should also be a focus on their reliability of occurrence, a factor essential for guaranteeing satisfactory encounters on commercial dive trips.

Applications of the two methods based on long-term data sets demonstrate that the “commonness” of a fish species will not vary when data sets reach a certain size. These two methods are therefore both effective, and easy to use. Moreover, prior to accurate predictions of fish occurrences being available, these methods might allow for cross-examination for temporal occurrences of fish species in different assemblages.

Using either an AM or a GM method, each fish species is assigned a category of occurrence. However, since by design the results of both methods are dependent on the number of surveys, the occurrence attribute of a species can change with changes in N. the similarity index plots (Fig. 5) demonstrate that similarity values are low at small Ns and get higher with a positive link to the increase of N. Accumulating long-term monitoring datasets can be expensive in time and funding. Indeed, our results indicate that if a similarity index value of 0.7 is assumed to represent the minimum degree of demand, then the data that is accumulated from 20 to 25 surveys would be required to list a site’s common species. However, because environments are ever-changing, and increasingly more so in recent years (Cheung et al. 2009; Haward et al. 2013; Graham et al. 2014; Lavides et al. 2016), it is helpful to regularly update a fish’s category by adding new surveys covering various seasons to document current fish assemblages to assure the accuracy of the wildlife information available for a dive spot.


Despite the temporal variability of fish species abundance, the need for lists of fish species which are interesting to divers is important for the tourist industry. Accurate predictions of temporal species composition within fish assemblages have been very difficult to make because the occurrence of a species is governed by variables including recruitment, biological associations, food and habitat specificity, and predator–prey relationships. The present study reduces temporal variability by placing fish into species occurrence categories, and shows that data based on 20–25 surveys is needed when using either an AM or a GM method (assuming K = 4) to identify the common species at dive spots. Common fish species are the most temporally stable, and thus are more appropriate for attracting divers.


  • Ault TR, Johnson CR (1998) Spatially and temporally predictable fish communities on coral reefs. Ecol Monogr 68:25–50

    Google Scholar

  • Belmaker J, Shashar N, Ziv Y (2005) Effects of small-scale isolation and predation on fish diversity on experimental reefs. Mar Ecol Prog Ser 289:273–283

    Article  Google Scholar

  • Buzzacott P (2008) Western Australian dive industry growth and survival, 1969–2005. J Ecotour 7:226–234

    Article  Google Scholar

  • Cao Y, Hawkins CP, Vinson MR (2003) Measuring and controlling data quality in biological assemblage surveys with special reference to stream benthic macroinvertebrates. Freshwater Biol 48:1898–1911

    Article  Google Scholar

  • Cater C (2008) Perceptions of and interactions with marine environments: diving attractions from great whites to pygmy seahorses. In: Garrod B, Gossling S (eds) New frontiers in marine tourism: diving experiences, sustainability, management. Elsevier, Oxford, pp 49–64

    Chapter  Google Scholar

  • Cheung WWL, Lam VWY, Sarmiento JL, Kearney K, Watson R, Pauly D (2009) Projecting global marine biodiversity impacts under climate change scenarios. Fish Fish 10:235–251

    Article  Google Scholar

  • Davis D, Tisdell C (1995) Recreational scuba-diving and carrying capacity in marine protected areas. Ocean Coast Manag 26:19–40

    Article  Google Scholar

  • Gaston KJ (1994) Rarity. Chapman & Hall, London

    Book  Google Scholar

  • Gaston KJ (2010) Valuing common species. Science 327:154–155

    Article  ADS  CAS  PubMed  Google Scholar

  • Graham NAJ, Chong-Seng KM, Huchery C, Januchowski-Hartley FA, Nash KL (2014) Coral reef community composition in the context of disturbance history on the Great Barrier Reef, Australia. PLoS One 9(7):e101204. doi:10.1371/journal.pone.0101204

    Article  ADS  PubMed  PubMed Central  Google Scholar

  • Gray JS (1997) Marine biodiversity: patterns, threats and conservation needs. Biodivers Conserv 6:153–175

    Article  Google Scholar

  • Haward M, Davidson J, Lockwood M, Hockings M, Kriwoken L, Allchin R (2013) Climate change, scenarios and marine biodiversity conservation. Mar Policy 38:438–446

    Article  Google Scholar

  • Hawkins JPC, Roberts M, Kooistra D, Buchan K, White S (2005) Sustainability of scuba diving tourism on coral reefs of Saba. Coast Manag 33:373–387

    Article  Google Scholar

  • Hu G, Wu J, Feeley JK, Xu G, Yu M (2012) The effects of landscape variables on the species-area relationship during late-stage habitat fragmentation. PLoS One 7:e43894

    Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

  • Jan R-Q, Chen J-P, Lin C-Y, Shao K-T (2001) Long-term monitoring of the coral reef fish communities around a nuclear power plant. Aquat Ecol 35:233–243

    Article  Google Scholar

  • Jones GP, Caley MJ, Munday PL (2002) Rarity in coral reef fish communities. In: Sale PF (ed) Coral reef fishes: dynamics and diversity in a complex ecosystem. Academic Press, San Diego, pp 81–101

    Chapter  Google Scholar

  • Kwak TJ, Peterson JT (2007) Community indices, parameters, and comparisons. In: Brown M, Guy C (eds) Analysis and interpretation of freshwater fisheries data. American Fisheries Society, Bethesda, pp 667–763

    Google Scholar

  • Lavides MN, Molina EPV, de la Rosa GE, Jr Mill AC, Rushton SP, Stead SM, Polunin NVC (2016) Patterns of coral-reef finfish species disappearances inferred from fishers’ knowledge in global epicentre of marine shorefish diversity. PLoS One 11(5):e0155752. doi:10.1371/journal.pone.0155752

    Article  PubMed  PubMed Central  Google Scholar

  • MacArthur RH, Wilson EO (1967) The theory of Island biogeography. Princeton University Press, New Jersey

    Google Scholar

  • Moberg F, Folke C (1999) Ecological goods and services of coral reef ecosystems. Ecol Econ 29:215–233

    Article  Google Scholar

  • Musa G, Kadir SLSA, Lee L (2006) Layang Layang: an empirical study on scuba divers’ satisfaction. Tourism Mar Environ 2:89–102

    Article  Google Scholar

  • Nanami A, Nishihira M (2003) Effects of habitat connectivity on the abundance and species richness of coral reef fishes: comparison of an experimental habitat established at a rocky reef flat and at a sandy sea bottom. Environ Biol Fishes 68:183–196

    Article  Google Scholar

  • Nash J, Chuk T (2012) In deep water: diving site names on Norfolk Island. J Tourism Cult Change 10:301–320

    Article  Google Scholar

  • Ong TF, Musa G (2011) An examination of recreational divers’ underwater behaviour by attitude-behaviour theories. Curr Issues Tourism 14:779–795

    Article  Google Scholar

  • Ormond RFG, Roberts CM (1997) The diversity of coral reef fishes. In: Ormond RFG, Gage JD, Angel MV (eds) Marine diversity: patterns and processes. Cambridge University Press, Cambridge, pp 216–257

    Chapter  Google Scholar

  • Pos E, Guevara Andino JE, Sabatier D, Molino J-F, Pitman N, Mogollón H, Neill D, Cerón C, Rivas G, Di Fiore A, Thomas R, Tirado M, Young KR, Wang O, Sierra R, García-Villacorta R, Zagt R, Palacios W, Aulestia M, ter Steege H (2014) Are all species necessary to reveal ecologically important patterns? Ecol Evol 4:4626–4636

    Article  PubMed  PubMed Central  Google Scholar

  • Rey Benayas JM, Scheiner SM, García Sánchez-Colomer M, Levassor C (1999) Commonness and rarity: theory and application of a new model to Mediterranean montane grasslands. Conserv Ecol 3:5 (URL: iss1/art5/)

  • Rudd MA, Tupper MH (2002) The impact of nassau grouper size and abundance on scuba diver site selection and MPA economics. Coast Manag 30:133–151

    Article  Google Scholar

  • Sale PF, Guy JA, Steel WJ (1994) Ecological structure of assemblages of coral reef fishes on isolated patch reefs. Oecologia 98:83–99

    Article  Google Scholar

  • Sinha CC, Bushell R (2002) Understanding the linkage between biodiversity and tourism: a study of ecotourism in a coastal village in Fiji. Pac Tourism Rev 6:35–50

    Google Scholar

  • Sizling AL, Sizlingová E, Storch D, Reif J, Gaston KJ (2009) Rarity, commonness, and the contribution of individual species to species richness patterns. Am Nat 174:82–93

    Article  PubMed  Google Scholar

  • Stoeckl N, Birtles A, Farr M, Mangott A, Curnock M, Valentine P (2010) Live-aboard dive boats in the Great Barrier Reef: regional economic impact and the relative values of their target marine species. Tourism Econ 16:995–1018

    Article  Google Scholar

  • Syms C, Jones GP (2000) Disturbance, habitat structure, and the dynamics of a coral-reef fish community. Ecology 81:2714–2729

    Article  Google Scholar

  • Tongson E, Dygico M (2004) User fee system for marine ecotourism: the Tubbataha reef experience. Coast Manag 32:17–23

    Article  Google Scholar

  • Uyarra MC, Watkinson AR, Côté IM (2009) Managing dive tourism for the sustainable use of coral reefs: validating diver perceptions of attractive site features. Environ Manag 43:1–16

    Article  ADS  Google Scholar

  • Vellend M, Lilley PL, Starzomski BM (2007) Using subsets of species in biodiversity surveys. J Appl Ecol 45:161–169

    Article  Google Scholar

  • Yang C-J, Yang C-M, Li C-J (2011) The best diving locations on Green Island. National Museum of Marine Biology & Aquarium, Pingtung (in Chinese)

    Google Scholar

  • Zacharias D, Brandes D (1990) Species area-relationships and frequency—floristical data analysis of 44 isolated woods in northwestern Germany. Vegetatio 88:21–29

    Article  Google Scholar

Download references

Authors’ contributions

T-C Chen carried out the genetic studies, participated in data analysis and prepared the manuscript. C-T Ho participated in data analysis. T-C Chen and R-Q Jan made a contribution to data study and drafted the manuscript. All authors read and approved the final manuscript.


This study was financially supported by the National Science Council of the Republic of China under research Grants NSC99-2622-E-159-001-CC3.

Competing interests

The authors declare that they have no competing interests.
