Abstract

This research article proposes a powerful fractional-order PI controller to mitigate the subsynchronous oscillations in turbine-generator shaft due to subsynchronous resonance (SSR) with flexible AC transmission system devices such as static synchronous compensator (STATCOM) and unified power flow controller (UPFC). The diminution of SSR is achieved by the raising of network damping at those frequencies which are proximate to the torsional mode frequency of the turbine-generator shaft. The increase of network damping is obtained with the injection of subsynchronous frequency component of current and both current and voltage into the line. The subsynchronous component of current and voltage are derived from the measured signal of the system and further the same amount of shunt current is injected with STATCOM and simultaneous injection of current and voltage with UPFC into the transmission line to make the subsynchronous current to zero which is the prime source of turbine shaft oscillations. The insertion and proper tuning of Fractional-order PI controller in the control scheme, the subsynchronous oscillations are reduced to 92 % in case of STATCOM and 98 % in case of UPFC as compared to without controller and 14 % as compared with the results of conventional PI controller. The IEEE first benchmark model has adopted for analyze the effectiveness and speed of the proposed control scheme using MATLAB-Simulink and the corresponding results illustrates the precision and robustness of the proposed controller.

Keywords

Fractional-order PI controllerSTATCOMTorque amplificationVoltage source converterUPFC

Background

Series capacitor compensation has been broadly employed in Power system to cancel a portion of reactance of the line impedance to increment the power transfer capability of long high voltage (HV) and extra high voltage (EHV) transmission lines further load sharing among parallel lines and boosts the steady state and transient stability limits (Anderson et al. 1989; IEEE SSR Working Group 1985). However, the addition of capacitive compensation in series can cause a new difficulty of turbine-generator shaft oscillations with below the system frequency due to Subsynchronous Resonance (SSR). The subsynchronous oscillations can be excited during the fault or disturbance in the transmission line with series capacitors, when the normal system frequency matches with the complement of any of the mode frequency of the shaft system (Kundur 1994; Padiyar 1998).

Latest advancement of power electronic devices led to the improvement of FACTS devices such as thyristor controlled series capacitor (TCSC), static synchronous compensator (STATCOM), static synchronous series compensator (SSSC) and unified power flow controller (UPFC) (Hingorani and Gyugyi 2000). An astronomically immense number of methods and solutions have been addressed by the different researchers to avoid the problem of SSR with the concern of FACTS devices (Padiyar and Swayam Prakash 2003; Padiyar and Prabhu 2006; Bongiorno et al. 2008b, c; Mohan et al. 2015; Koteswara Raju et al. 2016). The selection of controller is depends on extraction of the subsynchronous frequency components with high speed and accuracy. From the knowledge of subsynchronous frequency component of current and voltage a proper protection system is designed to avoid shaft breakage due to SSR (Bongiorno et al. 2008a).

The mitigation of SSR by the injection of shunt current with STATCOM including proportional integrator controller (PI) is proposed in reference (Umre et al. 2007). The STATCOM with subsynchronous damping controller (SSDC) including type 1 and type 2 controller is proposed based on the tuning of parameters using damping torque method to mitigate the SSR (Padiyar and Swayam Prakash 2003; Padiyar and Prabhu 2006). The parameters of SSDC are tuned to get good performance to provide damping (positive) in the range of torsional mode frequencies. The damping of SSR oscillations with 48 pulses (three-level) VSC based STATCOM using remote signal is proposed in (Salemnia et al. 2008).

The problem of SSR can also be bypassed by a proper combination of hybrid series compensation consists of FACTS controllers (SSSC) along with passive components. The mitigation of SSR with the proper injection of series voltage using PI based SSSC is described in (Bongiorno et al. 2008b, c; Mohan et al. 2015). The injection of subsynchronous frequency component of voltage in series with subsynchronous current suppresser using SSSC based on the knowledge of subsynchronous current to damp out the SSR is proposed in (Panda et al. 2010, 2016;Thirumalaivasan et al. 2013).

In this paper a Fractional-order proportional integrator (FOPI) based STATCOM and UPFC is used for mitigating the subsynchronous oscillations in turbine-generator shaft due to SSR. The mitigation of SSR is done by the injection of shunt current by STATCOM and the simultaneous injection of voltage and current into the line by UPFC with reference to the subsynchronous components which are extracted from the line. The STATCOM and UPFC are constructed with the help of multi-pulse voltage source converters. The fractional-order P IλDµ controller derived from conventional PID controller with integrator of real order λ and differentiator of real order µ. Taking λ = 1 and µ = 1, we obtain a classical PID controller. If µ = 0 and Kd = 0, we obtain a P Iλ controller, etc. All these types of controllers are particular cases of the P IλDµ controller, which is more flexible and gives the adjustment of dynamical properties of the fractional-order control system. In P IλDµ controller there are five parameters to tune, with respect to the three parameters of the standard PID controller (λ and µ are equal to one) (Igor Podlubny 1999; Shantanu Das 2008). The facility of fine tuning of Fractional-order PI in the control circuit of STATCOM and UPFC controllers the subsynchronous oscillations are reduced to 92 and 98 % as compared to without controller and 14 % as compared to conventional PI controller. Fractional-order PI controllers having larger stability limit with larger phase value as compared to PI controller. Moreover, the Fractional-order PI controllers (FOPI) exhibits a less negative phase than the PI controller and it implies that more robustness (in the sense of stability) to changes in the overall system parameters.

The paper is organized in four sections. “Study system (IEEE FBM) with UPFC controller” section describes UPFC connected IEEE first benchmark model (study system) and the procedure for realization of subsynchronous frequency component of current and voltage. The design of subsynchronous frequency component controller including PI and Fractional-order PI controller and further the study system parameters and specifications of FACTS devices are presented in “Subsynchronous frequency component controller” section. The FFT analysis of LPB-GEN torque signal and simulation results of IEEE first benchmark model without and with FACTS controller under symmetrical (L–L-L) fault using PI and Fractional-order PI controller is given in “Results and discussions” section. The “Conclusion” section represents the conclusion of the complete research work.

Study system (IEEE FBM) with FACTS controller

The block diagram of study system (IEEE FBM) with FACTS controller is shown in Fig. 1. The one line diagram of study system with STATCOM is similar as shown in Fig. 1 and only difference is that the STATCOM is connected in shunt to the line. The generated voltage and the grid current are expressed as \({\text{v}}_{\text{s}}\) and \({\text{i}}\) respectively. The injected current and voltage by series and shunt converters are denoted as \({\text{v}}_{\text{SSSC}}\) and \({\text{i}}_{\text{STAT}}\). The main principle of SSR mitigation with classical control scheme is to restore the voltage generated of frequency of fundamental by the added bank of fixed capacitor by injecting a voltage of like magnitude with series converter (Bongiorno et al. 2008b, c; Koteswara Raju et al. 2016). With the injection of shunt current by STATCOM and both current and voltage into the line by UPFC eliminates the capacitive reactance of the capacitor bank and further shifts the system resonance (electrical), thus avoids the problem of subsynchronous resonance. Several publications have described the capability of used control method (Bongiorno et al. 2008b, c; Thirumalaivasan et al. 2013; Mohan et al. 2015; Panda et al. 2010, 2016; Koteswara Raju et al. 2016). The analytical procedure for realization of current and voltage components of subsynchronous frequency from the signal which is measured from the transmission line is proposed as fallows.

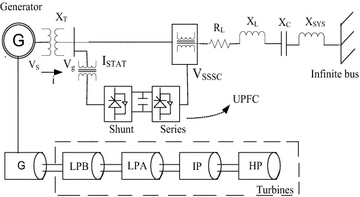

Fig. 1

Study system model (IEEE FBM) including UPFC controller

Realization of current and voltage components of subsynchronous frequency

The current and voltage components of below synchronous frequency at the generator terminals are realized by considering the generic case of a transmission line connected with synchronous generator.

The generator voltage in terms of α and β-plane is written as
$${\text{v}}_{\text{s}}^{{\left( {\upalpha \upbeta } \right)}} = {\text{v}}_{{{\text{s}},\upalpha}} \left( {\text{t}} \right) + {\text{jv}}_{{{\text{s}},\upbeta}} \left( {\text{t}} \right) =\upomega\left( {\text{t}} \right){\text{V}}_{\text{s}} {\text{e}}^{{{\text{j}}\left( {\upomega_{0} {\text{t}} +\updelta\left( {\text{t}} \right)} \right)}}$$
(1)
where Vs is the magnitude of terminal voltage of generator at rated speed, phase displacement is given by δ, \(\upomega({\text{t}})\) is the speed of rotor in per-unit and \(\upomega_{0}\) is the fundamental angular frequency radians/second. The speed of the generator rotor in terms of fundamental angular frequency \(\upomega_{0}\), and oscillating angular frequency \(\upomega_{\text{m}}\) is given by
$$\upomega\left( {\text{t}} \right) =\upomega_{0} + {\text{A}}\sin \left( {\upomega_{\text{m}} {\text{t}}} \right)$$
(2)
where A denotes the oscillation magnitude and \(\upomega_{\text{m}}\) is the frequency of rotor oscillations.
By applying derivative to the rotor angle
$$\frac{\text{d}}{\text{dt}}\updelta\left( {\text{t}} \right) = \left[ {\upomega\left( {\text{t}} \right) -\upomega_{0} } \right]\upomega_{\text{B}} = {\text{A}}\sin \left( {\upomega_{\text{m}} {\text{t}}} \right)\upomega_{\text{B}}$$
(3)
where, \(\upomega_{\text{B}}\) is the rated frequency in radians/sec. To get \(\updelta_{0}\) i.e. the steady state rotor angle, integrate Eq. (3) on both sides. The angle of rotor is expressed as
$$\updelta\left( {\text{t}} \right) =\updelta_{0} - {\text{A}}\frac{{\upomega_{\text{B}} }}{{\upomega_{\text{m}} }}\cos \left( {\upomega_{\text{m}} {\text{t}}} \right)$$
(4)

When the system subjected to SSR, a small disturbance to generator rotor produces the voltage and current consists of three components: fundamental frequency, bellow synchronous frequency and above synchronous frequency. A little damping of positive is offered by network for super-synchronous frequency; hence the risk offered to generating station by this less (Bongiorno et al. 2008b).

The voltage of subsynchronous frequency component in α and β-plane is given by
$${\text{v}}_{{{\text{s}},{\text{sub}}}}^{{\upalpha \upbeta }} \left( {\text{t}} \right) = - \frac{{{\text{AV}}_{\text{s}} }}{{2\upomega_{\text{m}} }}\left( {\upomega_{0} -\upomega_{\text{m}} } \right){\text{e}}^{{{\text{j}}\left[ {\left( {\upomega_{0} -\upomega_{\text{m}} } \right){\text{t}} +\updelta_{0} + \frac{\uppi}{2}} \right]}}$$
(5)
Transformed vector of grid voltage in d-q plane is given by
$${\text{v}}_{\text{s}}^{\text{dq}} \left( {\text{t}} \right) = {\text{v}}_{\text{s}}^{{\left( {\upalpha \upbeta } \right)}} \left( {\text{t}} \right){\text{e}}^{{ - {\text{j}}\upomega_{0} {\text{t}}}} = {\text{v}}_{{{\text{s}},{\text{f}}}}^{{\left( {\text{dq}} \right)}} \left( {\text{t}} \right) + {\text{v}}_{{{\text{s}},{\text{sub}}}}^{{\left( {\text{dq}} \right)}} \left( {\text{t}} \right)$$
(6)
where \({\text{v}}_{{{\text{s}},{\text{f}}}}^{{\left( {\text{dq}} \right)}}\) is the fundamental frequency and the sub-synchronous frequency component in d-q plane is written as
$${\text{v}}_{{{\text{s}},{\text{sub}}}}^{{\left( {\text{dq}} \right)}} \left( {\text{t}} \right) = {\text{v}}_{{{\text{s}},{\text{sub}}}}^{{\left( {\upalpha \upbeta } \right)}} \left( {\text{t}} \right){\text{e}}^{{ - {\text{j}}\upomega_{0} {\text{t}}}} = - \frac{{{\text{AV}}_{\text{s}} }}{{2\upomega_{\text{m}} }}\left( {\upomega_{0} -\upomega_{\text{m}} } \right){\text{e}}^{{ - {\text{j}}\left[ {\upomega_{\text{m}} {\text{t}} +\updelta_{0} + \frac{{\uppi }}{2}} \right]}}$$
(7)
The terminal voltage in terms of \(dq\) co-ordinate system with a small disturbance is given by
$${\text{v}}_{\text{s}}^{\text{dq}} \left( {\text{t}} \right) = {\text{v}}_{{{\text{s}},{\text{f}}}}^{\text{dq}} \left( {\text{t}} \right) + {\text{v}}_{{{\text{s}},{\text{sub}}}}^{{\left( {\text{dq}} \right)}} \left( {\text{t}} \right) + {\text{v}}_{{{\text{s}},{ \sup }}}^{{\left( {\text{dq}} \right)}} \left( {\text{t}} \right)$$
(8)
Figure 2 represents the block diagram of Low Pass Filter (LPF) based estimation of subsynchronous components. \({\text{f}}_{ \sup }\) and \({\text{f}}_{\text{sub}}\) represents the super-synchronous and sub-synchronous frequency component. Consider the generator rotor oscillates with angular frequency \(\upomega_{m}\) and the Eq. (7) can be rewritten in \(dq_{m}\)-plane as
$${\text{v}}_{\text{s}}^{\text{dq}} \left( {\text{t}} \right) = {\text{v}}_{{{\text{s}},{\text{f}}}}^{\text{dq}} \left( {\text{t}} \right) + {\text{v}}_{{{\text{s}},{\text{sub}}}}^{{\left( {{\text{dq}}_{\text{m}} } \right)}} \left( {\text{t}} \right){\text{e}}^{{ - {\text{j}}\upomega_{\text{m}} {\text{t}}}}$$
(9)
Fig. 2

Low pass filter based estimation of subsynchronous components (ESSC)

The rearrangement of Eq. (8) gives the extract of sub-synchronous frequency component, so that \({\text{v}}_{{{\text{s}},{\text{f}}}}^{\text{dq}}\) and \({\text{v}}_{{{\text{s}},{\text{sub}}}}^{{\left( {\text{dq}} \right)}}\) become isolated and given to filter (Low pass). The output of Estimation of subsynchronous component (ESSC) is
$${\text{v}}_{{{\text{s}},{\text{f}}}}^{\text{dq}} \left( {\text{t}} \right) = {\text{H}}_{\text{f}} \left( {\text{p}} \right)\left[ {{\text{v}}_{\text{s}}^{\text{dq}} \left( {\text{t}} \right) - {\text{v}}_{{{\text{s}},{\text{sub}}}}^{\text{dq}} \left( {\text{t}} \right){\text{e}}^{{{\text{j}}(\upomega_{\text{m}} {\text{t}})}} } \right]$$
(10)
$${\text{i}}_{{,{\text{f}}}}^{\text{dq}} \left( {\text{t}} \right) = {\text{H}}_{\text{f}} \left( {\text{p}} \right)\left[ {{\text{i }}^{\text{dq}} \left( {\text{t}} \right) - {\text{i}}_{\text{sub}}^{\text{dq}} \left( {\text{t}} \right){\text{e}}^{{{\text{j}}(\upomega_{\text{m}} {\text{t}})}} } \right]$$
(11)
$${\text{v}}_{{{\text{s}},{\text{sub}}}}^{{{\text{dq}}_{\text{m}} }} \left( {\text{t}} \right) = {\text{H}}_{\text{sub}} \left( {\text{p}} \right)\left[ {{\text{v}}_{\text{s}}^{\text{dq}} \left( {\text{t}} \right){\text{e}}^{{{\text{j}}(\upomega_{\text{m}} {\text{t}})}} - {\text{v}}_{{{\text{s}},{\text{f}}}}^{\text{dq}} \left( {\text{t}} \right)} \right]{\text{e}}^{{{\text{j}}(\upomega_{\text{m}} {\text{t}})}}$$
(12)
$${\text{i}}_{\text{sub}}^{{{\text{dq}}_{\text{m}} }} \left( {\text{t}} \right) = {\text{H}}_{\text{sub}} \left( {\text{p}} \right)\left[ {{\text{i}}^{\text{dq}} \left( {\text{t}} \right){\text{e}}^{{{\text{j}}(\upomega_{\text{m}} {\text{t}})}} - {\text{i}}_{\text{f}}^{\text{dq}} \left( {\text{t}} \right)} \right]{\text{e}}^{{{\text{j}}(\upomega_{\text{m}} {\text{t}})}}$$
(13)
The transfer functions of low pass filter (LPF) are \({\text{H}}_{\text{f}} \left( {\text{p}} \right)\), and \({\text{H}}_{\text{sub}} \left( {\text{p}} \right)\). The subsynchronous frequency component of voltage is written as
$${\text{v}}_{{{\text{s}},{\text{sub}}}}^{\text{dq}} \left( {\text{t}} \right) = {\text{H}}_{\text{sub}} \left( {{\text{p}} + {\text{j}}\upomega_{\text{m}} } \right)\left[ {{\text{v}}_{\text{s}}^{\text{dq}} \left( {\text{t}} \right) - {\text{v}}_{{{\text{s}},{\text{f}}}}^{\text{dq}} \left( {\text{t}} \right)} \right]$$
(14)
Similarly the subsynchronous frequency component of current is written as
$${\text{i}}_{{{\text{s}},{\text{sub}}}}^{\text{dq}} \left( {\text{t}} \right) = {\text{H}}_{\text{sub}} \left( {{\text{p}} + {\text{j}}\upomega_{\text{m}} } \right)\left[ {{\text{i}}_{\text{s}}^{\text{dq}} \left( {\text{t}} \right) - {\text{i}}_{\text{s,f}}^{\text{dq}} \left( {\text{t}} \right)} \right]$$
(15)

The voltage component of subsynchronous and fundamental frequency is obtained by combining Eqs. (10) and (14). Equations (11) and (15) are used for the estimation of current component of subsynchronous and fundamental frequency.

Subsynchronous frequency component controller

To make the current component of subsynchronous to zero, the initiative of the proposed scheme is to generate and inject the internal bus current of subsynchronous with STATCOM and current, voltage by UPFC. The Laplace domain of the sub-synchronous component current controller (SSCC) can be expressed as
$${\text{V}}_{{{\text{SSSC}}_{\text{sub}} }}^{{\left( {{\text{dq}}_{\text{m}} } \right)}} \left( {\text{s}} \right) = {\text{v}}_{{{\text{g}},{\text{sub}}}}^{{{\text{dq}}_{\text{m}} }} \left( {\text{s}} \right) + \left( {{\text{R}} + {\text{j}}\left( {\upomega -\upomega_{\text{m}} } \right)\left( {{\text{L}}_{\text{T}} + {\text{L}}^{{\prime \prime }} } \right)} \right) {\text{i}}_{\text{sub}}^{{\left( {{\text{dq}}_{\text{m}} } \right)}} \left( {\text{s}} \right) + \left( {{\text{K}}_{\text{p}} + \frac{{{\text{K}}_{\text{i}} }}{\text{s}}} \right)\left[ {{\text{i}}_{\text{sub}}^{{\left( {{\text{dq}}_{\text{m}} } \right)}} \left( {\text{s}} \right) - {\text{i}}_{\text{sub}}^{{\left( {{\text{dq}}_{\text{m}} } \right)*}} \left( {\text{s}} \right)} \right]$$
(16)
$${\text{I}}_{{{\text{STAT}}_{{{\text{sub}}}} }}^{{\left( {{\text{dq}}_{{\text{m}}} } \right)}} \left( {\text{s}} \right) = {\text{i}}_{{{\text{s}},{\text{sub}}}}^{{{\text{dq}}_{{\text{m}}} }} \left( {\text{s}} \right) + \left[ {\frac{{{\text{v}}_{{{\text{g}},{\text{sub}}}}^{{\left( {{\text{dq}}_{{\text{m}}} } \right)}} \left( {\text{s}} \right)}}{{\left( {{\text{R}} + {\text{j}}\left( {{\upomega } - {\upomega }_{{\text{m}}} } \right)\left( {{\text{L}}_{{\text{T}}} + {\text{L}}^{{\prime \prime }} } \right)} \right)}}} \right] + \left[ {\left( {{\text{v}}_{{{\text{g}},{\text{sub}}}}^{{\left( {{\text{dq}}_{{\text{m}}} } \right)}} \left( {\text{s}} \right) - {\text{v}}_{{{\text{g}},{\text{sub}}}}^{{\left( {{\text{dq}}_{{\text{m}}} } \right)*}} \left( {\text{s}} \right)} \right)\bigg/\left( {{\text{K}}_{{\text{p}}} + \frac{{{\text{K}}_{{\text{i}}} }}{{\text{s}}}} \right)} \right]$$
(17)
where \({\text{R}}\), \({\text{L}}^{{\prime \prime }}\) and \({\text{L}}_{\text{T}}\) are the upstream system resistance with FACTS device, the generator sub transient inductance and transformer leakage inductance respectively. \({\text{i}}_{\text{sub}}^{{\left( {{\text{dq}}_{\text{m}} } \right)*}}\) is the current reference, \({\text{K}}_{i}\) and \({\text{K}}_{\text{p}}\) are the integral and proportional gains of the PI-controller.

Fractional-order PI (FOPI) controller

The fractional-order P Iλ Dµ controller was proposed as a generalization of the PID controller with integrator of real order λ and differentiator of real order µ. The transfer function of such type  of controller in Laplace domain has form (Igor Podlubny 1999; Shantanu Das 2008):
$${\text{C}}\left( {\text{s}} \right) = \frac{{{\text{U}}\left( {\text{s}} \right)}}{{{\text{E}}\left( {\text{s}} \right)}} = {\text{K}}_{\text{p}} + {\text{K}}_{\text{i}} {\text{s}}^{{ -\uplambda}} + {\text{K}}_{\text{d}} {\text{s}}^{\upmu} ,\quad (\uplambda \cdot\upmu > 0)$$
(18)
where Kp is the proportional constant, Ki is the integration constant and Kd is the differentiation constant. Transfer function (18) corresponds in discrete domain with the discrete transfer function in the following expression (Cao and Cao 2006; Enrico Pisoni et al. 2009):
$${\text{C}}\left( {{\text{z}}^{ - 1} } \right) = \frac{{{\text{U}}\left( {{\text{z}}^{ - 1} } \right)}}{{{\text{E}}\left( {{\text{z}}^{ - 1} } \right)}} = {\text{K}}_{\text{p}} + {\text{K}}_{\text{i}} \left( {\upomega\left( {{\text{z}}^{ - 1} } \right)} \right)^{{ -\uplambda}} + {\text{K}}_{\text{d}} \left( {\upomega\left( {{\text{z}}^{ - 1} } \right)} \right)^{\upmu} ,\quad (\uplambda,\upmu > 0)$$
(19)
where λ and µ are arbitrary real numbers. To get P Iλ controller substitute µ = 0 and Kd = 0.
With the use of Fractional-order PI controller the Eq. (19) and (20) can be written as
$${\text{V}}_{{{\text{SSSC}}_{\text{sub}} }}^{{\left( {{\text{dq}}_{\text{m}} } \right)}} \left( {\text{s}} \right) = {\text{v}}_{{{\text{g}},{\text{sub}}}}^{{{\text{dq}}_{\text{m}} }} \left( {\text{s}} \right) + \left( {{\text{R}} + {\text{j}}\left( {\upomega -\upomega_{\text{m}} } \right)\left( {{\text{L}}_{\text{T}} + {\text{L}}^{{\prime \prime }} } \right)} \right) {\text{i}}_{\text{sub}}^{{\left( {{\text{dq}}_{\text{m}} } \right)}} \left( {\text{s}} \right) + \left( {{\text{K}}_{\text{p}} + \frac{{{\text{K}}_{\text{i}}^{\uplambda} }}{\text{s}}} \right)\left[ {{\text{i}}_{\text{sub}}^{{\left( {{\text{dq}}_{\text{m}} } \right)}} \left( {\text{s}} \right) - {\text{i}}_{\text{sub}}^{{\left( {{\text{dq}}_{\text{m}} } \right) *}} \left( {\text{s}} \right)} \right]$$
(20)
$${\text{I}}_{{{\text{STAT}}_{{{\text{sub}}}} }}^{{\left( {{\text{dq}}_{{\text{m}}} } \right)}} \left( {\text{s}} \right) = {\text{i}}_{{{\text{s}},{\text{sub}}}}^{{{\text{dq}}_{{\text{m}}} }} \left( {\text{s}} \right) + \left[ {\frac{{{\text{v}}_{{{\text{g}},{\text{sub}}}}^{{\left( {{\text{dq}}_{{\text{m}}} } \right)}} \left( {\text{s}} \right)}}{{\left( {{\text{R}} + {\text{j}}\left( {{{\upomega}} - {{\upomega}}_{{\text{m}}} } \right)\left( {{\text{L}}_{{\text{T}}} + {\text{L}}^{{\prime \prime }} } \right)} \right)}}} \right]\left[ {\left( {{\text{v}}_{{{\text{g}},{\text{sub}}}}^{{\left( {{\text{dq}}_{{\text{m}}} } \right)}} \left( {\text{s}} \right) - {\text{v}}_{{{\text{g}},{\text{sub}}}}^{{\left( {{\text{dq}}_{{\text{m}}} } \right)*}} \left( {\text{s}} \right)} \right)\bigg/\left( {{\text{K}}_{{\text{p}}} + \frac{{{\text{K}}_{{\text{i}}}^{{{{\uplambda}}}} }}{{\text{s}}}} \right)} \right]$$
(21)
The Fractional-order PI controller provides the facility for fine tuning of controller to achieve better result as compare to conventional PI controller. With the facility of choosing the appropriate Kp, Ki and λ values, the fine tuning of controller reduces the SSR oscillations with a faster rate. The complete block diagram of subsynchronous frequency component controller is shown in Fig. 3. At First the current and voltage of three-phase are measured from transmission line and further converted into \(\alpha \beta\) –plane, with the help of \(\theta_{f}\)(transformation angle) again converts into to \(dq\)-coordinate system. The outcome of estimation unit is the subsynchronous and fundamental frequency component of current and voltage in \(dq\)-frame. The subsynchronous frequency component in \(dq\)-reference is converted into subsynchronous frequency \({\text{dq}}_{\text{m}}\)-frame with the help of \(\uptheta_{\text{m}}\) (transform angle) which is obtained by integrating \(\upomega_{m}\)(oscillating frequency). The consequential signals are given to the subsynchronous frequency component controller (SSCC).
Fig. 3

Schematic diagram of the subsynchronous frequency component controller

The output of Subsynchronous component controller is again transferred into \(\upalpha \upbeta\) and further transferred to abc and are furthermore given to the Pulse width modulation (PWM) generator which issues firing signals to 3-phase 48 pulse (three-level) GTO based voltage source converters (VSC).

Parameters and specifications of IEEE first benchmark model

To investigate the capability of the proposed control scheme the well-known IEEE FBM with five mass systems has considered and the parameters of the system are shown in Tables 1, 2 and 3. The turbine-generator set of rating 892.4 MVA connected through radial compensated (series) line to an infinite bus and the corresponding voltage is 539 kV of 60 Hz frequency. A Matlab code is developed to outline the natural frequencies of turbine and mode shapes (Anderson et al. 1989; Kundur 1994). The natural frequencies are 1.8002, 16.1335, 24.4785, 32.237, and 47.4563 Hz. For 55 % series compensation the resonant frequency is 28.48 Hz (Kundur 1994).
Table 1

IEEE First benchmark network parameters

Resistance of network

\({\text{R}}_{\text{L}}\)

0.0113 per unit

Reactance of transformer

\({\text{X}}_{\text{T}}\)

0.142 per unit

Transformation ratio



22 kV/539 kV

Reactance of line

\({\text{X}}_{\text{L}}\)

0.50 per unit

Reactance of transmission line

\({\text{X}}_{\text{sys}}\)

0.080 per unit

Table 2

Synchronous machine parameters

Parameter

Value (per unit)

Time constant

Value (sec)

\({\text{X}}_{\text{a}}\)

0.130

\({\text{T}}_{{{\text{d}}0}}^{ '}\)

4.3

\({\text{X}}_{\text{d}}\)

1.79

\({\text{T}}_{{{\text{d}}0}}^{''}\)

0.032

\({\text{X}}_{\text{d}}^{ '}\)

0.169

\({\text{T}}_{{{\text{q}}0}}^{ '}\)

0.85

\({\text{X}}_{\text{d}}^{''}\)

0.135

\({\text{T}}_{{{\text{q}}0}}^{''}\)

0.05

\({\text{X}}_{\text{q}}\)

1.71



\({\text{X}}_{\text{q}}^{ '}\)

0.228



\({\text{X}}_{\text{q}}^{''}\)

0.200


Table 3

IEEE first benchmark shaft parameters

Inertia

\({\text{H }}\left[ {{\text{s}}^{ - 1} } \right]\)

Shaft section

Spring constant [per unit T/rad]

High pressure turbine

0.092897

HP-IP

19.303

Intermediate pressure turbine

0.155589

IP-LPA

34.929

Low pressure A turbine

0.858670

LPA-LPB

52.038

Low pressure B turbine

0.884215

LPB-GEN

70.858

Generator

0.868495


The selection of tuned values for the parameters of PI controller is given in (Bongiorno et al. 2008c) and the FOPI controllers are given in Table 4.
Table 4

Parameters of PI and FOPI controllers

Controllers

\({\text{K}}_{\text{p}}\)

\({\text{K}}_{\text{i}}\)

λ

PI

2.6

8

1

FOPI

1.2

2

0.82

Rating of shunt and series converters of UPFC

A three-phase 48 pulse (three-level) VSC bridge is used for Shunt and Series Converters. The VSC characterized in this research work is a harmonic neutralized 48-pulse GTO based inverter. These arrangements are made to produce harmonic free voltage output by proper connecting 6-pulse VSC’s. 12-pulse configuration is achieved by connecting two 6-pulse VSC’s, two 12-pluse converter are used for a 24-pulse topology and two 24-pulse arrangements are used for obtain a 48-pulse VSC. To produce a 48-pulse waveform with a harmonic content of n = 48 m ± 1, where m = 0, 1, 2, …, the 6-pulse converters requires relative phase displacements accomplished via the gate pulse pattern that determines the angle of the resulting three phase output voltages. Also, PST’s are used and are connected in serially with the phase voltages in the primary side of the MCC transformers to add voltage components in quadrature. These quadrature voltages are obtained from the three phase output voltages of each VSC (Kumar and Ghosh 1999; Hingorani and Gyugyi 2000; Salemnia et al. 2008). The rating of power necessary to diminish the SSR is difficult to conclude and depends on level of compensation (series), duration and location of fault. As the amount of current and voltage components of sub-synchronous frequency is reduced, the Shunt and Series converter rating is also reduced (0.1–5 %). The power rating is 12 MVA and the voltage rating is 8 kV (either capacitor or Direct current source). For an active power of 0.5 pu, the results are obtained and analyzed in the paper.

Results and discussions

FFT analysis

To assess the oscillatory modes of IEEE First Benchmark model, Fast Fourier Transform (FFT) analysis has been made on rotor speed and the corresponding response is shown in Fig. 4a. With 55 % series compensation the electrical resonance frequency coincides with mode 2 of the IEEE FBM, for this the system is unstable. By observing Fig. 4a, there are three modes are present in which mode 2 (24.478 Hz) is more dominant than other two. The torque amplification effect between LPB and Generator for a time interval from 0 to 10 s with division of 3 s in order to clearly observe the dominant mode of SSR and the corresponding results of FFT based analysis without controller is shown in Fig. 4b. The dominant mode (Mode-2) component increases with time as shown in Fig. 4b. Hence there is a requirement of controller to mitigate this adverse, oscillatory and increasing component of instability in the rotor shaft so as to protect the power system from damage.
Fig. 4

The FFT analysis of rotor speed and LPB-Gen Torque signal without controller. a Determination of dominant mode with FFT analysis on rotor speed signal of generator and b FFT analysis on LPB-Gen Torque signal without controller

Figure 5 shows the FFT analysis of LPB and Generator torque signal with controller.
Fig. 5

FFT analysis on LPB-Gen Torque signal with controller

The subsynchronous mode with frequency of 24.8 Hz is reduced (mitigated) with the addition of controller and a small value is at 32.23 Hz which is not harm to the system is shown in Fig. 5.

Stress analysis

Transient disturbance in the generator produces accelerating torque (Ta). Due to this torque, varying stress is produces in the rotor shaft. When this stresses exceeds the endurance limit i.e. 45 × 107 N/m2, the shaft will be damaged. The torsional fatigue of turbine generator shaft is primarily as a function of amplitude of the stress and secondarily on its limit (Kundur 1994). The calculation of mechanical stress needs the calculation of mechanical angle (twist angle between shafts) δ and is as fallows.
$$\left[ {\text{M}} \right]\left[ {{\ddot{\delta }}} \right] + \left[ {{\text{D}}^{{\prime }} } \right]\left[ {{\dot{\delta }}} \right] + \left[ {\text{K}} \right]\left[\updelta \right] = \left[ {{\text{T}}_{\text{m}} } \right] - \left[ {{\text{T}}_{\text{e}} } \right]$$
(22)
where, [M] is diagonal matrix, consisting of inertia of all masses, \(\left[ {{\text{D}}^{{\prime }} } \right]\) is tri diagonal symmetric matrix consisting of, various damping coefficients of the masses, [K] is tri diagonal symmetric matrix consisting of torsional stiffness of various mass sections, [Tm] consists of mechanical torque acting on various masses, [Te] consists of electrical torque produced by various masses.
The mechanical stress or Fatigue between any shaft systems is given as
$${\text{F}} = \left\{ {\left( {\updelta_{\text{i}} -\updelta_{{{\text{i}} + 1}} } \right) \times {\text{G}} \times {\text{R}}} \right\}/{\text{L}}\quad \left( {{\text{where}}\;{\text{i}} = 1\;{\text{to}}\;5} \right)$$
(23)
where F: Fatigue or Mechanical stress in N/m2, δi, δi+1: twist angle of ith mass to the (i + 1)th mass in radians, G: modulus of rigidity in N/m2; L: length of shaft in meters; R: radius of shaft in meters.

Simulation results

To realize the performance of the suggested control scheme to diminish the SSR due to Torque Amplification, the IEEE FBM with STATCOM and UPFC has been simulated using Matlab-Simulink software. A three-phase fault is applied to the grid at 1 s for time duration of 0.05 s with 55 % series compensation. The simulation results are shown for three cases, without controller, with PI and with FOPI based STATCOM and UPFC controller. After the clearance of fault at 1.05 s the system has to regain its previous state that is the turbine-generator shaft oscillations are at normal level.

Under subsynchronous resonance condition the system is very sensitive, further a small fault or disturbance causes large amplification of turbine-generator oscillations and furthermore increases the stress and twist between the shaft sections that will damage the entire system. Figures 6, 7 and 8 show the simulated Torque and Stress between LPB-Generator shaft without controller and with STATCOM and UPFC controller. Due to the unstable mode, when the fault is cleared, large oscillations will be experienced between the different sections of the turbine-generator shaft. Figure 6a shows the torque and stress between LPB and Generator without controller. For the sake of simplicity the torque and stress between remaining shaft systems experience the same and are not shown. The torque and stress increases with a fast rate after fault clearance which will damage the turbine shaft system. The torque between LPB and Generator increases to 75 times and the stress increases to 75 × 107 N/m2 which will damage the entire shaft system. To avoid the damage due to torque amplification effect of SSR the PI controller based STATCOM or UPFC is connected to the line. The PI based STATCOM injects a shunt current or simultaneous injection of shunt current and series voltage with UPFC into the line in order to reduce the capacitive reactance from the capacitor bank and further shift the electrical resonance of the system, thus avoiding the risk of SSR. The simultaneous injection of shunt current and series voltage with UPFC, the turbine oscillations and stress are reduced to such a low value about 94 % as compared to without controller. With PI based STATCOM controller the torque between LPB and Generator is reduced from 2.2 to 0.3 pu and further reduced from 0.46 to 0.09 pu in case of UPFC. Similarly the Mechanical stress between LPB and Generator is reduced from 2.2 × 107 to 0.4 × 107 N/m2 with STATCOM and 0.45 to 0.06 × 107 N/m2 with UPFC for a time interval of 10 s shown in Figs. 6b and 7b. With the facility of fractional tuning of FOPI controller the torque between LPB and Generator is further reduced from 2.1 to 0.28 pu in case of STATCOM and from 0.42 to 0.08 pu with UPFC. Similarly the Mechanical stress is furthermore reduced from 2.1 × 107 to 0.34 × 107 N/m2 in case of STATCOM and from 0.42 × 107 to 0.05 × 107 N/m2 in case of UPFC for a time interval of 10 s shown in Figs. 7a and 8.
Fig. 6

Simulated Torque and Stress between LPB-Generator of IEEE first benchmark model without controller and with PI based STATCOM controller. a Without controller and b With PI based STATCOM controller

Fig. 7

Simulated Torque and Stress between LPB-Generator of IEEE first benchmark model with FOPI based STATCOM and PI based UPFC controllers. a With FOPI based STATCOM controller and b With PI based UPFC controller

Fig. 8

Simulated Torque and Stress between LPB-Generator of IEEE first benchmark model with FOPI based UPFC controller. With FOPI based UPFC controller

Figures 9, 10 and 11 show the change in Electromagnetic torque and Rotor speed without and with controllers. Without controller both are increasing drastically will lead to shaft damage of Turbine-Generator set shown in Fig. 9a. The Electromagnetic torque increases to 1.8 times and the rotor speed also increases to 1.28 times which is beyond the tolerable limit of Turbine-Generator Shaft system. Figures 9b and 10b show the reduction of change in Electromagnetic torque to a safe value from 0.9 to 0.05 and 0.27 to 0.01 pu and similarly the change in Rotor speed from 1.008 to 1.002 and 1.0015 to 1.001 pu with PI based STATCOM and UPFC controllers for a time interval of 10 s. With the use of FOPI instead of PI controller the change in Electromagnetic torque is further reduced from 0.86 to 0.04 and 0.25 to 0.01pu and the change in Rotor speed are also reduced from1.0077 to1.0018 pu and 1.0012 to 1.001 in case of STATCOM and UPFC for a time interval of 10 s shown in Figs. 10a and 11.
Fig. 9

Change in Electro-Magnetic torque and change in Rotor speed of IEEE first benchmark model without controller and with PI based STATCOM controller. a Without controller and b With PI based STATCOM controller

Fig. 10

Change in Electro-Magnetic torque and change in Rotor speed of IEEE first benchmark model with FOPI based STATCOM and PI based UPFC controllers. a With FOPI based STATCOM controller and b With PI based UPFC controller

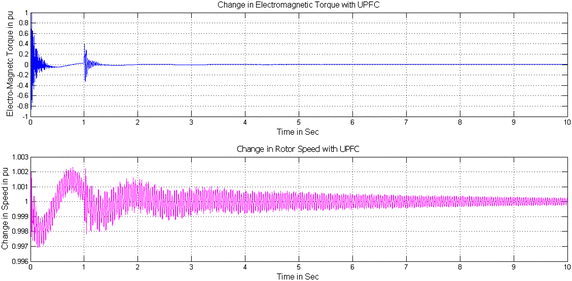

Fig. 11

Change in Electro-Magnetic torque and change in Rotor speed of IEEE first benchmark model with FOPI based UPFC controller. With FOPI based UPFC controller

By considering the Figs. 9b, 10a, b and 11 the conclusion is that both the controllers reduce the effect of SSR on Electromagnetic torque and Rotor speed and further the FOPI based controllers are more effective than conventional PI based controllers.

Figures 12 and 13 show the Current injected by STATCOM and simultaneous injection of current and voltage by UPFC controllers during three-phase fault to mitigate the SSR with PI and FOPI controllers. The magnitude of injection current by PI based STACOM is 1700 A and the magnitude of simultaneous injection of current and voltage with PI based UPFC is approximately 600 A and 100 V during fault period shown in Figs. 12a, 13a. The magnitude of injected current of STATCOM is reduced to 1600 A and simultaneous injection of current and voltages of UPFC is reduced to approximately 550 A and 60 V during fault period with FOPI based controller shown in Figs. 12b, 13b respectively.
Fig. 12

Injected currents of PI and FOPI based STATCOM controllers during three-phase fault to mitigate the SSR. a Current injected by PI based STATCOM controller and b Current injected by FOPI based STATCOM controller

Fig. 13

Current and voltage injected by PI and FOPI based UPFC controllers during three-phase fault to mitigate the SSR. a Shunt current and series voltage injected by PI based UPFC controller and b Shunt current and series voltage injected by FOPI based UPFC controller

Due to reduction of injected current by STATCOM and simultaneous injected current and voltage by UPFC the burden on converters are further reduced. This is the additional achievement of the proposed Fractional-order PI control scheme. Table 5 gives the comparison of various performance indexes of IEEE first bench mark model with PI and FOPI based STATCOM and UPFC. The table gives the complete idea of reduction of various performance indexes of IEEE first benchmark model with PI and FOPI based controllers for a simulation time interval of 10 s.
Table 5

Comparison of different performance indexes of IEEE first benchmark model with PI and with FOPI based STATCOM and UPFC controllers

1. LPB-GEN Torque (per unit)

With PI based controller the torque is reduced from 2.2 to 0.3 pu in case of STATCOM and from 0.46 to 0.09 pu with UPFC for a time interval of 1.05 s to 10 s. The torque is further more reduced with FOPI controller from 2.1 to 0.28 pu in case of STATCOM and from 0.42 to 0.08 in case of UPFC

2. LPB-GEN Stress (107 N/m2)

The Mechanical stress between LPB and Generator is reduced from 2.2 × 107 to 0.4 × 107 N/m2 and 0.45 to 0.06 × 107 N/m2 with PI based STATCOM and UPFC for a time interval of 1.05 to 10 s. Much more reduction of stress is obtained with the help of FOPI based controller from 2.1 × 107 to 0.34 × 107 N/m2 and from 0.45 to 0.05 × 107 N/m2 in case of STATCOM and UPFC

3. Change in Electro-Magnetic Torque (per unit)

The Electromagnetic torque is reduced and reaches to a safe value from 0.9 to 0.05 and 0.27 to 0.01 pu with PI based STATCOM and UPFC controllers for a time interval of 1.05 to 10 s. With the use of FOPI in place of PI controller the change in Electromagnetic torque is further reduced from 0.86 to 0.04 pu and 0.25 to 0.01pu in case of STATCOM and UPFC

4. Change in Rotor Speed (per unit)

Without SSR controller the rotor speed is changes from 1.05 to 1.28 times. The change in Rotor speed is reduced from 1.008 to 1.002 and 1.0015 to 1.001 pu with PI based STATCOM and UPFC controllers for a time interval of 1.05 to 10 s. The use of FOPI in place of PI controller the change in Rotor speed is further reduced from1.0077 to1.0018 pu and 1.0012 to 1.001 with STATCOM and UPFC

By observing the Table 5 the FOPI based UPFC controller is more effective and faster in mitigation of Torque amplification due to SSR as compared to PI based STATCOM, UPFC and FOPI based STATCOM controllers.

Conclusion

In this work, a robust Fractional-order PI based STATCOM and UPFC controllers are developed to diminish the oscillations in turbine-generator shaft due to torque amplification effect of SSR. Based on the control system the mitigation of subsynchronous resonance is achieved by raising the damping of network with proper estimation and injection of subsynchronous component quantities into the line using UPFC and the results are compared with STATCOM controller. For the system studied, the superiority of proposed FOPI based controller is demonstrated by comparing the results of conventional PI controller for all cases. From the proposed study, it was observed that, fine and fast SSR mitigation is achieved by Fractional-order PI controller based UPFC as compared to conventional PI based STATCOM, UPFC and Fractional order PI based STATCOM controllers. Moreover, the performance of proposed controller is evaluated under three-phase fault with different performance indices namely; torque and mechanical stress between LPB-Generator, change in electromagnetic torque and change in rotor speed.

Declarations

Authors’ contributions

DKR carried out the design of PI and FOPI based STATCOM and UPFC controllers to mitigate the SSR. BSU and ASJ performed the mathematical analysis, mode shapes and dominant mode of turbine generator shaft under SSR condition. MPT, RM and CS performed the analysis of mechanical stress between LPB and Generator. All authors read and approved the final manuscript.

Acknowledgements

The authors are very thankful for the facilities provided by the Department of Electrical Engineering, VNIT, Nagpur to carry out their research work.

Competing interests

The authors declare that they have no competing interests.

Authors’ information

D. Koteswara Raju recieved the B.Tech. degree in Electrical and electronics engineering from JNTU Hyderabad, India and M.Tech. degree in Power system engineering from Acharya Nagarjuna University (ANU), Vijayawada, Andhrapradesh, India in 2006 and 2009 respectively. He had been with RVR&JC College of engineering from June 2009 to May 2011 and Gudlavalleru engineering college from June 2011 to Till date as an Assistant professor in Electrical and Electronics Engineering Department. At present he is pursing Ph.D. from Visvesvaraya National Institute of Technology, Nagpur, India. His research interests include power system protection, operation and control; Bhimrao S. Umre is working as Associate professor in the Department of Electrical Engineering, Visvesvaraya National Institute of Technology Nagpur. He received the B.E., M.Tech. and Ph.D. from Govt. College of Engineering, Visvesvarya Regional College of Engineering and RSTM of Nagpur University, India in 1983, 1986 and 2009 respectively. His research interests include electrical machines, power system operation, control and torsional oscillations; Anjali S. Junghare is working as Associate professor in the Department of Electrical engineering, Visvesvaraya National Institute of Technology, Nagpur. She has recieved the B.E., M.Tech. and Ph.D. from Visvesvaraya National Institute of Technology, Nagpur, India in 1981, 1985 and 2008, respectively. Her research interests include control systems, power system operation and control; Mohan P. Thakre received the B.Tech. and M.Tech. degree in electrical engineering from Dr. Babasaheb Ambedkar Technological University, Raigad, India, in 2009 and 2011, respectively. He is awaiting Ph.D. degree in power system protection from Visvesvaraya National Institute of Technology, Nagpur, India. His area of research interest includes power system protection, operation and control ; Rambabu Motamarri received the B.E and M.Tech in electrical and electronics engineering and power electronics and drives from Chaitanya Engineering College, Andhra Pradesh and Visvesvaraya National Institute of Technology, Nagpur, India in 2010 and 2013 respectively. His research interests include application of power electronics  in power system operation and control; Chaitanya Somu received the M.Tech. in power electronics and drives from Visvesvaraya National Institute of Technology, Nagpur, India from Visvesvaraya National Institute of Technology, Nagpur, India in 2014. At present he is working as Assistant professor in EEE Department in Aditya Engineering college, Kakinada, Andhrapradesh, India. His area of research interest includes Application of power electronics in power system operation and control.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Electrical Engineering, VNIT
(2)
Electrical and Electronics Engineering Department, Aditya Engineering College

References

  1. Anderson PM, Agrawal BL, Ness JV (1989) Subsynchronous resonance in power systems. IEEE Press, New YorkGoogle Scholar
  2. Bongiorno M, Svensson J, Ängquist L (2008a) Online estimation of sub-synchronous voltage components in power systems. IEEE Trans Power Delivery 239(01):410–418View ArticleGoogle Scholar
  3. Bongiorno M, Ängquist L, Svensson J (2008b) A novel control strategy for subsynchronous resonance mitigation. IEEE Trans Power Electron 23(02):735–743View ArticleGoogle Scholar
  4. Bongiorno M, Svensson J, Ängquist L (2008c) Single-phase VSC Based SSSC for subsynchronous resonance damping. IEEE Trans Power Deliv 23(03):1544–1552View ArticleGoogle Scholar
  5. Cao J-Y, Cao B-G (2006) Design of fractional order controller based on particle swarm optimization. Int J Control Autom Syst 4(06):775–781Google Scholar
  6. Das Shantanu (2008) Functional fractional calculus for system identification and controls. Springer, BerlinMATHGoogle Scholar
  7. Hingorani NG, Gyugyi L (2000) Understanding FACTS: concepts and technology of flexible ac transmission systems. IEEE Press, New YorkGoogle Scholar
  8. IEEE, SSR Working Group (1985) Terms, definitions and symbols for sub-synchronous oscillations. IEEE Trans Power Appl Syst 06:1326–1334Google Scholar
  9. Koteswara Raju D, Umre BS, Junghare AS, Thakre MP, Kale VS (2016) Mitigation of Subsynchronous oscillations with common controller based statcom and SSSC. J Electr Eng Electron Technol 5(1):1–11Google Scholar
  10. Kumar LS, Ghosh A (1999) Modeling and control design of a static synchronous series compensator. IEEE Trans Power Delivery 14(04):1448–1453View ArticleGoogle Scholar
  11. Kundur P (1994) Power system stability and control. McGraw-Hill Inc., New YorkGoogle Scholar
  12. Padiyar KR (1998) Analysis of sub-synchronous resonance in power systems. Springer, BerlinGoogle Scholar
  13. Padiyar KR, Prabhu N (2006) Design and performance evaluation of sub-synchronous damping controller with STATCOM. IEEE Trans Power Delivery 21(03):1398–1405View ArticleGoogle Scholar
  14. Padiyar KR, Swayam Prakash V (2003) Tuning and performance evaluation of damping controller for a STATCOM. Int J Electr Power Energy Syst 25:155–166View ArticleGoogle Scholar
  15. Panda S, Swain SC, Rautray PK, Malik RK, Panda G (2010) Design and analysis of SSSC-based supplementary damping controller. Simul Model Pract Theory 18:1199–1213View ArticleGoogle Scholar
  16. Panda S, Baliarsingh AK, Mahapatra S (2016) Supplementary damping controller design for SSSC to mitigate sub-synchronous resonance. Mech Syst Signal Process 68–69:53–535Google Scholar
  17. Pisoni E, Visioli A, Dormido S (2009) An interactive tool for fractional order PID controllers. In: IECON proceedings, pp 1470–1475Google Scholar
  18. Podlubny Igor (1999) Fractional-order systems and PIλDμ controllers. IEEE Trans Autom Control 44:208–214MathSciNetView ArticleMATHGoogle Scholar
  19. Salemnia A, Khederzadeh M, Ghorbani A (2008) Mitigation of subsynchronous oscillations by 48-pulse VSC STATCOM using remote signal. In: IEEE Bucharest Power Tech, pp 1–7Google Scholar
  20. Thakre MP, Koteswara Raju D, Umre BS et al (2015) Study and mitigation of subsynchronous oscillations with SSC based SSSC. J Power Energy Eng 03:33–43View ArticleGoogle Scholar
  21. Thirumalaivasan R, Janaki M, Prabhu N (2013) Damping of SSR using subsynchronous current suppressor with SSSC. IEEE Trans Power Syst 28(01):64–74View ArticleGoogle Scholar
  22. Umre BS, Khedkar MK et al (2007) Application of STATCOM for reducing stresses due to torsional oscillations in turbine-generator shaft. In: IEEE conference, pp 865–869, Feb. 2007Google Scholar

Copyright

© The Author(s) 2016
