Open Access

Association between SNP12 in estrogen receptor α gene and hypospadias: a systematic review and meta-analysis

SpringerPlus20165:587

https://doi.org/10.1186/s40064-016-2288-0

Received: 9 March 2016

Accepted: 5 May 2016

Published: 11 May 2016

Abstract

To investigate the association between single nucleotide polymorphism 12 in estrogen receptor α gene and hypospadias, four databases (PubMed, Web of Science, Embase and Cochrane Library) were electronically searched by 2nd November 2015. Finally, four studies were included for our meta-analysis, involving 1379 cases and 1648 controls. A quality assessment was performed using the Newcastle–Ottawa Scale of case–control study. Meta-analysis and publication bias measuring were all done by Stata 12.0. No significant publication bias (PBegg = 0.296, PEgger = 0.161) was found. Overall, there was statistically significant association for recessive genetic model (AA vs. GA + GG: OR 3.45, 95 % CI [1.89, 6.30], P = 0.038). Moreover, the positive result was confirmed using trial sequential analysis even only three original studies. For allele model, there was also statistically significant association (allele A vs. G: OR 1.43, 95 % CI [1.23, 1.67], P = 0.034). Meanwhile, A allele as a risk factor turned out to be true positive by trial sequential analysis. In a word, this meta-analysis suggested that the single nucleotide polymorphism 12 definitely increase the risk of hypospadias.

Keywords

ESR1 SNP12 Hypospadias Meta-analysis Trail sequential analysis

Background

Hypospadias is the second most common congenital malformations of the male external genitalia among male newborns, in which the urinary opening is located along the ventral side of the penis. The prevalence of hypospadias varies widely between countries and populations, ranging from 3.9 to 43.2 cases per 10,000 births (Kurahashi et al. 2004; Nassar et al. 2007). Hypospadias occurs most frequently in whites, less frequently in blacks and rates are lowest among Asians and Hispanics (Carmichael et al. 2003, 2007; Yang et al. 2004; Nelson et al. 2005; Porter et al. 2005).

The etiology of hypospadias is unclear in most of the cases, which is probably regarded as a complex disorder with several genes, hormonal environment and their interaction (Kalfa et al. 2010; van der Zanden et al. 2012). In the past decades, the hypospadias susceptibility genes research mainly concentrated in both the gene of male gender differentiation and androgen receptors. On the one hand, studies focused on genes associated with sex differentiation involving SRY, SOX9, DAX1 and WT1 (Diller et al. 1998; Domenice et al. 1998; Kaefer et al. 1999). On the other hand, studies concentrated on luteinizing hormone (LH) receptor gene, testosterone synthase genes, 5α reductase gene and androgen receptor gene (Silver and Russell 1999; Latronico 2000).

In recent years, estrogen receptor (ER) related gene with hypospadias is a new research hotspot, especially estrogen receptor α gene (ESR1). ESR1 is on chromosome 6, which expresses in most cells of the male urethra (Dietrich et al. 2004). Previous studies have investigated the association between SNP 12 (rs6932902) and hypospadias. One study (van der Zanden et al. 2010) suggested that SNP 12 borderline associated with hypospadias. But another three studies (Watanabe et al. 2007; Tang et al. 2011; Choudhry et al. 2015) identified that ESR1 associated with significantly increased risk of hypospadias. However, the results of the original studies were inconsistent and the sample sizes were small. Therefore, in order to overcome the limitation of individual studies, we performed this meta-analysis to provide a more precise and comprehensive estimation.

Methods

Data source

Four databases (PubMed, Web of Science, Embase and Cochrane Library) were electronically searched to retrieve studies on the associations between SNP12 in ESR1 and hypospadias by 2nd November 2015. Searching terms were: (‘estrogen receptor’ OR ‘ESR1’ OR ‘ESR1 single-nucleotide polymorphism12’ OR ‘rs6932902’) AND (‘male genital abnormalities’ OR ‘hypospadias’). In additional, we checked the reference lists of retrieved reviews to identify more pertinent studies.

Inclusion criteria

Titles and abstracts of all relevant papers were reviewed firstly. Then, full-texts were reviewed as a second screening. The studies were considered eligible if they met all of the following criteria: (1) the study explored the relationship between ESR1 polymorphism and hypospadias; (2) the ESR1 polymorphism was tested in the study; (3) the papers identified the odds ratio (OR) and the 95 % confidence interval (CI) or other information that can help to infer the target data; (4) the study design was a case–control study; (5) when multiple publications reported on the same or overlapping data, the most recent article or the article based on the largest study population was selected; (6) the publication language was English.

Exclusion criteria

Studies met any of the following exclusion criteria were excluded: (1) researches based on animals or cells rather than general population; (2) reviews, editorials, meeting abstracts, and commentaries; (3) articles with no target data or no relevant outcomes.

Data extraction and quality assessment

Two reviewers (Changkai Deng and Rong Dai) independently searched the literatures and selected the papers; then, they extracted the relevant data in accordance with the pre-formed data extraction form. Disagreements were solved by discussion and a third party (Xuliang Li and Feng Liu) was involved when necessary. The basic information was extracted from each article: first author, year of publication, country where study was conducted, ethnicity of subjects, sample size of case and control groups, demographic characteristics of case and control groups (age), study design, method of genotyping assay, deviation from Hardy–Weinberg Equilibrium (HWE).

Quality assessment was conducted for each article by using the Newcastle–Ottawa Scale of case–control study. The quality of the studies was evaluated by examining three items: selection of case and controls, comparability of groups and ascertainment of exposure. Studies were graded on an ordinal star scoring scale with higher scores representing studies of higher quality. A study can be awarded a maximum of one star for each numbered item within the selection and exposure categories and a maximum of two stars can be given for the comparability of the two groups. The quality of each study was graded as high quality (7–9) and low quality (1–4). For the present studies, Changkai Deng and Rong Dai scored each included study independently.

Statistical analyses

ORs with their 95 % CIs for alleles and genotypes were used to assess the strength of association between the SNP12 in ESR1 and hypospadias. Heterogeneity among included studies was checked by Chi square-based Q test and I 2 test. If the data showed low heterogeneity (P > 0.05, I2 < 50 %), Mantel–Haenszel fix effect model was used, otherwise DerSimonian–Laird random effect model was used. The pooled ORs were performed for the allele contrast (A vs. G) and recessive genetic model (AA vs. GA + GG). HWE was tested for included studies using an online HWE calculation tool and publication bias was assessed by Egger’s linear regression test. Data were analyzed using Stata 12.0. A P value of 0.05 for any test or model was considered to be statistically significant unless otherwise specified.

Publication bias

Potential publication bias was assessed by the Begg rank correlation test and Egger linear regression test using the software of Stata 12.0.

Trail sequential analysis (TSA)

TSA can adjust the threshold for statistical significance according to the quantified strength of evidence and the impact of multiplicity. A meta-analysis may result in type I errors and type II errors if data are sparse or if there is repeated testing for significance when new trials are added (Brok et al. 2008; Borm and Donders 2009; Wetterslev et al. 2009). To minimize the risk of type I errors, TSA combines conventional meta-analysis methodology with meta-analytic sample size considerations and methods for repeated significance testing on accumulating data in trials. The trial sequential analysis was performed to maintain an overall 5 % risk of a type I error and 20 % of the type II error. We applied a constant continuity correction of 0.5 in the no event trial.

Results

Literature search

We initially identified 697 potentially eligible studies. Most of them were excluded after the screening of titles and abstracts. The main excluded reason was duplication, reviews, non population-based studies or irrelevant to SNP12 in ESR1 and hypospadias. After assessing the full-text of eight potentially relevant articles, we identified four eligible articles. The main reasons for exclusion were as follow: one study was lack of target data; one study was no relevant outcome and two studies reported on the same or overlapping data (Fig. 1).

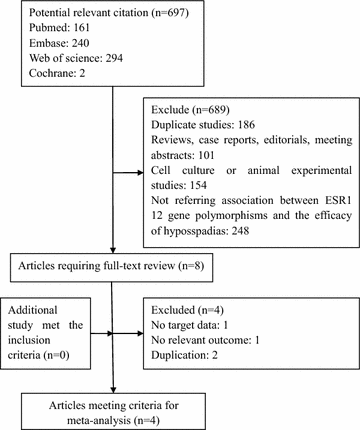

Fig. 1

Flow chart of literature selection. Six hundred and ninety-seven publications were excluded after screening of titles and abstracts. Four eligible articles were excluded from eight relevant articles included in our full-text selection. The reasons for exclusion were as follow: one study was lack of target data; one study was no relevant outcome and two studies reported on the same or overlapping data. Finally, we identified four eligible articles

Study characteristics

Four studies with 1379 cases and 1648 controls were included in the analysis. The basic characteristics of included studies are presented in Table 1. All studies were published between 2007 and 2015. The included studies were conducted in China, Dutch, Japan and the USA, respectively. Moreover, the studies involve Caucasian, Chinese, Japanese, Hispanic and White. All the included studies were case–control studies.
Table 1

Characteristic of the included studies

First author

Year

Setting

Ethnicity

Sample size (T/C)

Age (years) (T/C)

Design

Genotyping assay

Score

HWE

χ 2

P

L. F. van der Zanden

2010

Dutch

Caucasian

617/596

NA

Case–control

TaqMan

6

0.000

0.982

M. Watanabe

2007

Japan

Japanese

43/135

0–27/4–16 and 24–50

Case–control

PCR

8

1.520

0.218

K. F. Tang

2011

China

Chinese

72/40

2–19/1–15

Case–control

PCR

7

0.500

0.480

S. Choudhry

2015

USA

Hispanic and White

647/877

NA

Case–control

NA

8

NA

NA

NA not available, HWE Hardy–Weinberg equilibrium, PCR polymerase chain reaction, T case group, C control group

Quantitative data synthesis

The main results of this meta-analysis and the heterogeneity tests are presented in Figs. 2 and 3. Overall, a significant association between SNP12 and hypospadias was found for the allele contrast (allele A vs. G: OR 1.43, 95 % CI [1.23, 1.67], P = 0.034) and recessive genetic model (AA vs. GA + GG: OR 3.45, 95 % CI [1.89, 6.30], P = 0.038).
Fig. 2

Forest plot of SNP12 and hypospadias risk in allele model. Studies are plotted according to the first author’s name and publication year. Horizontal lines represent 95 % CI. Each square represents the OR point estimate and its size is proportional to the weight of the study. The diamond (and broken line) represents the overall summary estimate, with confidence interval given by its width. The unbroken vertical line is at the null value (OR 1). CI confidence interval, OR odds ratio

Fig. 3

Forest plot of SNP12 and hypospadias risk in recessive genetic model. Studies are plotted according to the first author’s name and publication year. Horizontal lines represent 95 % CI. Each square represents the OR point estimate and its size is proportional to the weight of the study. The diamond (and broken line) represents the overall summary estimate, with confidence interval given by its width. The unbroken vertical line is at the null value (OR 1). CI confidence interval, OR odds ratio

Publication bias

The results of the Begg’s rank correlation test and Egger’s linear regression test supported the conclusion of no significant publication bias (PBegg = 0.296, PEgger = 0.161).

Trail sequential analysis (TSA)

We calculated the required information size to 5061 patients for allel gene model and found that A allele as a risk factor turned out to be positive (Fig. 4) As for recessive genetic model, we calculated the required information size to 2829 patients and the positive result was confirmed (Fig. 5).
Fig. 4

Result of TSA for allele model. Required information size was 5061 patients (α = 5 %, β = 20 %). The blue cumulative Z-curve crosses the inward sloping red trial sequential monitoring boundary for benefit during the second trial but does not reach the required information size. The horizontal green lines illustrate the conventional level of statistical significance (two-sided α = 0.05), which was intersected after the first trial. Square symbol z-score for single study, diamond symbol trial sequential monitoring boundary for benefit score for single study

Fig. 5

Result of TSA for recessive gene model. Required information size was 2829 patients (α = 5 %, β = 20 %). The blue cumulative Z-curve crosses the inward sloping red trial sequential monitoring boundary for benefit during the second trial but does not reach the required information size. The horizontal green lines illustrate the conventional level of statistical significance (two-sided α = 0.05), which was intersected after the first trial. Square symbol z-score for single study, diamond symbol trial sequential monitoring boundary for benefit score for single study

Discussion

Hypospadias is congenital malformations of the male external genitalia. The etiology of hypospadias is a complex disorder involving several genes, hormonal environment and their interaction. It is claimed that disruption in androgen and estrogen balance, made by endocrine disrupting chemicals (EDCs) during fetal development may result in formation of abnormal male urethra (Toppari and Skakkebaek 1998; Baskin et al. 2001; Steinhardt 2004; Vidaeff and Sever 2005). Consistent with this theory, association of estrogen including fetal exposure to diethylstilbestrol, a synthetic estrogenic compound, has been associated with higher occurrence of hypospadias in humans (Swan 2000; Kalfa et al. 2011). Estrogen is taken up by a cell via ESR1 which is ligand-activated transcription factor composed of several domains important for hormone binding. ESR1 has been reported to be functionally active in human fetal penile smooth muscle cells (Crescioli et al. 2003; Dietrich et al. 2004). In recent years, some studies have investigated the relationship between the SNP12 in ESR1 and hypospadias, but there exit inconsistency among all results. Thus, in this meta-analysis, our goal was to determine whether the SNP12 in ERS1 gene associated with hypospadias.

We included fours studies with 1379 cases and 1648 controls in this Meta-analysis finally. Overall, our meta-analysis has increased the power to detect a potential association and provides more reliable estimates. Furthermore, publication bias is not present in this study. The pooled OR of recessive genetic model (AA vs. GA + GG) is 3.45 (1.89, 6.30) and allele contrast (A vs. G) is 1.43 (1.23, 1.67). The results indicate that there is significant association between SNP12 in ESR1 and hypospadias. It suggests that AA in recessive genetic model and allele A in allele model both are risk factors to hypospadias. However some authors have suggested that conventional meta-analysis should not be trusted without further evaluation, as cumulative meta-analyses of trials are at risk of producing random errors because of sparse data and repetitive testing of accumulating data (Wetterslev et al. 2008; Higgins et al. 2011). Therefore, we challenged the meta-analyses with the application of TSA that widens the CIs in case the data are too sparse to draw firm conclusions. With this strict approach the increased risk of AA in recessive genetic model remained statistically significant, even though there were merely three original studies. Meanwhile, the result of TSA indicated that A allele as a risk factor turned out to be true positive. In conclusion, our study provides evidence that SNP12 in ESR1 influence the risk of hypospadias.

Limitations

In this meta-analysis, there are some limitations which may influence the findings. Firstly, we focused on individual SNP. Polymorphisms occur at low frequencies in many ethnic groups and are unlikely to explain the variation in response when considered alone. Secondly, our meta-analysis has not taken the possibility of SNP–SNP, gene–gene or gene–environment interactions into consideration.

Conclusion

This meta-analysis suggested that the single nucleotide polymorphism 12 definitely increase the risk of hypospadias.

Declarations

Authors’ contributions

CD and RD carried out the genetic studies and drafted the manuscript. XL and RD participated in the design of the study and performed the statistical analysis. FL and CD conceived of the study, and participated in its design and coordination and helped to draft the manuscript. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Ethical approval

This article does not contain any studies with human participants or animals performed by any of the authors.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Pediatric Surgery, Chengdu Women’s and Children’s Central Hospital
(2)
Department of Urology Surgery, Children’s Hospital of Chongqing Medical University, Ministry of Education Key Laboratory of Child Development and Disorder, Key Laboratory of Pediatrics in Chongqing (CSTC2009CA5002), Chongqing International Science and Technology Cooperation Center for Child Development and Disorders
(3)
Chengdu Center for Disease Control and Prevention

References

  1. Baskin LS, Himes K, Colborn T (2001) Hypospadias and endocrine disruption: is there a connection? Environ Health Perspect 109:1175–1183View ArticleGoogle Scholar
  2. Borm GF, Donders AR (2009) Updating meta-analyses leads to larger type I errors than publication bias. J Clin Epidemiol 62:825–830View ArticleGoogle Scholar
  3. Brok J, Thorlund K, Gluud C, Wetterslev J (2008) Trial sequential analysis reveals insufficient information size and potentially false positive results in many meta-analyses. J Clin Epidemiol 61:763–769View ArticleGoogle Scholar
  4. Carmichael SL, Shaw GM, Nelson V, Selvin S, Torfs CP, Curry CJ (2003) Hypospadias in California: trends and descriptive epidemiology. Epidemiology 14:701–706View ArticleGoogle Scholar
  5. Carmichael SL, Shaw GM, Laurent C, Olney RS, Lammer EJ, National Birth Defects Prevention Study (2007) Maternal reproductive and demographic characteristics as risk factors for hypospadias. Paediatr Perinat Epidemiol 21:210–218View ArticleGoogle Scholar
  6. Choudhry S, Baskin LS, Lammer EJ, Witte JS, Dasgupta S, Ma C, Surampalli A, Shen J, Shaw GM, Carmichael SL (2015) Genetic polymorphisms in ESR1 and ESR2 genes, and risk of hypospadias in a multiethnic study population. J Urol 193:1625–1631View ArticleGoogle Scholar
  7. Crescioli C, Maggi M, Vannelli GB, Ferruzzi P, Granchi S, Mancina R, Muratori M, Forti G, Serio M, Luconi M (2003) Expression of functional estrogen receptors in human fetal male external genitalia. J Clin Endocrinol Metab 88:1815–1824View ArticleGoogle Scholar
  8. Dietrich W, Haitel A, Huber JC, Reiter WJ (2004) Expression of estrogen receptors in human corpus cavernosum and male urethra. J Histochem Cytochem 52:355–360View ArticleGoogle Scholar
  9. Diller L, Ghahremani M, Morgan J, Grundy P, Reeves C, Breslow N, Green D, Neuberg D, Pelletier J, Li FP (1998) Constitutional WT1 mutations in Wilms’ tumor patients. J Clin Oncol 16:3634–3640Google Scholar
  10. Domenice S, Yumie Nishi M, CorreiaBillerbeck AE, Latronico AC, Aparecida Medeiros M, Russell AJ, Vass K, Marino Carvalho F, Costa Frade EM, Prado Arnhold IJ, Mendonca BB (1998) A novel missense mutation (S18N) in the 5′ non-HMG box region of the SRY gene in a patient with partial gonadal dysgenesis and his normal male relatives. Hum Genet 102:213–215View ArticleGoogle Scholar
  11. Higgins JP, Whitehead A, Simmonds M (2011) Sequential methods for random-effects meta-analysis. Stat Med 30:903–921View ArticleGoogle Scholar
  12. Kaefer M, Diamond D, Hendren WH, Vemulapalli S, Bauer SB, Peters CA, Atala A, Retik AB (1999) The incidence of intersexuality in children with cryptorchidism and hypospadias: stratification based on gonadal palpability and meatal position. J Urol 162:1003–1006View ArticleGoogle Scholar
  13. Kalfa N, Sultan C, Baskin LS (2010) Hypospadias: etiology and current research. Urol Clin N Am 37:159–166View ArticleGoogle Scholar
  14. Kalfa N, Paris F, Soyer-Gobillard MO, Daures JP, Sultan C (2011) Prevalence of hypospadias in grandsons of women exposed to diethylstilbestrol during pregnancy: a multigenerational national cohort study. Fertil Steril 95:2574–2577View ArticleGoogle Scholar
  15. Kurahashi N, Murakumo M, Kakizaki H, Nonomura K, Koyanagi T, Kasai S, Sata F, Kishi R (2004) The estimated prevalence of hypospadias in Hokkaido, Japan. J Epidemiol 14:73–77View ArticleGoogle Scholar
  16. Latronico AC (2000) Naturally occurring mutations of the luteinizing hormone receptor gene affecting reproduction. Semin Reprod Med 18:17–20View ArticleGoogle Scholar
  17. Nassar N, Bower C, Barker A (2007) Increasing prevalence of hypospadias in Western Australia, 1980–2000. Arch Dis Child 92:580–584View ArticleGoogle Scholar
  18. Nelson CP, Park JM, Wan J, Bloom DA, Dunn RL, Wei JT (2005) The increasing incidence of congenital penile anomalies in the United States. J Urol 174:1573–1576View ArticleGoogle Scholar
  19. Porter MP, Faizan MK, Grady RW, Mueller BA (2005) Hypospadias in Washington State: maternal risk factors and prevalence trends. Pediatrics 115:e495–e499View ArticleGoogle Scholar
  20. Silver RI, Russell DW (1999) 5Alpha-reductase type 2 mutations are present in some boys with isolated hypospadias. J Urol 162:1142–1145View ArticleGoogle Scholar
  21. Steinhardt GF (2004) Endocrine disruption and hypospadias. Adv Exp Med Biol 545:203–215View ArticleGoogle Scholar
  22. Swan SH (2000) Intrauterine exposure to diethylstilbestrol: long-term effects in humans. Apmis 108:793–804View ArticleGoogle Scholar
  23. Tang KF, Zheng JZ, Xing JP (2011) Molecular analysis of SNP12 in estrogen receptor α gene in hypospadiac or cryptorchid patients from Northwestern China. Urol Int 87:359–362View ArticleGoogle Scholar
  24. Toppari J, Skakkebaek NE (1998) Sexual differentiation and environmental endocrine disrupters. Baillieres Clin Endocrinol Metab 12:143–156View ArticleGoogle Scholar
  25. van der Zanden LF, van Rooij IA, Feitz WF, Vermeulen SH, Kiemeney LA, Knoers NV, Roeleveld N, Franke B (2010) Genetics of hypospadias: are single-nucleotide polymorphisms in SRD5A2, ESR1, ESR2, and ATF3 really associated with the malformation? J Clin Endocrinol Metab 95:2384–2390View ArticleGoogle Scholar
  26. van der Zanden LF, Galesloot TE, Feitz WF, Brouwers MM, Shi M, Knoers NV, Franke B, Roeleveld N, van Rooij IA (2012) Exploration of gene–environment interactions, maternal effects and parent of origin effects in the etiology of hypospadias. J Urol 188:2354–2360View ArticleGoogle Scholar
  27. Vidaeff AC, Sever LE (2005) In utero exposure to environmental estrogens and male reproductive health: a systematic review of biological and epidemiologic evidence. Reprod Toxicol 20:5–20View ArticleGoogle Scholar
  28. Watanabe M, Yoshida R, Ueoka K, Aoki K, Sasagawa I, Hasegawa T, Sueoka K, Kamatani N, Yoshimura Y, Ogata T (2007) Haplotype analysis of the estrogen receptor 1 gene in male genital and reproductive abnormalities. Hum Reprod 22:1279–1284View ArticleGoogle Scholar
  29. Wetterslev J, Thorlund K, Brok J, Gluud C (2008) Trial sequential analysis may establish when firm evidence is reached in cumulative meta-analysis. J Clin Epidemiol 61:64–75View ArticleGoogle Scholar
  30. Wetterslev J, Thorlund K, Brok J, Gluud C (2009) Estimating required information size by quantifying diversity in random-effects model meta-analyses. BMC Med Res Methodol 9:86View ArticleGoogle Scholar
  31. Yang J, Carmichael SL, Kaidarova Z, Shaw GM (2004) Risks of selected congenital malformations among offspring of mixed race-ethnicity. Birth Defects Res A Clin Mol Teratol 70:820–824View ArticleGoogle Scholar
