Trade off between variable and fixed size normalization in orthogonal polynomials based iris recognition system
SpringerPlus volume 5, Article number: 367 (2016)
Abstract
Iris normalization is an important stage in any iris biometric, as it has a propensity to trim down the consequences of iris distortion. To indemnify the variation in size of the iris owing to the action of stretching or enlarging the pupil in iris acquisition process and camera to eyeball distance, two normalization schemes has been proposed in this work. In the first method, the iris region of interest is normalized by converting the iris into the variable size rectangular model in order to avoid the under samples near the limbus border. In the second method, the iris region of interest is normalized by converting the iris region into a fixed size rectangular model in order to avoid the dimensional discrepancies between the eye images. The performance of the proposed normalization methods is evaluated with orthogonal polynomials based iris recognition in terms of FAR, FRR, GAR, CRR and EER.
Background
Owing to differences in the image capturing distance and in the illuminationed environment, the size of the subject’s pupil and the iris region of interest in the captured images are highly diverging. An accumulation of this, there is discrepancies of the same eye images owing to stretches of the iris. Additional criteria that cause dilation are eye rotary motion, revolving camera and head inclination. Such a deformation of the iris texture broadens intraclass dissimilarities and raises the FRR.
A survey of the existing normalization techniques found in the literature is presented in the following section.
Review of literature
From the perspective of iris texture feature extraction, the normalization techniques are classified into six categories such as Linear model (Daugman 1993; Lim et al. 2001; Joung et al. 2005; Boles and Boashash 1998; Ma et al. 2003; Subbarayudu and Prasad 2008; Shamsi and Rasouli 2009, 2011), variant of linear model (Krishnamoorthi et al. 2012), nonlinear model (Wildes 1997; Wyatt 2000), the combination of nonlinear and linearmodels (Wei et al. 2007; Yuan and Shi 2005), nonpolar coordinate normalization (Arvachech and Tizhoosh 2006) and irregular border normalization (Han et al. 2009; Shah and Ross 2009).
Daugman (1993) employed linear rubber sheet model which projects the doughnut shaped iris region of interest into a fixed rectangle region. Lim et al. (2001) have used a fixed resolution model very similar to the Daugman’s pseudo polar transform approach. They have normalized the distance between the pupil border and the limbus border into [0, 60] according to the arbitrary radius r and normalized the angular resolution into [0, 450] according to the step angle 0.8°. Joung et al. (2005) have unwrapped the iris with limbus center to define the polar coordinates of the points over the limbus border and used pupil center to define the polar coordinates of the pupil border. The coordinates of the other points between these two borders are obtained linearly in the radial direction. Boles and Boashash’s normalization technique (Boles and Boashash 1998) is also similar to Daugman’s method with the difference that it is performed at the time of matching. Their method is based on the virtual circles to map the iris features. Ma et al. (2003) have combined the Daugman’s method (Daugman 1993) and Bole’s method (Boles and Boashash 1998). They have used the pupil center as a reference point in their mapping strategy. Subbarayudu and Prasad (2008) have assumed that the pupil and limbus boundaries are two circles and utilized angular strips radial measure to map iris region. Shamsi and Rasouli (2009) have devised a new mapping strategy to rescale point. Shamsi and Rasouli (2011) have transformed iris disk to trapezium strip.
Krishnamoorthi et al. (2012) have devised a variation of trapezoidal model to avoid the under samples near the limbus border. Wildes (1997) has reported an image registration technique for compensating variations in rotation and scale. Wyatts et al. (2000) have used the virtual arc concept and carried out the mapping from the reference annular zone into a fixedsize rectangle zone. Wei et al. (2007) have utilized Gaussian function to estimate the additive variation of a nonlinear iris stretch. Yuan and Shi (2005) have considered the nonlinear behavior of iris patterns with a predefined ratio of the radii of the pupil and limbus boundaries of the iris. Arvachech and Tizhoosh (2006) have merged the nonlinear model and linear model to unwrap an iris region of interest properly. Han et al. (2009) have designed a normalization method that does not adopt the polar coordinate transformation. They have preserved the original geometric structure and directional information. Shah and Ross (2009) have formulated the normalization technique for conical iris boundaries.
Motivated by the fact that iris boundaries are not in specific shapes, variablesize and fixedsize iris normalization techniques are proposed in this work for normalizing the irregular iris boundaries.
The important steps involved in the proposed normalization work are as follows:

Estimation of the center and radius of pupil

Estimation of the coarse radius of limbus

Estimation of the accurate radius of the limbus

Computation of the resolution angle of increment and

Identification of the sampling points.
Preprocessing
Initially, the coarse estimation of pupil center is found as the point that corresponds to local minima of image intensity. The extraction of coarse pupil localization area on four sides from the coarse pupil center is modeled with approximation of pupil center and radius to confine the search for the pupil border. Then, an edge image is generated by applying negatively sloped zerocrossing point with orthogonal polynomials (Ganesan and Bhattacharya 1997). The fine pupil boundaries are then extracted after detecting radial border points in the angular direction of the projection curve. The pupil border points are fitted using the cubic smoothing spline.
The limbus border extraction is then carried out with gradient based edge detection on the same orthogonal polynomials model. Initially, the coarse limbus region is estimated with approximation of pupil center and radius to confine the search for the limbus border. This coarse limbus region is subjected to the orthogonal polynomials and after that the precise limbus border points are extracted with vertical and horizontal edge detection. The limbus curvature is approximated with cubic smoothing spline from the limbus border points.
Proposed variablesize normalization model
First let us consider the pupil and limbus border points present in localized image of the iris image. The radius of irregular pupil border is estimated from the pupil border points with the following steps. Along the x(minor) axis, the extreme positions at lower end (X _{max_x }, X _{max_y }) and higher end (X _{min_x }, X _{min_y }) are extracted from the pupil border points. Similarly for y(major) axis, the extreme positions at lower end (Y _{max_x }, Y _{max_y }) and higher end (Y _{min_x }, Y _{min_y }) are extracted from pupil border points. The distance, x_dist, between the extreme positions in x axis are computed as follows
Similarly, the distance, y_dist, between the extreme positions in y axis are computed as follows
In this work, the radius of the pupil border r _{ p } is determined as
The center of the pupil border, \(\left( {x_{c}^{p} ,y_{c}^{p} } \right)\), is calculated with the relation
After determining the coarse radius of pupil border, the radius of limbus border is calculated for iris normalization. If the obstruction owing to either the upper or lower eyelids is significant, in that case the circle that fits every point on the extorted contour will be positioned within the exact border of the limbus. For this reason, merely the points resting on the border of the limbus are modeled in this research work to calculate the radius and center of the limbus. To guarantee this, six points at the following angles [−30°, 0°, 30°, 150°, 180°, 210°] are chosen from the extorted contour as well as their mean distance from the center of the pupil is calculated and exploited as the coarse radius of the limbus (r _{ l }). A circle is subsequently fitted throughout every point on the contour that are within a distance of (r _{ l } ± 10) pixels from the center of the pupil \(\left( {x_{c}^{p} ,y_{c}^{p} } \right)\). The center and radius of such a circle is primarily modeled to be the center \(\left( {x_{c}^{l} ,y_{c}^{l} } \right)\) and the radius (r _{ l }) of the limbus. When the limbus is detected in the corner of the eye, all six points preferred to calculate the rough limbus radius may not be positioned on the limbus border; some may be positioned on the eyelid. As the eyelid border is nearer to the center of the pupil, an approximate limbus radius is offcenter and the same is demonstrated in Fig. 1a, b. Also the area beneath the segmented limbus curvature on either side of the perpendicular axis passing through the pupil is not uniform, is shown in Fig. 1c. The region with smaller area is heavily obstructed by the eyelids. Hence, if the differences among the two regions exceed 10 %, merely three points resting on the contour related to the bigger region are preferred to calculate the limbus radius. This gives a superior estimate of the limbus radius (r _{ l }) and it increases the accuracy even in the case of offangle iris.
The maximum degree (360°) is divided into small units of angle increment factor that enables to reach each limbus border positions of the iris. The circumference \(\varpi\) of the limbus border is calculated as
The distance between the pupil border and limbus border is normalized to [0, 360]. The resolution angle of increment \(\phi\) is computed as
By increasing the angle θ by \(\phi\) for radius r _{ l }, the variablesize rectangular resolution iris image for the plane (θ, r _{ l }) is obtained. Also the degree of rotation (360°) is calibrated in such a way that it reaches each position in the limbus border.
After determining the resolution angle of increment, the sampling points are extracted by tracing points from limbus border to pupil border. Let us initialize θ as 0, x _{ i } as \(x_{c}^{p}\), and y _{ i } as \(y_{c}^{p}\). Let the number of tracing points be n from limbus border to pupil border with the length \(\left( {r_{l}  r_{p} } \right)\). Consider (x _{ s }, y _{ s }) and (x _{ e }, y _{ e }) as start and end positions respectively of a line identity and traverse along the line and obtain each position coordinates in the iris Region of Interest (ROI) by decrementing n by 1. The starting point (x _{ s }, y _{ s }) of tracing process is computed as follows
The end point (x _{ e }, y _{ e }) of tracing process is computed as
The x(minor) axis width is computed as
The y(major) axis width is computed as
The initial point in the limbus border is stored in angular resolution array R[n][θ]. Consider (x _{ s }, y _{ s }) and (x _{ e }, y _{ e }) as start and end positions respectively of a line identity and traverse along the line and obtain each position coordinates in the iris ROI by decrementing n by 1. If the absolute value of d _{ x } is larger than d _{ y }, the point R[n][θ] of the slope m and y_intercept b is computed using the Eqs. (13) through (16).
The b (y_intercept) is computed as
Considering x _{ s } as x _{ s } + d _{ x }, continue the following process step through x _{ s } + d _{ x } and n − 1 times and until x _{ s } becomes x _{ e }.
If the absolute value of d _{ x } is not larger than d _{ y } and the value of d _{ y } is not equal to 0, the point R[n][θ] from the slope m is computed as follows using the Eqs. (17) through (20).
The b (y intercept) is computed as
Considering y _{ s } as y _{ s } + d _{ x }, continue the following process step through y _{ s } + d _{ x } and n − 1 times and until y _{ s } becomes y _{ e }.
In this way, points from limbus border to pupil border for each position are traced and stored in angular resolution array with step \(\phi\) times until θ becomes 360°.
The algorithm of the proposed variablesize normalization is given hereunder:
Proposed fixedsize normalization model
First let us consider the pupil and limbus border points present in iris localized image. The radius of the pupil and the limbus border are computed as described in section “Proposed variablesize normalization model”. But in this fixedsize normalization model, the resolution angle of increment \(\phi\) is in the interval 0–1. The maximum degree (360°) is divided into small units of angle increment factor \(\phi\) that enables to reach more limbus border positions of the iris. Iris is normalized using pupil as the reference point. By increasing the angle θ by \(\phi\) for radius r _{ l }, the fixedsize rectangular resolution iris image for the plane (θ, r _{ l }) is obtained. After fixing the resolution angle of increment, the sampling points are extracted by tracing points from pupil border to limbus border. Initialize θ as 0, n as 0, x _{ i } as \(x_{c}^{p}\), and y _{ i } as \(y_{c}^{p}\). Let the number of tracing points n from pupil border to limbus border with the length \(\left( {r_{l}  r_{p} } \right)\). The starting point (x _{ s }, y _{ s }) of tracing process is computed as
The end point (x _{ e }, y _{ e }) of tracing process is computed as
In this way, points from pupil border to limbus border for each position are traced and stored in angular resolution array step \(\phi\) times until θ becomes 360°.
The algorithm of the proposed fixedsize normalization is given hereunder:
Orthogonal polynomials based iris recognition
With a view to extract iris texture feature, the normalized iris is further subjected to the orthogonal polynomials to extract the transformed coefficients (Ganesan and Bhattacharya 1997). The variance is computed from the transformed coefficients and the sets such as main effects, interaction effects are obtained (Krishnamoorthi and Kannan 2009). The spatial variation that causes the interaction effects are owing to micro texture present in the iris region. To investigate whether a specified region possesses texture characteristics, the Hartley’s criteria are applied for testing the homogeneity amongst variances (Krishnamoorthi and Anna Poorani 2012). Once, texture regions are identified, the Fratio test is applied for computing the SNR and the result of the Fratio test for determining significance towards the micro texture is encoded as a binary string. The corresponding decimal numeral is found subsequently to characterise the micro texture (Krishnamoorthi et al. 2013). The numerical characterization sequence is used as feature vector for further processing in iris recognition.
The dimension of features in feature vector is reduced by means of LDA (Liu and Xie 2006). It is employed to discard the null space of between_class_scatter S _{ b }, by first diagonalizing between_class_scatter S _{ b } and then diagonalizing within_class_scatter S _{ w }. The support vectors of the query image are computed to match the query image with the database images from the reduced feature vector using Nonlinear asymmetrical support vector machine (SVM) matching scheme (Roy and Bhattacharya 2006).
Empirical results and discussion
The proposed normalization techniques have been experimented with the BITIRIS Database (2013) and existing standard iris databases. CASIA Database V 1.0 and V 3.0 Interval (2013), Bath Database (2013) and MMU Database V 1.0 and V 2.0 (2013) are also exploited in experiments. Few sample images from these databases, used for normalization experiments are shown in Fig. 2.
Initially, the input images are preprocessed as described in section “Preprocessing”. The corresponding resultant iris localized images for test images shown in Fig. 2a–f, after iris localization process with orthogonal polynomials, are presented in Fig. 3a–f. The result of the iris segmentation corresponding to the preprocessed images are presented in Fig. 4a–f. The iris segmented image is subjected to the proposed variablesize normalization scheme as depicted in section “Proposed variablesize normalization model”. The approximate radius of pupil border is calculated from the radius of irregular pupil border. After determining the radius of limbus border points, the sampling points are found by tracing points from limbus border to pupil border using the coordinate conversion. The corresponding normalization result for the images shown in Fig. 2a–f, are presented in Fig. 5a–f.
Similarly, the iris localized eye image is subjected to the proposed fixedsize normalization scheme as depicted in section “Proposed fixedsize normalization model”. The sampling points are found by tracing points from pupil border to limbus border in a fixed fashion. The corresponding normalization outcomes for the images shown in Fig. 2a–f, after normalization process with the proposed fixed size normalization scheme are presented in Fig. 6a–f. It is viewed from the Fig. 6 that the fixedsize model tends to produce fixed texture information. In this experiment, the calibration degree \(\phi\) is varied and its impact in the overall precision of iris recognition is analyzed. It is observed that when \(\phi\) < 0.6 there is a strong raise in the recognition error rate, stimulated as a result of aliasing taken place in the normalization process.
The performance of the proposed algorithms is calculated for BITIRIS with computation time intended for the normalization process. For this purpose, the proposed experiments are conducted on a Intel (R) core (TM) i7 CPU 965@3.20 GHz system with 4.00 GB RAM. These outcomes are obtained and tabulated in Table 1. From the Table 1, it is apparent that, the proposed variablesize normalization model takes more computation time when compared with the proposed fixedsize normalization model. The proposed variablesize normalization has positive impact on the feature extraction stage due to the presence of more texture. However the suitability of the proposed variablesize normalization model and proposed fixedsize normalization model for feature extraction, matching, etc. requires rigorous experimentation.
For an unbiased comparison, the orthogonal polynomials based iris recognition has been experimenting with the proposed variablesize normalization model and proposed fixedsize normalization model using images in BITIRIS database. For recognition, a query image was matched against the entire database of stored iris representations. The results of the matching process yield the highest similarity across the registered images for each class were chosen as the matching iris. The performance of the proposed variablesize normalization model and fixedsize normalization models are evaluated with orthogonal polynomials based iris recognition system in terms of standard FAR, FRR and CRR. The empirical outcomes of the proposed variable size normalization for the identification with FAR, FRR and CRR are tabulated in Table 2. A recognition performance of FAR = 0.010 %, FRR = 0.112 % and CRR = 99.88 % is obtained with the proposed variable size normalization model with orthogonal polynomials based iris recognition system. A recognition performance of FAR = 0.015 %, FRR = 0.165 % and CRR = 99.82 % is also obtained with the proposed fixed size normalization model with orthogonal polynomials based iris recognition system.
It is clear from Table 2, that the proposed variablesize normalization scheme outperforms the proposed fixedsize normalization scheme.

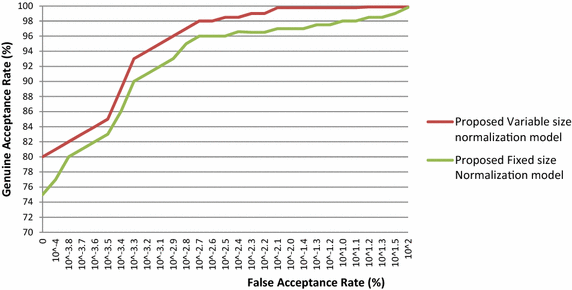

For verification, ROC curves are drawn by plotting the GAR as a function of the FAR in semilogarithmetic scale. The ROC curves of proposed variablesize normalization model and proposed fixedsize normalization model are plotted for the BITIRIS database and these outcomes are presented in Fig. 7.
It is exemplified from the Fig. 7 that the proposed variable size iris normalization scheme attains higher GAR with an extremely low EER than fixed size iris normalization scheme on the BITIRIS database.
The EER of the proposed variablesize normalization model and proposed fixedsize normalization model is observed from the ROC curve and are tabulated in the Table 3. The EER of the proposed variable size normalization is only 0.100 % as against 0.145 % for fixedsize normalization model on the BITIRIS database.
It is evident from Table 3 that the EER of the variable size iris normalization scheme is found to be superior than fixed size iris normalization scheme. It is also wellknown from Table 3 that the proposed variable size normalization scheme is able to attain close proximity to zero EER. Extremely low EER of 0.100 % reveals the robustness of the variable size iris normalization scheme in verification mode.
Similarly, the proposed iris normalization schemes are also used to authenticate the person in other database images viz CASIA V 1.0, CASIA V 3.0 Interval, BATH, MMU V 1.0 and MMU V 2.0. The performance of the proposed iris normalization schemes is evaluated with standard FAR, FRR and CRR for various database images and their outcomes are tabulated in Table 4. The ROC curves are plotted for the above mentioned database and these outcomes are presented in Figs. 8, 9, 10, 11 and 12. The EER of the iris normalization schemes are observed from the ROC curve and are tabulated in the Table 5. It is inferred from the empirical outcomes that the proposed variable size normalization model outperforms proposed fixed size normalization model, showing their robustness across different imaging environments.
Conclusion
In this paper, two different normalization methods are proposed that compensate the change in size of the iris due to the action of stretching or enlarging the pupil in iris acquisition process and camera to eyeball distance. In the first method, the variable dimension is used for irregular iris images to avoid under the samples near the limbus border. In the second method, the fixed dimension is used for irregular iris images with a rectangular model to circumvent the dimensional discrepancies among the iris images. The proposed normalization methods are compared along with the orthogonal polynomials based iris recognition and analyzed to enhance the normalization stage. The impacts of proposed variablesize normalization versus rectangular normalization on extracted features are presented. From the empirical outcomes, it is examined that the variablesize normalization scheme performs better than the fixedsize normalization approach in terms of matching. It is concluded that the proposed variablesize normalization makes orthogonal polynomials based iris recognition system more robust to the illumination variations than the proposed fixedsize normalization model.
