Effect of specimen type on free immunoglobulin light chains analysis on the Roche Diagnostics cobas 8000 analyzer
© Nelson et al. 2015
Received: 24 June 2015
Accepted: 18 November 2015
Published: 8 December 2015
The measurement of free immunoglobulin light chains is typically performed on serum; however, the use of alternative specimen types has potential benefits. Using the Freelite™ kappa and lambda free light chains assay on a Roche Diagnostics cobas 8000 c502 analyzer, we compared three specimen types (serum, EDTA-plasma and lithium heparin plasma separator gel-plasma) on 100 patients. Using Deming regression and eliminating outliers (limiting data to light chain concentrations below 400 mg/L), the three specimen types showed comparable results for kappa light chain concentration, lambda light chain concentration, and kappa/lambda ratio with slopes close to 1.0 and y-intercepts close to zero. EDTA-plasma showed slightly more positive bias relative to serum than lithium heparin. Analysis using EDTA-plasma and lithium heparin plasma showed comparable linearity, precision, and temperature stability. A single sample showing hook effect (not in the comparison set) gave comparable results using either plasma specimen type. For the Freelite™ kappa and lambda free light chains assay, both EDTA-plasma or lithium heparin-plasma can serve as acceptable substitutes for serum, at least for the Roche cobas 8000 analyzer.
KeywordsImmunoglobulin light chains Laboratory automation Nephelometry Plasma Serum
Measurement of kappa and lambda free immunoglobulin light chains in serum has been shown to be valuable in the diagnosis and management of a variety of diseases, especially plasma cell disorders such as multiple myeloma, Waldenström’s macroglobulinemia, AL amyloidosis, and light chain deposition diseases (Bradwell et al. 2001; Dimopoulos et al. 2011; Dispenzieri et al. 2009, 2010; Hoedemakers et al. 2011; Katzmann et al. 2005; Lachmann et al. 2003; Morris et al. 2007; Snozek et al. 2008; Tosi et al. 2013). Serum free light chain analysis is often used in conjunction with serum and urine protein electrophoresis (Hoedemakers et al. 2011; Kim et al. 2014; McTaggart et al. 2013). Serum is the mandatory specimen for protein electrophoresis; thus, the same serum specimen is often used for measurement of free light chains. However, analysis of plasma may have potential practical advantages compared to serum. For example, the ability to use plasma as a specimen for free light chain analysis may limit number of blood collection tubes needed during phlebotomy for some patients (e.g., if plasma but not serum is needed for other tests co-ordered for a patient) or to allow add-on orders for free light chain analysis if serum is not available as a pre-existing specimen (Nelson et al. 2015). The ability to run free light chain analysis on automated chemistry instrumentation typically allows for faster turnaround time than protein electrophoresis, which requires more specialized instrumentation and result interpretation.
In this study we compared the differences between serum and plasma for measurement of kappa and lambda free light chains using the Freelite™ serum free light chain assays on a Roche Diagnostics cobas 8000 c502 analyzer. Plasma specimens obtained from ethylenediaminetetraacetic acid (EDTA)-anticoagulated tubes and lithium heparin plasma separator tubes (PST) were used for the comparisons. A previous study has compared plasma versus serum for another marketed free light chain assay (N Latex FLC) and showed similar results using either specimen type (te Velthuis et al. 2011). Another study compared serum versus serum separator gel and lithium heparin plasma samples for the Freelite™ assay on a Dade Behring BNII analyzer (Hansen et al. 2012). However, there is no published study doing the same comparison for the Freelite™ assay on the Roche cobas system, and the manufacturer instructions for the Freelite™ assay on this analytical platform only list serum as the acceptable specimen type (Freelite™ Human Kappa Free and Human Lambda Free Light Chains package insert.).
Sample collection and processing for comparison studies
This study had approval from the University of Iowa Institutional Review Board (protocol #201407792). Testing was performed in the University of Iowa Hospitals and Clinics (UIHC) core clinical laboratory. The layout and informatics of this clinical laboratory has been detailed in previous publications (Krasowski et al. 2014, 2015). The inclusion criteria were: (1) patient who had free light chain analysis performed on a serum specimen, (2) EDTA-anticoagulated and lithium heparin PST specimens drawn on patient for clinical testing during same phlebotomy encounter, and (3) sufficient specimen remaining in the EDTA and PST specimens for light chain analysis after performance of provider-ordered clinical testing. The details on the three specimen types were: BD Vacutainer® red top silica clot activator coated tube (BD Diagnostics, Franklin Lakes, NJ), BD Vacutainer® light green top plasma separator tubes (PST™) containing polymer gel and lithium heparin (BD Diagnostics), and BD Vacutainer® pink top spray coated K2EDTA tube (BD Diagnostics). No extra tubes were drawn on any patient for purposes of this study, i.e., all analyses used pre-existing specimens leftover from clinical testing that would otherwise have been discarded.
Upon completion of the clinically ordered tests, the specimens were transferred to a refrigerator for storage using a Roche Diagnostics (Indianapolis, IN) P701 automated archival retrieval system (Nelson et al. 2015). Samples were stored for up to 16 h until they were retrieved for use in the study. When samples were retrieved, they were centrifuged and loaded on to the Roche Diagnostics cobas 8000 Modular Analytics System c502 analyzer and assayed using the Freelite™ kappa and lambda free light chains assay (Freelite™ Human Kappa Free and Human Lambda free light chains package insert 2001).
Following the package insert procedure, kappa light chain measurements for serum specimens are linear to 56.25 mg/L. Values that exceed 56.25 mg/L are treated with ×10 dilution with saline. Values that still exceed linearity require a manual ×21 dilution with saline. Lambda light chain measurements are linear to 93.33 mg/L. Similar to the procedure with kappa light chains, lambda light chain values that exceed 93.33 mg/L are treated with ×10 dilution with saline. Values that still exceed linearity require a manual ×21 dilution with saline.
Linearity was determined according to CLSI guideline EP6A (Clinical and Laboratory Standards Institute 2003) using plasma samples just above the upper measuring range for serum, i.e., 56.25 mg/L for kappa and 93.33 mg/L for lambda. At least 10 dilutions of 90–2.5 % were measured for both EDTA-plasma and lithium heparin PST matrices. Five replicates for each dilution were measured. The mean result was analyzed by linear and cubic analysis. Fits were evaluated using the Microsoft Excel add-in Analyze-it®.
The precision study was performed according to CLSI EP5-A2 guideline (Clinical and Laboratory Standards Institute 2004). Plasma pools were made from routine patient samples that had no detectable monoclonal bands with serum electrophoresis and immunotyping.
Reference ranges and medical decision levels
The normal (reference) ranges for the free light chains following manufacturer recommendations in the package insert are: kappa (3.30–19.40 mg/L), lambda (5.71–26.30 mg/L), kappa/lambda ratio (0.26–1.65). The lower and upper limits of the reference ranges for serum in the assay package insert were considered the medical decision levels (MDL). Assay measurement using serum (specimen type recommended in package insert) was considered the gold standard.
Linear regression and statistical analysis was performed using EP Evaluator release 11 (Data Innovations, Inc., South Burlington, VT). Deming linear regression was performed. Identification of outliers used an algorithm in EP Evaluator that identifies points whose distance from the regression line exceeds 10 times the standard error of estimate (SEE), where SEE is computed from the data set with outliers excluded.
Precision using two different levels of control material
Light chain assay
Within-run imprecision % CV (n = 10)
Between-run imprecision % CV (n = 20)
Serial dilutions of samples with a concentration just above the measuring range (56.25 mg/L for kappa and 93.33 mg/L for lambda) were prepared. For kappa, linearity was confirmed between 1.0 and 56.25 mg/L for both EDTA-plasma and lithium heparin PST (maximum difference between linear and cubic fit of 18.8 %). For lambda, linearity was confirmed between 0.8 and 93.33 mg/L (maximum difference between linear and cubic fit of 17.4 %).
Concordance tables between plasma and serum for light chain analysis
Serum below ref. range/plasma within ref. range
Serum within ref. range/plasma above ref. range
EDTA vs. serum
Lithium heparin PST vs. serum
EDTA vs. serum
Lithium heparin PST vs. serum
EDTA vs. serum
Lithium heparin PST vs. serum
Samples with discrepancy with respect to reference intervals
Patient age, gender, and clinical history
Lithium heparin PST
Discrepancy involving kappa
60 Y M, multiple myeloma, IgG kappa
66 Y F, multiple myeloma, IgG lambda
44 Y F, multiple myeloma, IgG lambda
60 Y F, multiple myeloma, IgG lambda
61 Y M, multiple myeloma, IgG kappa
51 Y M, multiple myeloma, IgG kappa
86 Y F, multiple myeloma, lambda light chain
60 Y F, multiple myeloma, IgA lambda
70 Y F, multiple myeloma, IgA lambda
39 Y M, multiple myeloma, IgG lambda
60 Y M, hairy cell leukemia
62 Y M, biclonal IgG kappa + lambda light chaina
66 Y F, multiple myeloma, lambda light chaina
Discrepancy involving kappa and lambda
53 Y F, multiple myeloma, IgG kappa
84 Y M, multiple myeloma, lamba light chain
51 Y M, multiple myeloma, IgG kappa
Discrepancy involving kappa and kappa/lambda ratio
54 Y F, multiple myeloma, kappa light chain
Discrepancy involving kappa/lambda ratio
67 Y M, multiple myeloma, IgG kappa
64 Y M, multiple myeloma, kappa light chain
57 Y F, multiple myeloma, IgG lambda
55 Y M, multiple myeloma, lambda light chain
59 Y M, Waldenstroms, IgM lambda
Outliers identified by Deming regression analysis
Patient age, gender, and clinical history
Lithium heparin PST
60 Y M, multiple myeloma, kappa light chain
59 Y F, multiple myeloma, IgG kappa
52 Y M, multiple myeloma, IgG kappa
60 Y M, multiple myeloma, IgG kappa
59 Y M, multiple myeloma, IgG kappa
60 Y M, plasma cell leukemia, IgG lambda
74 Y F, multiple myeloma, IgG lambda
55 Y F, multiple myeloma, lambda light chain
65 Y M, multiple myeloma, lambda light chain
59 Y F, acute renal failure, seropositive rheumatoid arthritis
62 Y M, biclonal IgG kappa + lambda light chain
66 Y F, multiple myeloma, lambda light chain
Linear regression summary statistics of specimen comparisonsa
Slope (95 % CI)b
Y-intercept (95 % CI)b (mg/L)
95 % CI at lower MDLc (mg/L)
95 % CI at upper MDLc (mg/L)
EDTA vs. serum
Li-heparin plasma separator tube vs. serum
0.64 (−0.38 to 1.67)
0.279 (−0.101 to 0.557)
−0.091 (−0.188 to 0.007)
During the time period of study, a single specimen was analyzed that showed marked hook effect for lambda light chain. This specimen was from a patient whose specimens had previously shown hook effect during multiple occasions. Specimens from this patient were not in the comparison studies (occurred after those studies completed). The hook effect was comparable in EDTA-plasma and lithium heparin PST specimen. In particular, the apparent lambda light chain concentration in undiluted specimens was 89.3 and 89.8 mg/L, respectively, for EDTA-plasma and lithium heparin PST specimens. Dilution analysis shown the actual lambda concentrations to be 4053 and 3862 mg/L, respectively, in these two sample types.

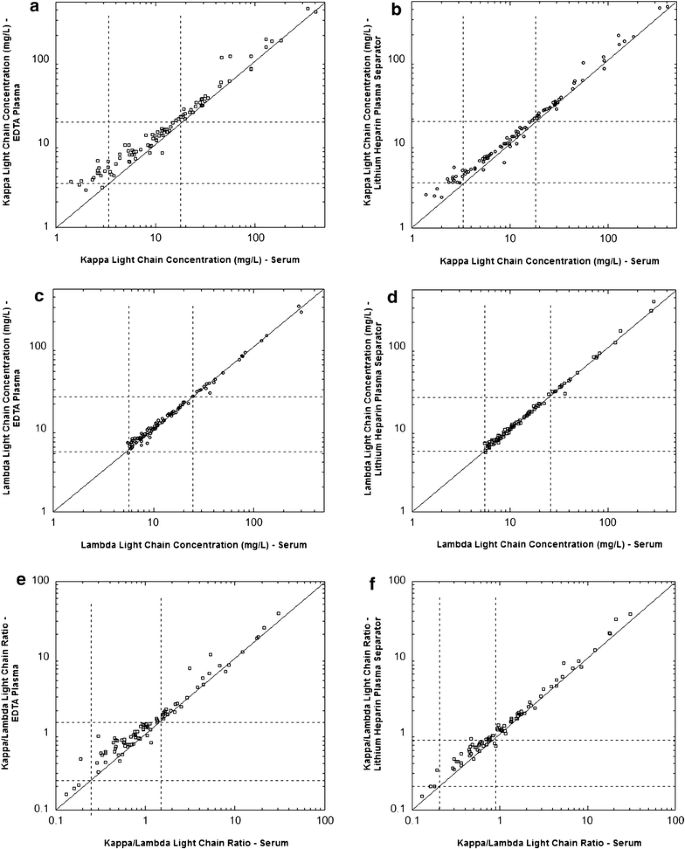

Overall, EDTA-plasma and lithium heparin-plasma gave comparable results to serum for kappa light chain concentration, lambda light chain concentration, and kappa/lambda ratio for the Freelite™ assays performed on the cobas 8000 c502 analyzer. Similar to previous reports (Hansen et al. 2012; te Velthuis et al. 2011), these data suggest that plasma is an acceptable specimen for free light chain analysis. The precision, linearity, and analyte stability in plasma is also comparable to that described for serum in previous publications (Altinier et al. 2013; Briand et al. 2010; Cha et al. 2014; Hansen et al. 2012; Pretorius et al. 2012; Tate et al. 2003, 2009; Vercammen et al. 2015).
The highest variability seen in our study was with very low or very high kappa and lambda concentrations. This was evident in the regression outlier analysis. The light chain analysis procedure in the package insert for the Freelite™ assay on the cobas 8000 analyzers requires two dilutions (one on-line and one manual) for the highest concentrations (kappa greater than 563 mg/L and lambda greater than 933 mg/L). These dilutions offer potential for error. At high concentrations of free light chains, antigen excess is also possible (Bosmann et al. 2010; Vercammen et al. 2015). We did not study antigen excess in detail but did observe comparable results with both plasma specimen types in a patient previously observed to have hook effect with lambda concentrations. Specimens with very low values of kappa or lambda can also lead to higher variability in the kappa/lambda ratio, especially with the high imprecision typical of analyses in these low concentration ranges (Altinier et al. 2013; Briand et al. 2010; Cha et al. 2014; Hansen et al. 2012; Pretorius et al. 2012; Tate et al. 2003, 2009; Vercammen et al. 2015).
While plasma gave comparable results to serum in our study, it is probably prudent to use a single specimen type and analyzer platform for patient analysis. Reference intervals and medical decision levels should be reassessed carefully for any specimen type other than serum. The trending of light chain values is used for treatment decisions and consistency in analysis is important. Future studies can focus on different instrument platforms and assay formats. A larger set of samples can also facilitate detailed studies on how plasma compares with serum with respect to antigen excess.
LSN and CSM performed the data collection. LSN and BS performed data analysis and drafted the manuscript. MDK was involved in the study design, interpretation, and data analysis and also completed the final draft of the manuscript. All authors read and approved the final manuscript.
MDK thanks the Department of Pathology (Dr. Nitin Karandikar, Department Executive Officer) for providing research funding. The authors thank Priyal Patel for assistance with the study of the sample showing hook effect.
The authors declare that they have no competing interests.
