Interleukin-6 and microRNA profiles induced by oral bacteria in human atheroma derived and healthy smooth muscle cells



Atherosclerosis is an inflammatory disease with possible contributions from bacterial antigens. We aimed to investigate the role of oral bacteria as inducers of inflammatory cascades in smooth muscle cells from carotid endarterectomy patients (AthSMCs) and healthy controls (HSMCs).


Inactivated Streptococcus mitis, S. sanguinis, S. gorgonii, Aggregatibacter actinomycetemcomitans and Porphyromonas gingivalis were used to stimulate inflammation in HSMCs and AthSMCs. Tumor necrosis factor-α (TNFα) was used as a positive control in all stimulations. Interleukin-6 (IL-6) levels were determined from cell culture supernatants and microRNA expression profiles from cells after 24 h of bacterial stimulation. Genome wide expression (GWE) analyses were performed after 5 h stimulation. All studied bacteria induced pro inflammatory IL-6 production in both SMCs. The most powerful inducer of IL-6 was A. actinomycetemcomitans (p < 0.001). Of the 84 studied miRNAs, expression of 9 miRNAs differed significantly (p ≤ 0.001) between HSMCs and AthSMCs stimulated with inactivated bacteria or TNFα. The data was divided into two groups: high IL-6 producers (A. actinomytectemcomititans and TNFα) and low IL-6 producers (streptococcal strains and P. gingivalis). The expression of 4 miRNAs (miR-181-5p, −186-5p, −28-5p and −155-5p) differed statistically significantly (p < 0.001) between healthy HSMCs and AthSMCs in the low IL-6 producer group. According to multidimensional scaling, two gene expression clusters were seen: one in HSMCs and one AthSMCs.


Our results suggest that inactivated oral bacteria induce inflammation that is differently regulated in healthy and atherosclerotic SMCs.


Vascular smooth muscle cells (VSMCs) are highly differentiated muscle cells that form the medial layer of the vessel wall and control blood pressure by contracting and relaxing the vessels. SMCs play an important role in atherogenesis, including a key role in remodeling and plaque stabilization (Doran et al. 2008).

Multiple microRNAs (miRNAs), small non-protein-coding RNAs, are known to control the different phases of atherogenesis (reviewed in (Nazari-Jahantigh et al. 2012)). They are responsible for VSMC differentiation and proliferation under physiological or pathological conditions as well as modulating both adaptive and innate immune responses within SMC by encompassing every step from plaque formation to destabilization and rupture (Kang and Hata 2012). Although many miRNAs have been linked to atherosclerosis, only a few miRNAs (e.g. miR-21, −146a, −150, −155) have repeatedly been reported (Ma et al. 2013; Raitoharju et al. 2013).

Epidemiological studies have demonstrated a strong relationship between atherosclerosis and oral infections (Desvarieux et al. 2005; Desvarieux et al. 2013), possible due to indirect effects mediated through elevated pro inflammatory cytokines and other acute phase proteins. Several previous studies suggest however that oral bacteria can directly penetrate gingival tissues, enter the bloodstream and potentially induce transient bacteremia even after flossing, mastication, and tooth brushing (Li et al. 2000). Of oral pathogens, streptococci and periodontal bacteria are most frequently detected in atherosclerotic samples (Pessi et al. 2013). It is also known that oral pathogens such as Porphyromonas gingivalis and streptococci have the ability to invade human heart endothelial cells in vitro (Deshpande et al. 1998; Nagata et al. 2011) as well as accelerate plaque growth and macrophage invasion (Kesavalu et al. 2012). In our study, we evaluated the role of processed periodontal and endodontic bacteria in atherosclerotic inflammation using SMCs and selected bacterial species found in coronary plaques after heat inactivation (Pessi et al. 2013). Atherosclerotic inflammation was studied by measuring pro inflammatory interleukin-6 (IL-6) levels and gene expression profiles after bacterial stimulation.


Bacterial strains

Streptococcus mitis ATCC 49456, Streptococcus sanguinis ATCC 10556, Streptococcus gorgonii ATCC 10558, Aggregatibacter actinomycetemcomitans ATCC 700685, Porphyromonas gingivalis ATCC 33277 from stock culture collection (LCG Standards AB, Borås, Sweden) were diluted to 108/ml in sterile phosphate buffered saline (PBS). All bacteria were heat-inactivated and filtered through a 0.45 μm pore size filter (Merck Millipore, Darmstadt, Germany) before being added into cell cultures as previously described (Pessi et al. 1999). These bacterial preparations were stored at −80°C prior to cell culture experiments.

Ex vivo culture of cells isolated from human atherosclerotic plaques and healthy donors

Smooth muscle cells (SMC) were isolated from the carotid endarterectomies of 4 patients undergoing revascularization procedures for symptomatic carotid disease at Charing Cross Hospital, London. SMCs were isolated and cultures produced as in Monaco et al. 2004. Aortic SMCs from 2 healthy donors (HSMCs) were purchased from PromoCell Ltd (Heidelberg, Germany). The study was approved by the Research Ethics Committee (Riverside Research Ethics Committee, London). All patients gave written informed consent according to the Human Tissue Act 2004 (UK).

SMCs were grown in SMC growth medium 2 (PromoCell Ltd, Heidelberg, Germany). Viability was monitored with the use of 3-(4,5-dimethyl-2-yl)-2,5-diphenyltetrazolium (MTT) (Sigma-Aldrich, Carlsbad, California, USA). After 3–4 passages, SMCs were cultured in Smooth Muscle Cell Growth Medium 2 (PromoCell) either alone or in the presence of each of the bacterial preparations separately at a final concentration of 107, 106 and 105/ml of culture media. Tumor necrosis factor alpha (TNF-α) (InvivoGen, Source BioScience LifeSciences, Nottingham, UK) was used as a positive control at a concentration of 10 ng/ml. After culturing SMCs with or without bacterial stimulation for 24 h, cell culture supernatants were collected for IL-6 measurement, and cell pellets for miRNA expression profiling. Separate experiments were performed for GWE analyses using the same bacterial preparations. Pellets for GWE analyses were collected after 5 h of stimulation.

Interleukin-6 measurements

Cell culture supernatants were removed after 24 hours and stored at −80°C for single-batch cytokine analysis using the DuoSet ELISA Development Systems (R&D Systems, Minneapolis, USA), according to the manufacturer’s instructions. The ELISA detection limit was 2 pg/ml. Experiments were performed in triplicate.

RNA isolation and expression profiling

Total RNA for miRNA and GWE was isolated using the miRNeasy Mini Kit (Qiagen Ltd, Valencia, USA), and miRNA profiling of 84 commonly known miRNAs was performed using miScript miRNA Array (MIHS-001Z, Qiagen) according to the manufacturer’s instructions. Due to its lowest standard deviation between runs, SNORD68 was selected as a housekeeping gene. Samples with a Ct value ≥35 were excluded from analyses. Of 2016 measurements, 17 failures were observed and excluded from further analyses.

Whole genome gene expression (GWE) analysis was performed with Illumina DirectHyb HumanHT-12 v4.0 (Illumina, Inc., San Diego, USA) containing 47,231 oligonucleotide probes representing 34,602 genes, and processed according to the manufacturer’s protocol. The normalization was applied by subtracting the signal intensity of each probe in each sample by the mean intensity for that sample across all probes (global mean normalization). After normalization, multidimensional scaling (MDS) was used to illustrate global gene expressions of each sample in two-dimensional spaces (Cox and Cox 2001).

Transmission electron microscopy

To visualize the bacterial processing in SMCs, AthSMCs were selected after 24 h stimulation with S. mitis for electron microscopy (EM, Figure 1) with a JEOL 1200EX transmission electron microscope (Japanese Electron Optics Laboratory, Tokyo, Japan) operating at 60 kV.

Figure 1
figure 1

Phagocytosis of S. mitis by AthSMCs. Arrows indicate bacteria and their components. Bar is 0.5 μm.

Statistical analyses

All results (IL-6 levels, miRNA and GWE) were normalized against the corresponding results obtained from cultures without the addition of inactivated bacteria. Due to the skewed distributions and low number of cases, statistical differences between the experiments were calculated using the non-parametric Mann Whitney U test and Spearman’s correlation test. Of IL-6 results p < 0.01 was considered to be statistically significant, and due to the multiple measurements of the miRNA results p ≤ 0.001 was considered statistically significant (PASW Statistical Software version 18; SPSS Ltd, Quarry Bay, Hong Kong, China).


IL-6 production induced by oral bacteria

All studied bacteria (S. mitis, S. sangui, S. gordonii, P. gingivalis, A. actinomycetemcomitans) and TNFα induced IL-6 production in AthSMCs as well as in healthy SMCs (Figure 2). Among bacterial stimulations, the most powerful inducer was A. actinomycetemcomitans (p < 0.001, Mann Whitney U test). IL-6 responses induced by other bacteria did not differ from each other (p>0.01). The effects of bacteria on IL-6 production were dose-dependent in both cell types (data not shown).

Figure 2
figure 2

The production of IL-6 induced by inactivated oral bacteria at the concentration of 107/ml and TNF-α (10 ng/ml) in healthy SMCs (HSMCs, n = 2) and atheroma derived SMCs (AthSMCs, n = 4). Means (+SD) are expressed as induction folds compared to medium values (no stimulus). Statistically significant differences (*; p = 0.01 and **; p = 0.001) are marked in the figure. S. Streptococcus; P. ging, Porphyromonas gingivalis; A. act, Aggregatibacter actinomycetemcomitans; TNF-α, tumor necrosis factor-α. Red bar represents from AthSMCs results and blue from HSMCs.

miRNA and GWE profiles in SMCs after stimulation

miRNA expression profiles in AthSMCs and HSMCs were studied after 24 h bacterial stimulation. Of the 84 miRNAs, 9 (miR-96-5p, −185-5p, −181b-5p, −200c-3p, −28-5p, −222-3p, −186-5p, let7a-5p and let7e-5p) were statistically significantly differently expressed (Table 1 and Additional file 1: Table S1) in AthSMC and HSMCs after bacterial stimulation (p < 0.001). Since IL-6 levels produced by SMCs after stimulation with A. actinomytectemcomititans significantly differed to IL-6 levels after stimulation with other bacteria, the data was divided into two groups: “high IL-6 producers” i.e. A. actinomytectemcomititans and TNF-α and “low IL-6 producers”, i.e. different streptococci and P. gingivalis. It was observed that in the “low IL-6 producer” group (Figure 3), the expression of 4 miRNAs (miR-181b-5p, −186-5p, −28-5p and −155-5p) differed statistically significantly between HSMCs and AthSMCs (p <0.001; Mann- Whitney U test). The expression of 3 miRNAs (miR-155-5p, −150-5p and −9-5p) correlated with IL-6 levels (p < 0.001, Spearman’s correlation).

Table 1 Fold changes of stimulated miRNAs in healthy and atherosclerotic SMCs
Figure 3
figure 3

Fold changes of miRNAs (A; miR-181b-5p, B;186-5p, C; 28-5p, D;155-5p, E;150-5p, F; 9-5p) and IL-6 levels after streptococci or P. gingivalis stimulation in healthy SMCs (HSMCs) and atheroma derived SMCs (AthSMCs). N-fold difference compared to corresponding values from cultures without bacteria. Each stimulation was performed twice, red circles represent AthSMCs results and blue circles from HSMCs.

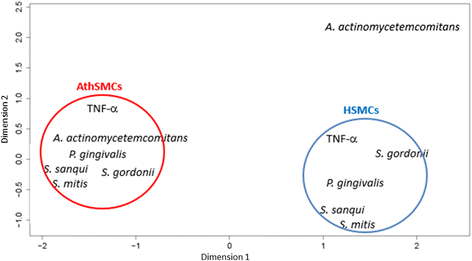

Multidimensional scaling (MDS) from GWE data was performed for illustrative purposes to evaluate global expression of stimulated genes in SMCs (Figure 4). Global gene expression profiles were similar for samples stimulated with oral bacteria within the same SMC type with the exception of by A. actinomycetemcomitans in HSMCs. Two expression profile cluster were observed according to cell type: HSMC and AthSMC. This difference was clearly seen in dimension 1 vs. 2 (Figure 4) as well as in dimension 1 vs. 3 (data not shown).

Figure 4
figure 4

Dimensions 1 and 2 from the multidimensional scaling (MDS) of GWE data in healthy SMCs (HSMCs) and atheroma derived SMCs (AthSMCs) stimulated with oral bacteria and tumor necrosis factor (TNF)-α, S., Streptococcus; P., Porphyromonas; A., Aggregatibacter. Red circles represent AthSMCs results and blue from HSMCs.

Discussion and conclusion

The present results confirm that the studied attenuated oral bacteria have the ability to activate a pro-inflammatory response in vascular smooth muscle cells. A. actinomycetemcomitans was the most potent inducer of inflammation and differed from other bacteria in its capacity to induce inflammation. This was seen in both IL-6 levels and gene expression profiles.

After bacterial stimulation miRNA profiles were different in atherosclerotic SMCs and in healthy SMCs, which has not been studied before. The down regulation of miR-185-5p after bacterial stimulation in AthSMCs was in line with studies on carotid plaques without bacterial stimulation (Raitoharju et al. 2011; Raitoharju et al. 2013) suggesting that bacterial stimulation per se does not change the direction of miRNA expression. Expression levels (with or without bacterial stimulation) of other 8 miRNAs (miR-96-5p, −181b-5p, −185-5p, −200c-3p, −222-3p, −28-5p, let-7a-5p) in atherosclerotic tissues have not been identified before (see supplement summary), however their characterized functions (explained in the Additional file 1: Table S1) support their involvement in atherosclerotic inflammation.

miRNA results from ‘the low-IL-6 producers’, i.e. stimulation with streptococci and P. gingivalis were separately evaluated. Our result show down-regulation of miR 28-5p, which may result in the enhancement of several inflammatory markers and adhesion molecules, as suggested by Stather et al. (2013). We also detected upregulated miR-181b-5p and −186-5p, which may suppress plasminogen activator inhibitor-1 in VSMCs (Chen et al. 2014) and promote apoptosis (Zhou et al. 2008), thus interfering with extracellular matrix degradation, and structural and functional changes in VSMCs. miR-155 is highly expressed in various cell types including VSMCs and endothelial cells (Faraoni et al. 2009). It changes endothelial cell morphology and modulates the endothelial phenotype via re-organizing the actin cytoskeleton (Weber et al. 2014). Upregulated miR-155 also attenuates endothelial cell migration, proliferation, and apoptosis in atherosclerotic plaques (Weber et al. 2014). miR-155-5p was highly expressed in AthSMCs after bacterial stimulation and its expression also correlated with IL-6 levels, suggesting a potential role for this miRNA in bacterial-induced atherosclerotic inflammation.

Multidimensional scaling (MDS) summarizes genome wide expression (GWE) data of each sample and displays a structure of distance-like data as a geometrical picture illustrating similarities or dissimilarities between each sample (Cox and Cox 2001). Dots in the picture of dimensions 1 vs. 2 demonstrate major variances occurring in global gene expressions. Dots in MDS figures do not, however, explain which and how many genes are differently expressed. Two major clusters were seen here, i.e. one among HSMCs and one among AthSMCs. This is in line with our findings observed in the miRNA profiles.

Although our study is a pilot study with limited numbers, it is a novel study looking at the effects of attenuated oral bacteria in inducing inflammation in both healthy and atherosclerotic SMCs. No previous studies have combined both traditional inflammatory markers, like IL-6, as well as newly discovered gene expression markers in bacterial-induced atherosclerosis. The relatively low expression levels induced by attenuated bacteria may indicate that certain bacterial antigens from attenuated bacterial cells could have some role in smouldering atherosclerotic inflammation.



Smooth muscle cells from carotid endarterectomy patients


Electron microscopy


Genome wide expression


Smooth muscle cells from healthy donors




Multi-dimensional scaling






Smooth muscle cells


Tumor necrosis factor


Vascular smooth muscle cells


  • Chen YS, Shen L, Mai RQ, Wang Y (2014) Levels of microRNA-181b and plasminogen activator inhibitor-1 are associated with hypertensive disorders complicating pregnancy. Exp Ther Med 8:1523–1527

    Google Scholar

  • Cox TF, Cox MAA (2001) Multidimensional Scaling, Second editionth edn. Chapman and Hall, CRC press, Florida, USA

    Google Scholar

  • Deshpande RG, Khan MB, Genco CA (1998) Invasion of aortic and heart endothelial cells by Porphyromonas gingivalis. Infect Immun 66:5337–5343

    Google Scholar

  • Desvarieux M, Demmer RT, Rundek T, Boden-Albala B, Jacobs DR Jr, Sacco RL, Papapanou PN (2005) Periodontal microbiota and carotid intima-media thickness: the Oral Infections and Vascular Disease Epidemiology Study (INVEST). Circulation 111:576–582

    Article  Google Scholar

  • Desvarieux M, Demmer RT, Jacobs DR, Papapanou PN, Sacco RL, Rundek T (2013) Changes in clinical and microbiological periodontal profiles relate to progression of carotid intima-media thickness: the Oral Infections and Vascular Disease Epidemiology study. J Am Heart Assoc 2:e000254

    Article  Google Scholar

  • Doran AC, Meller N, McNamara CA (2008) Role of smooth muscle cells in the initiation and early progression of atherosclerosis. Arterioscler Thromb Vasc Biol 28:812–819

    Article  Google Scholar

  • Faraoni I, Antonetti FR, Cardone J, Bonmassar E (2009) miR-155 gene: a typical multifunctional microRNA. Biochim Biophys Acta 1792:497–505

    Article  Google Scholar

  • Kang H, Hata A (2012) MicroRNA regulation of smooth muscle gene expression and phenotype. Curr Opin Hematol 19:224–231

    Article  Google Scholar

  • Kesavalu L, Lucas AR, Verma RK, Liu L, Dai E, Sampson E, Progulske-Fox A (2012) Increased atherogenesis during Streptococcus mutans infection in ApoE-null mice. J Dent Res 91:255–260

    Article  Google Scholar

  • Li X, Kolltveit KM, Tronstad L, Olsen I (2000) Systemic diseases caused by oral infection. Clin Microbiol Rev 13:547–558

    Article  Google Scholar

  • Ma X, Ma C, Zheng X (2013) MicroRNA-155 in the pathogenesis of atherosclerosis: a conflicting role? Heart Lung Circ 22:811–818

    Article  Google Scholar

  • Monaco C, Andreakos E, Kiriakidis S, Mauri C, Bicknell C, Foxwell B, Cheshire N, Paleolog E, Feldmann M (2004) Canonical pathway of nuclear factor kappa B activation selectively regulates proinflammatory and prothrombotic responses in human atherosclerosis. Proc Natl Acad Sci U S A 101:5634–5639

    Article  Google Scholar

  • Nagata E, de Toledo A, Oho T (2011) Invasion of human aortic endothelial cells by oral viridans group streptococci and induction of inflammatory cytokine production. Mol Oral Microbiol 26:78–88

    Article  Google Scholar

  • Nazari-Jahantigh M, Wei Y, Schober A (2012) The role of microRNAs in arterial remodelling. Thromb Haemost 107:611–618

    Article  Google Scholar

  • Pessi T, Sutas Y, Saxelin M, Kallioinen H, Isolauri E (1999) Antiproliferative effects of homogenates derived from five strains of candidate probiotic bacteria. Appl Environ Microbiol 65:4725–4728

    Google Scholar

  • Pessi T, Karhunen V, Karjalainen PP, Ylitalo A, Airaksinen JK, Niemi M, Pietila M, Lounatmaa K, Haapaniemi T, Lehtimaki T, Laaksonen R, Karhunen PJ, Mikkelsson J (2013) Bacterial signatures in thrombus aspirates of patients with myocardial infarction. Circulation 127(1219–28):e1–e6

    Google Scholar

  • Raitoharju E, Seppala I, Levula M, Kuukasjarvi P, Laurikka J, Nikus K, Huovila AP, Oksala N, Klopp N, Illig T, Laaksonen R, Karhunen PJ, Viik J, Lehtinen R, Pelto-Huikko M, Tarkka M, Kahonen M, Lehtimaki T (2011) Common variation in the ADAM8 gene affects serum sADAM8 concentrations and the risk of myocardial infarction in two independent cohorts. Atherosclerosis 218:127–133

    Article  Google Scholar

  • Raitoharju E, Oksala N, Lehtimaki T (2013) MicroRNAs in the atherosclerotic plaque. Clin Chem 59:1708–1721

    Article  Google Scholar

  • Stather PW, Sylvius N, Wild JB, Choke E, Sayers RD, Bown MJ (2013) Differential microRNA expression profiles in peripheral arterial disease. Circ Cardiovasc Genet 6:490–497

    Article  Google Scholar

  • Weber M, Kim S, Patterson N, Rooney K, Searles CD (2014) MiRNA-155 targets myosin light chain kinase and modulates actin cytoskeleton organization in endothelial cells. Am J Physiol Heart Circ Physiol 306:H1192–H1203

    Article  Google Scholar

  • Zhou L, Qi X, Potashkin JA, Abdul-Karim FW, Gorodeski GI (2008) MicroRNAs miR-186 and miR-150 down-regulate expression of the pro-apoptotic purinergic P2X7 receptor by activation of instability sites at the 3′-untranslated region of the gene that decrease steady-state levels of the transcript. J Biol Chem 283:28274–28286

    Article  Google Scholar

Download references


The European Union 7th Framework Program (grant 201668), the Erkko Foundation, the Competitive Research Funding of Pirkanmaa Hospital District, the Maud Kuistila Foundation, the Kalle Kaihari Foundation, the Finnish Foundation of Cardiovascular Research, the Pirkanmaa Regional Fund of the Finnish Cultural Foundation, the Tampere Tuberculosis Foundation. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript. We also acknowledge the Institute of Biotechnology, Electron Microscopy Unit, and University of Helsinki for the use of transmission electron microscopy.

Author information

Authors and Affiliations


Corresponding author

Correspondence to Tanja Pessi.

Additional information

Competing interest

The authors declare that they have no competing interests.

Authors’ contributions

Bacterial culturing and preparations (TP), cell culture experiments and IL-6 assays (TP, LV, NA), miRNA (ER), GWE (IS, MW), transmission electron microscopy (KL), collection of clinical samples (DAH), designing of experiments (TP, LV, TL, PJK, CM), data interpretation (TP, LV, ER, IS), writing of manuscript (TP). All authors read, gave comments and approved the final manuscript.

Additional file

Additional file 1: Table S1.

Function of 9 miRNAs differently expressed in AthSMC and HSMCs after streptococci and P. gingivalis stimulation.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits use, duplication, adaptation, distribution, and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
