Open Access

Vibrational spectroscopic, NMR parameters and electronic properties of three 3-phenylthiophene derivatives via density functional theory

SpringerPlus20143:701

https://doi.org/10.1186/2193-1801-3-701

Received: 28 August 2014

Accepted: 18 November 2014

Published: 28 November 2014

Abstract

Quantum chemistry calculations have been performed to compute the optimized geometries, vibrational frequencies, and Mulliken Charges at B3LYP/6-31G(d) and B3LYP/6-311++G(d,p) levels for 3-(4-fluorophenyl)thiophene (FPT), 3-(4-nitrophenyl)thiophene (NPT) and 3-(4-cyanophenyl) thiophene (CPT) in the ground state. In addition, the 13C and 1H NMR are calculated by B3LYP/6-311++G(d,p) and B3LYP/6-311++G(2d,2p) methods. The singlet electronic excited state properties of the three compounds were investigated using the time-dependent density functional method (TD-DFT) at the B3LYP/6-311++G(d,p)//TD- B3LYP/6-311++G(d,p) level of theory. The influence of the substituted groups on C9 atom is discussed.

Keywords

ThiopheneDFTVibrational spectraNMR analysisUV–vis spectra

1. Introduction

Thiophene is one of the most studied heterocycles: it is easy to process, chemically stable, and its synthetic applications have been a constant matter of investigation for many years (Giovanna et al.2005). π-Conjugated polymers and oligomers based on thiophene building blocks are of immense interest in current research due to their interesting electronic and photophysical properties (Kim et al.2006; Kline et al.2006; Patra et al.2011; Zhang et al.2011; Marsh et al.2014; Yumura and Yamashita2014). Recent literature contains numerous reports on the synthesis and properties of molecular systems having thiophene unit (Zhang et al.2009; Ustamehmetoglu2014; Dai et al.2007; Cho et al.2012; Patil et al.2011; Balaji et al.2011). The electronic properties exhibited by the thiophene and polythiophene derivatives have made them important in organic field effect transistors (OFET) (Yang et al.2005; Mushrush et al.2003; Osaka et al.2007), organic light emitting diodes (OLED) (Cicoira et al.2006; Lim et al.2013), solar cells (Hara et al.2003; Cao et al.2009; Thomas et al.2008) and supercapacitors (Sivaraman et al.2013; Yue et al.2012; Karthikeyan et al.2012). The electronic properties of thiophene-based materials can be tuned over a wide range through chemical or architecture modification. It includes different substitution at 2, 3 or 4-position of thiophene molecules.

In most cases, the 2 and 5 positions of thiophene are used for the polymerization. The modification of the molecules for special electronic properties is operated on the 3 and 4-positions (Su et al.2002; Osaka et al.1997). Poly(3-phenylthiophene) has represented such a purpose. The introduction of a phenyl group into the backbone of polythiophene stabilizes the conjugated π-bonds system and makes it an attractive low band gap material for the use in supercapacitors (Zhang and Shi2004). The substitution of fluorophenyl group on β-position of thiophene can improve the thermal stability of corresponding polymer. Poly(3-(4-fluorophenyl)thiophene) has a potential application in type III supercapacitors with improved both p-doping and n-doping performance (Shen et al.2005; Wei et al.2006).

Density functional theory (DFT) approaches, especially those using hybrid functional, have evolved to a powerful and very reliable tool, being routinely used for the determination of various molecular properties (Li et al.2011). B3LYP functional has been shown to provide an excellent compromise between accuracy and computational spectra for molecules of large and medium size (Lu et al.2013; Yanai et al.2004). To the best of our knowledge, no theoretical work is done on the 3-phenylthiophene derivatives. Therefore, we made an investigation and studied the structure and spectra of the title compounds using the DFT (B3LYP) method. The aim of our work is to compare the different properties among the three compounds which have different functional groups on the 3-phenylthiophene molecules.

2. Computational methods

All DFT calculations of the title compounds (Figure 1) were carried out using Gaussian09 program package using default thresholds and parameters (Gaussian 09, Revision D.01 et al.2009). The ground-state structural geometries were fully optimized at the B3LYP method (Yanai et al.2004) along with the standard 6-31G(d) and 6-311++G(d,p) basis sets. All the parameters were allowed to relax and all the calculations converged to an optimized geometry which corresponds to a true energy minimum revealed by the lack of imaginary frequencies. Vibration frequencies were calculated by using B3LYP/6-31G(d) and B3LYP/6-311++G(d,p) methods (EI-Azhary and Suter1996). 1H and 13C NMR chemical shifts are calculated with GIAO approach at B3LYP/6-311++G(d,p) level. The obtained chemical shift values are relative to the shielding of tetramethylsilane (TMS) (Wolff and Ziegler1998). Time-dependent density functional theory (TD-DFT) (Jacquemin et al.2009) calculations of electronic spectra were performed on the optimized structure at B3LYP/6-31++G(d,p) levels.
Figure 1

Molecular structures and atom numbering scheme of the title compounds. (3-(4-fluorophenyl)thiophene (FPT), 3-(4-nitrophenyl)thiophene (NPT), 3-(4-cyanophenyl)thiophene (CPT)).

3. Results and discussion

3.1 Molecular geometry

The optimized geometries of the title compounds have been obtained at B3LYP/6-31G(d) and B3LYP/6-311++G(d,p) levels. Some optimized geometrical parameters are listed in Table 1. To the best of our knowledge, experimental data on the geometric structures of the three title compounds are not available in the literature.
Table 1

Optimized geometrical parameters of the title compounds, bond lengths (Å) and bond angles ( ° )

Parameter

FPT

NPT

CPT



6-31G(d)

6-311++G(d,p)

6-31G(d)

6-311++G(d,p)

6-31G(d)

6-311++G(d,p)

S1-C2

1.732

1.730

1.728

1.725

1.728

1.726

C2-C3

1.376

1.374

1.378

1.376

1.378

1.375

C3-C4

1.439

1.436

1.439

1.436

1.439

1.436

C4-C5

1.364

1.363

1.364

1.362

1.364

1.363

C5-S1

1.735

1.732

1.736

1.732

1.735

1.732

C3-C6

1.478

1.478

1.475

1.474

1.475

1.475

C6-C7

1.406

1.403

1.408

1.406

1.407

1.405

C7-C8

1.393

1.392

1.389

1.387

1.389

1.387

C8-C9

1.390

1.386

1.394

1.392

1.405

1.403

C9-C10

1.390

1.385

1.394

1.392

1.405

1.402

C10-C11

1.393

1.392

1.390

1.388

1.389

1.388

C11-C6

1.406

1.403

1.408

1.405

1.407

1.404

C9-F

1.350

1.356

---

---

---

---

C9-N

---

---

1.467

1.474

---

---

N-O1

---

---

1.232

1.226

---

---

N-O2

---

---

1.232

1.226

---

---

C9-C

---

---

---

---

1.433

1.430

C ≡ N

---

---

---

---

1.164

1.156

C5-S1-C2

91.36

91.39

91.44

91.46

91.42

91.45

S1-C2-C3

112.44

112.36

112.38

112.33

112.38

112.32

C2-C3-C4

111.23

111.35

111.33

111.40

111.31

111.40

C3-C4-C5

113.45

113.35.

113.29

113.23

113.32

113.25

C4-C5-S1

111.52

111.55

111.56

111.59

111.56

111.58

C2-C3-C6

124.53

124.43

124.32

124.27

124.35

124.29

C4-C3-C6

124.23

124.22

124.35

124.33

124.33

124.31

C7-C6-C3

121.16

121.11

121.09

121.04

121.14

121.11

C11-C6-C3

120.82

120.81

120.70

120.70

120.78

120.79

C6-C7-C8

121.36

121.11

121.25

121.22

121.24

121.21

C7-C8-C9

118.76

118.59

118.86

118.87

120.04

120.05

C8-C9-C10

121.74

122.07

121.58

121.58

119.37

119.38

C9-C10-C11

118.76

118.59

118.86

118.88

120.05

120.06

C10-C11-C6

121.35

121.33

121.23

121.21

121.22

121.20

C11-C6-C7

118.02

118.08

118.21

118.25

118.08

118.10

C8-C9-F

119.12

118.96

---

---

---

---

C10-C9-F

119.14

118.97

---

---

---

---

C8-C9-N

---

---

119.20

119.21

---

---

C10-C9-N

---

---

119.21

119.21

---

---

C9-N-O1

---

---

117.72

117.73

---

---

C9-N-O2

---

---

117.73

117.73

---

---

C8-C9-C

---

---

---

---

120.31

120.31

C10-C9-C

---

---

---

---

120.32

120.32

C9-C-N

---

---

---

---

179.98

179.98

C2-C3-C6-C7

32.50

35.73

29.50

31.55

30.06

32.59

It is noted from Table 1 that the values of optimized geometrical parameters calculated at B3LYP/6-311++G(d,p) are smaller than that calculated at B3LYP/6-31G(d) level except for the torsion angle of C2-C3-C6-C7. There are little differences on the bond lengths and bond angles among the three title compounds, which indicate that the both the two levels have almost the same calculated accuracy in this system. The C-C bond lengths in benzene ring are between 1.362-1.408 Å, which is much shorter than the typical C-C single bond (1.54 Å) and longer than the C = C double bond (1.34 Å) (Margules et al.1999). For S1-C2 and S1-C5 bonds, calculated carbon sulfur bond lengths are between 1.725-1.736 Å, which are smaller than the bond length of the single C-S bond (1.82 Å) (Ikawa and Whalley1996). For FPT, the C9-F bond length is 1.356 Å at B3LYP/6-311++G(d,p) level. The C9-N and C9-C bond lengths are 1.474 Å and 1.430 Å for NPT and CPT, respectively, which stay in the normal range. For NPT, the lengths of the two N-O bonds have almost the same value, which shows a good symmetry within the molecule.

The bond angles C2-S-C5 in the thiophene ring have the value between 91.36°-91.46° for all the three compounds, indicating that the S atom is of sp2 hybridization type (Coffman et al.1996). The bond angles in the benzene rings (120°) have the value between 118°-121° for all the compounds, which may be result from the π delocalization through the whole molecules. For CPT, the value of bond angle C9-C-N is 179.98°.

In all cases, the atoms in the R group are coplanar with the corresponding benzene ring, which indicates that there are only two planar (thiophene ring and benzene ring) within each of the title compounds. The values of dihedral angles between the thiophene and benzene rings are 29.50°-35.73°. The angles calculated at B3LYP/6-311++G(d,p) level have higher values than that calculated at B3LYP/6-31G(d) level. Nonetheless, the two calculated levels represent the same tendency for the three compounds. FPT has the biggest values of dihedral angle while NPT has the smallest, which indicates that NPT has the highest π-conjugated structure (Haddon2001).

3.2 Vibrational frequency

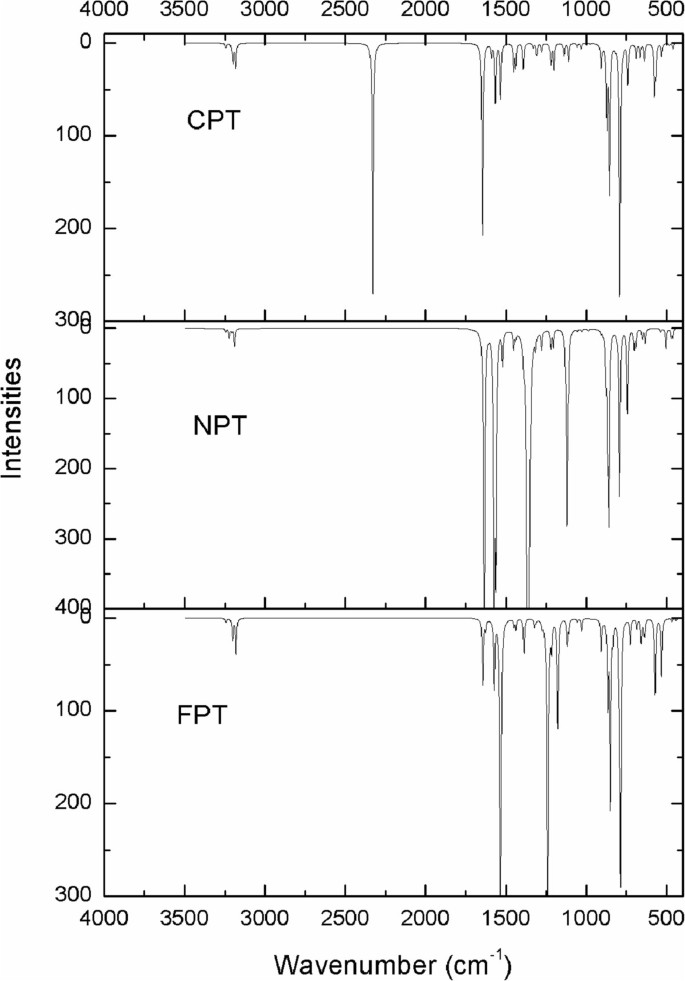

Vibrational frequencies were calculated by B3LYP/6-31G(d) and B3LYP/6-311++G(d,p) methods. Tables 2,3,4 presents the calculated vibrational frequencies over the range 4000–400 cm−1 of the title compounds studied. Inclusion of electron correlation in density functional theory to a certain extent makes the frequency values closer to the experimental vibrational frequencies. According to the data in Tables 2,3,4, the frequencies values calculated with 6-311++G(d,p) basis set are smaller than that with 6-31G(d) basis set. The following discussions are being done with the results at DFT level calculation with 6-311++G(d,p) basis set for a higher accuracy. Calculated IR intensities help us to distinguish and more precisely assign those fundamentals which are close in frequency (Li et al.2011). The theoretical FT-IR spectra calculated at B3LYP/6-31G(d) and B3LYP/6-311++G(d,p) levels are shown in Figures 2 and3, respectively.
Table 2

Calculated vibrational frequencies (cm −1 ) for FPT

Assignments

FPT



6-31G(d)

6-311++G(d.p)

ν(C-H)th

3273(0.96)

3246(0.67)

ν(C-H)th

3269(1.24)

3242(1.02)

ν(C-H)th, ν(C-H)ph

3226(5.40)

3203(2.29)

ν(C-H)th, ν(C-H)ph

3224(5.98)

3201(2.84)

ν(C-H)th, ν(C-H)ph

3223(4.14)

3200(2.26)

ν(C-H)th, ν(C-H)ph

3202(6.33)

3180(3.54)

ν(C-H)ph

3201(9.83)

3179(7.59)

ν(C-C)ph

1669(25.52)

1645(20.75)

ν(C-C)ph

1641(3.02)

1627(3.30)

ν(C-C)ph, ν(C-C)th

1595(16.96)

1573(20.98)

ν(C-C)ph, ν(C-C)th

1560(122.96)

1535(130.98)

ν(C-C)ph, ν(C-C)th

1475(2.83)

1451(2.32)

ν(C-C)ph, ν(C-C)th

1458(3.50)

1439(3.37)

ν(C-C)ph, ν(C-C)th

1406(11.87)

1388(10.73)

ν(C-C)ph, δ(C-H)ip-th

1339(0.63)

1323(2.50)

δ(C-H)ip-th, δ(C-H)ip-ph

1328(2.20)

1314(1.01)

ν(C-C), ν(C-F), δ(C-H)ip-th

1290(41.22)

1275(2.06)

ν(C-F), δ(C-H)ip-th, δ(C-H)ip-ph

1283(81.11)

1241(138.39)

δ(C-H)ip-th, δ(C-H)ip-ph

1232(9.39)

1217(7.52)

δ(C-H)ip-ph

1194(17.64)

1179(34.33)

δ(C-H)ip-ph, δ(C-H)ip-th

1130(8.61)

1119(8,16)

δ(C-H)ip-th, δ(C-H)ip-ph

1122(2.00)

1109(3.73)

δ(C-H)ip-th, δ(C-H)ip-ph

1065(1.07)

1057(1.21)

α( ring) ph, δ(C-H)ip-ph

1034(2.00)

1030(4.03)

δ(C-H)opp-ph

959(0.23)

973(0.25)

δ(C-H)opp-ph

953(0.03)

956(0.09)

α( ring) th, δ(C-H)opp-th, α( ring) ph

911(8.64)

909(9.70)

δ(C-H)opp-th

895(0.72)

895(0.60)

δ(C-H)opp-ph, ν(C-S), δ(C-H)opp-th

871(26.90)

867(25.59)

δ(C-H)opp-ph, δ(C-H)opp-th

849(44.62)

851(58.48)

α( ring) th, δ(C-H)opp-ph, α( ring) ph

844(1.46)

835(4.97)

δ(C-H)opp-ph

831(0.41)

826(0.16)

α(ring)th, α(ring)ph, δ(C-H)opp-ph, δ(C-H)opp-th

804(7.14)

797(13.20)

δ(C-H)opp-ph, δ(C-H)opp-th

793(84.60)

788(82.73)

δ(C-H)opp-ph, δ(C-H)opp-th, Φ(ring)ph

720(3.48)

727(7.80)

δ(C-H)opp-ph

685(1.49)

687(3.06)

δ(C-H)opp-ph, Φ(ring)ph, Φ(ring)th

661(5.22)

659(7.52)

Φ(ring)ph, Φ(ring)th

645(3.39)

644(3.97)

Φ(ring)ph, Φ(ring)th

641(1.76)

636(4.69)

α( ring) th, α( ring) ph

573(19.72)

573(23.87)

Φ(ring)ph, Φ(ring)th, δ(C-H)opp-ph

535(8.08)

532(18.09)

Φ(ring)th

467(1.03)

468(0.97)

Φ(ring)ph, Φ(ring)th

444(0.42)

442(0.69)

Φ(ring)ph

426(0.09)

426(0.11)

The numbers in the parentheses correspond to the IR intensities. α: planar ring deformation, Φ: non-planar deformation, ν: stretching, δ: bending, ph: benzene, th: thiophene.

Table 3

Calculated vibrational frequencies (cm −1 ) for NPT

Assignments

NPT



6-31G(d)

6-311++G(d.p)

ν(C-H)th

3275(0.75)

3248(0.80)

ν(C-H)th

3271(0.68)

3243(1.01)

ν(C-H)ph

3252(1.02)

3222(3.22)

ν(C-H)ph

3251(0.48)

3221(0.75)

ν(C-H)th, ν(C-H)ph

3230(2.93)

3207(1.42)

ν(C-H)th, ν(C-H)ph

3212(5.72)

3190(3.63)

ν(C-H)ph

3210(6.44)

3188(3.92)

ν(C-C)ph, ν(N-O)

1665(105.58)

1637(68.31)

ν(C-C)ph

1655(96.36)

1635(101.67)

ν(C-C)ph, ν(C-C)th, ν(N-O)

1611(96.07)

1574(144.85)

ν(C-C)th

1588(20.32)

1564(88.76)

ν(C-C)ph, ν(C-C)th

1541(13.83)

1523(13.80)

ν(C-C)ph, ν(C-C)th

1475(10.72)

1453(7.25)

ν(C-C)ph, ν(C-C)th

1458(4.38)

1440(3.14)

ν(C-C)ph, ν(C-C)th

1407(5.29)

1389(6.69)

ν(C-N)

1393(554.93)

1363(593.08)

ν(C-C)ph

1363(7.22)

1346(10.99)

δ(C-H)ip-ph

1329(2.98)

1316(5.55)

δ(C-H)ip-th, δ(C-H)ip-ph

1291(8.10)

1279(7.66)

δ(C-H)ip-th

1236(9.45)

1221(7.50)

δ(C-H)ip-ph

1218(5.70)

1206(6.98)

δ(C-H)ip-ph

1140(7.72)

1131(8.01)

δ(C-H)ip-th, δ(C-H)ip-ph

1135(64.27)

1121(78.97)

δ(C-H)ip-th

1124(10.75)

1110(18.81)

α( ring) th, δ(C-H)ip-th, δ(C-H)ip-ph

1065(1.34)

1056(1.01)

α( ring) ph

1033(0.61)

1029(1.26)

δ(C-H)opp-ph

993(0.66)

998(0.08)

δ(C-H)opp-ph

983(0.09)

987(0.99)

α( ring) th

912(0.88)

910(1.42)

δ(C-H)opp-ph, δ(C-H)opp-th

898(1.60)

898(1.33)

δ(C-H)opp-ph, δ(C-H)opp-th,

884(13.61)

879(13.51)

δ(C-H)opp-ph, ν(C-S), δ(C-H)opp-th

870(15.92)

869(44.51)

α(ring)th, α(ring)ph, δ(C-H)opp-ph, δ(C-H)opp-th, δ(N-O)

862(84.49)

861(72.40)

δ(C-H)opp-ph

851(4.91)

847(1.69)

δ(C-H)opp-ph, α(ring)th

817(4.24)

812(1.70)

δ(C-H)opp-th, δ(C-H)opp-ph, Φ(ring)ph, Φ(ring)th

802(52.29)

793(68.72)

δ(C-H)opp-th, δ(C-H)opp-ph, Φ(ring)ph, δ(C-N)

760(51.52)

745(35.05)

α( ring) th, α( ring) ph

716(0.55)

717(0.25)

Φ(ring)ph, δ(C-H)opp-th

709(6.11)

703(7.85)

δ(C-H)opp-th

691(3.68)

691(6.69)

Φ(ring)ph, Φ(ring)th, δ(C-H)opp-th

655(4.22)

652(4.30)

Φ(ring)ph, Φ(ring)th, δ(C-H)opp-th

639(2.62)

634(5.91)

Φ(ring)ph, Φ(ring)th

630(0.14)

630(0.12)

δ(C-N)

540(1.26)

538(1.55)

Φ(ring)ph

512(3/56)

505(8.19)

ν(ph-NO2)

477(6.27)

473(3.64)

Φ(ring)th

462(2.64)

463(3.55)

Φ(ring)ph

423(0.05)

420(0.08)

Φ(ring)ph, Φ(ring)th

410(0.26)

406(0.20)

The numbers in the parentheses correspond to the IR intensities. α: planar ring deformation, Φ: non-planar deformation, ν: stretching, δ: bending, ph: benzene, th: thiophene.

Table 4

Calculated vibrational frequencies (cm −1 ) for CPT

Assignments

CPT



6-31G(d)

6-311++G(d.p)

ν(C-H)th

3275(0.77)

3247(0.75)

ν(C-H)th

3270(0.85)

3242(1.02)

ν(C-H)ph, ν(C-H)th

3229(3.65)

3206(1.69)

ν(C-H)ph, ν(C-H)th

3223(0.21)

3199(0.08)

ν(C-H)th, ν(C-H)ph

3221(9.86)

3198(5.73)

ν(C-H)th, ν(C-H)ph

3205(4.14)

3182(2.33)

ν(C-H)ph

3203(7.33)

3181(5.73)

ν(C ≡ N)

2345(57.40)

2328(79.30)

ν(C-C)ph

1665(57.84)

1647(60.69)

ν(C-C)ph, ν(C-C)th

1608(5.00)

1590(3.95)

ν(C-C)ph, ν(C-C)th

1586(13.12)

1567(18.50)

ν(C-C)ph, ν(C-C)th

1553(19.22)

1534(17.38)

ν(C-C)ph, ν(C-C)th

1475(12.16)

1452(8.34)

ν(C-C)ph, ν(C-C)th

1458(7.78)

1440(7.27)

ν(C-C)ph, ν(C-C)th

1409(8.58)

1392(7.99)

δ(C-H)ip-ph

1344(1.37)

1332(1.43)

ν(C-C)ph, δ(C-H)ip-th

1330(2.26)

1309(3.74)

ν(Cph-Cth), δ(C-H)ip-th, δ(C-H)ip-ph

1292(3.60)

1278(2.78)

δ(C-H)ip-th, δ(C-H)ip-ph, ν(Cph-CN)

1240(1.60)

1229(0.75)

δ(C-H)ip-th, δ(C-H)ip-ph

1235(7.16)

1220(6.33)

δ(C-H)ip-ph

1213(7.31)

1202(8.18)

δ(C-H)ip-ph

1149(3.00)

1138(3.87)

δ(C-H)ip-th

1124(4.56)

1111(5.71)

α( ring) th, δ(C-H)ip-th, δ(C-H)ip-ph

1066(1.07)

1057(1.13)

α( ring) ph, δ(C-H)ip-th, δ(C-H)ip-ph

1037(1.17)

1033(1.85)

δ(C-H)opp-ph

979(0.04)

989(0.09)

δ(C-H)opp-ph

972(0.11)

977(0.17)

α( ringeth th

911(5.98)

909(7.11)

δ(C-H)opp-th

898(0.92)

898(0.89)

δ(C-H)opp-ph, ν(C-S), δ(C-H)opp-th

877(26.43)

873(24.47)

δ(C-H)opp-ph, δ(C-H)opp-th,

859(32.47)

857(45.62)

δ(C-H)opp-ph

854(4.92)

849(2.68)

α(ring)th, α(ring)ph, δ(C-H)opp-ph, δ(C-H)opp-th

827(1.07)

820(0.99)

δ(C-H)opp-ph, δ(C-H)opp-th

797(75.99)

792(79.51)

α(ring)th, α(ring)ph, δ(C-H)opp-th

773(1.57)

771(1.11)

δ(C-H)opp-th, Φ(ring)ph

742(10.37)

742(12.43)

δ(C-H)opp-th

690(2.66)

691(4.50)

Φ(ring)ph, Φ(ring)th, δ(C-H)opp-th

666(2.98)

665(4.18)

Φ(ring)ph, Φ(ring)th, δ(C-H)opp-th, δ(C-H)opp-ph

647(2.79)

640(4.16)

Φ(ring)th

638(0.22)

637(1.93)

Φ(ring)ph, δ(C-H)opp-ph, δ(Cph-CN)

574(15.24)

576(15.05)

Φ(ring)ph, δ(C-H)opp-ph, δ(Cph-CN)

561(1.38)

569(7.44)

α(ring)ph, α(ring)th

532(4.37)

532(4.04)

Φ(ring)th, Φ(ring)ph

484(0.05)

485(0.59)

Φ(ring)th

460(1.73)

461(1.83)

Φ(ring)ph

414(0.01)

412(0.01)

The numbers in the parentheses correspond to the IR intensities. α: planar ring deformation, Φ: non-planar deformation, ν: stretching, δ: bending, ph: benzene, th: thiophene.

Figure 2

The theoretically FT-IR spectrum of the title compounds by B3LYP/6-31G(d) methods.

Figure 3

The theoretically FT-IR spectrum of the title compounds by B3LYP/6-311++G(d,p) methods.

3.2.1 C-H vibrations

The existence of one or more aromatic rings in a molecule is normally determined from the C-H and C-C = C ring related vibrations. The C-H stretching occurs above 3000 cm−1 and is typically exhibited as a multiplicity of weak to moderate bands (Hunt et al.1987). In the present theoretical study, the FTIR band in the region 3300–3100 cm−1 are assigned to aryl C-H stretching vibrations. The C-H in plane bending vibration usually occurs in the region 1400–900 cm−1 and is very useful for characterization purpose (Castillo et al.2012). For FPT, the calculated frequencies 1323, 1314, 1275, 1241, 1217, 1179, 1119, 1057, 1030 cm−1 at B3LYP/6-311++G(d,p) are assigned to C-H in plane bending vibrations, which has similar results for NPT and CPT. The C-H out of plane deformations are observed between 1000–500 cm−1 for the three title compounds.

3.2.2 C-S vibrations

In our present study, the C-S stretching vibrations are observed at 867 cm−1 for FPT, 869 cm−1 for NPT and 873 cm−1 for CPT, respectively.

3.2.3 C = C stretching

The ring carbon-carbon stretching vibrations occur in the region 1650–1400 cm−1. For aromatic six-membered rings, there are two of three bands in this region due to skeletal vibrations, the strongest usually being at about 1500 cm−1 (Li et al.2011). The aromatic C = C stretching is observed at 1645, 1573, 1535 cm−1 for FPT while the strongest peak is observed at 1535 cm−1. The strongest peaks are observed at 1574 cm−1 and 1647 cm−1 for NPT and CPT, respectively, which may be due to the electron-withdrawing effect by the nitro and cyano groups.

3.2.4 Ring vibrations

In benzene, six ring deformation frequencies are observed. Three arise from in-plane bending vibrations, corresponding to 1000–600 cm−1 mode and the remaining three are derived from the out-of-plane bending vibrations, corresponding to 700–400 cm−1 mode of vibrations (Li et al.2011). For FPT, the α(ring) vibrations are observed at 909, 835, 797, 573 cm−1 and Φ(ring) vibrations at 644, 636, 532 cm−1.

3.25 C-N vibrations

For NPT, the strong peak at 1363 cm−1 is assigned to the Cph-N single-bonded stretching. For CPT, the C ≡ N stretching is observed at 2328 cm−1.

3.2.6 N-O vibrations

The N-O stretching vibration is observed at 1637 and 1574 cm−1 for NPT.

3.3 13C and 1H NMR studies

The calculated values of 13C and 1H chemical shifts by B3LYP/6-311++G(d,p) method in the gas phase are summarized in Tables 5 and6.
Table 5

Calculated δ(cal) 13 C chemical shifts of the title compounds

C

FPT

NPT

CPT



6-311++G(d,p)

6-311++G(2d,2p)

6-311++G(d,p)

6-311++G(2d,2p)

6-311++G(d,p)

6-311++G(2d,2p)

2

130.4

129.8

133.9

133.0

132.9

132.2

3

148.1

148.9

146.7

147.6

147.1

148.0

4

130.5

131.1

130.1

130.7

130.0

130.6

5

136.2

136.1

137.2

137.3

137.1

137.1

6

139.4

139.7

149.0

149.4

146.4

146.9

7

133.2

133.2

130.6

130.8

131.2

131.1

8

120.1

120.2

129.6

130.3

138.9

138.8

9

171.1

171.6

153.1

153.6

115.9

116.4

10

119.8

119.9

129.6

130.1

138.8

138.7

11

133.0

133.0

130.5

130.8

131.2

131.1

12a

---

---

---



122.1

122.9

aC atom in cyano group for CPT.

Table 6

Calculated δ(cal) 13 H chemical shifts of the title compounds

Ha

FPT

NPT

CPT



6-311++G(d,p)

6-311++G(2d,2p)

6-311++G(d,p)

6-311++G(2d,2p)

6-311++G(d,p)

6-311++G(2d,2p)

2

7.29

7.63

7.57

7.92

7.50

7.85

4

7.30

7.56

7.38

7.67

7.40

7.66

5

7.27

7.68

7.36

7.78

7.33

7.75

7

7.62

7.90

7.67

8.00

7.69

8.00

8

7.19

7.48

8.48

8.94

7.76

8.06

10

7.19

7.49

8.49

8.94

7.77

8.08

11

7.54

7.84

7.57

7.93

7.62

7.94

aThe number of H are according to the number of the bonded carbon.

(Li and Zhang2013) calculated the 13C and 1H chemical shifts of 2-dicyanovinyl-5-(4- methoxyphenyl) thiophene in the gas phase by B3LYP/6-311++G(d,p) and B3LYP/6-311++G(2d,2p) method and the calculated results are good agreement with the experimental ones (Li and Zhang2013). In order to have a comparison, we extend our study by employing B3LYP/6-311++G(2d,2p) method to calculated the 13C and 1H chemical shifts in the gas phase. It has been proved that the chemical shifts calculated by B3LYP/6-311++G(2d,2p) method are closer to the experimental values than those calculated by B3LYP/6-311++G(d,p) method (Li et al.2011). It is noted that all the 13C and 1H chemical shifts are in there normal values for all the compounds. The 1H chemical shifts calculated by B3LYP/6-311++G(2d,2p) method have higher values than those calculated by B3LYP/6-311++G(d,p) method in the present study. For the thiophene ring, C3 has the highest chemical shifts in each compound, which may due to the substituting effects of the benzene moiety. The C9 in the benzene rings have the highest value of chemical shifts for FPT and NPT while that of CPT has the smallest, indicating the effect of the substituted groups at C9.

3.4 Mulliken charges

The atomic charge in the molecules is fundamental to chemistry. Mulliken atomic charges calculated at the B3LYP/6-311++G(d,p) level are shown in Figure 4. It is noted from Figure 5 that the charge distribution of the aromatic skeleton is related with the substituted groups at C9. For example, the charge of C9 atom is −0.796 for FPT, −0.170 for NPT, and 2.113 for CPT. The sum charges of the substituted groups are −0.173 for FPT, −0.211 for NPT, and −1.82 for CPT, which indicates that cyano group has the highest electron-withdrawing effect. The charge values on S atom decrease from −0.439 to −0.475 from FPT to CPT. All the hydrogen atoms have a net positive charge.
Figure 4

Atomic charges for optimized geometries of the title compounds at B3LYP/6-311++G(d,p) level.

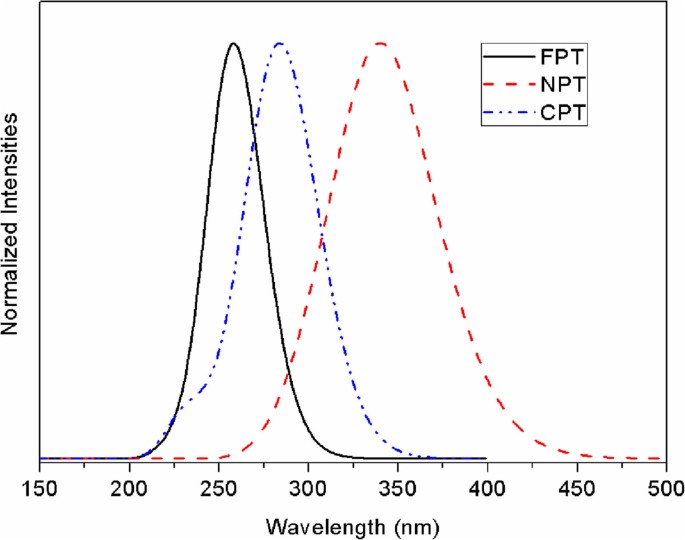

Figure 5

Predicted UV–vis spectra of the title compounds at B3LYP/6-311++G(d,p) level.

Particularly, the charges on H2 and H5 atoms exhibit large positive values (0.275 and 0.265 for FPT, 0.277 and 0.273 for NPT, 0.279 and 0.273 for CPT). The presence of large negative charge on S atom and positive charge on H2 or H5 atom may suggest the formation of intramolecular interactions in the solid states.

3.5 Electronic spectra

To the best of our knowledge, no experimental UV–vis spectra of the title compounds is reported. Figure 5 display the calculated spectra of the title compounds at B3LYP/6-311++G(d,p) level. Tables 7,8,9 list the excitation energies of the Frontier orbitals and oscillator strengths of the optimized ground state geometries. At the B3LYP/6-311++G(d,p) level of theory the excitation bands of the title compounds are composed of mixed HOMO-n → LUMO + m excitations. Figure 6 compares contour plots of three highest occupied and three lowest unoccupied molecular orbitals (H-2 to H, L to L + 2; isovalue 0.02 e/a.u3) that give rise to the transitions.
Table 7

B3LYP/6-311++G(d,p) wavelength, excitation energies, and the oscillator strengths for FPT

State

FPT



λ (nm)

eV

f

% contribution

S1

265.61

4.668

0.0383

H-2 → L + 0(7%), H-0 → L + 0(27%), H-0 → L + 1(62%)

S2

257.41

4.817

0.2603

H-2 → L + 0(3%), H-0 → L + 0(68%), H-0 → L + 1(24%)

S3

243.84

5.985

0.0002

H-1 → L + 0(50%), H-0 → L + 2(45%)

S4

231.98

5.345

0.0070

H-1 → L + 0(5%), H-0 → L + 2(3%), H-0 → L + 3(78%)

H-0 → L + 4(8%)

S5

229.23

5.409

0.0104

H-2 → L + 0(8%), H-1 → L + 1(81%), H-0 → L + 3(4%)

Table 8

B3LYP/6-311++G(d,p) wavelength, excitation energies, and the oscillator strengths for NPT

State

NPT



λ (nm)

eV

f

% contribution

S1

344.39

3.600

0.3120

H-3 → L + 0(2%), H-0 → L + 0(96%)

S2

329.99

3.757

0.0085

H-3 → L + 0(91%), H-3 → L + 1(2%), H-0 → L + 0(2%)

S3

310.18

3.997

0.0793

H-1 → L + 0(98%)

S4

290.03

4.275

0.0077

H-5 → L + 0(29%), H-2 → L + 0(61%), H-0 → L + 1(2%)

H-0 → L + 2(4%)

S5

288.72

4.294

0.0042

H-5 → L + 0(66%), H-2 → L + 0(27%)

Table 9

B3LYP/6-311++G(d,p) wavelength, excitation energies, and the oscillator strengths for CPT

State

CPT



λ (nm)

eV

f

% contribution

S1

287.11

4.318

0.4520

H-0 → L + 0(94%)

S2

268.77

4.613

0.0590

H-2 → L + 0(10%), H-1 → L + 0(55%), H-0 → L + 1(33%)

S3

265.04

4.678

0.0735

H-2 → L + 0(20%), H-1 → L + 0(38%), H-0 → L + 1(34%)

H-0 → L + 2(6%)

S4

237.49

5.220

0.0137

H-3 → L + 0(5%), H-3 → L + 1(2%), H-2 → L + 0(21%)

H-1 → L + 0(3%), H-1 → L + 1(3%), H-1 → L + 2(2%)

H-0 → L + 1(20%), H-0 → L + 2(40%)

S5

232.34

5.34

0.0512

H-3 → L + 0(6%), H-3 → L + 1(4%), H-2 → L + 0(13%)



H-1 → L + 1(40%), H-0 → L + 1(5%), H-0 → L + 2(29%)

Figure 6

Frontier molecular orbitals of FPT, NPT and CPT calculated at B3LYP/6-311++G(d,p)//TD- B3LYP/6-311++G(d,p).

(4-fluorophenyl)thiophene (FPT)

The S1-S5 bands of FPT are calculated at 265, 257, 243, 231, 229 nm. The nature of the strongest absorption band 257 nm (S0 → S2) is dominated by excitations from HOMO-2 → LUMO + 0, HOMO-0 → LUMO + 0, and HOMO-0 → LUMO + 1, which consist of n → π* and π → π* transitions (see Frontier orbitals in Figure 6). The oscillator strength of S0 → S1 band is f = 0.0383, and the major excitation is HOMO-0 → LUMO + 1(62%), which is assigned to the n → π* transition. The HOMO-LUMO gap is calculated to be 5.14 eV.

(4-nitrophenyl)thiophene (NPT)

The S1-S5 bands of NPT are calculated at 344, 329, 310, 290, 288 nm, which shows red-shifted character compared with FPT. The nature of the strongest absorption band 344 nm (S0 → S1) is dominated by excitations from HOMO-0 → LUMO + 0(94%), which consist of π → π* transitions (see Frontier orbitals in Figure 6). The HOMO-LUMO gap is calculated to be 3.961 eV, which is lower than that of FPT. It is reported that the molecules with nitro group can lower the band gaps, which has potential use in photovoltaic cells (Mikroyannidis et al.2009).

(4-cyanophenyl)thiophene (CPT))

The S1-S5 bands of CPT are calculated at 287, 268, 265, 237, 232 nm, which shows red-shifted character compared with FPT, and blue-shift compared with NPT. The nature of the strongest absorption band 287 nm (S0 → S1) is dominated by excitations from HOMO-0 → LUMO + 0(96%), which consist of n → π* and π → π* transitions (see Frontier orbitals in Figure 6). The HOMO-LUMO gap is calculated to be 4.651 eV, which has the intermediate value among the three compounds.

4. Conclusions

In the present work, the optimized molecular structures, vibrational frequencies, NMR chemical shifts, and electronic properties of the three title compounds have been calculated by using B3LYP/6-31G(d), B3LYP/6-311++G(d,p) and TD-B3LYP/6-311++G(d,p) methods. The optimized geometries results show that FPT has the biggest values of dihedral angle while NPT has the smallest, which indicates that NPT has the highest π-conjugated structure. The vibrational frequencies values calculated with 6-311++G(d,p) basis set are smaller than that with 6-31G(d) basis set for all the compounds. For NPT, the strong peak at 1363 cm−1 is assigned to the Cph-N single-bonded stretching, and the N-O stretching vibration is observed at 1637 and 1574 cm−1. For CPT, the C ≡ N stretching is observed at 2328 cm−1. The C9 in the benzene rings have the highest value of chemical shifts for FPT and NPT while that of CPT has the smallest, indicating the effect of the substituted groups at C9. CPT shows red-shifted character compared with FPT, and blue-shift compared with NPT in the TD-DFT calculations. In a word, the type of substituted groups at the C9 atom have significant effect on the properties for the 3-(4-phenyl)thiophene derivatives. Poly(3-phenylthiophene) has been used reported for used in supercapacitors. The polymerization of the three title compounds are being studied by our group. We believe that the three title compounds will show good performance in supercapacitors.

Declarations

Acknowledgments

This work was supported financially by the Shenzhen Science and Technology Plan Projects (JCYJ20140419122040611, SGLH20131010153555326, ZDSY20120619141659791).

Authors’ Affiliations

(1)
Laboratory of Advanced Energy Storage Materials & devices, Center for Advanced Materials & Biotechnology, Research Institute of Tsinghua University in Shenzhen
(2)
Key Laboratory of Electrochemical Energy Storage Devices, Research Institute of Tsinghua University in Shenzhen

References

  1. Balaji G, Kale TS, Keerthi A, Della Pelle AM, Thayumanavan S, Valiyaveettil S: Low band gap thiophene-perylene diimide systems with tunable charge transport properties. Org Lett 2011, 13(1):18-21. doi:10.1021/ol1023486View ArticleGoogle Scholar
  2. Cao YM, Bai Y, Yu QJ, Cheng YM, Liu S, Shi D, Gao FF, Wang P: Dye-sensitized solar cells with a high absorptivity ruthenium sensitizer featuring a 2-(hexylthio)thiophene conjugated bipyridine. J Phys Chem C 2009, 113(15):6290-6297. doi:10.1021/jp9006872View ArticleGoogle Scholar
  3. Castillo MV, Romano E, Raschi AB, Yurquina A, Brandan SA: Structural study and vibrational spectra of 3-amino-2(4-chlorophenyl) quinazolin-4(3H)-one. Comput Theor Chem 2012, 995: 43-48. doi:10.1016/j.comptc.2012.06.029View ArticleGoogle Scholar
  4. Cho E, Risko C, Kim D, Gysel R, Miller NC, Breiby DW, McGehee MD, Toney MF, Kline RJ, Bredas JL: Three-dimensional packing structure and electronic properties of biaxially oriented poly(2,5-bis(3-alkylthiophene-2-yl)thieno-[3,2-b]thiophene) films. J Am Chem Soc 2012, 134(14):6177-6190. doi:10.1021/ja210272zView ArticleGoogle Scholar
  5. Cicoira F, Santato C, Melucci M, Favaretto L, Gazzano M, Muccini M, Barbarella G: Organic light-emitting transistors based on solution-cast and vacuum-sublimed films of a rigid core thiophene oligomer. Adv Mater 2006, 18(2):168-170. doi:10.1002/adma.200501639View ArticleGoogle Scholar
  6. Coffman FL, Cao R, Pianetta PA, Kapoor S, Kelly M, Terminello LJ: Near-edge x-ray absorption of carbon materials for determining bond hybridization in mixed sp2/sp3 bonded materials. Appl Phys Lett 1996, 69: 568-570. 10.1063/1.117789 http://dx.doi.org/10.1063/1.117789View ArticleGoogle Scholar
  7. Dai CA, Yen WC, Lee YH, Ho CC, Su WF: Facile synthesis of well-defined block copolymers containing regioregular poly(3-hexylthiophene) via anionic macroinitiation method and their self-assembly behavior. J Am Chem Soc 2007, 129(36):11036-11037. doi:10.1021/ja0733991View ArticleGoogle Scholar
  8. EI-Azhary AA, Suter HU: Comparison between optimized geometries and vibrational frequencies calculated by the DFT methods. J Phys Chem 1996, 100(37):15056-15063. doi:10.1021/jp960618oView ArticleGoogle Scholar
  9. Frisch MJ, Trucks GW, Schlegel HB, Scuseria GE, Robb MA, Cheeseman JR, Scalmani G, Barone V, Mennucci B, Petersson GA, Nakatsuji H, Caricato M, Li X, Hratchian HP, Izmaylov AF, Bloino J, Zheng G, Sonnenberg JL, Hada M, Ehara M, Toyota K, Fukuda R, Hasegawa J, Ishida M, Nakajima T, Honda Y, Kitao O, Nakai H, Vreven T, Gaussian 09, Revision D.01, et al.: Gaussian 09, Revision B.01. Gaussian, Inc, Wallingford CT; 2009.Google Scholar
  10. Giovanna B, Manuela M, Giovanna S: The versatile thiophene: An overview of recent research on thiophene-based materials. Adv Mater 2005, 17(13):1581-1593. doi:10.1002/adma.200402020View ArticleGoogle Scholar
  11. Haddon RC: Comment on the relationship of the pyramidalization angle at a conjugated carbon atom to the sigma bond angles. J Phys Chem A 2001, 105(16):4164-4165. doi:10.1021/jp010023fView ArticleGoogle Scholar
  12. Hara K, Kurashige M, Dan-oh Y, Kasada C, Shinpo A, Suga S, Sayama K, Arakawa H: Design of new coumarin dyes having thiophene moieties for highly efficient organic-dye-sensitized solar cells. New J Chem 2003, 27: 783-785. doi:10.1039/B300694HView ArticleGoogle Scholar
  13. Hunt JH, Guyot-Sionnest P, Shen YR: Observaiton of C-H stretch vibration of monolayers of molecules: optical sum-frequency generation. Chem Phys Lett 1987, 133(3):189-192. doi:10.1016/0009-2614(87)87049-5View ArticleGoogle Scholar
  14. Ikawa S, Whalley E: Polarized and depolarized Raman spectra of liquid carbon disulfide in the pressure range 0–10 kbar. I. Vibration frequencies, C-S bond length, and Fermi resonance. J Chem Phys 1996 85: 2538-2547. http://dx.doi.org/10.1063/1.451061View ArticleGoogle Scholar
  15. Jacquemin D, Wathelet V, Perpete EA, Adamo C: Extensive TD-DFT benchmark: Singlet-excited states of organic molecules. J Chem Theo Comput 2009, 5(9):2420-2435. doi:10.1021/ct900298eView ArticleGoogle Scholar
  16. Karthikeyan G, Sahoo S, Nayak GC, Das CK: Investigagion on doping of poly(3-methyl-thiophene) composites for supercapacitor applications. Macromolecular Res 2012, 20(4):351-357. doi:10.1007/s13233-012-0020-7View ArticleGoogle Scholar
  17. Kim Y, Cook S, Tuladhar SM, Choulis SA, Nelson J, Durrant JR, Bradley DDC, Glies M, Mcculloch I, Ha CS: A strong regioregularity effect in self-organizing conjugated polymer films and high-efficiency polythiophene: fullerene solar cells. Nature Mater 2006, 5: 197-203. doi:10.1038/nmat1574View ArticleGoogle Scholar
  18. Kline RJ, Mcgehee MD, Toney MF: Highly oriented crystals at the buried interface in polythiophene thin-film transistors. Nature Mater 2006, 5: 222-228. doi:10.1038/nmat1590View ArticleGoogle Scholar
  19. Li XH, Zhang XZ: The spectroscopic, NMR analysis of 2-dicyanovinyl-5-(4- methoxyphenyl)thiophene by density functional method. Spectrochim Acta A 2013, 105: 280-287. doi:10.1016/j.saa.2012.12.048View ArticleGoogle Scholar
  20. Li XH, Liu XR, Zhang XZ: Calculation of vibrational spectroscopic and NMR parameters of 2-dicyanovinyl-5-(4-N, N-dimethylaminophenyl)thiophene by ab initio HF and density functional methods. Comput Theor Chem 2011, 969(1–3):27-34. doi:10.1016/j.comptc.2011.05.010Google Scholar
  21. Lim JM, Kwon JY, Xu F, Kim HU, Hwang DH, Nanosci J: Pure red phosphorescent organic light-emitting diodes made of iridium(III) complex with thiophene-quinoline ligand. Nanaotech 2013, 13(12):8007-8010. PMID:24266181Google Scholar
  22. Lu LL, Hu H, Hou H, Wang BS: An improved B3LYP method in the calculation of organic thermochemistry and reactivity. Comput Theor Chem 2013, 1015: 64-71. doi:10.1016/j.comptc.2013.04.009View ArticleGoogle Scholar
  23. Margules L, Demaison J, Boggs JE: Equilibrium C-F bond length and the structure of formyl fluoride, difluorocarbene, monofluoromethylene, and difluoromethane. J Phys Chem A 1999, 103(38):7632-7638. doi:10.1021/jp991417yView ArticleGoogle Scholar
  24. Marsh HS, Jankowski E, Jayaraman A: Controlling the morphology of model conjugated thiophene oligomers through alkyl side chain length, placement, and interactions. Macromolecules 2014, 47(8):2736-2747. doi:10.1021/ma5000267View ArticleGoogle Scholar
  25. Mikroyannidis JA, Stylianakis MM, Suresh P, Balraju P, Sharma GD: Low band gap vinylene compounds with triphenylamine and benzothiadiazole segments for use in photovoltaic cells. Org Electron 2009, 10(7):1320-1333. doi:10.1016/j.orgel.2009.07.013View ArticleGoogle Scholar
  26. Mushrush M, Facchetti A, Lefenfeld M, Katz HE, Marks TJ: Easily processable phenylene-thiophene-based organic field-effect transistors and solution-fabricated nonvolatile transistor memory elements. J Am Chem Soc 2003, 125(31):9414-9423. doi:10.1021/ja035143aView ArticleGoogle Scholar
  27. Osaka T, Komaba S, Fujihana K, Okamoto N, Momma T, Kaneko N: Organic electroluminescence device based on an electrodeposited poly(3-substituted thiophene) film. J Electrochem Soc 1997, 144(2):742-448. doi:10.1149/1.1837478 10.1149/1.1837478View ArticleGoogle Scholar
  28. Osaka I, Sauve G, Zhang R, Kowalewski T, McCullough RD: Novel thiophene-thiazolothiazole copolymers for organic field-effect transistors. Adv Mater 2007, 19(23):4160-4165. doi:10.1002/adma.200701058View ArticleGoogle Scholar
  29. Patil AV, Lee WH, Lee E, Kim K, Kang IN, Lee SH: Synthesis and photovoltaic properties of a low-band-gap copolymer of dithieno[3,2-2′,3′-d]thiophene and dithienylquinoxaline. Macromolecules 2011, 44(6):1238-1241. doi:10.1021/ma102722dView ArticleGoogle Scholar
  30. Patra SK, Ahmed R, Whittell GR, Lunn DJ, Dunphy EL, Winnik MA, Manners I: Cylindrical micelles of controlled length with a π-conjugated polythiophene core via crystallization-driven self-assenbly. J Am Chem Soc 2011, 133(23):8842-8845. doi:10.1021/ja202408wView ArticleGoogle Scholar
  31. Shen L, Xu JK, Wei ZH, Xiao Q, Pu SZ: Electrosynthesis of freestanding poly (3-(4-fluorophenyl)thiophene) films in boron trifluoride diethyl etherate. Eur Polym J 2005, 41(8):1738-1746. doi:10.1016/j.eurpolymj.2005.02.027View ArticleGoogle Scholar
  32. Sivaraman P, Bhattacharrya AR, Mishra SP, Thakur AP, Shashidhara K, Samui AB: Asymmetric supercapacitor containing poly(3-methyl thiophene)-multiwalled carbon nanotubes nanocomposites and activated carbon. Electrochim Acta 2013, 94: 182-191. doi:10.1016/j.electacta.2013.01.123View ArticleGoogle Scholar
  33. Su YZ, Lin JT, Tao YT, Ko CW, Lin SC, Sun SS: Amorphous 2,3-substituted thiophenes: Potential electroluminescent materials. Chem Mater 2002, 14: 1884-1890. doi:10.1021/cm011671eView ArticleGoogle Scholar
  34. Thomas KRJ, Hsu YC, Lin JT, Lee KM, Ho KC, Lai CH, Cheng YM, Chou PT: 2,3-disubstituted thiophene-based organic dyes for solar cells. Chem Mater 2008, 20(5):1830-1840. doi:10.1021/cm702631rView ArticleGoogle Scholar
  35. Ustamehmetoglu B: Synthesis and characterization of thiophene and thiazole containing polymers. Electrochim Acta 2014, 122: 130-140. doi:10.1016/j.electacta.2013.12.130View ArticleGoogle Scholar
  36. Wei ZH, Xu JK, Hou J, Zhou WQ, Pu SZ: Electrochemical and spectroscopic characteristics of copolymers electrochemically synthesized from 3-(4-fluorophenyl) thiophene and 3,4-ethylenedioxythiophene. J Mater Sci 2006, 41(12):3923-3930. doi:10.1007/s10853-005-5505-8View ArticleGoogle Scholar
  37. Wolff SK, Ziegler T: Calculation of DFT-GIAO NMR shifts with the inclusion of spin-orbit coupling. J Chem Phys 1998, 109: 895-905.http://dx.doi.org/10.1063/1.476630View ArticleGoogle Scholar
  38. Yanai T, Tew DP, Handy NC: A new hybrid exchange-correlation functional using the Coulomb-attenuating method (CAM-B3LYP). Chem Phys Lett 2004, 393(1–3):51-57. doi:10.1016/j.cplett.2004.06.011View ArticleGoogle Scholar
  39. Yang HC, Shin TJ, Yang L, Cho K, Ryu CY, Bao ZN: Effect of mesoscale crystalline structure on the filed-effect mobility of regioregular poly(3-hexylthiophene) in thin film transistors. Adv Funct Mater 2005, 15(4):671-676. doi:10.1002/adfm.200400297View ArticleGoogle Scholar
  40. Yue BB, Wang CY, Wagner P, Yang Y, Ding X, Officer DL, Wallace GG: Electrodeposition of pyrrole and 3-(4-tert-butylphenyl)thiophene copolymer for supercapacitos applications. Synthetic Metal 2012, 162(24):2216-2221. doi:10.1016/j.synthmet.2012.09.024View ArticleGoogle Scholar
  41. Yumura T, Yamashita H: Modulating the electronic properties of multimeric thiophene oligomers by utilizing carbon nanotube confinement. J Phys Chem C 2014, 118(10):5510-5522. doi:10.1021/jp5006555View ArticleGoogle Scholar
  42. Zhang ZP, Shi GQ: Electrochemical polymerization of 3-phenylthiophene. J Electroanalytical Chem 2004, 569(2):197-202. doi:10.1016/j.jelechem.2004.03.001View ArticleGoogle Scholar
  43. Zhang QL, Cirpan A, Russell TP, Emrick T: Donor-acceptor poly(thiophene-block-perylene diimide) copolymers: synthesis and solar cell fabrication. Macromolecules 2009, 42(4):1079-1082. doi:10.1021/ma801504eView ArticleGoogle Scholar
  44. Zhang F, Wu DQ, Xu YY, Feng XL: Thiophene-based conjugated oligomers for organic solar cells. J Mater Chem 2011, 21: 17590-17600. doi:10.1039/C1JM12801AView ArticleGoogle Scholar

Copyright

© Mei-Rong et al.; licensee Springer. 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
