Expression of a manganese peroxidase isozyme 2 transgene in the ethanologenic white rot fungus Phlebia sp. strain MG-60

  • Yumi Yamasaki1, 2,
  • Megumi Yamaguchi2,
  • Kenji Yamagishi3,
  • Hirofumi Hirai4,
  • Ryuichiro Kondo5,
  • Ichiro Kamei2Email author and
  • Sadatoshi Meguro2

Received: 22 September 2014

Accepted: 17 November 2014

Published: 27 November 2014



The white-rot fungus Phlebia sp. strain MG-60 was proposed as a candidate for integrated fungal fermentation process (IFFP), which unifies aerobic delignification and semi-aerobic consolidated biological processing by a single microorganism based on its ability to efficiently degrade lignin and ferment the sugars from cellulose. To improve IFFP, the development of a molecular breeding method for strain MG-60 is necessary. The purpose of this study is to establish the transformation method for the strain MG-60 and to obtain the over-expressing transformants of lignin-degrading enzyme, manganese peroxidase.


In the present study, the expression vector regulated by Phlebia brevispora glyceraldehyde-3-phosphate dehydrogenase promoter and terminator was constructed. A polyethylene glycol transformation method for the ethanol-fermenting white-rot fungus Phlebia sp. MG-60 was established with high transformation efficiency, and the manganese peroxidase isozyme 2 gene (MGmnp2) transformants were obtained, showing higher MnP activity than control transformants. MGmnp2 transformants showed higher selective lignin degradation on Quercus wood powder.


This first report of MG-60 transformation provides a useful methodology for widely accessible to interested researches. These results indicate the possibility of metabolic engineering of strain MG-60 for improving IFFP.


Lignin Manganese peroxidase Phlebia sp. MG-60 White rot fungus


The white-rot fungus Phlebia sp. strain MG-60 was proposed as a candidate for integrated fungal fermentation process (IFFP), which unifies aerobic delignification and semi-aerobic consolidated biological processing by a single microorganism based on its ability to efficiently degrade lignin and ferment the sugars from cellulose (Kamei et al.2012a,[b]). To improve this environmentally friendly and unique process for biorefinery of lignocellulose, the development of a molecular breeding method for strain MG-60 is necessary. Manganese peroxidase (MnP) is considered a key enzyme in the lignin degrading basidiomycetous fungi, which catalyzes the oxidation of Mn2+ to Mn3+ along with an H2O2 generating system (Gold and Alic1993; Martínez2002). Three MnP encoding genes (MGmnp1, MGmnp2 and MGmnp3) were cloned from the strain MG-60 (Kamei et al.2008). It is expected that the overexpression of MnP genes improves delignification ability of the strain. In this study, an expression vector was constructed, and transformation efficiency was evaluated. Then, MGmnp2 expressing transformants were generated, and the MnP activity on the transformants was determined. Additionally, the ability of the transformants to degrade lignin was analyzed.

Materials and methods

Construction of expression vectors

Phlebia sp. strain MG-60 TUFC40001 (Fungus/Mushroom Resource and Research Center, Tottori, Japan) was maintained on potato dextrose agar (PDA) plates. Additional file1: Figure S1 shows the construction procedure for the expression plasmids pPbGPD (glyceraldehyde-3-phosphate dehydrogenase)-HPT, pPbGPD-EGFP and pPbGPD- MGmnp2. Additional file1: Table S1 lists the primers (Life Technologies, Carlsbad, CA) used. The PbGPD gene was obtained from Phlebia brevispora HHB-7030 genomic DNA (protein ID: 29450) by PCR amplification with the primers PbGPD-F1 and PbGPD-R1, and the amplified fragment was ligated into the T-Vector pMD20 (TAKARA BIO INC, Shiga, Japan) (steps 1 and 2). The added Asc I restriction enzyme sites, included in the PbGPD promoter and PbGPD terminator, were obtained using the primers PbGPD-Asc- F1 and PbGPD-Asc- R1 (step 3). HPT, EGFP and MGmnp2 genes containing the added Asc I restriction enzyme site were amplified with PCR by using primers gHPT-Asc- F1, gHPT-Asc- R1, gEGFP-Asc- F1, gEGFP-Asc- R1, g MGmnp2-Asc- F1 and g MGmnp2-Asc- R1, which were designed based on the Escherichia coli hygromycin B phosphotransferase gene (accession number: K01193), the Aequorea victoria EGFP gene (accession number: U55761) and the Phlebia sp. MG-60 MGmnp2 gDNA sequence data (accession number: AB971352), respectively. The amplified HPT, EGFP and MGmnp2 genes were ligated into the expression plasmid after digestion by Asc I (New England Biolabs Japan Inc., Tokyo, Japan) according to DNA Ligation Kit Mighty Mix (TAKARA BIO INC, Shiga, Japan) instructions, and then transformed into competent E. coli JM 109 (TAKARA BIO INC, Shiga, Japan) for amplification.


Protoplast isolation and polyethylene glycol (PEG)-mediated co-transformation assays with MG-60 were performed in a manner similar to the method reported with Phanerochaete sordida YK-624 previously (Yamagishi et al.2007). Briefly, MG-60 was pre-cultured in 100 mL CYM (yeast extract 2 g/L, polypeptone 2 g/L, glucose 20 g/L, MgSO4-7H2O 0.5 g/L, KH2PO4 0.46 g/L, K2HPO4 1 g/L, vitamin B1 1 mg/L, thiabendazole 20 μg/L, pH 6.0) medium for 3 d without shaking. After pre-culture, the mycelia were homogenized for 10 sec and sub-cultured for 3 d in CYM medium. The mycelia were harvested by filtration and treated with 0.5 M MgSO4 buffer (0.5 M MgSO4-7H2O, 20 mM maleic acid) containing 2.5% (w/v) Cellulase Onozuka (Yakult, Tokyo, Japan) and 2.5% (w/v) Lysing Enzymes from Trichoderma (Sigma-Aldrich, MO, USA) at 30°C on a shaker NTS-4000B (TOKYO RIKAKIKAI CO, LTD, Tokyo, Japan) at 60 rpm for 4 h. The mycelial suspension was overlaid with 1.0 M SorbOsm (1.0 M sorbitol, 10 mM MES, pH 6.3) and centrifuged at 1,500 g in a TOMY LC-122 centrifuge (TOMY SEIKO CO., LTD, Tokyo, Japan) for 20 min. Protoplasts that accumulated at the interface between the two liquid phases were collected, equaling approximately 7.5 × 106 protoplasts per 1 g of wet mycelial weight. Then, 1.5 × 106 protoplasts in 500 μL of 1.0 M SorbOsm were treated with 300 μL of DNA solution containing 20 μg plasmid in 1 M sorbitol and 0.04 M CaCl2. The tube was placed on ice for 30 min. After treatment, 800 μL of 50% (w/v) PEG4000 and then 75 mL regeneration medium were added to the tube. The entire contents were poured onto 50 petri dishes (2.0 × 104 cells/mL), and incubated at 30°C. Transformants with hygromycin resistance were selected by treatment with 15 μg/mL hygromycin B (Life Technologies, Carlsbad, CA). EGFP and MGmnp2 transformants were selected by genomic PCR amplification with the primers PbGPD-prom-F1, gEGFP-Asc- R1 and g MGmnp2-Asc- R1.

MnP activity

The transformants with high MnP activities were selected by measuring the activity. Wild type MG-60 (Wt), HPT-expressing transformants (HPT) and MGmnp2-expression candidates (M1 to M14) were cultured in 8 mL Kirk’s high-nitrogen medium (Kirk HN) (Tien and Kirk1988) at pH 4.5 in test tubes on a reciprocal shaker MMS-3010 shaker (TOKYO RIKAKIKAI CO, LTD, Tokyo, Japan) at 150 rpm in the dark at 28°C for 3 or 6 d. After incubation, the whole culture was separated into mycelium and extracellular fluid by centrifugation at 12,000 g in a centrifuge 5430R (Eppendorf AG, Hamburg, Germany) for 10 min. MnP activity was measured as described by Martínez et al. (1996).

Treatment of wood powder

The transformants selected above were pre-cultured on PDA plates at 28°C. The solid medium of Quercus serrata Thunb. wood powder was adjusted to 80% moisture content using distilled water and sterilized at 121°C for 15 min. One mycelial disk (5 mm in diameter), punched from colony edges on PDA, were inoculated to the surface of the prepared medium, and then incubated at 28°C for 20 d. The test was carried out independently using three flasks per each strain. After incubation, the samples were dried in the oven DX-58 (Yamato Scientific Co., Ltd., Tokyo, Japan) at 105°C, and the dry weight was measured. The Klason lignin content of the samples was determined according to the standard analytical laboratory procedure (Sluiter et al.2011). The selective ability of the transformants to degrade lignin was calculated as the ratio of lignin mass loss to the mass of wood powder (the L/W ratio) (Suhara et al.2012). To measure the MnP activity of the transformants, samples were extracted with 20 mL of 71 mM malonic acid buffer on ice for 1 h with stirring every 10 min. Data were analyzed by Dunnett’s test to evaluate the significance of differences, and p <0.05 was regarded as statistically significant.

Results and discussions

As preliminary experiments, the protoplast regeneration and transformation efficiency of strain MG-60 was measured. The regeneration value on the plate without hygromycin B was 86.7% (Table 1). The presence of hygromycin B completely inhibited the viability of MG-60. The selective marker pPbGPD-HPT was introduced into the protoplasts of MG-60, and the growth of HPT transformants was observed. On average, approximately 10 colonies per petri dish with hygromycin B showed growth after 7 d of culturing. The transformation efficiency (Table 1) was higher than that of previous reports with other white rot fungi (Akileswaran et al.1993; Bartholomew et al.2001; Yamagishi et al.2007). These results indicate that the protoplast-PEG method using constructed expression plasmids is viable for the transformation of strain MG-60.
Table 1

Transformation efficiency of Phlebia sp. strain MG-60 with p PbGPD-HPT, p PbGPD-EGFP and p PbGPD- MG mnp2

Transformed plasmid

Hygromycin B

Protoplast regeneration efficiency (%)a

Co-transformation efficiency (%)b












0.042 (549 colonies)




0.029 (380 colonies)

pPbGPD-HPT, pPbGPD- MGmnp2



0.038 (489 colonies)


Transformation efficiency (%)

EGFP transformants/HPT transformants

88.9 (32 clones/36 clones)

MGmnp2 transformants/HPT transformants

89.1 (181 clones/203 clones)

pPbGPD-HPT indicates Hygromycin-resistance gene expression plasmid, pPbGPD-EGFP indicate enhanced green fluorescent protein gene expression plasmid, and pPbGPD- MGmnp2 indicate manganese peroxidase isozyme 2 gene expression plasmid derived from MG-60.

aThe protoplast regeneration efficiency per protoplast: (regenerated clones/seeding protoplasts).

bThe transformation efficiency per protoplast: (HPT transformants/regenerated clones).

To confirm the antibiotic resistance of the transformants and eliminate the possibility of false-positives, expression of the transgene was confirmed. pPbGPD-EGFP was used to co-transform strain MG-60 with pPbGPD-HPT, and transformants that contained both plasmids and expressed EGFP were obtained. The expression of pPbGPD-EGFP could be assessed by the presence or absence of EGFP fluorescence under the microscope. As shown in Table 1, the transformation efficiency of hygromycin-resistant transformants was 0.042%, and EGFP positive transformants accounted for nearly 90% of the HPT transformants. EGFP fluorescence was observed in the transformants under the microscope (Additional file1: Figure S2). This is the first study showing that Phlebia sp. strain MG-60 is able to be co-transformed by the protoplast-PEG method.

Phlebia sp. MG-60 was able to degrade lignin and to brighten the unbleached hardwood kraft pulp extensively under hypersaline environment (Li et al.2002). Expression of MGmnp2 was induced under hypersaline condition (Kamei et al.2008). Therefore, it was expected that overexpression of MGmnp2 improve delignification ability of strain MG-60 under non-saline condition. To obtain MGmnp2 transformants, 14 HPT transformants were selected, the insertion of pPbGPD- MGmnp2 was confirmed, and the MnP activity produced by the each transformant was evaluated. The insertion of pPbGPD- MGmnp2 was observed in 10 of the 14 HPT transformants (Figure 1A). As shown in Figure 1B, the 10 MGmnp2 positive transformants had higher MnP activities than all Wt and pPbGPD- MGmnp2 negative transformants in Kirk HN medium. These data indicate that expression of the MGmnp2 transgene was translated successfully into active MnP2.

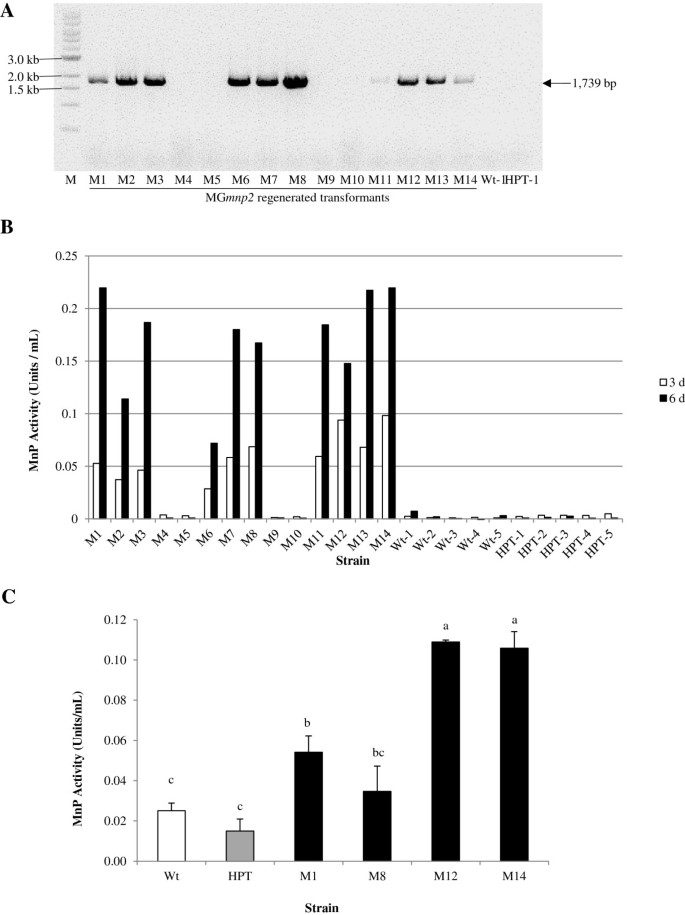

Figure 1

Co-transformation of Phlebia sp. strain MG-60 with p PbGPD -MG mnp 2 and p PbGPD-HPT . A, Detection of the MGmnp2 gene in 10 of 14 regenerated protoplasts co-transformed with pPbGPD-HPT and pPbGPD-MGmnp 2 by PCR amplification using primers PbGPD-prom-F1 and g MGmnp2-Asc- R1. M indicates a 1 kb ladder size marker, Wt indicates the wild type, HPT indicates the hygromycin resistant transformant, and M1–M14 indicate MGmnp2 regenerated transformants. B, MnP activity in Kirk’s high-nitrogen culture medium under aerobic condition for 3 d (white column) and 6 d (black column). One unit of MnP activity was defined as 1 μmol reaction product formed per minute. C, MnP activity of various strains in the extracts of Quercus wood powder medium under aerobic condition for 20 d. The tests, using three flasks per strain, were carried out independently. Data are means ± SE (n = 3) and values without a common superscript letter are significantly different at p <0.05.

To evaluate the effects of the expression of the MGmnp2 transgene on wood degradation traits, treatment of Quercus wood powder by selected 4 transformants (M1, M8, M12 and M14) displaying the 2 highest levels of MnP activity at 3 and 6 days culture each was carried out. As shown in Table 2, the mass loss of lignin caused by all four pPbGPD- MGmnp2 transformants was greater than that of HPT transformants. Transformants M12 and M14 showed a significant increase in lignin mass loss compared with the other transformants; however, there was no difference in the weight loss of Quercus wood powder among the transformants. The lignin mass loss to wood powder ratio (L/W) of all four pPbGPD- MGmnp2 transformants was higher than that of the HPT transformant, indicating a higher selectivity for lignin degradation. The L/W ratio also revealed a significantly higher value for the M12 and M14 transformants relative to the HPT transformant. Additionally, the MnP activities of the pPbGPD- MGmnp2 transformants on wood powder were higher than those of Wt and the HPT transformant (Figure 1C).
Table 2

Mass loss of Klason lignin and Quercus wood powder, L/W ratio in MG-60 transformants


Transformed plasmid

Mass loss of Lignin (% original mass)

Mass loss of wood Quercus powder (% original mass)



pPbGPD- MGmnp2




31.83 ± 3.16a

13.46 ± 2.41a

2.43 ± 0.49b




11.42 ± 2.57c

5.59 ± 0.17b

2.04 ± 0.68b




13.93 ± 2.07c

5.19 ± 0.17b

2.70 ± 0.40b




13.85 ± 2.40c

5.12 ± 0.30b

2.69 ± 0.80b




20.88 ± 2.57b

5.35 ± 0.12b

3.90 ± 0.49a




25.26 ± 2.02b

5.95 ± 0.15b

4.24 ± 0.26a

Wt indicates the wild type, HPT indicates the hygromycin resistant transformant, and M1, M8, M12, M14 indicate MGmnp2 regenerated transformants. The tests, using three flasks per strain, were carried out independently. Data means ± SE (n = 3) and values without a common superscript letter are significantly different at p <0.05.

However, both the mass losses of wood powder and of lignin were markedly less in the four pPbGPD- MGmnp2 transformants and the HPT transformant than in the Wt (Table 2). This may be due to the delayed growth of transformed strains on wood. While there was no difference in the growth rate between Wt and transformed strains on PDA and Kirk media, the growth rate of transformed strains on Quercus wood powder medium was markedly slower (Additional file1: Table S2). Even so, the L/W ratio of the M14 transformant was significantly higher than that of Wt. These results suggest that the enhancement of MnP2 activity promotes Klason lignin degradation.

There is a possibility that the decreased ability of transformants to decompose wood was caused by protoplast generation. Many basidiomycete fungi exist as dikaryons in which the two genomes exist in separated nuclei. In previous studies, it has been indicated that the nuclei number was changed during the preparation of protoplasts from dikaryotic mycelia of basidiomycetes (Ohmasa et al.1987). It has also been reported that the characteristics of progenitor basidiomycetes became altered by protoplast isolation, including growth rate changes (Clark and Anderson2004). In our study, there was some variation in the sizes of protoplasts prepared from MG-60, and the number of nuclei stained by propidium iodide also varied among the protoplasts (data not shown). It might occur possible that the change in the number of nuclei by protoplast isolation transmuted the original characteristics of MG-60 with regards to delignification; however, it was unclear whether protoplasts of MG-60 were haploid or diploid because the clamp connection was not observed in MG-60.

In summary, our findings demonstrate that the MG-60 strain is able to be co-transformed, and the transformants have MGmnp2 transgene expression. This MGmnp2 expression induced an acceleration of lignin degradation, while the original ability to degrade lignin was decreased by protoplast regeneration of the MG-60 strain. Based on these findings, we continue to select protoplast regeneration strains that had a higher ability to degrade lignin than Wt and to analyze whether there is a correlation between the change in delignification and the number of nuclei.



Manganese peroxidase


Hygromycin- resistance gene


Enhanced green fluorescent protein gene


Glyceraldehyde-3-phosphate dehydrogenase.
