Extraction and characterization of keratin from bovine hoof: A potential material for biomedical applications
© Kakkar et al.; licensee Springer. 2014
Received: 28 August 2014
Accepted: 30 September 2014
Published: 10 October 2014
Keratin from the hoof is a less explored source for making valuable products. In this paper we present the extraction of pure keratin from bovine hooves and characterized them to better address the possible exploitation of this bio-resource as an alternative material for tissue engineering applications. The keratin protein from the pulverized hooves was extracted by reduction, which was observed to be pure, and two polypeptide chains of molecular weight in the range of 45–50 and 55–60 KDa were determined using SDS-PAGE assay. FTIR analysis complementing circular dichroism (CD) data, established that hoof keratin predominantly adopted α-helical conformation with admixture of β-sheet. The keratin was shown to have appreciably high denaturation temperature (215°C) as indicated by differential scanning calorimetric (DSC) analysis. Thermogravimetric analysis (TGA) also showed the retention of 50% of the original weight of the sample even at a temperature of 346°C. The keratin from the hoof had been observed to be biocompatible when analyzed with MTT assay using fibroblast cells, showing more than 90% cell viability. Hence, hoof keratin would be useful for high value biomedical applications.
KeywordsProteins Keratin Biocompatibility α-helix β-sheet Biopolymers & renewable polymers
A broad category of insoluble proteins that associate as intermediate filaments (IFs), a cytoskeletal element with 8–10 nm diameter, were being referred to the term “keratin”. Apart from being the principal constituent of the stratum corneum of human and animal skin, keratins are also found in exoskeletal materials such as horns, hooves, hair, feathers, wool and nails (Aluigi et al.2007; Gupta and Nayak2014). Keratins (mammalian) were categorized into two distinct groups namely hard and soft, based on their structure, function and regulation. Hard keratins form ordered arrays of IFs embedded in a matrix of cystine rich proteins and contribute to the tough structure of epidermal appendages, whereas soft keratins preferentially form loosely-packed bundles of cytoplasmic IFs (Coulombe et al.2000; Fraser et al.1986; Moll et al.1982) and typically contain less sulphur (Zoccola et al.2009). There are also variations in the secondary structure of the keratin from these sources. As observed earlier (Hill et al.2010; Iridag and Kazanci2006; Zoccola et al.2009), mammalian keratins are found to be predominantly of the α-type (contains α-helical structure), whereas birds and reptiles can possess both α- and β-types (contain a mixture of α-helical and β-sheet structures). Fraser and Parry (Fraser and Parry1996) suggested that the inner regions of compact assemblies of keratin molecules are predominantly hydrophobic, and that charged residues are being concentrated at the surface. Characteristically, keratins show high stability and low solubility due to –S–S– cross-linking between cysteine amino acid residues (Brandelli2008; Feughelman2002). The most distinctive feature of keratin at a molecular level is the high concentration of half-cystine residues (7%–20% of the total amino acid residues), most of which are localized at the terminal regions of the proteins (Hearle2000).
Huge amount of keratin byproducts are wasted without ample utility (Korniłłowicz-Kowalska and Bohacz2011). Several attempts have been made for the mechanical (Korol2012) as well as microbial utilization of keratin wastes (Chaudhari et al.2013; Fang et al.2013; Jeong et al.2010). Keratin like other natural biopolymers viz., collagen and chitosan can be used for making biomaterials in tissue repair and regeneration (Alsarra2009; Natarajan et al.2012; Ramshaw et al.2009; Ramadass et al.2013). Such applications would enhance the value of utilization of keratins, as recent reports support the acceptance of keratin as a material for biotechnology and biomedical applications (Hill et al.2010; Rouse and Van Dyke2010; Zhuang et al.2013; Patrucco et al.2011).
Cell adhesion sequences, RGD (Arg-Gly-Asp), and LDV (Leu-Asp-Val), which are found in the extra cellular matrix proteins such as fibronectin, are present in the keratins of wool, silk, and human hair (Feughelmann1985; Marshall et al.1991). Moreover, keratin also contains cellular-binding motifs (i.e. super secondary structure with binding capacity) which mimic the sites of cellular attachment found in the native extra cellular matrix because of which, keratin could be used for the development of tissue engineering constructs. Recently, Srinivasan et al. (Balaji et al.2012) reported the use of keratin from horn for biomaterial development. Although keratin has been extracted from many sources such as wool, hair, feather, horn etc., the source of bovine hoof, which is a solid waste from the slaughter houses, is less explored. Hence, this paper deals with the extraction of high value keratin from bovine hoof. The extracted keratin from hoof has been characterized to establish its structure and biocompatibility.
Materials and methods
Pulverized raw hooves were obtained from the local slaughter house at Perambur, Chennai (India). This material was washed thrice with distilled water to remove all dirt and then drained. After drying it completely in an oven, it was used as raw material for further studies. All other chemicals used for analytical purpose were purchased from Sigma-Aldrich.
Extraction of keratin
The first step of extraction is defatting i.e. removal of fats from the raw material. Soxhlet’s apparatus was used to carry out defatting/delipidization of pulverized hoof sample for about two days. Mixture of hexane and dichloromethane (1:1, v/v) was used for refluxing. Ten gram of defatted hoof sample was mixed with 7 M urea, 6 g SDS and 15 ml of 2-mercaptoethanol in a 300 mL round-bottom flask and kept in orbital shaker at 60°C for 12 h to extract keratin at pH 7. The resulting solution was then centrifuged for 15 mins at 6,000 rpm and the supernatant was dialyzed against degassed water for 5–6 days. Some of the extracted keratin was kept in a deep freezer at -80°C for 5 h and lyophilized to make it into powder. Hereafter, the dialyzed keratin i.e. prior to lyophilization will be mentioned as liquid keratin and the powdered one will be mentioned as lyophilized keratin.
Quantification of protein
The protein-content was determined through CHNS analysis. Carbon, hydrogen, nitrogen and sulfur contents of the lyophilized keratin sample were analyzed using varioMICRO CHNSO Sr no: 15091002. Based on this analysis along with the available literature of amino acids present in hoof keratin, protein content in the sample was quantified.

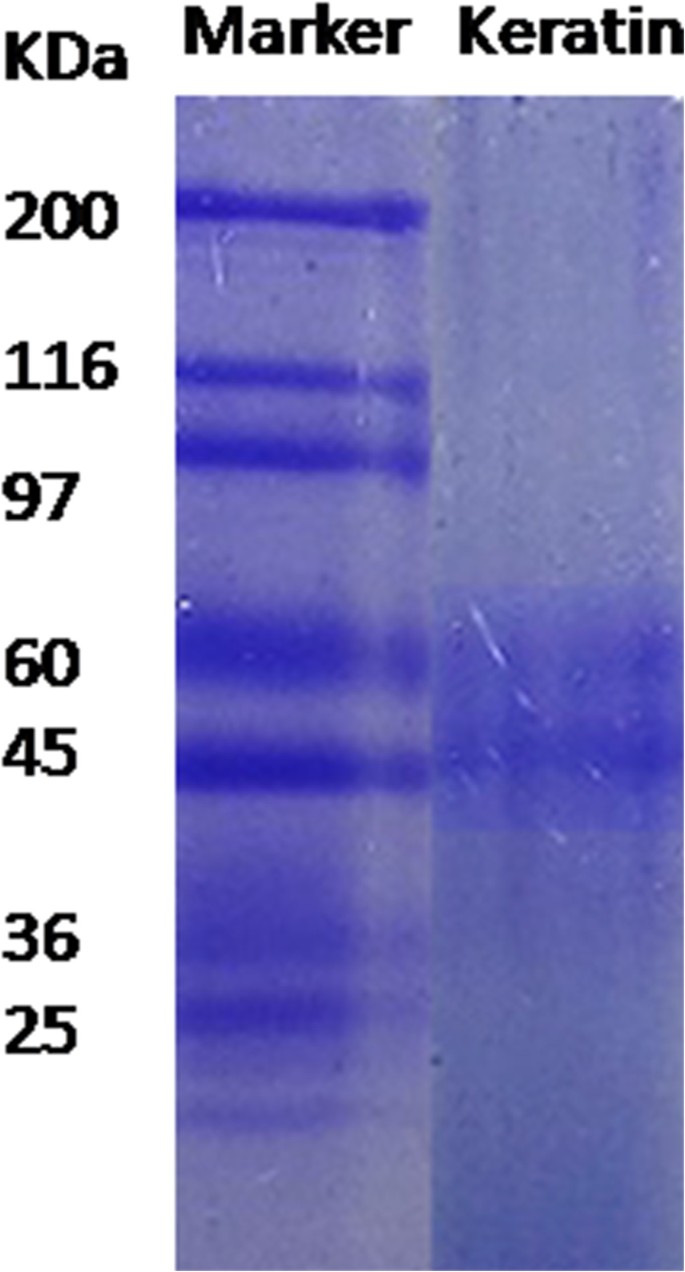

To determine the molecular weight, the liquid keratin was denatured prior to subjecting it to one-dimensional slab SDS-PAGE (10% gel) by heating the sample mixed with an equal amount of sample buffer containing SDS and β-mercaptoethanol. In the beginning, it was at kept at 50 V and then switched to 100 V once the protein (sample) just reached the separating gel. The concentration of liquid keratin used was about ~30 μg per well. The gel was stained using coomassie brilliant blue stain (Neuhoff et al.1985).
Where, θ is an observed ellipticity, C is the concentration of sample in g/ml and ℓ is the cell path length in cm.
FTIR spectra of keratin were recorded from 400 to 4000 cm-1 using a Nicolet 20 DXB FT-IR spectrophotometer. For solid-state measurement, a pellet was prepared by mixing lyophilized keratin with potassium bromide. For film measurement, an aqueous buffer solution (pH 5) containing keratin (5 mg/ml) was cast on ZnSe plate. The sample was kept at room temperature until a dry thin film formed on the surface of ZnSe. All spectra were measured at a resolution of 8 cm-1.
DSC analysis of lyophilized keratin after conditioning (for 24 hrs) the samples at 24°C, 65% relative humidity was performed from 30°C to 250°C, at 10°C/min using universal V4.4A TA instruments. The instrument was calibrated by an indium standard, and the calorimeter cell was flushed with 100 mL/min liquid nitrogen.
TGA of lyophilized keratin was performed on universal V4.4A TA instruments. The sample was heated at 10°C/min at a temperature range of 30°C-600°C using Al2O3 crucibles.
MTT Assay for cell viability
3T3-Li fibroblast cells were used for biocompatibility analysis. The cells were cultured in flask containing Dulbecco’s Modified Eagle’s Medium (DMEM; Sigma) with 10% Fetal Bovine Serum (FBS; Invitrogen) supplemented with 50 U/ml penicillin, 50 μg/ml streptomycin and 2.5 μg/ml amphoterecin B. To determine the biocompatibility of the extracted keratin, the cells were cultured as monolayer in polystyrene cell culture 96-well plate with and without keratin at 37°C under a humidified atmosphere of 5% CO2 in air. Different concentrations of the keratin used for the biocompatibility assay were 10, 25 and 50 μg/well.
Results and discussion
Extraction of keratin
Quantitative estimation of keratin
The quantitative estimation of keratin was initially determined by both Lowry’s and Bradford’s method of protein estimation. But, the results shown by both these analyses were not accurate and constant. This might be due to the presence of some traces of mercaptoethanol in the final dialysate. Hence, nitrogen content was determined using CHNS analyzer. The lyophilized keratin sample contained 13.3% of nitrogen, 45.3% of carbon, and 6.84% of hydrogen. Based on the amino acid analysis of the horn-hoof reported earlier (Zoccola et al.2009), the nitrogen content of the keratin is 16.7%. Higher amount of hydrogen in our sample does not rule out the possibility of the presence of bound water attributing towards the constituent of the sample. Hence the purity of the keratin sample is observed to be greater than 80%. Based on the initial weight of the hooves, 44% yield of keratin was obtained.
CD analysis of keratin
FTIR analysis of keratin
The secondary structure of keratin was also analyzed using FTIR spectroscopy. Similar to CD, FTIR provides the information about the secondary structure of protein in solution. However, FITR can be directly used in solid and film states compared to CD where special modification requires in the instrument to avoid artifacts (Kuroda et al.2001). Consequently, the secondary structure of hoof keratin was examined in both film, derived from aqueous solution, and solid states. Similar to CD, FTIR exhibits characteristic bands for α-helix, β-sheet, β-turn, and random coil conformations in the amide I (1700–1600 cm-1) and amide II (1560–1500 cm-1) regions (Kong and Yu2007). Among these regions, amide I (due to the C = O stretch vibrations of the peptide linkages) is more sensitive to protein secondary structures. It is well established that α-helical conformation has an amide I and II (mainly from in-plane N-H bending and from the C-N stretching vibration) bands between 1657 and 1650 cm-1 and between 1550 and 1540 cm-1, respectively (Lyman et al.2001; Wojciechowska et al.2000), while the β-sheet has an amide I and II bands between 1635 and 1615 cm-1 and between 1535 and 1520 cm-1, respectively (Goormaghtigh et al.2006).
Unlike amide I and II, the N-H stretching vibration (3310–3270 cm-1) of peptide bond (-CO-NH-) is insensitive to the conformation of the polypeptide backbone as it is exclusively localized on the NH group. But the frequency of N-H stretching depends on the strength of the hydrogen bond. In the present case, the characteristic frequency of hydrogen bonded N-H has been observed at 3288, and 3308 cm-1 for keratin in both film and solid states, respectively, confirming the folded conformation of keratin. Hence both CD and FTIR confirm that the extracted keratin contains ordered structure and is not in denatured form. This keratin having an admixture of α helix and β sheets, seems to have structural similarity with the keratins in birds and reptiles.
The denaturation temperature observed around 111°C is due to water evaporation . The endothermic peak observed above 200°C is reported for helix denaturation in keratin . The second endothermic peak for the hoof keratin is observed around 215°C. Appreciably high thermal stability of the biomaterial would be an advantage for applications where thermal stability is important. Hence, keratin has an obvious advantage in relation to its thermal stability compared to some of the commonly used biopolymers viz., collagen.
Thermogravimetric analysis was carried out to quantify the thermal degradation of keratin in a controlled atmosphere. The TGA curve for keratin sample is shown in Figure 5B. The initial weight loss of around 12% observed between 100°C and 150°C is due to the loss of bound water associated with keratin. Presence of 12% moisture substantiates that the purity of keratin sample could be greater than 90% based on the composition of nitrogen and water. The weight loss between 200 and 400°C is due to the breakdown of polypeptides and associated degradation. More than 50% weight loss was observed at 400°C.
The measurement of cell viability and growth is essential to establish the biocompatibility of biomaterials. The MTT assay, a colorimetric assay is employed for measuring the cell viability, involving the reduction of MTT reagent, giving a purple color formazan product in the presence of viable cells. Thus, the absorbance of formazan product proportionally reflects the measure of viable cells. To analyze the biocompatibility of hoof keratin, MTT assay was carried out at different concentrations of keratin (μg/well). It showed good cell viability with reference to control (untreated) as depicted by Figure 6.
In this work we show that pure keratin biopolymer can be extracted from bovine hooves. Characterization of the hoof keratin suggests that, structurally, it belongs to the category of birds and reptiles keratins as it contains a mixture of α- helical and β-sheet structure. Hoof keratin possesses high thermal stability. MTT assay using fibroblast cells shows that the hoof keratin is a biocompatible material for promoting cellular attachment. Hoof keratin appears to be new and promising source of biomaterial for biomedical and tissue engineering applications.
Authors thank Council of Scientific and Industrial Research (CSIR) for funding under the CSIR-Young Scientist Award of BM. Author PK would like to thank CSIR for the award of Senior Research Fellowship.
- Alsarra IA: Chitosan topical gel formulation in the management of burn wounds. Int J Biol Macromol 2009, 45(1):16-21. 10.1016/j.ijbiomac.2009.03.010View ArticleGoogle Scholar
- Aluigi A, Varesano A, Montarsolo A, Vineis C, Ferrero F, Mazzuchetti G, Tonin C: Electrospinning of keratin/poly (ethylene oxide) blend nanofibers. J Appl Polymer Sci 2007, 104(2):863-870. 10.1002/app.25623View ArticleGoogle Scholar
- Amiya T, Kajiwara K, Miyamoto T, Inagaki H: Conformational studies of the α-helical proteins from wool keratin by c.d. Intl J Biol Macromol 1982, 4(3):165-172. 10.1016/0141-8130(82)90047-2View ArticleGoogle Scholar
- Balaji S, Kumar R, Sripriya R, Kakkar P, Ramesh DV, Reddy PNK, Sehgal PK: Preparation and comparative characterization of keratin–chitosan and keratin–gelatin composite scaffolds for tissue engineering applications. Mater Sci Eng 2012, C 32(4):975-982.http://dx.doi.org/10.1016/j.msec.2012.02.023View ArticleGoogle Scholar
- Brandelli A: Bacterial keratinases: useful enzymes for bioprocessing agroindustrial wastes and beyond. Food Bioprocess Technol 2008, 1(2):105-116. doi:10.1007/s11947-007-0025-y 10.1007/s11947-007-0025-yView ArticleGoogle Scholar
- Chaudhari PN, Chincholkar SB, Chaudhari BL: Biodegradation of feather keratin with a PEGylated protease of Chryseobacterium gleum. Process Biochem 2013, 48(12):1952-1963.http://dx.doi.org/10.1016/j.procbio.2013.09.011 10.1016/j.procbio.2013.09.011View ArticleGoogle Scholar
- Coulombe PA, Bousquet O, Ma L, Yamada S, Wirtz D: The ‘ins’ and ‘outs’ of intermediate filament organization. Trends Cell Biol 2000, 10(10):420-428. 10.1016/S0962-8924(00)01828-6View ArticleGoogle Scholar
- Fang Z, Zhang J, Liu B, Du G, Chen J: Biodegradation of wool waste and keratinase production in scale-up fermenter with different strategies by Stenotrophomonas maltophilia BBE11-1. Bioresour Technol 2013, 140: 286-291.http://dx.doi.org/10.1016/j.biortech.2013.04.091View ArticleGoogle Scholar
- Feughelman M: Natural protein fibers. J Appl Polymer Sci 2002, 83(3):489-507. doi:10.1002/app.2255 10.1002/app.2255View ArticleGoogle Scholar
- Feughelmann M: Keratin. Encyclopedia of Polymer Science and Engineering. Wiley, New York; 1985.Google Scholar
- Fraser RDB, Parry DAD: The molecular structure of reptilian keratin. Int J Biol Macromol 1996, 19(3):207-211. -4http://dx.doi.org/10.1016/0141-8130(96)01129 10.1016/0141-8130(96)01129-4View ArticleGoogle Scholar
- Fraser RD, MacRae TP, Parry DA, Suzuki E: Intermediate filaments in alpha-keratins. Proceed Nat Acad Sci 1986, 83(5):1179-1183. 10.1073/pnas.83.5.1179View ArticleGoogle Scholar
- Goormaghtigh E, Ruysschaert J-M, Raussens V: Evaluation of the information content in infrared spectra for protein secondary structure determination. Biophys J 2006, 90(8):2946-2957.http://dx.doi.org/10.1529/biophysj.105.072017 10.1529/biophysj.105.072017View ArticleGoogle Scholar
- Gupta P, Nayak KK: Characteristics of protein-based biopolymer and its application. Polymer Eng Sci 2014. doi:10.1002/pen.23928Google Scholar
- Hearle JWS: A critical review of the structural mechanics of wool and hair fibres. Int J Biol Macromol 2000, 27(2):123-138. -1http://dx.doi.org/10.1016/S0141-8130(00)00116 10.1016/S0141-8130(00)00116-1View ArticleGoogle Scholar
- Hill P, Brantley H, Van Dyke M: Some properties of keratin biomaterials: Kerateines. Biomaterials 2010, 31(4):585-593.http://dx.doi.org/10.1016/j.biomaterials.2009.09.076 10.1016/j.biomaterials.2009.09.076View ArticleGoogle Scholar
- Iridag Y, Kazanci M: Preparation and characterization of Bombyx mori silk fibroin and wool keratin. J Appl Polymer Sci 2006, 100(5):4260-4264. 10.1002/app.23810View ArticleGoogle Scholar
- Jeong J-H, Lee OM, Jeon Y-D, Kim J-D, Lee N-R, Lee C-Y, Son H-J: Production of keratinolytic enzyme by a newly isolated feather-degrading Stenotrophomonas maltophilia that produces plant growth-promoting activity. Process Biochem 2010, 45(10):1738-1745.http://dx.doi.org/10.1016/j.procbio.2010.07.020 10.1016/j.procbio.2010.07.020View ArticleGoogle Scholar
- Kelly SM, Jess TJ, Price NC: How to study proteins by circular dichroism. Biochimica et Biophysica Acta (BBA) Proteins Proteomics 2005, 1751(2):119-139.http://dx.doi.org/10.1016/j.bbapap.2005.06.005 10.1016/j.bbapap.2005.06.005View ArticleGoogle Scholar
- Kong J, Yu S: Fourier transform infrared spectroscopic analysis of protein secondary structures. Acta Biochimica et Biophysica Sinica 2007, 39(8):549-559. doi:10.1111/j.1745-7270.2007.00320.x 10.1111/j.1745-7270.2007.00320.xView ArticleGoogle Scholar
- Korniłłowicz-Kowalska T, Bohacz J: Biodegradation of keratin waste: Theory and practical aspects. Waste Manag 2011, 31(8):1689-1701.http://dx.doi.org/10.1016/j.wasman.2011.03.024 10.1016/j.wasman.2011.03.024View ArticleGoogle Scholar
- Korol J: Polyethylene matrix composites reinforced with keratin fibers obtained from waste chicken feathers. J Biobased Mater Bioenerg 2012, 6(4):355-360. doi:10.1166/jbmb.2012.1237 10.1166/jbmb.2012.1237View ArticleGoogle Scholar
- Kuroda R, Harada T, Shindo Y: A solid-state dedicated circular dichroism spectrophotometer: Development and application. Rev Sci Inst 2001, 72(10):3802-3810. doi:doi:http://dx.doi.org/10.1063/1.1400157 10.1063/1.1400157View ArticleGoogle Scholar
- Lyman DJ, Murray-Wijelath J, Feughelman M: Effect of temperature on the conformation of extended ?-Keratin. Appl Spectrosc 2001, 55(5):552-554. 10.1366/0003702011952343View ArticleGoogle Scholar
- Marshall RC, Orwin DFG, Gillespie JM: Structure and biochemistry of mammalian hard keratin. Electr Microsc Rev 1991, 4(1):47-83. doi:10.1016/0892-0354(91)90016-6 10.1016/0892-0354(91)90016-6View ArticleGoogle Scholar
- Moll R, Franke WW, Schiller DL, Geiger B, Krepler R: The catalog of human cytokeratins: Patterns of expression in normal epithelia, tumors and cultured cells. Cell 1982, 31(1):11-24. -7http://dx.doi.org/10.1016/0092-8674(82)90400 10.1016/0092-8674(82)90400-7View ArticleGoogle Scholar
- Natarajan V, Saravanakumar P, Madhan B: Collagen adsorption on quercetin loaded polycaprolactone microspheres: Approach for “stealth” implant. Int J Biol Macromol 2012, 50(4):1091-1094.http://dx.doi.org/10.1016/j.ijbiomac.2012.03.003 10.1016/j.ijbiomac.2012.03.003View ArticleGoogle Scholar
- Neuhoff V, Stamm R, Eibl H: Clear background and highly sensitive protein staining with Coomassie Blue dyes in polyacrylamide gels: A systematic analysis. ELECTROPHORESIS 1985, 6(9):427-448. doi:10.1002/elps.1150060905 10.1002/elps.1150060905View ArticleGoogle Scholar
- Patrucco A, Aluigi A, Vineis C, Tonin C: Bio-composite keratin films from wool fibrillation. J Biobased Mater Bioener 2011, 5(1):124-131. doi:10.1166/jbmb.2011.1118 10.1166/jbmb.2011.1118View ArticleGoogle Scholar
- Ramadass SK, Perumal S, Jabaris SL, Madhan B: Preparation and evaluation of mesalamine collagen in situ rectal gel: A novel therapeutic approach for treating ulcerative colitis. Eur J Pharm Sci 2013, 48(1–2):104-110.http://dx.doi.org/10.1016/j.ejps.2012.10.015View ArticleGoogle Scholar
- Ramshaw JM, Peng Y, Glattauer V, Werkmeister J: Collagens as biomaterials. J Mater Sci 2009, 20(1):3-8. doi:10.1007/s10856-008-3415-4Google Scholar
- Rouse JG, Van Dyke ME: A review of keratin-based biomaterials for biomedical applications. Materials 2010, 3(2):999-1014. 10.3390/ma3020999View ArticleGoogle Scholar
- Srinivasan B, Kumar R, Shanmugam K, Sivagnam UT, Reddy NP, Sehgal PK: Porous keratin scaffold–promising biomaterial for tissue engineering and drug delivery. J Biomed Mater Res Part B 2010, 92B(1):5-12. doi:10.1002/jbm.b.31483 10.1002/jbm.b.31483View ArticleGoogle Scholar
- Wojciechowska E, Włochowicz A, Wesełucha-Birczyńska A: Application of Fourier-transform infrared and Raman spectroscopy to the study of the influence of orthosilicic acid on the structure of wool fibre. J Mol Struct 2000, 555(1–3):397-406. -8http://dx.doi.org/10.1016/S0022-2860(00)00626View ArticleGoogle Scholar
- Yamauchi K, Yamauchi A, Kusunoki T, Kohda A, Konishi Y: Preparation of stable aqueous solution of keratins, and physiochemical and biodegradational properties of films. J Biomed Mater Res 1996, 31(4):439-444. 10.1002/(SICI)1097-4636(199608)31:4<439::AID-JBM1>3.0.CO;2-MView ArticleGoogle Scholar
- Zhuang Y, Wu X, Cao Z, Zhao X, Zhou M, Gao P: Preparation and characterization of sponge film made from feathers. Mater Sci Eng 2013, C 33(8):4732-4738.http://dx.doi.org/10.1016/j.msec.2013.07.032View ArticleGoogle Scholar
- Zoccola M, Aluigi A, Tonin C: Characterisation of keratin biomass from butchery and wool industry wastes. J Mol Struct 2009, 938(1–3):35-40.http://dx.doi.org/10.1016/j.molstruc.2009.08.036View ArticleGoogle Scholar
This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
