Measuring competence in central venous catheterization: a systematic-review

  • Irene WY Ma1, 2Email author,
  • Nishan Sharma2,
  • Mary E Brindle3,
  • Jeff Caird2 and
  • Kevin McLaughlin1
SpringerPlus20143:33

https://doi.org/10.1186/2193-1801-3-33

Received: 15 October 2013

Accepted: 14 January 2014

Published: 17 January 2014

Abstract

Objectives

Central venous catheterization is a complex procedural skill. This study evaluates existing published tools on this procedure and systematically summarizes key competencies for the assessment of this technical skill.

Methods

Using a previously published meta-analysis search strategy, we conducted a systematic review of published assessment tools using the electronic databases PubMed, MEDLINE, Education Resource Information Center (ERIC), the Cumulative Index to Nursing and Allied Health Literature (CINAHL), Excerpta Medica, and Cochrane Central Register of Controlled Trials. Two independent investigators abstracted information on tool content and characteristics.

Results

Twenty-five studies were identified assessing a total of 147 items. Tools used for assessment at the bedside (clinical tools) had a higher % of items representing “preparation” and “infection control” than tools used for assessment using simulation (67 ± 26% vs. 32 ± 26%; p = 0.003 for “preparation” and 60 ± 41% vs. 11 ± 17%; p = 0.002 for “infection control”, respectively). Simulation tools had a higher % of items on “procedural competence” than clinical tools (60 ± 36% vs. 17 ± 15%; p = 0.002). Items in the domains of “Team working” and “Communication and working with the patient” were frequently under-represented.

Conclusion

This study presents a comprehensive review of existing checklist items for the assessment of central venous catheterization. Although many key competencies are currently assessed by existing published tools, some domains may be under-represented by select tools.

Keywords

Clinical competence Checklist Catheterization Central venous Medical education

Background

Central venous catheterization is a procedure that is commonly performed, with an estimated 15 million central-line-days per year in the intensive care units in U.S. hospitals (Mermel 2000). Because training using simulation has been previously shown to be associated with improved performance outcomes as well as clinical outcomes (Ma et al. 2011; Barsuk et al. 2009b), multiple institutions have implemented simulation-based training programs (Ma et al. 2011; Cook et al. 2011). These training programs require significant human and material resources (Ogden et al. 2007). Thus, to evaluate the return on such departmental investments, assessment tools that yield valid and reliable data are needed in order to evaluate procedural competence of those who underwent training (Evans and Dodge 2010).

For the assessment of technical skills, traditionally, there have been two general approaches: either using checklists or global rating scales; a combination of both approaches may also be considered (Lammers et al. 2008). A checklist consists of a list of observable behaviors organized in a consistent manner, which then allows the evaluator to record the presence or absence of the demonstrated behavior (Hales et al. 2008). Global rating scales, on the other hand, use a Likert scale for rating either an overall impression of the performance or on individual items within a performance (Bould et al. 2009).

Because steps in a procedure are often sequential and predictable, it is felt that checklists may be better suited for the assessment of technical skills, as they are felt to be more objective than global rating scales (Lammers et al. 2008; Evans et al. 2005). However, the pitfalls of using checklists have been extensively debated in the health professional education literature (Norman et al. 1991; Van Der Vleuten et al. 1991; Hodges et al. 1999; Swartz et al. 1999; Epstein and Hundert 2002). In the hands of expert raters, global rating scales may in fact demonstrate better psychometric properties than checklists (Hodges and McIlroy 2003; Regehr et al. 1998; Ma et al. 2012). Despite this, checklists continue to be commonly used in the assessment of procedural skills. For central venous catheterization, in 2009 alone, there were seven publications that included assessment tools, each of which used a checklist (Evans and Dodge 2010).

In the evaluation of any skill, a clear understanding of the underlying task is critical. Items in the assessment tool should be both relevant and representative of the task in question (American Educational Research Association, American Psychological Association, & National Council on Measurement in Education. Standards for educational and psychological testing. 1999). In a systematic review of checklists for procedural skills in general, seven themes were identified (McKinley et al. 2008). These include: 1) Procedural competence, 2) Preparation, 3) Safety, 4) Communication and working with the patient, 5) Infection control, 6) Post-procedural care, and 7) Team-working. In this review, a third to a half of the checklists did not assess for key competencies in the domains of “infection control” and “safety” (McKinley et al. 2008). Unfortunately, incompetence in these same domains has significant adverse clinical consequences. Therefore, it may be problematic to simply borrow an existing published tool and assume that it would evaluate procedural competency accurately.

The objective of this study is to review existing assessment tools for rating central venous catheterization and determine the individual steps and key competencies evaluated by these tools. This information can help 1) better define the underlying task of central venous catheterization itself, and 2) assist evaluators in deciding which tools to use. To accomplish the above objective, we conducted a systematic review of published evaluation tools used during direct observation of performances of central venous catheterization. We used the database of our recently published systematic review of simulation-based education on central venous catheterization (Ma et al. 2011) as the basis of this current study.

Results

Search results and article overview

Our previous search strategy from our systematic review (Ma et al. 2011) yielded 110 articles (Figure 1). These 110 articles resulted from excluding 1,241 articles from the initial search of 1,351 citations, (kappa 0.87; 95% CI 0.82-0.92).

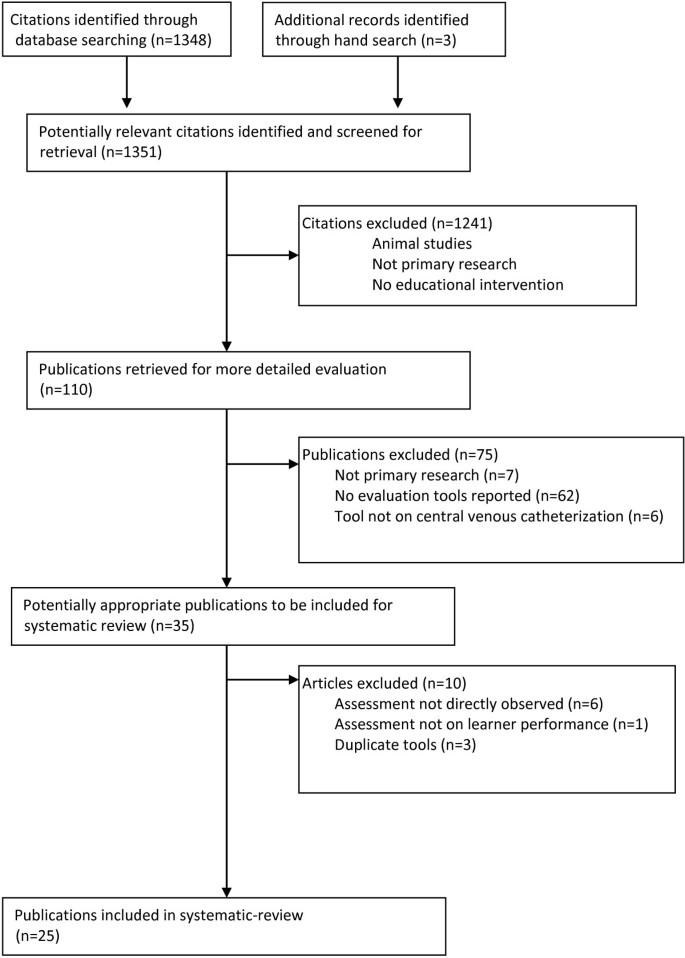

Figure 1

Flow diagram of study selection process.

In this review, from these 110 publications, 75 articles were excluded (Figure 1). Agreement for this stage was high (kappa 0.82; 95% CI 0.71-0.93). Thus, 35 articles were considered for review. Of the 35 articles, an additional 10 articles were excluded (kappa 0.85; 95% CI 0.66-1.00). A final pool of 25 publications was included in this systematic review. Figure 1 illustrates the results of the study selection process.

Baseline description of tools

Overall, a total of 147 items were included in the assessment tools in 25 studies (Additional file 1). Median number of items included per study was 17 (IQR 8–22; range 2–63). All studies (100%) reported using checklists (using at least one binary item for assessing central venous catheterization skills). Only six studies reported also using global rating scales (Britt et al. 2009; Huang et al. 2009; Lee et al. 2009; Millington et al. 2009; Murphy et al. 2008; Ramakrishna et al. 2005). Other baseline characteristics of the tools are listed in Table 1.
Table 1

Baseline characteristics of 25 studies describing directly observed central venous catheterization performances

Study

Observers

Learner population

No. of learners observed

No. of procedures observed

Live vs video

Sites tested

Ultrasound used

Evaluations on patients (clinical) vs simulators

Checklist used (y/n); no of items

Global rating scale used (y/n); no. of items

Additional items assessed (y/n); no. of items

Barsuk et al. (2009c)

Faculty

MICU residents

28

N/A

Live and video

IJ, SC

Y

Simulators

Y; 27

N

N

Barsuk et al. (2009a)

Faculty

Nephrology fellows

18

N/A

Live and video

IJ

Y

Simulators

Y; 27

N

N

Berenholtz et al. (2004)

Nurses

ICU residents

N/A

64

Live

N/A

N/A

Clinical

Y; 8

N

N

Blaivas and Adhikari (2009)

Faculty

Emergency medicine residents

25

25

Live

IJ

Y

Simulators

Y; 2

N

Y; 1

Britt et al. (2009)

Trauma fellow or critical care surgeon

Junior surgery residents

34

73

Live

N/A

N/A

Clinical

Y; 14

Y; 2

Y; 1

Carvalho (2007)

Medical students

Medical students

9

N/A

Live

IJ, SC

Y

Simulators

Y; 1

N

Y; 2

Coopersmith et al. (2002)

Nurses

Residents in surgery, anesthesiology, emergency medicine, nurse practioner

N/A

16

Live

IJ, SC, Fem

N/A

Clinical

Y; 9

N

N

Costello et al. (2008)

N/A

N/A

N/A

N/A

Live

IJ, SC, Fem

N/A

Clinical

Y; 18

N

N

Dong et al. (2010)

Faculty and Fellow

Residents in anesthesiology, internal medicine, emergency medicine, general surgery, attending faculty

105

N/A

Video

IJ, SC

Y

Simulators

Y; 15

N

Y; 3

Evans et al. (2009)

Hired independent raters

PGY-1 and PGY-2 residents

N/A

N/A

Live and video

IJ, SC, Fem

Y

Simulators

Y; 63

N

Y; 2

Huang et al. (2009)

Faculty

Internal Medicine residents

42

94

Video

SC

N

Simulators

Y; 22

Y; 1

Y; 1

Kilbourne et al. (2009)

Study authors

Surgical or emergency medicine residents

N/A

86

Video

SC

N

Clinical

Y;6

N

Y; 2

Lee et al. (2009)

Expert reviewers

Emergency medicine residents

16

N/A

Video

IJ

Y

Simulators

Y; 19

Y;1

Y;2

Lobo et al. (2005)

Infection control staff

Medical residents

N/A

44

Live

IJ, SC, Fem

N/A

Clinical

Y;9

N

N

McKee et al. (2008)

Nurses

Pediatric anesthesiologists, surgeons, pediatric surgical staff, critical care medical staff

N/A

43

Live

N/A

N/A

Clinical

Y; 5

N

N

Millington et al. (2009)

Faculty

Medical residents

30

N/A

Video

IJ

N

Simulators

Y; 10

Y;5

Y;3

Murphy et al. (2008)

“Assessors”

Medical students

30

N/A

Video

IJ

N

Simulator

Y;20

Y;7

Y;1

Papadimos et al. (2008)

Independent observers

Residents in anesthesiology and surgery

N/A

85

Live

N/A

Available

Clinical

Y; 7

N

N

Ramakrishna et al. (2005)

Cardiologists

PGY2 medical residents

20

N/A

Live

IJ

Available

Clinical

Y;7

Y;1

N

Rosen et al. (2009)

Senior medical residents

Incoming medical residents

20

60

Live

IJ

Y

Chickens

Y; 22

N

N

Stone et al. (2010)

Faculty

Senior medical students and PGY-1 emergency medicine residents

39

N/A

Live

N/A

Y

Simulators

Y; 1

N

Y; 1

Velmahos et al. (2004)

Faculty

Surgical interns

26

N/A

Live

N

N

Clinical

Y;15

N

Y;3

Wall et al. (2005)

Nurses

“Trainees” in MICU

N/A

≥5

Live

IJ, SC, Fem

N/A

Clinical

Y;22

N

Y; 2

Xiao et al. (2007)

Faculty

Trauma residents

50

73

Video

IJ, SC, Fem

N/A

Clinical

Y;13

N

N

Yilmaz et al. (2007)

N/A

N/A

N/A

356

Live

N/A

N/A

Clinical

Y; 2

N

N

Procedural checklists

Except for two studies, checklist items were scored in a binary fashion in general. One study (Ramakrishna et al. 2005) used a Likert scale of 1–5 (1=”very unsatisfactory”; 3=”neutral”; 5=”very satisfactory”) to score the seven items in the checklist, while the other study (Rosen et al. 2009) used a behaviorally anchored scale of 0–5 with a descriptor for each score to rate each of the 22 checklist items: (0=”displays complete unfamiliarity with the step, needs visual and verbal instruction in order to perform the step [‘stumped’], or omits step completely”; 5 = “executes procedure step independently, smoothly, with total confidence, and without error.”) The remaining studies scored checklist items in a binary fashion.

Thematic content of checklist items

There were 11 checklists applied to assessments of procedural performances on simulators (simulation checklists) and 14 checklists applied to assessments of procedural performances on patients (clinical checklists) (Table 1).

Clinical checklists had a higher percentage of items representing “Preparation” and “Infection control” than simulation checklists (67 ± 26% vs. 32 ± 26%; p = 0.003 for “Preparation” and 60 ± 41% vs. 11 ± 17%; p = 0.002 for “Infection control”, respectively). Simulation checklists, on the other hand, had a higher percentage of items on “Procedural competence” than clinical checklists (60 ± 36% vs. 17 ± 15%; p = 0.002).

Representation and underrepresentation of themes

A number of checklists were comprehensive in their representation of themes (Table 2). For example, six checklists (20%) contained at least one item in each of the seven domains (Barsuk et al. 2009a; Barsuk et al. 2009c; Evans et al. 2009; Huang et al. 2009; Wall et al. 2005; Dong et al. 2010). “Preparation” and “Infection control” were assessed in most checklists: only three checklists (12%) contained no items on “Preparation” (Blaivas and Adhikari 2009; Carvalho 2007; Stone et al. 2010) and only four checklists (16%) contained no items on “Infection control” (Blaivas and Adhikari 2009; Carvalho 2007; Kilbourne et al. 2009; Stone et al. 2010).
Table 2

Themes represented by checklist items in 25 studies with checklists

Study

Total no. of items

Preparation - no. items (%)

Infection control – no. items (%)

Communication and working with the patient – no. items (%)

Team working- no. items (%)

Safety – no. items (%)

Procedural competence – no. items (%)

Post-procedure – no. items (%)

Barsuk et al. (2009c)

27

11 (41)

6 (22)

1 (4)

1 (4)

4 (15)

13 (48)

5 (19)

Barsuk et al. (2009a)

27

10 (37)

6 (22)

1 (4)

1 (4)

4 (15)

13 (48)

6 (22)

Berenholtz et al. (2004)

8

6 (75)

8 (100)

0 (0)

1 (13)

0 (0)

1 (13)

1 (13)

Blaivas and Adhikari (2009)

3

0 (0)

0 (0)

0 (0)

0 (0)

3 (100)

3 (100)

0 (0)

Britt et al. (2009)

14

6 (43)

2 (14)

0 (0)

1 (7)

7 (50)

9 (64)

1 (7)

Carvalho (2007)

1

0 (0)

0 (0)

0 (0)

0 (0)

1 (100)

1 (100)

0 (0)

Coopersmith et al. (2002)

9

6 (67)

7 (78)

0 (0)

0 (0)

1 (11)

0 (0)

3 (33)

Costello et al. (2008)

18

15 (83)

13 (72)

1 (6)

9 (50)

5 (28)

0 (0)

2 (11)

Dong et al. (2010)

15

11 (73)

6 (40)

2 (13)

1 (7)

3 (20)

3 (20)

1 (7)

Evans et al. (2005)

61

31 (51)

9 (15)

1 (2)

3 (5)

18 (30)

24 (39)

8 (13)

Huang et al. (2009)

22

12 (55)

5 (23)

1 (5)

1 (5)

2 (9)

11 (50)

1 (5)

Kilbourne et al. (2009)

6

1 (17)

0 (0)

0 (0)

0 (0)

2 (33)

5 (83)

0 (0)

Lee et al. (2009)

19

9 (47)

6 (32)

1 (5)

0 (0)

4 (21)

9 (47)

1 (5)

Lobo et al. (2005)

9

8 (89)

9 (100)

0 (0)

0 (0)

1 (11)

0 (0)

1 (11)

McKee et al. (2008)

5

4 (80)

5 (100)

0 (0)

1 (20)

0 (0)

0 (0)

1 (20)

Millington et al. (2009)

10

2 (20)

1 (10)

0 (0)

0 (0)

0 (0)

6 (60)

2 (20)

Murphy et al. (2008)

20

4 (20)

1 (5)

1 (5)

0 (0)

6 (30)

13 (65)

3 (15)

Papadimos et al. (2008)

7

6 (86)

7 (100)

0 (0)

1 (14)

0 (0)

1 (14)

2 (29)

Ramakrishna et al. (2005)

7

3 (43)

1 (14)

1 (14)

0 (0)

0 (0)

4 (57)

0 (0)

Rosen et al. (2009)

22

13 (59)

7 (32)

1 (5)

0 (0)

3 (14)

6 (27)

3 (14)

Stone et al. (2010)

1

0 (0)

0 (0)

0 (0)

0 (0)

1 (100)

1 (100)

0 (0)

Velmahos et al. (2004)

15

5 (33)

2 (13)

0 (0)

1 (7)

2 (13)

7 (47)

3 (20)

Wall et al. (2005)

22

17 (77)

9 (41)

2 (9)

2 (9)

4 (18)

2 (9)

3 (14)

Xiao et al. (2007)

13

13 (100)

12 (100)

0 (0)

0 (0)

0 (0)

0 (0)

0 (0)

Yilmaz et al. (2007)

2

2 (100)

2 (92)

0 (0)

0 (0)

0 (0)

0 (0)

0 (0)

Other themes were less well-represented by checklists: 13 checklists (52%) contained no items on “Team working”(Lee et al. 2009; Lobo et al. 2005; Millington et al. 2009; Murphy et al. 2008; Rosen et al. 2009; Ramakrishna et al. 2005; Blaivas and Adhikari 2009; Carvalho 2007; Stone et al. 2010; Kilbourne et al. 2009; Coopersmith et al. 2002; Xiao et al. 2007; Yilmaz et al. 2007); 14 checklists (56%) contained no items on “Communication and working with the patient” (Berenholtz et al. 2004; Blaivas and Adhikari 2009; Britt et al. 2009; Carvalho 2007; Coopersmith et al. 2002; Kilbourne et al. 2009; Lobo et al. 2005; McKee et al. 2008; Millington et al. 2009; Papadimos et al. 2008; Stone et al. 2010; Velmahos et al. 2004; Xiao et al. 2007; Yilmaz et al. 2007); seven checklists (28%) contained no items on “Post-procedure” (Ramakrishna et al. 2005; Blaivas and Adhikari 2009; Carvalho 2007; Stone et al. 2010; Kilbourne et al. 2009; Xiao et al. 2007; Yilmaz et al. 2007); seven checklists (28%) contained no items on “Safety” (Berenholtz et al. 2004; McKee et al. 2008; Millington et al. 2009; Papadimos et al. 2008; Ramakrishna et al. 2005; Xiao et al. 2007; Yilmaz et al. 2007); and six checklists (24%) contained no items on “Procedural competence” (Coopersmith et al. 2002; Costello et al. 2008; Lobo et al. 2005; McKee et al. 2008; Xiao et al. 2007; Yilmaz et al. 2007).

Global rating scales and additional items assessed

Only six studies reported the use of global rating scales (Britt et al. 2009; Huang et al. 2009; Lee et al. 2009; Millington et al. 2009; Murphy et al. 2008; Ramakrishna et al. 2005), all of which were used in conjunction with checklist items (Table 3). The median number of items assessed was 2 (IQR 1–5; range 1–7). Additional items assessed frequently included number of attempts and time taken to perform the procedure (Table 4).
Table 3

Global rating scale assessed

Study

No. of global rating scale items

Items

Scale used

Britt et al. (2009)

2

Resident comfort; Resident ability

1-5

Huang et al. (2009)

1

Overall performance

Anchored 1–5

(1 = “unable to complete procedure without assistance”, 3 = “ demonstrates essential skills to complete procedure”, 5=”demonstrates mastery of procedure skills”)

Lee et al. (2009)

1

Overall performance

1-7 (Poor to excellent)

Millington et al. (2009)

5

Time and motion; Instrument handling; Flow of operation and forward planning; Knowledge of instruments;

1-5 behaviorally anchored scales1

Overall rating

1–5 (1=”overall does not meet expectations”), 5 =”superior, exceeds expectations”)

Murphy et al. (2008)

7

Respect for tissue; Time and motion; Instrument handling; Knowledge of instruments; Use of assistants; Flow of procedure and forward planning; Knowledge of specific procedure

1-5 behaviorally anchored scales1

Ramakrishna et al. (2005)

1

Overall perception: Resident is capable of independently performing central line procedures

1-5 (1 = “Strongly disagree”, 3 = “Neutral”, 5 = “Strongly agree”)

1Global rating scale based on scale from Reznick R, Regehr G, MacRae H et al. Am J Surg 1997; 173(3):226–30.

Table 4

Additional items assessed

Study

No. of additional items assessed

Items

Blaivas and Adhikari (2009)

1

No. of times posterior wall penetrated

Britt et al. (2009)

1

Average sticks to cannulation

Carvalho (2007)

2

No. of attempts required to cannulate the vessel;

Time from skin penetration to successful guidewire insertion and needle removal

Dong et al. (2010)

3

Number of venipuncture attempts;

Number of skin entries;

Procedural time (from initial greeting of the ‘patient’ until successful catheterization)

Evans and Dodge (2010)

2

Total number of attempts to cannulate vein with large bore needle;

Time to completion

Huang et al. (2009)

1

Number of passes

Kilbourne et al. (2009)

2

Number of insertion attempts;

Number of unsuccessful failure

Lee et al. (2009)

2

Number of attempts;

Time needle touches skin and time vessel successfully puncture

Millington et al. (2009)

3

Number of attempts to locate the vein;

Number of attempts to insert the catheter;

Total time for procedure

Murphy et al. (2008)

1

Time taken to complete the procedure

Stone et al. (2010)

1

Time from first synthetic skin puncture until “flash”;1

Velmahos et al. (2004)

3

Number of attempts to locate the vein;

Number of attempts to insert the catheter;

Time to complete procedure.

Wall et al. (2005)

2

List all sites where insertion was attempted;



How many different needle sticks did the patient receive (number of skin breaks)?

Validity and reliability evidence for the assessment tools

Inter-rater reliability was reported for 12 (48%) of the studies (Barsuk et al. 2009a; Barsuk et al. 2009c; Dong et al. 2010; Evans et al. 2009; Huang et al. 2009; Lee et al. 2009; Millington et al. 2009; Murphy et al. 2008; Rosen et al. 2009; Kilbourne et al. 2009; Stone et al. 2010; Xiao et al. 2007), reporting a range of reliability coefficients and absolute agreement [range 0.43 (Millington et al. 2009) to 0.97(Evans et al. 2009)]. Only 12 studies (48%) specified the process used for content validation (Velmahos et al. 2004; Barsuk et al. 2009a; Barsuk et al. 2009c; Costello et al. 2008; Dong et al. 2010; Evans et al. 2009; Huang et al. 2009; Lee et al. 2009; Rosen et al. 2009; Wall et al. 2005; Kilbourne et al. 2009; Coopersmith et al. 2002).

Discussion

Our study identified 25 published tools for the assessment of procedural skills in central venous catheterization. All of these tools used at least one item that is scored in a binary checklist fashion and only six studies reported using a global rating scale.

Our study identified that only 20% of the assessment tools incorporated at least one item in each of the seven key procedural competence domains; the majority of tools did not assess for competency in the domains of “Team working” and “Communication and working with the patient.”

In an effort to improve clinical outcomes through the use of simulation-based training, trainers need to be mindful of assessing domains that have implications on patient safety, such as “Team working”, “Safety” and “Infection control.” Therefore, the tool, wherever possible, should strive to aim for including items in as many of the seven key competency domains as possible. Failing the ability to assess the procedure in a systematic and comprehensive manner, consideration should be made towards using a global rating scale instead.

Not every tool is created equally. Tools are frequently created with specific purposes in mind. Thus for an evaluator wishing to borrow a pre-existing assessment tool from the published literature for the purposes of assessments, this study provides a comprehensive list of assessment items to facilitate educators and assessors in choosing an appropriate tool.

There are some limitations in this systematic review that impact on the interpretation of our study’s conclusions. First, despite our systematic review including only publications that included an educational intervention, the assessment purposes of the studies were not uniform. Tools designed to be used by nurses for the purposes of documenting infectious risks only or tools designed for the purposes of assessing performances on simulators are unlikely to be as comprehensive as tools designed to assess for overall competence of procedural skills on patients. Indeed, our results suggest that clinical checklists were more focused on steps involving preparation and infection control than simulation checklists, while simulation checklists were more focused on procedural technical competence itself. Therefore, the contextual features of each published tool are important to recognize, since ultimately, validity of any assessment tool refers to the “degree to which evidence and theory support the interpretations of test scores entailed by the proposed uses of tests” (American Educational Research Association, American Psychological Association, & National Council on Measurement in Education. Standards for educational and psychological testing. 1999). Second, despite contacting authors to obtain the actual checklists, although a number did provide these (Wall et al. 2005; Lobo et al. 2005; Costello et al. 2008), a few studies were excluded because of a lack of response from the authors.

Despite these limitations, this study has a number of strengths. By providing a systematic and comprehensive evaluation and description of existing tools on central venous catheterization, this study facilitates educators, researchers, or hospital administrators wishing to use, study or develop assessments tools on assessing for competency in this procedure. Furthermore, this study compiles, for the first time, a “catalog” of all the potential aspects of the procedure that could be assessed (see Additional file 1). This “catalog” represents the end product of work from multiple groups using various methods such as cognitive task analysis, literature review, and expert panels.

Conclusions

In conclusion, in this systematic review of published assessment tools on central venous catheterization, we present a comprehensive list of assessment items. We found that the use of procedural checklists far outnumber the use of global rating scales. The majority of these tools did not assess for competency in the domains of “Team working” and “Communication and working with the patient.” Lastly, the rigor in which the tools were developed greatly varied.

Methods

Data sources and search strategy

The search strategy was previously published (Ma et al. 2011). In short, searches for relevant articles published between January 1950 and May 2010 were conducted on the following databases: PubMed, MEDLINE, Education Resource Information Center (ERIC), the Cumulative Index to Nursing and Allied Health Literature (CINAHL), Excerpta Medica, and Cochrane Central Register of Controlled Trials. Our search strategy was developed with the assistance of a research librarian and used the following keywords: catheterization, central venous; catheterization; catheter$; jugular veins; subclavian veins; and femoral veins. These terms were searched as subject headings, medical subject heading, and text words, and combined with the Boolean operator “and” with education terms. Education terms used were: education; learning; teaching; and teach$. We did not place a language restriction on the search. The initial screening of search results was done independently by two authors (I.M., M.B.), using titles and abstracts. Additional hand search for references in included articles and relevant review articles was conducted. From this initial search (Ma et al. 2011), citations that were clearly not primary research, involved animal studies, or did not involve an educational intervention were excluded. For the remaining citations, full-length articles were retrieved.

Selection of articles

From these full-length articles, we included primary research articles that described the assessments of central venous catheterization skills under direct observation. That is, we excluded articles where the procedures were performed without anyone observing the procedures. We also excluded studies on peripherally-placed venous access devices as well as studies without an educational intervention. Articles that did not provide an assessment tool or articles that did not include descriptions of assessment items were excluded. For studies where only descriptions of assessment items were reported without provision of the assessment tool, we contacted the authors to obtain the full tool. Selection of articles was done independently by two authors (I.M., N.S.), with disagreements resolved by consensus.

Data extraction

Independent data abstraction on baseline characteristics of each study was performed by two authors (IM, NS) using a standardized data form. Information on learner population, observers, and tools was obtained from each publication. We also abstracted information on whether or not the tool was used on patients (clinical) or on simulators.

We defined any item scored an observable action item in a binary fashion (y/n) as being part of a “checklist,” whether or not the authors specified the use of the tool as a “checklist.” For example, if “need for help from senior resident”(Velmahos et al. 2004) is routinely assessed in the observed performances, this item is considered to be one of the checklist items. Checklist items scored in a non-binary fashion are also included. We defined global rating scale items as those that use a Likert scale for rating either an overall impression of the performance or on individual qualities within the performance (Bould et al. 2009).

Classification of items into seven competency themes

Each checklist item was classified by two authors (IM, MB) according to one or more of the seven competency themes previously identified (McKinley et al. 2008): 1) Preparation, 2) Infection control, 3) Communication and working with the patient, 4) Team working, 5) Safety, 6) Procedural competence, and 7) Post-procedure.

Disagreements were resolved by consensus. Items may be classified into more than one theme. For example, an item on obtaining informed consent was classified into both “Preparation” as it involves assessing for indications and contraindications for the procedure (McKinley et al. 2008) as well as “Communication and working with the patient,” which involves sharing information about the procedure with the patient (McKinley et al. 2008).

We defined “Preparation” as any steps prior to the breach in patient skin (i.e. administration of anesthetics or insertion of needle). Steps after the administration of anesthetics but before securing of the catheters were considered part of “Procedural competence.” Lastly, we defined any steps including or after securing the catheter as “Post-procedure,” such as placement of dressing, obtaining chest x-rays, documentation of procedure, and equipment clean-up.

Immediate complications are included as assessment items only if they are part of the directly-observed evaluation. For example, carotid puncture, pneumothorax, hemothorax, malignant arrhythmia, and number of needle passes. Long-term complications such as catheter-related infections are excluded, as these “distal” outcomes may or may not be directly related to the learner performance.

Statistical analysis

Data were analyzed using standard parametric and non-parametric methods. Comparisons of continuous variables between groups were performed using Student’s t-tests. Inter-rater agreement in study selection is estimated by the kappa statistic. All analyses were performed using SAS version 9.2 (SAS Institute Inc., Cary, NC, USA) and Stata 11.0 (StataCorp LP, College Station, TX).

Abbreviations

95% CI:

95% confidence interval

IQR:

Interquartile range.

Declarations

Acknowledgments

This work was presented in part at the 2012 Canadian Conference on Medical Education, Banff, AB, Canada. This work is funded by the W21C. We thank Dr. William Ghali for his guidance and supervision on the systematic review and Diane Lorenzetti for her assistance with the development of the search terms and strategy.

Authors’ Affiliations

(1)
Department of Medicine, University of Calgary
(2)
W21C, University of Calgary
(3)
Department of Surgery, University of Calgary

References

  1. American Educational Research Association, American Psychological Association, & National Council on Measurement in Education: Standards for educational and psychological testing. Washington D.C: American Educational Research Association; 1999.Google Scholar
  2. Barsuk JH, Ahya SN, Cohen ER, McGaghie WC, Wayne DB: Mastery learning of temporary hemodialysis catheter insertion by nephrology fellows using simulation technology and deliberate practice. Am J Kidney Dis 2009, 54(1):70-76. 10.1053/j.ajkd.2008.12.041View ArticleGoogle Scholar
  3. Barsuk JH, Cohen ER, Feinglass J, McGaghie WC, Wayne DB: Use of simulation-based education to reduce catheter-related bloodstream infections. Arch Intern Med 2009, 169(15):1420-1423. 10.1001/archinternmed.2009.215View ArticleGoogle Scholar
  4. Barsuk JH, McGaghie WC, Cohen ER, Balachandran JS, Wayne DB: Use of simulation-based mastery learning to improve the quality of central venous catheter placement in a medical intensive care unit. J Hosp Med 2009, 4(7):397-403. 10.1002/jhm.468View ArticleGoogle Scholar
  5. Berenholtz SM, Pronovost PJ, Lipsett PA, Hobson D, Earsing K, Farley JE, Milanovich S, Garrett-Mayer E, Winters BD, Rubin HR, Dorman T, Perl TM: Eliminating catheter-related bloodstream infections in the intensive care unit. Crit Care Med 2004, 32(10):2014-2020. 10.1097/01.CCM.0000142399.70913.2FView ArticleGoogle Scholar
  6. Blaivas M, Adhikari S: An unseen danger: Frequency of posterior vessel wall penetration by needles during attempts to place internal jugular vein central catheters using ultrasound guidance. Crit Care Med 2009, 37(8):2345-2349. 10.1097/CCM.0b013e3181a067d4View ArticleGoogle Scholar
  7. Bould MD, Crabtree NA, Naik VN: Assessment of procedural skills in anaesthesia. Br J Anaesth 2009, 103(4):472-483. 10.1093/bja/aep241View ArticleGoogle Scholar
  8. Britt RC, Novosel TJ, Britt LD, Sullivan M: The impact of central line simulation before the ICU experience. Am J Surg 2009, 197(4):533-536. 10.1016/j.amjsurg.2008.11.016View ArticleGoogle Scholar
  9. Carvalho P: Early introduction to central line placement: a curriculum for medical students. Med Educ 2007, 41(11):1098-1099. 10.1111/j.1365-2923.2007.02877.xView ArticleGoogle Scholar
  10. Cook DA, Hatala R, Brydges R, Zendejas B, Szostek JH, Wang AT, Erwin PJ, Hamstra SJ: Technology-enhanced simulation for health professions education: a systematic review and meta-analysis. JAMA 2011, 306(9):978-988.View ArticleGoogle Scholar
  11. Coopersmith CM, Rebmann TL, Zack JE, Ward MR, Corcoran RM, Schallom ME, Sona CS, Buchman TG, Boyle WA, Polish LB, Fraser VJ: Effect of an education program on decreasing catheter-related bloodstream infections in the surgical intensive care unit. Crit Care Med 2002, 30(1):59-64. 10.1097/00003246-200201000-00009View ArticleGoogle Scholar
  12. Costello JM, Morrow DF, Graham DA, Potter-Bynoe G, Sandora TJ, Laussen PC: Systematic intervention to reduce central line–associated bloodstream infection rates in a pediatric cardiac intensive care unit. Pediatrics 2008, 121(5):915-923. 10.1542/peds.2007-1577View ArticleGoogle Scholar
  13. Dong Y, Suri HS, Cook DA, Kashani KB, Mullon JJ, Enders FT, Rubin O, Ziv A, Dunn WF: Simulation-based objective assessment discerns clinical proficiency in central line placement: a construct validation. Chest 2010, 137(5):1050-1056. 10.1378/chest.09-1451View ArticleGoogle Scholar
  14. Epstein RM, Hundert EM: Defining and assessing professional competence. JAMA 2002, 287(2):226-235. 10.1001/jama.287.2.226View ArticleGoogle Scholar
  15. Evans LV, Dodge KL: Simulation and patient safety: evaluative checklists for central venous catheter insertion. Qual Saf Health Care 2010, 19(Suppl 3):i42-i46. 10.1136/qshc.2010.042168View ArticleGoogle Scholar
  16. Evans AW, McKenna C, Oliver M: Trainees’ perspectives on the assessment and self‒assessment of surgical skills. Assess Eval High Educ 2005, 30(2):163-174. 10.1080/0260293042000264253View ArticleGoogle Scholar
  17. Evans LV, Morse JL, Hamann CJ, Osborne M, Lin Z, D’Onofrio G: The development of an independent rater system to assess residents’ competence in invasive procedures. Acad Med 2009, 84(8):1135-1143. 10.1097/ACM.0b013e3181acec7cView ArticleGoogle Scholar
  18. Hales B, Terblanche M, Fowler R, Sibbald W: Development of medical checklists for improved quality of patient care. International J Qual Health Care 2008, 20(1):22-30.View ArticleGoogle Scholar
  19. Hodges B, McIlroy JH: Analytic global OSCE ratings are sensitive to level of training. Med Educ 2003, 37(11):1012-1016. 10.1046/j.1365-2923.2003.01674.xView ArticleGoogle Scholar
  20. Hodges B, Regehr G, McNaughton N, Tiberius R, Hanson M: OSCE checklists do not capture increasing levels of expertise. Acad Med 1999, 74(10):1129-1134. 10.1097/00001888-199910000-00017View ArticleGoogle Scholar
  21. Huang GC, Newman LR, Schwartzstein RM, Clardy PF, Feller-Kopman D, Irish JT, Smith CC: Procedural competence in internal medicine residents: validity of a central venous catheter insertion assessment instrument. Acad Med 2009, 84(8):1127-1134. 10.1097/ACM.0b013e3181acf491View ArticleGoogle Scholar
  22. Kilbourne MJ, Bochicchio GV, Scalea T, Xiao Y: Avoiding common technical errors in subclavian central venous catheter placement. J Am Coll Surg 2009, 208(1):104-109. 10.1016/j.jamcollsurg.2008.09.025View ArticleGoogle Scholar
  23. Lammers RL, Davenport M, Korley F, Griswold-Theodorson S, Fitch MT, Narang AT, Evans LV, Gross A, Rodriguez E, Dodge KL, Hamann CJ, Robey Iii WC: Teaching and Assessing Procedural Skills Using Simulation: Metrics and Methodology. Acad Emerg Med 2008, 15(11):1079-1087. 10.1111/j.1553-2712.2008.00233.xView ArticleGoogle Scholar
  24. Lee AC, Thompson C, Frank J, Beecker J, Yeung M, Woo MY, Cardinal P: Effectiveness of a novel training program for emergency medicine residents in ultrasound-guided insertion of central venous catheters. CJEM 2009, 11(4):343-348.Google Scholar
  25. Lobo RD, Levin AS, Brasileiro Gomes LM, Cursino R, Park M, Figueiredo VB, Taniguchi L, Polido CG, Costa SF: Impact of an educational program and policy changes on decreasing catheter-associated bloodstream infections in a medical intensive care unit in Brazil. Am J Infect Control 2005, 33(2):83-87. 10.1016/j.ajic.2004.05.003View ArticleGoogle Scholar
  26. Ma IW, Brindle M, Ronksley P, Lorenzetti D, Sauve R, Ghali W: Use of simulation-based education to improve outcomes of central venous catheterization: a systematic review and meta-analysis. Acad Med 2011, 86(9):1137-1147. 10.1097/ACM.0b013e318226a204View ArticleGoogle Scholar
  27. Ma IW, Zalunardo N, Pachev G, Beran T, Brown M, Hatala R, McLaughlin K: Comparing the use of global rating scale with checklists for the assessment of central venous catheterization skills using simulation. Adv Health Sci Educ Theory Pract 2012, 17(4):457-470. 10.1007/s10459-011-9322-3View ArticleGoogle Scholar
  28. McKee C, Berkowitz I, Cosgrove SE, Bradley K, Beers C, Perl TM, Winner L, Pronovost PJ, Miller MR: Reduction of catheter-associated bloodstream infections in pediatric patients: Experimentation and reality. Pediatr Crit Care Med 2008, 9(1):40-46. 10.1097/01.PCC.0000299821.46193.A3View ArticleGoogle Scholar
  29. McKinley RK, Strand J, Ward L, Gray T, Alun-Jones T, Miller H: Checklists for assessment and certification of clinical procedural skills omit essential competencies: a systematic review. Med Educ 2008, 42(4):338-349. 10.1111/j.1365-2923.2007.02970.xView ArticleGoogle Scholar
  30. Mermel LA: Prevention of intravascular catheter–related infections. Ann Intern Med 2000, 132(5):391-402. 10.7326/0003-4819-132-5-200003070-00009View ArticleGoogle Scholar
  31. Millington SJ, Wong RY, Kassen BO, Roberts JM, Ma IW: Improving internal medicine residents’ performance, knowledge, and confidence in central venous catheterization using simulators. J Hosp Med 2009, 4(7):410-416. 10.1002/jhm.570View ArticleGoogle Scholar
  32. Murphy MA, Neequaye S, Kreckler S, Hands LJ: Should we train the trainers? Results of a randomized trial. J Am Coll Surg 2008, 207(2):185-190. 10.1016/j.jamcollsurg.2008.02.032View ArticleGoogle Scholar
  33. Norman GR, Van Der Vleuten CPM, De Graaff E: Pitfalls in the pursuit of objectivity: issues of validity, efficiency and acceptability. Med Educ 1991, 25(2):119-126. 10.1111/j.1365-2923.1991.tb00037.xView ArticleGoogle Scholar
  34. Ogden PE, Cobbs LS, Howell MR, Sibbitt SJ, DiPette DJ: Clinical simulation: importance to the internal medicine educational mission. Am J Med 2007, 120(9):820-824. 10.1016/j.amjmed.2007.06.017View ArticleGoogle Scholar
  35. Papadimos T, Hensely S, Duggan J, Hofmann J, Khuder S, Borst M, Fath J: Intensivist supervision of resident-placed central venous catheters decreases the incidence of catheter-related blood stream infections. Patient Saf Surg 2008, 2(1):11. 10.1186/1754-9493-2-11View ArticleGoogle Scholar
  36. Ramakrishna G, Higano ST, McDonald FS, Schultz HJ: A curricular initiative for internal medicine residents to enhance proficiency in internal jugular central venous line placement. Mayo Clin Proc 2005, 80(2):212-218. 10.4065/80.2.212View ArticleGoogle Scholar
  37. Regehr G, MacRae H, Reznick RK, Szalay D: Comparing the psychometric properties of checklists and global rating scales for assessing performance on an OSCE-format examination. Acad Med 1998, 73(9):993-997. 10.1097/00001888-199809000-00020View ArticleGoogle Scholar
  38. Rosen BT, Uddin PQ, Harrington AR, Ault BW, Ault MJ: Does personalized vascular access training on a nonhuman tissue model allow for learning and retention of central line placement skills? Phase II of the procedural patient safety initiative (PPSI-II). J Hosp Med 2009, 4(7):423-429. 10.1002/jhm.571View ArticleGoogle Scholar
  39. Stone MB, Moon C, Sutijono D, Blaivas M: Needle tip visualization during ultrasound-guided vascular access: short-axis vs long-axis approach. Am J Emerg Med 2010, 28(3):343-347. 10.1016/j.ajem.2008.11.022View ArticleGoogle Scholar
  40. Swartz MH, Colliver JA, Bardes CL, Charon R, Fried ED, Moroff S: Global ratings of videotaped performance versus global ratings of actions recorded on checklists: a criterion for performance assessment with standardized patients. Acad Med 1999, 74(9):1028-1032. 10.1097/00001888-199909000-00018View ArticleGoogle Scholar
  41. Van Der Vleuten CPM, Norman GR, De Graaff E: Pitfalls in the pursuit of objectivity: issues of reliability. Med Educ 1991, 25(2):110-118. 10.1111/j.1365-2923.1991.tb00036.xView ArticleGoogle Scholar
  42. Velmahos GC, Toutouzas KG, Sillin LF, Chan L, Clark RE, Theodorou D, Maupin F: Cognitive task analysis for teaching technical skills in an inanimate surgical skills laboratory. Am J Surg 2004, 187(1):114-119. 10.1016/j.amjsurg.2002.12.005View ArticleGoogle Scholar
  43. Wall RJ, Ely EW, Elasy TA, Dittus RS, Foss J, Wilkerson KS, Speroff T: Using real time process measurements to reduce catheter related bloodstream infections in the intensive care unit. Qual Saf Health Care 2005, 14(4):295-302. 10.1136/qshc.2004.013516View ArticleGoogle Scholar
  44. Xiao Y, Seagull FJ, Bochicchio GV, Guzzo JL, Dutton RP, Sisley A, Joshi M, Standiford HC, Hebden JN, Mackenzie CF, Scalea TM: Video-based training increases sterile-technique compliance during central venous catheter insertion. Crit Care Med 2007, 35(5):1302-1306. 10.1097/01.CCM.0000263457.81998.27View ArticleGoogle Scholar
  45. Yilmaz G, Caylan R, Aydin K, Topbas M, Koksal I: Effect of education on the rate of and the understanding of risk factors for intravascular catheter-related infections. Infect Control Hosp Epidemiol 2007, 28(6):689-694. 10.1086/517976View ArticleGoogle Scholar

Copyright

© Ma et al.; licensee Springer. 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
