Comparison of coronary plaque, coronary artery calcification and major adverse cardiac events in Chinese outpatients with and without type 2 diabetes

Article metrics



Diabetes substantially increases the risk of cardiovascular disease (CAD) and is associated with an increased risk of CAD mortality. The purpose of this study was to investigate the differences in coronary artery plaque, coronary artery calcification (CAC) measured in outpatients with and without type 2 diabetes, and the occurrence rate of a major adverse cardiac event (MACE) throughout follow-up with the same patients.


Five hundred eighty-eight outpatients with suspected CAD comprising 208 diabetic and 380 non-diabetic patients were enrolled in this study. Coronary artery plaque and CAC scores were detected and measured by dual-source computed tomography. The major MACE during the follow-up period (4.0–20 months) was recorded and its relationship to type 2 diabetes and CAC was investigated.


The diabetes group had higher CAC scores in the left anterior descending, left circumflex, and right coronary arteries and total CAC burden than the group without diabetes. The diabetes group had more diseased coronary segments and more obstructed vessels than the non-diabetes group. Logistic regression analysis demonstrated that diabetes is positively associated with mixed coronary plaque and non-calcified plaque. All patients in the diabetes group and all patients with higher CACs in both groups had a higher incidence rate of MACEs.


Patients with type 2 diabetes have a higher prevalence of obstructive CAD, higher CAC scores, and a higher incidence rate of MACEs than those without diabetes. Diabetes and higher CAC scores were the important predictors of the occurrence of MACEs throughout follow-up with patients.


Patients with type 2 diabetes have a two- to four-times-higher risk of cardiovascular events and cardiovascular diseases (CVDs), in which coronary artery disease (CAD) is the major cause of death, than patients without diabetes (Beckman et al. 2002; Elkeles 2010). The pathophysiology of vascular disease in diabetics involves abnormalities in endothelial and vascular smooth muscle cells (VSMCs) and alterations in platelet function (Paneni et al. 2013; Howangyin and Silvestre 2014). Vascular calcification is also more common in patients with diabetes (Abedin et al. 2004; Parhami et al. 1996; Shemesh et al. 2013; Hruska et al. 2005). Coronary artery calcification (CAC) assessed by cardiac computed tomography (CT) is a well-established surrogate marker of the total burden of atherosclerosis, a disease in which plaque deposits build up in the arteries (Rumberger et al. 1995; Sangiorgi et al. 1998; Greenland et al. 2010). CAC can predict CAD and the risk of cardiovascular events beyond the standard risk factors (Budoff et al. 2006; Detrano et al. 2008). Although the association between diabetes and CAC is controversial, several studies have indicated a significant relationship between high CAC and diabetes (Elkeles et al. 2008; Bulugahapitiya et al. 2009; Qu et al. 2003; Raggi et al. 2004); however, studies on the relationship between CAC and diabetes and major adverse cardiac events (MACEs) in Chinese patients are rare. In this study, we measured CAC in patients with and without diabetes to investigate the differences in coronary artery plaque, CAC in outpatients with and without diabetes, and the occurrence rate of MACEs during follow-up time in the same patients.

Patients and methods

Study population

The study protocol was approved by the Ethics Committee of the Zhengzhou University People’s Hospital. All patients were given an informed consent form that was approved by the Ethics Committee before being enrolled in this study. Six hundred fifteen consecutive Chinese outpatients with and without diabetes were surveyed. And all of the diabetes were the type 2 diabetes. Three ways to diagnose diabetes are possible before they were treated dietary intervention, oral glucose-lowing medication or insulin: (1).Symptoms of diabetes plus casual plasma glucose concentration ≥200 mg/dl (11.1 mmol/l). Casual is defined as any time of day without regard to time since last meal. The classic symptoms of diabetes include polyuria, polydipsia, and unexplained weight loss; (2).Fasting plasma glucose (FPG) ≥126 mg/dl (7.0 mmol/l). Fasting is defined as no caloric intake for at least 8 h; (3) 0.2-h plasma glucose (PG) ≥200 mg/dl (11.1 mmol/l) during an oral glucose tolerance test (OGTT) using a glucose load containing the equivalent of 75 g anhydrous glucose dissolved in water (Expert Committee on the Diagnosis and Classification of Diabetes Mellitus 2003). All patients with suspected CAD (defined when patients had symptoms such as atypical chest pain, chest tightness, shortness of breath, or an atypical change in the ST–T wave on an electrocardiography) underwent dual source computed tomography (DSCT) because of uncomfortable symptoms (chest pain, chest tightness, shortness of breath, palpitations) at Zhengzhou University People’s Hospital between June 2012 and February 2014. Of these patients, 27 (4.4 %) were lost during follow-up; therefore, baseline and follow-up data were available for only 588 patients. A complete patient history comprising present and previous illnesses was recorded and a complete physical examination was conducted.

Study criteria

The exclusion criteria were a history of thyroid problems, history of CAD, serious cardiac arrhythmias, chronic kidney and hepatic diseases, poor CT scan quality, and a history of coronary artery stenting or bypass. And the type 1 diabetes were excluded. Known CAD was defined as a history of diagnosed myocardial infarction or the presence of coronary artery luminal narrowing >50 % documented by angiography.

Laboratory tests

Blood samples were collected within 24 h before or after DSCT to detect the following laboratory parameters: total cholesterol, triglycerides, high-density lipoprotein (HDL-C), low-density lipoprotein (LDL-C), lipoprotein a (LPa), and cystatin C (CYSC) after the patients had fasted for at least 12 h. The reference ranges of HDL-C, LDL-C, LPa, CYSC in use in our laboratory are as follows: HDL-C = 1.2–1.68 mmol/l, LDL-C = 1.9–3.12 mmol/l, LPa = 0–30 mg/dl, CYSC = 0.55–1.05 mg/l.

Dual-source CT angiography

DSCTs were performed using a SOMATOM Definition DSCT scanner (Siemens Medical Solutions, Forchheim, Germany). Each patient enrolled in the study was in normal sinus rhythm at the time of the DSCT scan; therefore, a beta-blocker was not needed to reduce the heart rate (Zimmerman et al. 2014). A non-enhanced scan was performed for CAC scoring. The scanning area extended from the level of the tracheal bifurcation to the diaphragm. A 70- to 90-ml bolus of iopamidol (370 mg of iodine/ml; Bracco Sine Pharmaceutical Corp. Ltd, Shanghai, China) was injected into the antecubital vein at a flow rate of 5.0 ml/s. Slices were acquired under the following conditions: tube voltage 100–120 kV (adapted to body mass index [BMI]); tube current, 220 mA; collimation, 64 × 0.6 mm, slice collimation 2.0 × 64 × 0.6 mm by means of a z-flying focal spot; rotation time, 0.33 s; and pitch, 0.2–0.5 depending on heart rate.

Image analysis

DSCTA images were interpreted by two experienced cardiovascular radiologists blinded to all patient characteristics. CAC was quantified using Syngo CaScore (Siemens Medical Solutions, Forchheim, Germany) and the scores were measured by a CT technologist using the standard Agatston calcium scoring algorithm (Agatston et al. 1990).

Coronary plaque assessment

According to American Heart Association standards, coronary arteries were divided into 15 segments anatomically (Austen et al. 1975). In this study, we divided the coronary arteries into the following four branches: left main (LM), left anterior descending (LAD), left circumflex (LCX), and right (RCA). We evaluated the number of diseased coronary vessels and segments of each branch and total coronary artery, number, and types of diseased segments, and the number of obstructive or non-obstructive segments. Plaques are classified as (A) calcified plaque: higher CT density than contrast-enhanced lumen; (B) non-calcified plaque: without any calcified portions (130 HU). (C) mixed plaques: non-calcified and calcified component in single plaque. The differences in the distribution of the three plaque subtypes were compared between patients with and without diabetes. DSCT on each patients was also scored on a per-segment basis for plaque stenosis severity. A stenosis of ≥50 % was considered obstructive CAD and the segment was considered to be an obstructive segment. The number of segments that contained all three plaque subtypes was calculated for each patients. Per coronary segment was assigned by one coronary plaque type. They were classified as mixed plaque when both mixed (or calcified) and non-calcified plaques were seen in one segment.

Patient follow-up

Follow-up information was obtained from patient records in outpatient clinics and from telephone interviews with the patients or their immediate relatives. All interviews were conducted by the same cardiologist and he was blinded for status diabetes. The primary endpoint at follow-up was the incidence of MACEs, including death from any cause, such as nonfatal myocardial infarction (MI); percutaneous coronary intervention; and coronary artery bypass graft. Nonfatal MI was defined as the presence of typical chest pain, electrocardiographic elevation of the ST segment with or without Q waves, and serum cardiac enzyme elevation at least twice that of the normal upper limit.

Statistical analyses

All statistical analyses were performed using SPSS version 17.0 (SPSS. Inc., Chicago, IL, USA). Continuous variables are expressed as the mean ± standard deviation and categorical variables are described using number and percentage. The Student’s t test was used to compare continuously normal variables and the Mann–Whitney U test was used for continuously abnormal variables; a Chi squared test was used for categorical variables. The difference in the presence of the three subtype plaque segments were compared using cox regression model to adjust for diabetes, sex, age, BMI, LDL levels, HDL levels, and LPa. The cumulative event rate was evaluated using a Kaplan–Meier estimate and compared using a log-rank test. P < 0.05 was considered to be statistically significant.


After screening, 588 patients (comprising 372 men) average aged 61.06 ± 11.89 years and of whom 208 had diabetes were followed for 14.33 ± 2.59 months. Clinical and biochemical characteristics are shown in Table 1. The diabetes group (n = 208) had significantly higher BMI (p = 0.001), LPa (p = 0.044), and CYSC levels (p = 0.002); however, this group had fewer men (p = 0.016) and lower HDL-C levels (p < 0.001) than the group without diabetes. No significant difference was observed between the two study groups for age; hypertension; TG, CHOL, LDL-C, apolipoprotein A-I (APOA1), APOA100, and homocysteine levels; and the proportion of patients with a history of smoking. In this study, parts of patients of both diabetes and non-diabetes groups had the history of stains use, although the cholesterol and APO measurements might be influenced by stains use, no significant difference was observed between the two study groups for stains use but glucose-lowering drugs.

Table 1 Clinical characteristics in diabetes and non-diabetes groups

Significant differences in CAC levels between patients with and without diabetes were observed (Table 2). The diabetes group had significantly higher CAC scores in LAD (155.03 ± 256.47 vs. 92.78 ± 195.72, respectively; p = 0.003), LCX (39.11 ± 67.74 vs. 22.97 ± 52.90, respectively; p = 0.003), RCA (88.82 ± 172.39 vs. 32.38 ± 70.40, respectively; p < 0.001), and total CAC scores (309.00 ± 457.14 vs. 180.09 ± 290.62, respectively; p < 0.001) than that in the non-diabetes group, but no differences were found in LM CAC levels between the two groups.

Table 2 Comparison of coronary artery calcification between diabetes and non-diabetes

The diabetes group had a significantly higher number of mixed plaque segments (2.72 ± 2.45 vs. 1.69 ± 2.12, respectively; p < 0.001), non-calcified plaque segments (0.87 ± 1.36 vs. 0.49 ± 0.97, respectively; p < 0.001), and total plaque segments (4.76 ± 3.10 vs. 3.36 ± 2.58, respectively; p < 0.001) than the non-diabetes group, but no differences were observed in levels of calcified plaque between the two groups (Table 3). There were a significantly higher number of obstructed vessels (1.00 ± 1.02 vs. 0.54 ± 0.81, respectively; p < 0.001) and obstructed segments (1.92 ± 2.24 vs. 0.77 ± 1.34, respectively; p < 0.001) in the diabetes group than in the non-diabetes group.

Table 3 Comparison of coronary artery plaque between diabetes and non-diabetes patients

Mixed plaques were significantly associated with age [odds ratio (OR) 1.029, 95 % confidence level (CI) 1.014–1.044, p < 0.001], diabetes (OR 1.796, 95 % CI 1.246–2.589, p = 0.002), and LDL-C (OR 2.041, 95 % CI 1.567–2.657, p = 0.002) (Table 4). Non-calcified plaques were significantly associated with diabetes (OR 1.574, 95 % CI 1.101–2.250, p = 0.013), and calcified plaques were significantly associated with age (OR 1.071, 95 % CI 1.054 to −1.088, p < 0.001) and BMI (OR 1.12, 95 % CI 1.029–1.141, p = 0.002).

Table 4 Predictors of coronary plaque by Cox regression model

According to the multivariate analyses, diabetes [hazard ratio (HR) = 1.136–3.753, p = 0.017] and CAC levels (HR = 1.000–1.002, p = 0.002) were independent predictors of cumulative MACEs (Table 5).

Table 5 Multivariate analysis of predictors of incidence rate of major adverse cardiac event

Kaplan–Meier survival curves for the incidence of MACEs in patients with diabetes versus those without diabetes are shown in Fig. 1 (p = 0.002). Cumulative MACE-free survival curves among groups with CAC scores < 100, 100 ≤ C CAC scores ≤ 400, and 400 < CAC scores are shown in Fig. 2 (p < 0.001). The same relationships among groups with CAC scores < 100, 100 ≤ CAC scores ≤ 400, and 400 < CAC scores in the diabetes group are shown in Fig. 3 (p < 0.001) and those in the non-diabetes group are showed in Fig. 4 (p = 0.004).

Fig. 1

Cumulative major adverse cardiac event–free survival curves between diabetes and non-diabetes groups. MACE major adverse cardiac event

Fig. 2

Cumulative major adverse cardiac events–free survival curves among patients with coronary artery calcium scores (CAC scores) < 100, 100 ≤ CAC scores ≤ 400 and 400 < CAC scores. MACE major adverse cardiac event

Fig. 3

Cumulative major adverse cardiac event (MACE)–free survival curves among patients with coronary artery calcium scores (CAC scores) < 100, 100 ≤ CAC scores ≤ 400, and 400 < CAC scores in the diabetes group. MACE major adverse cardiac event

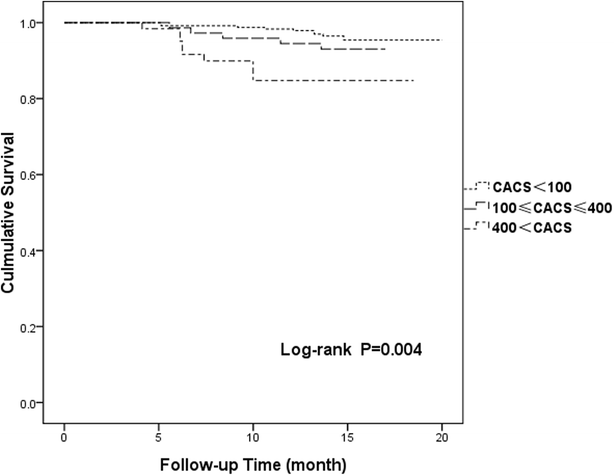

Fig. 4

Cumulative major adverse cardiac event (MACE)–free survival curves among patients with coronary artery calcium scores (CAC scores) < 100, 100 ≤ CAC scores ≤ 400, and 400, CAC scores in the non-diabetes group. MACE major adverse cardiac event


First, the present study demonstrated that diabetes is related to higher levels of CAC in outpatients with suspected CAD. Second, diabetes is related to mixed plaque, non-calcified plaque, and the extent of coronary artery stenosis. After an adjustment for conventional risk factors, the relationship remained significant. Third, diabetes and CAC levels were significantly related to the incidence rate of MACEs in our patients. The results of this study suggested that diabetes was positively related to the extent of CAC and coronary artery stenosis, and both diabetes and CAC were positively related to the incidence rate of MACEs in Chinese outpatients with suspected CAD.

Several studies have shown that CAD is a leading cause of morbidity and mortality among patients with diabetes (Scholte et al. 2008; Haffner et al. 1998). Compared with people without diabetes, people with diabetes have nearly double the risk of cardiovascular disease, even after adjusting for established cardiovascular risk factors (Seshasai et al. 2011). The pathophysiology of vascular disease in patients with diabetes involves abnormalities in endothelial cells and VSMCs, and alterations in platelet function (Paneni et al. 2013; Howangyin and Silvestre 2014). CAC scores are not only a sign of atherosclerosis used to predict the likelihood of significant CAD and myocardial ischemia, but also an indicator of the total coronary atherosclerotic plaque burden (Rumberger et al. 1995). Vascular calcification is more common in patients with diabetes, which is an active process associated with complex genetic, cellular, and molecular pathways, and the disease in patients with diabetes might be related to biochemical changes (Snell-Bergeon et al. 2013; Boström et al. 2011). Chen et al. (2006) and Zhang et al. (2008) found that high serum glucose levels are associated with an increased expression of Cbfal and BMP-2 and enhanced the calcification of VSMCs. Increased levels of BMP-2 exert proinflammatory and proatherogenic effects by inducing oxidative stress and endothelial dysfunction, and have been shown to promote plaque calcification by inducing an osteogenic phenotype in VSMCs (Willette et al. 1999; Li et al. 2008). In this study, we found a similar conclusion that higher CAC scores in outpatients with suspected CAD are related to diabetes, and that oxidative stress and endothelial dysfunction induced by BMP-2 might be the important intermediate links.

In this study, we found that diabetes is related to mixed plaque, non-calcified plaque, and the extent of coronary artery stenosis. One study on diabetes and coronary artery plaques showed that non-calcified plaques are the main subtype in asymptomatic diabetes patients compared with those without diabetes (Scholte et al. 2008), which agrees with our research. In several studies, intravascular ultrasound and magnetic resonance imaging were used to detect the composition of plaque (Schartl et al. 2001; Hong et al. 2010; Qian et al. 2009; Koops et al. 2007), and the mixed plaques detected by coronary computed tomography angiography (CCTA) were associated with high-risk features (Pundziute et al. 2008). Thin-cap fibroatheromas occurred more frequently in mixed plaques than in non-calcified and calcified plaques. A recent study demonstrated that patients with diabetes had an increased number of obstructive and mixed plaque segments compared to patients without diabetes (Pundziute et al. 2008). Our study is in agreement with all of the cited studies that showed that there is a higher plaque burden and extent of atherosclerosis in patients with diabetes compared to those without diabetes. We found that there is a relatively more non-calcified plaque burden in patients with diabetes than in those without diabetes. Several studies have also confirmed the effect of diabetes on vulnerable plaque and acute coronary syndrome (ACS) (Stamler et al. 1993; Leschka et al. 2008). Unstable non-calcified plaque, was vulnerable and frequently detected in patients with ACS. We did not find any differences in the number of calcified plaque segments between the two groups, but the scores of coronary calcium were significantly different. These results might be because the volume and quality of some calcified plaques were greater in patients with diabetes than in those without diabetes, but this remains to be determined.

We discovered that diabetes and CAC are significantly related to the incidence rate of MACEs in our patients. Diabetes and high CAC scores might increase the incidence of short-term and long-term major adverse cardiac events through some of the pathways mentioned above. Diabetes is a predictive factor for MACEs, and we found that high CAC scores are a predictive factor for MACEs in the groups with and without diabetes. These results are similar to those of other studies on the effect of diabetes on MACEs during the following-up time.

Study limitations

This study had several limitations. The study population comprised outpatients and, consequently, complete data on some parameters were not collected. As a result, it is possible that other factors that were potentially associated with CAC were not identified. This study was based on a single center. Larger studies that comprise a more diverse population would be needed to verify these findings. In this study, the prognostic value of CCTA in diabetes and non-diabetes patients was not determined, and more studies are needed to determine this value in this group of patients.


Patients with diabetes have a higher prevalence of obstructive CAD, higher CAC scores, and a higher incidence rate of MACEs than those without diabetes. Diabetes and higher CAC scores are the important predictors of the occurrence of MACEs during follow-up.



cardiovascular disease


coronary artery calcification


major adverse cardiac event


vascular smooth muscle cells


dual source computed tomography


high-density lipoprotein


low-density lipoprotein


lipoprotein a


cystatin C


body mass index


left main


left anterior descending


left circumflex


right coronary artery


myocardial infarction


odds ratio


confidence level


hazard ratio


coronary computed tomography angiography


acute coronary syndrome


  1. Abedin M, Tintut Y, Demer LL (2004) Vascular calcification: mechanisms and clinical ramifications. Arterioscler Thromb Vasc Biol 24:1161–1170

  2. Agatston AS, Janowitz WR, Hildner FJ, Zusmer NR, Viamonte M Jr, Detrano R (1990) Quantification of coronary artery calcium using ultrafast computed tomography. J Am Coll Cardiol 15:827–832

  3. Austen WG, Edwards JE, Frye RL, Gensini GG, Gott VL, Griffith LS, McGoon DC, Murphy ML, Roe BB (1975) A reporting system on patients evaluated for coronary artery disease. Report of the Ad Hoc Committee for Grading of Coronary Artery Disease, Council on Cardiovascular Surgery, American Heart Association. Circulation 51(Suppl 4):5–40

  4. Beckman JA, Creager MA, Libby P (2002) Diabetes and atherosclerosis: epidemiology, pathophysiology, and management. JAMA 287:2570–2581

  5. Boström KI, Jumabay M, Matveyenko A, Nicholas SB, Yao Y (2011) Activation of vascular bone morphogenetic protein signaling in diabetes mellitus. Circ Res 108:446–457

  6. Budoff MJ, Achenbach S, Blumenthal RS, Carr JJ, Goldin JG, Greenland P, Guerci AD, Lima JA, Rader DJ, Rubin GD, Shaw LJ, Wiegers SE, American Heart Association Committee on Cardiovascular Imaging and Intervention, American Heart Association Council on Cardiovascular Radiology and Intervention, American Heart Association Committee on Cardiac Imaging, Council on Clinical Cardiology (2006) Assessment of coronary artery disease by cardiac computed tomography: a scientific statement from the American Heart Association Committee on Cardiovascular Imaging and Intervention, Council on Cardiovascular Radiology and Intervention, and Committee on Cardiac Imaging, Council on Clinical Cardiology. Circulation 114:1761–1791

  7. Bulugahapitiya U, Siyambalapitiya S, Sithole J, Idris I (2009) Is diabetes a coronary risk equivalent? Systematic review and meta-analysis. Diabet Med 26:142–148

  8. Chen NX, Duan D, O’Neill KD, Moe SM (2006) High glucose increases the expression of Cbfa1 and BMP-2 and enhances the calcification of vascular smooth muscle cells. Nephrol Dial Transplant 21:3435–3442

  9. Detrano R, Guerci AD, Carr JJ, Bild DE, Burke G, Folsom AR, Liu K, Shea S, Szklo M, Bluemke DA, O’Leary DH, Tracy R, Watson K, Wong ND, Kronmal RA (2008) Coronary calcium as a predictor of coronary events in four racial or ethnic groups. N Engl J Med 358:1336–1345

  10. Elkeles RS (2010) Coronary artery calcium and cardiovascular risk in diabetes. Atherosclerosis 210:331–336

  11. Elkeles RS, Godsland IF, Feher MD, Rubens MB, Roughton M, Nugara F, Humphries SE, Richmond W, Flather MD, PREDICT Study Group (2008) Coronary calcium measurement improves prediction of cardiovascular events in asymptomatic patients with type 2 diabetes: the PREDICT study. Eur Heart J 29:2244–2251

  12. Expert Committee on the Diagnosis and Classification of Diabetes Mellitus (2003) Report of the expert committee on the diagnosis and classification of diabetes mellitus. Diabetes Care 26(Suppl 1):S5–S20

  13. Greenland P, Alpert JS, Beller GA, Benjamin EJ, Budoff MJ, Fayad ZA, Foster E, Hlatky MA, Hodgson JM, Kushner FG, Lauer MS, Shaw LJ, Smith SC Jr, Taylor AJ, Weintraub WS, Wenger NK, Jacobs AK (2010) 2010 ACCF/AHA guideline for assessment of cardiovascular risk in asymptomatic adults: a report of the American college of cardiology foundation/American heart association task force on practice guidelines. Circulation 122:e584–e636

  14. Haffner SM, Lehto S, Rönnemaa T, Pyörälä K, Laakso M (1998) Mortality from coronary heart disease in subjects with type 2 diabetes and in nondiabetic subjects with and without prior myocardial infarction. N Engl J Med 339:229–234

  15. Hong YJ, Jeong MH, Choi YH, Ma EH, Cho SH, Ko JS, Lee MG, Park KH, Sim DS, Yoon NS, Youn HJ, Kim KH, Park HW, Kim JH, Ahn Y, Cho JG, Park JC, Kang JC (2010) Gender differences in coronary plaque components in patients with acute coronary syndrome: virtual histology-intravascular ultrasound analysis. J Cardiol 56:211–219

  16. Howangyin KY, Silvestre JS (2014) Diabetes mellitus and ischemic diseases: molecular mechanisms of vascular repair dysfunction. Arterioscler Thromb Vasc Biol 34:1126–1135

  17. Hruska KA, Mathew S, Saab G (2005) Bone morphogenetic proteins in vascular calcification. Circ Res 97:105–114

  18. Koops A, Ittrich H, Petri S, Priest A, Stork A, Lockemann U, Adam G, Weber C (2007) Multicontrast-weighted magnetic resonance imaging of atherosclerotic plaques at 3.0 and 1.5 Tesla: ex vivo comparison with histopathologic correlation. Eur Radiol 17:279–286

  19. Leschka S, Scheffel H, Husmann L, Gämperli O, Marincek B, Kaufmann PA, Alkadhi H (2008) Effect of decrease in heart rate variability on the diagnostic accuracy of 64-MDCT coronary angiography. AJR Am J Roentgenol 190:1583–1590

  20. Li X, Yang HY, Giachelli CM (2008) BMP-2 promotes phosphate uptake, phenotypic modulation, and calcification of human vascular smooth muscle cells. Atherosclerosis 199:271–277

  21. Paneni F, Beckman JA, Creager MA, Cosentino F (2013) Diabetes and vascular disease: pathophysiology, clinical consequences, and medical therapy: part I. Eur Heart J 34:2436–2443

  22. Parhami F, Boström K, Watson K, Demer LL (1996) Role of molecular regulation in vascular calcification. J Atheroscler Thromb 3:90–94

  23. Pundziute G, Schuijf JD, Jukema JW, Decramer I, Sarno G, Vanhoenacker PK, Reiber JH, Schalij MJ, Wijns W, Bax JJ (2008) Head-to-head comparison of coronary plaque evaluation between multislice computed tomography and intravascular ultrasound radiofrequency data analysis. JACC Cardiovasc Interv 1:176–182

  24. Qian J, Maehara A, Mintz GS, Margolis MP, Lerman A, Rogers J, Banai S, Kazziha S, Castellanos C, Dani L, Fahy M, Stone GW, Leon MB (2009) Impact of gender and age on in vivo virtual histology-intravascular ultrasound imaging plaque characterization (from the global virtual histology intravascular ultrasound [VH-IVUS] registry). Am J Cardiol 103:1210–1214

  25. Qu W, Le TT, Azen SP, Xiang M, Wong ND, Doherty TM, Detrano RC (2003) Value of coronary artery calcium scanning by computed tomography for predicting coronary heart disease in diabetic subjects. Diabetes Care 26:905–910

  26. Raggi P, Shaw LJ, Berman DS, Callister TQ (2004) Prognostic value of coronary artery calcium screening in subjects with and without diabetes. J Am Coll Cardiol 43:1663–1669

  27. Rumberger JA, Simons DB, Fitzpatrick LA, Sheedy PF, Schwartz RS (1995) Coronary artery calcium area by electron-beam computed tomography and coronary atherosclerotic plaque area. A histopathologic correlative study. Circulation 92:2157–2162

  28. Sangiorgi G, Rumberger JA, Severson A, Edwards WD, Gregoire J, Fitzpatrick LA, Schwartz RS (1998) Arterial calcification and not lumen stenosis is highly correlated with atherosclerotic plaque burden in humans: a histologic study of 723 coronary artery segments using nondecalcifying methodology. J Am Coll Cardiol 31:126–133

  29. Schartl M, Bocksch W, Koschyk DH, Voelker W, Karsch KR, Kreuzer J, Hausmann D, Beckmann S, Gross M (2001) Use of intravascular ultrasound to compare effects of different strategies of lipid-lowering therapy on plaque volume and composition in patients with coronary artery disease. Circulation 104:387–392

  30. Scholte AJ, Schuijf JD, Kharagjitsingh AV, Jukema JW, Pundziute G, van der Wall EE, Bax JJ (2008) Prevalence of coronary artery disease and plaque morphology assessed by multi-slice computed tomography coronary angiography and calcium scoreing in asymptomatic patients with type 2 diabetes. Heart 94:290–295

  31. Seshasai SR, Kaptoge S, Thompson A, Di Angelantonio E, Gao P, Sarwar N, Whincup PH, Mukamal KJ, Gillum RF, Holme I, Njølstad I, Fletcher A, Nilsson P, Lewington S, Collins R, Gudnason V, Thompson SG, Sattar N, Selvin E, Hu FB, Danesh J (2011) Diabetes mellitus, fasting glucose, and risk of cause-specific death. N Engl J Med 364:829–841

  32. Shemesh J, Tenenbaum A, Fisman EZ, Koren-Morag N, Grossman E (2013) Coronary calcium in patients with and without diabetes: first manifestation of acute or chronic coronary events is characterized by different calcification patterns. Cardiovasc Diabetol 12:161

  33. Snell-Bergeon JK, Budoff MJ, Hokanson JE (2013) Vascular calcification in diabetes: mechanisms and implications. Curr Diab Rep 13:391–402

  34. Stamler J, Vaccaro O, Neaton JD, Wentworth D (1993) Diabetes, other risk factors, and 12-yr cardiovascular mortality for men screened in the Multiple Risk Factor Intervention Trial. Diabetes Care 16:434–444

  35. Willette RN, Gu JL, Lysko PG, Anderson KM, Minehart H, Yue T (1999) BMP-2 gene expression and effects on human vascular smooth muscle cells. J Vasc Res 36:120–125

  36. Zhang M, Zhou SH, Zhao S, Li XP, Liu LP, Shen XQ (2008) Pioglitazone can downregulate bone morphogenetic protein-2 expression induced by high glucose in human umbilical vein endothelial cells. Pharmacology 81:312–316

  37. Zimmerman Stefan L, Kral Brian G, Fishman Elliot K (2014) Diagnostic quality of dual-source coronary CT exams performed without heart rate control: importance of obesity and heart rate on image quality. J Comput Assist Tomogr 38:949–955

Download references

Authors’ contributions

LZ, JL and CG conceived of and carried out the clinical study, participated in the design of the study and drafted the manuscript. HY did a lot of work to help me to modify the article. WZ, JQ, XW and DQ participated in the design of the study, acquisition of data, interpretation of data, and performed the statistical analysis. JY, WL and YZ participated in the design and coordination and helped to draft the manuscript. All authors read and approved the final manuscript.


The authors would like to thank the Henan Institute of Cardiovascular Epidemiology for acquisition of data and the follow-up. All of the authors sufficiently participated in and take public responsibility for the design, and for the methods, data collection, statistical analysis, and data interpretation, the present study would not have been possible without their participation.

Competing interests

The authors declare that they have no competing interests.

Statement of human rights

All patients were given an informed consent form that was approved by the Ethics Committee before being enrolled in this study. Written informed consent was obtained from each participant and the study was conducted in compliance with the Declaration of Helsinki.
