Microbial nitrification in throughfall of a Japanese cedar associated with archaea from the tree canopy

SpringerPlus volume 5, Article number: 1596 (2016) Cite this article

Abstract

To investigate the nitrification potential of phyllospheric microbes, we incubated throughfall samples collected under the canopies of Japanese cedar (Cryptomeria japonica) and analyzed the transformation of inorganic nitrogen in the samples. Nitrate concentration increased in the unfiltered throughfall after 4 weeks of incubation, but remained nearly constant in the filtered samples (pore size: 0.2 and 0.4 µm). In the unfiltered samples, δ18O and δ15N values of nitrate decreased during incubation. In addition, archaeal ammonia monooxygenase subunit A (amoA) genes, which participate in the oxidation of ammonia, were found in the throughfall samples, although betaproteobacterial amoA genes were not detected. The amoA genes recovered from the leaf surface of C. japonica were also from archaea. Conversely, nitrate production, decreased isotope ratios of nitrate, and the presence of amoA genes was not observed in rainfall samples collected from an open area. Thus, the microbial nitrification that occurred in the incubated throughfall is likely due to ammonia-oxidizing archaea that were washed off the tree canopy by precipitation.

Background

The phyllosphere is a hostile environment for microbes because the leaf surface is deficient in nutrients and exposed to dry conditions and strong UV radiation (Yang et al. 2001). Nevertheless, bacteria exist in the phyllosphere at an estimated average density of 106–107 cells cm−2 (Lindow and Brandl 2003). The total leaf surface area of terrestrial plants is estimated to be 6.4 × 108 km2, which is comparable to Earth’s terrestrial surface area (Morris and Kinkel 2002). Thus, if phyllospheric microbes metabolize nutritional elements (e.g., N and S), they may play an important role in the biogeochemical cycles of these elements. Phyllospheric microbes have been well studied and include plant pathogens and their antagonists, ice-nucleation bacteria, decomposers, phytohormone producers, and nitrogen fixers (Fett et al. 1987; Hirano and Upper 2000; Enya et al. 2007; Fürnkranz et al. 2008; Suda et al. 2009; Vorholt 2012). However, there is limited information available regarding the contribution of phyllospheric microbes to elemental dynamics (e.g., Woods et al. 2012).

Nitrogen is an abundant element that is essential to living organisms. Microbes drive biogeochemical cycling processes for nitrogen, including N-fixation, N-mineralization, N-immobilization, denitrification, and nitrification (Francis et al. 2007; Gruber and Galloway 2008; Hayatsu et al. 2008; Ollivier et al. 2011). Nitrification is a two-step process. In the first step, ammonia is oxidized to nitrite by ammonia-oxidizing archaea (AOA) and/or ammonia-oxidizing bacteria (AOB). In the second step, nitrite is oxidized to nitrate by nitrite-oxidizing bacteria (NOB). Recent studies have revealed that AOA and AOB are widely distributed in soil, marine, and freshwater environments, and that they may contribute to the global nitrogen cycle (Leininger et al. 2006; Agogué et al. 2008; Prosser and Nicol 2008; Herrmann et al. 2009; Martens-Habbena et al. 2009; Church et al. 2010). Furthermore, separation of the ecological niches of AOA and AOB has been observed in soil and marine environments (Erguder et al. 2009; Di et al. 2009; Nunoura et al. 2015). The leaf surface of trees constantly receives ammonium ions and ammonia via atmospheric deposition; accordingly, the phyllosphere might be a suitable habitat for some species of ammonia-oxidizing microbes (Shi et al. 2014; Guerrieri et al. 2015). Two previous studies employing the most probable number (MPN) and fluorescence in situ hybridization (FISH) techniques have suggested the presence of ammonia-oxidizing microbes in the phyllosphere (Papen et al. 2002; Teuber et al. 2007). However, evidence of the potential for microbial ammonia oxidation in the tree phyllosphere has not been thoroughly verified.

It is very likely that throughfall (rainwater that drips from tree canopies) contains phyllospheric microbes washed off from the canopies, as well as airborne substances and secretions from plants and microbes (Müller et al. 2004; Gaige et al. 2007). Therefore, if phyllospheric microbes possess nitrifying ability, transformation of nitrogen (from NH4 + to NO3 −) will occur in the throughfall when it is incubated under appropriate conditions. Recently, analysis of isotopic (δ18O, ∆17O, and δ15N) changes in nitrate throughout the rainfall, throughfall, and stemflow samples provided evidence of microbial nitrification in the tree canopy (Shi et al. 2014; Guerrieri et al. 2015).

In this study, throughfall samples collected under the canopies of Japanese cedar (Cryptomeria japonica), which is an evergreen conifer planted widely across Japan, were incubated to examine nitrate production (nitrification) in the samples. Because mixing of nitrate produced by microbial activity (nitrification) can decrease the δ18O value of nitrate in throughfall samples (Kendall 1998; Xue et al. 2009; Snider et al. 2010; Shi et al. 2014; Guerrieri et al. 2015), we also measured the δ18O changes in nitrate during incubation. In addition, the presence of the ammonia monooxygenase subunit A (amoA) gene, which is a functional gene that participates in the oxidation of ammonia by ammonia-oxidizing microbes, was determined to characterize the relative contributions of AOA and AOB to nitrification in the throughfall. The results were then compared with those obtained from sterile (filtered) throughfall samples and rainfall samples to show that nitrification was mainly due to phyllospheric microbes. Furthermore, the leaf surfaces of C. japonica were analyzed for the presence of amoA genes to discuss the possibility of the existence of ammonia-oxidizing microbes in the phyllosphere.

Methods

Sampling site

Sampling was conducted at the National Institute for Environmental Studies (NIES; 36°03′N, 140°07′E) in Tsukuba, Ibaraki, Japan. Tsukuba is a suburban city with a population of 215,000 within 284 km2 that is located about 50 km northeast of metropolitan Tokyo and 40 km west of the Pacific Ocean. The mean annual temperature, relative humidity, wind velocity, and annual precipitation at NIES between 2006 and 2009 were 14.8 °C, 71 %, 1.6 m s−1, and 1178 mm, respectively (data from the Air Quality Research Station of NIES). Throughfall and leaf samples were collected from two (Cj1 and Cj2) and three (Cj1, Cj2, and Cj3) isolated C. japonica trees, respectively. The diameter of the trunk at breast height of Cj1, Cj2, and Cj3 was 42, 42, and 47 cm, respectively. These trees had abundant foliage and were approximately 200–500 m apart. Rainfall unaffected by the tree canopies was also collected from an open grassplot approximately 100 m from the nearest throughfall collection sites.

Throughfall and rainfall sampling

Throughfall was collected under the canopies of Cj1 and Cj2 from 22 February to 22 March 2006. Sampling was conducted using a bulk sampler as previously described (Hou et al. 2005). Throughfall collected by a polyethylene funnel (10 cm in diameter) was stored in a 2-L polyethylene bottle (Fig. 1). A nylon mesh filter was placed at the bottom of the funnel to minimize contamination by insects and plant debris. The funnel and a bottle were put in an opaque PVC tube to keep the sample in the dark and prevent growth of algae. The apparatus was washed successively with alkaline detergent solution and acidic solution, then rinsed thoroughly with deionized water before use. The funnel was placed 1 m above the ground, 50–100 cm from tree trunks, under the canopies with the highest leaf density. Rainfall sampling was conducted concurrently with throughfall collection using the same method.

Fig. 1
figure1

Experimental flow of throughfall collection, filtration treatment prior to incubation, and sample collection for the detection of amoA genes from filters and leaves

Full size image

Filtration and incubation of throughfall and rainfall samples

Immediately after the collection, throughfall and rainfall samples were sequentially filtered to remove suspended solids (SS) and microbes using Nuclepore membrane filters (Whatman, Middlesex, UK) with pore sizes of 10 (to remove large SS and aggregated microbes), 2 (to remove medium SS and large microbes), 0.4 (to remove small SS and most microbes), and 0.2 µm (to remove very small SS and large viruses) (Fig. 1). All unfiltered and filtered samples (50 mL in each fraction) were dispensed into sterile 50-mL Erlenmeyer flasks with foam silicon stoppers and incubated at 30 °C in the dark. Following incubation periods of 1, 2, 3, and 4 weeks, nitrate, nitrite, and ammonium ions in each sample were analyzed using ion chromatography (DX-100) with an IonPack AS12A/AG12A and IonPack CS3/CG3 column (Dionex, Sunnyvale, CA, USA). Analysis of ammonium ions was only conducted for samples before incubation and after incubation for 1 and 4 weeks. The filtrates and filters were stored at −20 °C until further analysis.

Analysis of stable isotopic ratios (δ18O and δ15N) of nitrate in throughfall and rainfall samples

The oxygen and nitrogen isotope ratios (δ18O and δ15N) of nitrate were measured by the denitrifier method developed by Sigman et al. (2001) and Casciotti et al. (2002) after removal of nitrite by the addition of ascorbic acid (Granger et al. 2006). This method enables the measurement of δ18O and δ15N in small amounts of nitrate (i.e., 30 nmol). In this method, N2O gas converted from nitrate catalytically by cultured denitrifying bacteria (Pseudomonas chlororaphis subsp. aureofaciens ATCC 13985) was introduced into an isotope ratio mass spectrometer equipped with a custom-made auto-injection preprocessing system for N2O gas (Kohzu et al. 2011). Stable isotope ratios are expressed in δ notation as the difference in parts per thousand (‰) from the standard (i.e., δ18O = 0 ‰ in Vienna Standard Mean Ocean Water; δ15N = 0 ‰ in atmospheric N2):

$$\begin{aligned} &\updelta^{18} {\text{O}} = ({\text{R}}\,{\text{sample/R}}\,{\text{standard}} - 1) \times 1000,\quad {\text{where}}\,{\text{R}}\,{\text{is}}\,^{18} {\text{O}}/^{16} {\text{O}}. \\ &\updelta^{15} {\text{N}} = ({\text{R}}\,{\text{sample/R}}\,{\text{standard}} - 1) \times 1000,\quad {\text{where}}\,{\text{R}}\,{\text{is}}\,^{15} {\text{N}}/^{14} {\text{N}}. \\ \end{aligned}$$

Four internal standards (IAEA-N3, USGS32, USGS34, and USGS35) were used to correct the measured values. The analytical precision was ±0.59 and ±0.19 ‰ for δ18O and δ15N, respectively. The isotope ratios (δ18O and δ15N) of nitrate in rainfall samples were only measured for the samples before incubation and for unfiltered samples after 4 weeks of incubation.

Extraction of microbial DNA in throughfall and rainfall samples

The membrane filters used for filtration (described above) were subjected to the extraction of microbial genomic DNA (Fig. 1). The extraction was conducted directly for every filter sample prepared using a FastDNA SPIN kit for Soil (Q-Biogene, Carlsbad, CA, USA) according to the manufacturer’s instructions. It should be noted that a clone library was constructed for archaeal amoA genes obtained from the 10-µm-pore filter of throughfall for Cj1. Details regarding the genetic analyses are described below.

Leaf sampling and extraction of microbial DNA from leaves

Small branches of C. japonica (Cj1, Cj2, and Cj3) were collected from an accessible height of approximately 3 m above the ground on 19 March 2010 using long reach pruning shears while preventing branches from falling on the ground (Fig. 1). The collected branches were placed in clean polyethylene bags without touching with bare hands and brought to the laboratory, after which leaves about 5 cm in length with small stems were separated from the branches without distinction of leaf age and used for extraction of microbial genomic DNA. Leaf samples (10 g) were placed into 50-mL sterile polypropylene centrifuge tubes (Greiner Bio-one, Frickenhausen, Germany), after which 30–40 mL of sterile potassium phosphate buffer (pH 7.0) was added. Microbial cells from the leaves were collected by ultrasonic disintegration (45 kHz, 10 min) and centrifugation (5800×g, 10 min, 5 °C), after which the DNA for genetic analyses was extracted from the precipitates using a FastDNA SPIN kit for Soil (Q-Biogene) according to the manufacturer’s instructions. All sampling and DNA extraction processes were conducted while wearing a clean pair of nitrile rubber gloves.

Detection of archaeal and betaproteobacterial amoA genes

Microbial DNA obtained from throughfall and rainfall samples and from leaves of C. japonica was subjected to genetic analysis as follows. Partial archaeal and betaproteobacterial amoA genes were amplified by polymerase chain reaction (PCR) using either archaeal or betaproteobacterial amoA gene-specific primers. Specifically, amoA19F (Leininger et al. 2006) and amo643R (Treusch et al. 2005) were used for the archaeal amoA gene, while amoA-1F and amoA-2R (Rotthauwe et al. 1997) were used for the betaproteobacterial amoA gene (fungal genes were not analyzed). The reaction was performed in a 50-µL mixture containing 0.1–2 ng of template DNA, 0.2 µM of each primer, 5 µL of 10× Ex Taq buffer, 4 µL of dNTP mixture, 1 µL of bovine serum albumin (20 mg mL−1; Takara Bio Inc., Shiga, Japan), and 0.25 µL of TaKaRa Ex Taq HS (Takara Bio Inc., Shiga, Japan). The template DNA concentration was measured using a Qubit 2.0 fluorometer and a Quant-iT dsDNA HS assay kit (Thermo Fisher Scientific, Waltham, MA, USA) in accordance with the manufacturer’s instructions. The thermal cycling conditions were as follows for the archaeal amoA gene: 95 °C for 10 min, followed by 36–42 cycles of 95 °C for 1 min, 55 °C for 1 min and 72 °C for 40 s and then final extension at 72 °C for 10 min. For the betaproteobacterial amoA gene, the cycling profile was 95 °C for 10 min, followed by 45 cycles consisting of 95 °C for 1 min, 55 °C for 1 min and 72 °C for 40 s, and then final extension at 72 °C for 10 min. The production of both amplicons was confirmed by 2 % agarose gel electrophoresis.

Quantification of archaeal amoA genes by quantitative real-time PCR (qPCR)

Partial archaeal amoA genes detected in the throughfall and leaf samples were quantified by qPCR (LightCycler Nano; Roche, Basel, Schweitz) using archaeal amoA gene-specific primers (amoA19F and amo643R). The reaction was conducted in a 20-µL reaction mixture containing 3.8 µL of distilled H2O, 5 µL containing 0.1–2 ng of template DNA, 0.4 µL of 10 µM each primer, 0.4 µL of bovine serum albumin (20 mg mL−1; Takara Bio Inc.), and 10 µL of 2× SYBR Premix Ex Taq (Tli RNaseH Plus) (Takara Bio Inc.). The template DNA concentration was measured using a Qubit 2.0 fluorometer and a Quant-iT dsDNA HS assay kit (Thermo Fisher Scientific) in accordance with the manufacturer’s instructions. The thermal cycling conditions were as follows for the archaeal amoA gene: 95 °C for 30 s; 45 cycles consisting of 95 °C for 30 s, 55 °C for 1 min and 72 °C for 40 s; final extension at 72 °C for 10 min with a melting curve analysis.

The archaeal amoA gene was amplified from an environmental clone, N3-16 (AB622272), using the amoA19F and amo643R primers. The PCR products were purified using a QIAquick PCR purification kit (Qiagen). This amplicon was used for construction of a standard curve of qPCR. qPCR analysis of each sample was conducted in triplicate, and the efficiency of the qPCR reaction was 86.6–87.5 %. The quantitative lower limit for the archaeal amoA gene was 44 copies per reaction.

Cloning and sequence analysis of archaeal amoA Genes

PCR-amplified fragments of archaeal amoA gene were cloned using the pGEM-T Easy Vector System with DH5α Escherichia coli (Promega, Madison, WI, USA) in accordance with the manufacturer’s instructions. The cloned DNA was amplified by PCR using T7 and SP6 promoter primers (Promega). The PCR products were purified using a MinElute 96 UF PCR Purification Kit (Qiagen, Hilden, Germany) and used as templates for sequencing. Sequencing was performed with the amoA19F and amo643R primer set using a BigDye Terminator v3.1 Cycle Sequencing Kit (Applied Biosystems, Carlsbad, CA, USA) and an ABI PRISM 3100 genetic analyzer (Applied Biosystems).

The obtained sequences were compared with known references using BLAST searches of the DNA Data Bank of Japan (DDBJ; http://www.ddbj.nig.ac.jp). Sequence data were aligned using the ClustalW package (Thompson et al. 1994), and phylogenetic trees were constructed using the neighbor-joining method (Saitou and Nei 1987) with the Poisson model in the MEGA 6.0 software package (Tamura et al. 2013). Bootstrap re-sampling analysis (1000 replicates) was performed to estimate the confidence of tree topologies (Felsenstein 1985). The nucleotide sequences of partial archaeal amoA genes were deposited into the DDBJ database under the following accession numbers: AB622267–AB622275, AB649997–AB650012, and AB873108–AB873179.

Results

Nitrate production in throughfall and rainfall samples

Overall, 70 and 48 mm of throughfall were collected from under the canopies of Cj1 and Cj2, respectively, from 22 February to 22 March 2006, while 75 mm of rainfall were collected. The initial concentrations of mineral nitrogen in the throughfall from Cj1 (404 µM) and Cj2 (677 µM) were higher than in the rainfall (59 µM). The initial ammonium concentration was about twofold lower in the throughfall from Cj1 (174 µM) than Cj2 (404 µM) (Fig. 2). Although the initial nitrite concentration was higher in Cj1 throughfall (11 µM) than Cj2 throughfall (5 µM), the nitrate concentrations were nearly equivalent in Cj1 (219 µM) and Cj2 (267 µM).

Fig. 2
figure2

Changes in ammonium, nitrite, and nitrate concentrations in the incubated throughfall samples of Cj1 and Cj2 and rainfall samples (RF), which were passed through several filters with different pore sizes before incubation. Ammonium concentrations in samples incubated for 2 and 3 weeks were not determined

Full size image

For throughfall from Cj1 (Fig. 2), nitrate concentrations in the unfiltered sample increased during 4 weeks of incubation, whereas there was almost no nitrate production in samples passed through the 0.2-, 0.4-, and 2-µm-pore filters. Ammonium decreased in all samples during 4 weeks of incubation, although the decreases were larger in the unfiltered samples and those that passed through 2- and 10-µm-pore filters. Conversely, nitrite was not detected in the unfiltered samples after 3 and 4 weeks of incubation, but an increase in nitrite concentration was observed in samples passed through the 2- and 10-µm-pore filters after 3 and 4 weeks of incubation. For throughfall from Cj2, almost no transformation of inorganic nitrogen was observed, but nitrate increased slightly and nitrite disappeared during incubation of the unfiltered sample. In contrast, nitrate and nitrite were not produced in any rainfall samples, regardless of the presence or absence of filtration, although the initial ammonium concentration was quite low.

Changes in δ18O and δ15N of nitrate in throughfall and rainfall samples during incubation

For the throughfall sample from Cj1, decreases in δ18O and δ15N values of nitrate were observed when it was incubated for 4 weeks without filtration or after filtration through 2- and 10-µm-pore filters (Fig. 3a, c), although such isotopic changes were small or not observed in samples passed through 0.2- and 0.4-µm-pore filters. In the unfiltered samples from Cj1, a gradual decrease of δ18O and δ15N values of nitrate that coincided with nitrate production occurred with increasing incubation time (Fig. 3b, d). For throughfall samples from Cj2, even in the unfiltered samples, the decreases in δ18O (from +75.2 to +71.3 ‰) and δ15N (from +6.1 to +4.0 ‰) values were relatively small during the 4 weeks of incubation because nitrate production was limited (Fig. 2). In addition, the δ18O and δ15N values of nitrate in unfiltered rainfall samples did not change before and after incubation, being approximately +62 and +0.5 ‰, respectively.

Fig. 3
figure3

Nitrate production and isotopic ratios (δ18O and δ15N) of nitrate in throughfall samples from Cj1 passed through 0.2-, 0.4-, 2-, and 10-µm-pore filters after 4 weeks of incubation (a δ18O, c δ15N), and those in the unfiltered samples after different incubation periods (b δ18O, d δ15N). Unfiltered samples incubated for 1 week were not analyzed. The data points of “before incubation (a, c)” and “0 weeks (b, d)”, and those of “unfiltered (a, c)” and “4 weeks (b, d)” are same meaning

Full size image

Archaeal and betaproteobacterial amoA genes in throughfall and on tree leaves

The filters used for throughfall samples were analyzed for amoA genes by PCR because they should have contained the microbes washed off from the tree canopies. Archaeal amoA-like gene amplicons were detected from 0.4- to 10-µm-pore filters used for throughfall from Cj1 and Cj2, whereas betaproteobacterial amoA gene amplicons were not detected from those filters. Conversely, the filters used for rainfall contained neither archaeal nor betaproteobacterial amoA genes. qPCR analysis revealed that the abundance of archaeal amoA genes on the 10-µm-pore filter, through which 300 mL of throughfall sample passed, was 5424 ± 449 copies for Cj1 and 4775 ± 204 copies for Cj2. Conversely, archaeal amoA gene copy numbers on 0.4- and 2-µm-pore filters were below the lower limit (<44 copies/reaction). Because 10-µm-pore filters used for throughfall of Cj1, in which nitrate production was observed (Fig. 2), contained the most abundant archaeal amoA genes, a clone library of archaeal amoA genes was constructed using 72 clones obtained from this filter (clone N2-throughfall). Phylogenetic analysis revealed that archaeal amoA gene sequences obtained from the throughfall of Cj1 mainly belonged to three groups (I, III, IV) of group I.1b (Fig. 4), although some sequences were clustered in a specific branch (group V) that was close to Nitrosopumilus maritimus (DQ085098), which is included in group I.1a.

Fig. 4
figure4

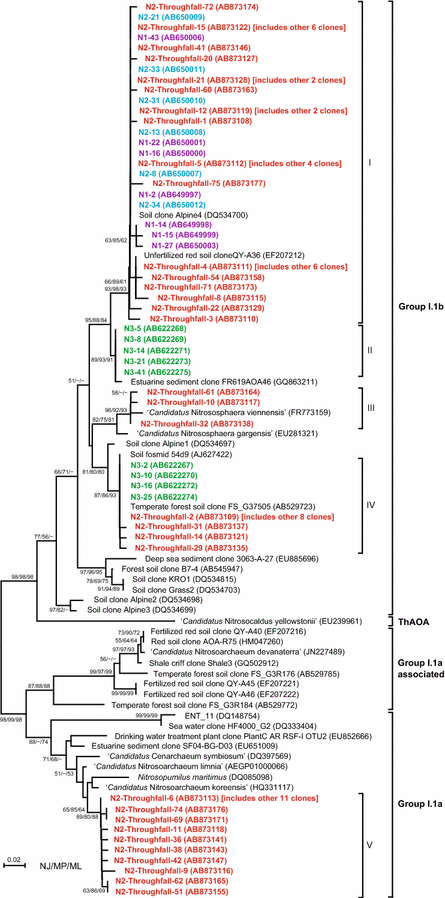

Phylogenetic tree generated using the neighbor-joining method to analyze 178 deduced amino acid sequences of archaeal amoA-like genes from microbes trapped in the 10-µm-pore filter for throughfall of Cj1 (red clone name N2-throughfall, AB873108–AB873179) and phyllospheric microbes on the leaves of C. japonica [Cj1 (blue clone name N2, AB650007–AB650012), Cj2 (green clone name N3, AB622267–AB622275), and Cj3 (purple clone name N1, AB649997–AB650012)]. The bar represents a 2 % evolutionary distance, and bootstrap values above 50 % are shown. Node percentages represent the bootstrap values based on neighbor-joining (NJ), maximum parsimony (MP), and maximum likelihood (ML)

Full size image

Microbial DNA samples were also obtained from leaf samples of C. japonica (Cj1, Cj2, and Cj3). PCR led to recovery of partial archaeal amoA genes from all samples, whereas betaproteobacterial amoA genes were not recovered. Although archaeal amoA gene copy numbers of all leaf samples were below the quantitative lower limit, overall, 22 clones of the archaeal amoA gene were found in the microbial DNA samples collected from the leaf surfaces of Cj1 (clone name N2, six clones), Cj2 (clone name N3, nine clones), and Cj3 (clone name N1, seven clones). Phylogenetic analysis showed that all archaeal amoA gene sequences obtained from the tree leaves belonged to group I.1b (Fig. 4). The first group (I) included sequences from Cj1 and Cj3, whereas the second and third groups (II and IV) included those from Cj2.

Discussion

Microbial nitrification observed in throughfall from C. japonica

We verified that the ammonium concentrations in throughfalls of C. japonica were higher than those in rainfall (Fig. 2), indicating that tree canopies received atmospheric ammonia and aerosol ammonium. These results suggest the possibility that the tree phyllosphere is a habitat for some species of ammonia-oxidizing microbes and they could be washed into the throughfall. We found that the throughfall of C. japonica had microbial nitrification potential upon incubation of unfiltered throughfall samples. For the Cj1 throughfall, a clear increase in nitrate concentration that coincided with the decrease in ammonium and nitrite concentrations was observed in the unfiltered samples after 3- and 4-week incubation periods (Fig. 2). The amount of nitrate production exceeded the ammonium consumption during incubation, presumably because the dissolved organic nitrogen in the unfiltered throughfall sample underwent mineralization and subsequent nitrification. The nitrite concentration increased in samples that passed through 2- and 10-µm-pore filters, which may indicate that NOB could not pass through these filters. However, increases in nitrate concentration occurred to a lesser extent in unfiltered throughfall from Cj2. Although the cause for this difference was unclear, the chemical and microbiological conditions of Cj2 throughfall were not appropriate to exhibit its nitrification activity.

The δ18O values of nitrate in the unfiltered throughfall samples from Cj1 decreased markedly from +74.1 to +49.8 ‰ during 4 weeks of incubation (Fig. 3a, b). The δ18O value of nitrate produced by microbial activity should be much lower than that of the original nitrate in throughfall because of the incorporation of oxygen atoms from ambient water (δ18O: from −10 to −5 ‰) (Kendall 1998; Xue et al. 2009). During microbial nitrification, two-thirds of nitrate oxygen atoms are usually derived from water, whereas the other one-third originates from dissolved O2 (Snider et al. 2010). If the δ18O value of dissolved O2 is similar to that of atmospheric O2 (+23.5 ‰), the δ18O values of nitrate produced by microbial nitrification range from +1.2 to +4.5 ‰. Therefore, the isotopic mass balance calculation indicates that the amounts of nitrate produced by nitrification in the unfiltered throughfall sample after 4 weeks of incubation corresponded to 49.9–53.5 % of the original amount, which was consistent with the actual increase of nitrate from 219 to 332 µM, i.e., 51.8 % (Fig. 2). The δ15N value of nitrate in the unfiltered samples from Cj1 also decreased from +6.1 to −1.7 ‰ in response to 4 weeks of incubation (Fig. 3c, d). Garten (1992) reported that the δ15N values of ammonium were always lower than those of nitrate in throughfall, and generally <0 ‰ (Kendall 1998). Thus, the low δ15N values of ammonium were introduced into nitrate newly produced by nitrification during incubation, decreasing the δ15N values of nitrate in the unfiltered throughfall samples from Cj1.

We verified that the throughfall of C. japonica contained nitrifying microbes by detecting amoA genes, which participate in oxidation of ammonia. In the throughfall of C. japonica (Cj1 and Cj2), archaeal amoA genes were actually detected by PCR, although betaproteobacterial amoA genes were not found. Therefore, nitrification observed in the throughfall was probably accomplished by AOA. qPCR analysis estimated that the abundance of archaeal amoA gene in 1 mL of throughfall from Cj1 or Cj2 was <20 copies. This quantity was close to that of a low-nutrient groundwater sample (<100 copies mL−1, Reed et al. 2010), but lower than that of a deep oligotrophic lake sample (1.8 × 103–5.6 × 103, Auguet et al. 2012). Erguder et al. (2009) suggested that AOA play a more important role than AOB in the nitrogen cycle under low-ammonium, low-phosphate, low-pH, and/or sulfide-containing conditions. The initial ammonium concentrations in the throughfall of C. japonica (Cj1: 0.17 mM; Cj2: 0.40 mM) were as low as the level in which the moderately thermophilic AOA (Candidatus Nitrososphaera gargensis) showed high activity (0.14 or 0.79 mM) (Hatzenpichler et al. 2008). The phosphate concentrations were also low (<2 µM) in the throughfall. In addition, the pH of the throughfall was weakly acidic (Cj1: 5.7; Cj2: 5.6); therefore, the throughfall of C. japonica may be preferred by AOA rather than AOB. These results also suggest that the chemical and microbiological conditions in throughfalls might affect the variations in nitrification activities.

We confirmed that nitrate production and the decrease in δ18O and δ15N values of nitrate were reduced when the throughfall samples were filtered, particularly when 0.2-µm-pore filters that could eliminate a large portion of microbes were used (Figs. 2, 3a, c). In addition, nitrate production and the decrease in δ18O values of nitrate did not occur in rainfall samples, even when the unfiltered samples were incubated for 4 weeks (Fig. 2). Furthermore, neither archaeal nor betaproteobacterial amoA genes were detected in rainfall samples. These results suggest that the nitrification activity observed in unfiltered throughfall samples during incubation was caused by phyllospheric microbes washed off from the canopies rather than airborne microbes.

Archaeal amoA genes recovered from the leaf surface of C. japonica

We verified the presence of ammonia oxidizers on the leaf surface of C. japonica by detecting functional genes. Archaeal amoA genes were recovered from microbes collected from the leaf surface of C. japonica (Cj1, Cj2, and Cj3) (Fig. 4). This is the first study to demonstrate the presence of archaeal amoA genes in a microbial community obtained from leaf surfaces. Although the existence of Crenarchaeota in several kinds of tree leaves was reported (Redford et al. 2010), the thaumarchaeotal distribution is never mentioned. In addition, we detected archaeal amoA genes in the leaf surface samples obtained from a Japanese cypress at the same sampling site (data not shown). Conversely, betaproteobacterial amoA genes were not detected from any leaf samples. These genetic features on the leaves were consistent with those observed in the throughfall; therefore, we consider AOA to be a substantial ammonia-oxidizer among microbes on tree canopies of C. japonica, even though archaea are generally recognized as minor members (<1 %) of the phyllospheric microbial community (Delmotte et al. 2009; Redford et al. 2010). Phylogenetic analysis of the archaeal amoA gene clones obtained from the microbes on tree leaves or in throughfall indicated that most of the archaeal amoA gene sequences belonged to group I.1b (Fig. 4). However the fifth group (V), to which some clones from the throughfall of Cj1 belonged, was very similar to a marine lineage represented by Nitrosopumilus maritimus that was included in group I.1a. Because there was no specificity to the clusters obtained from phyllosphere samples, it is likely that AOA on the tree leaves are not indigenous to the phyllosphere, but are instead ubiquitous in terrestrial environments.

The phyllosphere is a habitat available for certain species of microbes (e.g., Delmotte et al. 2009; Redford et al. 2010; Vorholt 2012). In this study, we showed that a subset of phyllospheric microbes from C. japonica has the potential for nitrification, although the approach used in this study was indirect (throughfall incubation). Another study also indicated that microbial nitrification occurred in the tree canopy based on analysis of the δ18O or ∆17O changes in nitrate throughout the rainfall, throughfall, and stemflow samples (Shi et al. 2014; Guerrieri et al. 2015). Because the total leaf surface area of terrestrial plants is as large as Earth’s terrestrial surface (Morris and Kinkel 2002), if microbial nitrification occurs on the foliar surfaces, it may play an important role in the global nitrogen cycle. We also found that AOA exist on leaves of C. japonica by detecting archaeal amoA genes, whereas betaproteobacterial amoA genes were not detected. Previous studies employing 16S rRNA gene pyrosequencing have indicated that AOB (e.g., Nitrosospira) were rarely detected from the tree phyllosphere bacterial community (Finkel et al. 2011, 2012). Conversely, the presence of AOB on tree leaves has been suggested in other studies in which the MPN and FISH techniques were used (Papen et al. 2002; Teuber et al. 2007). Additionally, it has been reported that epiphytic lichens (i.e., fungi and their algal symbionts) on foliar surfaces also contributed to nitrogen transformation (e.g., Gaige et al. 2007; Woods et al. 2012). Thus, further investigation is required to elucidate the community composition and activity of ammonia-oxidizing microbes in the phyllosphere.

Conclusion

Our study examined the potential for microbial nitrification in the phyllosphere of tree canopies of C. japonica by incubation of the throughfall samples and detection of amoA genes. After incubation of unfiltered throughfall samples, nitrate production and decreased δ18O and δ15N values of nitrate were observed. These reactions were inhibited in sterile (filtered) throughfall samples. The archaeal amoA genes were detected from the throughfall and leaf surface of C. japonica. These results highlight the potential for microbial nitrification on tree canopies of C. japonica. Our findings indicate that the tree phyllosphere is a natural habitat for AOA and provide new insight into the biogeochemical nitrogen cycle.

References

  1. Agogué H, Brink M, Dinasquet J, Herndl GJ (2008) Major gradients in putatively nitrifying and non-nitrifying archaea in the deep North Atlantic. Nature 456:788–792

    ADS  Article  PubMed  Google Scholar

  2. Auguet JC, Triadó-Margarit X, Nomokonova N, Camarero L, Casamayor EO (2012) Vertical segregation and phylogenic characterization of ammonia-oxidizing archaea in a deep oligotrophic lake. ISME J 6:1786–1797

    CAS  Article  PubMed  PubMed Central  Google Scholar

  3. Casciotti KL, Sigman DM, Hastings MG, Böhlke JK, Hilkert A (2002) Measurement of the oxygen isotopic composition of nitrate in seawater and freshwater using the denitrifier method. Anal Chem 74:4905–4912

    CAS  Article  PubMed  Google Scholar

  4. Church MJ, Wai B, Karl DM, DeLong EF (2010) Abundance of crenarchaeal amoA genes and transcripts in the Pacific Ocean. Environ Microbiol 12:679–688

    CAS  Article  PubMed  PubMed Central  Google Scholar

  5. Delmotte N, Knief C, Chaffron S, Innerebner G, Roschitzki B, Schlapbach R, von Mering C, Vorholt JA (2009) Community proteogenomics reveals insights into the physiology of phyllosphere bacteria. Proc Natl Acad Sci USA 106:16428–16433

    ADS  CAS  Article  PubMed  PubMed Central  Google Scholar

  6. Di HJ, Cameron KC, Shen JP, Winefield CS, O’Ccallaghan M, Bowatte S, He JZ (2009) Nitrification driven by bacteria and not archaea in nitrogen-rich grassland soils. Nat Geosci 2:621–624

    ADS  CAS  Article  Google Scholar

  7. Enya J, Shinohara H, Yoshida S, Tsukiboshi T, Negishi H, Suyama K, Tsushima S (2007) Culturable leaf-associated bacteria on tomato plants and their potential as biological control agents. Microb Ecol 53:524–536

    CAS  Article  PubMed  Google Scholar

  8. Erguder TH, Boon N, Wittebolle L, Marzorati M, Verstraete W (2009) Environmental factors shaping the ecological niches of ammonia-oxidizing archaea. FEMS Microbiol Rev 33:855–869

    CAS  Article  PubMed  Google Scholar

  9. Felsenstein J (1985) Confidence limits on phylogenies: an approach using the bootstrap. Evolution 39:783–791

    Article  Google Scholar

  10. Fett WF, Osman SF, Dunn MF (1987) Auxin production by plant-pathogenic pseudomonads and xanthomonads. Appl Environ Microbiol 53:1839–1845

    CAS  PubMed  PubMed Central  Google Scholar

  11. Finkel OM, Burch AY, Lindow SE, Post AF, Belkin S (2011) Geographical location determines the population structure in phyllosphere microbial communities of a salt-excreting desert tree. Appl Environ Microbiol 77:7647–7655

    CAS  Article  PubMed  PubMed Central  Google Scholar

  12. Finkel OM, Burch AY, Elad T, Huse SM, Lindow SE, Post AF, Belkin S (2012) Distance-decay relationships partially determine diversity patterns of phyllosphere bacteria on Tamrix trees across the Sonoran Desert. Appl Environ Microbiol 78:6187–6193

    CAS  Article  PubMed  PubMed Central  Google Scholar

  13. Francis CA, Beman JM, Kuypers MMM (2007) New processes and players in the nitrogen cycle: the microbial ecology of anaerobic and archaeal ammonia oxidation. ISME J 1:19–27

    CAS  Article  PubMed  Google Scholar

  14. Fürnkranz M, Wanek W, Richter A, Abell G, Rasche F, Sessitsch A (2008) Nitrogen fixation by phyllosphere bacteria associated with higher plants and their colonizing epiphytes of a tropical lowland rainforest of Costa Rica. ISME J 2:561–570

    Article  PubMed  Google Scholar

  15. Gaige E, Dail DB, Hollinger DY, Davidson EA, Fernandez IJ, Sievering H, White A, Halteman W (2007) Changes in canopy processes following whole-forest canopy nitrogen fertilization of a mature spruce-hemlock forest. Ecosystems 10:1133–1147

    CAS  Article  Google Scholar

  16. Garten CT Jr (1992) Nitrogen isotope composition of ammonium and nitrate in bulk precipitation and forest throughfall. Int J Anal Chem 47:33–45

    CAS  Article  Google Scholar

  17. Granger J, Sigman DM, Prokopenko MG, Lehmann MF, Torrtell PD (2006) A method for nitrite removal in nitrate N and O isotope analyses. Limnol Oceanogr Methods 4:205–212

    CAS  Article  Google Scholar

  18. Gruber N, Galloway JN (2008) An earth-system perspective of the global nitrogen cycle. Nature 451:293–296

    ADS  CAS  Article  PubMed  Google Scholar

  19. Guerrieri R, Vanguelova EI, Michalski G, Heaton TH, Mencuccini M (2015) Isotopic evidence for the occurrence of biological nitrification and nitrogen deposition processing in forest canopies. Glob Chang Biol 21:4613–4626

    Article  PubMed  Google Scholar

  20. Hatzenpichler R, Lebedeva EV, Spieck E, Stoecker K, Richter A, Daims H, Wagner M (2008) A moderately thermophilic ammonia-oxidizing crenarchaeote from a hot spring. Proc Natl Acad Sci USA 105:2134–2139

    ADS  CAS  Article  PubMed  PubMed Central  Google Scholar

  21. Hayatsu M, Tago K, Saito M (2008) Various players in the nitrogen cycle: diversity and functions of the microorganisms involved in nitrification and denitrification. Soil Sci Plant Nutr 54:33–45

    CAS  Article  Google Scholar

  22. Herrmann M, Saunders AM, Schramm A (2009) Effect of lake trophic status and rooted macrophytes on community composition and abundance of ammonia-oxidizing prokaryotes in freshwater sediment. Appl Environ Microbiol 75:3127–3136

    CAS  Article  PubMed  PubMed Central  Google Scholar

  23. Hirano SS, Upper CD (2000) Bacteria in the leaf ecosystem with emphasis on Pseudomonas syringae—a pathogen, ice nucleus, and epiphyte. Microbiol Mol Biol Rev 64:624–653

    CAS  Article  PubMed  PubMed Central  Google Scholar

  24. Hou H, Takamatsu T, Koshikawa MK, Hosomi M (2005) Trace metals in bulk precipitation and throughfall in a suburban area of Japan. Atmos Environ 39:3583–3595

    ADS  CAS  Article  Google Scholar

  25. Kendall C (1998) Tracing nitrogen sources and cycling in catchments. In: Kendall C, McDonnell JJ (eds) Isotope tracers in catchment hydrology. Elsevier, Amsterdam, pp 519–576

    Google Scholar

  26. Kohzu A, Imai A, Nakajima Y, Komatsu K, Kawasaki N, Satou T (2011) An inexpensive auto-injection preprocessing system for N2O by isotope ratio mass spectrometer to measure δ15N and δ18O of nitrate. Radioisotopes 60:231–240 (in Japanese)

    CAS  Article  Google Scholar

  27. Leininger S, Urich T, Schloter M, Schwark L, Qi J, Nicol GW, Prosser JI, Schuster SC, Schleper C (2006) Archaea predominate among ammonia-oxidizing prokaryotes in soils. Nature 442:806–809

    ADS  CAS  Article  PubMed  Google Scholar

  28. Lindow SE, Brandl MT (2003) Microbiology of the phyllosphere. Appl Environ Microbiol 69:1875–1883

    CAS  Article  PubMed  PubMed Central  Google Scholar

  29. Martens-Habbena M, Berube PM, Urakawa H, de la Torre JR, Sthal DA (2009) Ammonia oxidation kinetics determine niche separation of nitrifying archaea and bacteria. Nature 461:976–979

    ADS  CAS  Article  PubMed  Google Scholar

  30. Morris CE, Kinkel LL (2002) Fifty years of phyllosphere microbiology: significant contribution to research in related fields. In: Lindow SE, Hecht-Poinar EI, Elliott V (eds) phyllosphere microbiology. APS Press, St. Paul, pp 365–375

    Google Scholar

  31. Müller T, Müller M, Behrendt U (2004) Leucine arylamidase activity in the phyllosphere and the litter layer of a Scots pine forest. FEMS Microbiol Ecol 47:153–159

    Article  PubMed  Google Scholar

  32. Nunoura T, Takaki Y, Hirai M, Shimamura S, Makabe A, Koide O, Kikuchi T, Miyazaki J, Koba K, Yoshida N, Sunamura M, Takai K (2015) Hadal biosphere: insight into the microbial ecosystem in the deepest ocean on Earth. Proc Natl Acad Sci USA 112:E1230–E1236

    ADS  CAS  Article  PubMed  PubMed Central  Google Scholar

  33. Ollivier J, Töwe S, Bannert A, Hai B, Kastl E-M, Meyer A, Su MX, Kleineidam K, Schloter M (2011) Nitrogen turnover in soil and global change. FEMS Microbiol Ecol 78:3–16

    CAS  Article  PubMed  Google Scholar

  34. Papen H, Geßler A, Zumbusch E, Rennenberg H (2002) Chemolithoautotrophic nitrifiers in the phyllosphere of a spruce ecosystem receiving high atmospheric nitrogen input. Curr Microbiol 44:56–60

    CAS  Article  PubMed  Google Scholar

  35. Prosser JI, Nicol GW (2008) Relative contributions of archaea and bacteria to aerobic ammonia oxidation in the environment. Environ Microbiol 10:2931–2941

    CAS  Article  PubMed  Google Scholar

  36. Redford AJ, Bowers RM, Knight R, Linhart Y, Fierer N (2010) The ecology of the phyllosphere: geographic and phylogenetic variability in the distribution of bacteria on tree leaves. Environ Microbiol 12:2885–2893

    Article  PubMed  PubMed Central  Google Scholar

  37. Reed DW, Smith JM, Francis CA, Fujita Y (2010) Responses of ammonia-oxidizing bacterial and archaeal populations to organic nitrogen amendments in low-nutrient groudwater. Appl Environ Microbiol 76:2517–2523

    CAS  Article  PubMed  PubMed Central  Google Scholar

  38. Rotthauwe J-H, Witzel K-P, Liesack W (1997) The ammonia monooxygenase structural gene amoA as a functional marker: molecular fine-scale analysis of natural ammonia-oxidizing populations. Appl Environ Microbiol 63:4704–4712

    CAS  PubMed  PubMed Central  Google Scholar

  39. Saitou N, Nei N (1987) The neighbor-joining method: a new method for reconstructing phylogenic trees. Mol Biol Evol 4:406–425

    CAS  PubMed  Google Scholar

  40. Shi J, Ohte N, Tokuchi N, Imamura N, Nagayama M, Oda T, Suzuki M (2014) Nitrate isotopic composition reveals nitrogen deposition and transformation dynamics along the canopy—soil continuum of a suburban forest in Japan. Rapid Commun Mass Spectrom 28:2539–2549

    CAS  Article  PubMed  Google Scholar

  41. Sigman DM, Casciotti KL, Andreani M, Barford C, Galanter M, Böhlke JK (2001) A bacterial method for the nitrogen isotopic analysis of nitrate in seawater and freshwater. Anal Chem 73:4145–4153

    CAS  Article  PubMed  Google Scholar

  42. Snider DM, Spoelstra J, Schiff SL, Venkiteswaran JJ (2010) Stable oxygen isotopic ratios of nitrate produced from nitrification: 18O-labeled water incubation of agricultural and temperate forest soils. Environ Sci Technol 44:5358–5364

    ADS  CAS  Article  PubMed  Google Scholar

  43. Suda W, Nagasaki A, Shishido M (2009) Powdery mildew—infection changes bacterial community composition in the phyllosphere. Microbes Environ 24:217–223

    Article  PubMed  Google Scholar

  44. Tamura K, Stecher G, Peterson D, Filipski A, Kumar S (2013) MEGA6: molecular evolutionary genetics analysis version 6.0. Mol Biol Evol 30:2725–2729

    CAS  Article  PubMed  PubMed Central  Google Scholar

  45. Teuber M, Papen H, Gasche R, Eßmüller TH, Geßler A (2007) The apoplast of Norway spruce (Picea abies) needles as habitat and reaction compartment for autotrophic nitrifiers. In: Sattelmacher B, Horst WJ (eds) The apoplast of higher plants: compartment of storage, transport and reactions. Springer, Dordrecht, pp 405–425

    Google Scholar

  46. Thompson JD, Higgins DG, Gibson TJ (1994) CLUSTAL W: improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Res 22:4673–4680

    CAS  Article  PubMed  PubMed Central  Google Scholar

  47. Treusch AH, Leininger S, Kletzin A, Schuster SC, Klenk H-P, Schleper C (2005) Novel genes for nitrite reductase and Amo-related proteins indicate a role of uncultivated mesophilic crenarchaeota in nitrogen cycling. Environ Microbiol 7:1985–1995

    CAS  Article  PubMed  Google Scholar

  48. Vorholt JA (2012) Microbial life in the phyllosphere. Nat Rev Microbiol 10:828–840

    CAS  Article  PubMed  Google Scholar

  49. Woods CL, Hunt SL, Morris DM, Gordon AM (2012) Epiphytes influence the transformation of nitrogen in coniferous forest canopies. Boreal Environ Res 17:411–424

    CAS  Google Scholar

  50. Xue D, Botte J, De Baets B, Accoe F, Nestler A, Taylor P, Van Cleemput O, Berglund M, Boeckx P (2009) Present limitations and future prospects of stable isotope methods for nitrate source identification in surface- and groundwater. Water Res 43:1159–1170

    CAS  Article  PubMed  Google Scholar

  51. Yang CH, Crowley DE, Borneman J, Keen NT (2001) Microbial phyllosphere populations are more complex than previously realized. Proc Natl Acad Sci USA 98:3889–3894

    ADS  CAS  Article  PubMed  PubMed Central  Google Scholar

Download references

Authors’ contributions

Conception and design: MW, KW and AK. Acquisition, analysis and interpretation of data: MW, KW, AK, WS, SY, TT and MKK. Drafting the manuscript: MW, KW, AK and TT. Revising the manuscript: all authors. All authors read and approved the final manuscript.

Acknowledgements

This study was supported in part by a JSPS KAKENHI (Grant-in-Aid for Challenging Exploratory Research, Grant No. 26660131).

Competing interests

The authors declare that they have no competing interests.
