Open Access

The choice of internal fixator for fractures around the femoral trochanter depends on area classification

  • Hiroaki Kijima1, 2Email author,
  • Shin Yamada1, 2,
  • Natsuo Konishi2,
  • Hitoshi Kubota2,
  • Hiroshi Tazawa2,
  • Takayuki Tani2,
  • Norio Suzuki2,
  • Keiji Kamo2,
  • Yoshihiko Okudera2,
  • Ken Sasaki1, 2,
  • Tetsuya Kawano1, 2,
  • Naohisa Miyakoshi1 and
  • Yoichi Shimada1, 2
SpringerPlus20165:1512

https://doi.org/10.1186/s40064-016-3206-1

Received: 22 June 2016

Accepted: 2 September 2016

Published: 8 September 2016

Abstract

Purpose

In femoral trochanteric fractures, fractures whose fracture lines extend to the basal neck or to the subtrochanteric part have high instability. Area classification can identify such instable fractures. The best choices of internal fixators for femoral trochanteric fractures were investigated according to area classification.

Methods

Femoral trochanteric fractures were investigated with respect to area classification. In area classification, the proximal femur is divided into 4 areas with 3 boundary lines: Line-1 is the center of the neck; Line-2 is the border between the neck and the trochanteric zone; and Line-3 links the inferior borders of the greater and lesser trochanters. A fracture in only the third area was classified as type 3; one in the second and third areas was classified as type 2–3.

Results

Of 284 femoral trochanteric fractures, 50.0 % were type 3, 21 % were type 2–3, 22 % were type 3–4, and 7.4 % were type 2–3–4. Cases with cut-out or excessive telescoping of the internal fixator were defined as the Failure-group; 5.3 % of type 3 and 10.9 % of type 2–3 were in the Failure-group only when short femoral nails with a single rag screw were used. On the other hand, there were no Failure-group cases of type 2–3 with double rag screws. Only 1 case involved a long nail for type 3, while a long nail was used in about half of type 3–4 cases (Chi square test: P < 0.0001).

Conclusions

A double rag screw should be considered for type 2–3. A long nail should be considered for type 3–4.

Keywords

Femoral trochanteric fractures Area classification Proximal femoral fractures Internal fixation

Background

Femoral trochanteric fracture is a very common injury (Nikkel et al. 2012; Kannus et al. 1996). However, in the so-called femoral trochanteric fracture, a fracture whose fracture line extends to the basal neck or the subtrochanteric part is not rare. A fracture extending from the basal neck to the subtrochanteric part is included among so-called femoral trochanteric fractures. Such fractures have high instability, and the treatment method is different from that for femoral trochanteric fractures within only the trochanteric zone. Nevertheless, we cannot classify such fractures conventionally because the fractures cross the target range of the conventional classification: femoral neck fracture, basicervical fracture, pertrochanteric fracture, or subtrochanteric fracture. Therefore, the choice of internal fixator for such fractures around the femoral trochanter is very difficult. Thus, area classification has been proposed as a comprehensive classification that can identify such fractures (Kijima et al. 2014).

In area classification, the proximal femur is divided into 4 areas with 3 boundary lines: Line-1 is the center of the neck; Line-2 is the border between the neck and the trochanteric zone; and Line-3 links the inferior borders of the greater and lesser trochanters. A fracture in only the first area is classified as a type 1 fracture; one in the first and second area is classified as a type 1–2 fracture. In the same way, fractures are classified as type 1, type 2, type 3, type 4, type 1–2, type 2–3, type 3–4, type 1–2–3, type 2–3–4, and type 1–2–3–4 (10 types). In this classification, so-called neck fractures, basicervical fractures, trochanteric fractures, and subtrochanteric fractures are defined by the boundary lines. In addition, area classification can classify the fractures that cross the zones (Kijima et al. 2014). Fractures within only the trochanteric part are classified as type 3, fractures extending from the trochanteric part to the basal neck are classified as type 2–3, fractures extending from the trochanteric part to the subtrochanteric part are classified as type 3–4, and fractures extending from the basal neck to the subtrochanteric part are classified as type 2–3–4 (Fig. 1).
Fig. 1

Fractures around the femoral trochanter classified by area classification. Fractures within only the trochanteric part are classified as type 3, fractures extending from the trochanteric part to the basal neck are classified as type 2–3, fractures extending from the trochanteric part to the subtrochanteric part are classified as type 3–4, and fractures extending from the basal neck to the subtrochanteric part are classified as type 2–3–4

As for almost all so-called femoral trochanteric fractures, osteosynthesis is chosen, and total hip replacement or femoral head replacement is not chosen, unlike for femoral neck fractures (Evans 1951; Reno and Burlington 1958). Most type 3 fractures (fracture line within only the trochanteric part) have recently been treated by a short femoral nail (Bojan et al. 2010; Guo et al. 2015). However, which internal fixator should be chosen for cases in which the fracture line extends from the trochanteric zone to the basal neck or to the subtrochanteric part is unknown.

Therefore, the relationships between the clinical results and the choices of internal fixators for the fractures around the femoral trochanter, area classification type 3 (fracture line within only the trochanteric part), type 2–3 (fracture lines extend from the trochanteric part to the basal neck), type 3–4 (fracture lines extend from the trochanteric part to the subtrochanteric part), and type 2–3–4 (fracture lines extend from the basal neck to the subtrochanteric part), were investigated in this study.

Methods

The subjects were patients with fractures around the femoral trochanter who were brought to 6 general hospitals from January to December 2014. All patients underwent X-ray and computed tomography (CT) examinations, including 3-dimensional-CT (3DCT).

All procedures performed in this study involving human participants were in accordance with the ethical standards of the institutional committee and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards. Informed consent was obtained from all individual participants included in the study at the last observation which is after July, 2015. Thus, this study is retrospective study.

A total of 482 patients with proximal femoral fractures were seen in the six general hospitals from January to December 2014 (average patient age 81 years (26–108 years); 98 male and 384 female). After having classified these by area classification, only cases classified as type 3, type 2–3, type 3–4, and type 2–3–4 were evaluated. After July, 2015, the orthopedic surgeon of each hospital classified the above patients by area classification, with reference to preoperative X-rays images and CT including 3DCT. There was no need to have several examiners perform classification, because area classification has been shown to have high reliability (Kijima et al. 2014).

The internal fixator used for these cases was investigated. Cases with cut-out or telescoping of the internal fixator of more than 10 mm were defined as the Failure (F)-group. The failure rate was calculated as the percentage of cases in the F-group. The cases without cut-out or telescoping of the internal fixator of more than 10 mm were defined as the N-group.

Results

Overall, femoral trochanteric fractures, namely fractures around area-3 in area classification occurred in 284 of the 482 cases (58.9 %). In area classification, 142 cases (50.0 %) were type 3 fractures, 60 (21.1 %) were type 2–3 fractures, 61 (21.5 %) were type 3–4 fractures, and 21 (7.4 %) were type 2–3–4 fractures (Fig. 2). Average follow-up duration is 4 months (1 month–18 months). Osteosynthesis was performed with the third-generation short Gamma nail or long Gamma nails (Stryker Japan, Tokyo, Japan), Proximal Femoral Nail Antirotation (PFNA) (DePuy Synthes Japan, Tokyo, Japan), and IPT nail system (HOMS giken, Nagano, Japan). The failure rate was 6.3 % in type 3, 8.3 % in type 2–3, 9.8 % in type 3–4, and 14.3 % in type 2–3–4 (Fig. 3). When type 2–3 fractures were compared with type 3 fractures, the failure rates of type 3 and type 2–3 fractures, which were fixed by an internal fixator with a single rag screw, were 5.3 and 10.9 %, respectively (Fig. 4). On the other hand, the failure rates of type 3 and type 2–3 fractures, which were fixed by internal fixators with double rag screws, were 8.6 and 0 %, respectively (Fig. 5). This difference in failure rate between the rate of using single rag screw for type 3 and that for type 2–3 was significant (Chi square test; P = 0.0014). When the choice of internal fixator for type 3–4 fractures was compared with that for type 3 fractures, a long nail was chosen in 42.3 % of type 3–4 fractures, whereas a long nail was chosen in only 1 case (0.8 %) of type 3 fractures; this difference was significant (Chi square test; P < 0.0001) (Fig. 6). However, there was no significant difference in fixation failure between short nail and long nail for type 3–4 (Chi square test; P = 0.0621).
Fig. 2

Incidence of fractures around the femoral trochanter classified by area classification. In area classification, 142 cases (50.0 %) are type 3 fractures, 60 cases (21.1 %) are type 2–3 fractures, 61 cases (21.5 %) are type 3–4 fractures, and 21 cases (7.4 %) are type 2–3–4 fractures

Fig. 3

Failure rate of each fracture type. Cases with cut-out or telescoping of the internal fixator of more than 10 mm were defined as the F-group. The failure rate was the percentage of cases in the F-group. Cases without cut-out or telescoping of the internal fixator of more than 10 mm were defined as the N-group. The failure rate is 6.3 % in type 2–3, 8.3 % in type 2–3, 9.8 % in type 3–4, and 14.3 % in type 2–3–4

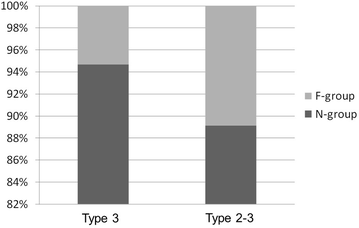

Fig. 4

The failure rate of type 3 and type 2–3 fixed with a single rag screw. When type 2–3 fractures are compared with type 3 fractures, the failure rates of type 3 and type 2–3 fractures, which were fixed by an internal fixator with a single rag screw, are 5.3 and 10.9 %, respectively

Fig. 5

The failure rate of type 3 and type 2–3 fixed with a double rag screw. The failure rates of type 3 and type 2–3 fractures, which were fixed by an internal fixator with a double rag screw, are 8.6 and 0 %, respectively

Fig. 6

The choice of internal fixator for type 3 and type 3–4. When the choice of internal fixator for type 3–4 fractures is compared with that for type 3 fractures, a long nail was chosen in 42.3 % in type 3–4 fractures, whereas a long nail was chosen in only 1 case (0.8 %) in type 3 fractures; this difference is significant (Chi square test; P < 0.0001)

Discussion

The relationships between clinical results and the choices of internal fixators for fractures around the femoral trochanter, area classification type 3, type 3–4, and type 2–3–4 were investigated in this study. Given the results, double rag screws should be considered for fractures extending from the trochanteric part to the basal neck (type 2–3), and a long nail should be considered for fractures extending from the trochanteric part to the subtrochanteric part (type 3–4).

Femoral trochanteric fractures are very common, and it was apparent that there were fractures whose fracture lines extended to the basal neck or to the subtrochanteric part, without remaining only in the trochanter part. However, there have been no reports that investigated the frequency of such unstable fractures. In this study, it became clear that, among the 284 fractures around the trochanteric part, namely area-3, in 142 cases the fracture line remained only in the trochanteric part, and the remaining half were such unstable fractures whose fracture lines extended to the basal neck or the subtrochanteric part. These are the data provided by classifying femoral trochanteric fractures using area classification. The high reliability of area classification has already been reported (Kijima et al. 2014).

Fractures that included multiple areas had a tendency to include many cases with cut-out of the inner fixator or excessive telescoping. Therefore, it appears that it was necessary to perform osteosynthesis very carefully, especially for the trochanteric part fractures, whose fracture line extended to the basal neck or to the subtrochanteric part. However, the abstract advice to perform osteosynthesis carefully is useless for deciding which internal fixator to use for fractures around the femoral trochanter. In this study, the relationships between the choice of internal fixator and the clinical results were investigated based on area classification. Given the present results, clear advice can now be given: a double rag screw and a long nail should be considered for type 2–3 and type 3–4 fractures, respectively. Therefore, area classification was useful in the choice of internal fixator for fractures around the femoral trochanter.

One of the limitations of this study was that there was no significant difference in fixation failure between short nail and long nail for type 3–4, maybe because the orthopedic surgeons used the long nail for unstable fractures and used short nail for stable fractures. However, if so, the significant difference in the use of long nail favoring type 3–4 over type 3 can be the evidence for the superiority of long nail over short nail for type 3–4. The comparison in fixation failure between short nail and long nail for type 3–4 should be considered in next study which has more large number of fractures.

Another of the limitations of this study were that real instability cannot be evaluated based on area classification. To make a fracture model based on area classification and to evaluate instability of each type is necessary in the future. In addition, a biomechanical experiment to clarify which inner fixator most strongly contributes to improving stability is also needed. The results of the present study need to be confirmed by such studies.

In other words, this study provided important evidence that the comprehensive classification of proximal femoral fractures called area classification is useful for fractures around the femoral trochanter.

Conclusion

Area classification was useful because it could classify the unstable fractures that cross over the conventional classification range. A double rag screw should be considered for fractures extending from the trochanteric part to the basal neck (type 2–3), while a long nail should be considered for fractures extending from the trochanteric part to the subtrochanteric part (type 3–4). Therefore, area classification was useful also in the choice of internal fixator for fractures around the femoral trochanter.

Declarations

Authors’ contributions

HK—study design, collection, analysis and interpretation of data, and writing the manuscript. SY, NK, HK, HT, TT, NS, KK, YO, KS, and TK—study analysis and collection, interpretation of data. NM was involved in designing the project and manuscript revision. YS supervised the study group, involved in designing the study and prepared the manuscript. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Ethical approval

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki declaration and its later amendments or comparable ethical standards.

Informed consent

Informed consent was obtained from all individual participants included in the study.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Orthopedic Surgery, Akita University Graduate School of Medicine
(2)
Akita Hip Research Group

References

  1. Bojan AJ, Beimel C, Speitling A, Taglang G, Ekholm C, Jönsson A (2010) 3066 consecutive Gamma Nails. 12 years experience at a single centre. BMC Musculoskelet Disord 26(11):133. doi:https://doi.org/10.1186/1471-2474-1-133 View ArticleGoogle Scholar
  2. Evans EM (1951) Trochanteric fractures—a review of 110 cases treated by nail-plate fixation. J Bone Jt Surg Br. 33:192–204Google Scholar
  3. Guo XF, Zhang KM, Fu HB, Cao W, Dong Q (2015) A comparative study of the therapeutic effect between long and short intramedullary nails in the treatment of intertrochanteric femur fractures in the elderly. Clin J Traumatol 18:332–335View ArticleGoogle Scholar
  4. Kannus P, Parkkari J, Sievänen H, Heinonen A, Vuori I, Järvinen M (1996) Epidemiology of hip fractures. Bone 18(1 Suppl):57S–63SView ArticleGoogle Scholar
  5. Kijima H, Yamada S, Konishi N, Kubota H, Tazawa H, Tani T, Suzuki N, Kamo K, Okudera Y, Sasaki K, Kawano T, Shimada Y (2014) The reliability of classifications of proximal femoral fractures with 3-dimensional computed tomography: the new concept of comprehensive classification. Adv Orthop 2014:359689. doi:https://doi.org/10.1155/2014/359689 View ArticleGoogle Scholar
  6. Nikkel LE, Fox EJ, Black KP, Davis C, Andersen L, Hollenbreak CS (2012) Impact of comorbidities on hospitalization costs following hip fracture. J Bone Jt Surg Am 94:9–17. doi:https://doi.org/10.2106/JBJS.J.01077 View ArticleGoogle Scholar
  7. Reno JH, Burlington H (1958) Fractures of the hip—mortality survey. Am J Surg 95:581–592View ArticleGoogle Scholar
