Removal of fluoride from water using a novel sorbent lanthanum-impregnated bauxite

SpringerPlus20165:1426

https://doi.org/10.1186/s40064-016-3112-6

Received: 2 October 2015

Accepted: 19 August 2016

Published: 26 August 2016

Abstract

A novel sorbent, Lanthanum-Impregnated Bauxite (LIB), was prepared to remove fluoride from water. To understand the surface chemical composition and morphology, LIB was characterized using X-ray diffraction and scanning electron microscopy techniques. Experiments were performed to evaluate the sorption potential, dose of sorbent, kinetics, equilibrium sorption capacity, pH and influence of anions for defluoridation by LIB. Equilibrium isothermal studies were conducted to model the sorption and regeneration studies were carried out to evaluate the reusability of LIB. The results showed that LIB, at a dose of 2 g/L could remove 99 % of fluoride from an initial concentration of 20 mgF/L. Kinetic studies revealed the best fit of pseudo second order model. The sorption followed Langmuir isotherm model and the maximum sorption capacity of LIB for removal of fluoride was found to be 18.18 mg/g. Naturally occurring pH of water was found to be favorable for sorption. Usually occurring anions in water except nitrates influenced sorption of fluoride by LIB.

Keywords

FluorideWaterRemovalAdsorptionLanthanumBauxite

Background

Excessive fluoride in drinking water causes serious health problems such as brittleness of bones, dwarfishness, fluorosis and cancers (Chinoy 1991). The maximum contaminant level (MCL) of fluoride in drinking water is 1.5 mg/L, according to the World Health Organization (2004). Groundwater with fluoride concentration >1.5 mg/L is prevalent in several regions of the world, warranting treatment (Yeşilnacar et al. 2016; Atasoy et al. 2013; Vijaya Kumar et al. 1991; Gaciri and Davies 1993; Czarnowski et al. 1996). Several technologies such as adsorption (Vivek Vardhan and Karthikeyan 2011), coagulation and flocculation (Emamjomeh and Sivakumar 2006), electrodialysis (Adhikary et al. 1989), electrocoagulation (Khatibikamala et al. 2010) and reverse osmosis (Simons 1993) have been tried to remove fluoride from water with varying degrees of success. Chemical precipitation of fluoride using alum and lime, known as Nalgonda Technique (Nawlakhe et al. 1978) can be used for fluoride removal. However, it poses some problems such as generation of large volumes of sludge, which is difficult to deal with. Adsorption is considered to be a feasible technique especially for household applications or for small communities (Srimurali et al. 1998). Various sorbents such as activated alumina (Boruff 1934; Fink and Lindsay 1936; Swope and Hess 1937), bone char (Nemade et al. 2002), bauxite (Sujana and Anand 2011), magnesium amended activated alumina (Maliyekkal et al. 2008) and rice husk (Vivek Vardhan and Karthikeyan 2011) have been tried (Bhatnagar et al. 2011; Ayoob et al. 2008). Among various adsorbents used activated alumina is deemed to be the selective sorbent for removal of fluoride from water (Boruff 1934; Fink and Lindsay 1936; Swope and Hess 1937). However, due to some drawbacks such as optimum removal at a low pH value of 5.5, its practical scope of applicability is limited.

Recently various rare earth materials such as lanthanum (Na and Park 2010), lanthanum modified activated alumina (Cheng et al. 2014), lanthanum oxide (Nagendra Rao and Karthikeyan 2012), lanthanum impregnated green sand (Vivek Vardhan and Srimurali 2016), cerium (Xu et al. 2001) and yttrium (Raichur and Basu 2001) have been used as sorbents for removal of fluoride from water. Though lanthanum has got good affinity for fluoride, there are some difficulties related to its use as an adsorbent. Compounds of lanthanum are present in fine powder form. Application of lanthanum compounds in powder form for adsorption is associated with practical limitations such as difficulty in separation from liquid, impeded hydraulic flow and leachate of metal with treated water (Maliyekkal et al. 2008). To overcome these problems, lanthanum had to be fixed onto a suitable substrate. Bauxite is an ore of aluminum and is abundantly available at low cost. In the present investigation, an attempt has been made to impregnate lanthanum onto bauxite, in order to develop a low-cost adsorbent and also to study the synergetic effect of lanthanum and bauxite on fluoride removal as well as to overcome the drawbacks associated with the use of lanthanum powder. Lanthanum Impregnated Bauxite (LIB) was prepared using La2CO3. La2CO3 is the base material for synthesis of other forms of Lanthanum and is available at low-cost. Also the quantity of La2CO3 that goes into impregnation for synthesis of LIB is very less. So, when used on a massive scale, LIB turns out to be a very low-cost adsorbent. However, the exact cost analysis will be done in future studies. LIB was characterized using X-ray diffraction (XRD) studies and Scanning Election Microscopy (SEM). Adsorption experiments were conducted in batch mode. Experiments involving Kinetics, isothermal equilibrium, pH and regeneration studies were carried out to evaluate the practical feasibility of application of LIB as an adsorbent for removal of fluoride from water.

Methods

Chemicals

All reagents used in the present investigation were of analytical grade and procured from E. Merck Ltd, India. Water used in all batch sorption studies was laboratory distilled water prepared with a glass distillation unit (pH 6.7 ± 0.1 and specific conductivity 2.0 to 4.3 µS/cm). Stock solution of fluoride of 100 mg/L was prepared with distilled water using sodium fluoride. Aqueous fluoride solution was prepared by adding appropriate quantity of stock fluoride solution into distilled water and used in all adsorption experiments unless otherwise specified. LIB was prepared by thermal impregnation method as described below in adsorbent preparation. Raw bauxite was collected from mines at Mahboobabad, India. Lanthanum carbonate was purchased from Indian Rare Earths Limited, Aluva, Kerala, India.

Adsorbent preparation

Raw bauxite was crushed and sieved to get <75 micron particle size. Bauxite so obtained was heated in a muffle furnace at 400 °C for 4 h. This heated bauxite was cooled to room temperature in a desiccator and is called calcined bauxite. Calcined bauxite was stored in an air tight plastic container for further use. In a separate conical flask, La2(CO3)3 of 0.5 g was mixed with 50 mL of distilled water and dilute HCl was added to it drop wise till the La2(CO3)3 got completely dissolved. To this solution 20 g of prepared calcined bauxite was added and mixed using a magnetic stirrer for 3 h. The liquids were strained off and the solid material obtained was washed with distilled water. It was dried in a water bath at 110 °C for 6 h and subsequently heated in a muffle furnace at 950 °C for 4 h and then cooled. The material thus obtained was called LIB and used as an adsorbent in all further investigations. LIB was processed at high temperatures for lanthanum impregnation, whereas bauxite was calcined to improve its surface properties. So, this paper has the limitation of not studying bauxite and LIB, subject to same thermal treatment to bring out the exact differences due to lanthanum impregnation. Calcined bauxite is hereafter referred to as simply bauxite in this paper.

Characterization of adsorbent

LIB samples were analyzed by X-ray powder diffraction (XRD) technique before and after adsorption for studying its mineralogy. XRD analysis was carried out using a X-ray diffractometer, Philips: PW1830 with CuKα radiation. To study the surface morphology, scanning electron microscope (SEM) was used. SEM and EDAX images were obtained from a Carl Zeiss, EVO MA15 instrument. Particle size distribution was analyzed using Ankersmid particle size analyzer. Pore size analysis of bauxite and LIB were done by using a micropore analyzer (ASAP 2020, Micromeritics, USA) by Nitrogen chemisorption isotherm technique (Carabineiro et al. 2011).

Batch adsorption experiments

Sorption experiments were conducted in batch mode using 250 mL Teflon flasks with a 100 mL of 20 mg/L of aqueous fluoride solution. A known quantity of adsorbent was added to the prepared fluoride solution in Teflon flasks. It was agitated using a rotary shaker of make Kaizen Imperial at 160 rpm and at room temperature for specific contact periods ranging from 0 to 360 ± 1 min. The solutions contained in the flasks were then withdrawn at specified contact periods, filtered with 42 Whatman filter paper of pore size 2.5 µm and analysed for residual fluoride using SPADNS method (APHA) (APHA et al. 1996) at 570 Nm. A spectrophotometer, Evolution 201, of Thermo Scientific make was used to analyze fluoride. The contact period, at which there was no further reduction of fluoride, is considered the equilibrium contact time. Similarly the optimum usage of adsorbent was studied by varying the sorbent dose ranging from 0 to 8 ± 0.01 g/L for a constant equilibrium contact time. To understand the influence of pH, sorption experiments were conducted at different pH values ranging from 2 to 12. Starting pH adjustments were made using diluted NaOH and H2SO4. pH was measured using a Hanna make, pH analyzer. Optimum values obtained during preliminary investigations for various parameters were used in all further detailed experimentation. Fluoride ion concentrations varying from 5 to 70 mg/L were used in sorption equilibrium investigations, to arrive at the best fitting isothermal model. The reporting fluoride concentration range by SPADNS method is from 0 to 1.4 ± 0.1 mg/L. Appropriate dilutions of samples were made when fluoride exceeded the above mentioned concentration range. Concentrations of lanthanum and aluminum were measured using atomic absorption spectrometer with a graphite furnace (AAS, GBC 932 Plus).

Kinetics of sorption

In the present investigation pseudo first order, pseudo second order and intraparticle diffusion models were studied to understand the kinetics of adsorption of fluoride using bauxite and LIB.

Pseudo first order equation and pseudo second order equation

The mathematical equation of pseudo first order equation is as given in Eq. (1) (Lagergren 1898).
$${\text{Log}}\left( {{\text{q}}_{\text{e}} - {\text{q}}_{\text{t}} } \right) = \left( {{\text{Log}}\;{\text{q}}_{\text{e}} } \right) - \left( {{\text{K}}_{1} {\text{t/}}2.303} \right)$$
(1)
where qe represents adsorbed fluoride at equilibrium and qt represents adsorbed fluoride at time t·k1 (L/min) represents rate constant of adsorption. A plot was drawn between (t) versus Log (qe − qt). K1 and qe were obtained from its slope and intercept. The linear form of mathematical equation for pseudo second order model is given in Eq. (2) (Ho and McKay 1999).
$${\text{t/q}}_{\text{t}} = \left( {1 / {\text{K}}_{2} {\text{q}}_{\text{e}}^{2} } \right) + \left( {{\text{t/q}}_{\text{e}} } \right)$$
(2)
where, K2 is a rate constant.

Intraparticle diffusion analysis

To design and control an adsorption system the mechanism involved and the rate limiting step are to be determined. In a well agitated system, migration of sorbate from a bulk solution to surround the adsorbent is not difficult (Weber and Morris 1963). Therefore bulk transport is rapid and it cannot be rate limiting. Similarly sorption of fluoride ions onto the active sites of sorbent is rapid and so this too cannot be a rate limiting step (Na and Park 2010). So, either film diffusion or intraparticle diffusion acts as rate slowing step or eventually becomes the rate controlling step (Yousef et al. 2011). To identify the rate controlling step and also to understand the mechanism involved in sorption, intraparticle diffusion equation, derived from unsteady state diffusion in flat plate is employed, which is given in Eq. (3) (Oliveira et al. 2005)
$${\text{q}}_{\text{t}} = {\text{k}}_{\text{id}} \cdot {\text{t}}^{1/2} + {\text{C}}$$
(3)
where, C is a constant, proportional to boundary layer thickness and kid is rate constant. If the plot of qt versus t1/2 is linear, it indicates the involvement of intraparticle diffusion. If the obtained straight line passes through, origin then it indicates that intraparticle diffusion alone is the rate limiting step. Conversely if the obtained straight line does not pass through origin, it indicates involvement of some other mechanism, in addition to intraparticle diffusion (Oliveira et al. 2005).

Effect of competing ions

The influence of anions on the efficiency of fluoride sorption by LIB was investigated. In order to find this, various individual ions of Cl, SO4 2−, PO4 3−, HCO3 and NO3 of concentrations up to 100 mg/L were added each separately into 20 mg/L of aqueous fluoride solution and adsorption experiments were carried out using 2 g/L of LIB as well as 6 g/L of bauxite. The liquid samples were then withdrawn after reaching equilibrium time and analyzed for residual fluoride concentrations. Wherever the influence of phosphates was analyzed, for every 16 mg/L of PO4 3−, an error correction of −0.1 mg/L was made to rectify its interference with SPADNS method (Hach company 1989–2014).

Determination of pH zero point charge

pH of zero point charge (pHzpc) was found by a batch equilibrium method (Rivera-Utrilla et al. 2001). Typically, NaCl of 0.01 M concentration and 50 mL in quantity was taken into six conical flasks. pH of these solutions were varied between 2 and 12 using H2SO4 or NaOH. One gram of LIB was added to each flask and a plot was drawn between pH before addition of LIB and pH after addition of LIB. This plot yielded a straight line. The flasks were then agitated at room temperature for 48 h and then the pH values were noted. Now a plot was drawn between pH value of solution before agitation and pH value after 48 h of agitation, which eventually yielded a curve. The intersection point of the straight line and the curve is the value of pHzpc of LIB. Similar experiments were conducted with bauxite. Results obtained by this method are in close agreement with the results obtained by Carabineiro et al. (2011).

Regeneration experiments

After the agitated batch sorption experiments were conducted under optimal conditions with 20 mg/L aqueous fluoride solution, the liquids were strained off and the sorbent which got loaded to capacity was air dried for 48 h. Further it was desorbed by agitation with various eluents such as distilled water, NaOH and HCl, for a period of 180 min. The best desorbent was considered as the regeneration agent.

Cycles of regeneration

Regular batch adsorption experiments were conducted with a 20 mg/L of aqueous fluoride solution using adsorbent under optimal experimental conditions. After sorption, the spent sorbent, which got loaded to capacity was separated by filtration using a 42 Whatman filter paper and air dried for 48 h. Subsequently it was desorbed using the most appropriate eluent found through experimentation. Such regenerated sorbent was again separated and air dried to be used as a fresh sorbent for removal of fluoride from a 20 mg/L of aqueous fluoride solution. After agitation, the residual fluoride in solution was measured. This process was repeated several times until the residual fluoride exceeded the permissible limits. The number of cycles until fluoride in solution reached the permissible limit was considered the optimum cycles of reusability of sorbent.

Results and discussion

Sorbent characterization

SEM image and EDAX spectra of LIB are presented in Fig. 1 and Table 1 respectively. The white colored dense precipitates observed could be attributed to impregnated lanthanum on the background granules of bauxite. In the EDAX spectrum, the elements, Al, La, Ti and Fe can be noticed, which give indirect evidence of presence of lanthanum on bauxite. From the particle size distribution analysis, it was observed that more than 90 % of LIB and bauxite particles/aggregates fell in the range of 40–55 µm.
Fig. 1

SEM image of LIB

Table 1

EDAX of LIB

Element

Atomic number

Series

Unn.C (Wt%)

Norm.c (Wt%)

Atom.c (at.%)

Error (1 sigma) (Wt%)

Ti

22

L-series

68.8

64.47

58.48

16.60

Al

13

K-series

21.13

19.8

31.88

1.28

Fe

26

L-series

10.85

10.17

7.91

3.87

La

57

M-series

5.93

5.56

1.74

4.38

Unn.C (Wt%): The unnormalised concentration in weight percent of the element

Norm.C (Wt%): The normalised concentration in weight percent of the element

Atom.c (at.%): The atomic weight percent

Error (1 sigma) (Wt%): The error in the weight percent concentration at the 1 sigma level

Influence of sorbent dose

Experiments were conducted on LIB and bauxite separately to find their dose required for removal of fluoride from water. The corresponding experimental results are presented in Fig. 2. It can be observed from the figure that LIB at a dose of 2 g/L could remove 99 % of fluoride from an initial fluoride concentration of 20 mg/L, whereas bauxite at 6 g/L could remove 94 % of fluoride from an initial fluoride concentration of 20 mg/L. Removal of fluoride by bauxite was low, compared to LIB, possibly due to high affinity of lanthanum for fluoride. The concentration of lanthanum and aluminum in treated water were found to be 0.05 ± 0.01 and 0.02 ± 0.01 mg/L respectively, which are not harmful (Feng et al. 2006; Bureau of Indian Standards 2012).
Fig. 2

Comparison of influence of doses of LIB and bauxite on fluoride removal. Initial fluoride = 20 mg/L

Kinetic studies

Influence of contact time

Attaining equilibrium of adsorption during an adsorption process involves various diffusion mechanisms before the sorbate finally adsorbs onto the active adsorption sites on the sorbent (Biswas et al. 2009). Adsorption kinetics explains the rates at which different stages involving various mechanisms proceed. In the present study the time taken for adsorption of fluoride onto bauxite and LIB was investigated. It was observed that it took 120 min for removal of fluoride to below 1.5 mg/L using bauxite (Figure not shown). Figure 3 shows the time taken for sorption of various concentrations of fluoride onto LIB. Sorption was rapid in the initial 30 min. Later the rate of adsorption got stabilized. The plot of pseudo second order model for sorption of fluoride onto LIB is given in Fig. 4. The calculated parameters of the above two models for both bauxite and LIB are presented in Table 2. It can be observed from the obtained R2 values, that pseudo second order model fits best to both bauxite and LIB. Figure 5, depicts the plot between qt versus t1/2 for LIB. It can be observed from the figure that the plot yielded almost a straight line tending to pass through origin. This suggests that intraparticle diffusion alone is the rate limiting step. In general, in a well agitated system, film diffusion cannot be a rate limiting step (Weber and Morris 1963). It can be observed from Table 2 that Pseudo-second order model fits better to both LIB as well as to bauxite, based on regression analysis. This suggests a predominance of involvement of active chemical sites that aid in the process of sorption. The pore size characteristics of bauxite, LIB and activated alumina (Maliyekkal et al. 2008) are presented in Table 3. It can be observed that the pore size diameter has got reduced from 63 (Bauxite) to 54 nm (LIB), possibly due to lanthanum impregnation. The pores in activated alumina fall in mesoporous range and that of bauxite and LIB fall in macroporous range according to IUPAC classification (Everett 1973, 1976). This explains the high rate of sorption of fluoride onto LIB.

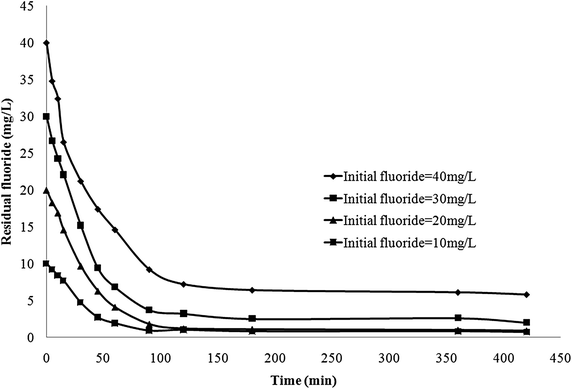

Fig. 3

Kinetics of fluoride removal by LIB at various initial concentrations of fluoride (adsorbent dose = 2 g/L)

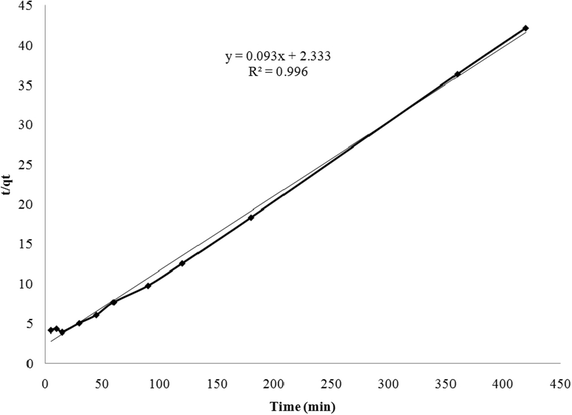

Fig. 4

Plot of pseudo-second-order equation for sorption of fluoride onto LIB Adsorbent dose = 2 g/L. Initial fluoride = 20 mg/L

Table 2

Comparison of parameters of kinetic models for adsorption of fluoride onto LIB and bauxite



Pseudo-first-order

Pseudo-second-order

Intraparticle diffusion

LIB

qe (exp) = 9.8 (mg/g)

qe (cal) = 5.462 (mg/g)

K1 = 0.0152 (min−1)

R2 = 0.8921

qe (cal) = 10.75 (mg/g)

K2 = .0037 (min−1)

R2 = 0.9965

Kid = 0.438 (g mg−1 min−1)

C = 2.9041

R2 = 0.6986

Bauxite

qe (exp) = 3.1666 (mg/g)

qe (cal) = 0.9156 (mg/g)

K1 = 0.0154 (min−1)

R2 = 0.8956

qe (cal) = 1.781(mg/g)

K2 = 0.0225 (min−1)

R2 = 0.9964

Kid = 0.073 (g mg−1 min−1)

C = 0.4837

R2 = 0.699

Fig. 5

Intraparticle diffusion plot for sorption of fluoride onto LIB

Table 3

Pore size characteristics of bauxite, LIB and activated alumina

Pore characteristics

Bauxite

LIB

Activated alumina

BET surface area

7 m2/g

14 m2/g

242 m2/g

BJH adsorption cumulative volume of pores between 17.000 and 3000.000 Å diameter

0.09 cm3/g

0.17 cm3/g

0.29 cm3/g

BJH Desorption cumulative volume of pores between 17.000 and 3000.000 Å diameter

0.13 cm3/g

0.17 cm3/g

0.30 cm3/g

Adsorption average pore width (4 V/A by BET)

79 nm

49 nm

5 nm

BJH Adsorption average pore diameter (4 V/A)

63 nm

54 nm

5 nm

BJH Desorption average pore diameter (4 V/A)

48 nm

43 nm

5 nm

Equilibrium isothermal studies

Equlibrium isothermal studies are conducted to determine the capacity for adsorption of the given sorbent. A standard isothermal graph was plotted between equilibrium fluoride concentration in solution (Ce) and fluoride sorbed onto sorbent at equilibrium (qe) for initial fluoride concentrations ranging from 5 to 70 mg/L. Figure 6, shows the standard isothermal plot for fluoride sorbed onto LIB and Fig. 7 shows the standard isotherm plot for adsorption of fluoride onto bauxite. Both the sorbents showed almost a similar trend of high fluoride uptake at lower concentrations and with progressive increase in concentration of fluoride, the rate of fluoride uptake gradually decreased probably due to exhaustion of active sorption sites on the sorbents. Results of the experimental data were modeled using Langmuir and Freundlich isothermal models, to arrive at the best fitting model.
Fig. 6

Standard isotherm plot of sorption of fluoride onto LIB (Fluoride concentration from 5 to 70 mg/L)

Fig. 7

Standard isotherm plot of sorption of fluoride onto bauxite (Fluoride concentration from 5 to 70 mg/L)

Langmuir and freundlich isotherm models

Langmuir isotherm assumes monolayer coverage of adsorbate on sorbent. The linear form of Langmuir isotherm model is given in Eq. (4) (Langmuir 1916).
$$\left( {{\text{C}}_{\text{e}} / {\text{q}}_{\text{e}} } \right) = 1 / {\text{q}}_{\hbox{max} } \cdot {\text{b}} + {\text{C}}_{\text{e}} / {\text{q}}_{\hbox{max} }$$
(4)
where Ce (mg/L) is concentration of fluoride in solution at equilibrium, qe (mg/g) is amount of fluoride sorbed onto the sorbent at equilibrium, qmax (mg/g) is maximum adsorption capacity and b (L/mg) is a constant related to energy.
Freundlich isotherm model is based on the assumption that the surface of the sorbent is heterogeneous, with different sorption sites possessing different energies of sorption (Freundlich 1906). The linear form of Freundlich equation is given by Eq. (5).
$$\log \left( {{\text{q}}_{\text{e}} } \right) = \log \,{\text{k}}_{\text{f}} + 1 / {\text{n}}\log {\text{C}}_{\text{e}}$$
(5)
where kf represents relative adsorption capacity and n represents the intensity of sorption. The value of (1/n) suggests the nature of sorption. Value of 1/n greater than one suggests physisorption, whereas its value <1 suggests chemisorption (Freundlich 1906). Table 4 shows the values of all parameters of Freundlich model. It can be observed that the value of (1/n) is <1 suggesting chemisorption. From Table 4, it can be inferred that the best fitting isothermal model is Langmuir model, based on closeness of R2 value to 1. Also the predicted adsorption capacity of LIB is 18.18 mg/g, which is close to experimental value (17.2 mg/g). Similarly, in case of bauxite, the predicted and experimental values of maximum adsorption capacity are 7.72 and 3.2 mg/g respectively. The maximum adsorption capacities of various sorbents such as bauxite (Sujana and Anand 2011), lanthanum modified activated alumina (Cheng et al. 2014), lanthanum impregnated chitosan flakes (Jagtap et al. 2011), lanthanum incorporated chitosan beads (Bansiwal et al. 2009), metallurgical grade alumina (Pietrelli 2005),mixed rare earth oxides (Raichur and Basu 2001) and titanium rich bauxite (Das et al. 2005) along with the presently investigated sorbents are given in Table 5, for comparison. It can be observed from this table that the adsorption capacity of LIB is higher than all other sorbents except lanthanum hydroxide, which has an exceptionally high value of 242.2 mg/g. Similarly sorption capacity of bauxite used in this study has higher value of 7.7 mg/g compared to sorption capacity of bauxite obtained by Sujana and Anand (2011), probably due to calcination.
Table 4

Comparison of isothermal constants for adsorption of fluoride onto LIB and bauxite



Isotherm model

Langmuir

Freundlich

LIB

Isotherm parameters

qmax = 18.18 mg/g

b = 0.541

R2 = 0.997

Kf = 5.794 mg/g

n = 2.753

R2 = 0.805

Bauxite

Isotherm parameters

qmax = 7.722 mg/g

b = 0.379

R2 = 0.992

Kf = 1.902 mg/g

n = 2.085

R2 = 0.861

Table 5

Comparison of isothermal constants for adsorption of fluoride onto LIB and bauxite

Adsorbent

qmax(mg/g)

References

Bauxite

5.16

Sujana and Anand (2011)

Titanium rich bauxite

4.13

Das et al. (2005)

Lanthanum hydroxide

242.2

Na and Park (2010)

Lanthanum modified activated alumina

6.7

Cheng et al. (2014)

Lanthanum impregnated chitosan flakes

1.27

Jagtap et al. (2011)

Lanthanum incorporated chitosan beads

4.7

Bansiwal et al. (2009)

Alumina metallurgical grade

12.57

Pietrelli (2005)

Magnesia amended activated alumina

10.12

Maliyekkal et al. (2008)

Mixed rare earth oxides

12.5

Raichur and Basu (2001)

Lanthanum impregnated bauxite

18.18

Present study

Bauxite

7.722

Present study

Influence of pH

pH plays a significant role in adsorption. pH studies were conducted for removal of fluoride from water using LIB and bauxite by adjusting the starting pH of solution in the pH range 3–12 and the results are presented in Fig. 8. It can be observed that for LIB the optimum fluoride removal was from pH 6.5 to 8.5, whereas for bauxite the optimum removal of fluoride was between 5.0 and 6.5. Beyond this range either at lower or higher pH values fluoride removal was observed to be significantly less. This pH range coincides with the pH range observed for removal of fluoride using titanium rich bauxite (Pietrelli 2005). It was observed that the equilibrium pH of solution increased by about 0.2–0.4 U than the initially adjusted pH, for both sorbents after adsorption at pH < 8. From pH above 8.0 the pH drift was not observed. As the drift in pH was observed only in the optimal fluoride removal pH range for both sorbents, which is eventually the natural occurring pH of water, the impact of drift was neglected. At low pH values H+ ions predominate and so could form a bond with fluoride forming HF (Maliyekkal et al. 2008). pKa of HF is 3.16 (Shen and Schafer 2014). When pH value of solution is lesser than 3.16, weakly charged HF ions predominate, which may not get readily adsorbed onto sorbent. However, when the value of pH is increased higher than 3.16, F ions predominate, which get readily adsorbed. So, a gradual increase in removal of fluoride is observed after this pH value. Also, below pH value of 5, metallic salts present in bauxite, dissociate into their respective cations such as Al3+ and dissolve into solution (Adams 1999), thereby decreasing the active sorption sites on the surface of bauxite. So, removal of fluoride by bauxite is less below pH 5. Similarly below pH 7, lanthanum exists as La3+ ion (Cetiner and Xiong 2008), which dissociates itself from LIB causing a reduction in the active sites of sorption on LIB. However, when pH of solution containing bauxite is raised to more than 5 and that of LIB to more than 7, the cations such as Al3+ and La3+, get converted to their respective salts and stay on the sorbents, thereby aiding in adsorption. So, removal of fluoride, using bauxite increases from pH 5 onwards and removal of fluoride using LIB increases from pH 7 onwards. However further investigation is warranted to know the combined influence of dissolution of all the metal ions which influence sorption of fluoride at various pH values in lower pH range. At higher pH values OH ions predominate which compete for active sorption sites on the surface of sorbent with F ions. Thus due to the phenomena of competitive adsorption, sorption of fluoride ions onto the surface of sorbent could decrease. Also the pHzpc of LIB and bauxite were found to be 8.2 ± 0.1 and 6.0 ± 0.1 respectively. This further justifies the optimal sorption of fluoride in the observed ranges. The charge on the surface of a sorbent remains positive from lower values of pH to the value of pHzpc. From this point onwards any further increase in pH of solution changes the surface charge of sorbent from positive to negative.
Fig. 8

Influence of pH on defluoridation by LIB and bauxite

Influence of anions

Groundwater may consists of several anions such as Cl, SO4 2−, PO4 3−, HCO3− and NO3− in addition to fluoride, which might compete with fluoride for sorption onto the active sites on the sorbent (Fink and Lindsay 1936). This might reduce the sorption of fluoride onto LIB. So, the above mentioned ions were added each individually in concentrations up to 100 mg/L along with fluoride of concentration 20 mg/L in distilled water and sorption experiments were conducted. The impact of the anions tested here on sorption of fluoride onto LIB is depicted in Fig. 9. It can be observed that except nitrates, addition of other ions increased the final fluoride concentrations after adsorption to more than 1.5 mg/L. As lanthanum is predominant in LIB, it could possibly have less affinity for nitrates compared to other ions.
Fig. 9

Influence of competing anions on sorption of fluoride onto LIB (Initial fluoride = 20 mg/L, Sorbent dose = 2 g/L)

Regeneration studies

To determine the potential of re-applicability of spent sorbent, regeneration studies were conducted. Initially adsorption experiments were conducted with 20 mg/L, aqueous fluoride solution using LIB, under optimum conditions. Loaded LIB was agitated with distilled water and the desorption was found to be very low (36 %). Therefore desorption studies were carried out using various eluents such as NaOH and H2SO4. It was observed that NaOH could elute fluoride from the loaded sorbent successfully. The influence of various concentrations of NaOH in eluting the sorbent loaded to capacity with LIB is presented in Fig. 10. A 4 % NaOH solution could elute nearly 95 % of fluoride. This could be due to exchange of OH ion in NaOH with F ion, as given in Eq. 6.
$${\text{MF}} + {\text{NaOH}} \to {\text{MOH}} + {\text{NaF}}$$
(6)
Fig. 10

Effect of NaOH concentration on the fluoride desorption

The regenerated sorbent thus obtained was again used as a sorbent, and subsequently eluted with NaOH. Such cycles were repeated and the maximum removal of fluoride after each cycle is presented in Fig. 11. It can be observed that as against predicted 0.7 mg/L of residual fluoride, the residual fluoride after first cycle was found to be 1 mg/L and it rose to 1.4 mg/L after 3 cycles. Further, after 4th cycle, the residual fluoride was found to be 1.6 mg/L which exceeds the permissible limit. So, 3 cycles of regeneration can be considered safe for LIB. However, this is not quite in agreement with 5 % of fluoride residing on sorbent after elution after each cycle. Further detailed experimentation is warranted to understand the exact reason underlying this. As only 90 % of fluoride is eluted after each cycle, the defluoridation capacity decreases after each cycle. Also with each cycle of elution with NaOH, OH ions accumulation on adsorbent increases which reduces its defluoridation capacity. It can be observed that the regenerated sorbent can be used successfully up to 4 cycles without significant loss, in the sorption potential.
Fig. 11

Number of cycles of defluoridation by LIB after regeneration

Conclusions

In this study a novel sorbent, LIB was prepared and investigated for removal of fluoride from water. LIB exhibited good sorption potential of 18.18 mg/g, compared to several other sorbents, collected from literature. However, further investigation is warranted to find the exact sorption capacity of LIB under natural groundwater conditions. The main conclusions are
  • LIB was prepared by thermal impregnation method, and it reduced fluoride from distilled water from 20 to 0.7 mg/L.

  • LIB at a dose of 2 g/L removed fluoride up to 99 % from an initial concentration of 20 mg/L of aqueous fluoride solution, whereas bauxite at a dose of 6 g/L removed up to 94 % of fluoride from an initial concentration of 20 mg/L of aqueous fluoride solution.

  • The time taken for defluoridation by LIB was 120 min and it followed pseudo second order reaction, which indicates that the mechanism involved could be chemisorption. Pore diffusion seems to be the rate limiting step. The time taken for defluoridation by bauxite was 150 min.

  • The sorption process by LIB conformed to Langmuir isotherm model. The maximum sorption capacity according to this model was 18.18 mg/g, which was close to observed experimental values. Bauxite followed a similar trend with a best fit to Langmuir isotherm model. The maximum sorption capacity of bauxite was found to be 7.722 mg/g.

  • A pH range of 6.5–8.5 was found to be optimum for LIB, for removal of fluoride from water, which is a naturally occurring pH for waters. Bauxite exhibited optimum fluoride removal from pH 5.0 to 6.5.

  • Addition of NO3− to aqueous fluoride solution water brought the residual fluoride concentration after sorption to 1.4 mg/L, whereas other individual ions added such as Cl, SO4 2−, PO4 3− and HCO3 caused the final fluoride concentration after sorption to be more than 1.5 mg/L, probably due to competition of ions.

  • 4 % NaOH regenerated LIB by 95 % and the effective number of cycles after regenerations were found to be 3 for removal of fluoride up to permissible limit.

Declarations

Authors’ contributions

VVCM and SM conceived and designed this study. VVCM mainly and SM partly performed the experiments. Both authors read and approved the final manuscript.

Acknowledgements

The authors profusely thank and acknowledge the financial assistance in the form of waiver of Article Processing Charges, offered by Springer Open Waivers and Biomedcentral Waivers, towards publishing this paper.

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Civil Engineering, Sri Venkateswara University

References

  1. Adams ML (1999) Speciation and measurement of aluminium in environmental systems. Ph.D Thesis, University of CanterburyGoogle Scholar
  2. Adhikary SK, Tipnis UK, Harkare WP, Govindum KP (1989) Defluoridation duringdesalination of brakish water by electrodialysis. Desalination 71:301–312View ArticleGoogle Scholar
  3. APHA, AWWA, WEF (1996) Standard methods for the examination of water and wastewater, 19th edn. Washington, DC, p 657Google Scholar
  4. Atasoy AD, Yesilnacar MI, Sahin MO (2013) Removal of fluoride from contaminated ground water using raw and modified bauxite. Bull Environ Contam Toxicol 91(5):595–599View ArticleGoogle Scholar
  5. Ayoob S, Gupta AK, Bhat VT (2008) A conceptual overview on sustainable technologies for the defluoridation of drinking water. Crit Rev Environ Sci Technol 38(6):401–470View ArticleGoogle Scholar
  6. Bansiwal A, Thakre D, Labhshetwar N, Meshram S, Rayalu S (2009) Fluoride removal using lanthanum incorporated chitosan beads. Colloids Surf B Biointerfaces 74:216–224View ArticleGoogle Scholar
  7. Bhatnagar A, Kumar E, Sillanpää M (2011) Fluoride removal from water by adsorption: a review. Chem Eng J 171(3):811–840View ArticleGoogle Scholar
  8. Biswas K, Gupta K, Ghosh UC (2009) Adsorption of fluoride by hydrous iron(III)–tin(IV) bimetal mixed oxide from the aqueous solutions. Chem Eng J 149:196–206View ArticleGoogle Scholar
  9. Boruff CS (1934) Removal of fluorides from drinking water. Ind Eng Chem 26:69–71View ArticleGoogle Scholar
  10. Bureau of Indian Standards: IS 10500-2012 (2012) Drinking water specifications, vol 2nd. Bureau of Indian Standards, New DelhiGoogle Scholar
  11. Carabineiro SAC, Thavorn-Amornsri T, Pereira MFR, Figueiredo JL (2011) Adsorption of ciprofloxacin on surface-modified carbon materials. Water Res 45:4583–4591View ArticleGoogle Scholar
  12. Cetiner ZS, Xiong Y (2008) Chemical controls on the solubility, speciation and mobility of lanthanum at near surface conditions: a geochemical modeling study. Appl Geochem 23:2301–2315View ArticleGoogle Scholar
  13. Cheng J, Meng X, Jing C, Hao J (2014) La3+-modified activated alumina for fluoride removal from water. J Hazard Mater 278:343–349View ArticleGoogle Scholar
  14. Chinoy NJ (1991) Effects of fluoride on physiology of animals and human beings. Indian J Environ Toxicol 1:17–32Google Scholar
  15. Czarnowski W, Wrzesniowska K, Krechniak J (1996) Fluoride in drinking water and human urine in Northern and Central Poland. Sci Total Environ 191:177–184View ArticleGoogle Scholar
  16. Das N, Pattanaik P, Das R (2005) Defluoridation of drinking water using activated titanium rich bauxite. J Colloid Interface Sci 292:1–10View ArticleGoogle Scholar
  17. Emamjomeh MM, Sivakumar M (2006) An empirical model for defluoridation by batchmonopolar electrocoagulation/flotation (ECF) process. J Hazard Mater 131:118–125View ArticleGoogle Scholar
  18. Everett DH (1973) IUPAC manual appendix II, Part I. Pure Appl Chem 31:579Google Scholar
  19. Everett DH (1976) IUPAC manual appendix II, Part II: heterogeneous catalysis. Pure Appl Chem 31:71Google Scholar
  20. Feng L, Xiao H, He X, Li Z, Li F, Liu N, Zhao Y, Huang Y, Zhang Z, Chai Z (2006) Neurotoxicological consequence of long-term exposure to lanthanum. Toxicol Lett 165:112–120View ArticleGoogle Scholar
  21. Fink GJ, Lindsay FK (1936) Activated alumina for removing fluorides from drinking water. Ind Eng Chem 80:947–948View ArticleGoogle Scholar
  22. Freundlich HMF (1906) Uber die adsorption in losungen. Z Phys Chem 57:385–470Google Scholar
  23. Gaciri SJ, Davies TC (1993) The occurrence and geochemistry of fluoride in somenatural waters of Kenya. J Hydrol 143:395–412View ArticleGoogle Scholar
  24. Hach company/HachLange GmbH, manual on fluoride (1989–2014)Google Scholar
  25. Ho YS, McKay G (1999) Pseudo-second order model for sorption processes. Process Biochem 34:451–465View ArticleGoogle Scholar
  26. Jagtap S, Yenkie MK, Das S, Rayalu S (2011) Synthesis and characterization of lanthanum impregnated chitosan flakes for fluoride removal in water. Desalination 273:267–275View ArticleGoogle Scholar
  27. Khatibikamala V, Torabian A, Janpoor F, Hoshyaripour G (2010) Fluoride removal from industrial wastewater using electrocoagulation and its adsorption kinetics. J Hazard Mater 179:276–280View ArticleGoogle Scholar
  28. Lagergren S (1898) About the theory of so-called adsorption of soluble substances. Kungliga Svenska Vetenskapsakademiens Handlingar 24:1–39Google Scholar
  29. Langmuir I (1916) The adsorption of gases on plane surface of glass, mica andplatinum. J Am Chem Soc 40:1361–1403View ArticleGoogle Scholar
  30. Maliyekkal SM, Shukla S, Philip L, Nambi IM (2008) Enhanced fluoride removal from drinking water by magnesia-amended activated alumina granules. Chem Eng J 140:183–192View ArticleGoogle Scholar
  31. Na CK, Park HJ (2010) Defluoridation from aqueous solution by lanthanum hydroxide. J Hazard Mater 183:512–520View ArticleGoogle Scholar
  32. Nagendra Rao CR, Karthikeyan J (2012) Removal of fluoride from water by adsorption onto lanthanum oxide. Water Air Soil Pollut 223:1101–1114View ArticleGoogle Scholar
  33. Nawlakhe WG, Kulkarni DN, Pathak BN, Bulusu KR (1978) Defluoridation of water by Nalgonda technique. Indian J Environ Health 17:1–26Google Scholar
  34. Nemade PD, Rao AV, Alappat BJ (2002) Removal of fluorides from water using low cost adsorbents. Water Sci Technol Water Supply 2:311–317Google Scholar
  35. Oliveira EA, Montanher SF, Andrade AD, Nobrega JA, Rollemberg MC (2005) Equilubrium studies for the sorption of chromium and nickel from aqueous solutions using raw rice bran. Process Biochem 40:3485–3490View ArticleGoogle Scholar
  36. Pietrelli L (2005) Fluoride wastewater treatment by adsorption onto metallurgical grade alumina. Anal Chim 95:303–312View ArticleGoogle Scholar
  37. Raichur AM, Basu MJ (2001) Adsorption of fluoride onto mixed rare earth oxides. Sep Purif Technol 24:121–127View ArticleGoogle Scholar
  38. Rivera-Utrilla J, Bautista-Toledo I, Ferro-García MA, Moreno-Castilla C (2001) Activated carbon surface modifications by adsorption of bacteria and their effect on aqueous lead adsorption. J Chem Technol Biotechnol 76:1209–1215View ArticleGoogle Scholar
  39. Shen J, Schafer A (2014) Removal of fluoride and uranium by nanofiltration and reverse osmosis: a review. Chemosphere 117:679–691View ArticleGoogle Scholar
  40. Simons R (1993) Trace element removal from ash dam waters by nanofiltration anddiffusion dialysis. Desalination 89:325–341View ArticleGoogle Scholar
  41. Srimurali M, Pragathi A, Karthikeyan J (1998) A study on removal of fluorides from drinking water by adsorption onto low-cost materials. Environ Pollut 99:285–289View ArticleGoogle Scholar
  42. Sujana MG, Anand S (2011) Fluoride removal studies from contaminated groundwater by using bauxite. Desalination 267:222–227View ArticleGoogle Scholar
  43. Swope GH, Hess RH (1937) Removal of fluoride from natural water by defluoridation. Ind Eng Chem 29:424–426View ArticleGoogle Scholar
  44. Vijaya Kumar V, Sai CST, Rao PLKM, Rao CS (1991) Studies on the distribution of fluoride in drinking water sources in Medchal Block, Ranga Reddy District, Andhra Pradesh, India. J Fluor Chem 55(3):229–236View ArticleGoogle Scholar
  45. Vivek Vardhan CM, Karthikeyan J (2011) Removal of fluoride from water using low-cost materials. Int Water Technol J 2:1–12Google Scholar
  46. Vivek Vardhan CM, Srimurali M (2016) Defluoridation of drinking water using a novel sorbent: lanthanum-impregnated green sand. Desalination Water Treat. doi:10.1080/19443994.2015.1012330 Google Scholar
  47. Weber WJ, Morris JC (1963) Intraparticle diffusion during the sorption of surfactants onto activated carbon. J Sanit Eng Div AESC 89:53–61Google Scholar
  48. WHO (2004) Guidelines for drinking water quality. GenevaGoogle Scholar
  49. Xu Y-M, Ning A-R, Zhao J (2001) Preparation and defluorination performance ofactivated cerium(IV) oxide/SiMCM-41 adsorbent in water. J Colloid Interface Sci 235:66–69View ArticleGoogle Scholar
  50. Yeşilnacar Mİ, Yetiş AD, Dülgergil ÇT, Kumral M, Atasoy AD, Dogan TR, Tekiner Sİ, Bayhan İ, Aydoğdu M (2016) Geomedical assessment of an area having high-fluoride groundwater in southeastern Turkey. Environ Earth Sci 75:162View ArticleGoogle Scholar
  51. Yousef RI, El-Eswed B, Al-Muhtaseb A (2011) Adsorption characteristics of natural xeolites as solid adsorbents for phenol removal from aqueous solution: kinetics, mechanism, and thermodynamics studies. Chem Eng J 171:1143–1149View ArticleGoogle Scholar

Copyright

© The Author(s) 2016
