Efficient reference-free adaptive artifact cancellers for impedance cardiography based remote health care monitoring systems

SpringerPlus20165:770

https://doi.org/10.1186/s40064-016-2461-5

  • Received: 18 February 2016
  • Accepted: 29 May 2016
  • Published:

The Erratum to this article has been published in SpringerPlus 2016 5:1078

Abstract

In this paper, a new model for adaptive artifact cancelation in impedance cardiography (ICG) signals is presented. It is a hybrid model based on wavelet decomposition and an adaptive filter. A novel feature of this model is the implementation of reference-free adaptive artifact cancellers (AAC). For this implementation, the reference signal is constructed using a wavelet transformation. During critical conditions the filter weights may be negative and cause an imbalance in the convergence. To overcome this problem, we introduce non-negative adaptive algorithms in the proposed artifact canceller. To accelerate the performance of the AAC, we propose exponential non-negative and normalized non-negative algorithms to update the filter coefficients. The computational complexity of the filtering section in a remote health care system is important to avoid inter-symbol interference of the incoming samples. This can be achieved by combining sign-based algorithms with the adaptive filtering section. Finally, several AACs are developed using variants of the non-negative algorithms and performance measures are computed and compared. All of the proposed AACs are tested on actual ICG signals. Among the AACs evaluated, sign regressor normalized non-negative LMS (SRN3LMS) based adaptive artifact canceller achieves highest signal to noise ratio (SNR). The SNR achieved by this algorithm in baseline wander artifact elimination is 8.5312 dBs, in electrode muscle artifact elimination is 7.5908 dBs and in impedance measurement artifact elimination is 8.4231 dBs.

Keywords

  • Artifact canceller
  • Cardiovascular diseases
  • Impedance cardiogram
  • Non-negative algorithm
  • Remote health care

Background

Cardiovascular disease (CVD) refers to a large number of medical conditions relating to heart functionality. The World Health Organization (WHO) states that approximately 50 % of all deaths from non-communicable diseases (NCDs) are from CVDs (World Health Organization 2015a). Among these, most of the deaths are outside the hospital because the patient is not treated in a timely manner. Additionally, the American Heart Association reported that more than 1 in 3 have more than one type of CVD (American Heart Association 2015) and that CVDs are the number 1 cause of death globally. In this scenario, WHO has planned to reduce the deaths from NCDs by 25 % globally by 2025 (World Health Organization 2015b). Hence, research on cardiovascular health care technology is becoming intensely active. Among various methods of cardiac activity study, impedance cardiography (ICG) is a promising technique. ICG facilitates non-invasive and continuous monitoring of haemodynamic entities such as stroke volume (SV) and cardiac output (CO) in clinical scenarios. ICG measures the change in impedance that exists at the thorax from the physical activity of the heart muscle (Woltjer et al. 1997; Brown et al. 1994; Nagel et al. 1989). The methodologies and mathematical analyses used to calculate the ICG, SV and CO can be found in the literature (Scherhag et al. 2005; Kubicek et al. 1966; Sramek 1983; Kubicek et al. 1974; Bernstein 1986). Analysis of the ICG signal is an important task when treating a cardiac patient in critical conditions. However, during acquisition, the ICG signal encounters physiological and non-physiological artifacts. The artifacts include the baseline wander artifact (BWA), the electro-muscle artifact (EMA) and the impedance mismatch artifact (IMA). These artifacts cause changes in both the signal shape and tiny features, which are key parameters for clinical diagnoses. Therefore, to achieve high-resolution ICG signals for clinical investigations, the artifacts must be eliminated. Because most of the biomedical physiological and non-physiological phenomena are non-stationary, adaptive filtering techniques are likely to be a good remedy for this application. Adaptive filters can update their filter weights automatically to fit the input noise level. Several researchers have presented contributions on the analysis of ICG using signal processing techniques (Wang et al. 1995; Muzi et al. 1985; Ishiguro et al. 2006; Barros et al. 1995; Dromer et al. 2009; Yamamoto et al. 1988; Javaid et al. 2015; Sebastian et al. 2011). In these contributions, both least mean square (LMS) and recursive least square (RLS) algorithms are used. In a real-time clinical environment, and in critical conditions from an abnormal heart rhythm, the filter weights may be negative. The negative weights cause an imbalance in the convergence, resulting in poor filtering capability. To overcome this problem, we introduce non-negative adaptive algorithms in the proposed artifact canceller. To accelerate the performance of the AAC, we propose exponential non-negative and normalized non-negative algorithms to update the filter coefficients. The computational complexity of the filtering section in a remote health care system is important to avoid inter-symbol interference of the incoming samples. This can be achieved by combining sign-based algorithms with the adaptive filtering section. The remedy for unbalanced convergence and poor filtering performance of the algorithm is a modified LMS algorithm, in which a diagonal vector of the input is introduced in the weight update equation, i.e., a non-negative LMS (N 2 LMS) algorithm (Chen et al. 2011). This N 2 LMS keeps the filter weights from becoming negative from the abnormal rhythms of the heart. To improve the performance of the AAC, the N 2 LMS algorithm is varied, resulting in an exponential N 2 LMS (eN 2 LMS) and a normalized N 2 LMS (N 3 LMS) (Chen et al. 2014a, b). In conventional AACs, a reference signal, which is correlated with the noise component in the contaminated signal, is required (Thakor and Zhu 1991; Rahman et al. 2011; Karthik et al. 2013; Rahman et al. 2013). However, in a clinical environment, it is difficult to find a correlated reference. That is, the reference signal and the actual contaminated artifact in the ICG are not correlated. Therefore, a strategy using a discrete wavelet transformation (DWT) is implemented to construct a reference signal based on the contamination present in the actual signal (Peng et al. 2013). The AAC can then track the changes in the input signal, and, using wavelet decomposition methodology, automatically construct the reference signal. The reference signal is then utilized by the adaptive algorithm in the AAC to update the filter weight coefficients. In remote health care systems, computational complexity is also a factor that plays an important role when developing a lab on chip (LOC) or a system on chip (SOC) in modern health care telecardiology systems. Low complexity is desirable when constructing wearable and nano devices. In addition, if the computational complexity is large, the impulse response length of the receiver filters increases and thus the size of the filter increases. This cause inter-symbol interference at the input of the filter (Rahman et al. 2012). Therefore, to minimize computational complexity, and thus improving the suitability of the proposed AAC for remote health care systems, we combine the non-negative algorithms with the three simplified algorithms (Farhang-Boroujeny 1998). The simplified algorithms based on LMS recursion are known as sign regressor LMS (SRLMS), sign error LMS (SELMS) and sign sign LMS (SSLMS) algorithms. To reduce the computational complexity of the proposed algorithms, we combine the eN 2 LMS and the N 3 LMS algorithms with SRLMS, SELMS and SSLMS, resulting in the SReN 2 LMS, SEeN 2 LMS, SSeN 2 LMS, SRN 3 LMS, SEN 3 LMS and SSN 3 LMS algorithms. Based on these algorithms, we use the wavelet decomposition method to develop several AACs to eliminate artifacts from ICG signals. Wavelet decomposition technique is particularly useful in health care applications; where accurate knowledge of the noise may not be available. The performance of these AACs is compared using the signal-to-noise ratio. The theory, the analysis of the algorithms and the simulation results of the various implementations are presented in the sections that follow.

Methods

In this paper, we introduce a new technique of artifact cancelation in ICG signals for remote health care monitoring systems. During signal acquisition in a typical ICG remote health care monitoring system, some physiological and non-physiological contaminants add to the actual heart activity, leading to ambiguous diagnoses and measurements. In addition to these contaminants, channel noise also masks the tiny features of the ICG signal. The major artifacts encountered with heart activity are the baseline wander artifact (BWA), the electro-muscle artifact (EMA) and the impedance mismatch artifact (IMA). The BWA is a base-line drift of the ICG signal from respiration activity. The EMA is caused by muscle activity, and the IMA is caused by an impedance mismatch between the electrodes and the skin, or from a mismatch of the electrodes. At the receiving end, a clear high-resolution signal is required to present to the doctor for diagnosis. In this context, AAC plays an important role. Figure 1 shows a block diagram of a wavelet-based AAC for remote health care monitoring systems.
Fig. 1
Fig. 1

Block diagram of wavelet-based adaptive artifact canceller for ICG signal analysis

The recorded ICG signal with artifact contaminants is expressed as follows:
$$ICG(n) = s(n) + n_{1} (n)$$
where ICG(n) is the recorded ICG signal; s(n) is the original ICG signal generated from heart activity; and n 1(n) is the artifact component (BWA or EMA or IMA or any combination of these three). In a remote system, n 1(n) also includes channel noise.

The basic working principle of the proposed AAC is the following. The raw signal ICG(n) is input to the DWT decomposition unit. Using decomposition, a reference signal is constructed for any type of contamination present in the raw input ICG signal. The constructed reference signal is used as the reference signal for the adaptive algorithm to update its weight coefficients. The proposed AAC thus plays a vital role in the implementation of an intelligent remote health care monitoring system that is reference-free by constructing the reference signal itself from the contaminated input signal.

Construction of the reference signal from the noisy input signal

The wavelet transform is used for signal decomposition in our model. It provides the temporal information for the signals whose frequency components are changing with time. The wavelet decomposition is a process of separating the signal into spectrally non-overlapping components. There are two categories of wavelet decomposition: continuous wavelet transforms (CWT) and discrete wavelet transforms (DWT). The CWT for a signal s(n) is as follows:
$$CWT\left({a,b} \right) = \mathop \int \nolimits_{- \infty}^{\infty} s\left(t \right)\frac{1}{\sqrt a}\varphi \left({\frac{t - b}{a}} \right)dt$$
(1)
where a and b are the scaling and shifting parameters, respectively, and \(\varphi\)(.) is the mother wavelet function. However, evaluating the scaling (a) and shifting (b) parameters for all possible scales is a computationally in feasible task. One possible way of solving the problem is choosing a and b as powers of two, in which case the DWT is as follows:
$$DWT\left({a,b} \right) = \frac{1}{{\sqrt {2^{l}}}}\mathop \int \nolimits_{- \infty}^{\infty} s\left(t \right)\varphi \left({\frac{{t - 2^{l} m}}{{2^{l}}}} \right)dt$$
(2)
where the scaling and shifting parameters are replaced by 2 l and m2 l , respectively. Figure 2 shows the L-level wavelet decomposition of a signal s(n). In this scheme, the signal ICG(n)first passes through the LP and HP filters, whose cut-off frequencies are one-fourth of the sampling frequency f s and down-sampled by 2, thus yielding an approximation a 1 and detail d 1, which are coefficients of the first level. The same procedure is employed on the first level of the approximation coefficientsa 1 , yielding the second level of approximation and detail coefficients. In this decomposition process, because of the down-sampling, the time resolution is halved and the frequency repulsion is doubled from the filtering operation. The frequency content of the signal at the ith level decomposition is given by \(0 - f_{s} /2^{i + 1}\,\, {\text{and}}\, 0 - f_{s} /2^{i} , i = \left\{ {1,2, \ldots ,L} \right\}\) (Coifman and Donoho 1995; Percival and Walden 2000).
Fig. 2
Fig. 2

L-level decomposition of an ICG signal

Non-negative LMS-based algorithms for AACs

In the proposed AAC, the input is the raw contaminated ICG signal and the reference is the signal constructed from the DWT decomposition of the raw ICG signal. This process is shown in Fig. 1. The AAC consists of an FIR filter of length L taps. The weight coefficients are updated based on the weight update mechanism of various algorithms. The weight update mechanism for the basic LMS algorithm is as follows,
$$\varvec{W}\left({n + 1} \right) = \varvec{W}(n) + \eta \varvec{r}(n)e(n),$$
(3)
where W(n + 1) is the next weight coefficient; W(n) is the previous weight coefficient; η is the step size; r(n) is the reference signal, which is constructed from the DWT decomposition, required for training to eliminate noise from the raw signal ICG(n); and e(n) is the error generated, which is used as a feedback to the adaptive algorithm.
Because of the abnormalities in the ICG signal, i.e., the drastic variations in the signal features, the weight coefficients may become negative. This leads to poor performance of the adaptive algorithm in terms of convergence, stability and filtering capability. To overcome this drawback, a non-negative LMS (N 2 LMS) algorithm is proposed (Chen et al. 2011). The weight update mechanism is as follows:
$$\varvec{W}\left({n + 1} \right) = \varvec{W}(n) + \eta \varvec{D}(n)\varvec{r}(n)e(n),$$
(4)
where D(n) is the diagonal matrix of the weight coefficients W(n). The elaborated theory and analysis of N 2 LMS is presented by Chen et al. (2011).
In Eq. (4), each component of W(n + 1) is viewed as a variable step because of the combination of ηD(n). In the N 2 LMS algorithm, when the weights tend to zero, the convergence becomes unbalanced and the algorithm may diverge, causing the AAC to be ineffective for noise removal. To avoid the convergence imbalance characteristics in abnormal conditions, the exponential form N 2 LMS (e N 2 LMS) is proposed. The weight update mechanism is then as follows:
$${\mathbf{W}}\left({n + 1} \right) = {\mathbf{W}}(n) + \eta {\mathbf{r}}(n)e(n)W^{\gamma} (n)$$
(5)
For 0 < γ < 1, the nth weight update in Eq. (5) is larger than that in Eq. (4), which accelerates convergence towards the steady state error. Another direct way to accelerate the convergence of N 2 LMS is normalization with respect to data. The normalized N 2 LMS (N 3 LMS) is mathematically expressed as follows:
$${\mathbf{W}}\left({n + 1} \right) = {\mathbf{W}}(n) + \eta (n){\mathbf{D}}(n){\mathbf{r}}(n)e(n)$$
(6)
where η(n) is a variable step size with respect to the reference input as follows:
$$\eta (n) = \frac{\eta}{{\alpha + r^{t} (n)r(n)}}$$
(7)
where α is a small constant used to avoid numerical difficulties. The elaborated theory and analysis of the eN 2 LMS and N 3 LMS algorithms are presented in the literature (Chen et al. 2014a, b).
To minimize the computational complexity of the above algorithms, and hence to make them suitable for remote health care applications, we combine the eN 2 LMS and N 3 LMS algorithms with the simplified algorithms described by Farhang-Boroujeny (Farhang-Boroujeny 1998). The weight update mechanism equations for the eN 2 LMS algorithm variants then become the following:
  1. 1.

    The sign regressor version of the eN 2 LMS algorithm uses the following weight update equation:

    $$\varvec{W}\left({n + 1} \right) = \varvec{W}(n) + \eta \;sign\;\left({\varvec{r}(n)} \right)e(n)W^{\gamma} (n)$$
    (8)

This algorithm is the sign regressor eN 2 LMS (SReN 2 LMS) algorithm. The major advantage of this algorithm is its low computational complexity in terms of multiplications, independent of filter length. To compute Eq. (8), only one multiplication is required. Another important feature of the sign regressor (SR) algorithm is that its convergence characteristics are only slightly inferior to those of its normal version. This is caused by the normalization involved in the signum function (Farhang-Boroujeny 1998; Eweda 1990; Koike 1999).
  1. 2.

    The sign error version of the eN 2 LMS algorithm uses the following weight update equation:

    $$\varvec{W}\left({n + 1} \right) = \varvec{W}(n) + \eta \varvec{r}(n)sign\left({e(n)} \right)W^{\gamma} (n)$$
    (9)

This algorithm is the sign error eN 2 LMS (SEeN 2 LMS) algorithm.
  1. 3.

    The sign sign version of the eN 2 LMS algorithm uses the following weight update equation:

    $$\varvec{W}\left({n + 1} \right) = \varvec{W}(n) + \eta sign\left({\varvec{r}(n)} \right)sign\left({e(n)} \right)W^{\gamma} (n)$$
    (10)


This algorithm is the sign sign eN 2 LMS (SS eN 2 LMS) algorithm.

Similarly, the weight update mechanism equations for the N 3 LMS algorithm variants are written as follows:
  1. 1.

    The sign regressor version of the N 3 LMS algorithm uses the following weight update equation:

    $$\varvec{W}\left({n + 1} \right) = \varvec{W}(n) + \eta (n)\varvec{D}(n)sign\left({\varvec{r}(n)} \right)e(n)$$
    (11)

This algorithm is the sign regressor N 3 LMS (SRN 3 LMS) algorithm.
  1. 2.

    The sign error version of the N 3 LMS algorithm uses the following weight update equation:

    $$\varvec{W}\left({n + 1} \right) = \varvec{W}(n) + \eta (n)\varvec{D}(n)\varvec{r}(n)sign\left({e(n)} \right)$$
    (12)

This algorithm is the sign error N 3 LMS (SEN 3 LMS) algorithm.
  1. 3.

    The sign sign version of the N 3 LMS algorithm uses the following weight update equation:

    $$\varvec{W}\left({n + 1} \right) = \varvec{W}(n) + \eta (n)\varvec{D}(n)sign\left({\varvec{r}(n)} \right)sign\left({e(n)} \right)$$
    (13)


This algorithm is the sign sign N 3 LMS (SSN 3 LMS) algorithm.

In Eqs. (11)–(13), during the normalization process, r t (n)r(n), in the denominator of η(n), requires L multiplications. To minimize the number of multiplications, we use only the maximum value of r(n) instead of using all L values. The new η(n)is η m (n), as follows:
$$\eta_{m} (n) = \frac{\eta}{{\alpha + r_{m}^{t} r_{m}}}$$
(14)
The new weight update mechanisms for N 3 LMS and its three signed variants are then as follows:
$${\mathbf{W}}\left({n + 1} \right) = {\mathbf{W}}(n) + \eta_{m} (n){\mathbf{D}}(n){\mathbf{r}}(n)e(n)$$
(15)
$${\mathbf{W}}\left({n + 1} \right) = {\mathbf{W}}(n) + \eta_{m} (n){\mathbf{D}}(n)sign\left({{\mathbf{r}}(n)} \right)e(n)$$
(16)
$${\mathbf{W}}\left({n + 1} \right) = {\mathbf{W}}(n) + \eta_{m} (n){\mathbf{D}}(n)sign\left({{\mathbf{r}}(n)} \right)sign\left({e(n)} \right)$$
(17)
$${\mathbf{W}}\left({n + 1} \right) = {\mathbf{W}}(n) + + \eta_{m} (n){\mathbf{D}}(n)sign\left({{\mathbf{r}}(n)} \right)sign\left({e(n)} \right)$$
(18)
Figures 3 and 4 show the convergence curves of the eN 2 LMS and the N 3 LMS algorithms and their SR, SE and SS variants. The data in these figures show that SReN 2 LMS is only slightly inferior to the eN 2 LMS-based AAC, at the cost of a reduced number of multiplications. Hence, in practical implementations, if choosing between the SReN 2 LMS and the eN 2 LMS algorithms, the SR version is preferred. Similarly, between the SRN 3 LMS and the N 3 LMS algorithms, SRN 3 LMS is slightly inferior to N 3 LMS, but uses a reduced number of multiplications. Therefore, for real-time applications, the SRN 3 LMS algorithm-based AAC can be used. N 3 LMS is slightly faster converging than eN 2 LMS, as shown in Figs. 3 and 4.

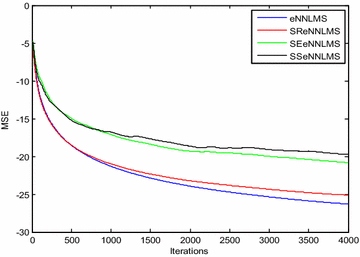

Fig. 3
Fig. 3

Typical convergence curves for ICG signal enhancement in a Gaussian environment using exponential non-negative LMS (eN2LMS) and its variants

Fig. 4
Fig. 4

Typical convergence curves for ICG signal enhancement in a Gaussian environment using normalized non-negative LMS (N3LMS) and its variants

Results

In our experiments, we use the ICG signals obtained from a VU-AMS ambulatory system (Goedhart et al. 2006; Riese et al. 2003; Willemsen et al. 1996). ICG signals with different artifacts are included in our simulations. We use five ICG signals with 5000 samples: Data1, Data2, Data3, Data4 and Data5. In our simulation results, we show 2000 samples to illustrate the high-resolution signals. To evaluate the performance of the algorithms discussed above, we develop various AACs using the LMS, eN 2 LMS, SR eN 2 LMS, SE eN 2 LMS, SS eN 2 LMS, N 3 LMS, SR N 3 LMS, SE N 3 LMS and SS N 3 LMS algorithms. According to our proposed model, from the raw ICG signal, we construct a reference signal using DWT decomposition and use it as the reference in the adaptive algorithm. Using the above algorithms, we develop various AACs and calculate the signal-to-noise ratio (SNR), used as a measure of performance in our experiments. Comparisons of the SNR from the various algorithms are shown in Table 1. In addition to SNR measurements, we also tabulated the weight coefficients used to enhance Data1 during various artifact cancelations to examine the non-negative constraints of the non-negative algorithms, as shown in Table 2. The data in Table 2 show that the non-negative algorithms keep the weights from becoming negative. In our simulations, the filter length is 10 and the step size is 0.1. Because of space constraints, only the simulation results from Data1 are shown in this paper. ICG signals contaminated with BWA, EMA and IMA are used to illustrate the enhancement process.
Table 1

Comparison of signal to noise ratio after ICG signal filtering due to various artifact cancelers (INDBS)

Artifact type

Sample no.

LMS

eN2 LMS

SR eN2LMS

SE eN2LMS

SS eN2LMS

N3LMS

SR N3LMS

SE N3LMS

SS N3LMS

BWA

Data 1

4.9815

5.8286

7.1277

5.2723

5.0801

8.3075

8.4956

5.7226

5.2454

Data 2

4.9783

5.8251

7.1626

5.2583

5.1438

8.3059

8.5461

5.6331

5.3726

Data 3

4.9876

5.8359

7.1035

5.2348

4.9496

8.3081

8.4711

5.5724

5.3241

Data 4

4.9993

5.8307

7.1964

5.2934

5.1364

8.3317

8.5839

5.6587

5.4356

Data 5

4.9782

5.8289

7.1732

5.1804

5.1423

8.3184

8.5595

5.7144

5.3976

Average

4.1884

5.8298

7.1531

5.2480

5.0904

8.3143

8.5312

5.5502

5.3551

EMA

Data 1

4.3813

3.9164

6.8491

3.0812

3.0628

7.4958

7.5570

4.8956

4.7859

Data 2

4.3905

3.9213

6.9333

3.1025

3.0994

7.4984

7.5823

4.8425

4.6926

Data 3

4.3802

3.9172

6.7805

3.1583

3.1133

7.4884

7.6118

4.8520

4.7085

Data 4

4.4016

3.2729

6.8429

3.1693

3.1501

7.5071

7.5523

4.9425

4.6538

Data 5

4.3912

3.9256

7.1351

3.1979

3.1612

7.4979

7.6445

4.8078

4.6705

Average

4.3889

3.9216

6.9081

3.1418

3.1173

7.5268

7.5908

4.8701

4.7022

IMA

Data 1

4.0359

3.8136

7.5765

6.2971

4.5841

7.1845

8.4466

7.8773

5.2710

Data 2

4.0256

3.8371

7.5896

6.2309

4.6642

7.1732

8.4371

7.8473

5.1835

Data 3

3.9916

3.8096

7.5669

6.2985

4.7363

7.1686

8.4461

7.8435

5.1477

Data 4

3.9912

3.8140

7.5677

6.2338

4.7059

7.1854

8.4461

7.8435

5.1477

Data 5

3.9939

3.8079

7.5611

6.2145

4.6768

7.1713

8.3606

7.8658

5.2168

Average

4.0076

3.8164

7.5723

6.2551

4.6633

7.1766

8.4231

7.8578

5.1884

Table 2

Comparison of weight coefficient variations due to various artifact cancelers for data 1

Artifact type

Algorithm

W1

W2

W3

W4

W5

W6

W7

W8

W9

W10

BWA

LMS

0.0559

0.0625

0.0692

0.0759

0.0828

0.0896

0.0965

0.1033

0.1102

0.1170

eN 2 LMS

0.0792

0.0804

0.0817

0.0830

0.0843

0.0857

0.0870

0.0884

0.0898

0.0912

SReN 2 LMS

0.0435

0.0467

0.0505

0.0560

0.0618

0.0703

0.0805

0.0918

0.1026

0.1177

SEeN 2 LMS

0.0810

0.0835

0.0860

0.0885

0.0911

0.0936

0.0962

0.0988

0.1013

0.1039

SSeN 2 LMS

0.0636

0.0670

0.0705

0.0742

0.0780

0.0820

0.0861

0.0904

0.0949

0.0995

N 3 LMS

0.0606

0.0623

0.0641

0.0660

0.0679

0.0699

0.0719

0.0740

0.0761

0.0783

SRN 3 LMS

0.0604

0.0633

0.0664

0.0699

0.0734

0.0780

0.0829

0.0882

0.0929

0.0987

SEN 3 LMS

0.0788

0.0805

0.0821

0.0838

0.0855

0.0872

0.0890

0.0907

0.0924

0.0941

SSN 3 LMS

0.0694

0.0717

0.0742

0.0767

0.0793

0.0820

0.0848

0.0876

0.0906

0.0937

EMA

LMS

0.1516

0.1338

0.1218

0.1162

0.1162

0.1222

0.1335

0.1497

0.1704

0.1953

eN 2 LMS

0.1040

0.1007

0.0984

0.0971

0.0967

0.0973

0.0987

0.1010

0.1040

0.1079

SReN 2 LMS

0.2284

0.2284

0.2284

0.2284

0.2284

0.2284

0.2284

0.2284

0.2247

0.4283

SEeN 2 LMS

0.1364

0.1307

0.1251

0.1296

0.1342

0.1390

0.1439

0.1490

0.1543

0.1596

SSeN 2 LMS

0.1166

0.1127

0.1090

0.1134

0.1179

0.1225

0.1273

0.1321

0.1371

0.1422

N 3 LMS

0.1052

0.0979

0.0939

0.0931

0.0950

0.0996

0.1067

0.1163

0.1283

0.1429

SRN 3 LMS

0.1013

0.0877

0.0797

0.0713

0.0705

0.0689

0.0945

0.1087

0.1112

0.1276

SEN 3 LMS

0.0646

0.0501

0.0387

0.0501

0.0672

0.0886

0.1167

0.1540

0.2034

0.2689

SSN 3 LMS

0.1447

0.1304

0.1175

0.1323

0.0953

0.1072

0.1206

0.1357

0.1527

0.1717

IMA

LMS

0.1459

0.1498

0.1538

0.1580

0.1622

0.1665

0.1708

0.1752

0.1795

0.1839

eN 2 LMS

0.0979

0.0989

0.0999

0.1010

0.1021

0.1033

0.1044

0.1056

0.1068

0.1080

SReN 2 LMS

0.0956

0.0964

0.0978

0.0987

0.1009

0.1014

0.1023

0.1035

0.1041

0.1064

SEeN 2 LMS

0.0530

0.0543

0.0556

0.0570

0.0584

0.0598

0.0613

0.0629

0.0644

0.0660

SSeN 2 LMS

0.0474

0.0540

0.0612

0.0693

0.0781

0.0838

0.0985

0.1101

0.1229

0.1368

N 3 LMS

0.1034

0.1054

0.1074

0.1095

0.1116

0.1138

0.1160

0.1183

0.1205

0.1229

SRN 3 LMS

0.0381

0.0451

0.0553

0.0674

0.0847

0.1081

0.1374

0.1779

0.2322

0.3072

SEN 3 LMS

0.0087

0.0090

0.0094

0.0098

0.0102

0.0106

0.0110

0.0114

0.0118

0.0121

SSN 3 LMS

0.1347

0.4287

0.2743

0.3513

0.4125

0.3187

0.8231

0.5349

0.1250

0.4781

Discussion

Baseline-wander artifact (BWA) removal using the DWT adaptive artifact canceller

This experiment demonstrates the baseline wander artifact cancelation from the ICG signal. The raw ICG signal is input to the DWT-based AAC, as shown in Fig. 1. Using decomposition, DWT constructs a reference signal. This signal is effectively used as a reference signal to the AAC, as shown in the block diagram as n 2. Using feedback from the output z(n), the algorithm trains n 2 to closely correlate with the artifact component n 1 in the input ICG signal x(n). The SNR and the relative root mean square error (RRMSE) were used to measure the performance of the DWT-based AAC for BWA cancelation. The filtering results of the BWA cancelation are shown in Fig. 5. The results shown in Fig. 5d, g, h are clearer than the results from the other AACs. Figure 6 shows the residual error component after filtering with the various algorithms. The data in Fig. 6h show that the residual error in the case of SRN 3 LMS is less than that of the other algorithms. This is also supported by the SNR table, i.e., from among all of the algorithms, SRN 3 LMS achieves the highest SNR, 8.4956 dBs. The data in Table 2 also show that all of the non-negative algorithms have non-negative weight coefficients when filtering various artifacts. Figures 7 and 8 illustrate the RRMSE (in %) calculated during BWA cancelation. The data in Figs. 7 and 8 show that eN 2 LMS, N 3 LMS and their sign regressor versions perform better the other versions. These algorithms achieve the minimum residual error from among all of the tested algorithms. Finally, from all of the performance measures, SRN 3 LMS is better than the other algorithms with respect to SNR, RRMSE, convergence and computational complexity.
Fig. 5
Fig. 5

Results of filtering BWA using various AACs (a). ICG signal with BWA (b). ICG filtering with LMS-updated AAC (c). ICG filtering with exponential non-negative LMS (eN 2 LMS)-updated AAC (d). ICG filtering with SReN 2 LMS-updated AAC (e). ICG filtering with SEeN 2 LMS-updated AAC (f). ICG filtering with SSeN 2 LMS-updated AAC (g). ICG filtering with normalized non-negative LMS (N 3 LMS)-updated AAC (h). ICG filtering with SRN 3 LMS-updated AAC (i). ICG filtering with SEN 3 LMS-updated AAC, and (j). ICG filtering with SSN 3 LMS-updated AAC. (The x-axis is the number of samples and the y-axis is the signal amplitude in mV)

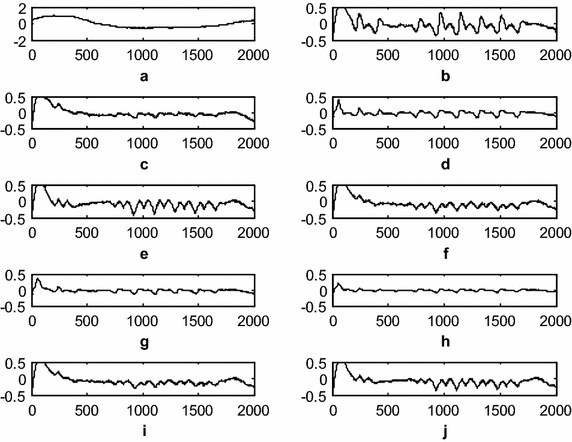

Fig. 6
Fig. 6

Comparison of the residual noise after BWA filtering (a). Original artifact component (b). Residual noise after LMS-updated AAC (c). Residual noise after exponential non-negative LMS (eN 2 LMS)-updated AAC (d). Residual noise after SReN 2 LMS-updated AAC (e). Residual noise after SEeN 2 LMS-updated AAC (f). Residual noise after SSeN 2 LMS-updated AAC (g). Residual noise after normalized non-negative LMS (N 3 LMS)-updated AAC (h). Residual noise after SRN 3 LMS-updated AAC (i). Residual noise after SEN 3 LMS-updated AAC, and (j). Residual noise after SSN 3 LMS-updated AAC. (The x-axis is the number of samples and the y-axis is the residual noise amplitude in mV)

Fig. 7
Fig. 7

Comparison of the RRMSE of exponential non-negative LMS and its signed versions

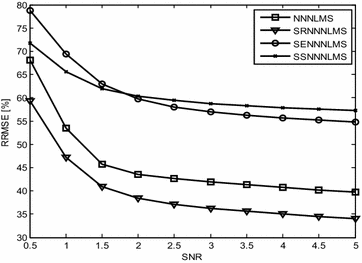

Fig. 8
Fig. 8

Comparison of the RRMSE of normalized non-negative LMS and its signed versions

Electro-muscle artifact (EMA) removal using the DWT adaptive artifact canceller

This experiment demonstrates electro-muscle artifact cancelation from an ICG signal. The raw ICG signal is input to the DWT-based AAC, as shown in Fig. 1. The DWT constructs a reference signal using decomposition. This signal is effectively used as a reference signal to the AAC, as shown in the block diagram as n 2. Using feedback from the output z(n), the algorithm trains n 2 to closely correlate it with the artifact component n 1 in the ICG input signal x(n). The SNR is used to measure the performance of the DWT-based AAC for EMA cancelation. The filtering results of the EMA cancelation are shown in Fig. 9. The results shown in Fig. 9d, g, h are clearer than the results from the other AACs. Figure 10 shows the residual error component after filtering with various algorithms. The data in Fig. 10h show that the residual error in the case of SR N 3 LMS is less than that for the other algorithms. This conclusion is supported by the SNR table; among all of the algorithms SR N 3 LMS achieves the highest SNR of 7.5570 dBs. The data in Table 2 also show that all of the non-negative algorithms use non-negative weight coefficients when filtering various artifacts. Finally, to summarize the performance measures, is the results show that SR N 3 LMS is better than the other algorithms with respect to SNR, RRMSE, convergence and computational complexity.
Fig. 9
Fig. 9

Filtering results of the EMA using various AACs (a). Raw ICG with EMA (b). ICG filtering with LMS-updated AAC (c). ICG filtering with exponential non-negative LMS (eN 2 LMS)-updated AAC (d). ICG filtering with SReN 2 LMS-updated AAC (e). ICG filtering with SEeN 2 LMS-updated AAC (f). ICG filtering with SSeN 2 LMS-updated AAC (g). ICG filtering with normalized non-negative LMS (N 3 LMS)-updated AAC (h). ICG filtering with SRN 3 LMS-updated AAC (i). ICG filtering with SEN 3 LMS-updated AAC, and (j). ICG filtering with SSN 3 LMS-updated AAC. (The x-axis is the number of samples and the y-axis is the signal amplitude in mV)

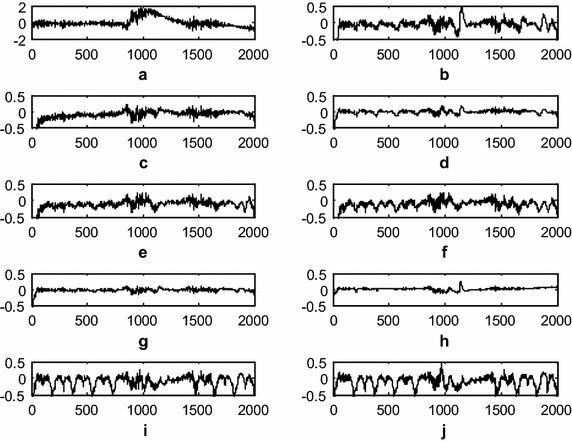

Fig. 10
Fig. 10

Comparison of the residual noise after EMA filtering (a). Original artifact component (b). Residual noise after LMS-updated AAC (c). Residual noise after exponential non-negative LMS (eN 2 LMS)-updated AAC (d). Residual noise after SReN 2 LMS-updated AAC (e). Residual noise after SEeN 2 LMS-updated AAC (f). Residual noise after SSeN 2 LMS-updated AAC (g). Residual noise after normalized non-negative LMS (N 3 LMS)-updated AAC (h). Residual noise after SRN 3 LMS-updated AAC (i). Residual noise after SEN 3 LMS-updated AAC, and (j). Residual noise after SSN 3 LMS-updated AAC. (The x-axis is the number of samples and the y-axis is the residual noise amplitude in mV)

Impedance mismatch artifact (IMA) removal using the DWT adaptive artifact canceller

This experiment demonstrates impedance mismatch artifact cancelation from the ICG signal. The raw ICG signal is input to the DWT-based AAC, as shown in Fig. 1. The DWT constructs a reference signal using decomposition. This signal is effectively used as a reference signal for the AAC, as shown in the block diagram as n 2. Using feedback from the output z(n), the algorithm trains n 2 to closely correlate with the artifact component n 1 in the input ICG signal x(n). The SNR is used to measure the performance of the DWT-based AAC for EMA cancelation. The filtering results of the EMA cancelation are shown in Fig. 11. The results shown in Fig. 11d, g, h are clearer than the results for the other AACs. Figure 12 shows the residual error component after filtering with the various algorithms. The data in Fig. 12h show that the residual error in the case of SR N 3 LMSis less than that of the other algorithms. This also is supported by the SNR table, i.e., among all of the algorithms, SR N 3 LMS achieves the highest SNR at 8.4466 dBs. The data in Table 2 also show that all of the non-negative algorithms have non-negative weight coefficients when filtering the various artifacts. Finally, all of the performance measures indicate that SRN 3 LMSis better than the other algorithms with respect to SNR, RRMSE, convergence and computational complexity.

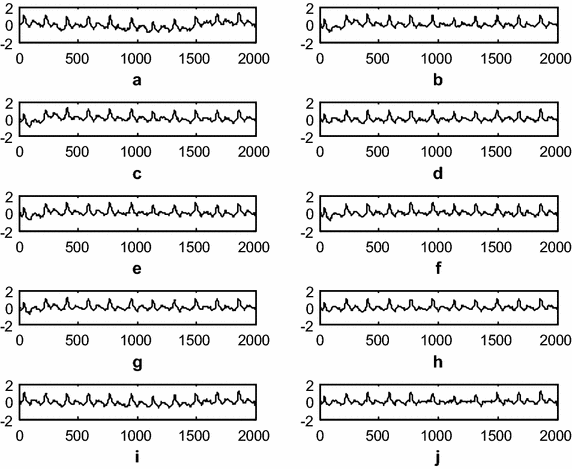

Fig. 11
Fig. 11

Filtering results for IMA from the various AACs (a). ICG signal with IMA (b). ICG filtering with LMS-updated AAC, (c). ICG filtering with exponential non-negative LMS (eN 2 LMS)-updated AAC (d). ICG filtering with SReN 2 LMS-updated AAC (e). ICG filtering with SEeN 2 LMS-updated AAC (f). ICG filtering with SSeN 2 LMS-updated AAC (g). ICG filtering with normalized non-negative LMS (N 3 LMS)-updated AAC (h). ICG filtering with SRN 3 LMS-updated AAC (i). ICG filtering with SEN 3 LMS-updated AAC, and (j). ICG filtering with SSN 3 LMS-updated AAC. (The x-axis is the number of samples and the y-axis is the signal amplitude in mV)

Fig. 12
Fig. 12

Comparison of the residual noise after IMA filtering (a). Original artifact component (b). Residual noise after LMS-updated AAC (c). Residual noise after exponential non-negative LMS (eN 2 LMS)-updated AAC (d). Residual noise after SReN 2 LMS-updated AAC (e). Residual noise after SEeN 2 LMS-updated AAC (f). Residual noise after SSeN 2 LMS-updated AAC (g). Residual noise after normalized non-negative LMS (N 3 LMS)-updated AAC (h). Residual noise after SRN 3 LMS-updated AAC (i). Residual noise after SEN 3 LMS-updated AAC, and (j). Residual noise after SSN 3 LMS-updated AAC. (The x-axis is the number of samples and the y-axis is the residual noise amplitude in mV)

Conclusion

This paper presents a new technique for enhancing ICG signals for telecardiology applications. The primary feature of the proposed adaptive artifact canceller is that it does not require a reference signal. The proposed model itself constructs a reference signal using DWT decomposition. This constructed signal is used to train the filter weight coefficients for the noise cancelation process. To avoid computational divergence caused by negative weights during abnormal heart conditions, we use a non-negative LMS algorithm and its variants. Based on this constraint, we developed various non-negative algorithms, that is, eN 2 LMS, SR eN 2 LMS, SE eN 2 LMS, SS eN 2 LMS, N 3 LMS, SRN 3 LMS, SEN 3 LMS and SS N 3 LMS. Among these algorithms, the sign regressor-based algorithms require fewer multiplications and achieve better convergence because of an additional normalization factor used in the signum function. Additionally, the convergence characteristics of the sign regressor version are slightly inferior to its unsigned version. Therefore, with respect to the SNR shown in Table 1, the weight coefficients shown in Table 2, the filtering results, the residual error, the RRMSE curves and the computational complexity, the results show that the SRN 3 LMS-based AAC performs better than the other algorithms. Hence, this DWT-based AAC is well-suited for noise cancelation in remote health care monitoring systems.

Notes

Declarations

Authors’ contributions

MM involved in the ICG data collection, Pre-processing. KCBR explained the algorithms and methodology. Then MM prepared MATLAB coding for these concepts. KCBR also corrected the syntax and grammar mistakes in the manuscript. Both authors read and approved the final manuscript.

Acknowledgements

The authors would like to thank the Psychophysiology Group, Department of Psychology, The University of Sydney, Sydney, Australia for providing raw ICG data.

Competing interests

The authors declare that they have no competing interests.

Consent to publish

The consent to publish has been obtained from the participant to report individual’s data.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Electronics and Communication Engineering, Jawaharlal Nehru Technological University, Kakinada, AP, 533003, India
(2)
Department of Electronics and Communication Engineering, JNTUK, University College of Engineering, Vizianagaram, AP, 535002, India

References

  1. American Heart Association (2015) Heart disease and stroke statistics. American Heart AssociationGoogle Scholar
  2. Barros AK, Yashizawa M, Yasuda Y (1995) Filtering non-correlated noise in impedance cardiography. IEEE Trans Biomed Eng 42(3):324–327View ArticleGoogle Scholar
  3. Bernstein DP (1986) Continuous noninvasive real-time monitoring of stroke volume and cardiac output by thoracic electrical bioimpedance. Crit Care Med 14(10):898–901View ArticleGoogle Scholar
  4. Brown BH, Barber DC, Morice AH, Leathard AD (1994) Cardiac and respiratory related electrical impedance changes in the human thorax. IEEE Trans Biomed Eng 41(8):729–734View ArticleGoogle Scholar
  5. Chen J, Richard C, Bermudez JCM, Honeine P (2011) Nonnegative least mean square algorithm. IEEE Trans Signal Process 59(11):5225–5235View ArticleGoogle Scholar
  6. Chen J, Richard C, Bermudez JCM, Honeine P (2014a) Variants of non negative least mean square algorithm and convergence analysis. IEEE Trans Signal Process 62(15):3990–4005View ArticleGoogle Scholar
  7. Chen J, Bermudez JCM, Richard C (2014b) Steady state performance of non negative least mean square algorithm and its variants. IEEE Signal Process Lett 21(8):928–932View ArticleGoogle Scholar
  8. Coifman RR, Donoho DL (1995) Translation invariant de-noising. In: Antoniadis A, Oppenheim G (eds) Wavelets and statistics. Springer, New York, pp 125–150View ArticleGoogle Scholar
  9. Dromer O, Alata O, Bernard O (2009) Impedance cardiography filtering using scale fourier linear combiner based on RLS algorithm. In: 31st annual international conference of the IEEE EMBS Minneapolis, Minnesota, USA, pp 6930–6933, 2–6 September, 2009. ISBN: 978-1-4244-3296-7/09Google Scholar
  10. Eweda E (1990) Analysis and design of a signed regressor LMS algorithm for stationary and nonstationary adaptive filtering with correlated Gaussian data. IEEE Trans Circuits Syst 37(11):1367–1374View ArticleGoogle Scholar
  11. Farhang-Boroujeny B (1998) Adaptive filters-theory and applications. Willey, ChichesterGoogle Scholar
  12. Goedhart AD, Kupper N, Willemsen G, Boomsma DI, De Geus EJ (2006) Temporal stability of ambulatory stroke volume and cardiac output measured by impedance cardiography. Biol Psychol 72(1):110–117View ArticleGoogle Scholar
  13. Ishiguro T, Umezu A, Yasuda Y, Horihata S, Barros AK (2006) Modified scaled Fourier linear combiner in thoracic impedance cardiography. Comput Biol Med 36:997–1013View ArticleGoogle Scholar
  14. Javaid AQ, Wiens AD, Fesmire NF, Weitnauer MA, Inan OT (2015) Quantifying and reducing posture-dependent distortion in ballistocardiogram measurements. IEEE J of Biomed Health Inform 19(5):1549–1556View ArticleGoogle Scholar
  15. Karthik GVS, Fathima SY, Rahman MZU, Ahamed SR, Lay-Ekuakille A (2013) Efficient signal conditioning techniques for brain activity in remote health monitoring network. IEEE Sens J 13(9):3276–3283View ArticleGoogle Scholar
  16. Koike Shinichi (1999) Analysis of adaptive filters using normalized signed regressor LMS algorithm. IEEE Trans Signal Process 47(10):2710–2723View ArticleGoogle Scholar
  17. Kubicek WG, Karnegis JN, Patterson RP, Witsoe DA, Mattson RH (1966) Development and evaluation of an impedance cardiography output system. Aerosp Med 37:1208–1212Google Scholar
  18. Kubicek WG, Kottke FJ, Ramos MU (1974) The Minnesota impedance cardiograph theory and applications. Biomed Eng 9:410–416Google Scholar
  19. Muzi M, Ebert TJ, Tristani FE, Jeutter DC, Barney JA, Smith JJ (1985) Determination of cardiac output using ensemble-averaged impedance cardiograms. J Appl Physiol 58:200–205Google Scholar
  20. Nagel JH, Shyu LY, Reddy SP, Hurwitz BE, McCabe PM, Schneiderman N (1989) New signal processing techniques for improved precession of non invasive impedance cardiography. Ann Biomed Eng 17:517–534View ArticleGoogle Scholar
  21. Peng H, Hu B, Shi Q, Ratcliffe M, Zhao Q, Qi Y, Gao G (2013) Removal of ocular artifacts in EEG an improved approach combining DWT and anc for portable applications. IEEE J Biomed Health Inf 17(3):600606Google Scholar
  22. Percival DB, Walden AT (2000) Wavelet methods for time series analysis. Cambridge University Press, CambridgeView ArticleGoogle Scholar
  23. Rahman MZU, Ahamed SR, Reddy DVRK (2011) Efficient sign based normalized adaptive filtering techniques for cancelation of artifacts in ECG signals: application to wireless biotelemetry. Signal Process 91:225–239View ArticleGoogle Scholar
  24. Rahman MZU, Ahamed SR, Reddy DVRK (2012) Efficient and simplified adaptive noise cancellers for ECG sensor based remote health monitoring. IEEE Sens J 12(3):566–573View ArticleGoogle Scholar
  25. Rahman MZU, Karthik GVS, Fathima SY, Lay- Ekuakille A (2013) An efficient cardiac signal enhancement using time-frequency realization of leaky adaptive noise cancelers for remote heath monitoring systems. Measurement 43:3815–3835View ArticleGoogle Scholar
  26. Riese H, Groot PFC, Van Den Berg M, Kupper NHM, Magnee EHB, Rohaan EJ (2003) Large-scale ensemble averaging of ambulatory impedance cardiograms. Behav Res Methods Instrum Comput 35(3):467–477View ArticleGoogle Scholar
  27. Scherhag A, Kaden JJ, Kentschke E, Sueselbeck T, Borggrefe M (2005) Comparison of impedance cardiography and thermodilution derived measurement of stroke volume and cardiac output at rest and during exercise testing. Cardiovasc Drugs Therapy 19:141–147View ArticleGoogle Scholar
  28. Sebastian T, Pandey PC, Naidu SMM, Pandey VK (2011) Wavelet Based denoising for suppression of respiratory and motion artifacts in impedance cardiography. Computing in cardiology 2011, Hangzhou, China, INSPEC Accession Number 12591921, pp 501–504, 18–21 September 2011Google Scholar
  29. Sramek BB (1983) Electrical bioimpedance. Med Electron 14:95–103Google Scholar
  30. Thakor NV, Zhu Y-S (1991) Applications of adaptive filtering to ECG analysis: noise cancelation and arrhythmia detection. IEEE Trans Biomed Eng 38(8):785–794View ArticleGoogle Scholar
  31. Wang X, Sun HH, Water JMVD (1995) An advanced signal processing technique for impedance cardiography. IEEE Trans Biomed Eng 42(2):224–230View ArticleGoogle Scholar
  32. Willemsen GHM, De Geus EJ, Klaver CHAM, Van Doormen LP, Carroll D (1996) Ambulatory monitoring of the impedance cardiogram. Psychophysiology 33:184–193View ArticleGoogle Scholar
  33. Woltjer HH, Bogaard HJ, de Vries PMJM (1997) The technique of impedance cardiography. Eur Heart J 18(9):1396–1403View ArticleGoogle Scholar
  34. World Health Organization (2015a) Health in 2015: from Millennium development goals to sustainable development goals. World Health OrganizationGoogle Scholar
  35. World Health Organization (2015b) World Health Organization Fact Sheets on Cardiovascular Diseases. World Health Organization, Fact sheet N317, January, 2015Google Scholar
  36. Yamamoto Y, Mokushi K, Tamura S, Mutoh Y, Miyashita M, Hamamoto H (1988) Design and implementation of a digital filter for beat by-beat impedance cardiography. IEEE Trans Biomed Eng 35(12):1086–1090View ArticleGoogle Scholar

Copyright

© The Author(s) 2016

Advertisement
