Open Access

A new Sumudu transform iterative method for time-fractional Cauchy reaction–diffusion equation

Contributed equally
SpringerPlus20165:865

https://doi.org/10.1186/s40064-016-2426-8

Received: 8 November 2015

Accepted: 26 May 2016

Published: 24 June 2016

Abstract

In this paper, a new Sumudu transform iterative method is established and successfully applied to find the approximate analytical solutions for time-fractional Cauchy reaction–diffusion equations. The approach is easy to implement and understand. The numerical results show that the proposed method is very simple and efficient.

Keywords

Sumudu transform Caputo fractional derivative Diffusion equation

Background

The fractional differential equations have gained a lot of attention of physicists, mathematicians and engineers in the past two decades (Oldham and Spanier 1974; Hilfer 2000; Kilbas et al. 1993; Podlubny 1999; Debnath 1997; Yang and Srivastava 2015; Yang et al. 2015b, c, d; Wang et al. 2014, 2015a, b, c; Jiwari and Mittal 2011). All kinds of interdisciplinary problems can be modeled with the help of fractional derivatives. However, it is very difficult for us to find their exact solutions to most fractional differential equations, so numerical and approximation methods have to be used. So far, many methods have been used to solve linear and nonlinear fractional differential equations. For example, the Adomain decomposition method (ADM) (Wazwaz 1999), the homotopy perturbation method (HPM) (He 1999), the variational iteration method (VIM) (Safari et al. 2009), homotopy analysis method (HAM) (Liao 1992, 2004) and differential quadrature method (Jiwari et al. 2012). The time-fractional Cauchy reaction–diffusion equation (Verma et al. 2014; Jiwari et al. 2014; Mittal and Jiwari 2011) is one of all the important fractional partial differential equations. The time-fractional Cauchy reaction–diffusion equations can be used to describe many kinds of linear and nonlinear systems in chemistry, physics, ecology, biology and engineering (Britton 1998; Grindrod 1996). Kumar (2013) have obtained the approximate solutions of time-fractional Cauchy reaction–diffusion equations by using the homotopy perturbation transform method with the help of Laplace transform. In Gejji and Jafari (2006), proposed NIM for solving linear and nonlinear integral and differential equation. The NIM is very easy to understand and implement and obtain better result than existing methods.

In this paper, we establish a new Sumudu transform iterative method (NSTIM) with the help of the Sumudu transform (Chaurasia and Singh 2010) for obtaining analytical and numerical solutions of the time-fractional Cauchy reaction–diffusion equations. Our iterative method is new and generalizes NIM due to Gejji and Jafari (2006). The advantage of this new method which we proposed is to make the calculation simple and highly accurate to approximate the exact solution.

Basic definition

In this section, we give some basic definitions and properties of fractional calculus and Sumudu transform, which we will use in this paper:

Definition 1

A real function \(f(x),\,x>0\), is said to be in the space \(C_{\mu }\), \(\mu \in {R}\) if there exists a real number \(p,\,(p>\mu )\), such that \(f(x)=x^{p}f_{1}(x)\), where \(f_{1}(x)\in {C[0,\infty )}\), and it is said to be in the space \(C_{\mu }^{m}\) if \(f^{(m)}\in {C_{\mu }}\), \(m\in {N}\) (Dimovski 1982).

Definition 2

The Riemann–Liouville fractional integral operator of order \(\alpha \ge 0\), of a function \(f(x)\in {C_{\mu }}\), \(\mu \ge -1\) is defined as (Hilfer 2000; Yang et al. 2015a)
$$\begin{aligned} I^{\alpha }f(x)= \left\{ \begin{array}{ll} \frac{1}{\Gamma (\alpha )}\int _{0}^{x}(x-t)^{\alpha -1}f(t)dt,&{} \quad \alpha>0,\,\,x>0,\\ I^{0}f(x)=f(x),&{}\quad \alpha =0, \end{array} \right. \end{aligned}$$
(1)
where \(\Gamma (\cdot )\) is the well-known Gamma function.

Properties of the operator \(I^{\alpha }\), which we will use here, are as follows

For \(f\in {C_{\mu }},\,\mu ,\gamma \ge -1,\,\alpha ,\beta \ge 0\),
$$\begin{aligned}&(1)\,I^{\alpha }I^{\beta }=I^{\beta }I^{\alpha }f(x)=I^{\alpha +\beta }f(x),\\&(2)\,I^{\alpha }x^{\gamma }=\frac{\Gamma (\gamma +1)}{\Gamma (\alpha +\gamma +1)}x^{\alpha +\gamma }. \end{aligned}$$

Definition 3

The fractional derivative of f(x) in the Caputo sense is defined as (Hilfer 2000; Yang et al. 2015a)
$$\begin{aligned} D^{\alpha }f(x)=I^{n-\alpha }D^{n}f(x)=\frac{1}{\Gamma (n-\alpha )}\int _{0}^{x}(x-t)^{n-\alpha -1}f^{(n)}(t)dt, \end{aligned}$$
(2)
where \(n-1<\alpha \le {n},\,n\in {N},\,x>0,\,f\in {C_{-1}^{n}}\).
The following are the basic properties of the operator \(D^{\alpha }\):
$$\begin{aligned}&(1)\,D^{\alpha }I^{\alpha }f(x)=f(x),\\&(2)\,I^{\alpha }D^{\alpha }f(x)=f(x)-\sum _{k=0}^{n-1}f^{(k)}(0^{+})\frac{x}{k!},\quad x>0. \end{aligned}$$

Definition 4

The Mittag–Leffler function \(E_{\alpha }\) with \(\alpha >0\) is defined as (Chaurasia and Singh 2010)
$$\begin{aligned} E_{\alpha }(z)=\sum _{n=0}^{\infty }\frac{z^{\alpha }}{\Gamma (n\alpha +1)}. \end{aligned}$$
(3)

Definition 5

The Sumudu transform is defined over the set of function \(A=\{f(t)|\exists {M},\tau _{1},\tau _{2}>0,|f(t)|<Me^{\frac{|t|}{\tau _{j}}}, if t\in (-1)^{j}\times [0,\infty )\}\) by the following formula (Chaurasia and Singh 2010)
$$\begin{aligned} S[f(t)]=\int _{0}^{\infty }e^{-t}f(vt)dt,\quad v\in (-\tau _{1},\tau _{2}). \end{aligned}$$
(4)

Definition 6

The Sumudu transform of the Caputo fractional derivative is defined as (Chaurasia and Singh 2010)
$$\begin{aligned} S[D_{x}^{n\alpha }u(x,t)]=v^{-n\alpha }S[u(x,t)]-\sum _{k=0}^{n-1}v^{(-n\alpha +k)}u^{(k)}(0,t),\quad n-1<n\alpha \le {n}. \end{aligned}$$
(5)

The new Sumudu transform iterative method (NSTIM)

To illustrate the basic idea of the NSTIM for the fractional partial differential equation, we consider the following equation with the initial condition as
$$\left\{ \begin{array}{lll} &D_{t}^{n\alpha }u(x,t)+Lu(x,t)+Ru(x,t)=g(x,t),\\ &n-1<n\alpha \le {n},\\ &u(x,0)=h(x). \end{array} \right.$$
(6)
where \(D_{t}^{n\alpha }\) is the Caputo fractional derivative operator, \(D_{t}^{n\alpha }=\frac{\partial ^{n\alpha }}{\partial {t}^{n\alpha }}\), L is a linear operator, R is general nonlinear operator, g(xt) is continuous function.
Applying Sumudu transform on both sides of Eq. (6), we get
$$\begin{aligned} S\left[ D_{t}^{n\alpha }u(x,t)\right] +S\left[ Lu(x,t)+Ru(x,t)\right] =S[g(x,t)]. \end{aligned}$$
(7)
Using the property of the Sumudu transform, we can obtain
$$\begin{aligned} S[u(x,t)]-v^{n\alpha }\sum _{k=0}^{n-1}u^{(k)}(x,0)+v^{n\alpha }S[Lu(x,t)+Ru(x,t)-g(x,t)]=0. \end{aligned}$$
(8)
On simplifying (8), we have
$$\begin{aligned} S[u(x,t)]=v^{n\alpha }\sum _{k=0}^{n-1}u^{(k)}(x,0)-v^{n\alpha }S[Lu(x,t)+Ru(x,t)-g(x,t)]. \end{aligned}$$
(9)
Operating the inverse Sumudu transform on both sides of Eq. (9), we get
$$\begin{aligned} u(x,t)=S^{-1}\left[ v^{n\alpha }\sum _{k=0}^{n-1}u^{(k)}(x,0)\right] -S^{-1}[v^{n\alpha }S[Lu(x,t)+Ru(x,t)-g(x,t)]]. \end{aligned}$$
(10)
Next assume that
$$\left\{ \begin{array}{lll} &{}f(x,t)=S^{-1}[v^{n\alpha }\sum _{k=0}^{n-1}u^{(k)}(x,0)+v^{\alpha }S[g(x,t)]],\\ &{}N(u(x,t))=-S^{-1}[v^{n\alpha }S[Ru(x,t)]],\\ &{}K(u(x,t))=-S^{-1}[v^{n\alpha }S[Lu(x,t)]]. \end{array} \right.$$
Thus, Eq. (10) can be written in the following form
$$\begin{aligned} u(x,t)=f(x,t)+K(u(x,t))+N(u(x,t)), \end{aligned}$$
(11)
where f is a known function, K and N are given linear and nonlinear operator of u, respectively. The solution of Eq. (11) can be written in the series form
$$\begin{aligned} u(x,t)=\sum _{i=0}^{\infty }u_{i}(x,t), \end{aligned}$$
(12)
we have
$$\begin{aligned} K\left( \sum _{i=0}^{\infty }u_{i}\right) =\sum _{i=0}^{\infty }K(u_{i}). \end{aligned}$$
(13)
The nonlinear operator N is decomposed as (see Gejji and Jafari 2006)
$$\begin{aligned} N\left( \sum _{i=0}^{\infty }u_{i}\right) =N(u_{0})+\sum _{i=0}^{\infty }\left\{ N\left( \sum _{j=0}^{i}u_{j}\right) -N\left( \sum _{j=0}^{i-1}u_{j}\right) \right\} . \end{aligned}$$
(14)
Therefore, Eq. (11) can be represented as the following form
$$\begin{aligned} \sum _{i=1}^{\infty }u_{i}=f+\sum _{i=0}^{\infty }K(u_{i})+N(u_{0}) +\sum _{i=0}^{\infty }\left\{ N\left( \sum _{j=0}^{i}u_{j}\right) -N\left( \sum _{j=0}^{i-1}u_{j}\right) \right\} . \end{aligned}$$
(15)
Defining the recurrence relation
$$\left\{ \begin{array}{lll} &{}u_{0}=f,\\ &{}u_{1}=K(u_{0})+N(u_{0}),\\ &{}u_{m+1}=K(u_{m})+N\left( u_{0}+\cdots +u_{m}\right) -N\left( u_{0}+u_{1}+\cdots +u_{m-1}\right) , \end{array} \right.$$
(16)
we have
$$\begin{aligned} (u_{1}+\cdots +u_{m+1})=K(u_{0}+\cdots +u_{m})+N(u_{0}+\cdots +u_{m}). \end{aligned}$$
(17)
Namely
$$\begin{aligned} \sum _{i=0}^{\infty }u_{i}=f+K\left( \sum _{i=0}^{\infty }u_{i}\right) +N\left( \sum _{i=0}^{\infty }u_{i}\right) . \end{aligned}$$
(18)
The m-term approximate solution of Eq. (11) is given by
$$\begin{aligned} u=u_{0}+u_{1}+u_{2}+u_{3}+\cdots +u_{m-1}. \end{aligned}$$
(19)
Similarly, the convergence of the NSTIM, we can refer the paper Gejji and Jafari (2006 and Bhalekar and Gejji (2011).

Numerical examples

Example 1

Consider the following time-fractional Cauchy reaction–diffusion equation (Kumar 2013)
$$\left\{ \begin{array}{lll} &{}u_{t}^{\alpha }(x,t)=u_{xx}(x,t)-u(x,t),\\ &{}0<\alpha \le 1,\\ &{}u(x,0)=e^{-x}+x. \end{array} \right.$$
(20)
Applying Sumudu transform on both sides of Eq. (20) and using the differential property of Sumudu transform, we obtain
$$\begin{aligned} S[u]=u(x,0)+v^{\alpha }S[u_{xx}-u]. \end{aligned}$$
(21)
Using the inverse Sumudu transform on both sides of Eq. (21), we get
$$\begin{aligned} u(x,t)=S^{-1}[(e^{-x}+x)]+S^{-1}[v^{\alpha }S[u_{xx}-u]], \end{aligned}$$
(22)
namely
$$\begin{aligned} u(x,t)=e^{-x}+x+S^{-1}[v^{\alpha }S[u_{xx}-u]]. \end{aligned}$$
(23)
According to the NSTIM, we have
$$\left\{ \begin{array}{ll} &{}u_{0}=e^{-x}+x,\\ &{}K[u(x,t)]=S^{-1}[v^{\alpha }S[u_{xx}-u]]. \end{array} \right.$$
By iteration, the following results are obtained
$$\begin{aligned}&u_{0}=e^{-x}+x,\\&u_{1}=-\frac{xt^{\alpha }}{\Gamma (\alpha +1)},\\&u_{2}=\frac{xt^{2\alpha }}{\Gamma (2\alpha +1)},\\&u_{3}=-\frac{xt^{3\alpha }}{\Gamma (3\alpha +1)},\\&u_{4}=\frac{xt^{4\alpha }}{\Gamma (4\alpha +1)},\\&\ldots \ldots \\&u_{n}=(-1)^{n}\frac{xt^{n\alpha }}{\Gamma (n\alpha +1)}. \end{aligned}$$
Therefore, we have the solution of the problem as follows
$$\begin{aligned} u(x,t)&=e^{-x}+x\left( 1-\frac{t^{\alpha }}{\Gamma (\alpha +1)}+\frac{t^{2\alpha }}{\Gamma (2\alpha +1)}-\frac{t^{3\alpha }}{\Gamma (3\alpha +1)} +\cdots +(-1)^{n}\frac{t^{n\alpha }}{\Gamma (n\alpha +1)}\right) \nonumber \\&=e^{-x}+xE_{\alpha }(-t^{\alpha }). \end{aligned}$$
(24)
The Eq. (24) is approximate to the form \(u(x,t)=e^{-x}+xe^{-t}\) for \(\alpha =1\), which is the exact solution of Eq. (20) for \(\alpha =1\). The result is same as HPTM (Kumar 2013).

Example 2

We consider the following time-fractional Cauchy reaction–diffusion equation (Kumar 2013) as follows
$$\left\{ \begin{array}{lll} &{}u_{t}^{\alpha }(x,t)=u_{xx}(x,t)-(1+4x^{2})u(x,t),\\ &{}0<\alpha \le 1,\\ &{}u(x,0)=e^{x^{2}}. \end{array} \right.$$
(25)
Applying Sumudu transform on both sides of Eq. (25) and using the differential property of Sumudu transform, we obtain
$$\begin{aligned} S[u]=u(x,0)+v^{\alpha }S\left[ (u_{xx}(x,t)-(1+4x^{2})u(x,t))\right] . \end{aligned}$$
(26)
Using the inverse Sumudu transform on both sides of Eq. (26), we have
$$\begin{aligned} u(x,t)=e^{x^{2}}+S^{-1}[v^{\alpha }\left[ S\left[ (u_{xx}(x,t)-(1+4x^{2})u(x,t))\right] \right] . \end{aligned}$$
(27)
According to the NSTIM, we can obtain
$$\left\{ \begin{array}{ll} &{}u_{0}=e^{x^{2}},\\ &{}K[u(x,t)]=S^{-1}[v^{\alpha }\left[ S[(u_{xx}(x,t)-(1+4x^{2})u(x,t))]\right] . \end{array} \right.$$
By iteration, we get the following results as
$$\begin{aligned}&u_{0}=e^{x^{2}},\\&u_{1}=\frac{e^{x^{2}}t^{\alpha }}{\Gamma (\alpha +1)},\\&u_{2}=\frac{e^{x^{2}}t^{2\alpha }}{\Gamma (2\alpha +1)},\\&u_{3}=\frac{e^{x^{2}}t^{3\alpha }}{\Gamma (3\alpha +1)},\\&u_{4}=\frac{e^{x^{2}}t^{4\alpha }}{\Gamma (4\alpha +1)},\\&\ldots \ldots \\&u_{n}=\frac{e^{x^{2}}t^{n\alpha }}{\Gamma (n\alpha +1)}. \end{aligned}$$
The solution of Eq. (25) is given as
$$\begin{aligned} u(x,t)&=e^{x^{2}}\left( 1+\frac{t^{\alpha }}{\Gamma (\alpha +1)}+\frac{t^{2\alpha }}{\Gamma (2\alpha +1)} +\frac{t^{3\alpha }}{\Gamma (3\alpha +1)}+\cdots +\frac{t^{n\alpha }}{\Gamma (n\alpha +1)}\right) \nonumber \\&=e^{x^{2}}E_{\alpha }(t^{\alpha }). \end{aligned}$$
(28)

The series (28) is approximate to the form \(u(x,t)=e^{x^{2}+t}\) for \(\alpha =1\), which is the exact solution of Eq. (25) for \(\alpha =1\). The result is complete agreement with HPTM (Kumar 2013).

Example 3

Consider the following time-fractional Cauchy reaction–diffusion equation (Kumar 2013) as follows
$$\left\{ \begin{array}{lll} &{}u_{t}^{\alpha }(x,t)=u_{xx}u(x,t)-(4x^{2}-2t+2)u(x,t),\\ &{}0<\alpha \le 1,\\ &{}u(x,0)=e^{x^{2}}. \end{array} \right.$$
(29)
Applying Sumudu transform on both sides of Eq. (29) and using the differential property of Sumudu transform, we obtain
$$\begin{aligned} S[u(x,t)]=u(x,0)+v^{\alpha }S\left[ u_{xx}(x,t)-(4x^{2}-2t+2)u(x,t)\right] . \end{aligned}$$
(30)
Using the inverse Sumudu transform on both sides of Eq. (30), we can get
$$\begin{aligned} u(x,t)=e^{x^{2}}+S^{-1}\left[ v^{\alpha }S[u_{xx}(x,t)-(4x^{2}-2t+2)u(x,t)]\right] . \end{aligned}$$
(31)
According to the NSTIM, we have
$$\left\{ \begin{array}{ll} &{}u_{0}=e^{x^{2}},\\ &{}K[u(x,t)]=S^{-1}\left[ v^{\alpha }S[u_{xx}(x,t)-(4x^{2}-2t+2)u(x,t)]\right] . \end{array} \right.$$
By iteration, the following results are obtained
$$\begin{aligned}&u_{0}=e^{x^{2}},\\&u_{1}=2e^{x^{2}}\frac{t^{\alpha +1}}{\Gamma (\alpha +2)},\\&u_{2}=4e^{x^{2}}\frac{\Gamma (\alpha +3)t^{2\alpha +2}}{\Gamma (\alpha +2)\Gamma (2\alpha +3)},\\&u_{3}=8e^{x^{2}}\frac{\Gamma (\alpha +3)\Gamma (2\alpha +4)t^{3\alpha +3}}{\Gamma (\alpha +2) \Gamma (2\alpha +3)\Gamma (3\alpha +4)},\\&u_{4}=16e^{x^{2}}\frac{\Gamma (\alpha +3)\Gamma (2\alpha +4)\Gamma (3\alpha +5) t^{4\alpha +4}}{\Gamma (\alpha +2)\Gamma (2\alpha +3)\Gamma (3\alpha +4)\Gamma (4\alpha +5)},\\&\ldots \end{aligned}$$
Thus, the solution of Eq. (29) can be written in the following form
$$\begin{aligned} u&=u_{0}+u_{1}+u_{2}+u_{3}+u_{4}+\cdots \nonumber \\&=e^{x^{2}}+2e^{x^{2}}\frac{t^{\alpha +1}}{\Gamma (\alpha +2)}+4e^{x^{2}}\frac{\Gamma (\alpha +3)t^{2\alpha +2}}{\Gamma (\alpha +2)\Gamma (2\alpha +3)}\nonumber \\&\quad +\,8e^{x^{2}}\frac{\Gamma (\alpha +3)\Gamma (2\alpha +4)t^{3\alpha +3}}{\Gamma (\alpha +2) \Gamma (2\alpha +3)\Gamma (3\alpha +4)} \nonumber \\&\quad +\,16e^{x^{2}}\frac{\Gamma (\alpha +3)\Gamma (2\alpha +4)\Gamma (3\alpha +5)t^{4\alpha +4}}{\Gamma (\alpha +2)\Gamma (2\alpha +3)\Gamma (3\alpha +4)\Gamma (4\alpha +5)}+\cdots \end{aligned}$$
(32)

The exact solution of Eq. (29) is \(u(x,t)=e^{x^{2}+t^{2}}\) for \(\alpha =1\).

Remark 1

The above are three examples of the linear fractional Cauchy reaction–diffusion equation. Figures 1234567891011 and 12 respectively show the approximate solutions of the linear fractional Cauchy reaction–diffusion equations at different values for \(\alpha =0.6, 0.8, 1\) and the exact solutions for \(\alpha =1\). It is very easy to find that the solution continuously depend on the values of time-fractional derivative.
Fig. 1

The 10th-order approximate solution of Eq. (20) for \(\alpha =0.6\)

Fig. 2

The 10th-order approximate solution of Eq. (20) for \(\alpha =0.8\)

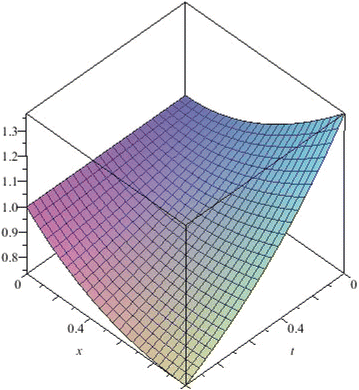

Fig. 3

The 10th-order approximate solution of Eq. (20) for \(\alpha =1\)

Fig. 4

The exact solution of Eq. (20) for \(\alpha =1\)

Fig. 5

The 10th-order approximate solution of Eq. (25) for \(\alpha =0.6\)

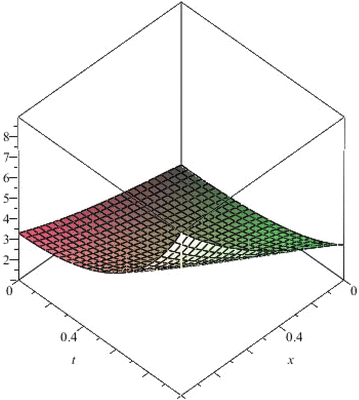

Fig. 6

The 10th-order approximate solution of Eq. (25) for \(\alpha =0.8\)

Fig. 7

The 10th-order approximate solution of Eq. (25) for \(\alpha =1\)

Fig. 8

The exact solution of Eq. (25) for \(\alpha =1\)

Fig. 9

The 5th-order approximate solution of Eq. (29) for \(\alpha =0.6\)

Fig. 10

The 5th-order approximate solution of Eq. (29) for \(\alpha =0.8\)

Fig. 11

The 5th-order approximate solution of Eq. (29) for \(\alpha =1\)

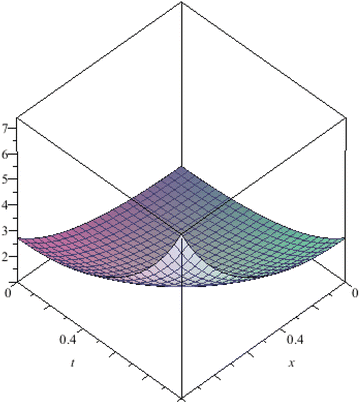

Fig. 12

The exact solution of Eq. (29) for \(\alpha =1\)

Remark 2

Figures 1314 and 15 show the absolute error between approximate solutions and exact solutions for \(\alpha =1\). In Tables 12 and  3, we compute the approximate solutions and the exact solutions at different points for \(\alpha =1\). By comparison, we find that it is evident the accuracy and efficiency of this method can be dramatically enhanced by computing further terms. In this paper, we only use several terms. If we use more terms, the accuracy of the approximate solution will be greatly improved. Therefore, the proposed method is accurate and efficient for linear differential equation.
Table 1

Comparison between the 10th-order approximate solution of Eq. (20) and the exact solution for \(\alpha =1\)

x

t

\(u_{exa}\)

\(u_{NSTIM}\)

\(|u_{exa}-u_{10app}|\)

\(\alpha =1\)



 0.2

0.3

0.9668943972

0.9668943972

\(0.0\times 10^{-10}\)

 0.4

0.3

0.9666473343

0.9666473342

\(1.0\times 10^{-10}\)

 0.5

0.6

0.8809364777

0.8809364778

\(1.0\times 10^{-10}\)

 0.7

0.8

0.8111155787

0.8111155801

\(1.4\times 10^{-9}\)

Table 2

Comparison between the 10th-order approximate solution of Eq. (25) and the exact solution for \(\alpha =1\)

x

t

\(u_{exa}\)

\(u_{NSTIM}\)

\(|u_{exa}-u_{10app}|\)

\(\alpha =1\)

 0.3

0.4

1.632316221

1.632316221

\(0.0\times 10^{-9}\)

 0.5

0.6

2.339646852

2.339646853

\(1.0\times 10^{-9}\)

 0.6

0.7

2.886370989

2.886370989

\(0.0\times 10^{-9}\)

 0.7

0.8

3.632786555

3.632786553

\(2.0\times 10^{-9}\)

Table 3

Comparison between the 5th-order approximate solution of Eq. (29) and the exact solution for \(\alpha =1\)

x

t

\(u_{exa}\)

\(u_{NSTIM}\)

\(|u_{exa}-u_{5app}|\)

\(\alpha =1\)

 0.2

0.3

1.138828383

1.138828331

0.000000052

 0.4

0.5

1.506817785

1.506807822

0.000009963

 0.3

0.6

1.568312186

1.568253566

0.000058620

 0.7

0.8

3.095656500

3.094024665

0.001631835

Fig. 13

The absolute error \(|u_{exa}-u_{10app}|\) of Eq. (20) for \(\alpha =1\)

Fig. 14

The absolute error \(|u_{exa}-u_{10app}|\) of Eq. (25) for \(\alpha =1\)

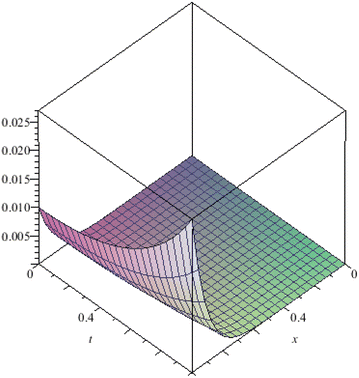

Fig. 15

The absolute error \(|u_{exa}-u_{5app}|\) of Eq. (29) for \(\alpha =1\)

Example 4

In this example, we consider the nonlinear fractional Cauchy reaction–diffusion equation (Momani and Yildirim 2010) as follows
$$\left\{ \begin{array}{lll} &{}u_{t}^{\alpha }u=u_{xx}-u_{x}+uu_{xx}-u^{2}+u,\\ &{}0<\alpha \le 1,\\ &{}u(x,0)=e^{x}. \end{array} \right.$$
(33)
Operating the Sumudu transform on both sides of Eq. (33) and applying the property of Sumudu transform for fractional derivative, we get
$$\begin{aligned} S[u]=u(x,0)+v^{\alpha }S[u_{xx}-u_{x}+uu_{xx}-u^{2}+u]. \end{aligned}$$
(34)
Using the inverse Sumudu transform technique on the both sides of Eq. (34), we have
$$\begin{aligned} u(x,t)=e^{x}+S^{-1}[v^{\alpha }S[u_{xx}-u_{x}+u]]+S^{-1}[v^{\alpha }S[uu_{xx}-u^{2}]]. \end{aligned}$$
(35)
According to the NSTIM, we get
$$\left\{ \begin{array}{lll} &{}u_{0}=e^{x},\\ &{}K[u(x,t)]=S^{-1}[v^{\alpha }S[u_{xx}-u_{x}+u]],\\ &{}N[u(x,t)]=S^{-1}[v^{\alpha }S[uu_{xx}-u^{2}]]. \end{array} \right.$$
By iteration, the following result is obtained
$$\begin{aligned}&u_{0}=e^{x},\\&u_{1}=\frac{e^{x}t^{\alpha }}{\Gamma (\alpha +1)},\\&u_{2}=\frac{e^{x}t^{2\alpha }}{\Gamma (2\alpha +1)},\\&u_{3}=\frac{e^{x}t^{3\alpha }}{\Gamma (3\alpha +1)},\\&u_{4}=\frac{e^{x}t^{4\alpha }}{\Gamma (4\alpha +1)},\\&\ldots \ldots \\&u_{n}=\frac{e^{x}t^{n\alpha }}{\Gamma (n\alpha +1)}. \end{aligned}$$
Therefore, the solution of the Eq. (33) is given as
$$\begin{aligned} u(x,t)&=e^{x}\left(1+\frac{t^{\alpha }}{\Gamma (\alpha +1)}+\frac{t^{2\alpha }}{\Gamma (2\alpha +1)} +\frac{t^{3\alpha }}{\Gamma (3\alpha +1)}+\cdots +\frac{t^{n\alpha }}{\Gamma (n\alpha +1)}\right) \\& =e^{x}E_{\alpha }(t^{\alpha })\end{aligned}$$
(36)
The result is complete agreement with HPM (Momani and Yildirim 2010). when \(\alpha =1\), (36) can be expressed into the following form as
$$\begin{aligned} u(x,t)=e^{x}E(t)=\sum _{k=0}^{\infty }\frac{t^{k}}{\Gamma (1+k)}=e^{x}\sum _{k=0}^{\infty }\frac{t^{k}}{k!}=e^{x+t}. \end{aligned}$$
(37)

Remark 3

The Eq. (37) is the exact solution of Eq. (33) for \(\alpha =1\).

Remark 4

In this example, we apply the NSTIM to solve the nonlinear Cauchy reaction–diffusion equation. In Table 4, we compute the different values between the 10th-order approximate solution and the exact solution of Eq. (33) for \(\alpha =1\). Figs. 161718 and 19 show 10th-order approximate solutions for \(\alpha =0.6,\,\alpha =0.8,\,\alpha =1\), and the exact solution of Eq. (33). Figure 20 show the absolute error between approximate solution and exact solution for \(\alpha =1\). By comparing Table 4 with Figs. 161718 and 19, we can find the NSTIM is very accurate and efficient to solve the nonlinear Cauchy reaction-equation. The accuracy of this method depends on the number of terms. So, the NSTIM is a very efficient method to solve the nonlinear fractional differential equation.
Table 4

Comparison between the 10th-order approximate solution of Eq. (33) and the exact solution for \(\alpha =1\)

x

t

\(u_{exa}\)

\(u_{NSTIM}\)

\(|u_{exa}-u_{10app}|\)

\(\alpha =1\)

 0.2

0.2

1.491824698

1.491824698

\(0.0\times 10^{-9}\)

 0.4

0.3

2.013752707

2.013752707

\(0.0\times 10^{-9}\)

 0.6

0.4

2.718281828

2.718281129

\(1.0\times 10^{-9}\)

 0.7

0.8

4.481689070

4.481689066

\(4.0\times 10^{-9}\)

Fig. 16

The 10th-order approximate solution of Eq. (33) for \(\alpha =0.6\)

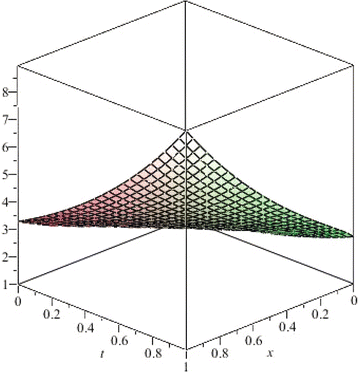

Fig. 17

The 10th-order approximate solution of Eq. (33) for \(\alpha =0.8\)

Fig. 18

The 10th-order approximate solution of Eq. (33) for \(\alpha =1\)

Fig. 19

The exact solution of Eq. (33) for \(\alpha =1\)

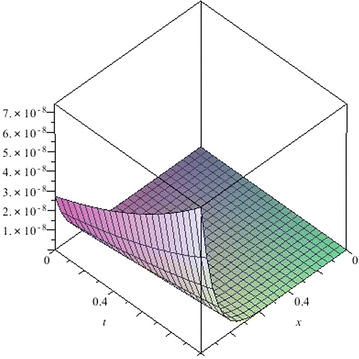

Fig. 20

The absolute error \(|u_{exa}-u_{10app}|\) of Eq. (33) for \(\alpha =1\)

Conclusion

In this paper, the new Sumudu transform iterative method has been successfully applied for finding the approximate solution for the time-fractional Cauchy reaction–diffusion equation. The advantage of the new Sumudu transform iterative method (NSTIM) is to combine new iterative method (NIM) and Sumudu transform for obtaining exact and approximate analytical solutions for the time-fractional Cauchy reaction–diffusion equations.The numerical results show that the Sumudu transform iterative method is highly efficient and accurate with less calculation than existing methods.

Notes

Declarations

Authors' contributions

KW and SL contributed substantially to this paper, participated in drafting and checking the manuscript and have approved the version to be published. Both authors read and approved the final manuscript.

Acknowlegements

The authors are very grateful to the editor and referees for their insightful comments and suggestions. This work was supported by the National Natural Science Foundation of China (No. 61373174).

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
School of Mathematics and Statistics, Xidian University

References

  1. Bhalekar S, Gejji VD (2011) Convergence of the new iterative method. Int J Differ Eq 2011:989065. doi:https://doi.org/10.1155/2011/989065 Google Scholar
  2. Britton NF (1998) Reaction–diffusion equations and their applications to biology. Academic Press/Harcourt Brace Jovanovich Publishers, New YorkGoogle Scholar
  3. Chaurasia VBL, Singh J (2010) Application of Sumudu transform in Schrödinger equation occurring in quantum mechanics. Appl Math Sci 4(7):2843–2850Google Scholar
  4. Debnath L (1997) Nonlinear partial differential equations for scientist and engineers. Birkhauser, BostonView ArticleGoogle Scholar
  5. Dimovski IH (1982) Convolutional calculus. Bulgariam Academy of Science, SofiaGoogle Scholar
  6. Gejji VD, Jafari H (2006) An iterative method for solving non linear functional equations. J Math Anal Appl 316:753–763View ArticleGoogle Scholar
  7. Grindrod P (1996) The theory and applications of reaction–diffusion equations. In: Oxford applied mathematics and computing science series, 2nd edn. The Clarendon Press/Oxford University Press, New YorkGoogle Scholar
  8. He JH (1999) Homotopy perturbation technique. Comput Method Appl Mech Eng 178(3):257–262View ArticleGoogle Scholar
  9. Hilfer R (2000) Application of fractional calculus in physics. World Scientific, SingaporeView ArticleGoogle Scholar
  10. Jiwari R, Mittal RC (2011) A higher order numerical scheme for singularly perturbed Burger–Huxley equation. J Appl Math Inform 29(3–4):813–829Google Scholar
  11. Jiwari R, Pandit S, Mittal RC (2012) Numerical simulation of two-dimensional sine-Gordon solitons by differential quadrature method. Comput Phys Commun 183:600–616View ArticleGoogle Scholar
  12. Jiwari R, Yuan JY, Jiwari R (2014) A computational modeling of two dimensional reaction–diffusion Brusselator system arising in chemical processes. J Math Chem 52(6):1535–1551View ArticleGoogle Scholar
  13. Kilbas AA, Samko SG, Marichev OI (1993) Fractional integrals and derivatives theory and applications. Gordon and Breach, New YorkGoogle Scholar
  14. Kumar S (2013) A new fractional modeling arising in engineering sciences and its analytical approximate solution. Alex Eng J 52(4):813–819View ArticleGoogle Scholar
  15. Liao SJ (1992) The proposed homotopy analysis technique for the solution of nonlinear problems, (Ph.D) thesis, Shanghai Jiao Tong UniversityGoogle Scholar
  16. Liao SJ (2004) On the homotopy analysis method for nonlinear problems. Appl Math Comput 147:499–513Google Scholar
  17. Mittal RC, Jiwari R (2011) Numerical study of two-dimensional reaction–diffusion Brusselator system. Appl Math Comput 217(12):5404–5415Google Scholar
  18. Momani S, Yildirim A (2010) Analytical approximate solutions of the fractional convection diffusion equation with nonlinear source term by He homotopy perturbation method. Int J Comput Math 87(5):1057–1065View ArticleGoogle Scholar
  19. Oldham KB, Spanier J (1974) The fractional calulus. Academic Press, New YorkGoogle Scholar
  20. Podlubny I (1999) Fractional differential equations. Academic, New YorkGoogle Scholar
  21. Safari M, Ganji DD, Moslemi M (2009) Application of He’s variational iteration method and Adomian’s decomposition method to the fractional KdV–Burgers–Kuramoto equation. Comput Appl 58:2091–2097View ArticleGoogle Scholar
  22. Verma A, Jiwari R, Koksal ME (2014) Analytic and numerical solutions of nonlinear diffusion equations via symmetry reductions. Adv Differ Eq 2014:229View ArticleGoogle Scholar
  23. Wang J, Ye Y, Pan X, Gao X, Zhuang C (2014) Fractional zero-phase filtering based on the Riemann–Liouville integral. Signal Process 98(5):150–157View ArticleGoogle Scholar
  24. Wang JH, Ye YQ, Gao XD (2015a) Fractional 90-degree phase-shift filtering based on the double-sided Grunwald–Letnikov differintegrator. IET Signal Process 9(4):328–334View ArticleGoogle Scholar
  25. Wang JH, Ye YQ, Gao YB, Gao XD, Qian SQ (2015b) Fractional compound integral with application to ECG signal denoising. Circuits Syst Signal Process 34:1915–1930View ArticleGoogle Scholar
  26. Wang JH, Ye YQ, Pan XP, Gao XD (2015c) Parallel-type fractional zero-phase filtering for ECG signal denoising. Biomed Signal Process Control 18:36–41View ArticleGoogle Scholar
  27. Wazwaz AM (1999) A reliable modification of Adomian decomposition method. Appl Math Comput 102:77–86Google Scholar
  28. Yang XJ, Srivastava HM (2015) An asymptotic perturbation solution for a linear oscillator of free damped vibrations in fractal medium described by local fractional derivatives. Commun Nonlinear Sci Numer Simul 29(1):499–504View ArticleGoogle Scholar
  29. Yang XJ, Baleanu D, Srivastava HM (2015a) Local fractional integral transforms and their applications. Elsevier, AmsterdamGoogle Scholar
  30. Yang XJ, Baleanu D, Srivastava HM (2015b) Local fractional similarity solution for the diffusion equation defined on Cantor sets. Appl Math Lett 47:54–60View ArticleGoogle Scholar
  31. Yang XJ, Srivastava HM, Cattani C (2015c) Local fractional homotopy perturbation method for solving fractal partial differential equations arising in mathematical physics. Roman Rep Phys 67(3):752–761Google Scholar
  32. Yang XJ, Baleanu D, Lazarevic Mihailo P, Cajic Milan S (2015d) Fractal boundary value problems for integral and differential equations with local fractional operators. Therm Sci 19(3):959–966View ArticleGoogle Scholar

Copyright

© The Author(s) 2016
