Open Access

Tyrosine modification increases the affinity of gastrin for ferric ions

SpringerPlus20154:815

https://doi.org/10.1186/s40064-015-1622-2

Received: 9 November 2015

Accepted: 15 December 2015

Published: 24 December 2015

Abstract

The peptide hormone gastrin17, which occurs naturally in both tyrosine sulphated and unsulphated forms, binds two ferric ions with pM affinities. The aim of this study was to investigate the hypothesis that sulphation or phosphorylation of gastrin17 altered ferric ion binding, and/or affinity for the CCK1 or CCK2 receptor. To investigate the effect of tyrosine modification on ferric ion binding, the changes in absorbance of gastrin17, gastrin17SO4 and gastrin17PO4 on addition of Fe3+ ions were monitored. Binding of gastrin17, gastrin17SO4 and gastrin17PO4 to the human CCK1 and CCK2 receptors was assessed by competition with [125I]-Bolton and Hunter-labelled cholecystokinin8 in transiently transfected COS cells. Tyrosine sulphation or phosphorylation increased the affinity of gastrin17 for the first ferric ion bound from 267 to 83 pM and 14 pM, respectively, but had no effect on the stoichiometry of ferric ion binding. In contrast the affinity of gastrin17 for the second ferric ion bound was reduced from 94 pM to 7.32 µM and 671 nM, respectively. While sulphation of gastrin17 increased its affinity for the CCK2 receptor approximately 50 fold, phosphorylation had no effect on receptor binding. These results demonstrate that tyrosine modification may have profound effects on the interaction of gastrins with ferric ions and with the CCK2 receptor.

Keywords

Gastrin Ferric Iron Phosphorylation Sulphation

Background

The classical gastrointestinal hormone gastrin17 (ZGPWLEEEEEAYGWMDFamide, Gamide) was first recognized by its ability to stimulate gastric acid secretion (Dockray et al. 2001). Human gastrin is initially synthesized as a 101 amino acid preprohormone, which is processed via the 80 amino acid prohormone progastrin, to various non-amidated precursors including glycine-extended gastrin17 (ZGPWLEEEEEAYGWMDFG, Ggly) (Dockray et al. 2001). While Gamide stimulates proliferation in the gastric mucosa (Koh et al. 1999), progastrin and Ggly are important growth factors for the colorectal mucosa (Aly et al. 2004). The related hormone cholecystokinin (CCK), which has the same amidated C-terminal pentapeptide sequence as gastrin17, is responsible for gallbladder contraction and pancreatic enzyme secretion (Miyasaka and Funakoshi 2003).

The receptors for CCK (CCK1 receptor) and Gamide (CCK2 receptor) are both members of the seven transmembrane domain family, and share 50 % sequence identity (Aly et al. 2004; Shulkes and Baldwin 1997). The CCK1 receptor is found on pancreatic acini and has a 1000-fold higher affinity for sulphated CCK8 (CCK8SO4) than for unsulphated CCK8. However, sulphation of CCK8 does not greatly affect its affinity for the CCK2 receptor, which is found in the gastric mucosa and in the brain (Shulkes and Baldwin 1997). Neither the CCK1 nor the CCK2 receptor recognizes non-amidated forms of CCK or gastrin, but the receptors can be readily distinguished with several selective antagonists (Shulkes and Baldwin 1997).

Gastrins such as Ggly and Gamide bind two ferric ions (Baldwin et al. 2001), the first to Glu7 and the second to Glu8 and Glu9 (Baldwin et al. 2015; Pannequin et al. 2002). Ferric ions are essential for the biological activity of Ggly as a stimulant of cell proliferation and migration (Pannequin et al. 2002), but are not required for the biological activity of Gamide (Pannequin et al. 2004). For example, treatment with the iron chelator desferrioxamine, or substitution of Glu7 with Ala, completely blocked the biological activity of Ggly (Pannequin et al. 2002), but had no effect on the biological activity of Gamide (Pannequin et al. 2004).

Sulphation of CCK8 on the sole tyrosine residue greatly increases receptor binding and biological potency (Jensen et al. 1981). Tyrosine sulphation or phosphorylation of CCK8 increased the stoichiometry of ferric ion binding from 1 to 2, without greatly affecting the affinity (Baldwin et al. 2008). Gastrins also occur in sulphated and unsulphated forms (Dockray et al. 2001), and the sulphated form predominates in the fetal pancreas (Brand et al. 1984). Gastrin can also be phosphorylated by the EGF receptor tyrosine kinase in vitro (Baldwin et al. 1983), but phosphorylated gastrins have not been reported to occur naturally. The aim of the present study was to determine whether or not sulphation or phosphorylation of gastrin17 altered ferric ion binding or affinity for the CCK1 or CCK2 receptor. Since non-amidated forms of gastrin require ferric ions for activity, a change in affinity for ferric ions on modification of the tyrosine residue of gastrins might have profound effects on their biological activity.

Methods

Peptides

Gastrin17 and sulphated gastrin17 (95 and 96 % pure, respectively) were purchased from Bachem (Bubendorf, Switzerland). Phosphorylated gastrin17 (85 % pure) was from Mimotopes (Clayton, Australia). All peptides had a pyroglutamyl residue at their N-terminus and were C-terminally amidated. The impurities consisted of water and salts.

Absorption spectroscopy

The absorption of peptides (10 μM in 10 mM sodium acetate (pH 4.0) containing 100 mM NaCl and 0.005 % Tween 20) at 280 nm in the presence of increasing concentrations of ferric ions from 2.5 to 50 μM was measured against a buffer blank, in 1 ml quartz cuvettes thermostatted at 298 K, with a Cary 5 spectrophotometer (Varian, Mulgrave, Australia).

Receptor binding assay

Binding of ligands to the human CCK1 or CCK2 receptors on transiently transfected COS-7 cells was measured by competition with sulfated [125I]-Bolton and Hunter labelled-CCK8 (50,000 cpm/well, Amersham Biosciences, Castle Hill, Australia) as described previously (Baldwin et al. 2008).

Curve fitting and statistics

Data [expressed as mean ± standard error of the means (SEM)] for the binding of ferric ions to gastrins were fitted to a two-site ordered model with the program BioEqs (Royer 1993; Royer et al. 1990). Receptor binding data were analyzed by one-way analysis of variance, followed by Bonferroni’s t test. Differences with P values <0.05 were considered significant.

Results and discussion

Changes in absorbance on binding of ferric ions to tyrosine-modified gastrin17

The effect of addition of Fe3+ ions on the absorption spectrum of gastrin17, gastrin17SO4 and gastrin17PO4 was first investigated by absorption spectroscopy. A pH value of 4.0 was chosen in order to avoid any problems with precipitation of ferric hydroxides, and to allow direct comparison with previous studies. As reported previously (Baldwin et al. 2001, 2015) the absorption of gastrin17 at 280 nm increased to a maximum of 220 % after the addition of 2.0 mol ferric chloride/mol peptide (Fig. 1a). Fitting of the absorption data to a two-site ordered model with the program BioEqs gave values for Kd1 and Kd2 of 267 and 94 pM, respectively, in good agreement with the values determined previously (Baldwin et al. 2015) (Table 1). The increase in absorption of gastrin17SO4 (Fig. 1b) on addition of ferric ions was more gradual than for gastrin17, and in the case of gastrin17PO4 a slight decrease in absorption was initially observed (Fig. 1c). Nevertheless the absorption for both gastrin17SO4 and gastrin17PO4 finally reached maxima of 195 % to 220 % after the addition of 2–3 mol ferric chloride/mol peptide. Fitting of the absorption data to a two-site ordered model with the program BioEqs gave values for Kd1 and Kd2 of 83 pM and 7.32 µM, respectively, for gastrin17SO4, and of 14 pM and 671 nM, respectively, for gastrin17PO4 (Table 1).

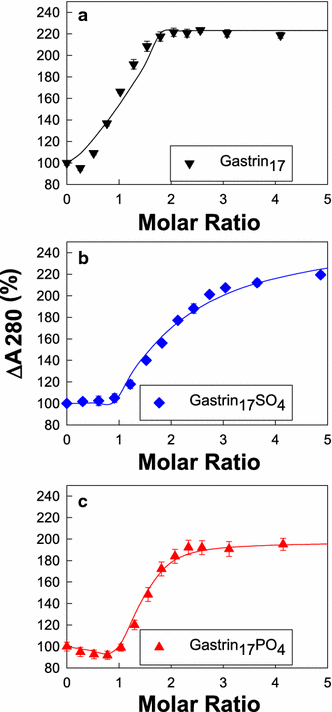

Fig. 1

Tyrosine sulphation of gastrin enhances ferric ion binding. As reported previously, addition of aliquots of ferric chloride to 10 µM gastrin17 (a, down triangle) in 10 mM sodium acetate, 100 mM NaCl, 0.005 % Tween 20, pH 4.0 at 298 K resulted in an increase in the absorption at 280 nm up to a molar ratio of 2. Addition of aliquots of FeCl3 to 10 µM gastrin17SO4 (b, diamond), or gastrin17PO4 (c, up triangle) caused a more gradual change in absorption. Data are expressed as a percentage of the absorbance of that peptide without ferric ions. Points are means of at least three separate experiments; bars represent the SEM. Lines represent the best fit to a two site model with the program BioEqs; the appropriate Kd values are given in Table 1

Table 1

Binding of ferric ions by gastrin17, CCK8 and their derivatives



Reference

Absorption



Kd1 (pM)

Kd2 (pM)

A280

Site 1 (%)

A280

Site 2 (%)

Gastrin17



267

94

100

223

Gastrin17

Baldwin et al. (2015)

300

85

100

313

Gastrin17SO4



83

7,320,000

88

259

Gastrin17PO4



14

671,000

98

215

CCK8

Baldwin et al. (2008)

Not detected



CCK8SO4

Baldwin et al. (2008)

Not detected



CCK8PO4

Baldwin et al. (2008)

Cooperative

Cooperative



194a

The affinity of, and the percentage absorbance change at 280 nm on, the binding of the first and second ferric ions to gastrin17, gastrin17SO4 or gastrin17PO4 at pH 4.0 were determined by fitting the mean data obtained in the absorbance experiments (N = 3) described in the Fig. 1 legend to a two site ordered model with the program BioEqs

aThe absorbance changes for CCK8 and its derivatives were measured at 275 nM as the peptide contains tyrosine and phenylalanine, but no tryptophan, residues (Baldwin et al. 2008)

This data indicates that, although tyrosine sulphation or phosphorylation had no effect on the stoichiometry of ferric ion binding, the affinity of gastrin for the first ferric ion was enhanced, and for the second ferric ion was reduced, by modification of the tyrosine side chain. The possibility that the hydroxyl group of the tyrosine is itself a ligand for the second ferric ion does not appear to be likely as XAFS data suggested that three of the five glutamate side chains act as ferric ion ligands (Baldwin et al. 2015). A more likely explanation is that the bulky sulphate and phosphate groups occupy the ferric ion binding site and prevent access of more than one ferric ion.

The concentrations of gastrins and of ferric ions used in the above experiments were supra-physiological. The concentration of gastrins was chosen as the minimum concentration that gave a reproducible change in absorbance on addition of ferric ions. Nevertheless our previous publications indicate that the binding of ferric ions to gastrin at physiological concentrations is essential for biological function. Thus mutation of the glutamate residues essential for binding ferric ions abrogates the biological activity of Ggly as a stimulant of cell proliferation and migration (Pannequin et al. 2002). Similarly removal of ferric ions with the iron chelator desferrioxamine (Ferrand et al. 2010; Pannequin et al. 2002), or by competition with bismuth ions (Kovac et al. 2012; Pannequin et al. 2002), blocked the biological activity of Ggly in vitro and in vivo.

Effect of tyrosine modification on CCK receptor binding

The effect of tyrosine modification on the binding of gastrin17 to either human CCK1 or CCK2 receptors was then examined. Although sulphation of gastrin17 increased its affinity for the human CCK2 receptor, phosphorylation of gastrin17 had no effect on CCK2 receptor binding (Fig. 2b). The IC50 values for the binding of gastrin17, gastrin17SO4 and gastrin17PO4 to the CCK2 receptor were 61 ± 32, 1.2 ± 0.4 and 58 ± 20 nM, respectively. The IC50 values for the binding of gastrin17 were slightly higher than the values, which range from 0.94 to 6.4 nM, previously reported for the cloned human CCK2 receptor (Ito et al. 1993; Lee et al. 1993; Pisegna et al. 1992). The affinity of gastrin17SO4 for the cloned human CCK2 receptor does not appear to have been reported previously, but data for binding to dispersed gastric glands from the guinea pig fundus also suggest that sulphation increases the affinity for the CCK2 receptor, in that case by a factor of tenfold, from 16 to 1.6 nM (Praissman et al. 1983). Binding of gastrin17, gastrin17SO4 and gastrin17PO4 to the CCK1 receptor was not detected in our experiments (Fig. 2a). In the case of gastrin17 this result agrees with the data of de Weerth and co-workers, who reported an IC50 value of 1.8 µM (de Weerth et al. 1993); binding affinities of gastrin17SO4 and gastrin17PO4 for the CCK1 receptor do not appear to have been reported previously.
Fig. 2

Tyrosine sulphation of gastrin enhances CCK2 receptor binding. The ability of gastrin17 (down triangle), gastrin17SO4 (diamond), or gastrin17PO4 (up triangle), to compete with [125I]-Bolton and Hunter labelled-CCK8SO4 (150 pM, 100,000 cpm) for binding to the human CCK1 (a) or CCK2 (b) receptor on transiently transfected COS-7 cells was measured as described in “Methods”. Points represent the mean data from at least three experiments, each in triplicate, and lines represent the best fit to a one site model. None of the three peptides competed with [125I]-CCK8SO4 for binding to the CCK1 receptor. The IC50 values for the binding of gastrin17, gastrin17SO4 and gastrin17PO4 to the CCK2 receptor were 61 ± 32, 1.2 ± 0.4 and 58 ± 20 nM, respectively. In contrast to the previously reported enhancement of binding to both receptors on sulphation of CCK8, phosphorylation had no effect on the peptide’s affinity for the CCK2 receptor

Comparison with CCK8

In contrast to CCK8, where tyrosine sulphation or phosphorylation increased the stoichiometry of ferric ion binding from 1 to 2 without greatly affecting the affinity (Baldwin et al. 2008), tyrosine sulphation or phosphorylation of gastrin17 had no effect on the stoichiometry of ferric ion binding, but enhanced the affinity of gastrin17 for the first ferric ion, and reduced the affinity for the second ferric ion. This difference is not unexpected as the gastrin binding site consists of three of the five glutamate residues, while the CCK8SO4 binding site involves the two aspartate residues, and the CCK8PO4 binding site the phosphate group itself (Baldwin et al. 2008). In terms of receptor binding, tyrosine sulphation enhanced the affinity, while phosphorylation reduced the affinity, of CCK8 for both the CCK1 and CCK2 receptors (Baldwin et al. 2008). In contrast, while tyrosine sulphation enhanced the affinity of gastrin17 for the CCK2 receptor, phosphorylation had no effect. Although the generalization that modification of tyrosine profoundly affects the binding of ferric ions is valid, the differences between two such closely related peptides as gastrin17 and CCK8 indicate that the exact binding details will have to be determined for each peptide individually.

Conclusions

While tyrosine sulphation or phosphorylation of gastrin17 had no effect on the stoichiometry of Fe3+ ion binding, the affinity for the first ferric ion bound was increased from 267 to 83 pM and 14 pM, respectively. Sulphation of gastrin17 increased its affinity for the CCK2 receptor approximately 50 fold, but phosphorylation had no effect on receptor binding. These results imply that tyrosine modification may have profound effects on the biological activities of gastrins.

Abbreviations

CCK:

cholecystokinin

DMEM:

Dulbecco’s Modified Eagle Medium

Gamide:

amidated gastrin17

Ggly:

glycine-extended gastrin17

Declarations

Authors’ contributions

GSB conceived the study, conducted the absorbance experiments, and drafted the manuscript. IS participated in the design of the study and performed the binding experiments. Both authors read and approved the final manuscript.

Acknowledgements

This work was supported in part by grants from the National Health and Medical Research Council of Australia (454322, 1020983).

Competing interests

The authors declare that they have no competing interests. The research did not involve animals or human participants.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Department of Surgery, Austin Health, The University of Melbourne

References

  1. Aly A, Shulkes A, Baldwin GS (2004) Gastrins, cholecystokinins and gastrointestinal cancer. Biochim Biophys Acta 1704:1–10Google Scholar
  2. Baldwin GS, Knesel J, Monckton JM (1983) Phosphorylation of gastrin-17 by epidermal growth factor-stimulated tyrosine kinase. Nature 301:435–437View ArticleGoogle Scholar
  3. Baldwin GS, Curtain CC, Sawyer WH (2001) Selective, high-affinity binding of ferric ions by glycine-extended gastrin(17). Biochemistry 40:10741–10746View ArticleGoogle Scholar
  4. Baldwin GS, Bailey MF, Shehan BP, Sims I, Norton RS (2008) Tyrosine modification enhances metal-ion binding. Biochem J 416:77–84View ArticleGoogle Scholar
  5. Baldwin GS, George GN, Pushie MJ (2015) High Affinity Binding of Indium and Ruthenium Ions by Gastrins. PLoS one 10:e0140126. doi:https://doi.org/10.1371/journal.pone.0140126 View ArticleGoogle Scholar
  6. Brand SJ, Andersen BN, Rehfeld JF (1984) Complete tyrosine-O-sulphation of gastrin in neonatal rat pancreas. Nature 309:456–458View ArticleGoogle Scholar
  7. de Weerth A, Pisegna JR, Huppi K, Wank SA (1993) Molecular cloning, functional expression and chromosomal localization of the human cholecystokinin type A receptor. Biochem Biophys Res Commun 194:811–818View ArticleGoogle Scholar
  8. Dockray GJ, Varro A, Dimaline R, Wang T (2001) The gastrins: their production and biological activities. Annu Rev Physiol 63:119–139View ArticleGoogle Scholar
  9. Ferrand A, Lachal S, Bramante G, Kovac S, Shulkes A, Baldwin GS (2010) Stimulation of proliferation in the colorectal mucosa by gastrin precursors is blocked by desferrioxamine. Am J Physiol Gastrointest Liver Physiol 299:G220–227View ArticleGoogle Scholar
  10. Ito M et al (1993) Functional characterization of a human brain cholecystokinin-B receptor. A trophic effect of cholecystokinin and gastrin. J Biol Chem 268:18300–18305Google Scholar
  11. Jensen SL, Holst JJ, Nielsen OV, Rehfeld JF (1981) Effect of sulfation of CCK-8 on its stimulation of the endocrine and exocrine secretion from the isolated perfused porcine pancreas. Digestion 22:305–309View ArticleGoogle Scholar
  12. Koh TJ, Dockray GJ, Varro A, Cahill RJ, Dangler CA, Fox JG, Wang TC (1999) Overexpression of glycine-extended gastrin in transgenic mice results in increased colonic proliferation. J Clin Invest 103:1119–1126View ArticleGoogle Scholar
  13. Kovac S, Loh SW, Lachal S, Shulkes A, Baldwin GS (2012) Bismuth ions inhibit the biological activity of non-amidated gastrins in vivo. Biochem Pharmacol 83:524–530View ArticleGoogle Scholar
  14. Lee YM, Beinborn M, McBride EW, Lu M, Kolakowski LF Jr, Kopin AS (1993) The human brain cholecystokinin-B/gastrin receptor. Cloning and characterization. J Biol Chem 268:8164–8169Google Scholar
  15. Miyasaka K, Funakoshi A (2003) Cholecystokinin and cholecystokinin receptors. J Gastroenterol 38:1–13View ArticleGoogle Scholar
  16. Pannequin J, Barnham KJ, Hollande F, Shulkes A, Norton RS, Baldwin GS (2002) Ferric ions are essential for the biological activity of the hormone glycine-extended gastrin. J Biol Chem 277:48602–48609View ArticleGoogle Scholar
  17. Pannequin J, Tantiongco JP, Kovac S, Shulkes A, Baldwin GS (2004) Divergent roles for ferric ions in the biological activity of amidated and non-amidated gastrins. J Endocrinol 181:315–325View ArticleGoogle Scholar
  18. Pisegna JR, de Weerth A, Huppi K, Wank SA (1992) Molecular cloning of the human brain and gastric cholecystokinin receptor: structure, functional expression and chromosomal localization. Biochem Biophys Res Commun 189:296–303View ArticleGoogle Scholar
  19. Praissman M, Walden ME, Pellecchia C (1983) Identification and characterization of a specific receptor for cholecystokinin on isolated fundic glands from guinea pig gastric mucosa using a biologically active 125I-CCK-8 probe. J Recept Res 3:647–665Google Scholar
  20. Royer CA (1993) Improvements in the numerical analysis of thermodynamic data from biomolecular complexes. Anal Biochem 210:91–97View ArticleGoogle Scholar
  21. Royer CA, Smith WR, Beechem JM (1990) Analysis of binding in macromolecular complexes: a generalized numerical approach. Anal Biochem 191:287–294View ArticleGoogle Scholar
  22. Shulkes A, Baldwin GS (1997) Biology of gut cholecystokinin and gastrin receptors. Clin Exp Pharmacol Physiol 24:209–216View ArticleGoogle Scholar
