Open Access

Exploring the factors influencing the cloud computing adoption: a systematic study on cloud migration

SpringerPlus20154:197

https://doi.org/10.1186/s40064-015-0962-2

Received: 13 October 2014

Accepted: 1 April 2015

Published: 25 April 2015

Abstract

Today, most of the organizations trust on their age old legacy applications, to support their business-critical systems. However, there are several critical concerns, as maintainability and scalability issues, associated with the legacy system. In this background, cloud services offer a more agile and cost effective platform, to support business applications and IT infrastructure. As the adoption of cloud services has been increasing recently and so has been the academic research in cloud migration. However, there is a genuine need of secondary study to further strengthen this research. The primary objective of this paper is to scientifically and systematically identify, categorize and compare the existing research work in the area of legacy to cloud migration. The paper has also endeavored to consolidate the research on Security issues, which is prime factor hindering the adoption of cloud through classifying the studies on secure cloud migration. SLR (Systematic Literature Review) of thirty selected papers, published from 2009 to 2014 was conducted to properly understand the nuances of the security framework. To categorize the selected studies, authors have proposed a conceptual model for cloud migration which has resulted in a resource base of existing solutions for cloud migration. This study concludes that cloud migration research is in seminal stage but simultaneously it is also evolving and maturing, with increasing participation from academics and industry alike. The paper also identifies the need for a secure migration model, which can fortify organization’s trust into cloud migration and facilitate necessary tool support to automate the migration process.

Keywords

Cloud migrationSecure migrationLegacy-to-cloud migrationSystematic literature review

1 Introduction

Cloud computing has created a strong buzz around, both in academia and in the industry. Many SMEs (Small and Medium Enterprises) and IT companies view this technology as an opportunity for considerable business growth thereby creating competitive advantage (Buyya et al. 2009; Andrikopoulos et al. 2013). For SMEs, the central attraction for adopting cloud technology is its pay-per-use model, which delivers flexible costing options, apart from the scalability and interoperability features, which cloud environments offer. Larger enterprises are attempting to leverage this technology by considering the business continuity strategies for their exponential growth (Buyya et al. 2009; Khajeh-Hosseini et al. 2012). The traditional legacy system, which supports the core IT processes at organizations, is fraught with maintainability and scalability issues, (Khadka et al. 2013). Given the multiple benefits of cloud computing, many organizations are keen to adapt to this innovative technology. However, tackling security issues regarding the cloud and the migration process has hampered the cloud adoption rate (Rosado et al. 2012; Mather et al. 2009).

This paper is directed towards finding a viable solution to facilitate secure migration of on-premises software application to the cloud environments. Given the inherent advantages of cloud computing and the desire to migrate to cloud, there has been noteworthy research in the area of cloud migration (Khadka et al. 2013; Andrikopoulos et al. 2013). Most of the approaches have proposed frameworks, techniques, processes and methods which help in the migration and assist in decision process for migrating to cloud. For most of these approaches, the software application is in nascent stage as they are hosted on a local server, before the migration.

During the limited study, it was found that a systematic literature review of research on secure cloud migration hasn’t been undertaken. Besides considering the growing demand for migration toward cloud, there is an equal need to investigate a research framework for secure cloud migration.

A SLR identifies, classifies, and synthesizes a comparative overview of the ongoing research and enables knowledge transfer within the research community (Brereton et al. 2007). Likewise, for this paper, a SLR was conducted, with the primary objective to identify, taxonomically classify, and systematically compare the existing research, focused on planning, executing, and validating migration of legacy systems toward cloud-based software. More specifically, to the paper endeavors to answer the following questions, through conducting a methodological review of existing research:
  1. i.

    What are the motivations behind migration to the cloud?


  2. ii.

    What are the existing tasks, methods, and techniques to support secure migration of legacy on-premises software to cloud? In addition, what all tool support is available to achieve the objectives?


  3. iii.

    What are the existing research themes? What should form future research dimensions in legacy to- cloud migration?



The objective is to systematically identify and taxonomically classify available evidence on secure cloud migration and provide a holistic comparison to analyze potential and limitations of the existing research work.

The remaining sections of this paper are structured as follows: Section 2 describes background and related research to position the contributions of this work. Section 3 explains the research methodology, research questions, and scope; Section 4 provides a reference model for state-of-the research and a characterization scheme for cloud migration; Section 5 presents the results of the systematic review; Section 6 discusses the main findings, implications, and trends followed by an analysis of its limitations in Section 7 and Section 8 concludes the paper.

2 Related work

The research on cloud migration is incomplete without talking about SOA (Service-Oriented Architecture. As both cloud migration and SOA exhibit numerous similarities as well as differences at the same time, it would not be appropriate to position the study on cloud migration without SOA migration. Recently, several studies have focused on migration to SOA, but not many are found for cloud migration. Both these technologies offer key benefits as reduced overall cost, business agility and easy provisioning of services to the organizations. Systematic review of 121 primary studies on SOA migration done by Khadka et al (Khadka et al. 2013) showed the use of software re-engineering reference framework for SOA migration, to give a significant view of legacy to SOA migration. This work is motivated by the research methodology used in the mentioned review work. The research agenda developed by the SEI (Software Engineering Institute) for SOA migration (Lewis et al. 2010) provides a taxonomy, which is used to classify topics into various aspects of SOA, along with cross-cutting concerns. Another survey done by Razavian & Lago (2011) with industry representatives as participants on SOA migration highlights the potential gap between the theory and practice of the SOA migration. The survey also identified future research directions in SOA migration. Work done by Pahl et al. (2013) is based on the three different case studies in industry, which proposed a common migration process, based on expert interviews. They identified a process framework for the three deployment models in cloud computing; however the work didn’t deliberate on post migration activities.

3 Research methodology

This research effort will thus aim to address the following Research Questions (Table 1):
Table 1

Research questions and their motivation

Research questions

Motivation

RQ1- What cloud security requirements have been addressed in recent publications (2011-2014)?

The aim is to find out what all aspects of cloud security have been researched and what all are not being researched.

RQ2- What solutions are offered to them?

The aim is to know the way/ framework through which any specific security issue has been resolved its current status.

RQ3- When did research on cloud migration become active in computing community and how it is reported?

The goal is to understand the existing gaps in cloud security framework and cloud migration process

RQ4- What are the obstacles in the cloud migration process and how it is being researched?

The objective is to probe the actual reasons for organizations not adopting cloud and the way it has been dealt in the research work.

Methodology

Systematic Literature Review (SLR) and the related guidelines (Kitchenham 2004) have been used, to answer the stated research questions. Select survey with optimal mix of participants and interactive conversation has been used to arrive at answers to some of the questions. Primary objective of systematic literature review is to provide a comprehensive summery of literature related to a research question. “A systematic literature review is a means of identifying, evaluating and interpreting all available research relevant to a particular research question, or topic area, or phenomena of interest”(Kitchenham 2004). This kind of review involves several discrete activities. Refer to Figure 1 for the Systematic Review Process. They have been divided into three main phases, as follows:
  1. i.

    Planning the review


  2. ii.

    Conducting review


  3. iii.

    Reporting review

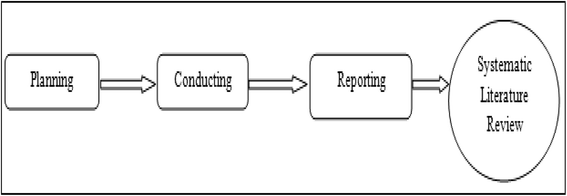

Figure 1

Systematic Review Process.

Planning the review

Stages involved in planning review

The following Table 2 shows the stages involved in planning the review work and the criteria chosen for the review planning.
Table 2

Stages and their criteria involved in planning the review

Stages

Criteria

Identify the need of research

- Research gap

- Fair research

Specify research question

- Security issues

- Migration to clouds

- Performance and cost benefits of migration

Develop review protocol

- Research questions

- Choosing appropriate keyword

- Developing the search strings

- Primary study selection

Development of review protocol

After identifying the need of research, research questions were prepared and the review protocol was designed. Review protocol defines specific procedures for conducting the systematic review process. This procedure helps in gathering fair and unbiased information. This protocol development has different stages, such as search strategy, selection criteria, quality assessment criteria, data extraction form and data synthesis strategy.

Search strategy

This strategy helps in answering key research questions effectively. By using keywords search strings were developed. Search strings are constructed by identifying synonyms and alternative spellings for each of the question elements and link them by using the Boolean OR and Boolean AND. Keywords in Table 3 are defined by using PICO (Population Intervention Comparison Outcomes) method (Kitchenham 2004); and are used to construct search strings. The elements of PICO is indicated below-
  1. i.
    Population: The population might be any of the specific role, application and area.
    • Population- Cloud Computing


  2. ii.
    Intervention: The intervention is the tool or technology or procedure that addresses a specific issue.
    • Intervention-Cloud Migration


  3. iii.
    Comparison: This is a tool or technology or procedure with which intervention is being compared.
    • Comparison- Legacy on premises application


  4. iv.
    Outcomes: Outcomes should relate to factors of importance to practitioners such as improved security, reliability and cost benefits. All outcomes should be specified.
    • Outcomes - Secure framework for migration, improved security aspects, performance, cost benefits, applications, tools and techniques.


Table 3

Research questions and keywords

S.No.

Research questions

Keywords

RQ1

Why is there an urge to migrate to cloud?

Need, benefits, requirement, motivation, cloud, migration

RQ2

What are the challenges in cloud migration process?

Challenges, issues, process, migration, cloud

RQ3

What are the existing processes or tools for cloud migration?

Tools, process, standards, framework

RQ4

What is the current state and ongoing research issues for secure cloud migration?

Current state, research issues, cloud migration, secure migration

Search string

Following search strings in Table 4 are appropriately designed by using keywords, which are derived from research questions through PICO method. These search strings are constructed by using Boolean ANDs and ORs.
Table 4

Research questions and search strings

Research questions

Search strings

RQ1

(Advantages OR Need OR Urge OR Benefits) AND (Cloud Computing OR Cloud Migration OR Migration OR Adoption)

RQ2

(Challenges OR Issues OR Security Concerns) AND (cloud computing OR Cloud Migration OR Migration Process OR Migration) AND (Security OR issues OR problems OR Threats)

RQ3

(Cloud Computing OR Cloud Migration OR Migration) AND (Tools OR Process OR Framework OR Standards OR Benchmark)

RQ4

(Cloud Computing OR Cloud Migration OR Migration) AND (Current state OR SLR OR Systematic Literature Review) AND (Secure Cloud OR Secure Cloud Migration)

Resources

Search strings are used in digital libraries for getting related research content. The articles, journals, conference papers, and workshop papers have been identified from the most authentic digital databases, that are scientifically and technically peer reviewed. Some of the databases are as follows -
  1. i.

    ACM Digital Library


  2. ii.

    Springer Link


  3. iii.

    Science Direct


  4. iv.

    IEEE Xplore


  5. v.

    Google Scholar


  6. vi.

    Wiley


  7. vii.

    Compendex


  8. viii.

    Reports and white papers published by groups and organizations working on cloud computing (e.g. CSA, NIST, ENISA etc.)



Inclusion criteria

The following inclusion criteria (Table 5) were used to include the selected papers.
Table 5

Inclusion criteria

S.No.

Stage

Criteria

1.

Over All

- Language: English

- Paper published in journal/conference/workshop/ web articles.

- Date of publish

- Non-duplicate

2.

Title, Keywords, Abstract

- Based on keywords and search strings.

- Based on the content, which matches to the research questions.

3.

Introduction & Conclusion

- Contains cloud security and migration aspects.

- Primarily focuses on answering the research questions.

4.

Full Text

- Presence of the empirical data in the paper.

- Key focus on security, migration, benefits, challenges and tools in cloud.

Exclusion criteria

The research articles were excluded that didn’t meet the criteria mentioned as indicated above in Table 5 and the following parameters:
  1. i.

    Articles shorter than 6 pages


  2. ii.

    Editorials and Abstracts


  3. iii.

    No-peer reviewed studies



Survey on secure migration process

Survey on the secure migration process was done, to identify key concerns related to the secure adoption of cloud by both industry and academia and also to seek their expert opinion on the proposed framework. All the participants had considerable understanding of cloud computing, its multiple offerings, related technologies, and many hands-on expertise to Cloud environment. As part of their work, the participants were part of the team, which migrated different types of applications to Cloud (including Amazon EC2, Amazon RDS, S3, Simple DB, Windows Azure etc.). With their exposure to the cloud computing environment, they were reliable and valuable participants for the discussion.

Participants

The discussion and the survey were carried out with 9 participants from industry and academia individually. Refer Table 6 for the survey participants. The sample characteristics are shown in Figure 2.
Table 6

Survey participants

Field

Participants

Nos.

Industry

Software Engineers, with 10 years’ experience in software development and 3 years’ experience with Cloud computing

3

Entrepreneurs cum cloud experts with their own startup firms providing cloud migration services.

2

Cloud Architect with 9 years of experience in software development and 4 years of experience in cloud design and migration

1

Academics

Senior Professor with 20 years of Global experience in teaching and guiding students in the Computer Science.

1

Ph.D. Research Students, who are in their final stage of thesis and their Ph. D. topics are related to Cloud Computing performance.

2

Total

9

Figure 2

Sample Characteristics (Total = 9).

Discussion protocol

Each participant was asked similar questions in three steps:
  1. i.

    Firstly, each participant was asked for his opinions on the state of art of cloud computing, existing security concerns and the taxonomy of migration tasks. The participants were encouraged to suggest adding more tasks, removing some, or re-categorizing a task.


  2. ii.

    Secondly, the framework for secure cloud migration was presented to the participants, and they were asked for their expert opinion and advice on the model.


  3. iii.

    Thirdly, each participant was asked to describe a cloud migration project, which they worked on, together with the time spent on each migration task in that project.



The discussion was completed with each participant individually, without knowledge of other participants’ answers in the first round. Second round of discussions was conducted with each participant again, but this time with knowledge of other participants’ replies, to decrease the range of answers. This is known as Delphi technique and its helps combine experts’ opinion for a better judgment (Shepperd & Schofield 1997). Interactive conversation survey method was used for conducting fair survey. Here in this method, professional websites as m LinkedIn, different blogs related to Cloud and Cloud Migration was leveraged for conducting the survey. Questionnaires were posted into those sites to have an interactive conversation with the participants, regarding cloud. Author also had few conversations with select organizations using live chat who are working in the field of Cloud.

4 A 5-phase model for classification and comparison of cloud migration research

In this section, a conceptual model called as ‘5-Phased Cloud Migration Model’ has been introduced, to classify and categorize cloud migration research, in terms of distinct phases or processes involved in the cloud migration. While developing this reference model, situational method engineering has been adopted to consolidate the existing frameworks (e.g.P3, P4, P9, P23 etc.) in cloud migration. Method engineering follows a bottom-up approach by identifying low level activities and techniques. These low level activities are then categorized to form generalized processes and phases. Alternatively, a top-down approach forms a framework or a conceptual model consisting of phases, processes and activities. Based on these existing frameworks and guidelines, we have identified the key phases in cloud migration. By reviewing the primary studies and exploring the defined migration tasks, migration process has been categorized in five phases. Figure 3 below represents the ‘5-phased cloud migration model’ which is also inspired by the well-known ‘Water Fall model from the Software Development Life Cycle (SDLC). The proposed conceptual model consists of five phases. Figure 4 shows the distribution of studies according to 5-Phase Cloud Migration Model
Figure 3

5-Phase Cloud Migration Model.

Figure 4

Distribution of studies according to 5-Phase Cloud Migration Model.

Phase-1: Feasibility study [5 studies]

In the first phase the goal is to identify or determine whether the cloud migration is financially/ technically feasible or not [P2] [P6] [P8] [P13] [P14].

Phase-2: Requirement analysis & migration planning [18 Studies]

In this phase, a detailed assessment of the existing IT environment is done. The objective is to understand the applications that are appropriate for moving into the Cloud [P2] [P15] [P16] [P18], decision making regarding which cloud provider to choose [P3] [P5] [P6] [P9] [P13] [P16], which part of the application to be migrated [P3] [P6] [P13] [P15] and which services to use [P4] [P6] [P11] [P12] are conducted. The output of this phase is a detailed migration plan document.

Phase-3: Migration execution [15 Studies]

In the migration execution phase, the actual migration of data and application is carried out. The process like data extraction [P2] [P11] [P22], code modification [P15] [P17] [P20], architecture recovery [P9] [P11] [P2] [P22] [P18] [P20], cloud migration [P9] [P22] [P17] etc. are actually implemented.

Phase-4: Testing & migration validation [6 Studies]

In the fourth phase, testing and evaluation is done to validate the migrated system [P9] [P11] [P15] [P22] [P17] [P18].

Phase-5: Monitoring & maintenance [4 Studies]

The last and fifth phase is required to maintain and monitor the migrated systems. Not much evidence could be found for this activity in the selected study except for some related activities, as governance [P2] and training [P11] [P21] [P17].

5 Results

In this section we have discussed the results of the SLR process based on the research questions that were defined in Section 1.

Key factors for migration

Based on the existing literature, the research question (RQ1) has been answered and the key reasons for adoption of clouds have been identified. Some of the key drivers for the adoption of clouds are:
  1. i.

    Cost saving


  2. ii.

    Optimum resource utilization


  3. iii.

    Unlimited scalability of resources


  4. iv.

    Less maintainability


These key drivers for cloud adoption have been identified from the selected primary studies and have been presented in a tabular form along with the author’s name and title. For instance the cost saving has been the major driver for cloud adoption as mentioned and discussed about in several studies, also indicated in the Table 7 below.
Table 7

Key factors for migration

S.No.

Key factors

Authors/Year/Title

1

Cost saving P[5,11,8,13,14,16,17,23]

- Beserra et al. (2012) Cloudstep: A Step-by-Step Decision Process to Support Legacy Application Migration to the Cloud

- Mohagheghi et al (2011) Software Engineering Challenges for Migration to the Service Cloud Paradigm

- Khajeh-Hosseini et al. (2012) The Cloud Adoption Toolkit: supporting cloud adoption decisions in the enterprise

- Tak et al. (2011) To Move or Not to Move: The Economics of Cloud Computing

- Yam et al (2011) Migration to Cloud as Real Option Investment decision under uncertainty

- Zardari et al (2011) Cloud Adoption: A Goal-Oriented Requirements Engineering Approach

- Tran et al. (2011a) Application Migration to Cloud: A Taxonomy of Critical Factors

- Hajjat et al (2010) Cloudward Bound: Planning for Beneficial Migration of Enterprise Applications to the Cloud

2

Efficient resource utilization P[10,5,12,15,23]

- Frey et al (2011) An Extensible Architecture for Detecting Violations of a Cloud Environment’s Constraints During Legacy Software System

- Beserra et al. (2012) Cloudstep: A Step-by-Step Decision Process to Support Legacy Application Migration to the Cloud

- Lloyd et al (2011) Migration of Multi-tier Applications to Infrastructure-as-a-

- Service Clouds: An Investigation Using Kernel-based Virtual Machines

- Chauhan et al (2011) Migrating Service-Oriented System to Cloud Computing: An Experience Report

- Hajjat et al (2010) Cloudward Bound: Planning for Beneficial Migration of Enterprise Applications to the Cloud

3

Unlimited scalability of resources P[5,15,12,11,13,16]

- Baserra et al (2012) Cloudstep: A Step-by-Step Decision Process to Support Legacy Application Migration to the Cloud

- Chauhan et al (2011) Migrating Service-Oriented System to Cloud Computing: An Experience Report

- Lloyd et al (2011) Migration of Multi-tier Applications to Infrastructure-as-a-Service Clouds: An Investigation Using Kernel-based Virtual Machines

- Mohagheghi et al (2011) Software Engineering Challenges for Migration to the Service Cloud Paradigm

- Tak et al (2011) To Move or Not to Move: The Economics of Cloud Computing

- Zardari et al (2011) Cloud Adoption: A Goal-Oriented Requirements Engineering Approach

4

Less maintainability P[23,8,14]

- Hajjat et al (2010) Cloudward Bound: Planning for Beneficial Migration of Enterprise Applications to the Cloud

- Khajeh-Hosseini et al. (2012) The Cloud Adoption Toolkit: supporting cloud adoption decisions in the enterprise

- Yam et al (2011) Migration to Cloud as Real Option Investment decision under uncertainty

Challenges in cloud migration process

In our previous work (Rashmi et al. 2013) we have identified (refer Table 8) various challenges in the cloud migration process and have attempted to answer the RQ2 by listing out various challenges which organizations face, while adopting the cloud.
Table 8

Migration challenges

Migration challenges

Description

Business factors

→Costs

→Existing investments in IT

→Data security

→Regulations

→Provisioning

Technical factors

→Existing infrastructure

→Security architecture

→Complexity

→Network and support

→IT skills

→Service Level Agreements (SLAs)

Existing processes or frameworks for secure cloud migration

To answer RQ3, classification of different migration types given in (Khajeh-Hosseini et al. 2012) has been referred to. This work considers different application layers and different degree of adaptation required to enable migration. It classifies the migration process into following types:
  1. Type 1:

    Replace

    This type of migration replaces one or more legacy component with cloud services. This is least invasive of all types and requires data or business tiers to be migrated to the cloud stack. This type of migration is done by reconfiguring the components and is done to adjust incompatibilities, to use functionalities of the migrating layer. Replace type of migration couldn’t be identified in the selected studies. This particular type is not very popular as much as pure cloud enabler and hence the evidence in probably not available.


  2. Type 2:

    Partially Migrate

    This one partially migrates some of the systems components to the cloud. There are quite few papers on the partial migration where the organizations have migrated one or more application layer implementing a particular functionality in the cloud.


  3. Type 3:

    Migrate the whole application

    This is a perfect example of migration where the whole application is encapsulated in one or more virtual machines, which are already running into the clouds. This one also doesn’t need many changes to the application, assuming the application can be ported ‘as is’ into a virtual machine.


  4. Type 4:

    Cloudify

    Cloudify is an example of full migration, where an application is converted to a fully-fledged cloud enabled system by composing cloud services.


Table 9 below categorizes all the four types of migration along with the Cloud Deployment models, which were used in the migration process. The table also identifies various tools/frameworks which are used in the selected studies.
Table 9

Categorization of primary studies based on migration type, deployment model and tool support

ID

Author/Year/Title

Migration Type

Cloud Deployment Model

Framework/Tools Support

P1

Frey et al. (2013a) Search-Based Genetic Optimization for Deployment and Reconfiguration of Software in the Cloud

Cloudify

IaaS

CDOXplorer

P2

Andrikopaulas et al (2013) How to Adapt Applications for the Cloud Environment: Challenges and Solutions in Migrating Applications to the Cloud

Cloudify

SaaS,Iaas,PaaS

P3

Fittakau et al (2012)CDOSim: Simulating Cloud Deployment Options for Software Migration Support

Cloudify

IaaS

CDOSim

P4

Menzal et al (2012) CloudGenius: Decision Support for Web Server Cloud Migration

Migrate the whole stack

PaaS,IaaS

CloudGenius

P5

Baserra et al (2012) Cloudstep: A Step-by-Step Decision Process to Support Legacy Application Migration to the Cloud

Migrate the whole stack

NM

P6

Vu and Asal (2012) Legacy Application Migration to the Cloud: Practicability and Methodology

Partially Migrate

PaaS,IaaS

P7

Frey et al. (2013b) Automatic conformance checking for migrating software systems to cloud infrastructures and platforms

Cloudify

PaaS,IaaS

CloudMIG Xpress

P8

Khajeh-Hosseini (2012) The Cloud Adoption Toolkit: supporting cloud adoption decisions in the enterprise

Partially Migrate

NM

Cloud Adoption Toolkit

P9

Frey et al (2011) The CloudMIG Approach: Model-Based Migration of Software Systems to Cloud-Optimized Applications

Cloudify

PaaS,IaaS

CloudMIG

P10

Frey et al (2011) An Extensible Architecture for Detecting Violations of a Cloud Environment’s Constraints During Legacy Software System Migration

Cloudify

IaaS

CloudMIG Xpress

P11

Mohagheghi et al (2011) Software Engineering Challenges for Migration to the Service Cloud Paradigm

Migrate the whole Stack

NM

P12

Lloyd et al (2011) Migration of Multi-tier Applications to Infrastructure-as-a-Service Clouds: An Investigation Using Kernel-based Virtual Machines

Cloudify

IaaS

Eucalyptus

P13

Tak et al (2011) To Move or Not to Move: The Economics of Cloud Computing

Cloudify

IaaS,SaaS

P14

Yam et al (2011) Migration to Cloud as Real Option Investment decision under uncertainty

Partially Migrate

NM

P15

Chauhan et al (2011) Migrating Service-Oriented System to Cloud Computing: An

Experience Report

Cloudify

SaaS,PaaS. IaaS

P16

Zardari et al (2011) Cloud Adoption: A Goal-Oriented Requirements Engineering Approach

Partially Migrate

NM

P17

Tran et al (2011) Application Migration to Cloud: A Taxonomy of Critical Factors

Partially Migrate

NM

P18

Babar and Chauhan (2011) A Tale of Migration to Cloud Computing for Sharing Experiences and Observations

Migrate the whole stack

SaaS,IaaS

P19

Tran et al (2011) Size Estimation of Cloud Migration Projects with Cloud Migration Point (CMP)

Partially Migrate

PaaS,IaaS

P20

Yu. et al (2011) A Practical Architecture of Cloudification of Legacy Applications

Cloudify

SaaS,Iaas,PaaS

P21

Khajeh-Hosseini et al. (2010) Cloud Migration: A Case Study of Migrating an Enterprise IT System to IaaS

Migrate the whole stack

NM

P22

Ward et al (2010) Workload Migration into Clouds – Challenges, Experiences, Opportunities

Partially Migrate

NM

Darwin

P23

Hajjat et al (2010) Cloudward Bound: Planning for Beneficial Migration of Enterprise Applications to the Cloud

Partially Migrate

PaaS,IaaS

Cloudward Bound

Current state and ongoing research issues in secure cloud migration

In this section, we have attempted to answer RQ 4 by carrying out a systematic review of the existing approaches for legacy to cloud migration. This review is done to summarize the existing approaches, models, tools and techniques and also to identify and analyze the security issues considered in these migration approaches. The focal objective is to identify the possible solutions offered to address the security concerns or needs in the cloud migration process. In this regard, a set of approaches have been collated which is pertinent for this analysis. The details are as summarized in the Table 10.
Table 10

Primary studies on secure cloud migration and key findings

ID

Author /Year

Key Findings

P24

Frey and Hasselbring (2010)

• Still in nascent stage

• Migration to Paas & IaaS

• Six step migration process

• None of the security aspects discussed

P25

Zhang et al. (2009)

• A case study for a scientific software migration

• Migration considers only SaaS

• Talk about security in a general non-specific way

P26

Parastoo et al. (2010)

• Tools for model driven migration

• No specific security aspect covered

P27

Hu and Klein (2009)

• Case study for migrating in oil and gas industry

• Cost analysis and decision support tool

P28

Khajeh-Hosseini et al. (2010a, 2010b)

• Tools to support decision making during migration

• Talks about the risks and benefits

P29

Khajeh-Hosseini et al. (2011)

• Considers security as a challenge

• Doesn’t deliberate on how the data will be migrated

P30

Kaisler and Money (2011)

• Service migration in cloud computing

• Examines security and integration issues

P31

Kalloniatis et al.(2013)

• Critical threats in cloud computing identified

• Security and privacy oriented concepts analyzed

Conclusion

The central objective of this review paper was to consolidate the existing research on cloud migration and identify the security concerns reflected in these selected review papers. The foremost contribution of this systematic review is the proposition of conceptual model for cloud migration for the characterization of the studies and a comparative analysis of the existing literature through the model, to indicate the tools and techniques used in the various studies. Authors have also tried to identify the security concerns in the existing literature studies on cloud migration. Authors have defined the cloud migration process in a 5-Phased model. The five phases are as follows-
  1. i.

    Feasibility study


  2. ii.

    Requirement analysis & migration planning


  3. iii.

    Migration execution


  4. iv.

    Testing & migration validation


  5. v.

    Monitoring & maintenance


After analyzing the studies collected through this Systematic Review Process, a number of research challenges were observed and which indicated future directions of this research.
  1. i.

    Growing maturity of cloud migration – Even though it has been acknowledged that the maturity of the cloud migration is in its pivotal stage, one can observe a clear sign of growth by observing various types of cloud migration being reported in the literature (already discussed in Section 2.3). Proper validation across all these types of migration is an area that needs immediate attention by the cloud researchers.


  2. ii.

    Need for more results on cloud migration evaluation - By observing the results on cloud migration in the selected studies one can clearly identify the need for more and more results and real-time case studies from industries on cloud migration. More evaluation, survey and experience reports on legacy-to-cloud migration will be needed, which will result in more trust and confidence of researchers regarding the validity of cloud migration research.


  3. iii.

    Need of a comprehensive migration framework – Although, the Authors have presented a 5-Phase model for cloud migration in Section 4, the cloud researchers needs to propose a more comprehensive framework such as the ones proposed for SOA migration (Discussed in Section 2) with tangible evidence of solutions in terms of methods and techniques.


  4. iv.

    Solutions to address Security Concerns – As per the distribution of studies based on the 5-Phase model for cloud migration (Figure 4), the main focus of the research is on the requirement analysis and cloud migration planning (approx. 38%), however very few of them address the security concerns hovering over the cloud migration (discussed in Section 5.4).



To summarize, one can conclude that cloud migration is still in its nascent stage, but is maturing at a fast pace. The Authors have acknowledged the call for a tangible secure migration framework, to facilitate systematic and trustworthy migration to the cloud.

Declarations

Authors’ Affiliations

(1)
Department of Computer Science and Engineering, Birla Institute of Technology
(2)
Department of Electrical Engineering, Jamia Milia Islamia

References

  1. Andrikopoulos V, Binz T, Leymann F, Strauch S (2013) How to adapt applications for the cloud environment: challenges and solutions in migrating applications to the cloud. Computing 95(6):493–535View ArticleGoogle Scholar
  2. Babar MA, Chauhan MA (2011) A tale of migration to cloud computing for sharing experiences and observations. In Proceeding of the 2nd international workshop on Software engineering for cloud computing (SECLOUD ’11). ACM, New York, NY, USA, 50-56. DOI=10.1145/1985500.1985509Google Scholar
  3. Beserra PV, Camara A, Ximenes R, Albuquerque AB, Mendonca NC (2012) “Cloudstep: A step-by-step decision process to support legacy application migration to the cloud,” Maintenance and Evolution of Service-Oriented and Cloud-Based Systems (MESOCA). IEEE 6th International Workshop on the, vol., no., pp.7,16, 24–24Sept.2012, Fortaleza, BrazilGoogle Scholar
  4. Brereton P, Kitchenham BA, Budgen D, Turner M, Khalil M (2007) Lessons from applying the systematic literature review process within the software engineering domain. J Syst and Software 80(4):571–583View ArticleGoogle Scholar
  5. Buyya R, Yeo CS, Venugopal S, Broberg J, Brandic I (2009) Cloud computing and emerging IT platforms: vision, hype, and reality for delivering computing as the fifth utility. Futur Gener Comput Syst 25(6):599–616View ArticleGoogle Scholar
  6. Chauhan MA, Babar MA (2011) Migrating service-oriented system to cloud computing: an experience report. In: International Conference on Cloud Computing (CLOUD 2011), pp. 404–411. IEEEGoogle Scholar
  7. Fittkau F, Frey S, Hasselbring W (2012) CDOSim: simulating cloud deployment options for software migration support. In: Proceedings of 6th IEEE International workshop on the maintenance and evolution of service- oriented and cloud-based systems (MESOCA 2012), 24. Sep.12, Riva del Garda, ItalyGoogle Scholar
  8. Frey S, Hasselbring W (2010) Model-based migration of legacy software systems into the cloud: the CLOUDMIG Approach. In: Proceedings of 12th Workshop on Software-Reengineering of the GI-SRE. Bad Honnef, Germany, 3–5 May 2010.Google Scholar
  9. Frey S, Hasselbring W (2011) “An extensible architecture for detecting violations of a cloud environment’s constraints during legacy software system migration,” Software maintenance and reengineering (CSMR), 2011 15th European Conference on, vol., no., pp.269,278, 1–4 March 2011. doi:10.1109/CSMR.2011.33Google Scholar
  10. Frey S, Fittkau F, Hasselbring W (2013a) Search-based genetic optimization for deployment and reconfiguration of software in the cloud. International Conference on Software Engineering (ICSE-13). San Francisco, CA, USA,18–26 May 2013Google Scholar
  11. Frey S, Hasselbring W, Schnoor B (2013b) Automatic conformance checking for migrating software systems to cloud infrastructures and platforms. J Softw Evol Proc 25:1089–1115, doi:10.1002/smr.582View ArticleGoogle Scholar
  12. Hajjat, M., Sun, X., Sung, Y., Maltz, D., Rao, S., Sripanidkulchai, K., Tawarmalani, M.: Cloudward bound: planning for beneficial migration of enterprise applications to the cloud. In: ACM SIGCOMM Computer Communication Review, vol. 40, pp. 243–254. ACM (2010)Google Scholar
  13. Hu J, Klein A (2009) A benchmark of transparent data encryption for migration of web applications in the cloud. In: Proceedings of 2009 Eighth IEEE International Conference on dependable, autonomic and secure computing. Chengdu, China, 12–14 December 2009; pp. 735–740.Google Scholar
  14. Kaisler S, Money WH (2011) Service Migration in a Cloud Architecture. In: Proceedings of 44th Hawaii International Conference on Systems Science (HICSS-44 2011), Kauai, HI, USA, 4–7 January 2011. IEEE Computer Society, Washington, DC, USA, pp pp. 1–pp. 10View ArticleGoogle Scholar
  15. Kalloniatis C, Manousakis V, Mouratidis H, Gritzalis S (2013) “Migrating into the Cloud: Identifying the Major Security and Privacy Concerns”. In: Douligeris C, Polemi N (eds) I3E 2013 12th IFIP Conference on e-Business, e-Services, e-Society. Springer, Piraeus, GreeceGoogle Scholar
  16. Khadka, Ravi, Amir Saeidi, Andrei Idu, Jurriaan Hage and Slinger Jansen. “Legacy to SOA Evolution: A Systematic Literature Review.” Migrating Legacy Applications: Challenges in Service Oriented Architecture and Cloud Computing Environments. IGI Global, 2013. 40-70. Web. 15 Apr. 2015. doi:10.4018/978-1-4666-2488-7.ch003Google Scholar
  17. Khajeh-Hosseini A, Greenwood D, Sommerville I (2010) Cloud migration: a case study of migrating an enterprise IT system to IaaS. In: Proceedings of the 3rd IEEE international conference on cloud computing. pp 450–457Google Scholar
  18. Khajeh-Hosseini A, Greenwood D, Sommerville I (2010) Cloud migration: a case study of migrating an enterprise IT system to IaaS. In: Proceedings of 2010 IEEE 3rd International Conference on cloud computing. Miami, FL, USA, 3–10 July 2010.Google Scholar
  19. Khajeh-Hosseini A, Sommerville I, Bogaerts J, Teregowda P (2011) Decision support tools for cloud migration in the enterprise. In: Proceedings of 2011 IEEE 4th International Conference on cloud computing. Washinton, DC, USA, 4–9 July 2011Google Scholar
  20. Khajeh-Hosseini A, Greenwood D, Smith JW, Sommerville I (2012) The cloud adoption toolkit: supporting cloud adoption decisions in the enterprise. Software - Practice Exp 42:447–465View ArticleGoogle Scholar
  21. Kitchenham B (2004) Procedures for performing systematic reviews. Keele University, 332004, Keele, UKGoogle Scholar
  22. Lewis GA, Smith DB, and Kontogiannis K (2010) “A Research Agenda for Service-Oriented Architecture(SOA):Maintenance and Evolution of Service-Oriented Systems,” technical report,Software Eng.Inst.Google Scholar
  23. Lloyd W, Pallickara S, Olaf D, Jim L, Mazdak A, Ken R (2011) Migration of multi-tier applications to infrastructure-as-a-service clouds: an investigation using kernel-based virtual machines, Proceedings of the 2011 IEEE/ACM 12th International Conference on Grid Computing, p.137–144, September 21–23, 2011. doi:10.1109/Grid.2011.26Google Scholar
  24. Mather T, Kumaraswamy S, Latif S (2009) Cloud security and privacy. O’Reilly Media, Inc., Sebastopol, CAGoogle Scholar
  25. Menzel M, Ranjan R (2012) CloudGenius: decision support for web server cloud migration, In: Proceedings of WWW 2012, April 16–20, 2012. Lyon, FranceGoogle Scholar
  26. Mohagheghi P, Saether T (2011) Software Engineering Challenges for Migration to the Service Cloud Paradigm Ongoing Work in the REMICS Project. IEEE World Congress on ServicesGoogle Scholar
  27. Pahl C, Xiong H, Walshe R (2013) “A comparison of On-Premise to Cloud Migration Approaches- A Tale of Four Cloud Migration Processes”. Proc. European Conf. Service-Oriented and Cloud ComputingGoogle Scholar
  28. Parastoo M, Jørgen BA, Sadovykh A, Barbier F, Benguria G (2010) Reuse and Migration of Legacy Systems to Interoperable Cloud Services-The REMICS Project. In Proceedings of 4th Workshop on Modeling, Design, and Analysis for the Service Cloud (MDA4ServiceCloud2010), Paris, France.Google Scholar
  29. Rashmi R, Shabana M, Sahoo G (2013) “Efficient migration of application to clouds: analysis and comparison”. GSTF J Comput (3) (ISSN: 2010-2283) doi:10.5176/2251-3043_3.3.272.Google Scholar
  30. Razavian M, Lago P (2011) “A Survey of SOA Migration in Industry”. Proc. Ninth Int’l Conf. Service-Oriented Computing, pp.618–626Google Scholar
  31. Rosado DG, Gómez R, Mellado D, Fernández Medina E (2012) Security analysis in the migration to cloud environments. Future Internet 4(2):469–487, 10View ArticleGoogle Scholar
  32. Shepperd M, Schofield C (1997) Estimating software project effort using analogies. IEEE Trans Softw Eng 23:736–743, 33, 51, 53View ArticleGoogle Scholar
  33. Tak BC, Bhuvan U, Anand S (2011) “To Move or Not to Move: The Economics of Cloud Computing”, Third USENIX Workshop on Hot Topics in Cloud Computing (HOTCLOUD 2011). Portland, OregonGoogle Scholar
  34. Tran V, Keung J, Liu A, Fekete A (2011) “Application migration to cloud: a taxonomy of critical factors”. Proc. Second Int’l Workshop Software Eng. for Cloud ComputingGoogle Scholar
  35. Tran V, Keung JW, Liu A, Fekete A (2011b) “Size estimation of cloud migration projects with cloud migration point (CMP)” International Symposium on Empirical Software Engineering and Measurement (ESEM 2011). Banff, Alberta, CanadaGoogle Scholar
  36. Vu QH, Asal R (2012) “Legacy application migration to the cloud: practicability and methodology”, SERVICES, 2012 IEEE Eighth World Congress on Services, pp. 270–277. doi:10.1109/SERVICES.2012.47Google Scholar
  37. Ward C, Aravamudan N, Bhattacharya K, Cheng K, Filepp R, Kearney R, Peterson B, Shwartz L, Young C (2010) Workload migration into clouds - challenges, experiences, opportunities. IEEE CLOUD 2010, Florida, USA, pp 164–171Google Scholar
  38. Yam CY, Baldwin A, Shiu S, Ioannidis C (2011) “Migration to cloud as real option: investment decision under uncertainty,” trust, security and privacy in computing and communications (TrustCom), 2011 IEEE 10th International Conference on, vol., no., pp.940,949, 16–18 Nov. 2011.doi:10.1109/TrustCom.2011.130Google Scholar
  39. Yu D, Jian W, Bo H, Jianxiao L, Xiuwei Z, Keqing H, Liang-Jie Z (2011) “A practical architecture of cloudification of legacy applications,” services (SERVICES), 2011 IEEE World Congress on, vol., no., pp.17,24, 4–9 July 2011. doi:10.1109/SERVICES.2011.84Google Scholar
  40. Zardari S, Bahsoon R (2011) Cloud Adoption: a goal-oriented requirements engineering Approach. In: the Proceedings of the ACM/IEEE International Workshop on Cloud Software Engineering, the ACM/IEEE 33rd International Conference on Software Engineering (ICSE). Hawaii, USA.Google Scholar
  41. Zhang W, Berre AJ, Roman D, Huru HA (2009). Migrating legacy applications to the service Cloud. In: 14th conference companion on object oriented programming systems languages and applications (OOPSLA 2009). Orlando, Florida, USA, 25–29 October 2009; pp. 59–68.Google Scholar

Copyright

© Rai et al.; licensee Springer. 2015

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
