Real-time analysis application for identifying bursty local areas related to emergency topics

Contributed equally
SpringerPlus20154:162

https://doi.org/10.1186/s40064-015-0817-x

Received: 31 August 2014

Accepted: 14 January 2015

Published: 3 April 2015

Abstract

Since social media started getting more attention from users on the Internet, social media has been one of the most important information source in the world. Especially, with the increasing popularity of social media, data posted on social media sites are rapidly becoming collective intelligence, which is a term used to refer to new media that is displacing traditional media. In this paper, we focus on geotagged tweets on the Twitter site. These geotagged tweets are referred to as georeferenced documents because they include not only a short text message, but also the documents’ posting time and location. Many researchers have been tackling the development of new data mining techniques for georeferenced documents to identify and analyze emergency topics, such as natural disasters, weather, diseases, and other incidents. In particular, the utilization of geotagged tweets to identify and analyze natural disasters has received much attention from administrative agencies recently because some case studies have achieved compelling results. In this paper, we propose a novel real-time analysis application for identifying bursty local areas related to emergency topics. The aim of our new application is to provide new platforms that can identify and analyze the localities of emergency topics. The proposed application is composed of three core computational intelligence techniques: the Naive Bayes classifier technique, the spatiotemporal clustering technique, and the burst detection technique. Moreover, we have implemented two types of application interface: a Web application interface and an android application interface. To evaluate the proposed application, we have implemented a real-time weather observation system embedded the proposed application. we used actual crawling geotagged tweets posted on the Twitter site. The weather observation system successfully detected bursty local areas related to observed emergency weather topics.

Keywords

Spatiotemporal clustering Density-based clustering Social media Naive Bayes Burst detection

Introduction

In recent years, social media has played a significant role as an alternative source of information (Kavanaugh et al. 2011; Yin et al. 2012). In particular, people actively transmit and collect information about emergency topics, such as natural disasters, weather, diseases, and other incidents (Miyabe et al. 2012; Vieweg et al. 2010). Enhancement of the utilization of social media for emergency management is one of the most interesting issues being discussed in public and governmental institutions. Therefore, a significant number of researchers have focused on the development of emergency topic and event detection via social media. This trend provides an opportunity for addressing new challenges in many different application domains: how to detect where emergency topics occur and what they are going on.

In this study, we focus on geotagged tweets posted on the Twitter site. These geotagged tweets are referred to as georeferenced documents because they usually include not only a short text message, but also the documents’ posting time and location. Users on the Twitter site are referred to as social sensors and geotagged tweets as sensor data observed by the social sensors. Some of studies that focused on these geotagged tweets are as follows. Sakaki et al. (2010) focused on tweets regarding typhoons and earthquakes using associated geographic information to estimate typhoon trajectories and earthquake epicenters using dense regions. Ozdikis et al. (2013) also proposed a method that estimated the geographical location of events in the case of earthquakes reported on Twitter.

It is of value to people interested in a certain topic to observe dense areas where many georeferenced documents related to the topic are located. In this paper, these dense areas are referred to as bursty local areas related to the topic. For example, Tamura and Ichimura (2013) proposed a novel density-based spatiotemporal clustering algorithm that can extract spatially and temporally separated spatial clusters in georeferenced documents. They proposed the (ε,τ)-density-based spatiotemporal clustering algorithm; the experimental results indicate that their proposed algorithm can extract bursty local areas in a set of geotagged tweets, including keywords related to a topic related to weather topics.

In this paper, we propose a novel real-time analysis application for identifying bursty local areas related to emergency topics. The aim of our new application is to provide new platforms that can identify and analyze the localities of emergency topics. The proposed application is composed of three core computational intelligence techniques: the Naive Bayes classifier technique, the spatiotemporal clustering technique, and the burst detection technique. The (ε,τ)-density-based spatiotemporal clustering algorithm is a useful algorithm for extracting bursty local areas; however, two functional issues remain unresolved. One issue is that the (ε,τ)-density-based spatiotemporal clustering algorithm does not support real-time extraction. In Tamura and Ichimura (2013), only a batch clustering algorithm was proposed. The second issue is that the proposed algorithm is based on keywords. Therefore, relevant georeferenced documents are extracted if they include an observed keyword, not an observed topic; and this causes error extraction.

The main characteristics of our application are as follows.
  • To extract georeferenced documents including emergency topics as relevant georeferenced documents, our application utilizes the Naive Bayes classifier Manning et al. (2008) technique. As compared to that proposed in Tamura and Ichimura (2013), the proposed application can detect spatiotemporal clusters as bursty local areas with more sensitivity. For example, suppose that there are two sentences, “I saw a snow monkey” and “It is snowing heavily”. These two sentences include a keyword “snow”. The first one is not related to weather topic “snow”. Our application is topic-based; therefore the first one is not extracted as a relevant georeferenced document.

  • To identify (ε,τ)-density-based spatiotemporal clusters in real time, an incremental algorithm for (ε,τ)-density-based spatiotemporal clustering is used. The target topics of this study are emergency topics; therefore we need to identify local bursty areas in real time. In Tamura and Ichimura (2013), only a batch clustering algorithm was proposed. In contrast, the incremental algorithm extracts (ε,τ)-density-based spatiotemporal clusters on the arrival of each relevant georeferenced document.

  • To identify the burstiness of extracted bursty local areas, we integrate location-based burst detection techniques Tamura and Kitakami (2013) in the proposed application. Burst Kleinberg (2002) is one of the simplest but most effective criterion to measure how hot topics are. The traditional time-based burst detection does not work well for this study because the emergency topics appear in local area. The location-based burst detection techniques can detect the localities of burstiness of emergency topics.

The rest of this paper is organized as follows. In Section Related work, we briefly describe related work. In Section (ε,τ)-Density-based spatiotemporal clustering, the density-based clustering algorithm and the (ε,τ)-density-based spatiotemporal clustering algorithm are reviewed. In Section The proposed application, we propose our application and describe the details of the core intelligent computational techniques implemented in it. In Section Experimental result, the experiments for the evaluation of the proposed application is reported. In Section Conclusion, we conclude this paper.

Related work

In the era of big data, we are witnessing the rapid growth of a new type of information source. Social media has been noticed by a significant number of people; today, we obtain information instantaneously about emergency topics that surround us. In particular, tweets from one of the most widely used micro-blogging services have been involved in many different application domains Java et al. (2007). Tweets include not only rubbish messages transmitted between users, but also comments about and content for social topics and events Jansen et al. (2009). Twitter users are referred to as sensors observing the world, and their tweets as sensor data.

Recently, a huge amount of geotagged tweets are posted because of the popularity of geomobile applications on smartphones. These geotagged tweets are useful for extracting local topics and events (Abdelhaq et al. 2013; Hiruta et al. 2012; Hong et al. 2012; Musleh 2014). In particular, geotagged tweet have been expected to be utilized for analyzing emergency topics like natural disasters (Mandel et al. 2012) and epidemic (Hwang et al. 2013).

The most related work is Aramaki et al. (2011) which were conducted by Aramaki et al. They proposed a novel method for detecting influenza epidemics using tweets; their method utilized classifiers, such as support vector machine (SVM) and Naive Bayes to extract the tweets that included topics about influenza. Their geocoding technique was used to map each tweet to a region in Japan. Moreover, their proposed system visualized the increase and decrease in the number of related tweets in each region. As indicated above, their approach is more closely related to our work than any other; however, the method cannot identify bursty areas in detail. Our proposed method can detect large regions like prefectures.

Murakami et al. analyzed tweets about the 2011 Tohoku earthquake and tsunami Murakami and Nasukawa (2012). They presented the analysis results of social media data using text mining tools. Marcus et al. (2011) developed a visualizing system called Twitinfo. Their system is suitable for analyzing global topics and their time change. Moreover, the system visualized the sentiment of each topic. Karimi et al. (2013) proposed classifying methods that can identify high-value tweets related to disasters. Their method showed a good performance; however, they proposed only the classifying methods.

Kaneko et al. (2013) proposed a novel method for detecting images of events such as the cherry-blossom festival using tweets that included geo-tags and images. First, their method checks the number of tweets posted on a day and the preceding day and also extracts keywords from the posts. Next, it searches and collects images of tweets using these keywords. Moreover, their method performs clustering using the feature value of the collected images and selects a representative image as an event; however, their method cannot detect bursty areas in detail, because it checks only the changes from one day to the next.

Typhoon Real Time Watcher (2014) was developed recently. This system can observe and track social typhoon reports about their rain, wind, and damages, which are provided by a weather forecast company. This system utilized social reports manually selected; therefore, the reliability is assured. The system is good tool for analyzing typhoons; however, it is difficult to obtain real-time situation because it utilizes only social typhoon reports provided by a weather forecast company. NTT DoCoMo proposed an application called Geographical TimeLine that uses its own auto GPS system and Twitter. The application can detect in real time a place where many people are using its auto GPS system. Moreover, the application can analyze events that occur by exploiting Twitter; however, it requires an auto GPS system.

(ε,τ)-Density-based spatiotemporal clustering

This section reviews the density-based clustering framework and the (ε,τ)-density-based spatiotemporal clustering algorithm proposed in Tamura and Ichimura (2013). The (ε,τ)-density-based spatiotemporal clustering algorithm is the improved version of DBSCAN algorithm Ester et al. (1996).

Density-based spatiotemporal criteria

The (ε,τ)-density-based spatiotemporal clustering algorithm is based on the density-based spatial clustering algorithm Sander et al. (1998). In the density-based spatial clustering algorithm, spatial clusters are dense areas that are separated from areas of lower density. In other words, areas with high densities of data points can be considered spatial clusters, whereas those with low density cannot. The key concept underpinning the use of the density-based spatial clustering algorithm indicates that, for each data point within a spatial cluster, the neighborhood of a user-defined radius must contain at least a minimum number of points; that is, the density in the neighborhood must exceed some predefined threshold.

The algorithm that has affected the density-based spatial clustering algorithm is the DBSCAN algorithm, which was first introduced by Ester et al. (1996). The (ε,τ)-density-based spatiotemporal clustering algorithm Tamura and Ichimura (2013) is a natural extension of DBSCAN. DBSCAN utilizes ε-neighborhood density and recognizes areas in which densities are higher than in other areas. However, it does not consider temporal changes. By contrast, the (ε,τ)-density-based spatiotemporal clustering algorithm extracts (ε,τ)-density-based spatiotemporal clusters that are both temporally and spatially-separated from other spatial clusters.

In the (ε,τ)-density-based spatiotemporal clustering algorithm, areas with high spatial-/temporal-densities of data points can be considered spatiotemporal clusters, whereas those with low spatial-/temporal-densities cannot. To extract spatiotemporal clusters, we extend the definitions of density in DBSCAN. Suppose that a emergency topic is getting more attention in a local area. Users in the local area starts posting geotagged tweets related to the emergency topic; therefore, if we detect high dense regions in which there are many geotagged tweets, we can analyze local bursty areas where emergency topic is getting more attention from local people.

Definitions

The (ε,τ)-density-based neighborhood, which indicates the density of the neighborhood of a georeferenced document, is defined as follows.

Definition 1 ((ε,τ)-density-based neighborhood).

The (ε,τ)-density-based neighborhood of a georeferenced document gdp, which is denoted by N (ε,τ)(g d p), is defined as
$$\begin{array}{@{}rcl@{}} N_{(\epsilon, \tau)}(gdp) &=& \{gdq \in GD | dist(gdp,gdq) \\&\leq& \epsilon \ and \ iat(gdp,gdq) \leq \tau\}, \end{array} $$
(1)

where the function dist returns the distance between georeferenced documents gdp and gdq, and the function iat returns the interarrival time between them.

Figure 1 shows an example of an (ε,τ)-density-based neighborhood. In DBSCAN, the neighborhood of document gdp is a set of documents that exist within ε from gdp. In the left-hand side of Figure 1, there are four documents in the neighborhood of gdp. Conversely, the (ε,τ)-density-based neighborhood of gdp is a set of documents that exist within ε from gdp, where each document in the (ε,τ)-density-based neighborhood is posted in τ before or after the posted time of document gdp. The right-hand side of Figure 1 shows the example of the (ε,τ)-density-based neighborhood. In this example, there are three documents, N (ε,τ)(g d p)={g d 2,g d 3,g d 4}. Document g d 1 is within ε from document gdp; however, it is not in N (ε,τ)(g d p), because it is not posted in τ before or after the posted time of document gdp.
Figure 1

Definition 1 in the right-hand side of Figure 1, there are three documents, N (ε,τ)(g d p)={g d 2,g d 3,g d 4}.

Definition 2 (Core and Border).

A georeferenced document gdp is called a core georeferenced document if there is at least a minimum number of georeferenced documents, MinGDoc, in the (ε,τ)-density-based neighborhood N (ε,τ)(d p) of that georeferenced document (|N (ε,τ)(g d p)|≥M i n G D o c). Otherwise, (|N (ε,τ)(g d p)|≤M i n G D o c), a georeferenced document gdp is called a border georeferenced document.

Suppose that MinGDoc is set to three. In the left-hand side of Figure 2, gdp is a core georeferenced document, because |N (ε,τ)(g d p)| is three. In the right-hand side of Figure 2, gdp is not a core georeferenced document, because |N (ε,τ)(g d p)| is three.
Figure 2

This figure shows an example of Definition 2 and Definition 3. Suppose that MinGdoc is three. In the left-hand side of Figure 2, gdp is a core georeferenced document. In the right-hand side of Figure 2, gdp is not a core georeferenced document.

Definition 3 ((ε,τ)-density-based directly reachable).

Suppose that the georeferenced document gdq is in the (ε,τ)-density-based neighborhood of georeferenced document gdp. If the number of georeferenced documents in the (ε,τ)-density-based neighborhood of georeferenced document gdp is greater than or equal to MinGDoc, i.e., is |N (ε,τ)(g d p)|≥M i n G D o c, document gdq is (ε,τ)-density-based directly reachable from gdp. In other words, georeferenced documents in the (ε,τ)-density-based neighborhood of a core georeferenced document are (ε,τ)-density-based directly reachable from the core georeferenced document.

On the left-hand side of Figure 2, gdp is a core georeferenced document, because N (ε,τ)(d p)≥M i n G D o c. Then, g d 1, g d 2 and g d 4 are in the (ε,τ)-density-based neighborhood of document gdp. These three georeferenced documents are (ε,τ)-density-based directly reachable from gdp.

Definition 4 ((ε,τ)-density-based reachable).

Suppose that there is a georeferenced document sequence (g d p 1,g d p 2,,g d p n ) and the i+1-th georeferenced document g d p i+1 is (ε,τ)-density-based directly reachable from the i-th georeferenced document g d p i . Georeferenced document g d p n is (ε,τ)-density-based reachable from georeferenced document g d p 1.

Figure 3 shows an example of definition 4. In a georeferenced document sequence (g d p 1,g d p 2,,g d p 5), the i+1-th georeferenced document g d p i+1 is (ε,τ)-density-based directly reachable from g d p i . Therefore, d p 5 is (ε,τ)-density-based reachable from g d p 1.
Figure 3

This figure shows an example of Definition 4. Georeferenced document d p 5 is (ε,τ)-density-based reachable from g d p 1.

Definition 5 ((ε,τ)-density-based connected).

Suppose that georeferenced documents gdp and gdq are (ε,τ)-density-based reachable from a georeferenced document gdo, which is an arbitrary georeferenced document. If |N (ε,τ)(g d o)|≥M i n G D o c, we denote that gdp is (ε,τ)-density-based connected to gdq.

Figure 4 shows an example of definition 5. In this example, g d p 6 is (ε,τ)-density-based connected to g d p 5, because g d p 5 is (ε,τ)-density-based reachable from g d p 2 and g d p 6 is (ε,τ)-density-based reachable from g d p 2.
Figure 4

This figure shows an example of Definition 5. Georeferenced document g d p 6 is (ε,τ)-density-based connected to g d p 5.

(ε,τ)-Density-based spatiotemporal cluster

An (ε,τ)-density-based spatiotemporal cluster consists of two types of georeferenced document: core georeferenced documents, which are mutually (ε,τ)-density-based reachable; and border georeferenced documents, which are (ε,τ)-density-based directly reachable from the core georeferenced documents. An (ε,τ)-density-based spatiotemporal cluster is defined as follows.

An (ε,τ)-density-based spatiotemporal cluster (DSC) in a georeferenced document set GD satisfies the following restrictions: (1) g d p, g d qG D, if and only if g d pD S C and gdq is (ε,τ)-density-based reachable from gdp, and gdq is also in DSC. (2) g d p, g d qD S C, gdp is (ε,τ)-density-based connected to gdq.

Even if gdp and gdq are border georeferenced documents, gdp and gdq are in a same (ε,τ)-density-based spatiotemporal cluster if gdp is (ε,τ)-density-based connected to document gdq.

Algorithm

Algorithm 1 describes the batch algorithm for (ε,τ)-density-based spatiotemporal clustering. In this algorithm, for each georeferenced document gdp in GD, the function I s C l u s t e r e d checks whether document gdp is already assigned to a spatiotemporal cluster. Then, the (ε,τ)-density-based neighborhood of document gdp is obtained using the function G e t N e i g h b o r h o o d. If georeferenced document gdp is a core document according to Definition 2, it is assigned to a new spatiotemporal cluster, and all the neighbors are queued to Q for further processing. The processing and assignment of georeferenced documents to the current spatiotemporal cluster continues until the queue is empty. The next georeferenced document is dequeued from queue Q. If the dequeued georeferenced document is not already assigned to the current spatiotemporal cluster, it is assigned to the current spatiotemporal cluster. Then, if the dequeued document is a core document, the georeferenced documents in the (ε,τ)-density-based neighborhood of the dequeued georeferenced document are queued in queue Q using the function E n N n i q u e Q u e u e, which places the input georeferenced documents into queue Q if they are not already in queue Q.

The proposed application

In this section, we propose a novel real-time analysis application for identifying bursty local areas related to emergency topics. A system overview and the system process are presented.

Aim

The aim of developing our application is to provide a platform that can analyze bursty local areas related to emergency topics in real time. Suppose that it is raining in area “A”. As the rain becomes heavily in area “A”, geotagged tweets related to the topic “rain” may be posted in the area. At the same time, the density of posted geotagged tweets become greater than usual. If the density areas are extracted, we can detect bursty local areas related to the emergency topic.

System overview

Figure 5 shows an overview of the system for the proposed application. In the system, the application server has three main managers: Document Extraction Manager, Document Clustering Manager, and Web Service Manager. We can observe bursty local areas of emergency topics through a Web application and an Android application.
Figure 5

System overview of the proposed application. In the system, the application server has three main managers: Document Extraction Manager, Document Clustering Manager, and Web Service Manager. A georeferenced document database is constructed on the application server. We can observe bursty local areas of emergency topics through a Web application interface and an Android application interface.

Our system has a georeferenced document database that contains geotagged tweets crawled by the Twitter site. Let g d i denote the i-th georeferenced document in G D S={g d 1,,g d n }; then, g d i consists of three items: g d i =<t e x t i ,p t i ,p l i >, where t e x t i is the content (e.g., title, short text message, and tags), p t i , which is the time when the georeferenced document was posted, and p l i , which is the location where g d i was posted or is located (e.g., latitude and longitude).

Each georeferenced document arrives step by step. The following steps are executed on the application server.
  1. 1.

    D o c u m e n t E x t r a c t i o n M a n a g e r fetches a georeferenced document, which is newly inserted in the georeferenced document database.


  2. 2.

    D o c u m e n t E x t r a c t i o n M a n a g e r classifies the fetched georeferenced document g d i using a Naive Bayes classifier. If and only if g d i is classified to “positive” class, which means g d i is related to an observed emergency topic, go to the next step.


  3. 3.

    D o c u m e n t C l u s t e r i n g M a n a g e r executes the incremental algorithm for extracting (ε,τ)-density-based spatiotemporal clustering, for which there are two input data: g d i and a set of current extracted (ε,τ)-density-based spatiotemporal clusters.


  4. 4.

    For each (ε,τ)-density-based spatiotemporal cluster, the burstiness of the cluster is calculated.


  5. 5.

    W e b S e r v i c e M a n a g e r provides Web-based application interfaces to access information about extracted bursty local areas.



Our system is not dependence on any language. For, example, the Naive Bays classifier can be conducted if any morphological analysis tool is provided. Moreover, the density-based spatiotemporal algorithm is without dependence on language. Therefore, we can extend the proposed system to another language if we modified the Web-based Interfaces and the Android applications in the language.

Naive Bayes classifier

The proposed application requires that georeferenced documents related to an observed emergency topic are extracted. Georeferenced documents including the observed emergency topic contain many kinds of keyword. Therefore, a keyword-based search is not effective for extraction. For example, suppose that an observed emergency topic is “rain”. Sequences “It is raining” and “It could rain this weekend” include the keyword “rain”; but, they have different topics. In this case, only “It is raining” is extracted as a relevant georeferenced document related to the topic “rain”.

To satisfy this requirement, in Document Extraction Manager, the Naive Bayes classifier technique is utilized in order to extract georeferenced documents. A Naive Bayes classifier is a simple probabilistic classifier based on applying Bayes’ theorem, which is based Bayesian statistics with naive independence assumptions. Document Extraction Manager classifies geotagged tweets as either “positive” class or “negative” class manually, where “positive” class is related to the observed emergency topic and “negative” class is not. Georeferenced documents in the “positive” class are the relevant georeferenced documents.

In this study, the Naive Bayes classifier is based on keywords in text data included in georeferenced documents. Let C L A S S={p o s i t i v e,n e g a t i v e} be a set of classes. The posterior probability that is the georeferenced document gd belongs the class c l a s sC L A S S is
$${} P(class|gd)=\frac{P(class)P(gd|class)}{P(gd)} \propto {P(class)P(gd|class)}, $$
(2)

where P(c l a s s) is the prior probability of class and P(g d|c l a s s) is the likelihood.

The Naive Bayes classifier requires a training data set including multiple georeferenced documents that are classified in one class in CLASS. Let a training data set TDS be T D S={(t g d 1,c 1),(t g d 2,c 2),,(t g d m ,c m )}, where c i C L A S S. A set of all words in class is denoted by W class ={w o r d 1,w o r d 2,,w o r d l }.

The georeferenced gd represents a bag-of-words w o r d 1,w o r d 2,,w o r d n u m w(g d), where let n u m w(g d) be the number of words in gd.
$$\begin{array}{@{}rcl@{}} P(gd|class) &=& P({word}_{1} \wedge {word}_{2} \wedge \cdots \wedge {word}_{k}|class)\\ &=& \prod_{i}^{numw(gd)} P({word}_{i} | class) \end{array} $$
(3)
where, P(w o r d i |c l a s s) is the probability that w o r d i occurs in class. P(w o r d i |c l a s s) is defined as
$$\begin{array}{@{}rcl@{}} P({word}_{i}|class) = \frac{OW({word}_{i}, class)+1}{\sum_{j=1}^{|W_{class}|}(OW({word}_{j}, class)+1)}, \end{array} $$
(4)

where O W(w o r d i ,c l a s s) is the number of occurrence of w o r d i in class.

The assigned class of gd denoted by c gd C L A S S is determined by finding the maximum posterior probability.
$$\begin{array}{@{}rcl@{}} c_{gd} &=& \arg \max_{class} P(class|gd) \\ &=& \arg \max_{class} \left(P(class) \prod_{i}^{numw(gd)} P({word}_{i} | class) \right) \\ \end{array} $$
(5)

Incremental algorithm

In the incremental algorithm, the algorithm updates the states of the extracted spatiotemporal clusters and extracts new spatiotemporal clusters every time a georeferenced document is added. Algorithm 2 describes the incremental (ε,τ)-density-based spatiotemporal clustering algorithm, which extracts (ε,τ)-density-based spatiotemporal clusters based on every georeferenced document that arrives for real-time extraction. There are two features in the incremental (ε,τ)-density-based spatiotemporal clustering algorithm: limited re-clustering and merging.

When a georeferenced document is added to the georeferenced documents, existing (ε,τ)-density-based spatiotemporal clusters must be updated; but the added georeferenced document affects only its (ε,τ)-density-based neighborhood within τ directly. Function G e t R e c e n t D a t a(g d) returns gd’s (ε,τ)-density-based neighborhood within τ. After the (ε,τ)-density-based neighborhood is extracted to generate seeds and these seed georeferenced documents are re-clustered again.

In the incremental algorithm, during re-clustering, some (ε,τ)-density-based spatiotemporal clusters need to be appended to other (ε,τ)-density-based spatiotemporal clusters. Suppose that (ε,τ)-density-based spatiotemporal cluster stc is expanding. If a core georeferenced document in stc includes a georeferenced document, which is clustered in s t c , s t c is appended to stc. Function A p p e n d C l u s t e r s appends two spatiotemporal clusters and return a appended spatiotemporal cluster.

Burst detection

To identify the burstiness of extracted areas, we integrate location-based burst detection techniques Tamura and Kitakami (2013) in the proposed algorithm. We extended the location-based burst detection algorithm for detecting the burstiness of (ε,τ)-density-based spatiotemporal clusters. In the location-based burst detection algorithm, there are two sequences, that of the number of georeferenced documents and that of the number of relevant georeferenced documents.

In this study, a sequence of the number of all the relevant georeferenced documents is referred to as the sequence of georeferenced documents and a sequence of the number of relevant georeferenced documents in each (ε,τ)-density-based spatiotemporal cluster is referred to as the sequence of relevant georeferenced documents. Moreover, the influence rates of georeferenced documents gradually decrease according to distance from the center of each cluster.

Application interfaces

Two application interfaces are used for accessing information on bursty local areas related to emergency topics: a Web application interface and an android application interface. These two types of application interfaces access a application server and users can analyze bursty local areas through the interfaces. There is a geographical map on the Web application interface and the android application interface. Bursty local areas mapped on the geographical map, and each geotagged tweets in extracted spatiotemporal clusters are shown in the geographical map. Moreover, we can watch posted image with geotagged tweets.

We implemented a real-time weather observation system embedded with the proposed application. The real-time weather observation system provides the functions that show bursty local areas in which the weather is receiving more attention from many people located in these local areas. We can observe how observed weather is going on in bursty local areas through this system. The weather, such as, rain, snow, and wind cause a severe natural disaster; therefore, this system contributes an analysis of the weather forecast.

Figures 6 and 7 show screen shots of the Web application interface and the Android application interface to the real-time weather observation system, which are implemented by us. Figure 6 (a) shows screen shots on February 8, 2014. It snowed heavily in Japan; especially, the Tokyo metropolitan region and Koshin region had heavy snow on February 8, 2014. The icons of snow crystal indicates extracted bursty local areas. Through the system, we can know what weather is going on in Japan. Figure 6 (b) shows screen shots on July 3, 2014. It was rainy in western Japan. The icons of umbrella indicates extracted bursty local areas. If we click or touch these icons, we can observed the details of the selected bursty local areas. An additional movie file shows this in more detail [see Additional file 1].

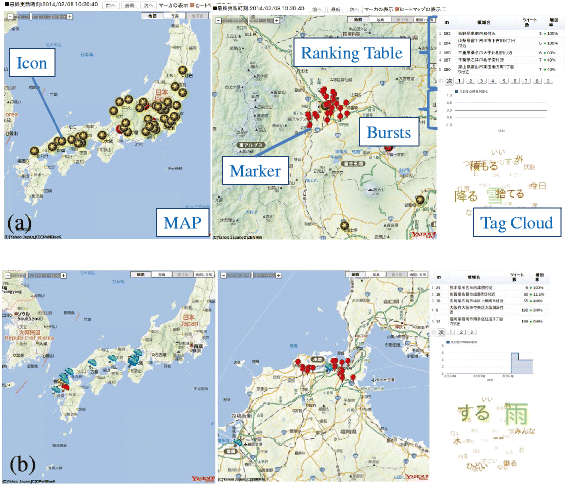

Figure 6

Screen shots of Web application interface.(a) shows screen shots of the “snow” observation application that we have implemented, (b) shows screen shots of the “rain” observation application that we have implemented. The Web application interface consists of four components: a map, a ranking table, a chart of bursts, and tag cloud. Icons, which indicate extracted bursty areas, are mapped on the map. If users click an icon, markers, which represents geotagged tweets located in the extracted bursty area are appeared. If the users click each marker, a window including the text data of geotagged tweet is opened. The ranking table is a ranking list of extracted bursty areas. Extracted bursty area are ranked by increasing rate of the number of geotagged tweets. An additional movie file shows this in more detail [see Additional file 1].

Figure 7

Screen shots of android application interface. This Figure shows the screen shots of the Android application. These screen shots shows the extracted bursty area in Hiroshima on July 7, 2014. The left-side of the figure shows map with extracted clusters. The right-side of the figure shows a photo including in a tweet in an extracted tweets. The tweet says “A heavy rain!". Moreover, the user who posted this tweet posted the photo that shows a flood on the load. An additional movie file shows this in more detail [see Additional file 2].

Figure 7 shows the screen shots of the Android application interface to the real-time weather observation system. These screen shots shows the extracted bursty area in Hiroshima on July 7, 2014. On July 7, it rained heavily in Hiroshima. The photo in the screen shot was posted only 5 minutes ago when the screen was captured. In the center of Hiroshima, we observed that flood damage occurred through the posted photo. An additional movie file shows this in more detail [see Additional file 2]. Table 1 shows that Precipitation on July 7, 2014 in Hiroshima. This data is provided by Japan Meteorological Agency. Table 1 indicates that it rained heavily in Hiroshima at 11:00. This is in consistency with this Figure.
Table 1

Precipitation on July 7, 2014 in Hiroshima

Time

6

7

8

9

10

11

12

13

14

15

16

17

18

Precipitation (mm)

0.5

0.5

1.5

20.5

3.0

30.5

10.5

7.5

6.0

3.5

2.5

0.0

0.0

Experimental result

To evaluate the proposed application, we implemented real-time weather observation system. In our experiments, we used geotagged tweets obtained by crawling Twitter posts and extracted bursty areas in real time. We collected geotagged tweets from the Twitter site using its Streaming API. In the experiments, we observed two topics “snow” and “rain”. We observed each topic in one of two periods. During January and February 2014, we evaluated whether the proposed application can identify bursty areas according to the topic “snow”. In particular, we focused on 12 days in these two months on which it snowed heavily. During the second period, which comprised June and July 2014, we evaluated whether the proposed application can identify bursty areas according to the topic “rain”. In particular, we focused on 16 days in these two months on which it rained heavily.

In the experiments, we evaluate the performance of the Naive Bayes classifier using cross-validation and the extraction rates of the topics “snow” and “rain” in Japan. Moreover, we observed in real time to clearly the availability of the proposed application. The parameters in the experiment were set as : ε=5 k m, τ=3600 s, and MinGDoc was 3. We conducted several experiments and we select the best parameters.

Cross-validation

Two training data sets TDS for “snow” and “rain” were composed of 2,500 geotagged tweets. One consisted of geotagged tweets that included “snow” as a keyword that were posted on February 8. The other consisted of geotagged tweets that included “rain” as a keyword that were posted on June 4. In these two train data sets, the geotagged tweets in the TDS were labeled manually. The number of geotagged tweets in the “positive” class, which means including topic “snow”, and the “negative” class was 1648 and 852, respectively. Moreover, the number of geotagged tweets in the “positive” class, which means including the topic “rain”, and the “negative” class was 897 and 1603, respectively.

To evaluate the Naive Bayes classifier, we performed a cross-validation. The number of partitions for the cross-validation was 5, 10, 20, 25, and 50. Figures 8 and 9 show the recall and precision values for each number of partitions for “snow” and “rain”, respectively. The range of recall is from 87% to 89% and from 81% to 84% for “snow” and “rain”, respectively. The range of precision is from 74% to 76% and from 73% to 74% for “snow” and “rain”, respectively.
Figure 8

Cross-validation of “snow”.

Figure 9

Cross-validation of “rain”.

On July 3, the Naive Bayes classifier extracted 4738 geotagged tweets that included “rain” as a keyword in the “positive” class. We evaluated this classification. The precision of the 4738 geotagged tweets extracted on July 3 is 93.4%. Therefore, according to the observed geotagged tweets using the Naive Bayes classifier, the proposed framework can extract topic-related geotagged tweets with high precision and recall.

Extraction rates

We collected newspaper articles including the topic “snow” and “rain” and extracted areas heavily snowed and rained that were reported from the articles. The number of extracted areas is shown in Tables 2 and 3. There are 106 and 131 areas that are reported to be a heavily rainy and snowy areas in newspaper from January to February and June to July in 2014, respectively. Tables 2 and 3 show the number of crawled geotagged tweets at each day. The average of the number of geotagged tweets is about 300,000 and 350,000.
Table 2

Data set and detected bursty areas related to topic “snow”

Date

Number of

Number of

Number of

Number of

Detectio n



geotagged

extracted

heavily

detected

rates



tweets

tweets

rainy

heavily rainy

( B / A × 100)



areas ( A )

areas ( B )



2014/1/10

282370

2665

6

3

50.0

2014/1/14

284215

981

1

0

0.00

2014/1/17

283809

995

4

0

0.00

2014/2/6

284065

2821

2

1

50.0

2014/2/8

350867

27823

38

31

81.6

2014/2/10

304380

3424

1

0

0.00

2014/2/11

289628

3564

1

1

100

2014/2/13

306106

3953

1

1

100

2014/2/14

378368

21834

23

17

73.9

2014/2/15

256378

10060

21

15

71.4

2014/2/16

307708

5121

7

2

28.6

2014/2/18

262145

2325

1

1

100

Table 3

Data set and detected bursty areas related to topic “rain”

Date

Number of

Number of

Number of

Number of

Detection



geotagged

extracted

heavily

detected

rates



tweets

tweets

rainy

heavily rainy

( B / A × 100)



areas ( A )

areas ( B )



2014/6/4

325095

2249

14

3

21.4

2014/6/6

312145

6401

19

7

70.0

2014/6/7

330540

4433

6

2

33.3

2014/6/13

346507

2589

4

0

0.00

2014/6/16

340675

750

4

2

50.0

2014/6/22

411863

4172

2

0

0.00

2014/6/23

355384

700

5

3

60.0

2014/6/25

393441

2331

21

11

52.4

2014/6/29

441959

4838

8

5

62.5

2014/7/3

341770

4738

16

6

37.5

2014/7/7

376734

4173

4

3

75.0

2014/7/8

366887

1405

5

4

80.0

2014/7/9

374707

4704

5

2

40.0

2014/7/10

395061

4803

3

0

0.00

2014/7/11

383704

1763

9

3

33.3

2014/7/19

412403

5369

6

3

50.0

As mentioned above, the number of heavily snowy and rainy areas were 106 and 131 respectively. Tables 2 and 3 show number of extracted tweets by using the Naive Bayes classifier, number of heavily snowy and rainy areas (A), and number of detected heavily snowy and rainy areas (B), sorted by date. The value of (B/A×100) indicates the detection rates of the identification. The detection rates are less than 50% for 8 out of 12 days and 8 out of 16 days respectively, because there are many country areas that had heavily where no geotagged tweets were posted.

We also evaluated another type of detection rates; Tables 4 and 5 show the detection rates of detected heavily snowy and rainy areas after removing areas with no posted geotagged tweets. Tables 4 and 5 show (B/C×100) that indicate another detection rates. The detection rates are larger than 50% for 8 out of 12 days and 12 out of 16 days respectively. The average of detection rates are 83.7% and 73.0%. Threfore, areas where there are geotagged tweets, the proposed framework can identifly heavily rainy areas with high detection rates. However, some areas are low detection rates because time interval posted geotagged tweets of those areas are long. Those areas was raining all day on the observed day, for example “Saeki Oita”, “Nobeoka Miyazaki” and “Tsuno Miyazaki” on June 4.
Table 4

Detected bursty areas related to topic “snow” after removing areas with no posted geotagged tweets

Date

Number of

Number of rainy

Detection



heavily rainy

detected heavily

rates



areas ( C )

areas ( B )

( B / C ×100)

2014/1/10

3

3

100

2014/1/14

1

0

0.00

2014/1/17

1

0

0.00

2014/2/6

2

1

50.0

2014/2/8

33

31

93.9

2014/2/10

1

0

0.00

2014/2/11

1

1

100

2014/2/13

1

1

100

2014/2/14

20

17

85.0

2014/2/15

19

15

78.9

2014/2/16

5

2

40.0

2014/2/18

1

1

100

Table 5

Detected bursty areas related to topic “rain” after removing areas with no posted geotagged tweets

Date

Number of

Number of

Detection



heavily rainy

detected

rates



areas ( C )

heavily rainy

( B / C ×100)



areas ( B )



2014/6/4

8

3

37.5

2014/6/6

9

7

77.8

2014/6/7

3

2

66.7

2014/6/13

1

0

0.00

2014/6/16

3

2

66.7

2014/6/22

1

0

0.00

2014/6/23

3

3

100

2014/6/25

11

11

100

2014/6/29

6

5

83.3

2014/7/3

11

6

54.5

2014/7/7

4

3

75.0

2014/7/8

4

4

100

2014/7/9

3

2

66.7

2014/7/10

0

0

-

2014/7/11

3

3

100

2014/7/19

4

3

75.0

Real time extraction

Figure 10 shows that alteration of extracted bursty areas associated with topic “snow” from moment to moment on December 20, 2013. The western part of Japan had first snow in the morning. We observed the system in real time. As the expanding snowfall areas, the number of extracted bursty areas increased. We could analyzed and identify which areas had heavy snowfall and what were tweeting. Figure 11 shows that alteration of extracted bursty areas associated with topic “rain” from moment to moment on July 3, 2014. The western part of Japan had heavy storm in the morning; especially, in the northern part of Kyushu, which is located at the west end of Japan, torrential rainfall occurred. Figure 11 shows that many bursty areas were extracted in the northern part of Kyushu at each time.

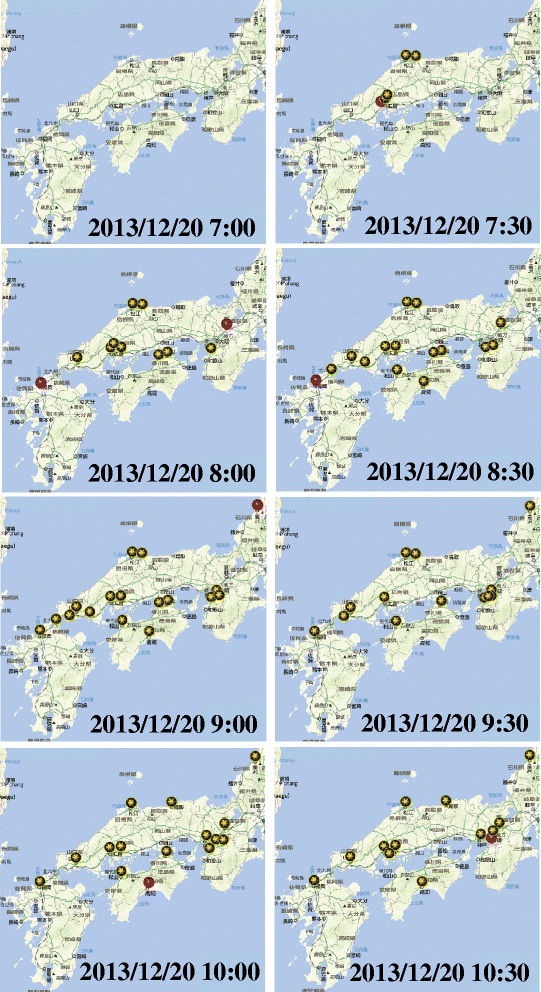

Figure 10

Extracted bursty areas in western Japan on December 20, 2013.

Figure 11

Extracted bursty areas in western Japan on July 3, 2014.

To discuss potential extension of the proposed application, we observed local heavy rain called “Guerrilla Rainstorm”. through the system. Figure 12 shows that a bursty local area extracted in Nagoya City, which is located in the center of Japan at 16:21 on July 17, 2014. A sudden heavy rain was observed in Nagoya at that time. The amount of precipitation analyzed by radar-AMeDAS was overloaded on the map. The system could identify a rainfall area as a local bursty area. In the tag clouds, there were frequent keywords like, “Sudden”, “Risky”, and “Guerrilla Rainstorm” appeared in this area. The tag clouds showed that this area was dangerous because of heavy rainfall.
Figure 12

Case study: This figure shows that a bursty local area extracted in Nagoya City, which is located in the center of Japan at 16:21 on July 17, 2014. A sudden heavy rain was observed in Nagoya at that time. The amount of precipitation analyzed by radar-AMeDAS was overloaded on the map. In the tag clouds, there were frequent keywords like, “Sudden”, “Risky”, and “Guerrilla Rainstorm”.

Conclusion

In this paper, we proposed a novel real-time analysis application for identifying bursty local areas related emergency topics. The aim of our new application is to provide a new platform that can identify and analyze the localities of emergency topics. Three core computational intelligence techniques are applied in our applications: the Naive Bayes classifier technique, the spatiotemporal clustering technique, and the burst detection technique. Moreover, we developed two types of application interface: a Web-based interface and an android application interface. We have implemented a real-time weather observation system embedded the proposed application framework. To evaluate the implemented system, which is embedded the proposed application, actual crawling geotagged tweets posted on the Twitter site were used. We observed real time weather topics and our system could successfully detect bursty areas of observed emergency topics that is related to weather topics. In the future work, we are planning to develop an alert system that provides the details of detected bursty areas for users located near the bursty areas. We will also extend our proposed method to support multi-languages. Moreover, to improve the usability of our system, we have to develop an automatic method for making train set because making train sets is difficult for end users.

Declarations

Acknowledgements

This work was supported by JSPS KAKENHI Grant Number 26330139 and Hiroshima City University Grant for Special Academic Research (General Studies).

Authors’ Affiliations

(1)
Graduate School of Information Sciences, Hiroshima City University

References

  1. Abdelhaq, H, Sengstock C, Gertz M (2013) Eventweet: Online localized event detection from twitter. Proc VLDB Endow 6(12): 1326–1329.View ArticleGoogle Scholar
  2. Aramaki, E, Maskawa S, Morita M (2011) Twitter catches the flu: Detecting influenza epidemics using twitter In: Proceedings of the Conference on Empirical Methods in Natural Language Processing, 1568–1576.. EMNLP ’11, Association for Computational Linguistics, Stroudsburg, PA, USA.Google Scholar
  3. Ester, M, Kriegel H-P, Sander J, Xu X (1996) A density-based algorithm for discovering clusters in large spatial databases with noise In: Second International Conference on Knowledge Discovery and Data Mining, 226–231.. AAI, Palo Alto, CA, USA.Google Scholar
  4. Hiruta, S, Yonezawa T, Jurmu M, Tokuda H (2012) Detection, classification and visualization of place-triggered geotagged tweets In: Proceedings of the 2012 ACM Conference on Ubiquitous Computing UbiComp. ’12, 956–963.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  5. Hong, L, Ahmed A, Gurumurthy S, Smola AJ, Tsioutsiouliklis K (2012) Discovering geographical topics in the twitter stream In: Proceedings of the 21st International Conference on World Wide Web. WWW ’12, 769–778.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  6. Hwang, M-H, Wang S, Cao G, Padmanabhan A, Zhang Z (2013) Spatiotemporal transformation of social media geostreams: a case study of twitter for flu risk analysis In: Proceedings of the 4th ACM SIGSPATIAL International Workshop on GeoStreaming. IWGS ’13, 12–21.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  7. Jansen, BJ, Zhang M, Sobel K, Chowdury A (2009) Twitter power: Tweets as electronic word of mouth. J Am Soc Inf Sci Technol 60(11): 2169–2188.View ArticleGoogle Scholar
  8. Java, A, Song X, Finin T, Tseng B (2007) Why we twitter: Understanding microblogging usage and communities In: Proceedings of the 9th WebKDD and 1st SNA-KDD 2007 Workshop on Web Mining and Social Network Analysis. WebKDD/SNA-KDD ’07, 56–65.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  9. Kaneko, T, Yanai K (2013) Visual event mining from geo-tweet photos In: Multimedia and Expo Workshops (ICMEW) 2013 IEEE International Conference On, 1–6.. IEEE, San Jose, CA, USA.Google Scholar
  10. Karimi, S, Yin J, Paris C (2013) Classifying microblogs for disasters In: Proceedings of the 18th Australasian Document Computing Symposium. ADCS ’13, 26–33.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  11. Kavanaugh, A, Fox EA, Sheetz S, Yang S, Li LT, Whalen T, Shoemaker D, Natsev P, Xie L (2011) Social media use by government: From the routine to the critical In: Proceedings of the 12th Annual International Digital Government Research Conference: Digital Government Innovation in Challenging Times. dg.o ’11, 121–130.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  12. Kleinberg, J (2002) Bursty and hierarchical structure in streams In: Proceedings of the Eighth ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. KDD ’02, 91–101.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  13. Mandel, B, Culotta A, Boulahanis J, Stark D, Lewis B, Rodrigue J (2012) A demographic analysis of online sentiment during hurricane irene In: Proceedings of the Second Workshop on Language in Social Media. LSM ’12, 27–36.. Association for Computational Linguistics, Stroudsburg, PA, USA.Google Scholar
  14. Manning, CD, Raghavan P, Schütze H (2008) Introduction to information retrieval. Cambridge University Press, New York, NY, USA.View ArticleGoogle Scholar
  15. Marcus, A, Bernstein MS, Badar O, Karger DR, Madden S, Miller RC (2011) Twitinfo: Aggregating and visualizing microblogs for event exploration In: Proceedings of the SIGCHI Conference on Human Factors in Computing Systems. CHI ’11, 227–236.. ACM, New York, NY, USA.Google Scholar
  16. Miyabe, M, Miura A, Aramaki E (2012) Use trend analysis of twitter after the great east japan earthquake In: Proceedings of the ACM 2012 Conference on Computer Supported Cooperative Work Companion. CSCW ’12, 175–178.. ACM, New York, NY, USA.Google Scholar
  17. Murakami, A, Nasukawa T (2012) Tweeting about the tsunami?: Mining twitter for information on the tohoku earthquake and tsunami In: Proceedings of the 21st International Conference Companion on World Wide Web. WWW ’12 Companion, 709–710.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  18. Musleh, M (2014) Spatio-temporal visual analysis for event-specific tweets In: Proceedings of the 2014 ACM SIGMOD International Conference on Management of Data. SIGMOD ’14, 1611–1612.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  19. Ozdikis, O, Oguztuzun H, Karagoz P (2013) Evidential location estimation for events detected in twitter In: Proceedings of the 7th Workshop on Geographic Information Retrieval. GIR ’13, 9–16.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  20. Sakaki, T, Okazaki M, Matsuo Y (2010) Earthquake shakes twitter users: Real-time event detection by social sensors In: Proceedings of the 19th International Conference on World Wide Web. WWW ’10, 851–860.. ACM, New York, NY, USA.View ArticleGoogle Scholar
  21. Sander, J, Ester M, Kriegel H-P, Xu X (1998) Density-based clustering in spatial databasesThe algorithm gdbscan and its applications. Data Mining Knowl Discov 2(2): 169–194.View ArticleGoogle Scholar
  22. Tamura, K, Ichimura T (2013) Density-based spatiotemporal clustering algorithm for extracting bursty areas from georeferenced documents In: Proceedings of The 2013 IEEE International Conference on Systems, Man, and Cybernetics, SMC 2013, 2079–2084.. IEEE Computer Society, Los Alamitos, CA, USA.Google Scholar
  23. Tamura, K, Kitakami H (2013) Detecting location-based enumerating bursts in georeferenced micro-posts In: Proceedings of the 2013 Second IIAI International Conference on Advanced Applied Informatics. IIAI-AAI ’13, 389–394.. IEEE Computer Society, Los Alamitos, CA, USA.View ArticleGoogle Scholar
  24. Typhoon real time watcher (2014). http://typhoon.mapping.jp/.
  25. Vieweg, S, Hughes AL, Starbird K, Palen L (2010) Microblogging during two natural hazards events: What twitter may contribute to situational awareness In: Proceedings of the SIGCHI Conference on Human Factors in Computing Systems. CHI ’10, 1079–1088.. ACM, New York, NY, USA.Google Scholar
  26. Yin, J, Lampert A, Cameron M, Robinson B, Power R (2012) Using social media to enhance emergency situation awareness. Intell Syst IEEE 27(6): 52–59.View ArticleGoogle Scholar

Copyright

© Sakai and Tamura; licensee Springer. 2015

This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
