Changes of bacterioplankton apparent species richness in two ornamental fish aquaria

Abstract

We analysed the 16S rRNA gene diversity within the bacterioplankton community in the water column of the ornamental fish Pterophyllum scalare and Archocentrus nigrofasciatus aquaria during a 60-day growth experiment in order to detect any dominant bacterial species and their possible association with the rearing organisms. The basic physical and chemical parameters remained stable but the bacterial community at 0, 30 and 60 days showed marked differences in bacterial cell abundance and diversity. We found high species richness but no dominant phylotypes were detected. Only few of the phylotypes were found in more than one time point per treatment and always with low relative abundance. The majority of the common phylotypes belonged to the Proteobacteria phylum and were closely related to Acinetobacter junii, Pseudomonas sp., Nevskia ramosa, Vogesella perlucida, Chitinomonas taiwanensis, Acidovorax sp., Pelomonas saccharophila and the rest belonged to the α-Proteobacteria, Bacteroidetes, Actinobacteria, candidate division OP11 and one unaffiliated group. Several of these phylotypes were closely related to known taxa including Sphingopyxis chilensis, Flexibacter aurantiacus subsp. excathedrus and Mycobacterium sp. Despite the high phylogenetic diversity most of the inferred ecophysiological roles of the found phylotypes are related to nitrogen metabolism, a key process for fish aquaria.

Introduction

The spatial and temporal distribution of organisms is considered one of the first and most important steps in understanding the distribution of life on the planet. More specifically, knowledge of the distribution of multiple species in time and space within a shared habitat is valuable for understanding how an ecosystem functions (Konopka, 2009). For example, a stable microbial community structure is considered to be a critical factor for ecosystem resilience after disturbances and along biogeochemical cycles of elements and materials (Torsvik and Øvreås, 2002; Ramond et al. 2012). In microbial habitats, i.e., where microbes are the sole living organisms or hold the key ecophysiological roles, the changes in community structure are even more important. It is known that under stable conditions a few bacterial phylotypes are expected to dominate and/or few alterations in community structure occur until some environmental perturbations take place (Øvreås and Curtis, 2011). Despite intensive studies into the bacterioplankton community structure in natural marine and freshwater habitats (Bomberg et al. 2008; Kirchman, 2008; Barberan and Casamayor, 2010; Newton et al., 2011) and the use of artificial controlled systems for studying microbial community dynamics (e.g. Massana et al. 2001), engineered systems, e.g., fish aquaria, have been understudied regarding their bacterioplankton dynamics.

Little is known about the bacterioplankton communities’ structure and dynamics in ornamental fish aquaria. Most of the studies that have been conducted have focused either on the isolation of bacteria from fish tissues (e.g., Beran et al. 2006) or biofilters in the aquaria (Hovanec and DeLong, 1996; Burrel et al. 2001; Grommen et al. 2005; Sugita et al. 2005; Sauder et al. 2011). However, these systems harbour interesting bacterial communities that might contain antibiotic-resistant strains as a result of the water treatment process during commercial transportation of the fish (Trust and Whitby, 1976). Regarding the two species we examined, i.e. Pterophyllum scalare and Archocentrus nigrofasciatus, it is known that P. scalare is susceptible to mycobacteriosis (Lescenko et al. 2003), although mycobacteria are found in healthy fish as well (Beran et al. 2006). These two species are among the most popular species in the global ornamental fish market. Both cichlid species are omnivorous (Garcia-Ulloa and Gomez- Romero, 2005; Bernstein, 1980), carnivorous (Degani, 1993) and saprotrophs/detrivores (Crampton, 2008).

Small glass aquaria with recirculating systems that allow control of environmental conditions, disease, feeding and stocking densities are used to rear freshwater ornamental fish. However, food and water quality are among the most important factors shown to affect the growth of ornamental fish and optimal culture methods and techniques for current commonly traded and cultured species are still needed. There are 1300–2000 cichlid species worldwide that utilize various dietary sources and vary greatly in their dietary requirements (Knop and Moorhead, 2012). P. scalare and A. nigrofasciatus consume plankton, mosquito larvae, crustaceans (copepods), plants and worms (Soriano-Salazar and Hernadez-Ocampo, 2002). Under captivity in aquaria conditions, their feeding up to the larvae stage is restricted to macrozooplankton organisms such as Daphnia, Moina and Artemia nauplii (Lim and Wong, 1997). Artificial diets are also used, most frequently as flakes or pellets (Luna-Figueroa et al. 2000).

As a side project of a broader study on growth and food consumption of the freshwater ornamental fish Pterophyllum scalare and Archocentrus nigrofasciatus, we investigated the changes in bacterioplankton species composition during a 60 day growth experiment of the two species. We monitored the bacterial 16S rRNA gene diversity in order to elucidate whether (a) any dominant Bacteria can be found and (b) there are bacterial species that persist in the tanks. We chose the two tropical Cichlidae species as they have similar rearing conditions and, based on our previous expriments, they have similar growth rates despite their differences in food consumption.

Materials and methods

Rearing conditions

The rearing experiments were conducted at the laboratory of aquaculture and fisheries in the Technological Education Institution in Mesolongi, in Greece. Larvae were hatched from ovigerous females that had been grown in the laboratory under captivity. They were fed ad libitum, Artemia nauplii, (JBL Artemio Pur type, Germany) Cyclops and Daphnia (Ocean nutrition, Belgium) (Sorgeloos et al. 1986) for ten days and then with appropriately sized pellets and flakes containing 42% protein until day 30. A group of 20 chosen angelfish (P. scalare, 1.10 ± 0.5 g mean initial wet weight) and 20 convict cichlids (A. nigrofasciatus, 1.11 ± 0.11 g mean initial wet weight) were selected and transferred to four glass aquaria (10 fish per rearing units). Growth took place in 45 l glass aquaria (41 × 36 × 30.5 cm) filled with fresh water and with an independent recirculation system. The growth experiments were set up as a randomized complete block design with three blocks containing one replicate of the six treatments. Each block consisted of six 45 l glass aquaria (rearing tanks) with an independent recirculation system. They were hand fed 5% of their body weight three times per day for a period of 60 days with a commercial diet consisting of pellets and flakes. The feeding rate was adjusted every two weeks. The tanks were cleaned and uneaten food was removed every day. The fish weighed 2 g with no significant statistical differences (P > 0.05) between their final weights at the end of the trial.

During the trial, the water temperature was kept at 25°C or 20°C, the optimal growth temperatures for P. scalare and A. nigrofasciatus, respectively. Temperature was kept stable throughout the growth period by using air-conditioning and a stainless steel immersion heater located in the head reservoir. A false perforated plastic bottom was properly fitted in each aquarium and was covered with 6.5 Kg of lava grain to act as a filter bed substrate. The surface area of each filter bed was 1476 cm2. The water was continuously recycled through the filter bed using an air-lift pump with an adjusted flow of 5118 ml min-1 to yield a filtration speed of 3.88 cm min-1. The tanks were left for 24 hours in order to allow traces of chlorine in the tap water to be removed. One to two days after that, ca. 50 × 106 nitrifying and denitrifying cells (Biodigest Probio, France) were added. The addition of these cells is expected to be low compared to the existing cell counts. The addition in the first three days of 50 × 106 cells in 45 l of waters equals ca. 1,111 cells ml-1. On day 2 the bacterial abundance was between ca. 2.4 and 5.3 × 106 cells ml-1 and on day 5 it was ca. 1.2 and 4.3 × 106 cells ml-1, which renders the introduced 1,111 cells rather negligible. The tanks were sterilised at the start of the experiment, however, the observed cell counts were due to the aged tap water used for these rearing experiments.

An amount of 0.2 g solid NH4Cl was then dissolved in each aquarium to serve as the ammonia source (Vlahos et al. 2004). Approximately 10% of the water in each tank was replaced every day with fresh tap water. The aquaria were subjected to a photoperiod of 12 h:12 h light:dark, and the starting pH was 7.8 – 8.0. The concentrations of nitrate, nitrite and ammonia were measured every two or three days spectrophotometrically by using commercial kits (Hach Lange, USA). The dissolved oxygen concentrations and pH were measured with an HQ 40d multiprobe (Hach Lange, USA).

Bacterial abundance and diversity

Bacterial cell abundance and 16S rRNA diversity were investigated at the beginning (0d), middle (30d) and end (60d) of the rearing period for each species from one tank for each of the species. To investigate the bacterioplankton diversity, we sampled only from one tank for each species in order not to disturb the major rearing experiment (e.g. water level reduction, possible water tank contamination from handling, etc.) which could mask the fish growth results. From each rearing tank, 50 ml of water was fixed with 2% formaldehyde final concentration and kept at 4°C in the dark. A subsample of 10–15 ml was filtered on black Nuclepore filters (pore size of 0.2 μm) and stained with DAPI (4',6-diamidino-2-phenylindole). After mounting the filters on glass slides, the cells were counted on an Axiostar (Zeiss) epifluorescence microscope at 1,000 × magnification (Porter and Feig, 1980). DAPI counts were counted thrice for every sampling time point from the same tank and the coefficient of variation was always less than 10% (data not shown). In parallel, 1–2 l of water was filtered on 47 mm diameter 0.2 μm pore-size polycarbonate filters of (Millipore, USA) under low vacuum pressure (≤150 mm Hg) and the filters were stored at −80°C. DNA was extracted using the UltraClean Soil DNA isolation kit (MoBio Laboratories, USA) according to the manufacturer’s protocol after slicing the filters with a sterile scalpel. DNA concentrations ranged from 7.6 – 17.8 ng μl-1 (A260/A280 ratios 1.87-2.13). Bacterial 16S rDNA was amplified using the bacterial primers GM3 (5′- AGAGT TTGATCMTGGC-3′) (Muyzer et al., 1995) and 1390r (5′-TGTACACACCGCCCGTC-3′) or GM4 (5′-TACCTT GTTACGACTT-3′) (Lane at al., 1991). The PCR included an initial denaturation step at 94°C for 1 min followed by 25 to 29 cycles consisting of denaturing at 94°C for 45 s, annealing at 44°C for 45 s, and elongating at 72°C for 2 min with a final 7-min elongation step at 72°C after the final cycle. The number of cycles was determined for each sample after cycle optimisation. PCRs were repeated with different cycle numbers, and the lowest number of cycles that gave a positive signal was then used for cloning and sequencing in order to avoid differential representation of the 16S rDNA genes with low and high copy numbers (Spiegelman et al., 2005).

Polymerase chain reaction products were visualized on a 1% agarose gel under ultraviolet light, the bands were excised, and the PCR products were extracted with the PureLink Quick Gel Extraction Kit (Invitrogen Corporation, USA) following the manufacturer’s protocol. The PCR products were cloned using the TOPO TA for sequencing cloning kit (Invitrogen Corporation, USA) and electrocompetent cells according to the manufacturer’s specifications. For each sample and each gene, randomly picked clones with inserts of the expected length were analysed. Clones were grown in liquid LB medium with kanamycin and their plasmids were purified using the NucleoSpin Plasmid QuickPure kit (Macherey-Nagel GmbH & Co. KG, Germany) for DNA sequencing.

Sequencing and phylogenetic analysis

Sequence data were obtained by Macrogen Inc. (South Korea) using capillary electrophoresis and the BigDye Terminator kit (Applied Biosystems Inc., USA) with the primers M13F (−20) and M13R. Each sequence read was approximately 900 bp, and for each individual clone, forward and reverse reads were assembled. Chimeric sequences were checked by comparing neighbour-joining trees made of the first and second halves of all sequences. Sequences with different groupings between the first and second halves were then checked using the Pintail program (http://www.bioinformatics-toolkit.org/Web-Pintail/).

The closest relatives for all retrieved sequences were determined by comparison using the BLAST function (http://www.ncbi.nlm.nih.gov/ BLAST/). Automatic alignment against sequences from their closest relatives was performed using SILVA (http://www.arb-silva.de/aligner/). Phylotypes were defined as sequences showing ≥98% homology to each other. Phylogenetic trees were constructed by the neighbour-joining method using the Jukes-Cantor correction. Bootstrap analyses for 1000 replicates were performed to assign confidence levels to the tree topology using the MEGA4 software (Tamura et al., 2007). The sequences of unique phylotypes found in this study have GenBank numbers JX105530 - JX105733.

The clone library coverage was calculated using the equation C = [1 - (ni/N)]x100, where ni is the number of phylotypes and N is the number of 16S rRNA sequences examined (Good, 1953; Kemp and Aller, 2004).

Results

Physical and chemical parameters

Temperature remained stable at the desired values throughout the rearing periods for both species. Although the concentrations of dissolved oxygen (Figure 1) showed different fluctuation patterns for the two rearing treatment (8.1 – 8.3 and 8.2 – 8.8 mg l-1 for A. nigrofasciatus and P. scalare, respectively), no limiting concentrations were detected. Variations in the pH (Figure 1) were also different, especially after the first 10 days (7.0 – 7.7 and 6.5 – 7.8 for A. nigrofasciatus and P. scalare, respectively). Phosphate levels (Figure 1) showed little variation (0.000 – 0.001 μM) for both species, but the highest values were obtained at different time points for the two species. Regarding nitrogen-containing nutrients (Figure 1), no ammonia was detected after the first six to eight days of the experiment but nitrate levels increased after this time point.

Figure 1
figure 1

Temporal changes in (a) dissolved oxygen, (b) pH, (c) phosphate, (d) nitrate, (e) ammonia/DIN and (f) bacterial abundance (cells × 10 5 ml -1 ) in the water column of the rearing tanks of Archocentrus nigrofasciatus and Pterophyllum scalare. DIN: dissolved inorganic nitrogen, i.e. total concentrations of nitrate, nitrite and ammonia.

Bacterial abundance and diversity

The water column cell counts increased until the end of the rearing period for both species (Figure 1). The initial cell abundance was comparable in both treatments (0.5 and 0.8 × 106 cells ml-1 for A. nigrofasciatus and P. scalare, respectively) and was followed by an initial decrease in the P. scalare tanks. At the end of the experiment, the bacterial cell abundance reached 2.9 × 106 and 1.2 × 106 cells ml-1 for A. nigrofasciatus and P. scalare, respectively.

For each clone library we analysed 41–72 clones, which corresponded to 21 – 50 unique phylotypes (Figure 2). The level of clone coverage showed that the estimated species richness of the samples is high (Additional file 1: Figure S1). This, along with the lack of any dominant phylotype (i.e., the most abundant phylotypes reached 8.6% and 13.9% for A. nigrofasciatus and P. scalare, respectively) and the numerous singletons or doubletons, suggest the presence of highly diverse communities that have not been fully revealed using the current methodology.

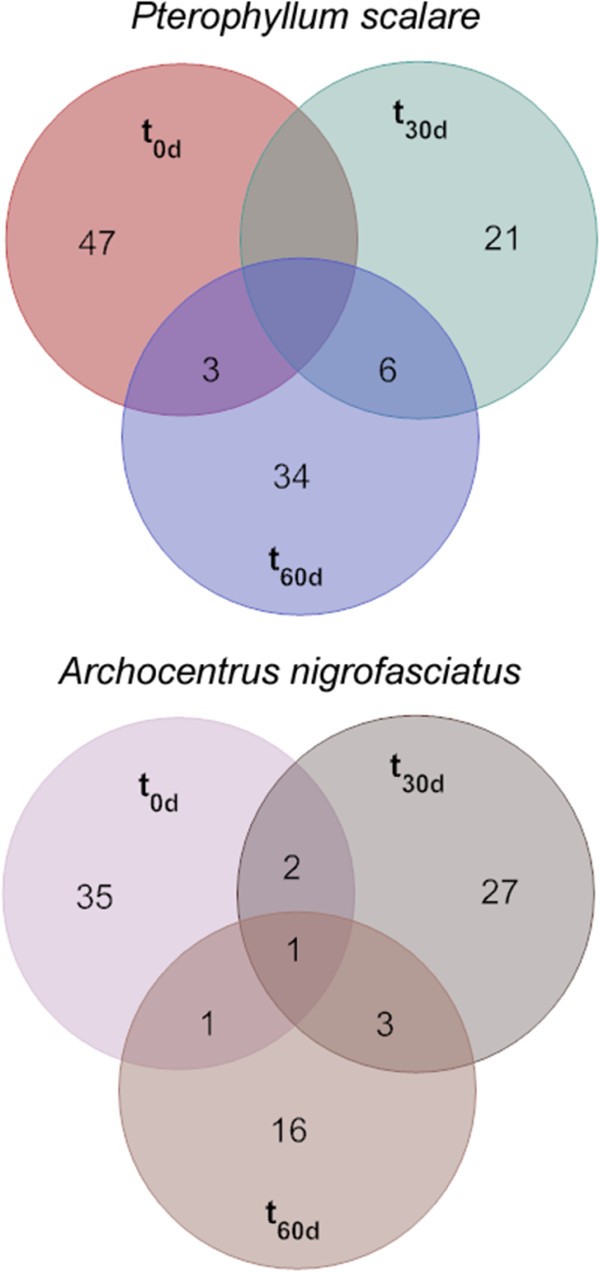

Figure 2
figure 2

Venn diagrams of the common phylotypes occurring in the water column of the rearing tanks of Archocentrus nigrofasciatus and Pterophyllum scalare at the beginning (t 0d ), middle (t 30d ) and the end (t 60d ) of the growth period.

In both treatments, the highest number of phylotypes occurred at 0day but the lowest occurred at 60days and 30days for A. nigrofasciatus and P. scalare, respectively For each treatment, only two to six phylotypes were found in more than one clone library (Figure 2) but their relative abundance was low in most cases. For A. nigrofasciatus, phylotype T0-An-20C-58 occurred at all three time points, but no common phylotypes were detected for P. scalare between 30 days and 60 days. No common phylotypes were found to dominate any of the sampling points in each of the aquaria (Additional file 1: Table S1). There were no common phylotypes identified between the aquaria of the two fish species.

The phylogenetic analysis of the common phylotypes (Figure 3) revealed that the majority belonged to the Proteobacteria. These proteobacterial phylotypes were closely related to known taxa: Acinetobacter junii, Pseudomonas sp., Nevskia ramosa, Vogesella perlucida, Chitinomonas taiwanensis, Acidovorax sp., and Pelomonas saccharophila. The rest of the phylotypes belonged to the α-Proteobacteria, Bacteroidetes, Actinobacteria, candidate divison OP11 and one unaffiliated group. A subset of these phylotypes was closely related to known taxa including Sphingopyxis chilensis, Flexibacter aurantiacus subsp. excathedrus and Mycobacterium sp.

Figure 3
figure 3

Phylogenetic tree of the common Bacteria (in bold) occurring in the water column of the rearing tanks of Archocentrus nigrofasciatus and Pterophyllum scalare at the beginning (0d), middle (30d) and the end (60d) of the growth period. The tree of the Bacteria 16S rRNA gene phylotypes (ca. 1,500 bp, 1013 positions) was based on the neighbour-joining method as determined by distance using Kimura’s two-parameter correction. One thousand bootstrap analyses (distance) were conducted, and percentages ≥50% are indicated at nodes. Numbers in brackets are GenBank accession numbers. Scale bar represents 2% estimated distance.

For both samples, the remaining phylotypes, occurred in only one clone library (Additional; file 1: Figure S2, S3) and belonged to the α-, β- γ- δ- and unaffiliated Proteobacteria, Fusobacteria, Bacteroidetes, Actinobacteria, Firmicutes and unaffiliated phyla. In the A. nigrofasciatus samples, phylotypes belonging to the Deinococcus-Themus, Planctomycetes, Verrucomicrobia phyla and some plastid-related clades were also found.

Discussion

In this study, we showed that the bacterial communities developed in the water column under controlled rearing conditions in two ornamental fish aquaria were characterised by high species richness but low relative abundance. The coverage of the clone libraries was low due to the high number of rare species (i.e., species with ≤0.1% relative abundance). In tapwater samples (e.g., Kormas et al. 2010; Poitelon et al. 2010; Revetta et al. 2010) or drinking water reservoirs (e.g., Simek et al. 2001; Lymperopoulou et al. 2012) this quantity of sequences is adequate to illustrate the dominant members of the bacterial community. In our study, the coverage was only satisfactory for the 60days in the A. nigrofasciatus sample (Additional file 1: Figure S1), however, there were still no dominant phylotypes revealed.

Of all the measured parameters, pH and nitrate showed such fluctuating patterns that could affect the bacterial species community structure. The pH varied markedly for A. nigrofasciatus but not for P. scalare at the three sampling points. Nitrate showed the opposite pattern. Nitrate levels in P. scalare peaked on day 30 and then fell to almost half this value at day 60. For A. nigrofasciatus, no clear peak occurred and the nitrate levels never reached the ones for P. scalare. Despite these differences, both treatments showed little overlapping phylotypes between sampling points, rendering their presence independent from the changes of these parameters or at least with a time lag which was not detected at the 30 day intervals used in this study.

Nitrification must have been taking place in both treatments because ammonia was not detectable after the first six to eight days, and after that, nitrogen increased until the end of the experiment. Because nitrate and phosphate are considered major limiting factors for the growth of microorganisms in the aquatic environment, it is possible that the increased nitrate concentrations could sustain the observed increasing cell abundance until the end of the experiment while favouring, thus, the dominance of some nitrate reducers. Phosphate is also expected to be turned over fast i.e., it is used immediately which is why its levels remained below the detection limit.

It has recently been suggested that although the bacterial diversity and community structure can be highly variable between two communities, the functional redundancy of these different species can be high (Burke et al. 2011). Although there was no clear dominance of specific phylotypes in the current study, most of the common phylotypes were closely related to species that reduce nitrate reduction, most likely as a result of the increased nitrate concentrations after the first days of the experiment. Phylotype T0-An-20C-76 is closely related to Nevskia ramosa. This species grows optimally at 20 – 25°C (Brenner et al. 2005) at air-freshwater interfaces (Pladdies et al. 2004) or in drinking water biofilms (Keinänen-Toivola et al. 2006). Another phylotype (T30-Ps-25C-52) is a Vogesella perlucida-like bacterium that can perform nitrate reduction at 4–45°C, with 0–2% NaCl and at pH 7–9 (optimal growth at 30°C, 0.5% NaCl and pH 7.5) (Chou et al. 2008). Phylotype T0-An-20C-39 is related to Burkholderia cepacia, a species known to fix N2 but also a possible pathogen causing cystic fibrosis (Brenner et al. 2005. Phylotype T0-An-20C-39 has been found only in the posterior gut of semi-intensively cultured tilapia, Oreochromis niloticus (Molinari et al. 2003), and the Chilean freshwater-farmed Atlantic salmon (Miranda and Zemelman 2002), but it has been suggested to be involved in fish pathogenicity (e.g., catfish Clarias gariepinus fingerlinks, Nzeako et al. 2001). Consequently, it is very likely that this phylotype originated from the fish intestine suggesting that fish aquaria are sources of faecal microbes. However, its natural occurrence cannot be excluded as it also occurs in natural streams (Santmire and Leff 2006) and has been positively correlated to nitrate concentrations (Olapade et al. 2005). Thus, phylotype T0-An-20C-39 could contribute to the nitrification of the tank. Phylotype T30-Ps-25C-22 is related to Pelomonas saccharophila (Xie and Yokota 2005) and is also a potential nitrate reducer, along with T30-Ps-25C-5, an Acidovorax sp. group that contains denitrifiers (Brenner et al. 2005). Phylotype T0-An-20C-6 is most likely a Flexibacter aurianticus, which known to grow at 10-25°C and can reduce nitrate to nitrite (Brenner et al. 2005). The Sphingopyxis (synonymous with Sphingomonas)-like phylotype T0-An-20C-6 is also a known nitrate reducer (Godoy et al. 2003).

Bacterial abundance continued to increase until the end of the experiment due to the lack of considerable grazing pressure (Sherr and Sherr, 2002) evidenced by our failure to observe any nanoflagellates (i.e., always below detection limit) (Kormas, unpublished data). In batch (closed) cultures, the increase in bacterial cell numbers is usually attributed to few dominant species, but this was not the case in our study. Not only were there no dominant species, but very few of the ones that existed at day 30 and day 0 appeared in day 60 and high numbers of rare phylotypes were found.

Usually, high numbers of rare phylotypes are expected in more variable environments (Reid and Buckley, 2011). This number is decreased with the concomitant dominance of a few taxa in more stable habitats with less prominent changes in their prevailing conditions (Øvreås and Curtis, 2011). Possible ecophysiological mechanisms that may retain a high number of rare taxa include the following: (a) low metabolic or growth rates, (b) antagonism/allelopathy, (c) balance between growth and removal rates and (d) specialization in substrates or habitats (Pedrós-Alió, 2012). Regarding the metabolic rates of the inferred phylogenies, the prevailing conditions (i.e., temperature, pH, salinity) in the tanks fall in the range required by most of the common phylotypes (see above). Antagonism in the bacterioplankton of the tanks is expected to be high, and this could cause a lack of dominant phylotypes. Because we used closed systems, no new species could be introduced. However, the tanks were not isolated from the air and airborne bacteria could be introduced in the tanks, although their successful establishment remains doubtful and unknown. Top-down control was negligible as we did not observe any bacterial grazers, i.e. heterotrophic nanoflagellates or larger protozoa (Kormas, personal observations), but the effect of viral infection and lysis cannot be ruled out (Wommack and Colwell, 2000). The remaining factor that could cause ever-changing conditions in the water column of the tank is the quality and quantity of carbon sources. Carbon substrates are expected to originate from aquafeed leftovers and excretions from fish. The quality, quantity and lability of excreted carbon from fish, currently is not well known and this carbon pool remains a black box. Nevertheless, the production rate of dissolved and particulate nitrogenous waste by farmed salmon has been estimated (Davies 2000; Mente et al., 2006). Recently, the high or low sea bream (Sparus aurata) density in aquaculture cages was suggested to cause significant differences in bacterial cell numbers in response to higher or lower amounts of excreted material from the fish (Mente et al., 2012). The development of commercial rearing facilities that are in line with advances in research for optimal culture conditions will facilitate the further growth of sustainable ornamental aquaculture.

References

  • Barberán A, Casamayor E: Global phylogenetic community structure and β-diversity patterns in surface bacterioplankton metacommunities. Aquat Microb Ecol 2010, 59: 1-10.

    Article  Google Scholar

  • Beran V, Matlova L, Dvorska L, Svastova P, Pavlik I: Distribution of mycobacteria in clinically healthy ornamental fish and their aquarium environment. J Fish Dis 2006, 29: 383-393. 10.1111/j.1365-2761.2006.00729.x

    Article  Google Scholar

  • Brenner DJ, Krieg NR, Staley JT: Bergey’s manual of systematic bacteriology, vol two. Second edition. New York: The Proteobacteria. Springer; 2005.

    Book  Google Scholar

  • Bernstein JW: Parental care in the cichlid fish Cichlasoma nigrofasciatum . Copeia 1980, 80: 682-686.

    Article  Google Scholar

  • Bomberg M, Montonen L, Münster U, Jurgens G: Diversity and function of archaea in freshwater habitats. Curr Trends Microbiol 2008, 4: 61-89.

    Google Scholar

  • Burke C, Thomas T, Lewis M, Steinberg P, Kjelleberg S: Composition, uniqueness and variability of the epiphytic bacterial community of the green alga Ulva australis . ISME J 2011, 5: 590-600. 10.1038/ismej.2010.164

    Article  Google Scholar

  • Burrell PC, Phalen CM, Hovanec TA: Identification of Bacteria responsible for ammonia oxidation in freshwater aquaria. Appl Environ Microbiol 2001, 67: 5791-5800. 10.1128/AEM.67.12.5791-5800.2001

    Article  Google Scholar

  • Chou Y-J, Chou J-H, Lin M-C, Arun AB, Young C-C, Chen W-M: Vogesella perlucida sp. nov., a non-pigmented bacterium isolated from spring water. Int J Syst Evolut Microbiol 2008, 58: 2677-2681. 10.1099/ijs.0.65766-0

    Article  Google Scholar

  • Crampton WGR: Ecology and life history of an Amazon floodplain cichlid: the discus fish Symphysodon (Perciformes: Cichlidae). Neotr Ichthyol 2008, 6: 599-612. 10.1590/S1679-62252008000400008

    Article  Google Scholar

  • Davies IM: Waste production by farmed Atlantic salmon (Salmo salar) in Scotland. Copenhagen: ICES, CM; 2000:6. 2000/0:01

    Google Scholar

  • Degani G: Growth and body composition of juveniles of Pterophyllum scalare (Lichtenstein) (Pisces;Cichlidae) at different densities and diets. Aquacult Fisher Manag 1993, 24: 725-730.

    Google Scholar

  • Garcia-Ulloa M, Gomez-Romero HJ: Growth of angel fish Pterophyllum scalare juveniles fed inert diets. Avan Invest Agropec 2005, 9: 49-60.

    Google Scholar

  • Godoy F, Vancanneyt M, Martinez M, Steinbachel A, Swings J, Rehm BHA: Sphingopyxis chilensis sp. nov., a chlorophenol-degrading bacterium that accumulates polyhydroxyalkanoate, and transfer of Sphingomonas alaskensis to Sphingopyxis alaskensis comb. nov. Int J Syst Evolut Microbiol 2003, 53: 473-477. 10.1099/ijs.0.02375-0

    Article  Google Scholar

  • Good IJ: The population frequencies of species and the estimation of population parameters. Biometrika 1953, 40: 237-264.

    Article  Google Scholar

  • Grommen R, Dauw L, Verstraete W: Elevated salinity selects for a less diverse ammonia-oxidizing population in aquarium biofilters. FEMS Microbiol Ecol 2005, 52: 1-11. 10.1016/j.femsec.2004.10.001

    Article  Google Scholar

  • Hovanec TA, Delong EF: Comparative analysis of nitrifying bacteria associated with freshwater and marine aquaria. Appl Environ Microbiol 1996, 62: 2888-2896.

    Google Scholar

  • Keinänen-Toivola MM, Revetta RP, Santo Domingo JW: Identification of active bacterial communities in a model drinking water biofilm system using 16S rRNA-based clone libraries. FEMS Microbiol Lett 2006, 257: 182-188. 10.1111/j.1574-6968.2006.00167.x

    Article  Google Scholar

  • Kemp PF, Aller JY: Estimating prokaryotic diversity: When are 16S rDNA libraries large enough? Limnol Oceanogr Meth 2004, 2: 114-125.

    Article  Google Scholar

  • Kirchman DL: Microbial ecology of the oceans. Second edition. Hoboken: Wiley-Liss; 2008.

    Book  Google Scholar

  • Konopka A: What is microbial community ecology? ISME J 2009, 3: 1223-1230. 10.1038/ismej.2009.88

    Article  Google Scholar

  • Kormas KA, Neofitou C, Pachiadaki M, Koufostathi E: Changes of the bacterial assemblages throughout an urban drinking water distribution system. Environ Monit Assess 2010, 165: 27-38. 10.1007/s10661-009-0924-7

    Article  Google Scholar

  • Knop M: Ornamentals. In Aquaculture: Farming Aquatic Animals and Plants. Edited by: Lucas JS, Southgate PC. Oxford: Wiley-Blackwell; 2012.

    Google Scholar

  • Lane DJ: 16S/23S rRNA sequencing. In Nucleic acid techniques in bacterial systematics. Edited by: Stackenbrandt E, Goodfellow M. Chichester: John Wiley & Sons; 1991.

    Google Scholar

  • Lescenko P, Matlova L, Dvorska L, Bartos M, Vavra O, Navratil S, Novotny L, Pavlik I: Mycobacterial infection in aquarium fish. Vet Med 2003, 48: 71-78.

    Google Scholar

  • Lim LC, Wong CC: Use of the rotifer, Brachionus calyciflorus Pallas, in freshwater ornamental fish larviculture. Hydrobiologia 1997, 358: 269-273. 10.1023/A:1003161709237

    Article  Google Scholar

  • Luna-Figueroa J, Figueroa-Torres JY, Hernández de la Rosa LP: Efecto de alimentos con diferente contenido proteico en la reproducción del pez angel Pterophyllum scalare variedad perlada (Pises: Cichlidae). Cien. Mar 2000, 4: 3-9.

    Google Scholar

  • Lymperopoulou DS, Kormas KA, Karagouni AD: Variability of prokaryotic community structure in a drinking water reservoir (Marathonas, Greece). Microbes Environ 2012, 27: 1-8. 10.1264/jsme2.ME11253

    Article  Google Scholar

  • Massana R, Pedrós-Alió C, Casamayor EO, Gasol JM: Changes in marine bacterioplankton phylogenetic composition during incubations designed to measure biogeochemically significant parameters. Limnol Oceanogr 2001, 46: 1181-1188. 10.4319/lo.2001.46.5.1181

    Article  Google Scholar

  • Mente E, Pierce GJ, Santos MB, Neofitou C: Effect of feed and feeding in the culture of salmonids on the marine aquatic environment: a synthesis for European aquaculture. Aquacult Int 2006, 14: 499-522. 10.1007/s10499-006-9051-4

    Article  Google Scholar

  • Mente E, Stratakos A, Boziaris IS, Kormas KA, Karapanagiotidis I, Catsiki VA, Leondiadis L, Karalazos V: Sustainable aquaculture development: a case of environmentally friendly sea bream production in Greece. Sci Mar 2012, 76: 549-560. 10.3989/scimar.03411.07C

    Article  Google Scholar

  • Miranda CD, Zemelman R: Bacterial resistance to oxytetracycline in Chilean salmon farming. Aquaculture 2002, 212: 31-47. 10.1016/S0044-8486(02)00124-2

    Article  Google Scholar

  • Molinari LM, De Oliveira SD, Pedroso RB, De Lucas Rodrigues Bittencourt N, Nakamura CV, Ueda-Nakamura T, De Abreu Filho BA, Dias Filho BP: Bacterial microflora in the gastrointestinal tract of Nile tilapia, Oreochromis niloticus, cultured in a semi-intensive system. Acta Scient Biol Sci 2003, 25: 267-271.

    Google Scholar

  • Muyzer G, Teske A, Wirsen CO, Jannasch HW: Phylogenetic-relationships of Thiomicrospira species and their identification in deep-sea hydrothermal vent samples by denaturing gradient gel-electrophoresis of 16s rDNA fragments. Arch Microbiol 1995, 164: 165-172. 10.1007/BF02529967

    Article  Google Scholar

  • Newton RJ, Jones SE, Eiler A, McMahon KD, Bertilsson S: A guide to the natural history of freshwater lake Bacteria. Microbiol Mol Biol Rev 2011, 75: 14-49. 10.1128/MMBR.00028-10

    Article  Google Scholar

  • Nzeako BC, Okafor N, Inyang MM: Gross bacterial contamination associated with mortality in catfish fingerlings during transportation. South Afr J Wildl Res 2001, 31: 93-97.

    Google Scholar

  • Olapade OA, Gao X, Leff LG: Abundance of three bacterial populations in selected streams. Microb Ecol 2005, 49: 461-467. 10.1007/s00248-004-0030-x

    Article  Google Scholar

  • ØvreÃ¥s L, Curtis TP: Microbial diversity and ecology. In Biological diversity. Frontiers in measurement and assessment. Edited by: Magurran AE, McGill BJ. Oxford: Oxford University Press; 2011.

    Google Scholar

  • Pedrós-Alió C: The rare bacterial biosphere. Annu Rev Mar Sci 2012, 4: 449-466. 10.1146/annurev-marine-120710-100948

    Article  Google Scholar

  • Pladdies T, Babenzien H-D, Cypionka H: Distribution of Nevskia ramosa and other rosette-forming neustonic bacteria. Microb Ecol 2004, 47: 218-223.

    Article  Google Scholar

  • Poitelon JB, Joyeux M, Welté B, Duguet JP, Prestel E, Dubow MS: Variations of bacterial 16S rDNA phylotypes prior to and after chlorination for drinking water production from two surface water treatment plants. J Ind Microbiol Biotechnol 2010, 37: 117-128. 10.1007/s10295-009-0653-5

    Article  Google Scholar

  • Porter KG, Feig YS: The use of DAPI for identifying and counting aquatic microflora. Limnol Oceanogr 1980, 25: 943-948. 10.4319/lo.1980.25.5.0943

    Article  Google Scholar

  • Ramond J-B, Welz PJ, Cowan DA, Burton SG: Microbial community structure stability, a key parameter in monitoring the development of constructed wetland mesocosms during start-up. Res Microbiol 2012, 163: 28-35. 10.1016/j.resmic.2011.09.003

    Article  Google Scholar

  • Reid A, Buckley M: The rare biosphere. A report from the American Society of Microbiology. Washington DC: ASM Press; 2011.

    Google Scholar

  • Revetta RP, Pemberton A, Lamendella R, Iker B, Santo Domingo JW: Identification of bacterial populations in drinking water using 16S rRNA-based sequence analyses. Wat Res 2010, 44: 1353-1360. 10.1016/j.watres.2009.11.008

    Article  Google Scholar

  • Santmire JA, Leff LG: Temporal changes in the bacterial assemblage of a Northeast Ohio stream: a comparison of community and population-level responses. Arch Hydrobiol 2006, 166: 491-503. 10.1127/0003-9136/2006/0166-0491

    Article  Google Scholar

  • Sauder LA, Engel K, Stearns JC, Masella AP, Pawliszyn R, Neufeld JD: Aquarium nitrification revisited: Thaumarchaeota are the dominant ammonia oxidizers in freshwater aquarium biofilters. PLoS One 2011, 6: e23281. 10.1371/journal.pone.0023281

    Article  Google Scholar

  • Sherr EB, Sherr BF: Significance of predation by protists in aquatic microbial food webs. Antonie Van Leewenhoek 2002, 81: 293-308. 10.1023/A:1020591307260

    Article  Google Scholar

  • Simek K, Pernthaler J, Weinbauer MG, Hornák K, Dolan JR, Nedoma J, Masín M, Amann R: Changes in bacterial community composition and dynamics and viral mortality rates associated with enhanced flagellate grazing in a mesoeutrophic reservoir. Appl Environ Microbiol 2001, 67: 2723-2733. 10.1128/AEM.67.6.2723-2733.2001

    Article  Google Scholar

  • Sorgeloos P, Lavens P, Léger P, Tackaert W, Versichele D: Manual for the culture and use of brine shrimp Artemia in aquaculture. Ghent: University of Ghent; 1986:319.

    Google Scholar

  • Soriano-Salazar MB, Hernandez-Ocampo D: Tasa de crecimiento del pez angel Pterophyllum scalare en condiciones de laboratoriο. Acta Univers 2002, 12: 28-33.

    Google Scholar

  • Spiegelman D, Whissell G, Greer CW: A survey of the methods for the characterization of microbial consortia and communities. Can J Microbiol 2005, 51: 355-386. 10.1139/w05-003

    Article  Google Scholar

  • Sugita H, Nakamura H, Shimada T: Microbial communities associated with filter materials in recirculating aquaculture systems of freshwater fish. Aquaculture 2005, 243: 403-409. 10.1016/j.aquaculture.2004.09.028

    Article  Google Scholar

  • Tamura K, Dudley J, Nei M, Kumar S: MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0. Mol Biol Evolut 2007, 24: 1596-1599. 10.1093/molbev/msm092

    Article  Google Scholar

  • Torsvik V, ØvreÃ¥s L: Microbial diversity and function in soil: from genes to ecosystems. Curr Opin Microbiol 2002, 5: 240-245. 10.1016/S1369-5274(02)00324-7

    Article  Google Scholar

  • Trust TJ, Whitby JL: Antibiotic resistance of bacteria in water containing ornamental fishes. Antimicrob Agents Chemoth 1976, 10: 598-603. 10.1128/AAC.10.4.598

    Article  Google Scholar

  • Vlahos N, Hotos G, Kapetanios N: The effect of temperature on the conditioning of the filter bed in aquaria. Athens, Greece: 2nd International Congress on Aquaculture, Fisheries Technology and Environmental Management, Athens, 18–19 June 2004, Evgenidion Foundation; 2004.

    Google Scholar

  • Wommack KE, Colwell RR: Virioplankton: viruses in aquatic ecosystems. Microbiol Mol Biol Rev 2000, 64: 69-114. 10.1128/MMBR.64.1.69-114.2000

    Article  Google Scholar

  • Xie C-H, Yokota A: Reclassification of Alcaligenes latus strains IAM 12599T and IAM 12664 and Pseudomonas saccharophila as Azohydromonas lata gen. nov., comb. nov., Azohydromonas australica sp. nov. and Pelomonas saccharophila gen. nov., comb. nov., respectively. Int J Syst Evolut Microbiol 2005, 55: 2419-2425. 10.1099/ijs.0.63733-0

    Article  Google Scholar
