Effect of β-glucan on the immune response of early stage of Anabas testudineus (Bloch) challenged with fungus Saprolegnia parasitica
© Das et al.; licensee Springer. 2013
Received: 7 January 2013
Accepted: 24 April 2013
Published: 30 April 2013
The present study was carried out to study the effect of different dosages of β-glucan suspension on immune response and disease resistance in Anabas testudineus spawns against a fungal pathogen Saprolegnia parasitica. Eight day old spawns were exposed for 3 h in four different dosages of β-glucan suspension in phosphate buffered saline at the rate of 0, 5, 10, 15 mg l-1. The cell suspension of spawn was assayed for total protein, acid phosphate, lysozyme, bactericidal and NBT activity. The spawns were then challenged with 3x105 CFU ml-1 of S. parasitica. The survivability percentage and immunological parameters were assayed upto day 7. Exposure of fish for 3h to all the concentrations of β-glucan recorded a significant enhancement in the immunological parameters such as lysozyme activity, bactericidal activity and NBT activity by the end of day 7. The challenge study indicated least mortality in the groups exposed to 10 mgl-1 and 15 mgl-1 but 15 mgl-1 gives little higher survivability. Thus 3 h exposure of β-glucan suspension could reduce the mortality and increase the immunity of A. testudineus spawns against S. parasitica.
Saprolegnia is ubiquitous in freshwater ecosystems and is considered as the main genus of water molds responsible for significant fungal infections of freshwater fish and eggs (Noga 1996), especially from the egg stage through smoltification (Bruno & Wood 1999; Pickering 1994). Saprolegnia is an opportunist facultative parasite (Neish 1977), which is saprotrophic and necrotrophic (Bruno & Wood 1999). On fish, Saprolegnia invades epidermal tissues visible as white or grey patches of filamentous mycelium (Bruno & Wood 1999; Beakes et al.1994), generally beginning on the head or fins (Neish 1977; Willoughby 1994) and can spread over the entire surface of the body. Saprolegnia is characterized by an external, cotton-like appearance that radiates out in a circular, crescent-shaped or whorled pattern. The fungal spores may be transmitted by hatchery fish, wild fish, eggs, water supplies, and equipment (Bruno & Wood 1999).
A number of workers have reported Saprolegnia infection in fishes; salmonids (Beakes et al. 1994; Hatai & Hoshiai , Hatai & Hoshiai Hatai & Hoshiai 1994), teleosts (Bruno & Wood 1999), Channel catfish (Howe et al. 1999), pike (Willoughby 1985), bass (Noga 1996), elver and suckers (Roberts 1989), roach, orfe, carp, tench, lamprey, sturgeon, barramundi, tilapia, and mullet (Bruno & Wood 1999). It has also been associated with tropical fish, including the kissing gourami, guppy, swordfish and platyfish (Willoughby 1994; Roberts 1989). The air breathing teleost, Anabas testudineus, from an Indian river was also found to carry S. parasitica infections (Mohanta & Patra 1992).
Saprolegnia generally invades fish that have been stressed or otherwise have weakened immune systems (Bruno & Wood 1999). A number of chemicals such as malachite green (Willoughby & Roberts 1992; Bruno & Wood , Bruno & Wood Bruno & Wood 1999), 37% formaldehyde (Van Waters 1988), hydrogen peroxide (Fitzpatrick et al. 1995; Marking et al. 1994), sodium chloride at high concentrations (Pickering 1994;Marking et al. 1994), etc. are available for treatment of fungal infection but a few are approved for use in aquaculture. The reduction of stress and boosting up immune response by application of immunostimulants appears to be the single greatest factor to help fish resist saprolegniasis.
β-glucan are a group of glucose polymers which are the main structural components of cell-wall in fungi, plants and some bacteria (Brown & Gordon 2003). They can be derived from the cell walls of yeast, bacteria, fungi, and cereals such as oats, barley, and rye. They have a backbone of β (1–3)-linked β -D-glucopyranosyl units with side chains of different lengths. A variety of cell surface receptors bind β -glucan, including lectins, scavenger receptors, and integrins on monocyte/macrophages, neutrophils, and natural killer (NK) cells and various lymphocyte subpopulations (Brown & Gordon 2003). Engagement of these receptors by β -glucan may induce activation of leukocytes, phagocytic activity, production of inflammatory cytokines and chemokines, microbial killing, and initiate the development of adaptive immunity, all of which contribute to the anti-infective and antitumorigenic properties of β -glucan (Brown et al. 2003; Misra et al. 2006). β -Glucan has also been shown to enhance resistance of fish and crustacea against bacterial and viral infections (Chang et al. 2003; Misra et al. 2004; Misra et al. 2006).
The present experiment was designed to study the effect of β –glucan immersion in three different doses on immune response and survival of eight day old spawn of Anabas testudineus challenged with Saprolegnia parasitica.
Materials and methods
Anabas testudineus spawns of 8 days old were obtained from the farm of Central Institute of Freshwater Aquaculture (CIFA), Bhubaneswar, Orissa, India. The spawns were acclimatized in a circular plastic container of 20 l capacity in the laboratory of Fish Health Management Division, CIFA for two days. The spawns were fed with a formulated diet obtained from CIFA at 5% of the total body weight for two times a day.
β–glucan obtained from Barley (Sigma) in powder form was added to phosphate buffer saline (pH 7.4) and subsequently sonicated (Artek Sonic Dismembrator Model 150) using a microtip at a relative output of 0.6 and duty cycle of 40%. The concentration was adjusted as 5 mgl-1, 10 mgl-1 and 15 mgl-1 respectively by using sterile milliQ water (Millipore Corporation, India). Immersion was selected as the route of administration of β–glucan.
The spawns after acclimatization were divided into four major groups for exposure to different concentrations of β–glucan, such as Group A (0 mg l-1, control), Group B (5 mg l-1), Group C (10 mg l-1) and Group D (15 mg l-1). Fifty spawns were kept in each of the duplicate beaker (1L) for each treatment group. After bath exposure with β –glucan suspension for 3 h, four spawns were collected from each tank after a time interval of 3 h for evaluating changes in lysozyme activity, acid phosphate (AcP) activity, total protein content, bactericidal activity and superoxide anion assay. As it was difficult to draw blood from spawn with indistinctly developed internal organs, the entire body of four spawns taken at a time was aseptically placed in a macerator containing Hank’s Balanced Salt Solution (HBSS) and anticoagulant, heparin. The macerated sample was layered on to preform continuous gradients of 51% percoll (Pharmacia, Uppsala, Sweden) in 8.5 g l-1 NaCl and centrifuged at 800 g for 20 min at 4°C. The white cell band formed at the interface of the cell suspension and percoll layer was harvested with a Pasteur pipette, diluted ten folds with HBSS and recentrifuged at 800 g for 10 min at 4°C to remove residual percoll. The resulting pellet was again washed twice and centrifuged at 800 g for 10 min at 4°C. The resultant white band cell suspension was used for assaying lysozyme, acid phosphatase, bactericidal, superoxide anion activities and total protein content. After the third wash, the concentration and viability of leucocytes cell suspensions were determined in 0.2% trypan blue. The total protein content of the cell lysate was analysed using protein kit (Bangalore Genei Protein Kit, Bradford macro method) and bovine serum albumin as standard as per the manufacturers instructions.
After exposing in β–glucan suspension for 3 h, the spawns were removed from the glucan treated/untreated group and placed in normal freshwater. The spawns were divided into two sub-groups (32 nos. each) and each treatment group was challenged by immersing in viable fungal suspension of Saprolegnia parasitica at a concentration of 3×105 CFU ml-1 for seven days. Four spawns from the first sub-group of each treatment challenged with S. parasitica were taken on day 3 and day 7 post challenges for evaluating changes in lysozyme, acid phosphate and total protein content. Each test was repeated four times and mean of the sample was taken.
Lysozyme activity of the cell suspension
Lysozyme activity of cell suspension in each subgroup was measured by turbidimetric method described by Parry et al.(1965) using 0.2 mg ml-1 lyophilized Micrococcus luteus ATCC 49732 (DIFCO, BBL- Qualis lab) as the substrate in 0.05 M phosphate buffer (pH 6.2). Various amount of cell suspension (25-100 μL) were added to 2 ml of the bacterial cell and the absorbance was measured at 0.5 and 4.5 min intervals at 530 nm (25°C). One unit of lysozyme activity is defined as the amount of sample causing a decrease in absorbance of 0.001 min-1.
Bactericidal activity of the cell suspension
Bactericidal activity of the cell suspension was estimated by following the procedure of Kajita et al. (1990) with little modification. An equal volume (100 μl) of the spawn cell suspension and bacterial cell was mixed and incubated for 1h at 25°C. A blank control was prepared by replacing the cell suspension with sterile PBS. The mixture was then diluted with sterile PBS at a ratio of 1: 10. The diluted mixture (100 μl) was pour plated in nutrient agar and plates were incubated for 24 h at 37°C. The number of viable bacteria was determined by counting the colonies grown in nutrient agar plates.
Bactericidal activity in % = (No. of colonies in control- No. of colonies in sample × 100) / No. of colonies in control
NBT activity of the cell suspension
The NBT activity was measured according to Chung & Secombes (1988) with some modifications. At first, 96-well flat bottom microtitre plate was taken and coated with 100 μl poly-L-lysine solution (0.2% Sigma). To this, 100 μl cell suspension sample was added in 5 of the 96 wells of the microtitre plate and then incubated at 25°C for 2 h and then washed with HBSS. Then 100 μl of NBT solution (0.02 gm NBT + 0.050 μl methanol + 0.94 μl PBS + 0.010 μl bacterial suspension) was added, which contained 106 numbers of A. hydrophila cells/ml. Subsequently it was incubated at 25°C for 1h. Then the medium was removed and the reaction was terminated. Again washing was done (3 times) by addition of methanol, which was followed by air drying. Subsequently, the formazan in each well was dissolved with 120 μl of 2 M KOH and 140 μl of DMSO. The absorbance was measured at 655 nm in the ELISA reader (Biorad), with 405 nm as reference.
Acid Phosphatase activity
The acid phosphatase activity was measured using Acid phosphatase kit (Batch No. 14407/14507 manufactured by Accurex Biomedical Pvt. Ltd.) following the method of Hillman (1971). The working solution was prepared by dissolving the contents of the substrate bottle with diluent. One ml of the AcP working solution was added to 100 μl of sample. Absorbance was measured after 5 min at 405 nm and subsequently three more readings were recorded after 1 min interval. The concentration of AcP was calculated as u/l by using the formulae i.e., Conc. in 1u/l = 743 × Δ Abs./ min
The mean values of these parameters were recorded over five days and ANOVA followed by Duncan’s multiple range tests were performed on the data (SAS version 9.1) to find the difference at 5% (P ≤ 0.05) level. Simultaneously, the percentage survival of spawn in the different groups of each challenge treatment was recorded daily over 7 days.
There were changes in ACP activity, total protein content, lysozyme activity, bactericidal activity and superoxide anion assay in different glucan treated/ untreated groups of A testudineus spawns, though the number of leucocytes were adjusted to a fixed level of 105 cells ml-1.
The present work demonstrates the effect of multiple immersion dosages of β-glucan suspension on immune response and disease resistance in A. testudineus spawns against a fungal pathogen Saprolegnia parasitica.
As a first line of defense, mucous, epithelium from skin, gills and intestine and various peptides, lysozomal enzymes, complement factors and other lytic factors present in the serum prevent adherence and colonization of microorganisms (Alexander & Ingram 1992), resulting in the prevention of infection and diseases. In addition, macrophages which are innate immune cells present at hatching stage (Baulny et al. 1996) and innate immune factors constitute a second barrier against invading pathogens. The enhancements of lysozyme activity complement activity and bactericidal activity due to administration of β-glucan for a longer duration have been reported (Trinder 1969 Doumas et al. 1971 Bradford 1976 Dalmo et al. 1996). The effect of β-glucan on immunity and survival of Anabas testudineus against A. hydrophila was studied by Das et al. (2009). Based on previous observations, for exposure durations of 2 h and 3 h, it was found that the exposure of A. testudineus spawn to β-glucan at 10mgl-1 for 3 h followed by challenge with A. hydrophila provided better immunity and protection (Das et al. 2009). The present study was undertaken to document, the effect of β-glucan suspension on immune response and disease resistance of early stages of fish against fungal pathogen S. parasitica.
It has been shown that injection of laminarina β-1, 3 glucan typical of those present in fungal cell walls, induces immune responses in both adult and larval locusts (Goldsworthy et al. 2002; Mullen and Goldsworthy 2003). According to them, the activation of immune response varies in emerging adult as that of mature adults.
The total protein content of the cell suspension was found to change upon exposure to β glucan suspension of various concentrations over 3 h exposures as reported by Das et al. (2009). Following challenge with S. parasitica, the protein concentration was increased in all the groups as compared to control on day 3 and decreased significantly in groups B and C on day 7.
There was increase in lysozyme activity in all the treatment groups as compared to the control as reported in our previous work (Das et al. 2009). The post- challenge groups of fishes showed increased lysozomal enzymes but the increase was marginal as compared to challenge with A. hydrophila(Das et al. 2009). This indicates that lysozomal enzymes produced by the leucocytic cell suspension may be spared to counter act the fungal challenge.
Bactericidal activity of cell suspension was also increased upon exposure to 3 h β-glucan suspension at all doses but decreased followed by post challenge fish on day 3 and day 7 except experimental group C on day 7. Increased bactericidal activity was reported by Das et al. (2009) following β-glucan immunostimulation. Interestingly, A. hydrophila post-challenge increased the bactericidal activity (Das et al. 2009) and S. parasitica post-challenge decreased the bactericidal activity. Such decreased bactericidal properties of fish cell suspension involved in some innate and/or adaptive immune response are depressed in the cell suspension at the early stages which are utilized to fight against fungal infection.
Interestingly there is a rise in total NBT positive cells after exposure of β-glucan suspension for 3 h followed by fungal infection as reported with bacterial challenge (Das et al. 2009). Misra et al.(2005) reported a peak O2 - production during the NBT assay after feeding β–glucan at a dose of 500 mg kg-1 diet for 42 days. The role of β-glucan in our study was visible from the mortality pattern in the spawn for 7 days post challenge with S. parasitica which could be attributed to the increased activities of different peptides (Couso et al. 2003; Misra et al. 2005). Post challenged group showed increased phosphatase activities indicates higher breakdown of energy reserves, which was utilized by the growth and survival of fish (Das et al. 2009). Though, the acidphosphatase activity was decreased in prechallenged glucan stimulation at 5 and 15 mg ml-1 which might be corroborated with the findings of Sahu et al. (2008) and Das et al. (2009).

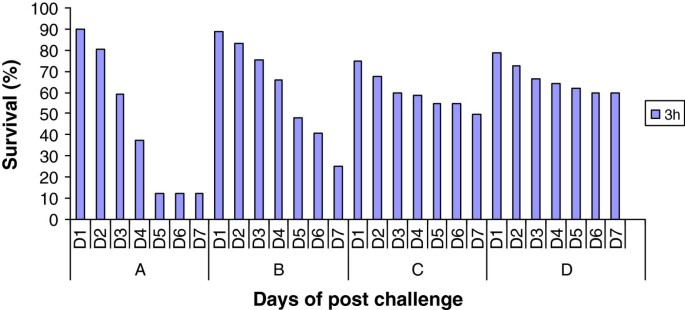

Exposure of β-glucan at different dosages in our study showed reduced mortality on the fish on the 7th day post challenge through bath immersion with the fungal pathogen S. parasitica. The protective effect of β-glucan against the fungus noticed in the challenge study irrespective of dosages. Further, it can be inferred from the bath challenge study that the increased protection against the fungus could be due to the enhanced immunity as evidenced by the increase in different immune parameters of the leucocytes cell suspension.
It is thus evident from the present experiment that β-glucan also protect the fish from fungal infection of S. parasitica at the 10 and 15 mgl-1 concentrations exposure for 3 h as noticed from the survival rate. But in earlier work, we have reported that β-glucan at a dose of 10 mgl-1 for 3 h is sufficient enough for giving protection against Aeromonas hydrophila infection. Though 15 mgl-1 gives little higher survival but 10 mgl-1 is equally good enough for protection (60% and 50% respectively). Especially spawn of 8 days old receives protection to both the bacteria and fungi and increased nonspecific immunity as evidenced from the leucocytes suspension parameters. This will have a great impact in the nursery phase rearing of this species where spawns could be exposed to glucan suspension for preventing loss due to fungal and bacterial infections and will provide healthy spawn for grow out culture practices to the farmers.
The authors are gratefully acknowledged the Director, Central Institute of Freshwater Aquaculture for providing all possible assistance and cooperation for conducting this investigation.
- Alexander JB, Ingram GA: Noncellular non-specific defence mechanism of fish. Ann Rev Fish Dis 1992, 2: 249-279.View ArticleGoogle Scholar
- Baulny MOD, Quentel C, Fournier V, Lamour F, Gourvello RL: Effect of long term oral administration of β- glucan as an immunostimulant or an adjuvant on some non-specific parameters of the immune response of turbot, Scophthalmus maximus . Dis Aquat Org 1996, 26: 139-147.View ArticleGoogle Scholar
- Beakes GW, Wood SE, Burr AW: Features which characterize Saprolegnia isolates from salmonid fish lesions – A review. In Salmon Saprolegniasis. Edited by: Mueller GJ. U.S. Department of Energy, Bonneville Power Administration, Portland, Oregon; 1994:33-66.Google Scholar
- Bradford MM: A rapid and sensitive method for the quantification of microgram quantities of protein. Anal Biochem 1976, 72: 248. 10.1016/0003-2697(76)90527-3View ArticleGoogle Scholar
- Brown GD, Gordon S: Fungal beta-glucans and mammalian immunity. Immunity 2003, 19: 311-315. 10.1016/S1074-7613(03)00233-4View ArticleGoogle Scholar
- Brown GD, Herre J, Williams DL, Willment JA, Marshall AS, Gordon S: Dectin-1 mediates the biological effects of beta-glucans. J Exp Med 2003, 197: 1119-1124. 10.1084/jem.20021890View ArticleGoogle Scholar
- Bruno DW, Wood BP: Saprolegnia and other Oomycetes . In Fish Diseases and Disorders, vol. III, Viral, Bacterial and Fungal Infections. Edited by: Woo PTK, Bruno DW. CABI Publishing, Wallingford, Owon, United Kingdom; 1999:599-659.Google Scholar
- Chang CF, Su MS, Chen HY, Liao IC: Dietary beta- 1,3-glucan effectively improves immunity and survival of Penaeus monodon challenged with white spot syndrome virus. Fish Shellfish Immunol 2003, 115: 297-310.View ArticleGoogle Scholar
- Chung S, Secombes CJ: Analysis of events occurring within teleost macrophages during the respiratory burst. Comp. Bio-chem Physiol 1988, 89(B):539-544.Google Scholar
- Couso N, Castro R, Magarinos B, Obach A, Lamas J: Effect of oral administration of glucans on the resistance of gilthead seabream pasteurellosis. Aquaculture 2003, 219: 99-109. 10.1016/S0044-8486(03)00019-XView ArticleGoogle Scholar
- Dalmo RA, Boywald J, Ingebrigstsen K, Seljelid R: The immunomodulatory effect of laminaran [β(1,3)-D-glucan] on Atlantic salmon, Salmon salar L, anterior kidney leucocytes after intraperitoneal, peroral and peranal administration. J Fish Dis 1996, 19: 449-457. 10.1111/j.1365-2761.1996.tb00385.xView ArticleGoogle Scholar
- Das BK, Debnath C, Patnaik P, Swain DK, Kumar K, Mishra BK: Effect β- glucan on immunity and survival of early stage of Anabas testudineus (Bloch). Fish Shellfish Immunol 2009, 27: 678-683. 10.1016/j.fsi.2009.08.002View ArticleGoogle Scholar
- Doumas BT, Watson WA, Biggs HG: Albumin standards and the measurement of serum albumin with bromocresol green. Clinical Chimica Acta 1971, 31: 87-96. 10.1016/0009-8981(71)90365-2View ArticleGoogle Scholar
- Fitzpatrick MS, Schreck CB, Chitwood RL: Evaluation of three candidate fungicides for treatment of adult spring chinook salmon. Prog Fish-Cul 1995, 57: 153-155. 10.1577/1548-8640(1995)057<0153:TNEOTC>2.3.CO;2View ArticleGoogle Scholar
- Goldsworthy G, Opoku-Ware K, Mullen L: Adipokinetic hormone enhances laminarin and bacterial lipopolysaccharide-induced activation of the prophenoloxidase cascade in the African migratory locust, Locusta migratoria . J Insect Physiol 2002, 48: 601-608. 10.1016/S0022-1910(02)00085-9View ArticleGoogle Scholar
- Hatai K, Hoshiai GI: Pathogenicity of Saprolegnia parasitica coker. In Salmon Saprolegniasis. Edited by: Mueller GJ. U.S. Department of Energy, Bonneville Power Administration, Portland, Oregon; 1994:87-98.Google Scholar
- Hillman G: Continuous photmetric measurement of prostrate acid phosphatase activity. Z Klin Chem Klin Biochem 1971, 9: 273.Google Scholar
- Howe GE, Gingerich WH, Dawson VK, Olson JJ: Efficacy of hydrogen peroxide for treating Saprolegniasis in channel catfish. J Aquat Anim Health 1999, 11: 222-230. 10.1577/1548-8667(1999)011<0222:EOHPFT>2.0.CO;2View ArticleGoogle Scholar
- Kajita Y, Sakai M, Atsuta S, Kobayash M: The immunomodulatory effects of levamisole on rainbow trout, Oncorhynchus mykiss . Fish Pathol 1990, 25: 93-98. 10.3147/jsfp.25.93View ArticleGoogle Scholar
- Marking LL, Rach JJ, Schreier TM: Evaluation of antifungal agents for fish culture. Prog. Fish-Cult 1994, 56: 225-231. 10.1577/1548-8640(1994)056<0225:AFSEOA>2.3.CO;2View ArticleGoogle Scholar
- Misra CK, Das BK, Mukherjee SC, Pattnaik P: Effect of multiple injections of β- glucan on non-specific immune response and disease resistance in Labeo rohita fingerlings. Fish Shellfish Immunol 2005, 20: 305-319.View ArticleGoogle Scholar
- Misra CK, Das BK, Mukherjee SC, Pattnaik P: Effcet of long term administration of dietary β- glucan on immunity, growth and survival of Labeo rohita fingerlings. Aquaculture 2006, 255: 82-94. 10.1016/j.aquaculture.2005.12.009View ArticleGoogle Scholar
- Misra CK, Das BK, Pradhan J, Pattnaik P, Sethi S, Mukherjee SC: Changes in lysosomal enzyme activity and protection against Vibrio infection in Macrobrachium rosenbergii (De Man) post larvae after bath immunostimulation with β- glucan. Fish Shellfish Immunol 2004, 17: 389-395. 10.1016/j.fsi.2004.04.008View ArticleGoogle Scholar
- Mohanta BK, Patra AK: Ulcerative fish disease in tropical air breathing teleost, Anadas testudineus (Bloch). J Freshwater Biol 1992, 4: 295-297.Google Scholar
- Mullen L, Goldsworthy GJ: Changes in lipophorins are related to the activation of phenoloxidase in the haemolymph of Locusta migratoriain response to injection of immunogens. Insect Biochem Mol Biol 2003, 33: 661-670. 10.1016/S0965-1748(03)00045-6View ArticleGoogle Scholar
- Neish GA: Observations on saprolegniasis of adult sockeye salmon, Oncorhynchus nerka (Walbaum). J Fish Biol 1977, 10: 513-522. 10.1111/j.1095-8649.1977.tb04084.xView ArticleGoogle Scholar
- Noga EJ: Fish Disease Diagnosis and Treatment. Mosby-Year Book, Inc, St. Louis, MO; 1996:367.Google Scholar
- Parry RM, Chandan RC, Shahani KM: A rapid and sensitive assay of muramidase. Proc Soc Exp Biol Ned 1965, 119: 384-386.View ArticleGoogle Scholar
- Pickering AD: Factors which predispose salmonid fish to Saprolegniasis. Portland, Oregon, U.S. Department of Energy, Bonneville Power Administration; 1994:67-84.Google Scholar
- Roberts RJ: Fish Pathology. 2nd edition. Bailliere Tindall Publishers. p, London, England; 1989. 467Google Scholar
- Sahu S, Das BK, Mishra BK, Pradhan J, Samal SK, Sarangi N: Effect of dietary Curcuma longa on enzymatic and immunological profiles of rohu, Labeo rohita (Ham.), infected with Aeromonas hydrophila . Aquacult Res 2008, 39: 1720-1730. 10.1111/j.1365-2109.2008.02048.xView ArticleGoogle Scholar
- Trinder P: Determination of glucose in blood using glucose oxidase with an alternative oxidase acceptor. Ann Clin Biochem 1969, 6: 2-4.Google Scholar
- Van Waters : Rogers Inc. Material safety data sheet. Van Waters and Rogers, Inc editors, Seattle, WA; 1988.Google Scholar
- Willoughby LG: Rapid preliminary screening of Saprolegnia on fish. J Fish Diseases 1985, 8: 473-476. 10.1111/j.1365-2761.1985.tb01282.xView ArticleGoogle Scholar
- Willoughby LG, Roberts RJ: Towards strategic use of fungicides against Saprolegnia parasitica in salmonid fish hatcheries. J Fish Dis 1992, 15: 1-13. 10.1111/j.1365-2761.1992.tb00631.xView ArticleGoogle Scholar
- Willoughby LG: Fungi and Fish Diseases. Pisces Press, Stirling, Scotland; 1994. 57 pGoogle Scholar
