Effectiveness of preoperative beta-blockade on intra-operative heart rate in vascular surgery cases conducted under regional or local anesthesia

Abstract

Background

Preoperative β-blockade has been posited to result in better outcomes for vascular surgery patients by attenuating acute hemodynamic changes associated with stress. However, the incremental effectiveness, if any, of β-blocker usage in blunting heart rate responsiveness for vascular surgery patients who avoid general anesthesia remains unknown.

Methods

We reviewed an existing database and identified 213 consecutive vascular surgery cases from 2005–2011 conducted without general anesthesia (i.e., under monitored anesthesia care or regional anesthesia) at a tertiary care Veterans Administration medical center and categorized patients based on presence or absence of preoperative β-blocker prescription. For this series of patients, with the primary outcome of maximum heart rate during the interval between operating room entry to surgical incision, we examined the association of maximal heart rate and preoperative β-blocker usage by performing crude and multivariate linear regression, adjusting for relevant patient factors.

Results

Of 213 eligible cases, 137 were prescribed preoperative β- blockers, and 76 were not. The two groups were comparable across baseline patient factors and intraoperative medication doses. The β-blocker group experienced lower maximal heart rates during the period of evaluation compared to the non-β-blocker group (85 ± 22 bpm vs. 98 ± 36 bpm, respectively; p = 0.002). Adjusted linear regression confirmed a statistically-significant association between lower maximal heart rate and the use of β-blockers (Beta = -11.5; 95% CI [-3.7, -19.3] p = 0.004).

Conclusions

The addition of preoperative β-blockers, even when general anesthesia is avoided, may be beneficial in further attenuating stress-induced hemodynamic changes for vascular surgery patients.

Introduction

Vascular surgery patients continue to be a high risk population for perioperative cardiac morbidity and mortality (Fleisher et al. 2007). When managing these patients during the vulnerable period surrounding surgery, both β-blockers and avoidance of general anesthesia (i.e., choosing local or regional anesthesia alternatives) have been posited to result in better outcomes (Fleisher et al. 2009; Wu and Fleisher 2000). By improving myocardial oxygen balance, stabilizing coronary plaques, and increasing thresholds for developing fatal arrhythmias, β-blocker therapy may help to decrease adverse cardiac events for patients with underlying coronary artery disease and/or rate-related ischemia (López-Sendó et al. 2004). By avoiding general anesthesia, regional anesthesia or monitored anesthesia care (MAC) with local anesthesia techniques may prevent acute hemodynamic changes such as tachycardia commonly observed during anesthetic induction with airway instrumentation (Moraca et al. 2003; Beattie et al. 2001; Parker et al. 2000; Rerkasem and Rothwell 2008). These brief but intense episodes of tachycardia are of particular concern for patients with severe congestive heart failure or pulmonary hypertension, which are not uncommon comorbidities in vascular surgery patients (Beattie et al. 2008).

Our group has previously demonstrated that for patients undergoing general anesthesia for vascular surgery, preoperative β-blockade is associated with decreased maximal heart rates for the period prior to surgical incision (Mudumbai et al. 2012). The added benefit, if any, of preoperative β-blockade in addition to avoiding general anesthesia in attenuating heart rate responsiveness during surgery has not been previously investigated. We hypothesized that vascular surgery patients taking β-blockers preoperatively and who avoid general anesthesia will experience lower maximal heart rates during the intraoperative period prior to surgical incision compared with those not taking β-blockers.

Subjects and methods

With institutional review board approval and waiver of informed consent from our affiliated university, we created a database of adult patients who successively underwent elective or emergent vascular surgery from 2005–2011 at a tertiary care Veterans Administration (VA) medical center using the VA integrated electronic health record, VISTA, International Classification of Diseases (ICD)-9 diagnosis codes, and Current Procedural Terminology (CPT) codes. For the current study, only cases whose administrative data indicated the use of monitored anesthesia care or regional anesthesia were included; documentation of general anesthesia or presence of an inhaled anesthetic agent on the intraoperative anesthetic record represented criteria for exclusion. We aggregated each patient’s demographic and preoperative prescription information. Details of surgery such as key timepoints (i.e., entry to operating room, surgical incision), procedural duration, the type of anesthesia (e.g., local/MAC or regional), and type of procedure were extracted from the electronic health record and used to identify eligible cases. After chart review, we grouped patients based on their use of preoperative β-blockers; patients with a documented active oral β-blocker prescription for ≥ 1 month before surgery were included in the β-blocker group while all others were included in the no β-blocker group. The present study employed methods similar to a previous study although the cases selected represented a distinct and separate sample and did not overlap with the sample used for the previous study (Mudumbai et al. 2012).

Outcomes

The primary outcome was maximal heart rate observed during the interval between entry to the operating room (OR) and surgical incision, which we defined as the pre-surgical incision (PSI) period. Secondary outcomes included doses of intraoperative β-blockers, doses of other medications (e.g., sedatives, opioids, vasopressors), and hemodynamic variables (e.g., heart rate, systolic and diastolic blood pressure) and cardiac rhythm during the PSI period and throughout the entire operation. We also evaluated incident major adverse cardiac event, stroke, and all-cause 30-day mortality for each group. Intraoperative hemodynamic and medication data for each patient were collected from our institution’s anesthesia information management system (AIMS) database (PICIS 7.2 and 8.1; Picis Inc, Wakefield, MA, USA) and linked to the patient’s other data using social security number as a key.

Statistical analysis

Normality of distribution was evaluated using the Kolmogorov-Smirnov test. Categorical variables were compared using the chi-square test or Fisher’s exact test when appropriate (n < 5 in any field). For continuous variables, we used Student’s t-test for normally-distributed data or the Wilcoxon rank-sum test for non-normal distributions. We conducted crude and adjusted ordinary least squares adjusted linear regression to evaluate the potential association between maximal heart rate during the PSI period and preoperative β-blocker use. The following factors were included as potential confounders a priori for the adjusted linear regression: age, body mass index, and medications given during the PSI period (e.g., opioids, sedatives, propofol or etomidate, vasopressors, intraoperative β-blocker). With the primary outcome not normally distributed, we constructed a model to test the association between the logarithm of maximal heart rate and preoperative β-blocker use with adjustment for patient factors. To account for skewed distributions and dose-dependent non-linear effects of medications given in the PSI period on heart rate, a third model included these medication dosages converted into categorical variables based on tertiles (i.e., low, moderate, and high dose). We also compared the number of patients who were administered additional β-blockade between our two groups. Statistical analyses were performed using Stata 12.1 (Stata Corporation, College Station, TX, USA) with a two-sided p ≤ 0.05 considered statistically-significant.

Results

Two hundred thirteen cases were eligible for analysis (Figure 1). Table 1 presents patient demographic, morphometric information, surgical measures, and medication doses for each group based on preoperative β-blocker usage. Prescriptions for preoperative β-blockers were identified for 64% of patients. Table 2 presents surgical procedures and anesthetic techniques for both groups; approximately 75% of our cases were conducted under MAC.

Figure 1
figure 1

Selection of patients.

Table 1 Patient, surgical characteristics, and medications for pre-surgical incision period
Table 2 Vascular surgical procedures and anesthetic techniques

Primary outcome

Maximal heart rate during the PSI period was lower for the β-blocker group compared to the non-β-blocker group (85 ± 22 bpm vs. 98 ± 36 bpm, respectively; p = 0.002, Figure 2). This statistically-significant association between a lower maximal heart rate and the use of β-blockers (Beta = -11.5; 95% CI [-3.7, -19.3]; p = 0.004) withstood adjustment for relevant patient factors. In the multivariate regression, beta-coefficients for propofol, etomidate, and phenylephrine in the linear regression were statistically-significant but low: propofol (Beta = 0.10; 95% CI [0.04, 0.16]; p = 0.001); etomidate (Beta = 0.52; 95% CI [0.07, 0.90]; p = 0.020); and phenylephrine (Beta = 0.02; 95% CI [0.004, 0.04]; p = 0.020).

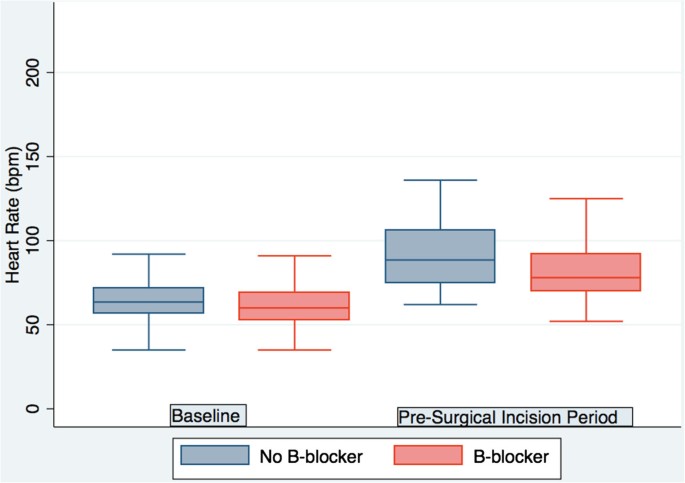

Figure 2
figure 2

Box-plots of heart rate at baseline and maximal heart rate during the pre-surgical incision period. Baseline values represent data collected upon entry to the operating room; bpm = beats per minute; boxes represent the 25th-75th percentiles; whiskers represent 5-95th percentiles. The β-blocker group experienced lower maximal heart rates compared to the non-β-blocker group (85 ± 22 bpm vs. 98 ± 36 bpm, respectively; p = 0.002).

The results from our initial model were confirmed by the two alternative regression analyses. First, when using the logarithm of maximal heart rate as an outcome, the largest effect was again seen with preoperative β-blocker use (Beta = -0.097; 95% CI [-0.15, -0.31]; p = 0.002), which was equivalent to a 10-bpm decrease in maximal heart rate. Second, a similar association between lower maximal heart rate and the use of β-blockers (Beta = -11.4; 95% CI [-18.2, -4.5]; p = 0.001) was observed after we converted our PSI period medication doses into low, medium, and high tertiles. A post-hoc calculation revealed a power of 89% to detect a difference of 13 bpm with the present study.

Secondary outcomes

There was no difference between groups regarding intraoperative dosing of β-blockers or the number of patients who were given additional β-blockade (Table 3). The non-β-blocker group had lower systolic blood pressure on entry to the OR compared to the β-blocker group (125 ± 29 mmHg vs. 135 ± 30 mmHg, respectively; p = 0.036) but higher maximal heart rate during the entire operation (103 ± 37 vs. 88 ± 22, respectively, p < 0.001). There were no differences in other intraoperative hemodynamic parameters. The majority of patients in both groups, 113/137 β-blocker and 57/76 non-β-blocker, were in normal sinus rhythm for the PSI period (p = 0.210). Within 30 days after surgery, we found no new instances of major adverse cardiac event or stroke for either group; 2 patients died in the β-blocker group compared to 1 patient in the non-β-blocker group (Relative Risk = 0.93; 95% CI [0.19-4.70]).

Table 3 Intra-operative β-blocker doses for entire surgical case

Discussion

Preoperative β-blockade with local or regional anesthesia for vascular surgery is associated with lower maximal heart rate intraoperatively compared to local or regional anesthesia alone. These results support the findings of a previous study that demonstrated the effectiveness of β-blockade on heart rate control during the induction period for vascular surgery patients undergoing general anesthesia (Mudumbai et al. 2012). Unlike the previous study, all patients in the present study had average maximal heart rates below 100 bpm regardless of preoperative β-blocker status. Since heart rates over 100 bpm are associated with an increase in myocardial infarction, our study results suggest a potential advantage in avoiding general anesthesia when appropriate for the surgical procedure and that preoperative β-blockade in the perioperative management of high-risk vascular surgery patients may offer additional effects in terms of heart rate control (Beattie et al. 2008).

Although this topic continues to be debated, published recommendations based on randomized controlled trials suggest that vascular surgery patients represent a unique cohort in which the advantages of perioperative β-blockade may outweigh risks (Fleisher et al. 2009; López-Sendó et al. 2004). However, patterns of intraoperative heart rate and medication-induced control during stressful periods and any association with cardiac morbidity in high-risk patients are collectively an active area of research (Fleisher and Poldermans 2008). The present study is the first to examine the effectiveness of preoperative β-blockade during the intraoperative period in a cohort of actual vascular surgery patients undergoing regional or monitored anesthesia care under situations of routine clinical practice. Although the 10-bpm decrease in maximal heart rate in favor of the β-blocker group did not directly translate into overall morbidity and mortality benefits, published studies have shown that elevated heart rates in 10-bpm increments may be associated with increased risk of myocardial ischemia, troponin-T release, and long-term mortality (Feringa et al. 2006). We did note a higher relative risk for 30-day mortality in our β-blocker population-similar to those of the POISE trial (Group et al. 2008). Since our study was neither designed nor powered to study 30-day mortality, incident major adverse cardiac event or stroke, we do not draw any definitive conclusions about these findings.

Preoperative β-blockade and intraoperative heart rate control

The 10-bpm difference during the PSI period in favor of the β-blocker group in this study is clinically relevant given recent recommendations that heart rate should be tightly controlled within a range of 60–80 bpm with β-blockers throughout the perioperative period. Although both groups’ average maximal heart rates were over 80 bpm, the β-blocker group maintained heart rates much closer to the target range during the PSI period and entire operation compared to the non-β-blocker group.

Despite the use of regional or monitored anesthesia care and avoidance of anesthetic induction and airway manipulation, the PSI period remains a vulnerable period of physiologic stress for vascular surgery patients. One source of stress and hemodynamic instability during the PSI period may be the administration of site-specific local anesthetic or regional block (Tuman et al. 1991; Christopherson et al. 1993; Christopherson et al. 1996). Since patients are awake or receiving monitored anesthesia care, they may exhibit increases in heart rate due to anxiety, positioning, needlestick stimulation, pain from the local anesthetic itself, pain from manipulation of the affected body part, or inadvertent intravascular injection of epinephrine-containing local anesthetic solutions. In addition, a significant percentage of our patients (54% in the control and 74% in the intervention group) underwent arterio-venous (AV) fistulae and grafts. There are important clinical and physiologic differences in the PSI period between AV procedures and other vascular surgery procedures (e.g., peripheral revascularization, amputation); these differences may also contribute to observed maximum heart rates. Regardless of the actual procedure they undergo, increases in heart rate for these high-risk patients may disrupt the fragile myocardial oxygen supply/demand balance, leading to myocardial ischemia or cardiac dysrythmias. The PIRAT study involving patients undergoing lower extremity vascular surgery under epidural or general anesthesia has demonstrated an association between rapid heart rate changes (> 20 bpm in 5 minutes) and intraoperative myocardial ischemia (Christopherson et al. 1996). Following surgical incision, these patients still experience physiologic perturbations related to the surgical procedure and arguably may be more hemodynamically responsive since they are not under general anesthesia. The results of the present study suggest β-blocker-associated heart rate control throughout the intraoperative period beyond the PSI interval. Future effectiveness studies are necessary to help refine existing protocols for appropriate medication selection and target heart rates.

Patterns of intraoperative medication use

Prior to surgical incision, non-β-blocked patients receive higher doses of opioids and sedatives and lower doses of β-blockers than preoperatively β-blocked patients. We speculate that, during the PSI period, anesthesiologists are likely to interpret elevated heart rate for non-β-blocked patients as pain or anxiety. After surgical incision, intraoperative doses of β-blockers are the same between groups, suggesting that anesthesiologists are more likely to interpret any increase in heart rate as not pain-related when the surgery is performed under local or regional anesthesia and feel administering β-blockers to control heart rate. These hypotheses related to medication administration patterns by providers and perioperative heart rate control must be more rigorously studied (Freundlich and Kheterpal 2011; Kheterpal 2009; Mukherjee and Eagle 2003).

Study limitations

Since this is a retrospective cohort study, we can only identify associations and not draw definitive conclusions regarding causality between preoperative β-blockade and heart rate control. However, we designed this study as an effectiveness study and took several steps to minimize bias (Freundlich and Kheterpal 2011; Iglehart 2009). By focusing on the PSI period, we attempted to measure the effects of preoperative β-blockade without the confounders of surgical stimuli and hemodynamic shifts from blood loss that can also affect heart rate. We attempted to control for the effects of other medications in our main regression model and sensitivity analysis. We acknowledge that anesthesiologists may have altered their perioperative management for known β-blocker patients, and we attempted to minimize this source of bias by including a consecutive series of surgical patients within a broad time frame including years before publication of the ACC-AHA recommendations (Fleisher et al. 2007; Fleisher et al. 2009). Another limitation of the present study is the use of prescription records for assignment to β-blocker or non-β-blocker groups rather than actual medication administration data (not available for outpatients); therefore, we employed intent-to-treat analysis to account for non-compliance and inadvertent cross-overs (Lachin 2000). The present study did not specifically study the inclusion of epinephrine in local anesthetic solutions, the effects of other cardiovascular medications and the potential interactions between these medications and β-blockers, so this represents another area for future investigation (Cleophas et al. 2007). Lastly, this study was performed at one tertiary care, university-affiliated VA medical center, so the results may not be applicable to every institution or practice. For example, the overrepresentation of male patients in our sample, while typical of VA hospitals, limits generalizability to females. However, the sample size and duration of study, conditions of routine clinical practice, and heterogeneity of providers support the external validity of our study within this demographic.

Conclusion

In summary, in a cohort of “real-world” vascular surgery patients who avoided general anesthesia, preoperative β-blockade is associated with a decrease in maximal heart rate observed during the PSI period. A lowered heart rate may offer potential protection against rate-induced myocardial ischemia for high-risk patients. Future studies are necessary to evaluate perioperative hemodynamic and medication administration patterns, optimal medication selection, and potential effects on postoperative morbidity and mortality for a wider variety of surgical patients.

Abbreviations

PSI:

Pre-surgical period

MAC:

Monitored anesthesia care

OR:

Operating room

VA:

Veterans Administration

AV:

Arterio-venous.

References

  • Beattie WS, Badner NH, Choi P: Epidural analgesia reduces postoperative myocardial infarction: a meta-analysis. Anesth Analg 2001, 93(4):853-858. 10.1097/00000539-200110000-00010

    Article  Google Scholar

  • Beattie WS, Wijeysundera DN, Karkouti K, McCluskey S, Tait G: Does tight heart rate control improve beta-blocker efficacy? An updated analysis of the noncardiac surgical randomized trials. Anesth Analg 2008, 106(4):1039-1048. 10.1213/ane.0b013e318163f6a9

    Article  Google Scholar

  • Christopherson R, Beattie C, Frank SM, Norris EJ, Meinert CL, Gottlieb SO, Yates H, Rock P, Parker SD, Perler BA: Perioperative morbidity in patients randomized to epidural or general anesthesia for lower extremity vascular surgery. Perioperative Ischemia Randomized Anesthesia Trial Study Group. Anesthesiology 1993, 79(3):422-434. 10.1097/00000542-199309000-00004

    Article  Google Scholar

  • Christopherson R, Glavan NJ, Norris EJ, Beattie C, Rock P, Frank SM, Gottlieb SO: Control of blood pressure and heart rate in patients randomized to epidural or general anesthesia for lower extremity vascular surgery. Perioperative Ischemia Randomized Anesthesia Trial (PIRAT) Study Group. J Clin Anesth 1996, 8(7):578-584. 10.1016/S0952-8180(96)00139-0

    Article  Google Scholar

  • Cleophas TJ, Zwinderman AH, van Ouwerkerk B, Sobh M: Cardiovascular drug trials: how to examine interaction, and why so. Neth Heart J 2007, 15(2):61-66. 10.1007/BF03085956

    Article  Google Scholar

  • Feringa HHH, Bax JJ, Boersma E, Kertai MD, Meij SH, Galal W, Schouten O, Thomson IR, Klootwijk P, van Sambeek MRHM, Klein J, Poldermans D: High-dose beta-blockers and tight heart rate control reduce myocardial ischemia and troponin T release in vascular surgery patients. Circulation 2006, 114(1_suppl):I-344-I-349.

    Article  Google Scholar

  • Fleisher LA, Beckman JA, Brown KA, Calkins H, Chaikof EL, Fleischmann KE, Freeman WK, Froehlich JB, Kasper EK, Kersten JR, Riegel B, Robb JF: ACC/AHA 2007 Guidelines on Perioperative Cardiovascular Evaluation and Care for Noncardiac Surgery: Executive Summary: A Report of the American College of Cardiology/American Heart Association Task Force on Practice Guidelines (Writing Committee to Revise the 2002 Guidelines on Perioperative Cardiovascular Evaluation for Noncardiac Surgery). Circulation 2007, 116(17):1971-1996. 10.1161/CIRCULATIONAHA.107.185700

    Article  Google Scholar

  • Fleisher LA, Beckman JA, Brown KA, Calkins H, Chaikof EL, Fleischmann KE, Freeman WK, Froehlich JB, Kasper EK, Kersten JR, Riegel B, Robb JF: 2009 ACCF/AHA focused update on perioperative beta blockade incorporated into the ACC/AHA 2007 guidelines on perioperative cardiovascular evaluation and care for noncardiac surgery. J Am Coll Cardiol 2009, 54(22):e13-e118. 10.1016/j.jacc.2009.07.010

    Article  Google Scholar

  • Fleisher LA, Poldermans D: Perioperative beta blockade: where do we go from here? Lancet 2008, 371(9627):1813-1814. 10.1016/S0140-6736(08)60662-5

    Article  Google Scholar

  • Freundlich RE, Kheterpal S: Perioperative effectiveness research using large databases. Best Pract Res Clin Anaesthesiol 2011, 25(4):489-498. 10.1016/j.bpa.2011.08.008

    Article  Google Scholar

  • Group PS, Devereaux PJ, Yang H, Yusuf S, Guyatt G, Leslie K, Villar JC, Xavier D, Chrolavicius S, Greenspan L, Pogue J, Pais P, Liu L, Xu S, Malaga G, Avezum A, Chan M, Montori VM, Jacka M, Choi P: Effects of extended-release metoprolol succinate in patients undergoing non-cardiac surgery (POISE trial): a randomised controlled trial. Lancet 2008, 371(9627):1839-1847.

    Article  Google Scholar

  • Iglehart JK: Prioritizing comparative-effectiveness research–IOM recommendations. N Engl J Med 2009, 361(4):325-328. 10.1056/NEJMp0904133

    Article  Google Scholar

  • Kheterpal S: Perioperative comparative effectiveness research: an opportunity calling. Anesthesiology 2009, 111(6):1180-1182. 10.1097/ALN.0b013e3181bfabb4

    Article  Google Scholar

  • Lachin JM: Statistical considerations in the intent-to-treat principle. Control Clin Trials 2000, 21(3):167-189. 10.1016/S0197-2456(00)00046-5

    Article  Google Scholar

  • López-Sendó J, Swedberg K, McMurray J, Tamargo J, Maggioni AP, Dargie H, Tendera M, Waagstein F, Kjekshus J, Lechat P, Pedersen CT, Priori SG, Alonso Garcia MA, Blanc J-J, Budaj A, Cowie M, Dean V, Deckers J, Fernandez Burgos E, Lekakis J, Lindahl B, Mazzotta G, McGregor K, Morais J, Oto A, Smiseth OA, Ardissino D, Avendano C, Lundqvist CB, ment DC, et al.: Expert consensus document on β-adrenergic receptor blockers. Eur Heart J 2004, 25(15):1341-1362.

    Article  Google Scholar

  • Moraca RJ, Sheldon DG, Thirlby RC: The role of epidural anesthesia and analgesia in surgical practice. Ann Surg 2003, 238(5):663-673. 10.1097/01.sla.0000094300.36689.ad

    Article  Google Scholar

  • Mudumbai SC, Wagner T, Mahajan S, King R, Heidenreich PA, Hlatky M, Wallace A, Mariano ER: Vascular surgery patients prescribed preoperative beta-blockers experienced a decrease in the maximal heart rate observed during induction of general anesthesia. J Cardiothorac Vasc Anesth 2012, 26(3):414-419. 10.1053/j.jvca.2011.09.027

    Article  Google Scholar

  • Mukherjee D, Eagle KA: Improving quality of care in the real world: efficacy versus effectiveness? Am Heart J 2003, 146(6):946-947. 10.1016/S0002-8703(03)00523-4

    Article  Google Scholar

  • Parker MJ, Unwin SC, Handoll HH, Griffiths R: General versus spinal/epidural anaesthesia for surgery for hip fractures in adults. Cochrane Database Syst Rev 2000, 4: CD000521.

    Google Scholar

  • Rerkasem K, Rothwell PM: Local versus general anaesthesia for carotid endarterectomy. Cochrane Database Syst Rev 2008, 4: CD000126.

    Google Scholar

  • Tuman KJ, McCarthy RJ, March RJ, DeLaria GA, Patel RV, Ivankovich AD: Effects of epidural anesthesia and analgesia on coagulation and outcome after major vascular surgery. Anesth Analg 1991, 73(6):696-704.

    Article  Google Scholar

  • Wu CL, Fleisher LA: Outcomes research in regional anesthesia and analgesia. Anesth Analg 2000, 91(5):1232-1242.

    Google Scholar

Download references

Acknowledgements

We would like to thank Dr. Ronald Pearl, Chair, and Dr. Rona Giffard, Vice-Chair for Research, both from the Department of Anesthesiology, Stanford University, for their support of our research.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Seshadri C Mudumbai.

Additional information

Competing interests

The authors declare that they have no competing interest.

Authors’ contributions

SM planned and performed the study, has seen the original study data, conducted the analysis of the data, and drafted the manuscript.EM planned the study and helped draft the manuscript. SM (3rd co-author) and RK helped provide the data and assisted with analyses. TW, PH, MH, and AW helped planned the study and advised on interpretation. All authors read and approved the final manuscript.
